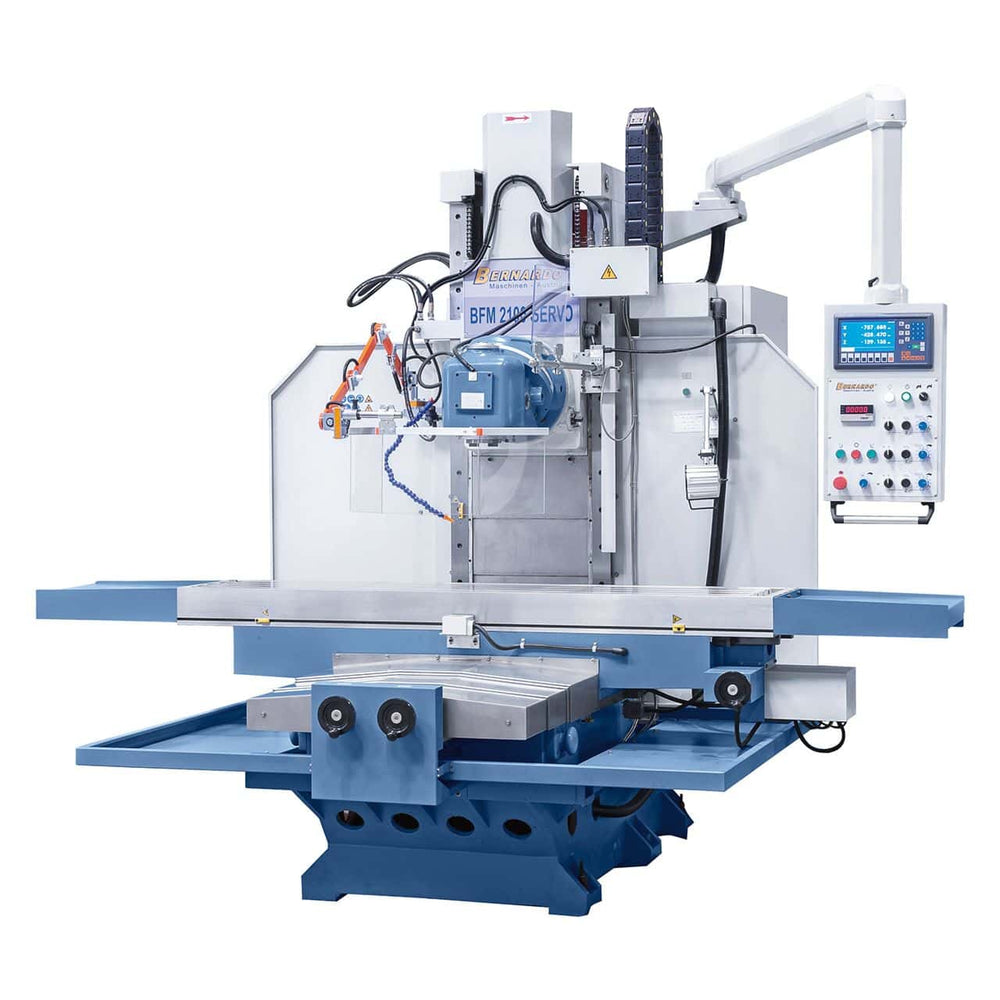

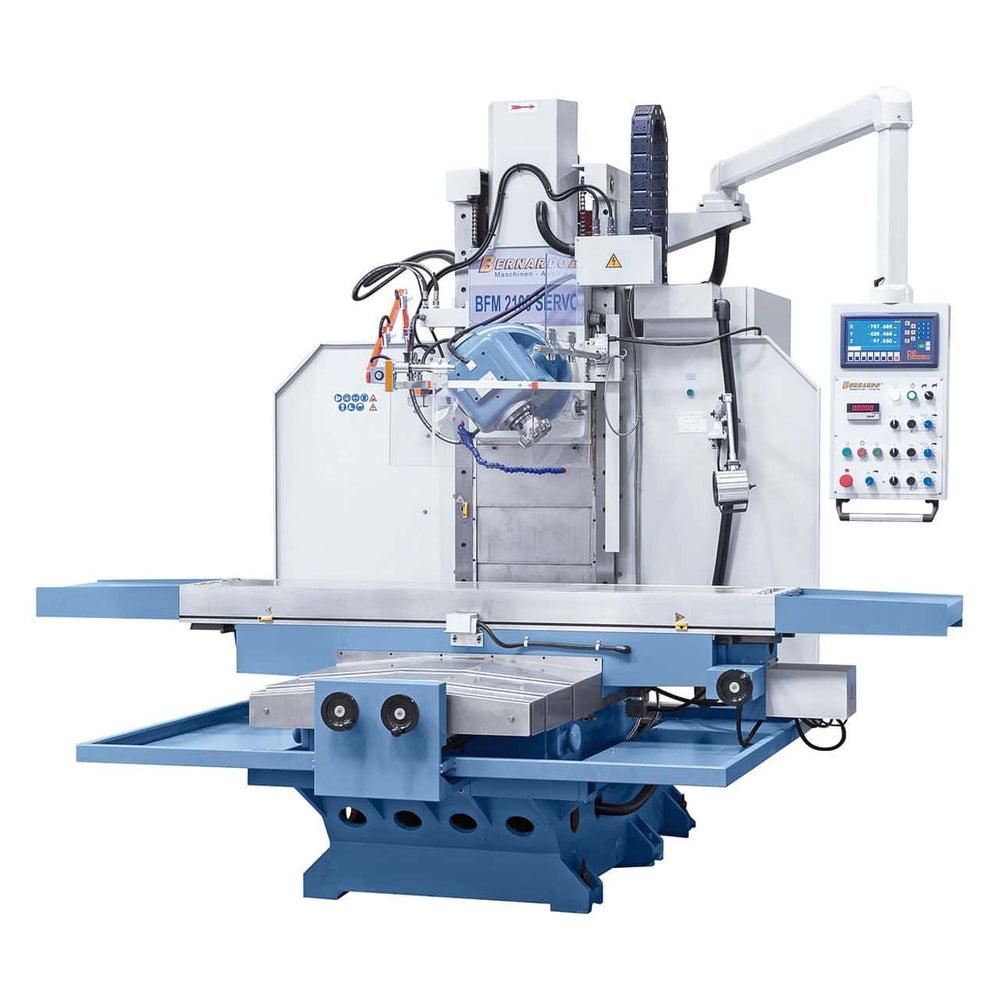

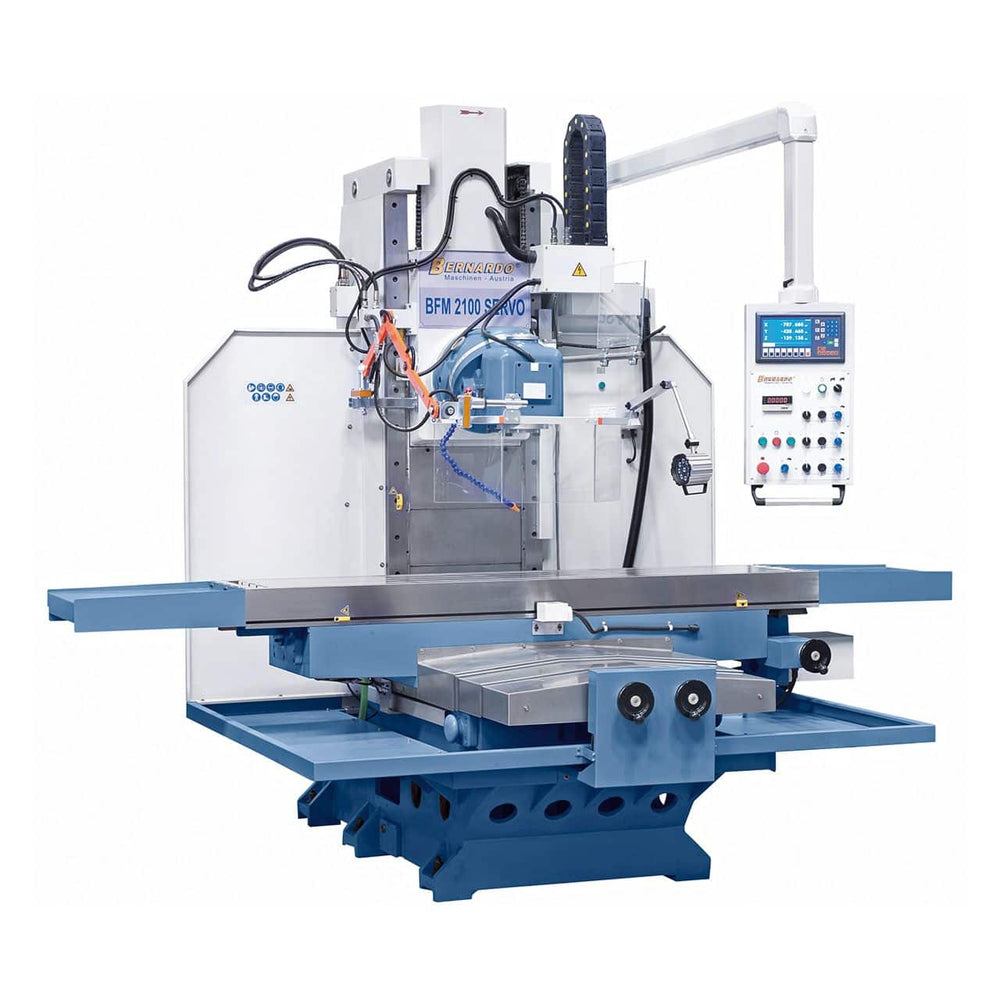

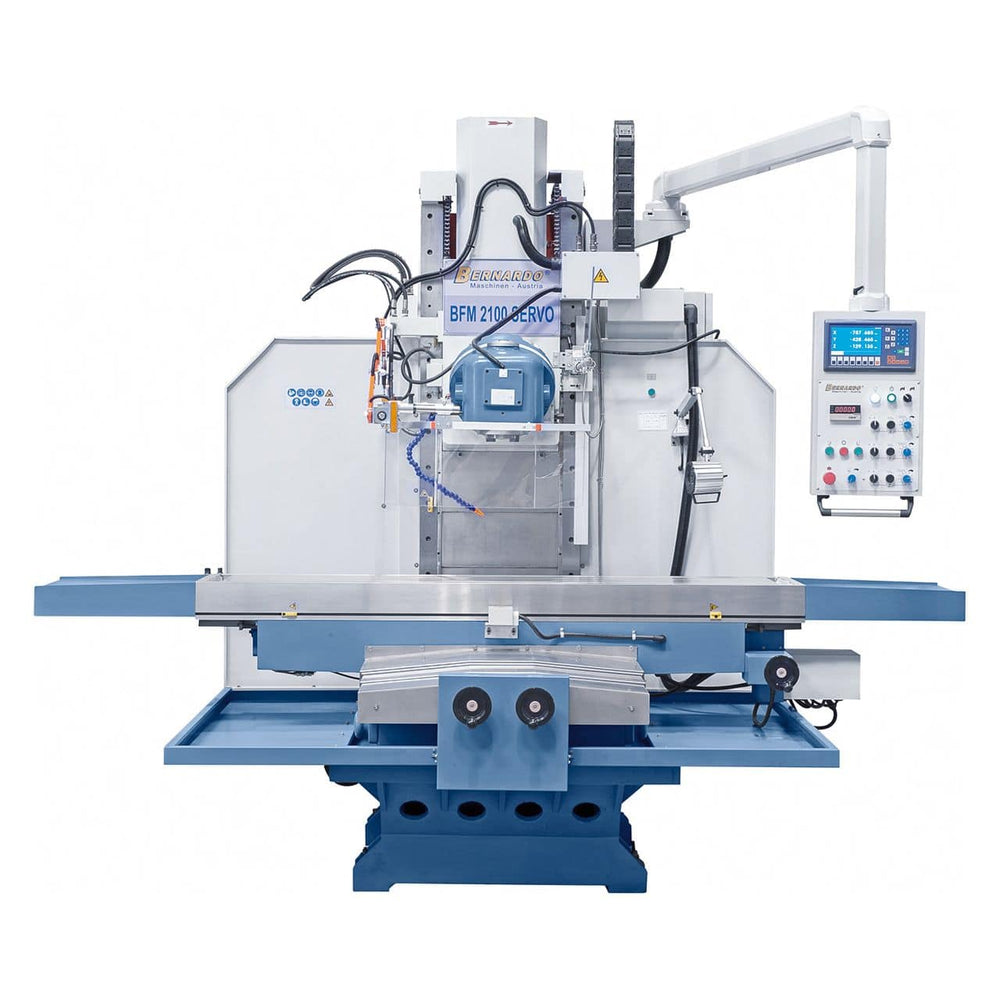

BFM 2100 Servo Benchtop Milling Machine with 3-Axis Digital Display ES-12 H
BFM 2100 Servo Benchtop Milling Machine with 3-Axis Digital Display ES-12 H is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
BFM 2100 Servo Benchtop Milling Machine with 3-Axis Digital Display...
-
Description
-
Technical Specifications
-
Product safety
-
Reviews
Description
Property
- Continuous spindle speed with gear reduction for an optimal torque curve and virtually constant speed under load
- Very high table load thanks to the massive cast iron construction

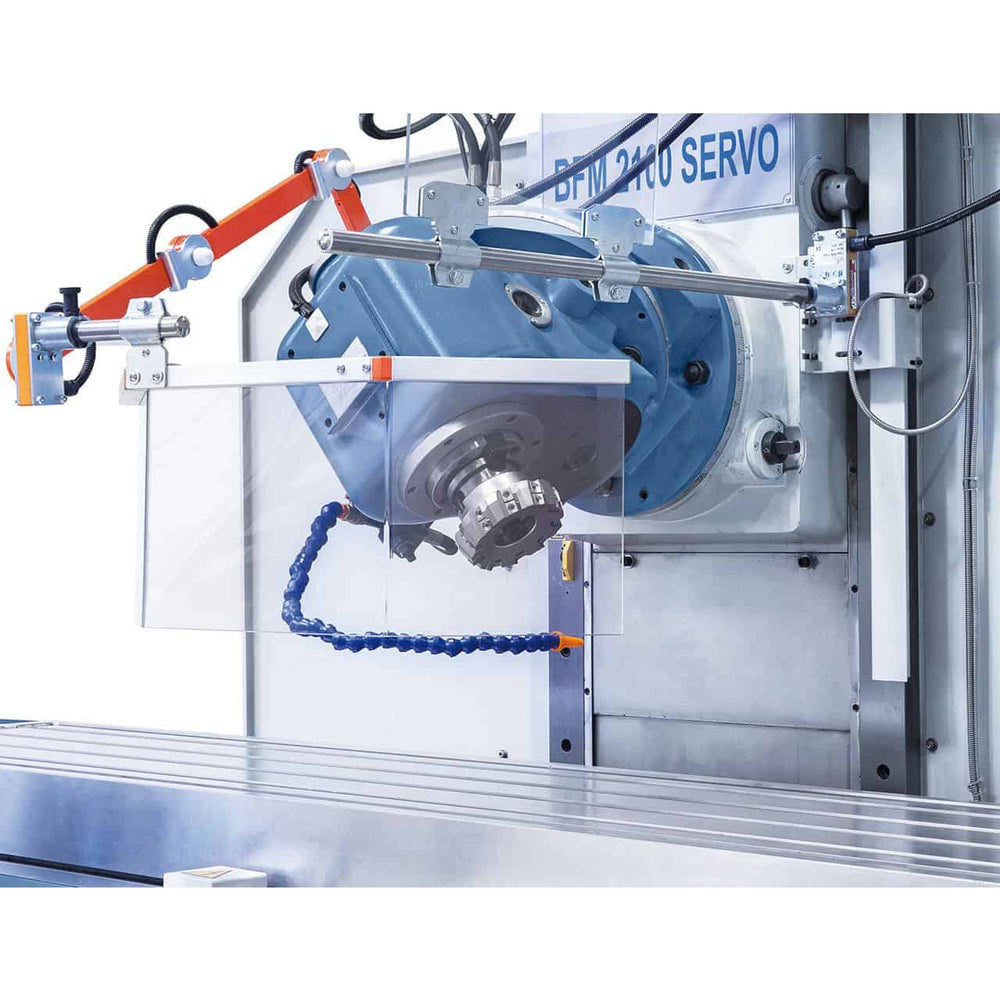

- Universal milling head "Huron" system, adjustable in all angular positions
- Large flat guides ensure stability for high milling loads

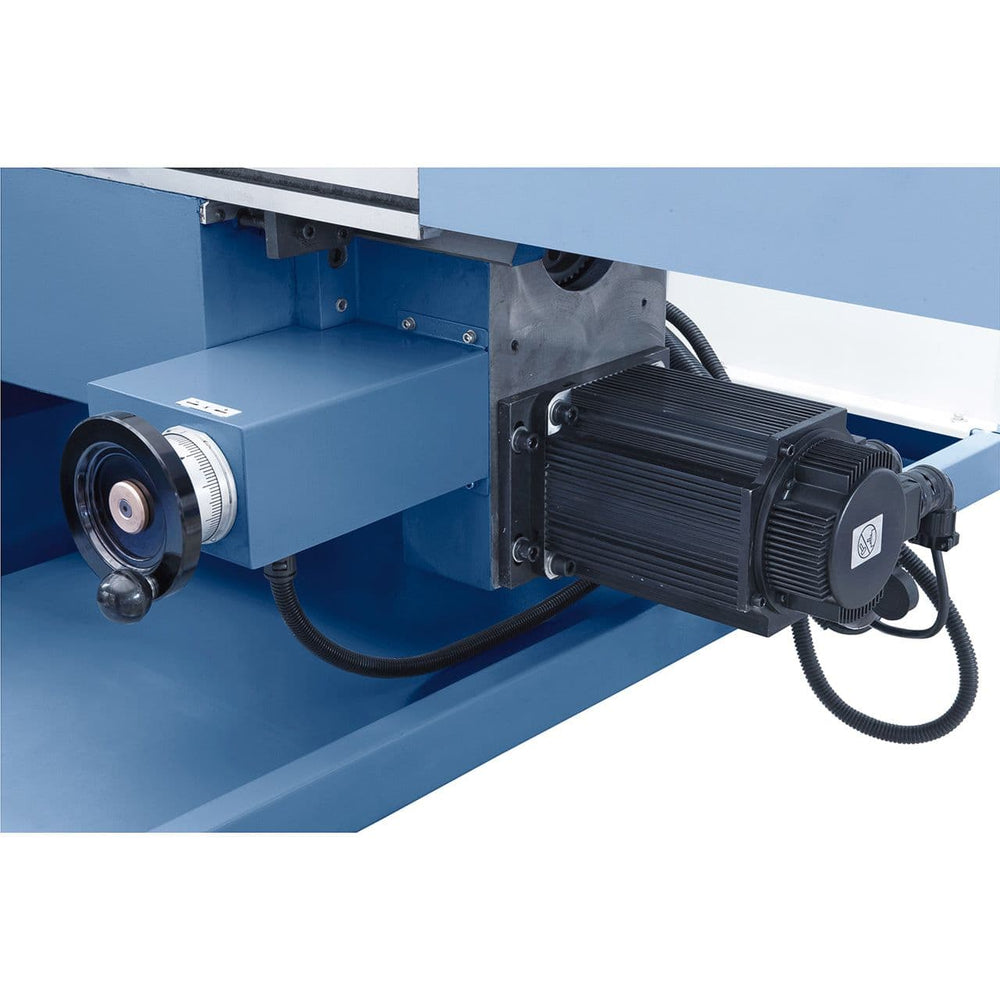

- Continuous automatic feed and rapid travel in all axes, driven by the servo motor

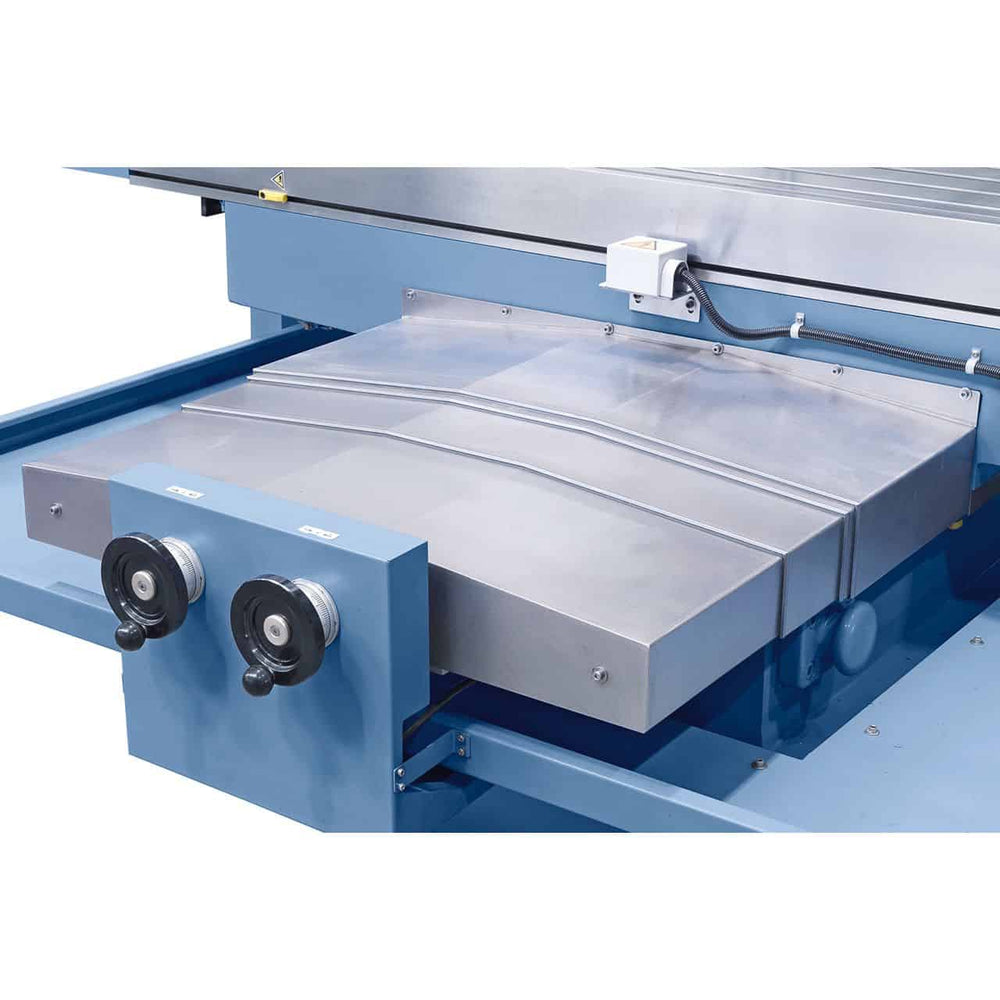

- Large surface grooved saddle in a sturdy box
- Finely polished work surface, with optimal execution on the wide saddle
- Column and stator in fixed column construction form
- Backlash-free preloaded rotary ball spindles in all 3 axes
Standard accessories

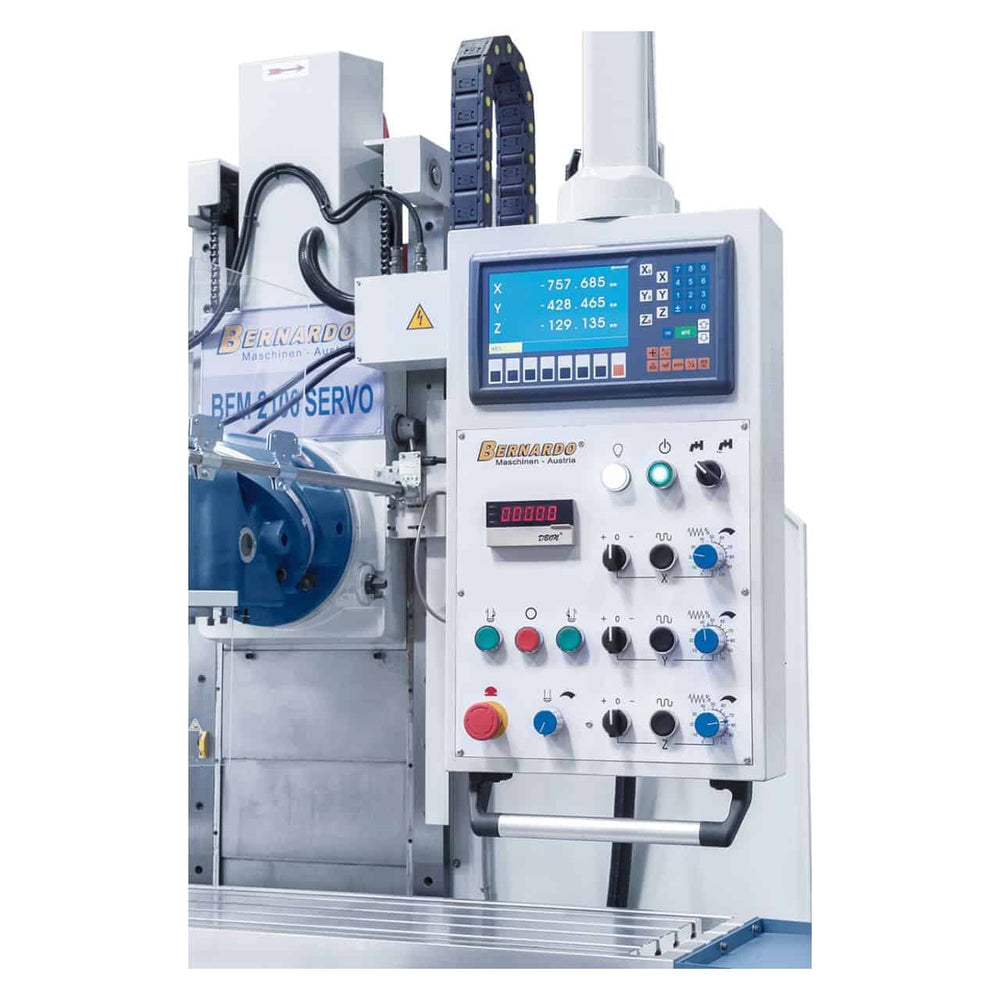

- ES-12 H 3-Axis Position Display with LCD Display
- Electronic flyers
- Continuous feed in all axes
- LED car light

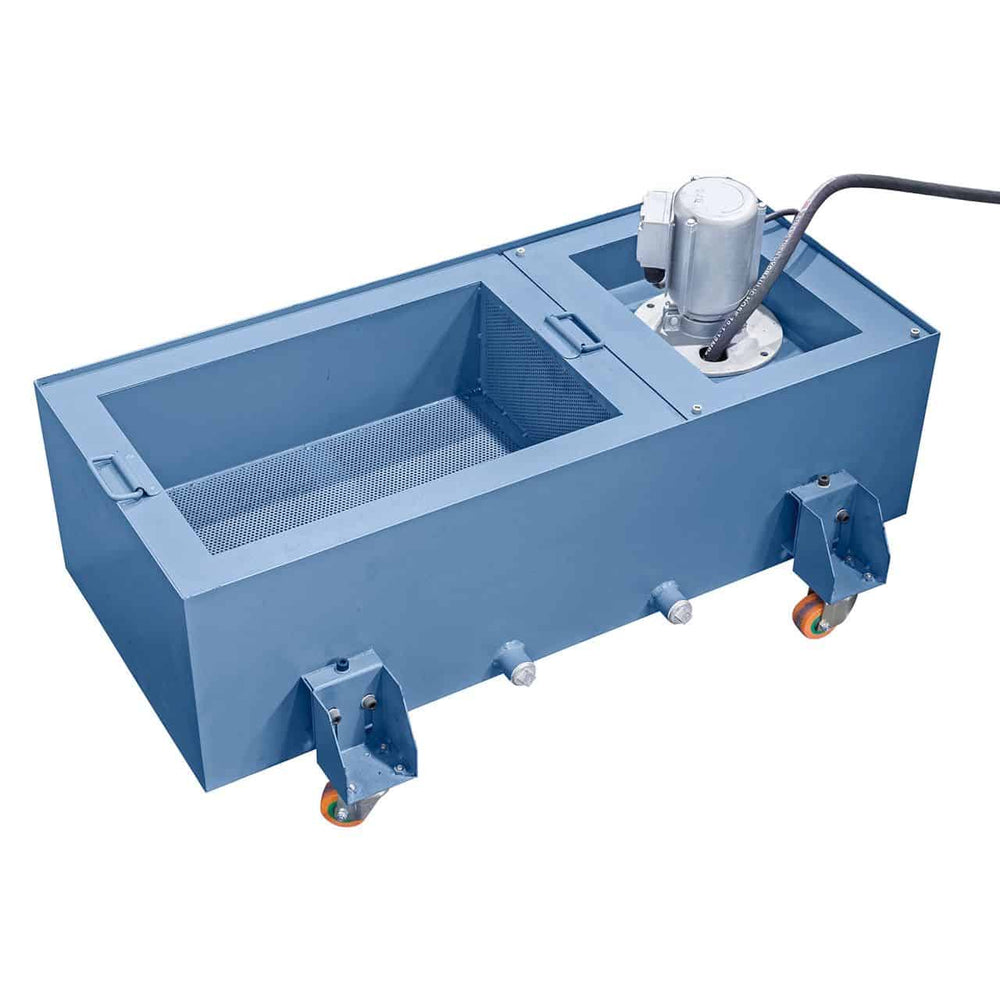

- Refrigeration system
- Universal milling head
- 3-axis ball screws

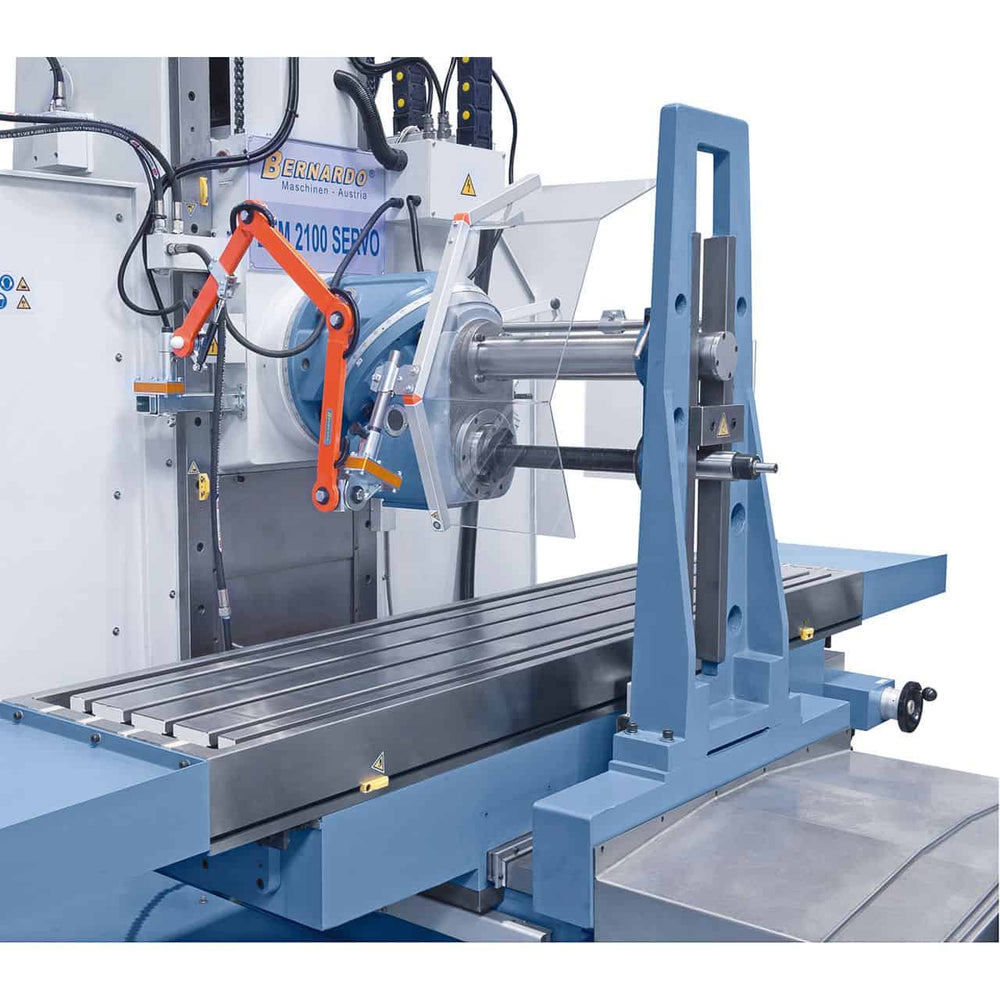

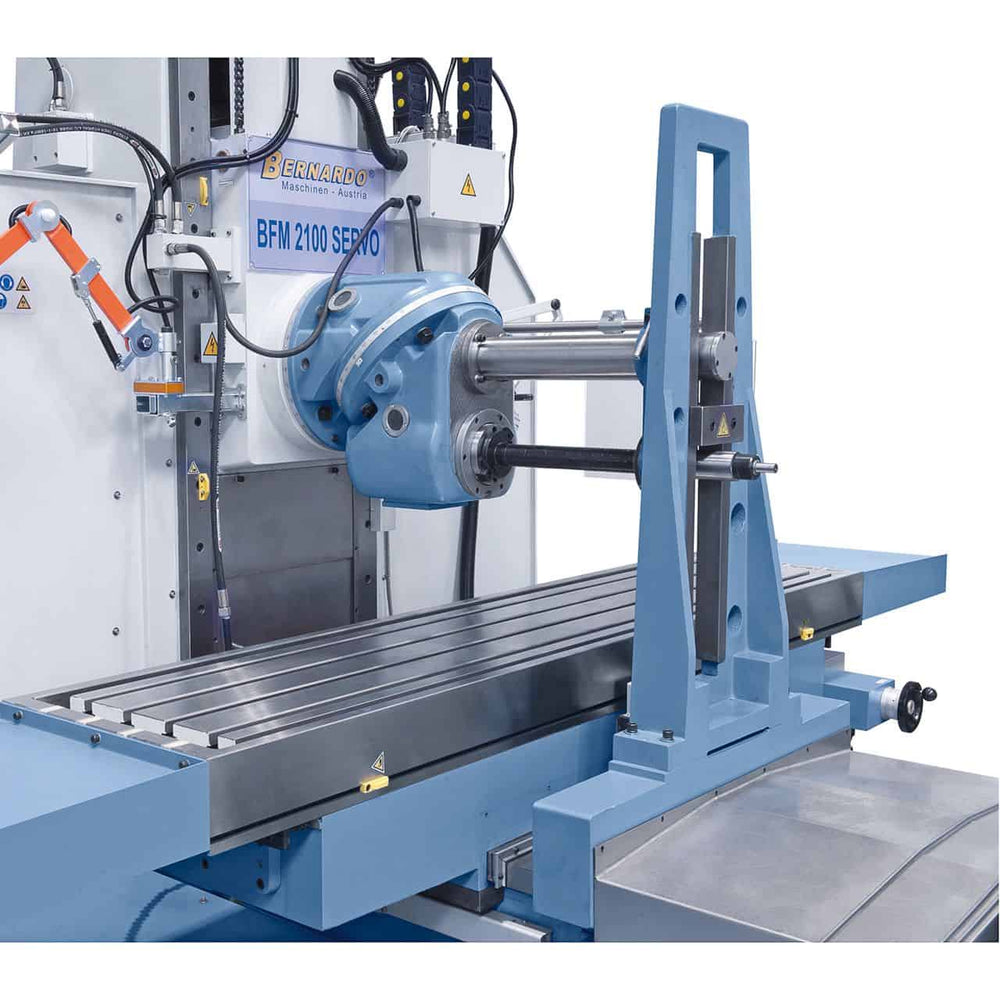

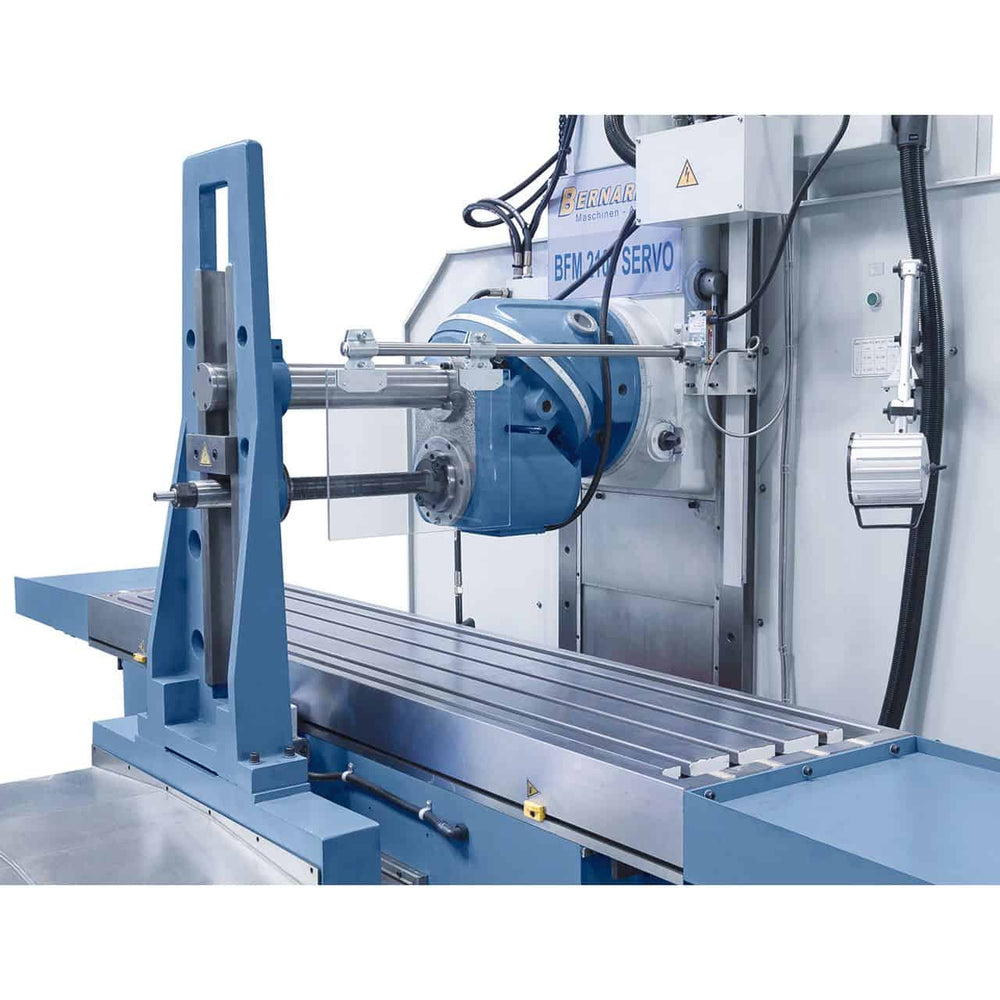

- Horizontal external support
- Long drilling chuck ISO 50 / 32 mm
- ISO 50/40 mm combination drill chuck
- Z-axis telescopic cover

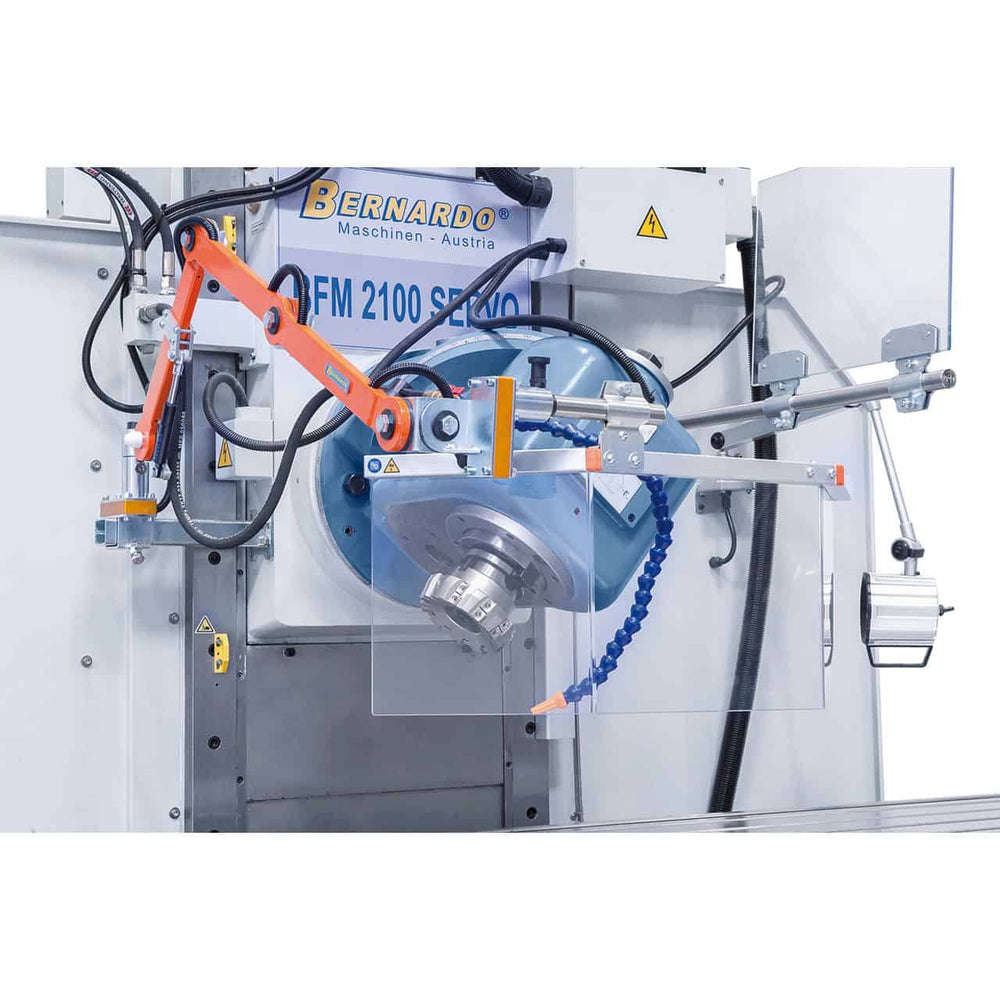

- Universal protection device
- Protective cover for horizontal milling

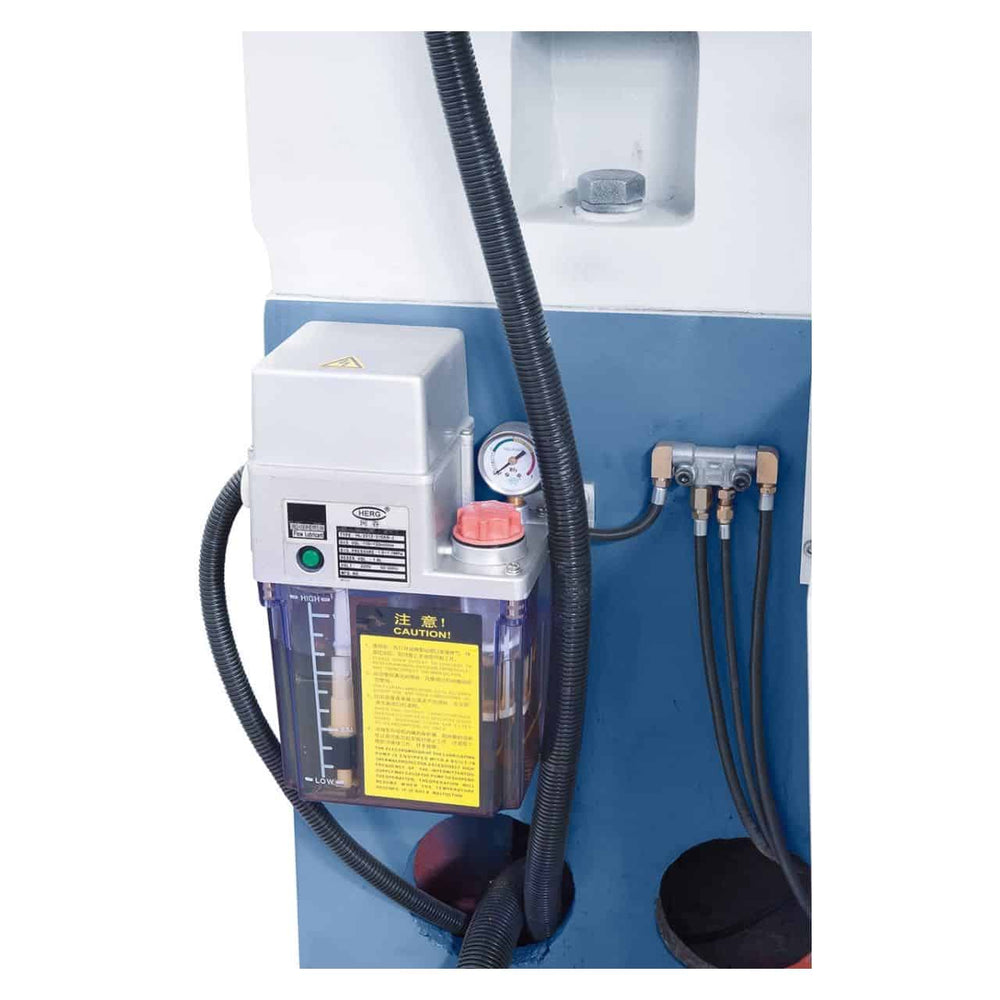

- Automatic central lubrication
- Control device
technical specifications
|
Table dimensions |
2100 x 500 mm |
|
Spindle attachment |
ISO 50 |
|
Continuous spindle speed |
(2) 6 - 300 / 30 - 1500 rpm |
|
Longitudinal travel (x) |
1500 mm |
|
Transverse travel (y) |
650 mm |
|
Vertical travel (z) |
650 mm |
|
Length of the arms |
610 mm |
|
Area including spindle head |
360° |
|
Spindle/table distance |
0 - 650 mm |
|
Feed rate |
|
|
X-axis and y-axis (continuous) |
2.5 - 3000 mm/min |
|
Z-axis (continuous) |
2.5 - 2500 mm/min |
|
Rapid travel on the x and y axes |
6000 mm/min |
|
Z-axis rapid traverse |
3000 mm/min |
|
Max. table load |
1800 kg |
|
Advance motor |
3.6 kW |
|
Main engine |
11 kW |
|
Machine dimensions (L x W x H) |
3350 x 2800 x 2830 mm |
|
Weight approx. |
7300 kg |
