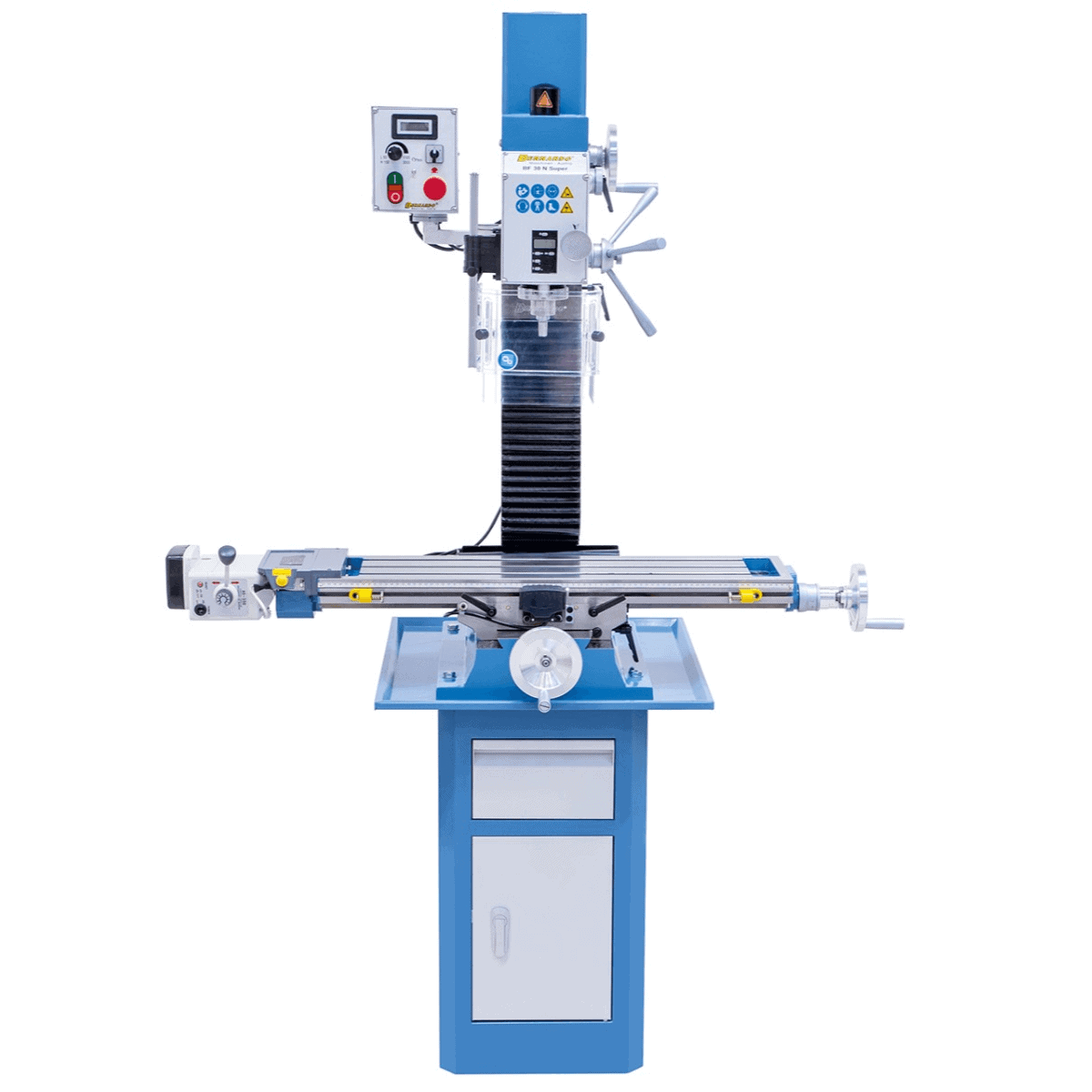

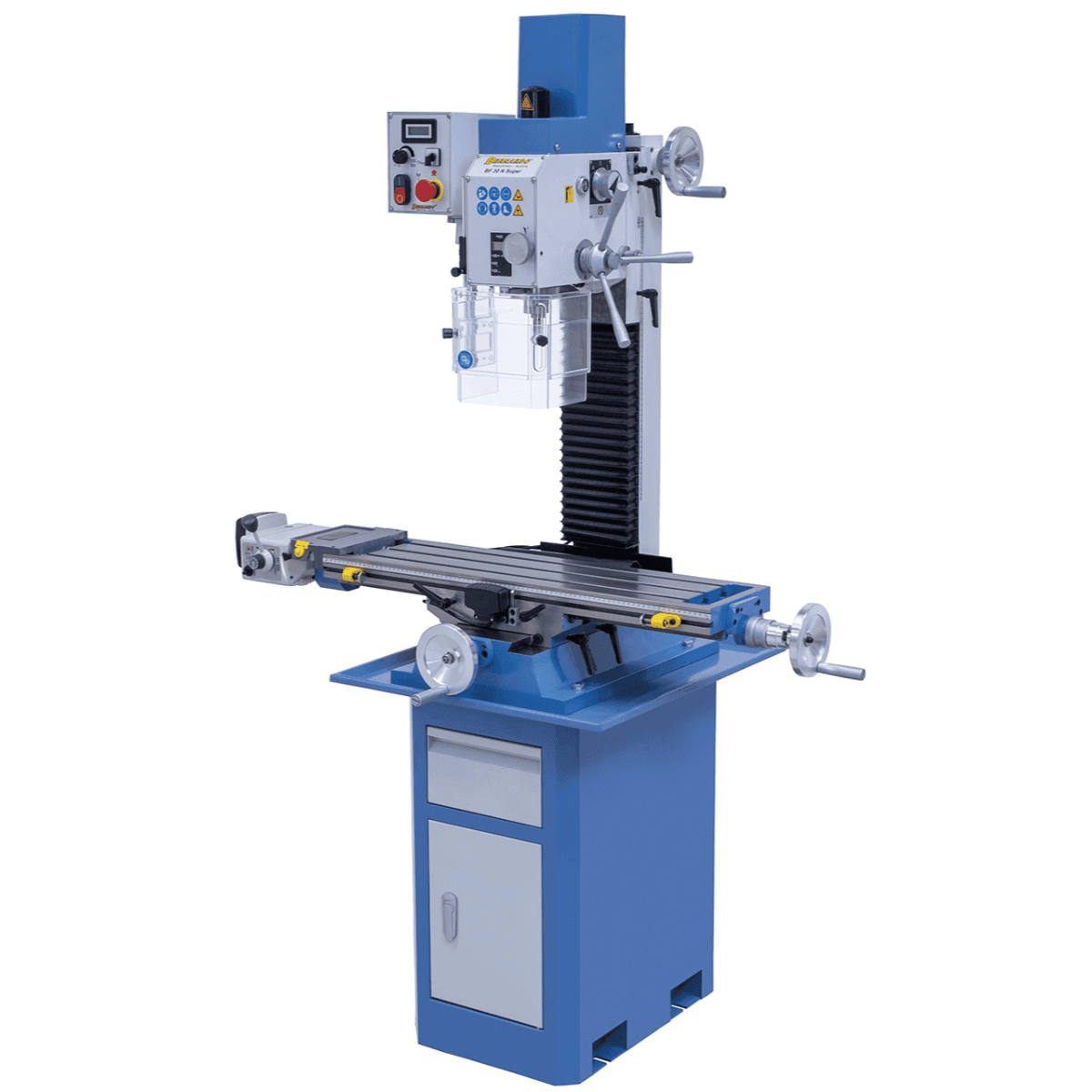

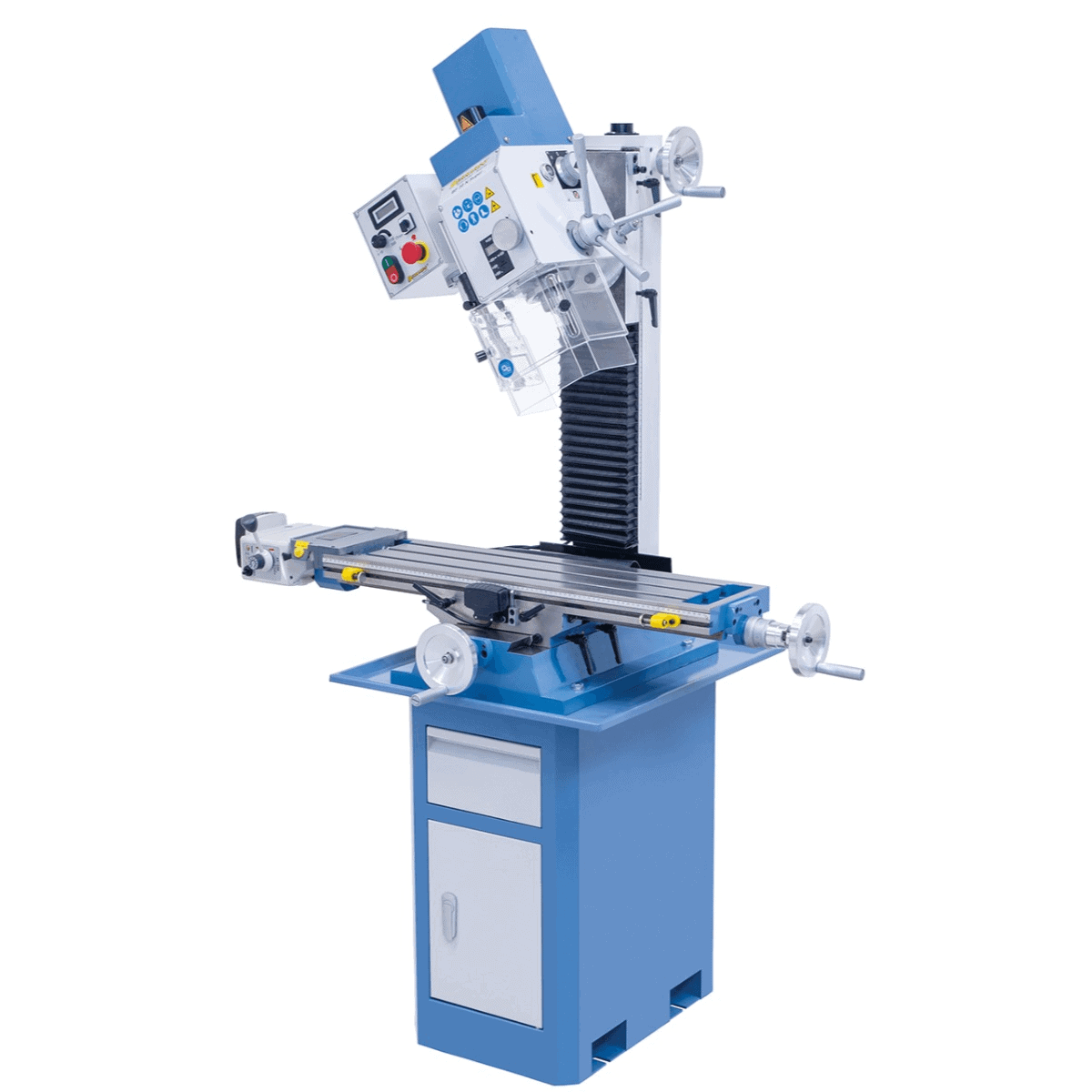

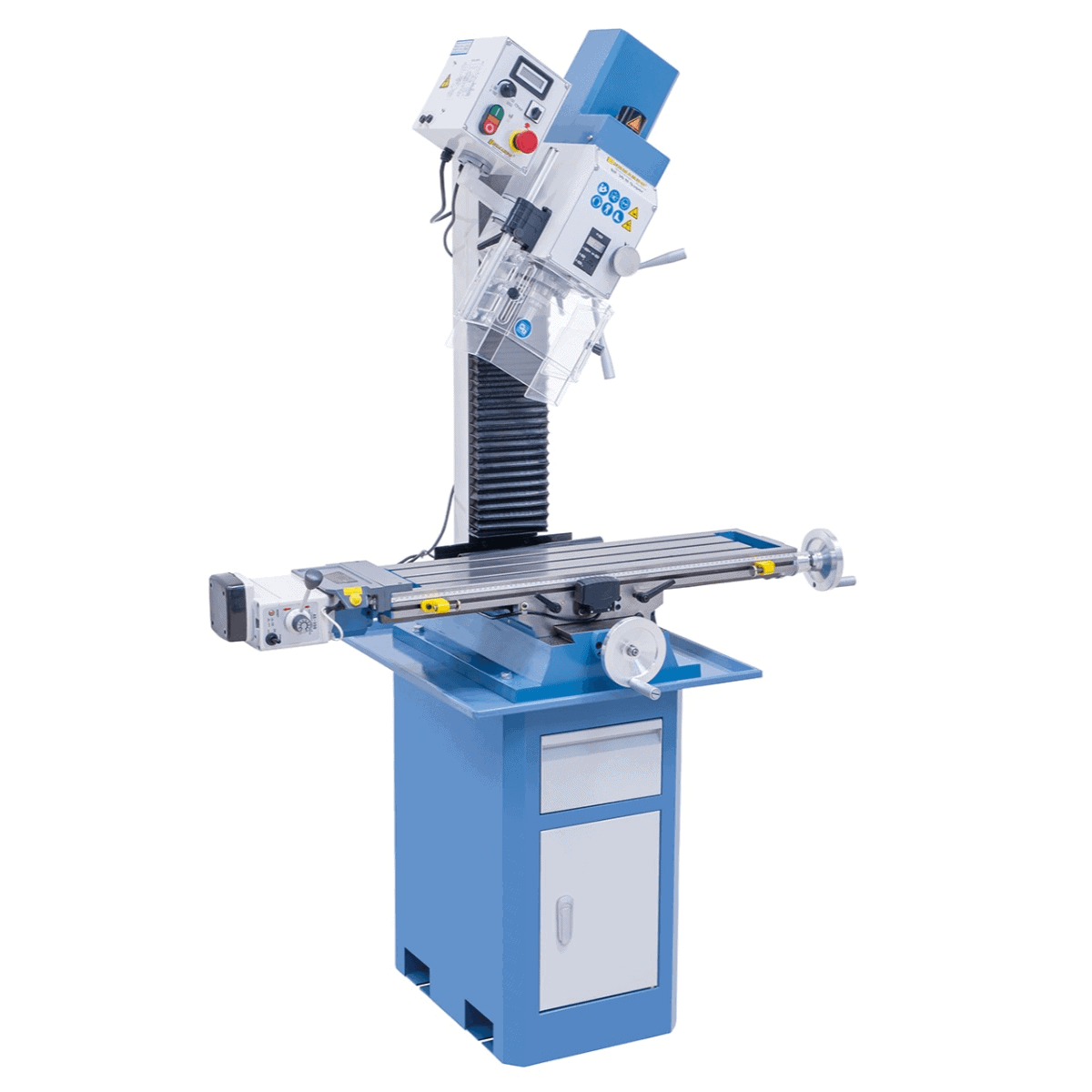

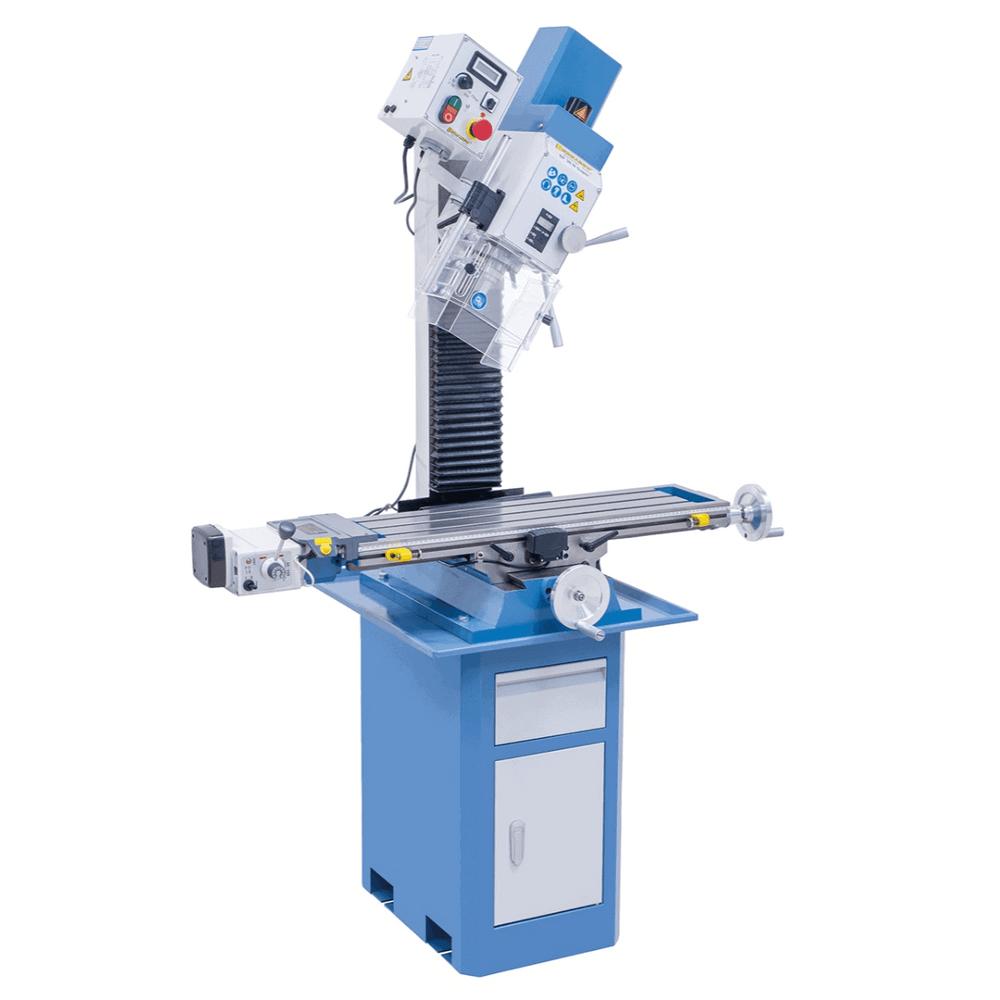

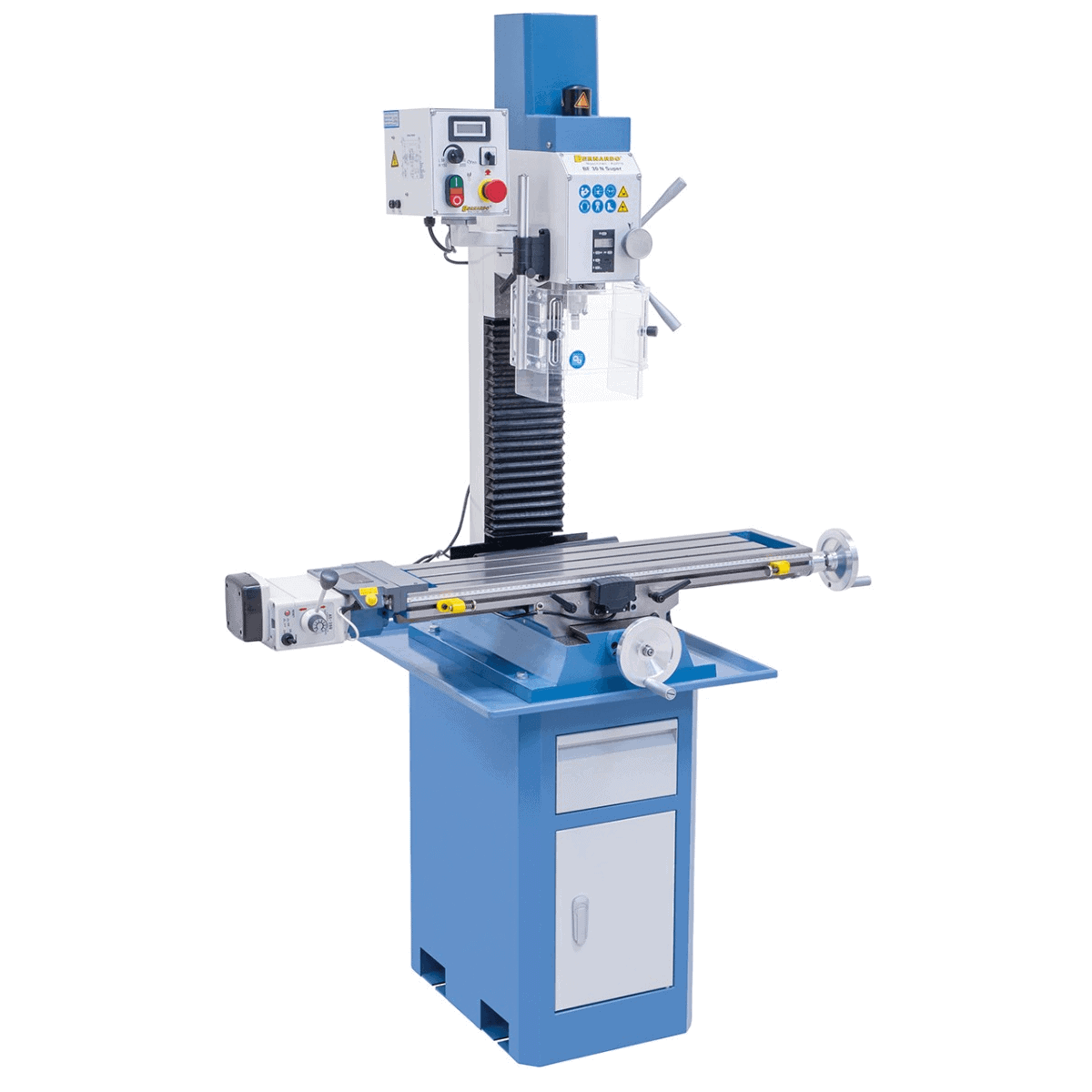

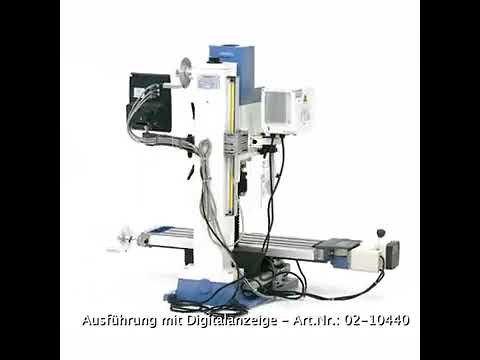

BF 30 N Super drill and milling machine with AL 350 D feed
BF 30 N Super drill and milling machine with AL 350 D feed is backordered and will ship as soon as it is back in stock.
Subscribe to our newsletter
Get the latest updates on all our new collections, sales, offers and product arrival dates.
-
Description
-
Technical Specifications
-
Product safety
-
Reviews
Description
KF 25 Vario Drill-Milling Machine: Power and Precision for Professional Applications
The KF 25 Vario model is the evolution of a proven classic, enhanced with advanced features to meet the needs of professionals and machining enthusiasts. This compact drill/miller features an enlarged spindle mount, a larger milling table, and two digital displays that allow precise control of speed and drilling stroke. With stepless speed control and a tilting milling head, the KF 25 Vario is designed for maximum versatility and precision.
Main Features
- Wide Range of Applications : Ideal for grooving, facing, boring and many other machining operations.

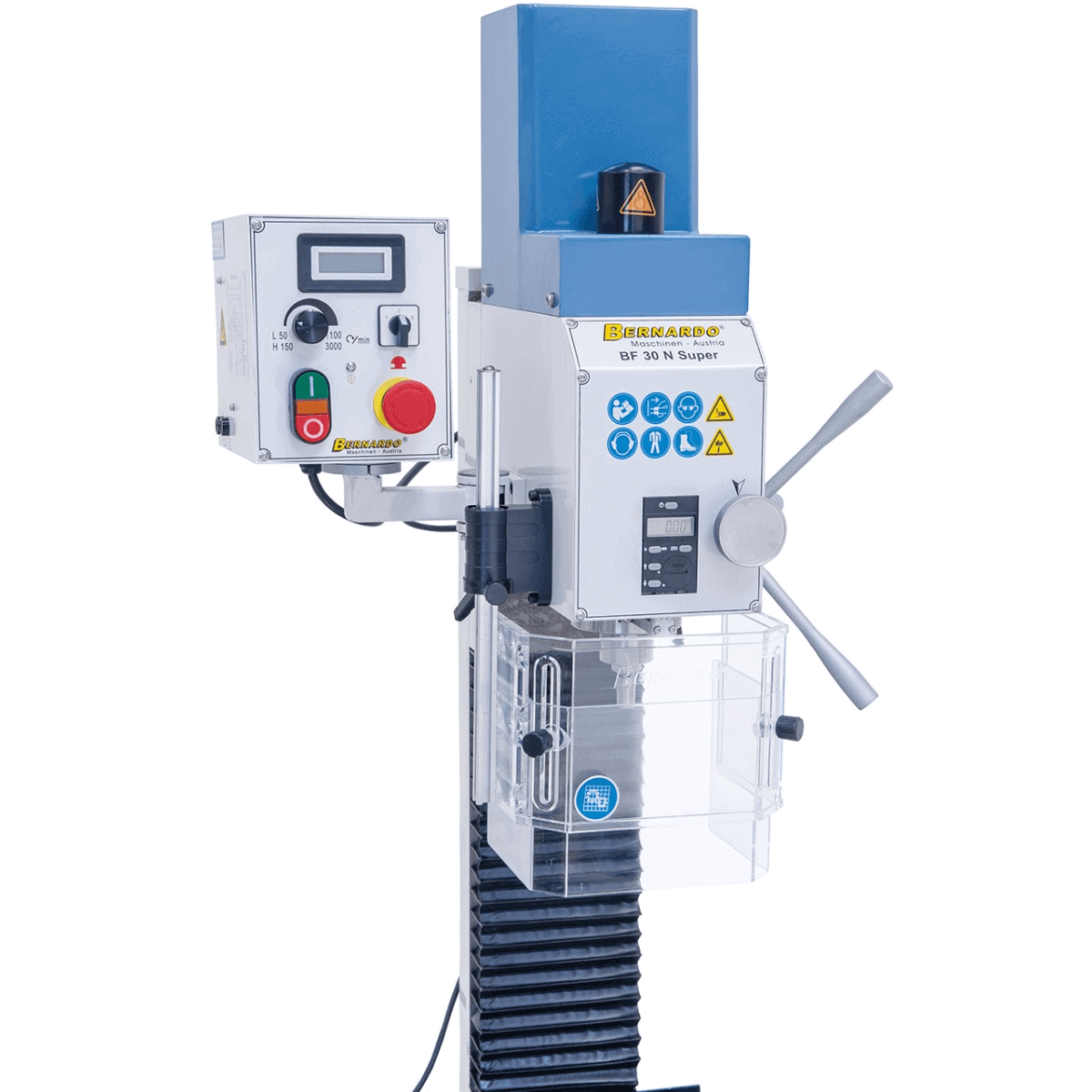

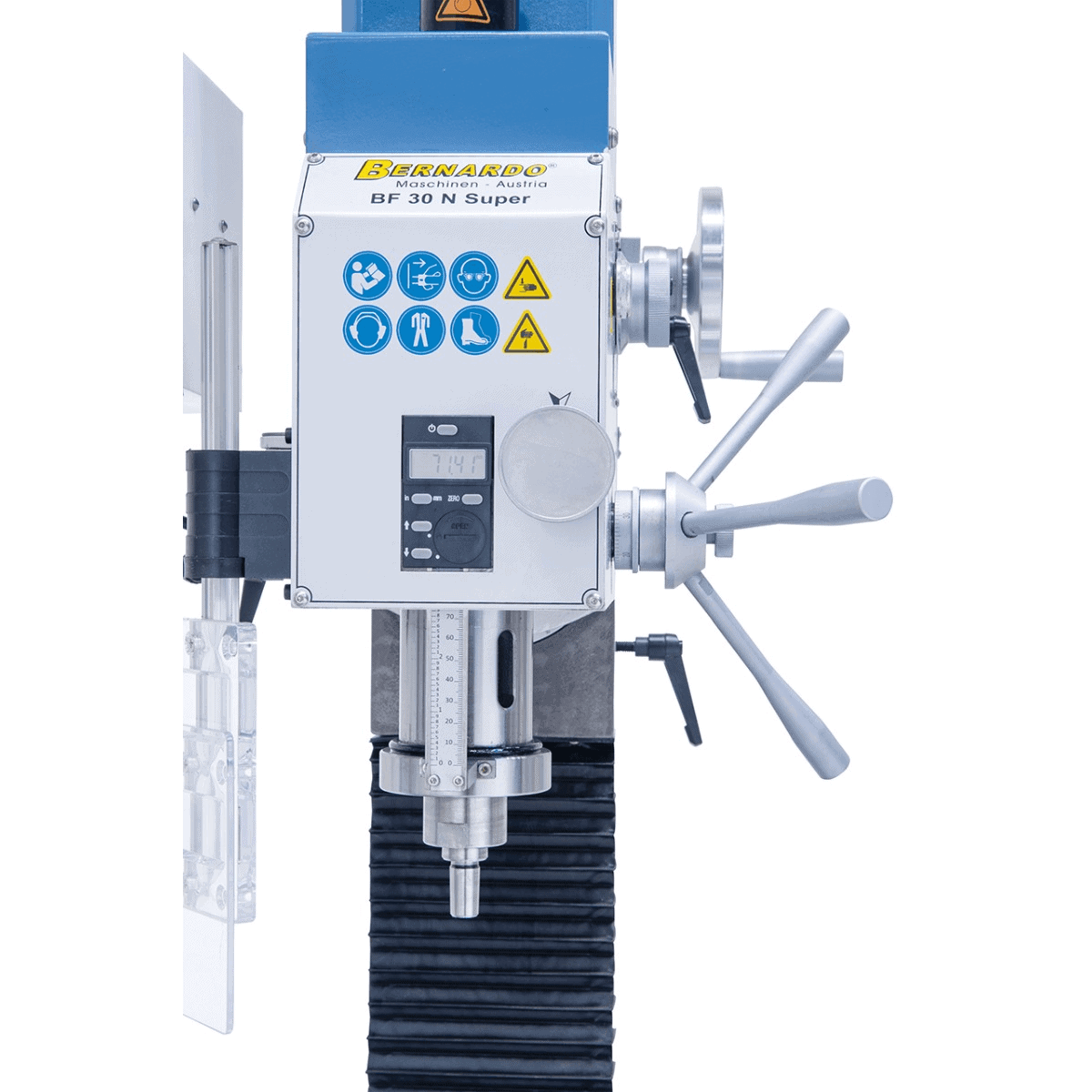

- Digital Display : Equipped with digital displays that show the drilling speed and depth, making it easier to control and improve the accuracy of operations.
- 2-Stage Gearbox : Allows for optimal power transfer, ensuring consistent performance even in the most complex applications.
- Clockwise and Counterclockwise Rotation : Perfect for threading operations, it offers the possibility of reversing the direction of the spindle, expanding the operational possibilities.

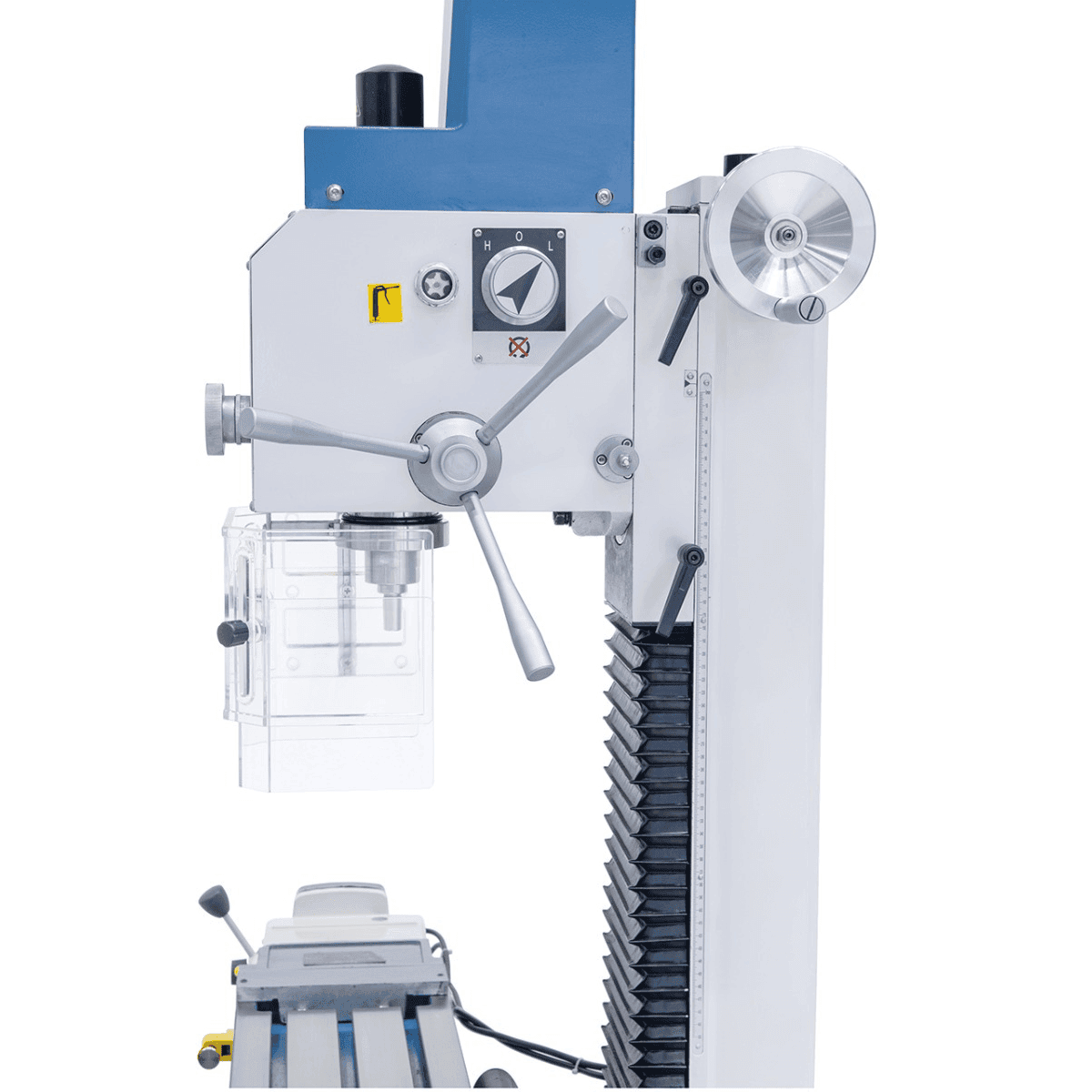

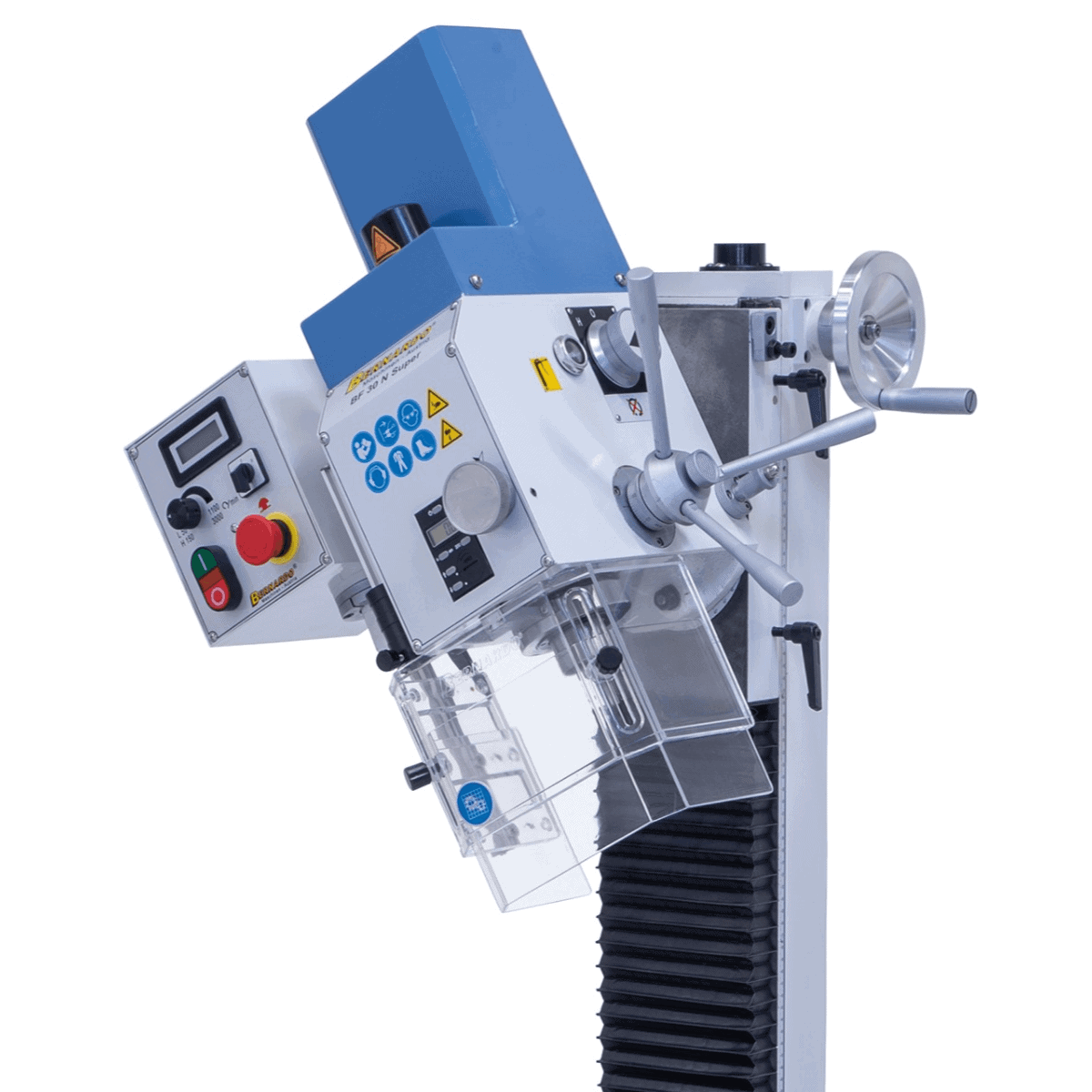

- Tiltable Milling Head : The head can be tilted from -90° to +90°, allowing for easy corner machining and chamfer milling.
- DC Motor : Provides optimal torque at low speeds, improving the quality of even the most delicate jobs.
- Dovetail Guide : The x, y and z axes are equipped with adjustable dovetail guides, which ensure stability and precision during operations.
- High Spindle Concentricity : Thanks to the precision bearings, the machine offers high spindle concentricity (≤ 0.015 mm), ensuring high-quality results.

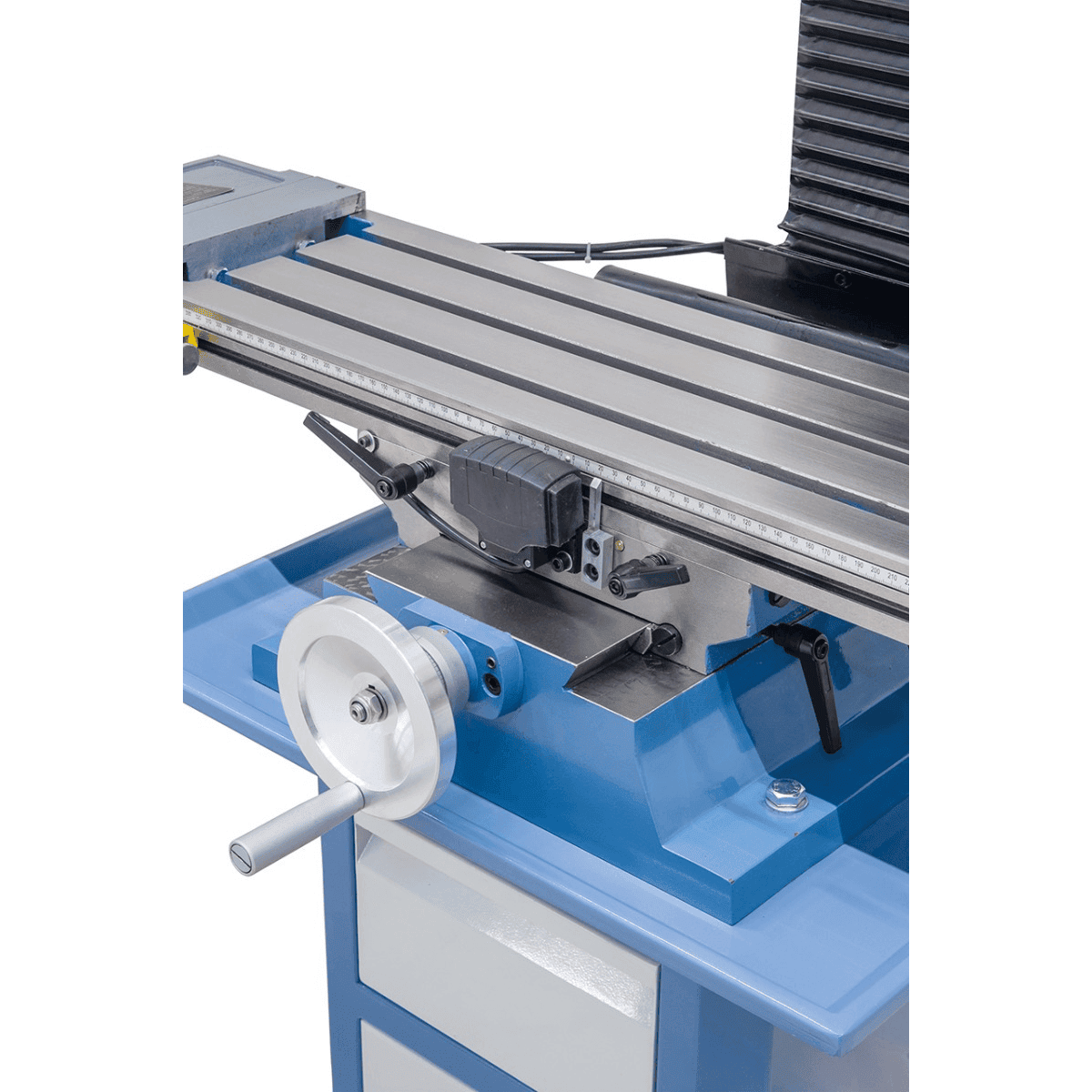

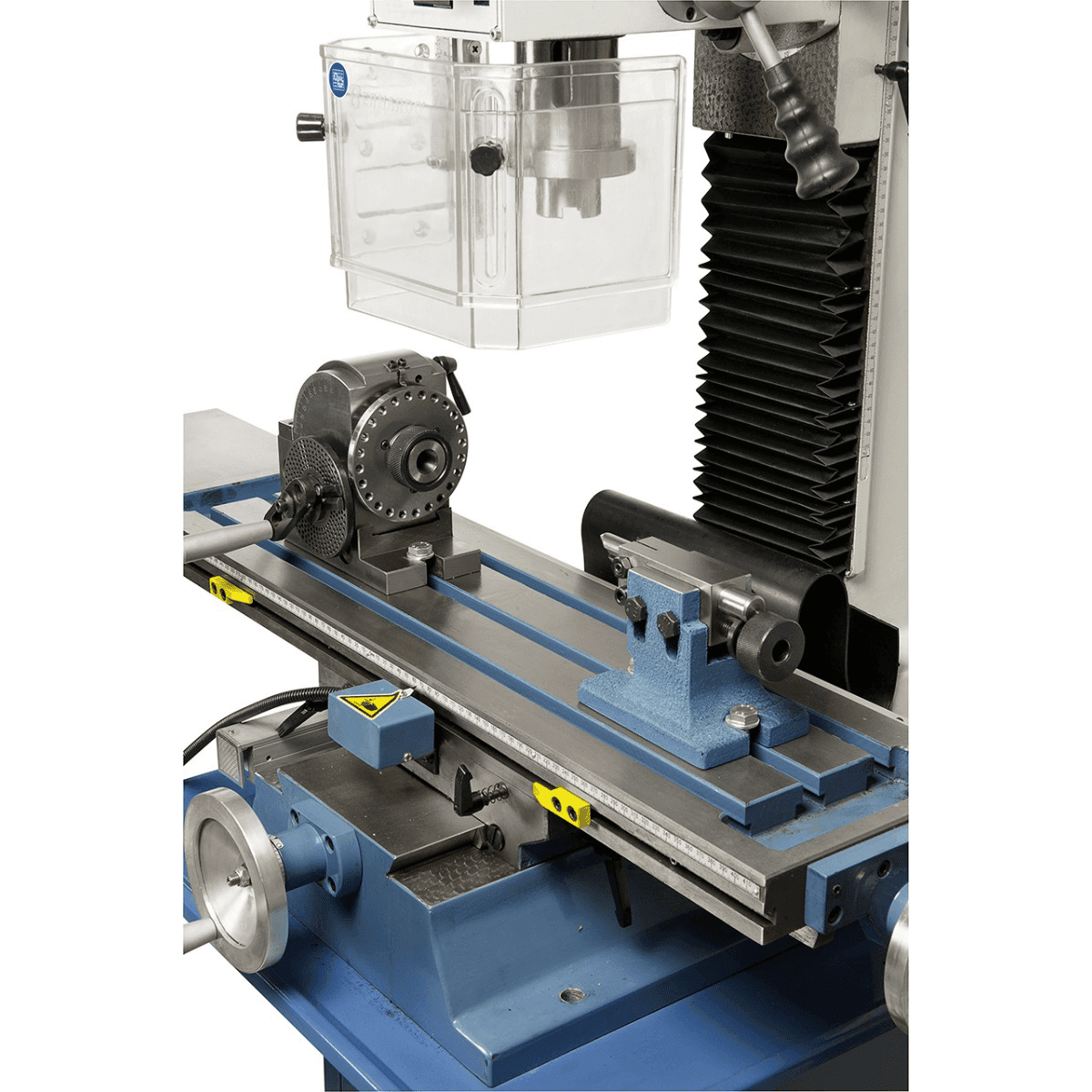

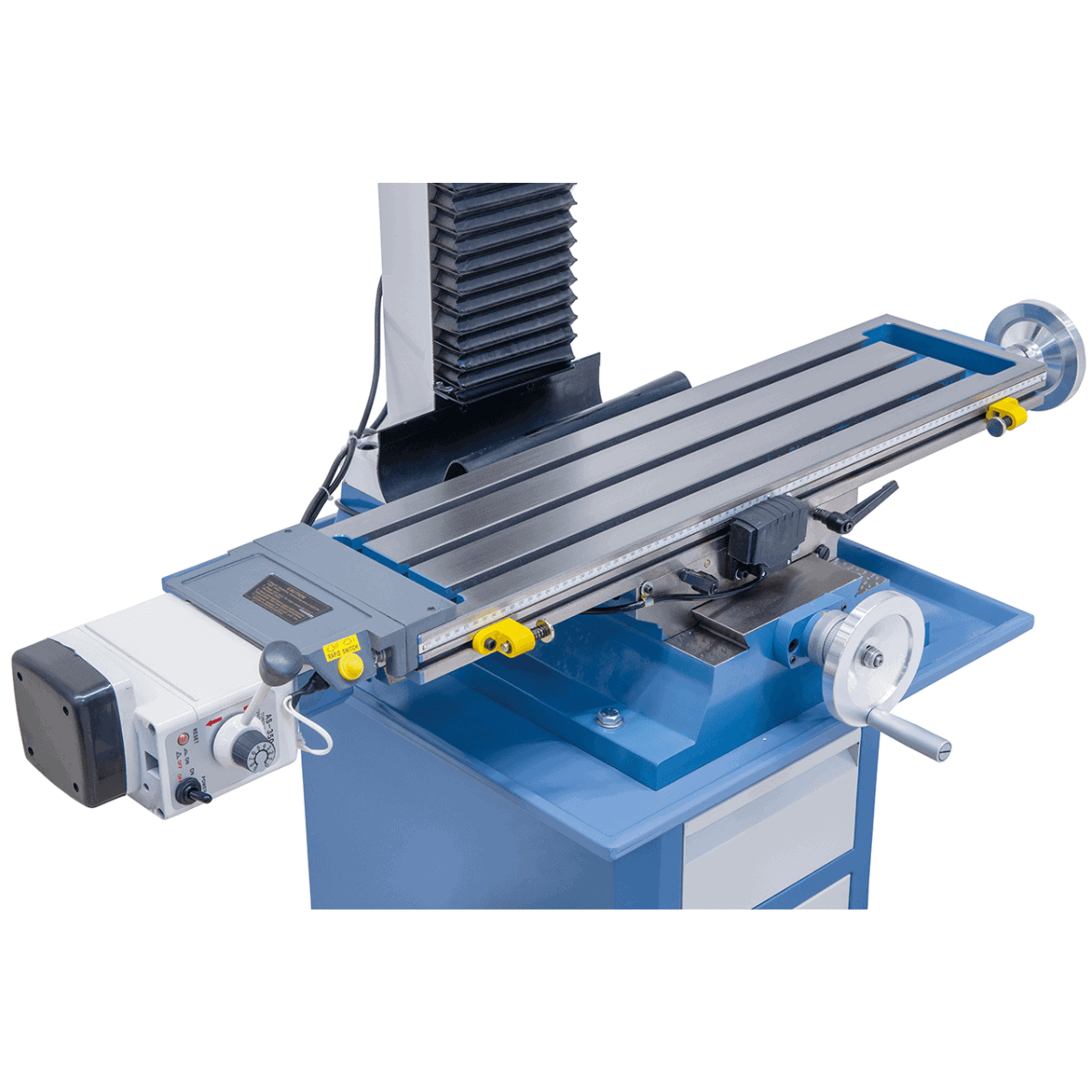

- Large Composite Table : The table measures 840 x 210 mm, with T-slots and a finely machined surface, providing a stable and wide base for clamping workpieces.
Accessories Included

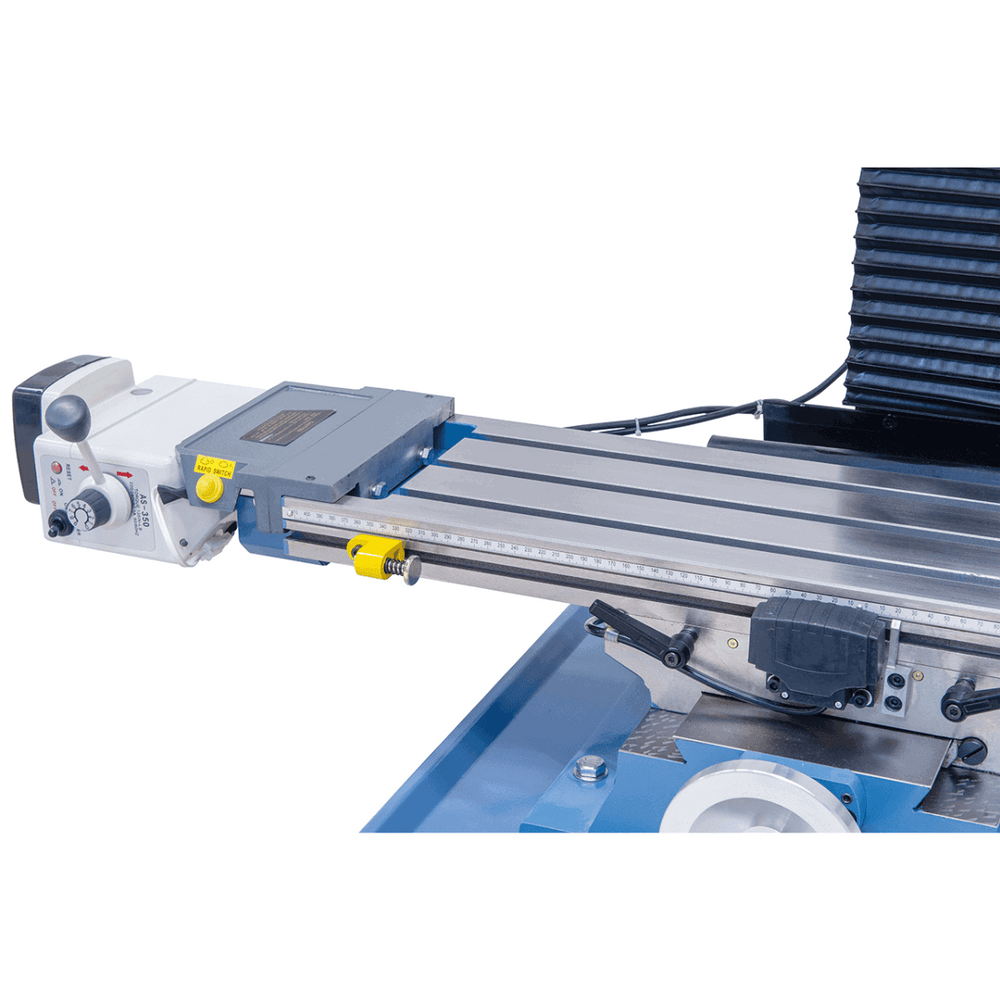

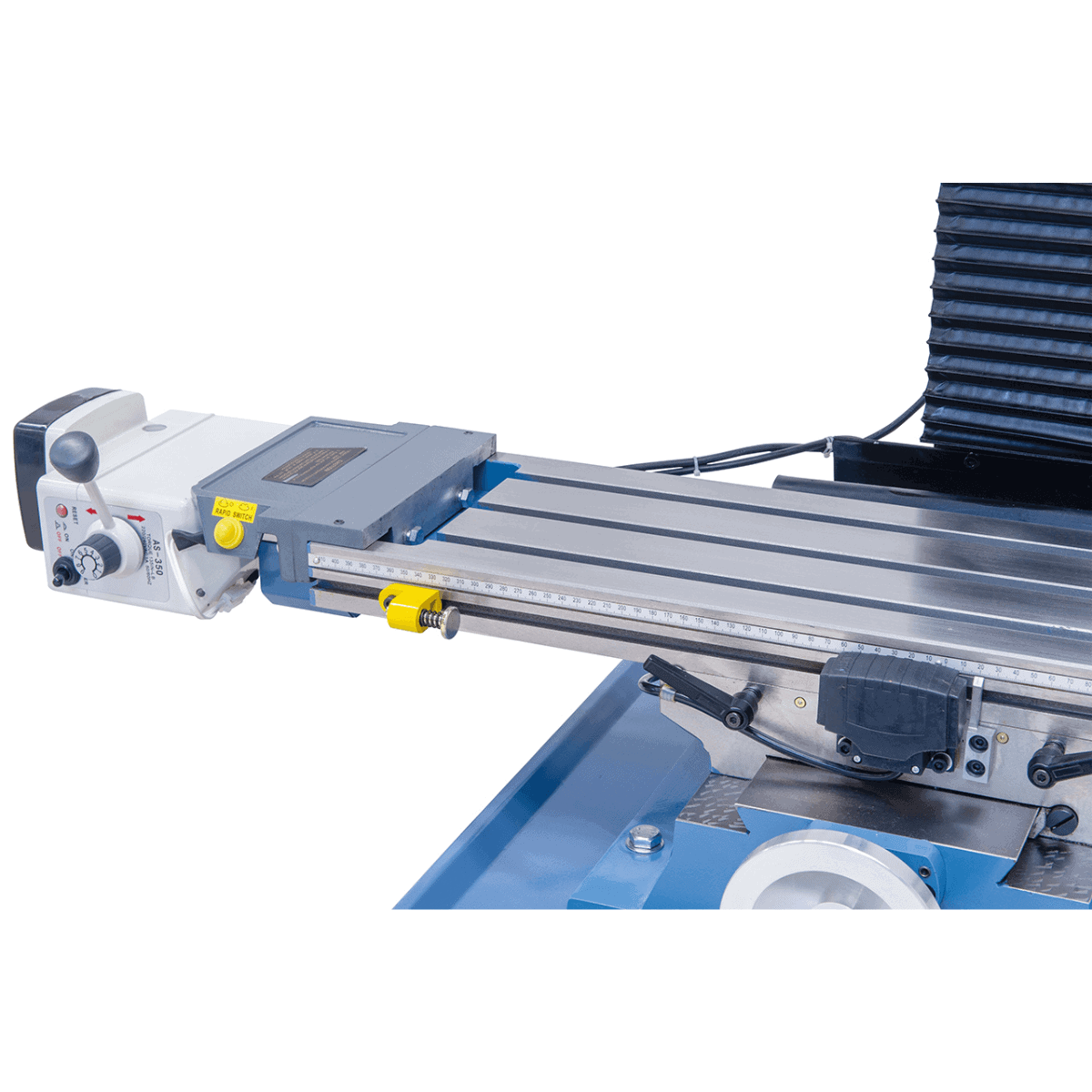

- AL 350 D x-axis feed
- Arbor spindle MK 3 / B 16
- Quick-release drill chuck 1 – 16 mm / B 16
- M 12 clamping chuck
- Digital speedometer
- Digital spindle display
- EMC filter compliant with CE standard
- Height-adjustable protective cover
- Control device
Technical Specifications
| Characteristic | Specifications |
|---|---|
| Steel drilling power | 30 mm |
| Max. face milling cutter. | 75 mm |
| Milling cutter kit with max. shank. | 25 mm |
| Length of the arms | 180 mm |
| Spindle/table distance | 115 – 465 mm |
| Hole stroke | 70 mm |
| Continuous spindle speed | 50 – 1100 / 150 – 3000 rpm |
| Spindle attachment | MK 3 |
| Table dimensions | 840 x 210 mm |
| Run (x / y) | 455 / 195 mm |
| Rotating milling head | from -90° to +90° |
| Milling head height setting | 350 mm |
| T-slot size | 14 mm |
| S1 motor input power 100% | 1.1 kW / 230 V |
| S6 Motor Output Power 40% | 1.6 kW / 230 V |
| Machine dimensions (L x W x H) | 1350 x 710 x 1200 mm |
| Weight approx. | 222 kg |
The KF 25 Vario drill/mill is a compact and versatile machine, ideal for those seeking precision, power, and control in a single tool. Perfect for complex operations in workshops, laboratories, and educational settings, the KF 25 Vario guarantees excellent results thanks to its advanced features and robust construction. Choose the KF 25 Vario to take your work to the next level.
