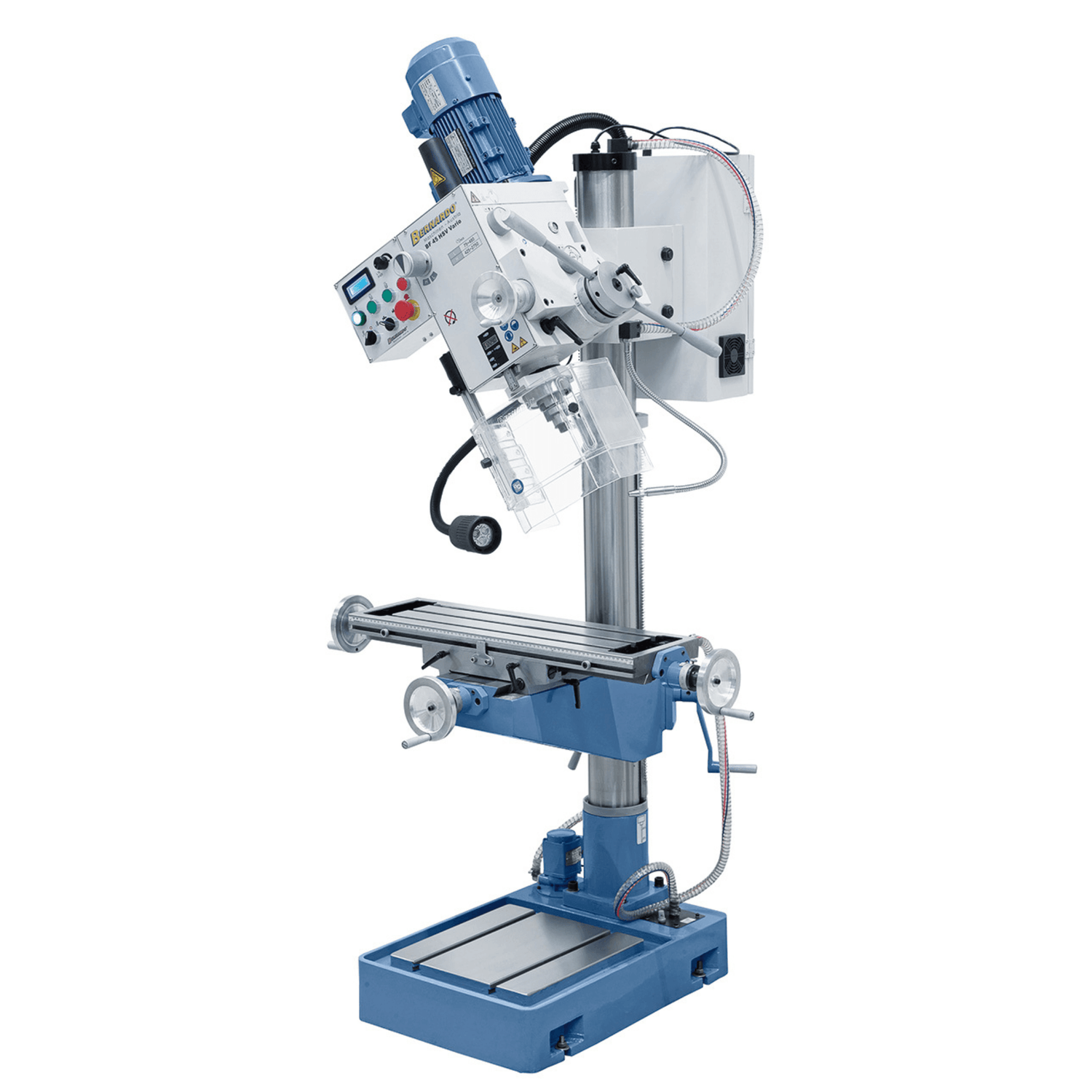

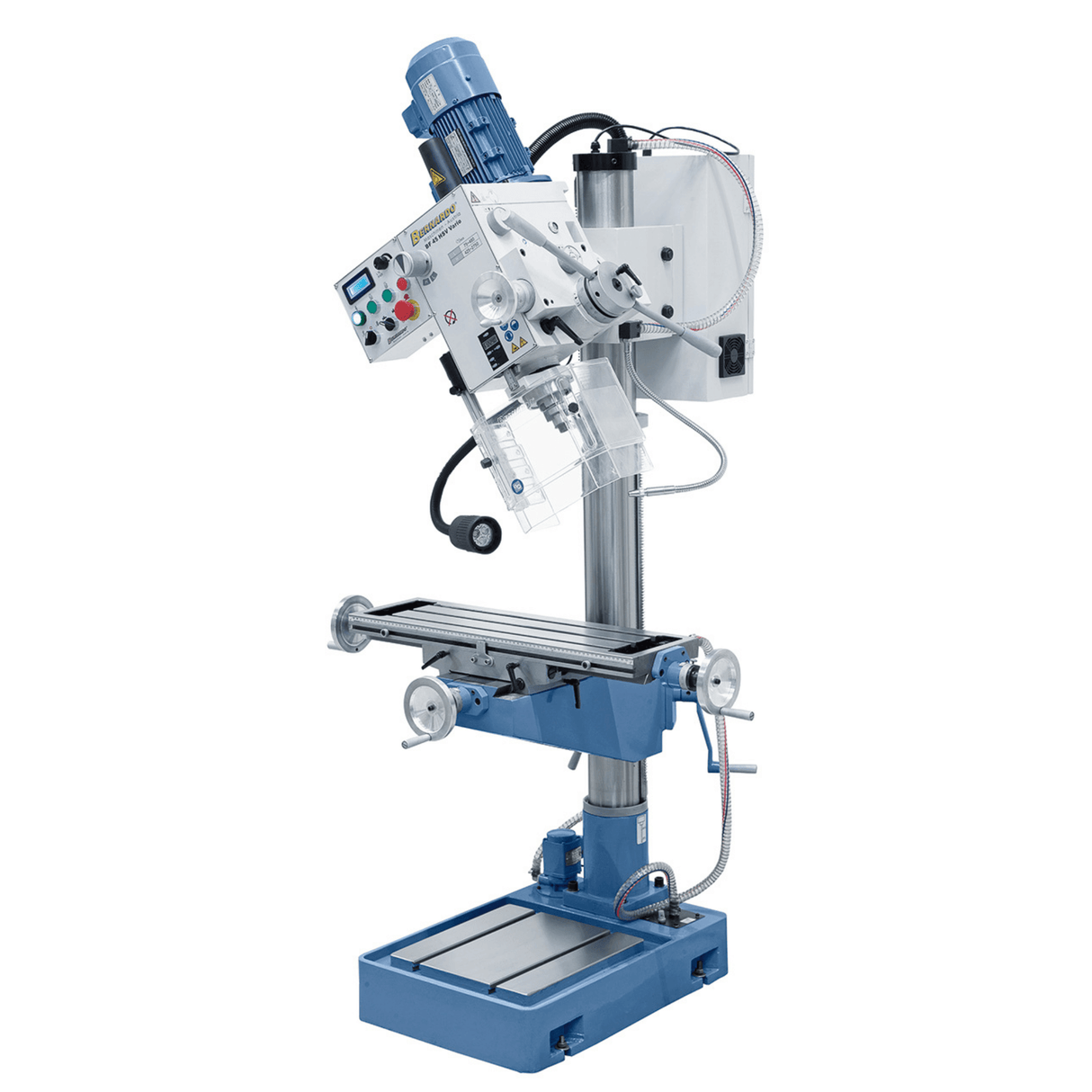

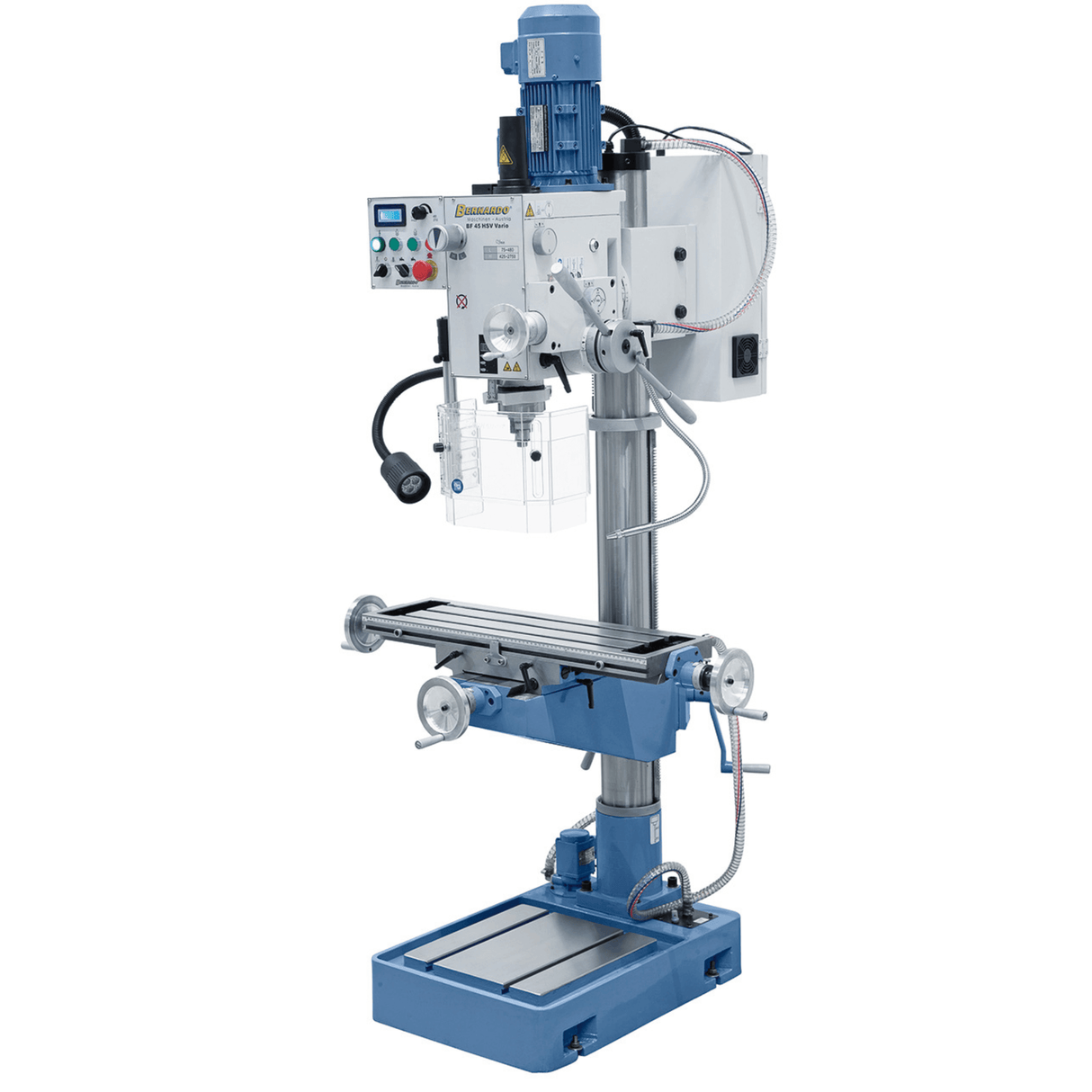

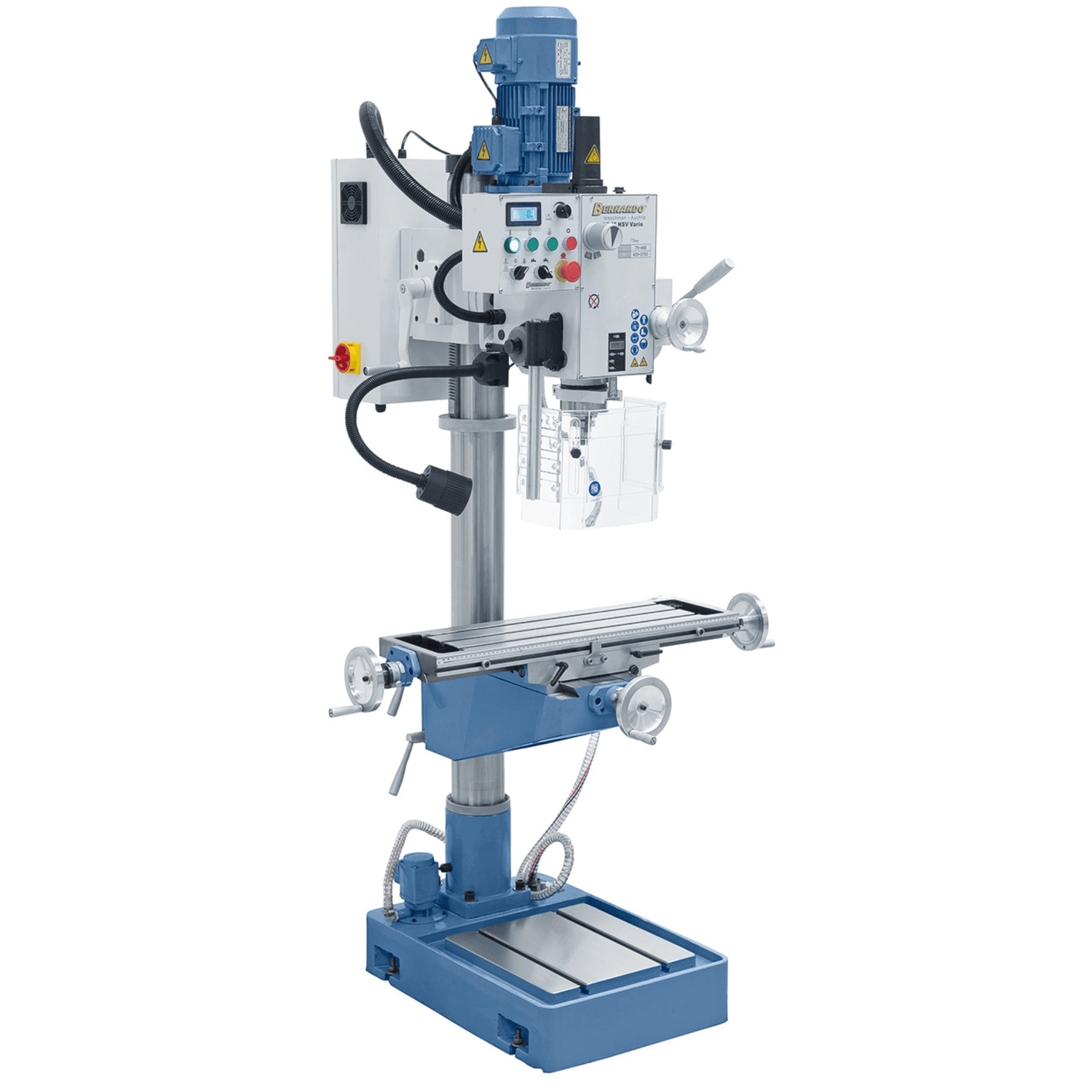

BF 45 HSV Vario Bench Drill/Milling Machine
The BF 45 HSV Vario Bench Drill/Milling Machine is the ideal solution for those seeking precision and versatility in drilling and milling. Designed for use in various positions, this tool offers maximum flexibility, being capable of operating in horizontal, vertical, and inclined modes. Thanks to its robust construction and advanced features, this drill/milling machine is perfect for model makers, craftsmen, and repair shops.
Main Features:

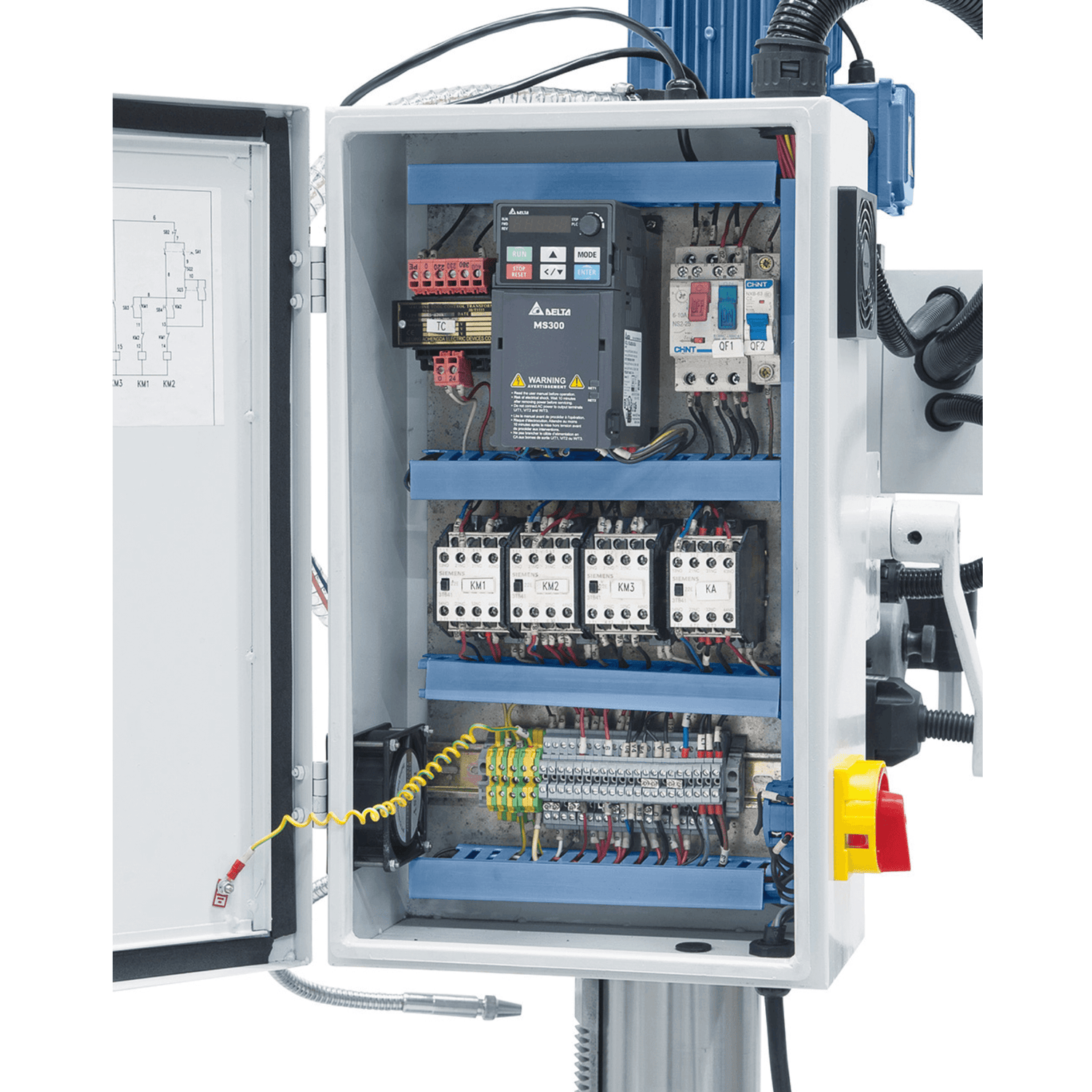

- Variable Speed Regulation: Using the Delta frequency converter, which ensures an optimal torque curve, it is possible to continuously adjust the spindle speed to adapt to any work requirement.
- Safety Guaranteed: A height-adjustable protective cover, compliant with CE regulations, ensures complete protection during use.

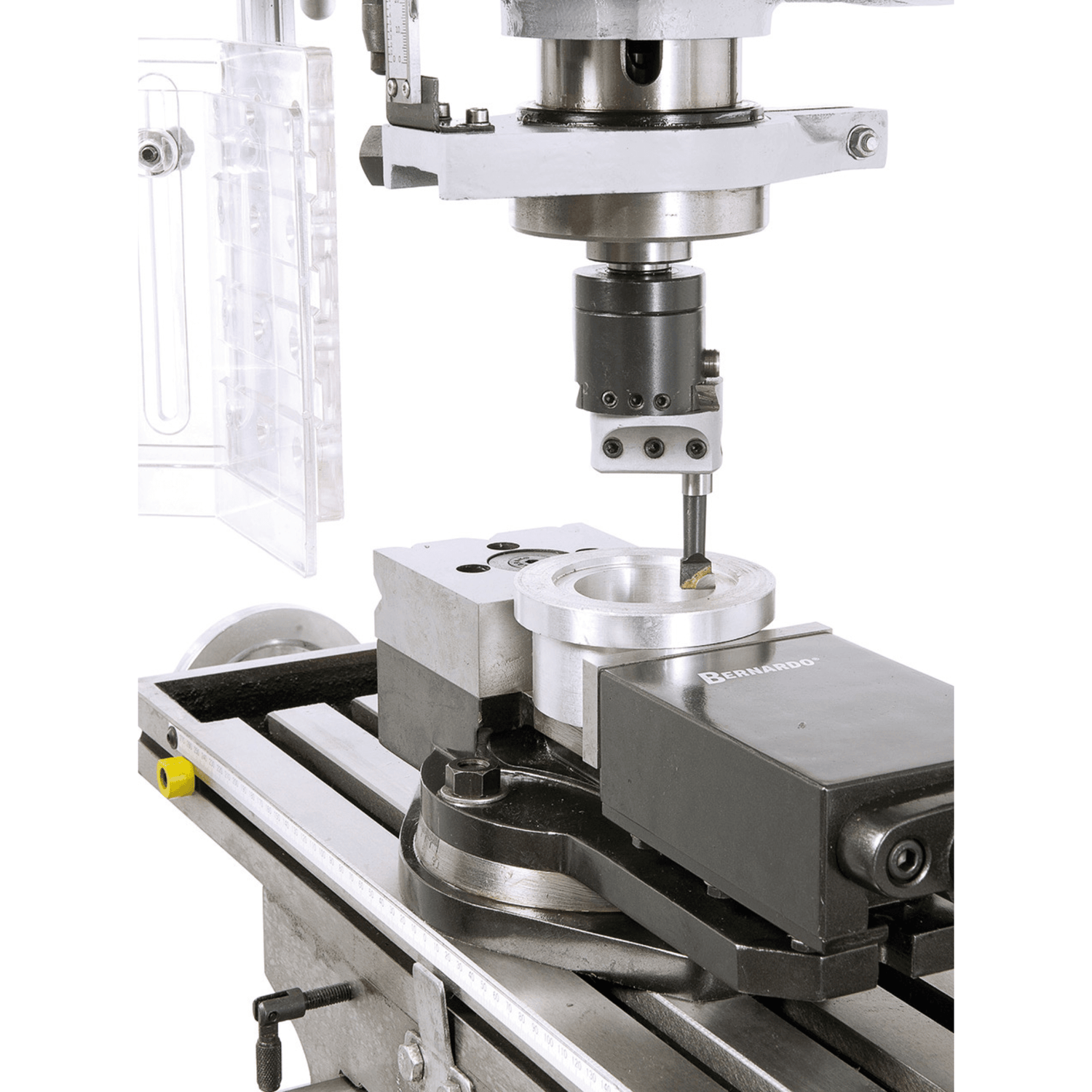

- Versatile Use: Ideal for operations such as grooving, facing, boring, and much more.

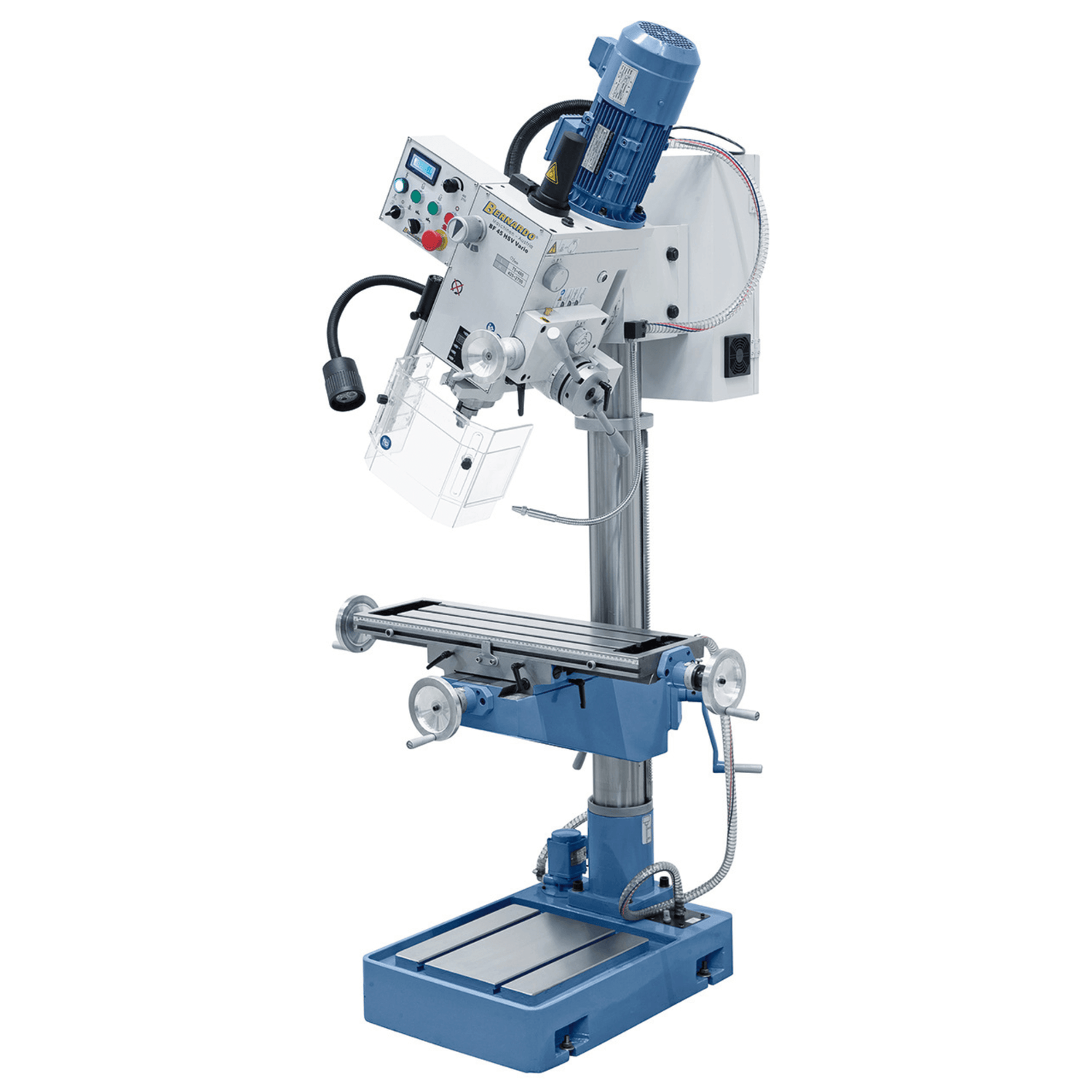

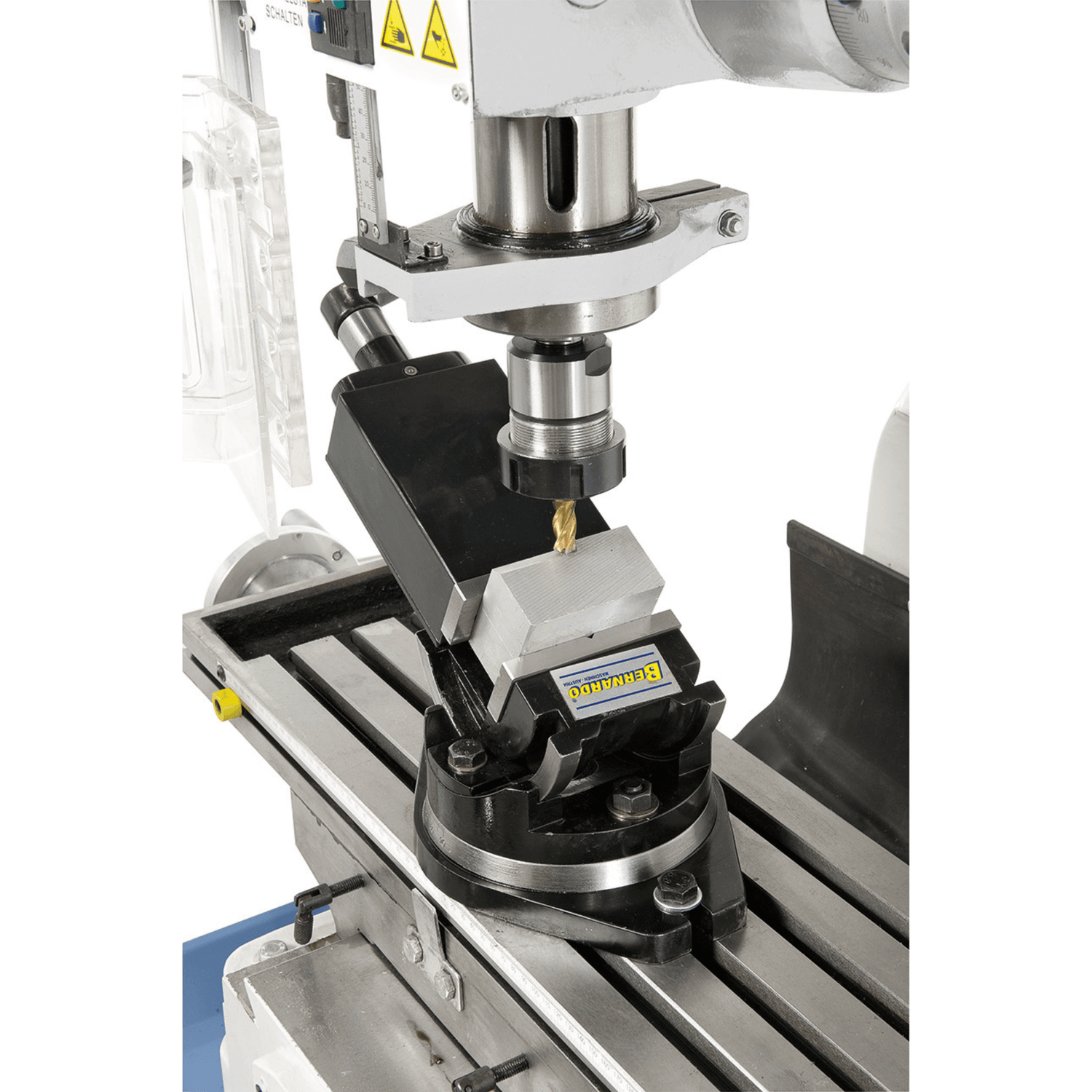

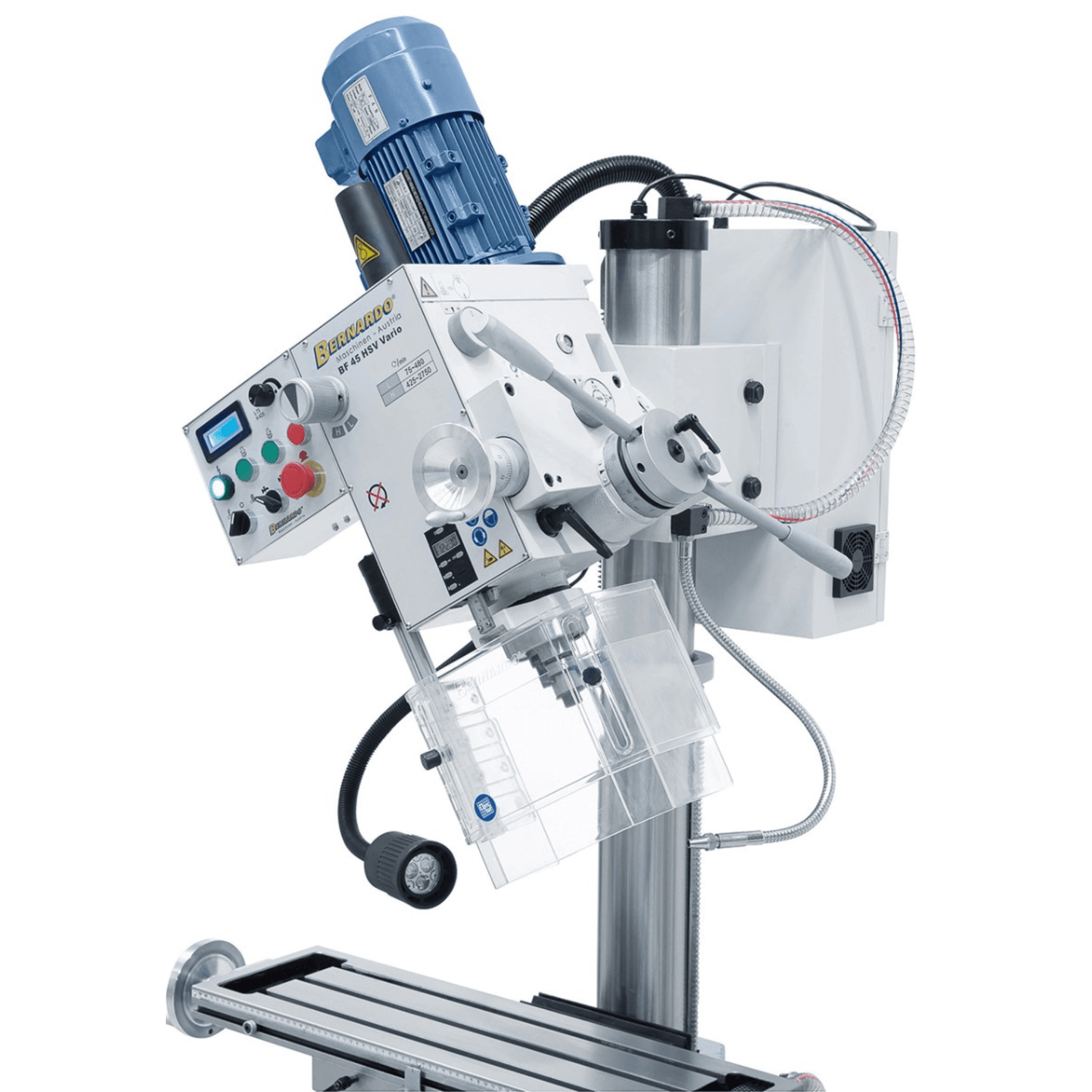

- Tiltable Milling Head: The head can be tilted to both sides, making angle drilling and chamfer milling possible.

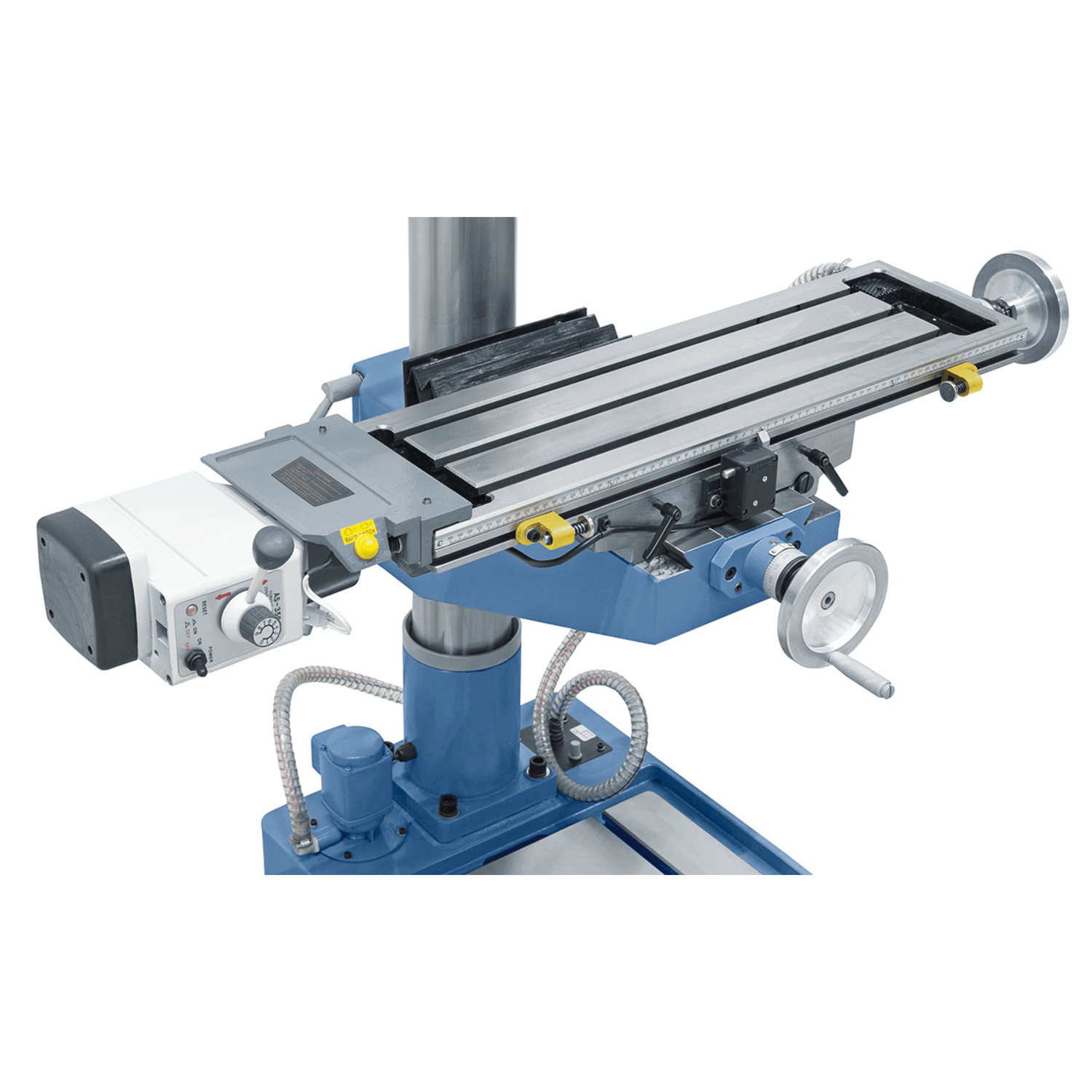

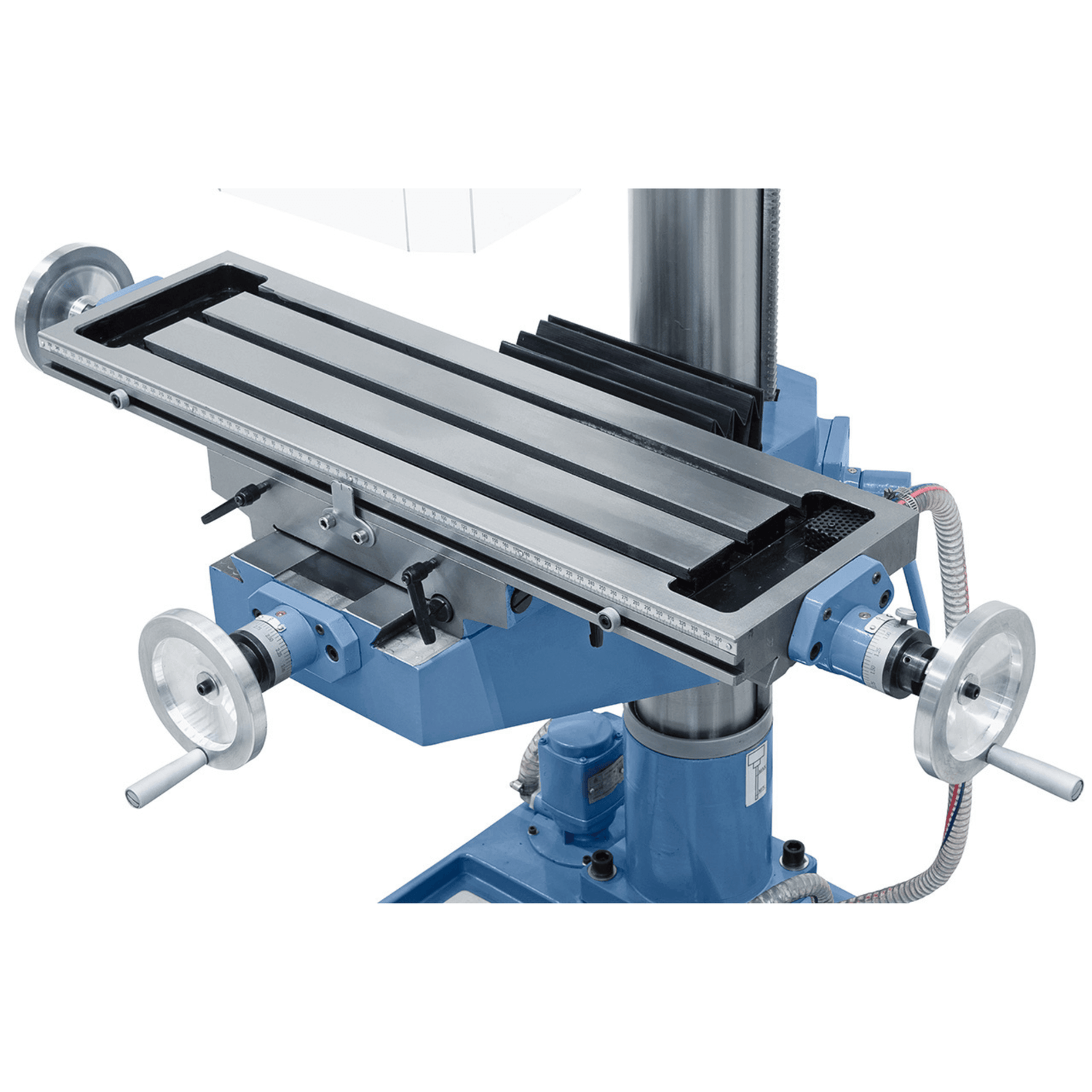

- T-Slot Composite Table: Wide T-slot table with coolant channel, for efficient and precise machining.
- Quiet Operation: The drive gears run in an oil bath, minimizing noise during use.

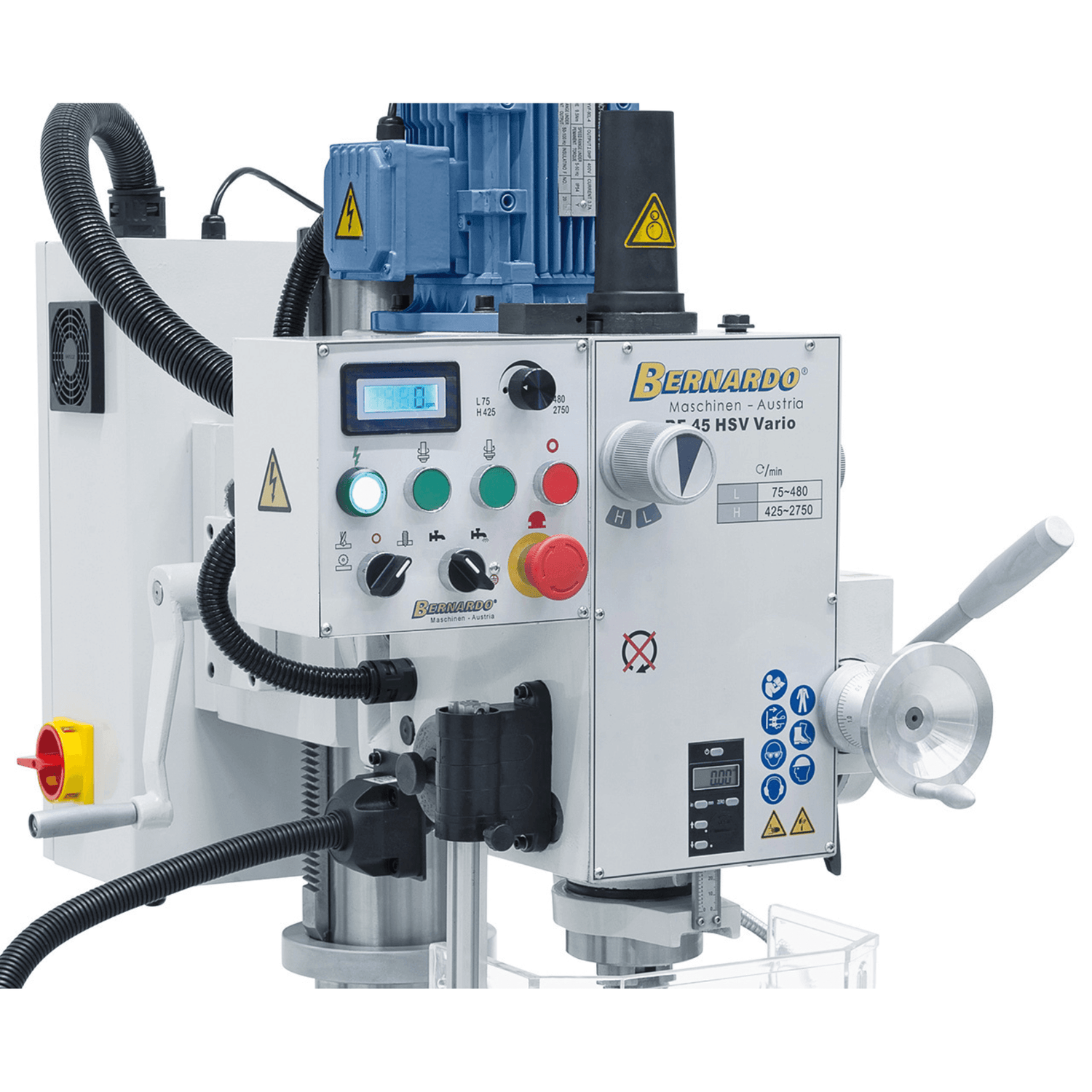

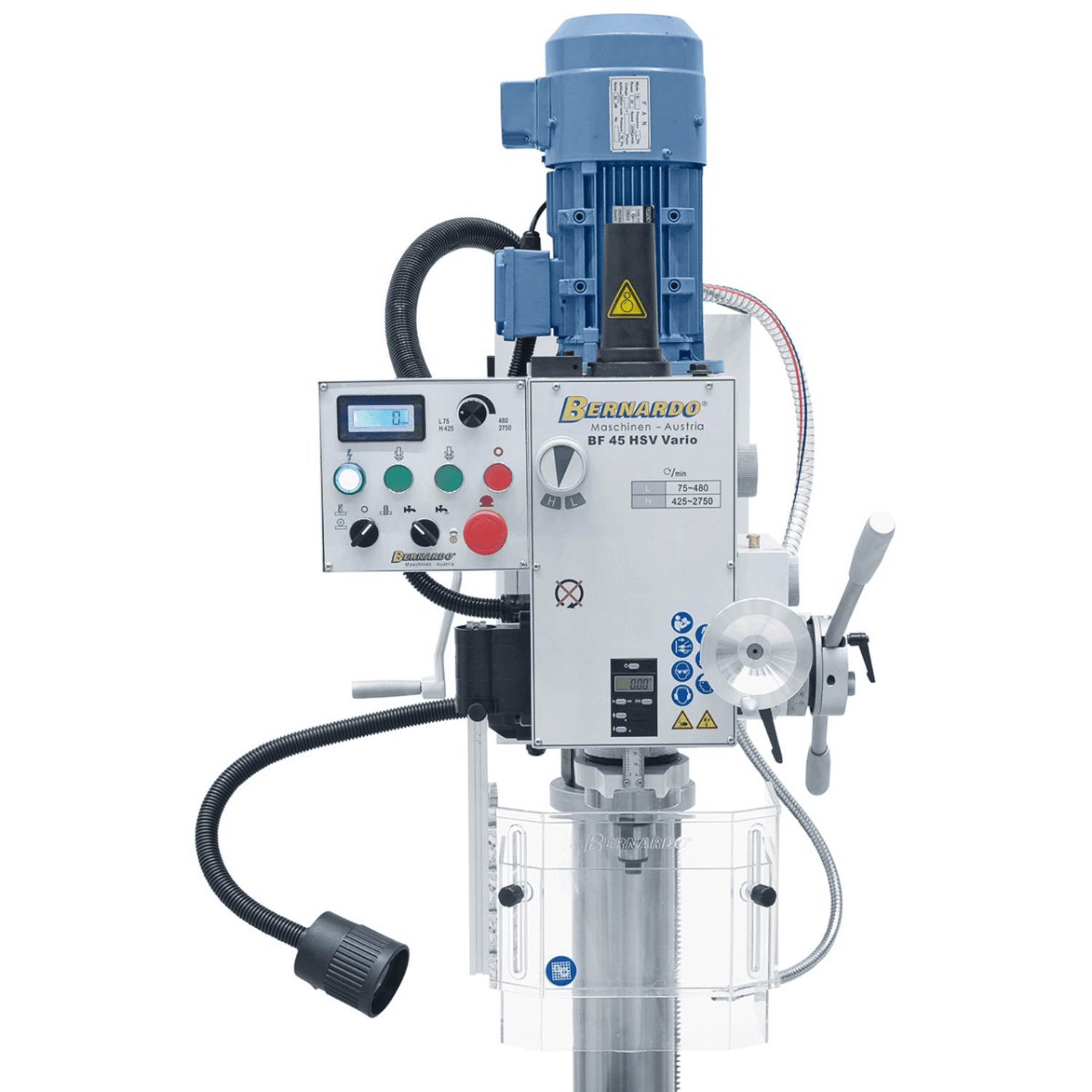

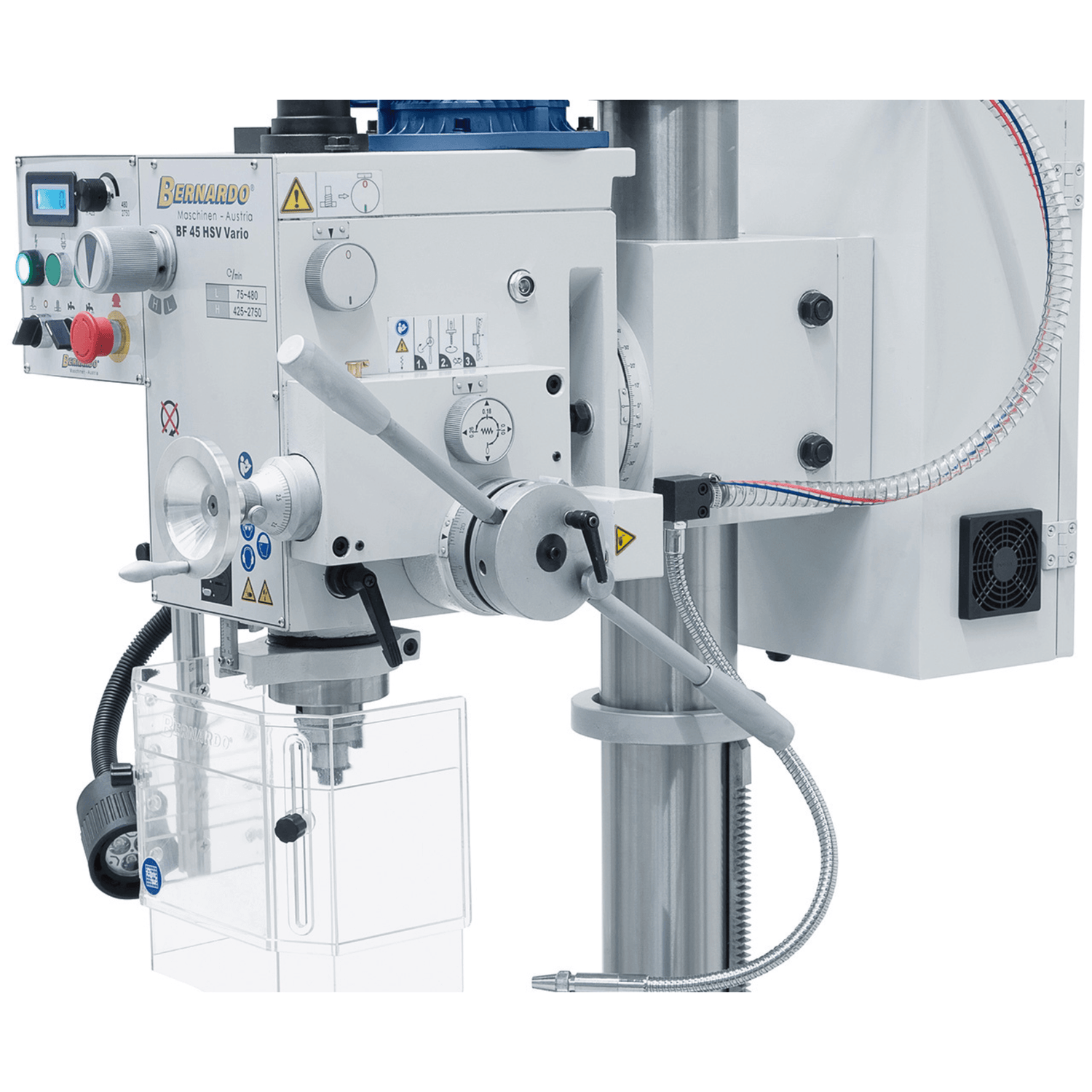

- Digital Display: Equipped with speed and stroke display for precise operation control.
- Dovetail Guide: The X and Z axes are adjustable via gibs, ensuring precision in movements.
- Steel Column: Sturdy column designed to withstand the most demanding uses.
- Bidirectional Rotation: Clockwise and counterclockwise rotation function, especially useful for threading operations.
Accessories Included:
- Quick-release drill chuck 1 – 16 mm / B 16
- Arbor spindle MK 4 / B 16
- M 16 clamping chuck
- Reduction socket MK 4 / 3
- Combination drill chuck MK 4 / 27 mm
- Automatic spindle feeding system
- Height-adjustable protective cover
- Digital spindle display
- Digital speedometer
- Frequency converter
- Threading device
- Refrigeration system
- LED car light
- Measurement scale
- Control device
Technical Specifications:
| Characteristic | Details |
|---|---|
| Steel drilling power | 32 mm |
| Cast iron drilling power | 40 mm |
| Milling head max. | 80 mm |
| Length of the arms | 280 mm |
| Continuous spindle speed | 75 – 2750 rpm |
| Spindle attachment | MK 4 |
| Hole stroke | 120 mm |
| Spindle power supply | (3) 0.10 / 0.18 / 0.26 mm/rev |
| Table dimensions | 730 x 210 mm |
| T-slot size | 14 mm |
| Max. spindle/table distance. | 640 mm |
| Max. distance spindle / bottom plate | 1190 mm |
| Travel (X / Y) | 495 / 200 mm |
| Rotating milling head | from -90° to + 90° |
| Milling head height setting | 260 mm |
| Column diameter | 115 mm |

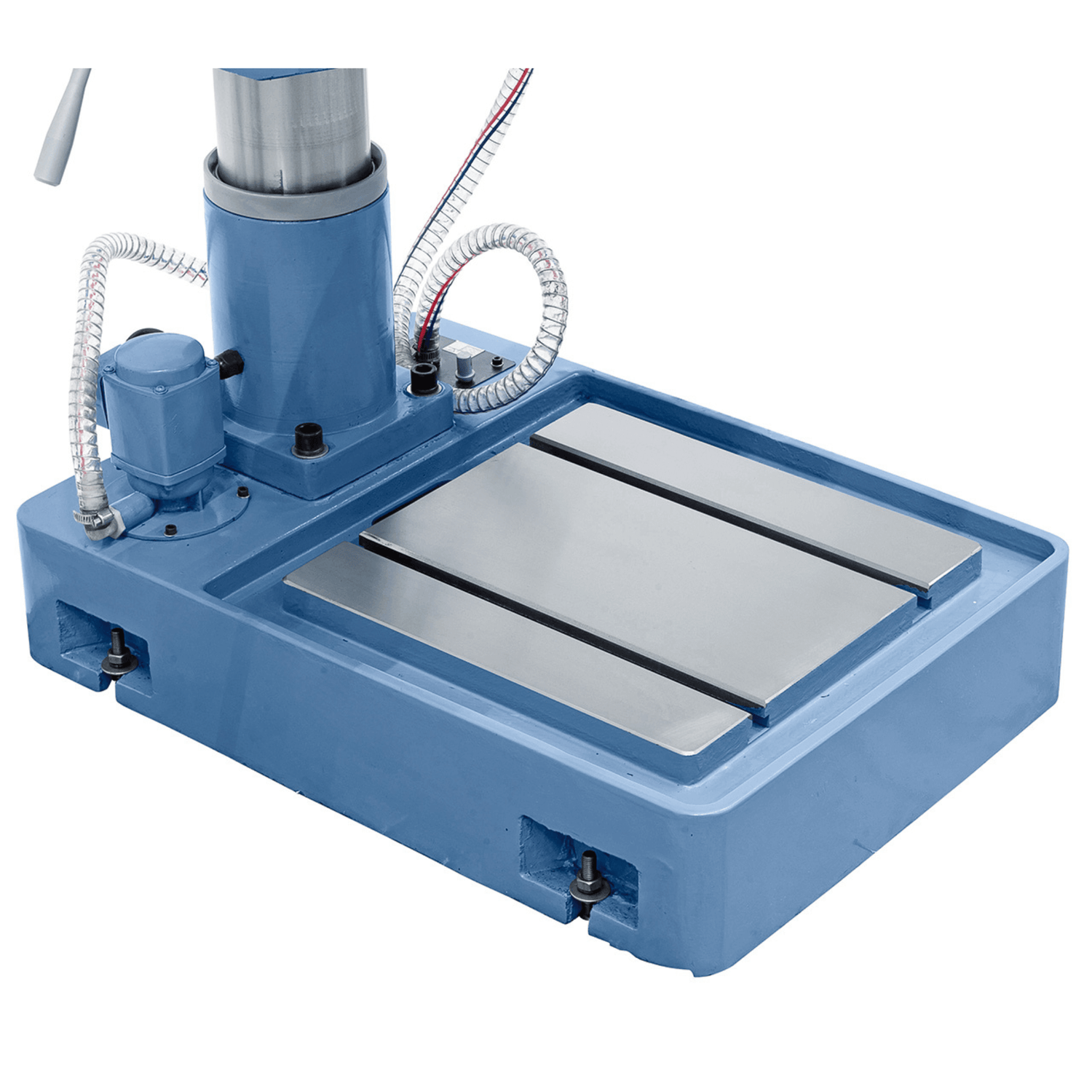

| Bottom plate | 365 x 375 mm |
| S1 motor input power 100% | 1.5 kW (400 V) |
| S6 Motor Output Power 40% | 2.2 kW (400 V) |
| Machine dimensions (L x W x H) | 1070 x 800 x 2060 mm |
| Weight approx. | 362 kg |
The BF 45 HSV Vario Benchtop Drill/Milling Machine represents a cutting-edge solution for those seeking precision, reliability, and versatility in mechanical machining. Perfect for any type of workshop, from model making to crafting, it guarantees professional results in every application.
