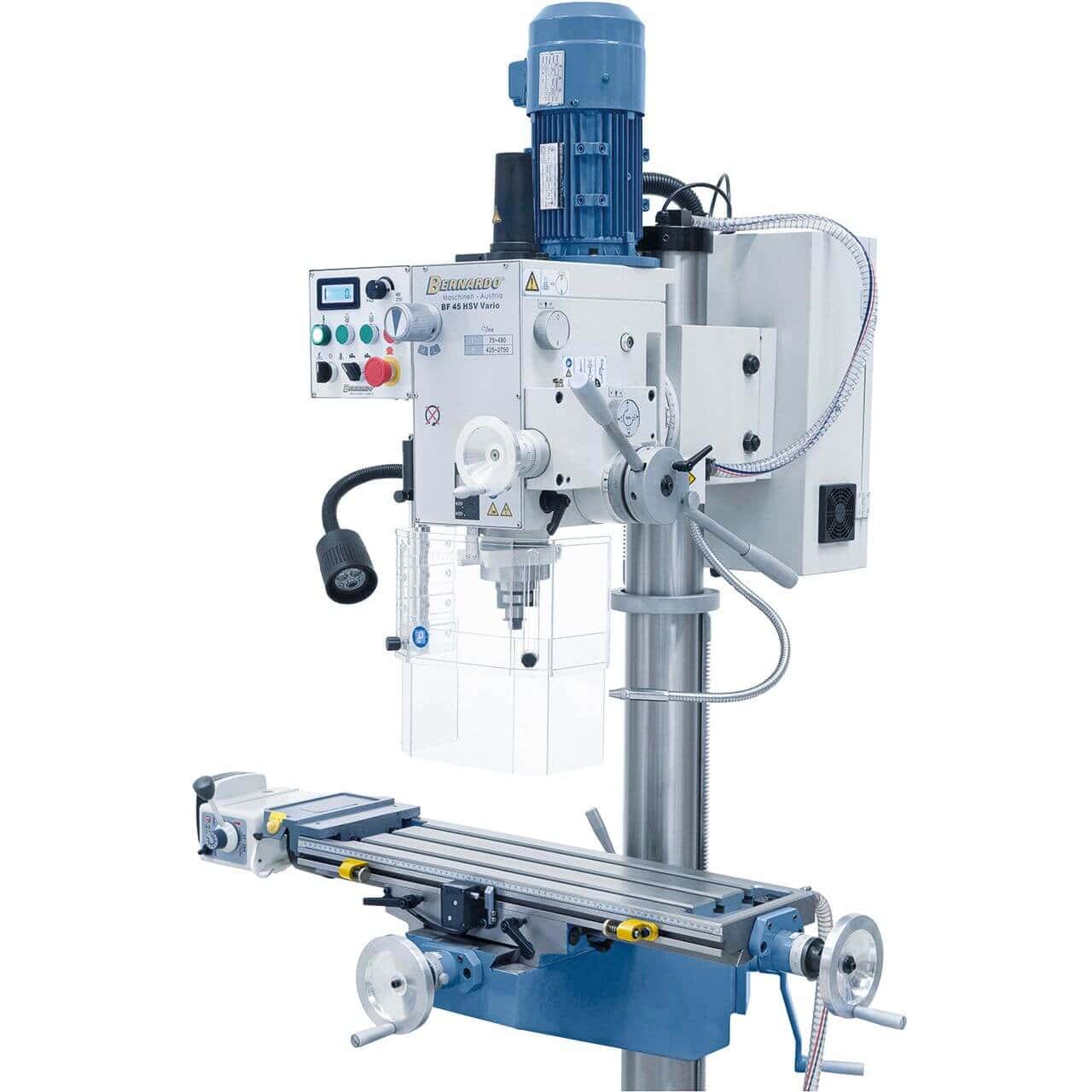

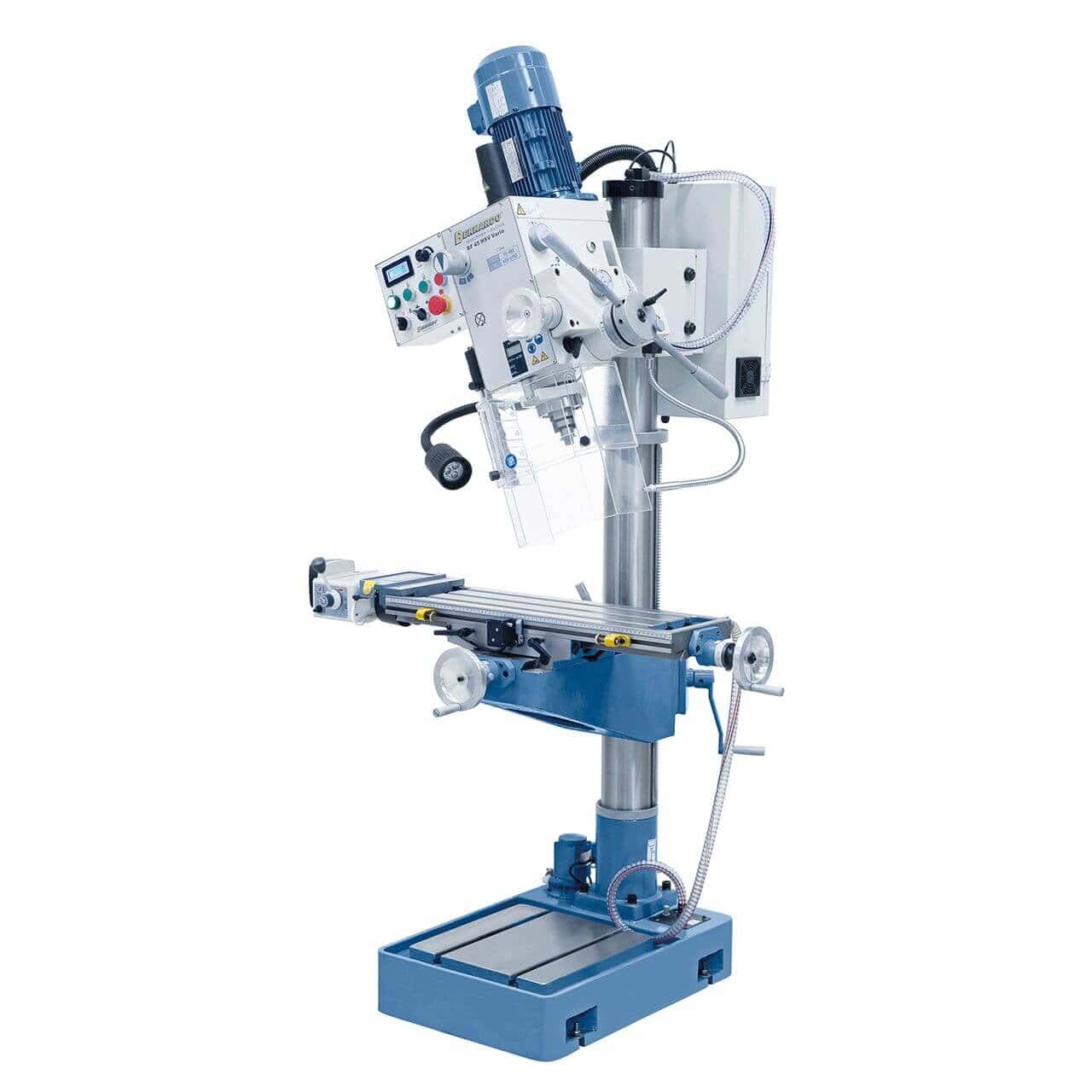

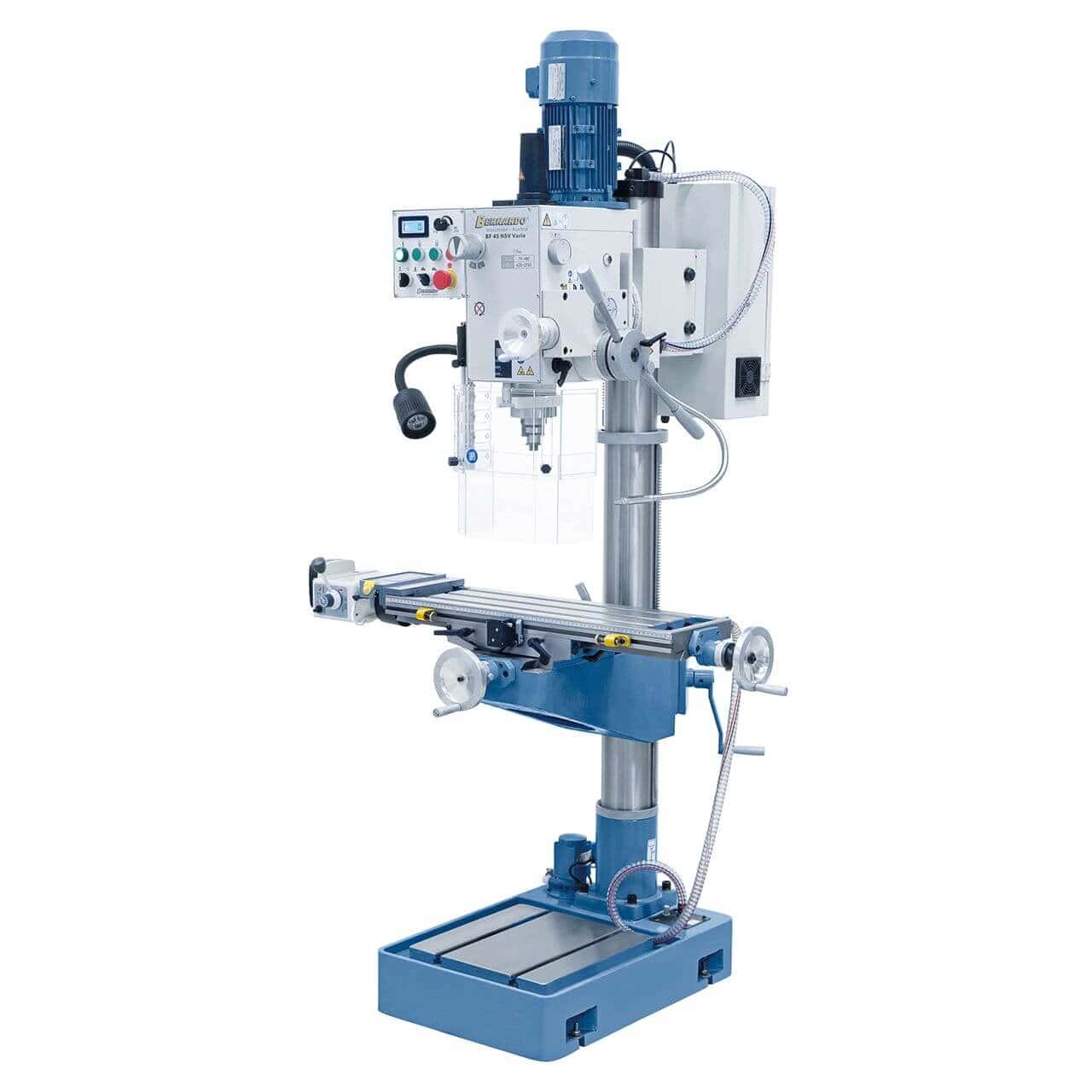

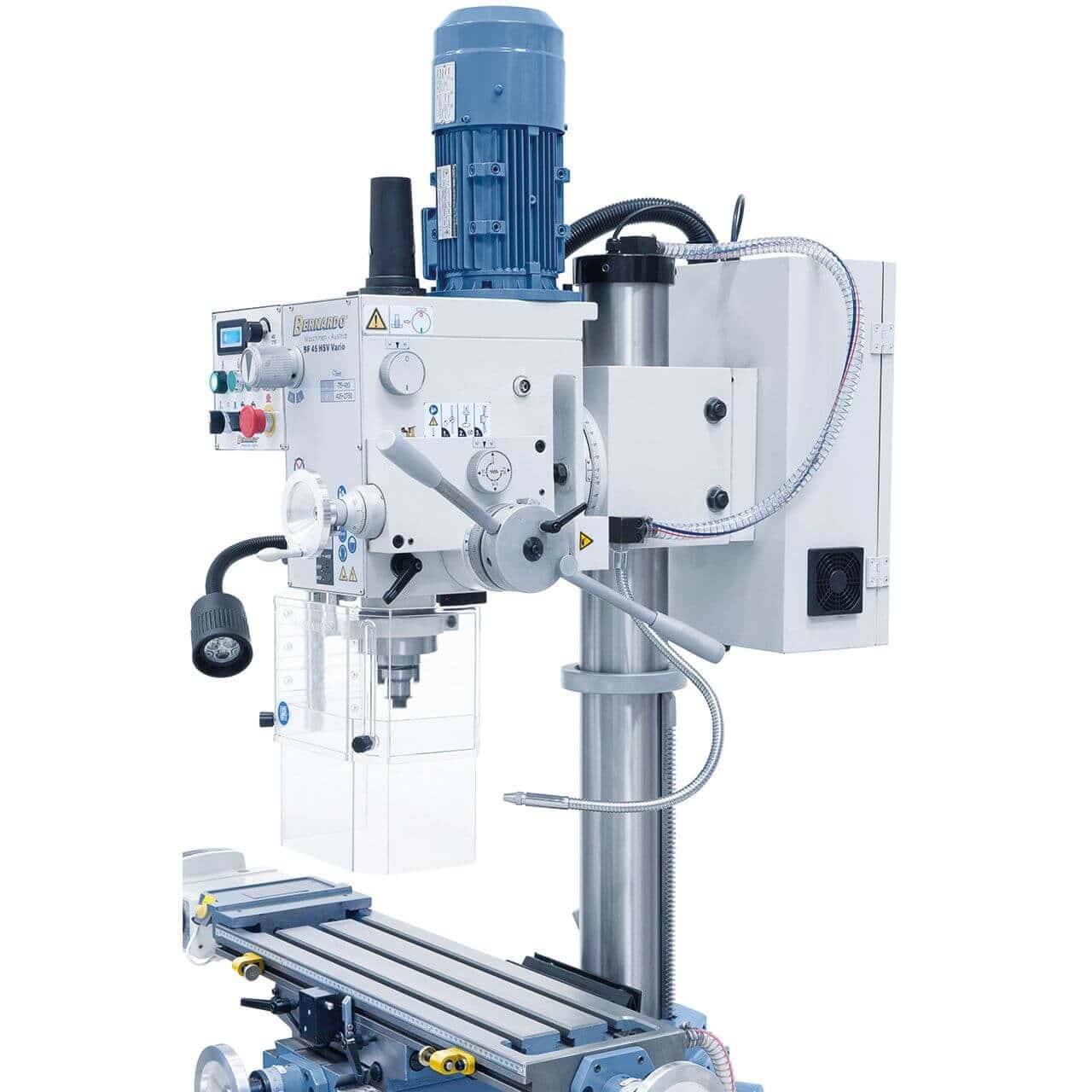

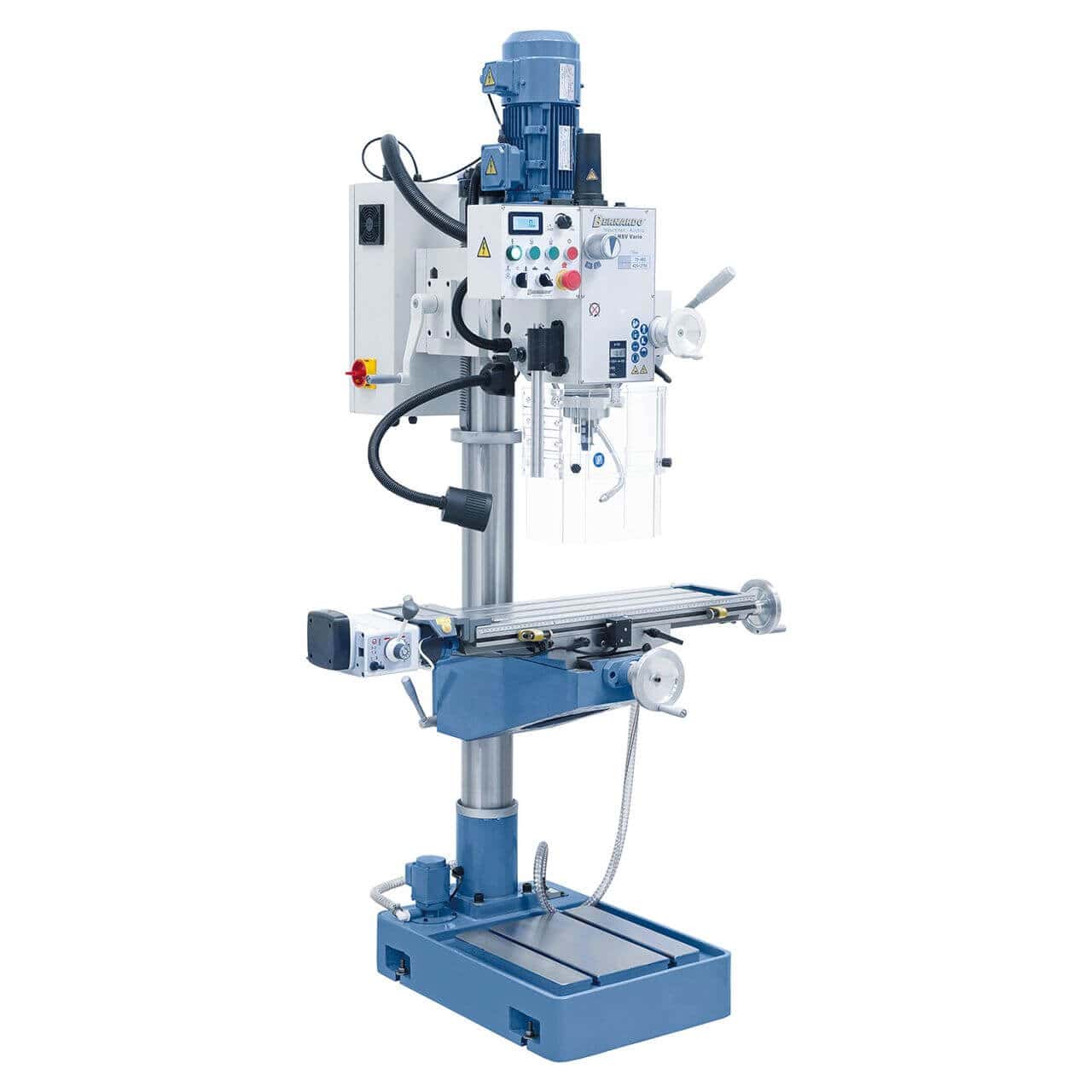

BF 45 HSV Vario Bench Drill/Milling Machine
The BF 45 HSV Vario Bench Drill/Milling Machine is a versatile and robust machine, designed for drilling and milling operations in horizontal, vertical, and inclined positions. Thanks to its solid construction, continuous speed control, and numerous integrated accessories, this model is ideal for model makers, craftsmen, and repair shops who require precision and reliability in every job.
Main Features:

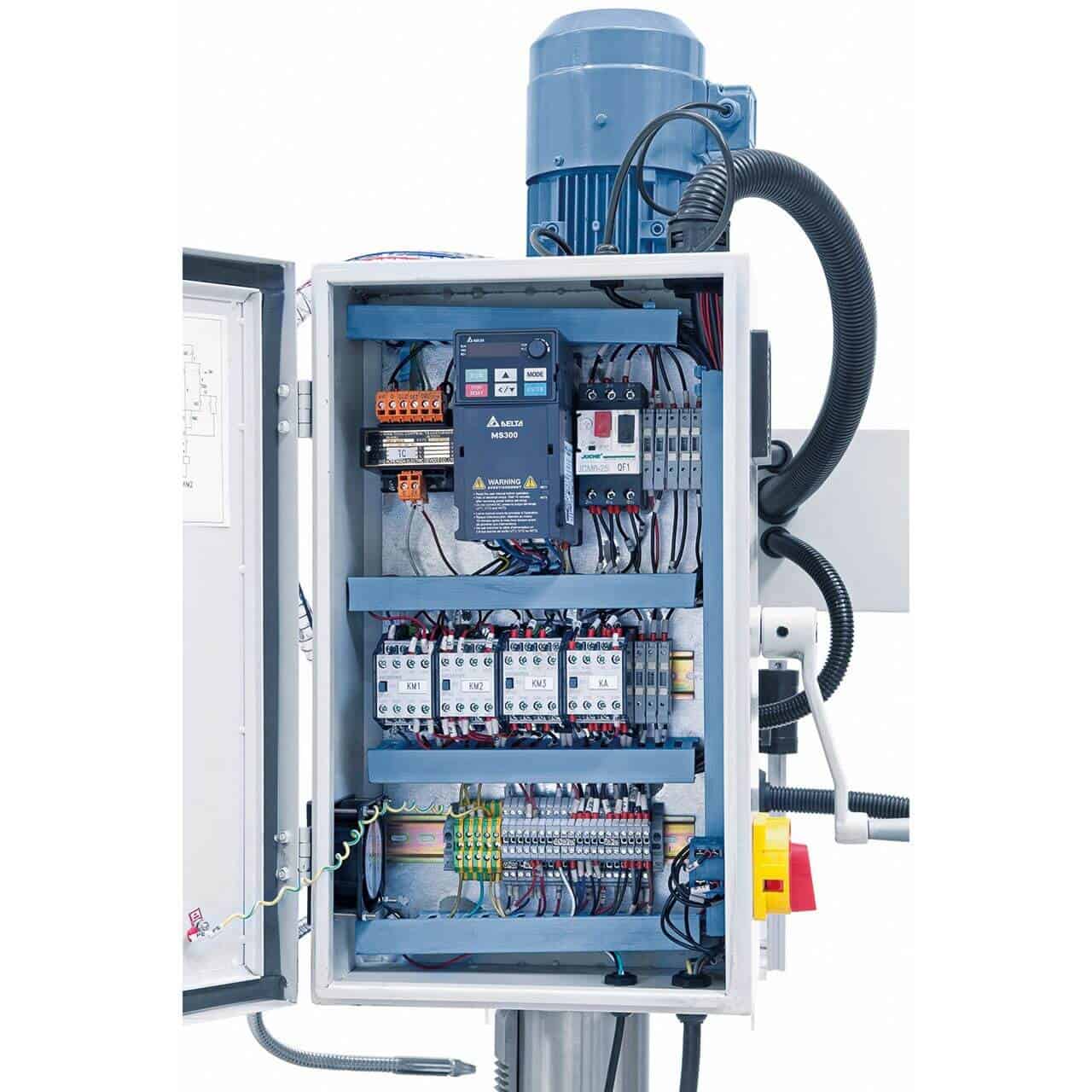

- Continuous Speed Regulation: The drill/mill is equipped with a Delta frequency converter that allows for variable speed regulation, with an optimal torque curve to adapt to different machining operations.
- High Safety: A height-adjustable protective cover, compliant with CE regulations, ensures maximum safety during use, preventing accidents and protecting the operator.

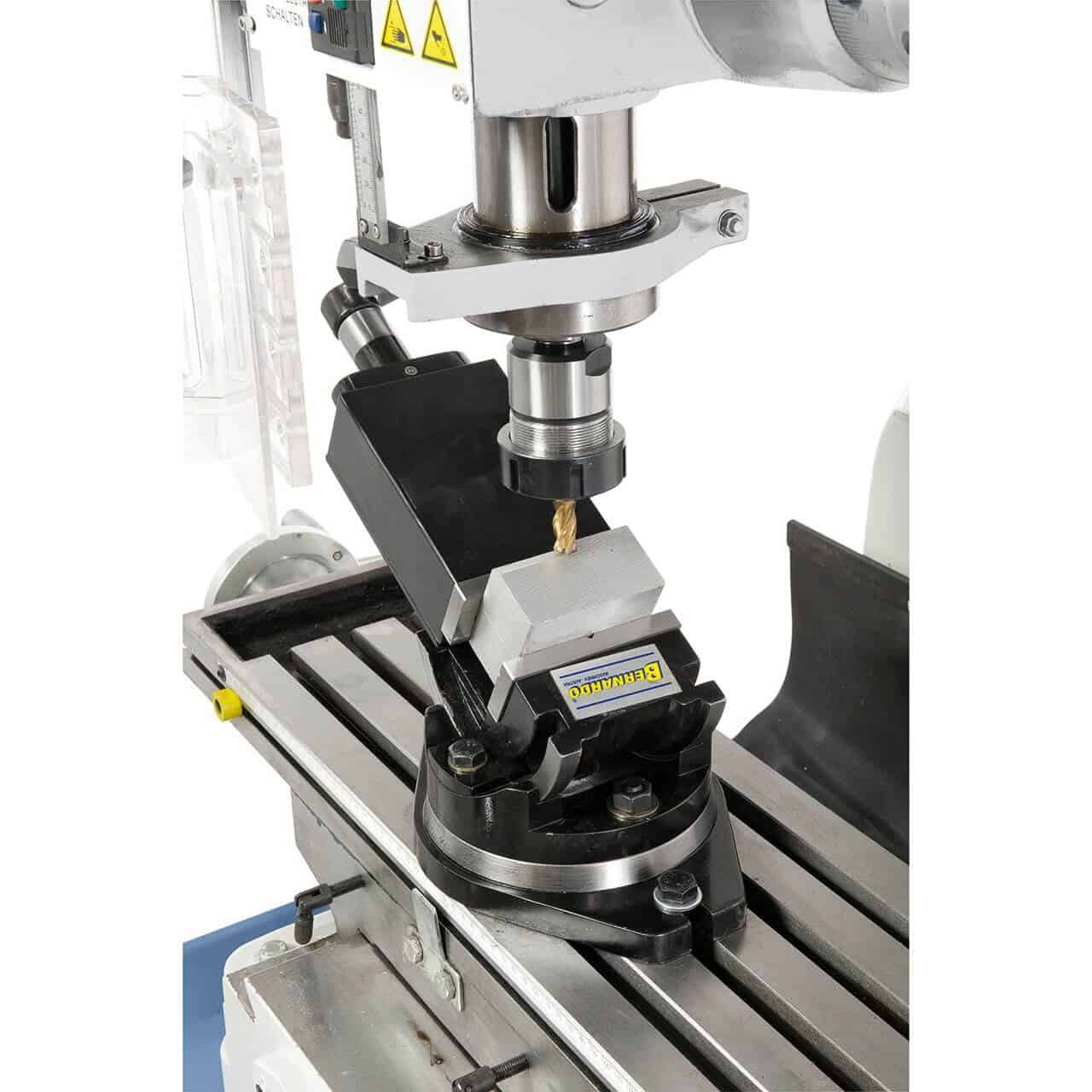

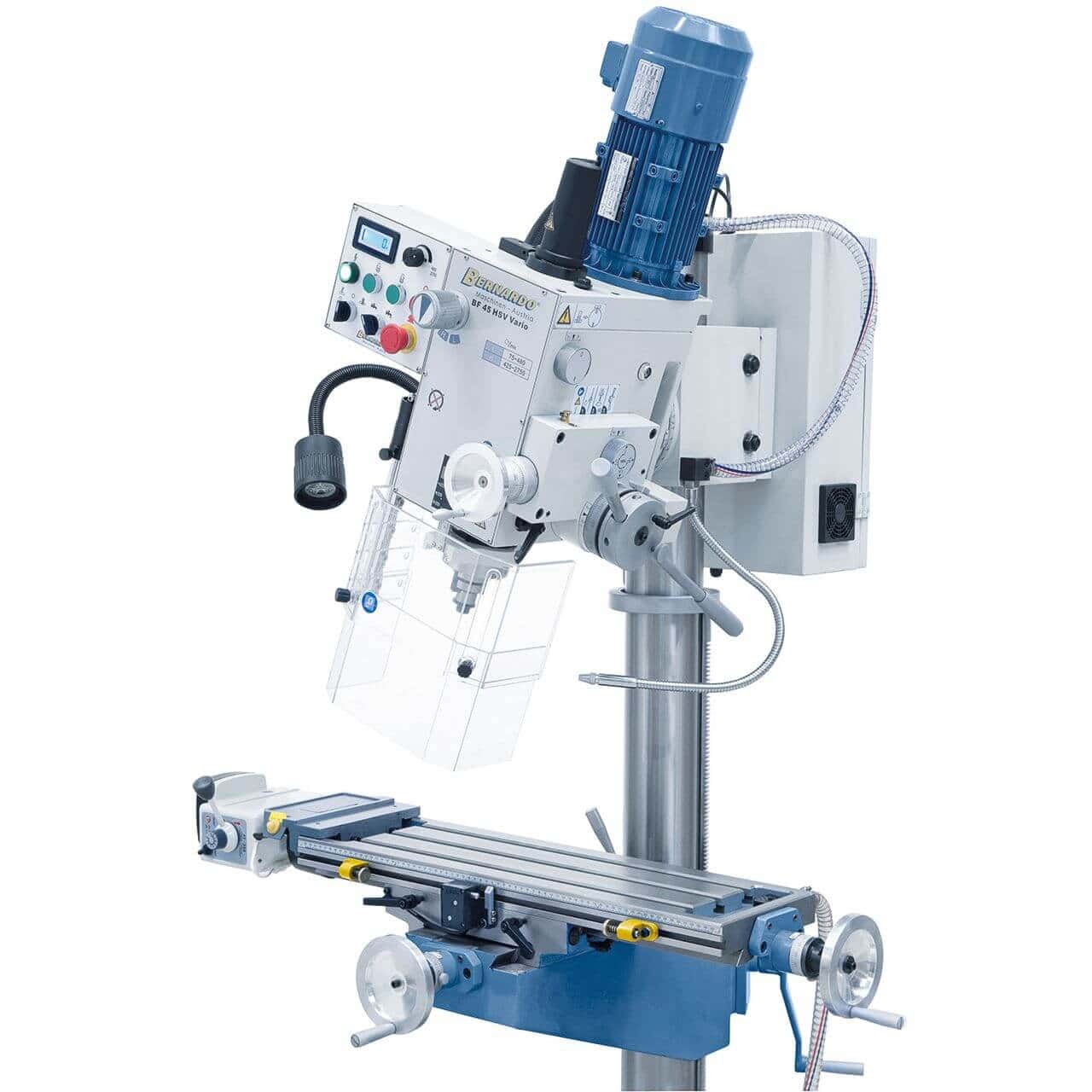

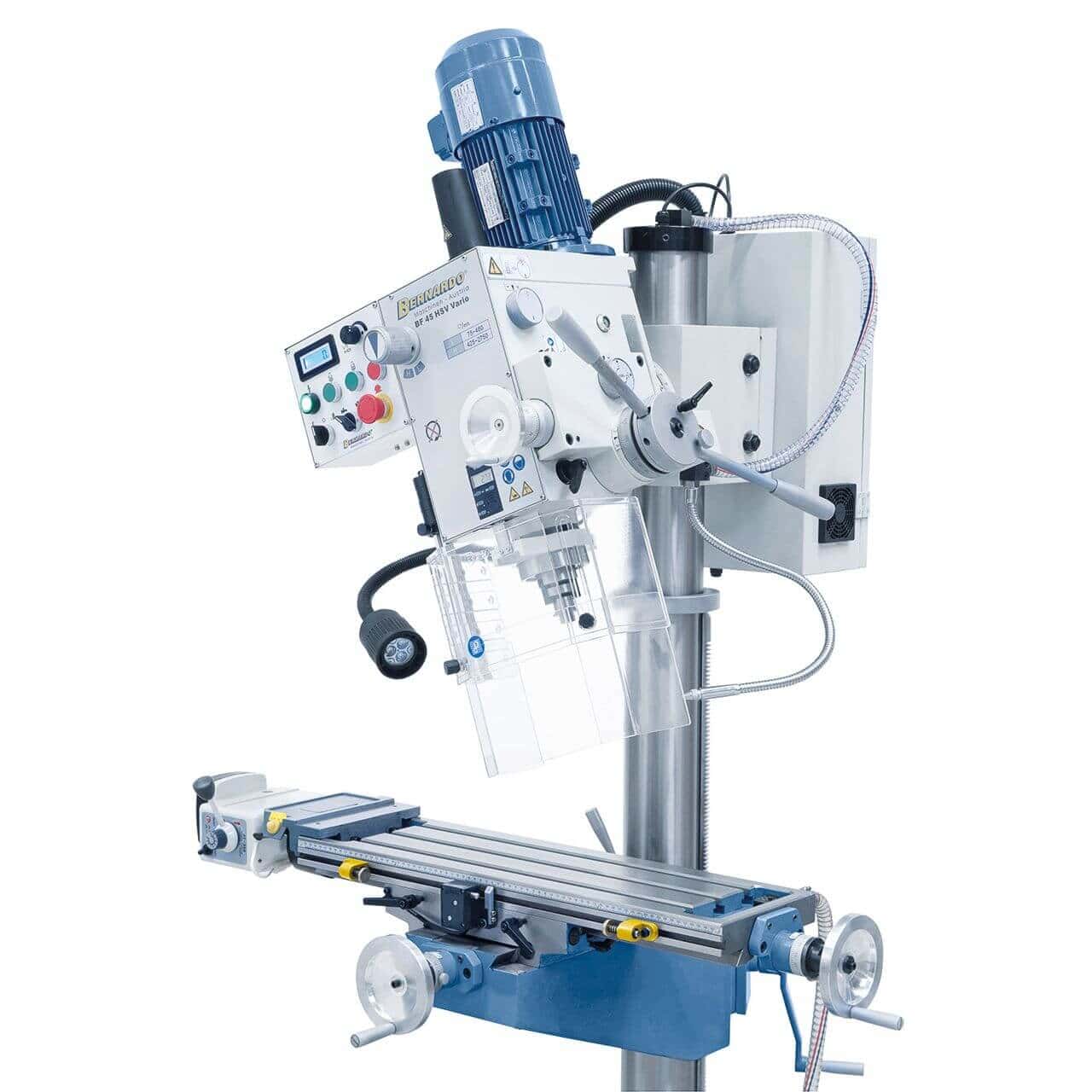

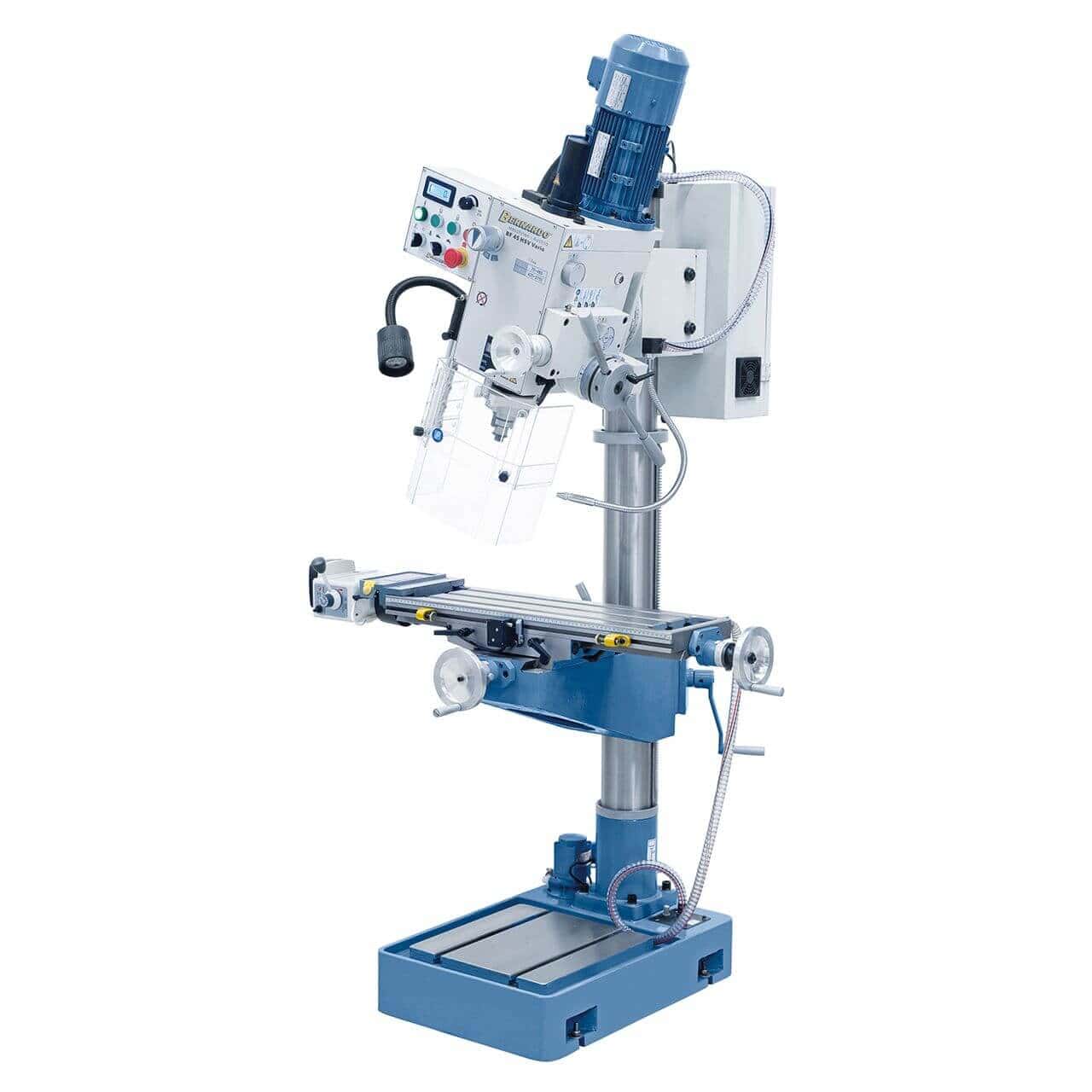

- Versatility of Use: The milling head can be tilted to both sides, allowing for angle drilling, chamfer milling and other complex operations.

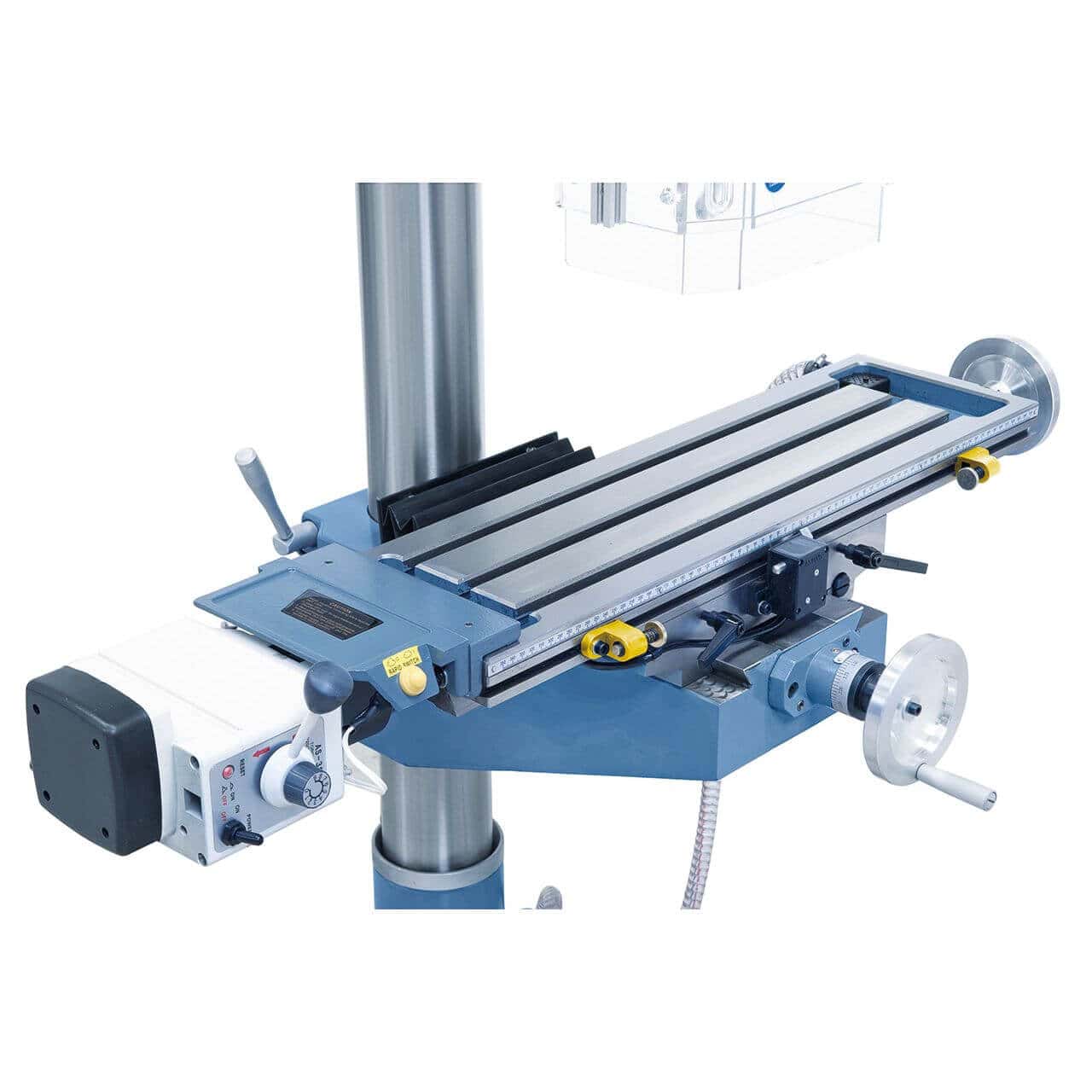

- Large Composite Table: The large worktable, with T-slots and a coolant channel, provides stable support for large workpieces.
- Quiet Operation: The drive gears are immersed in an oil bath, ensuring extremely quiet operation and reducing wear on the machine.

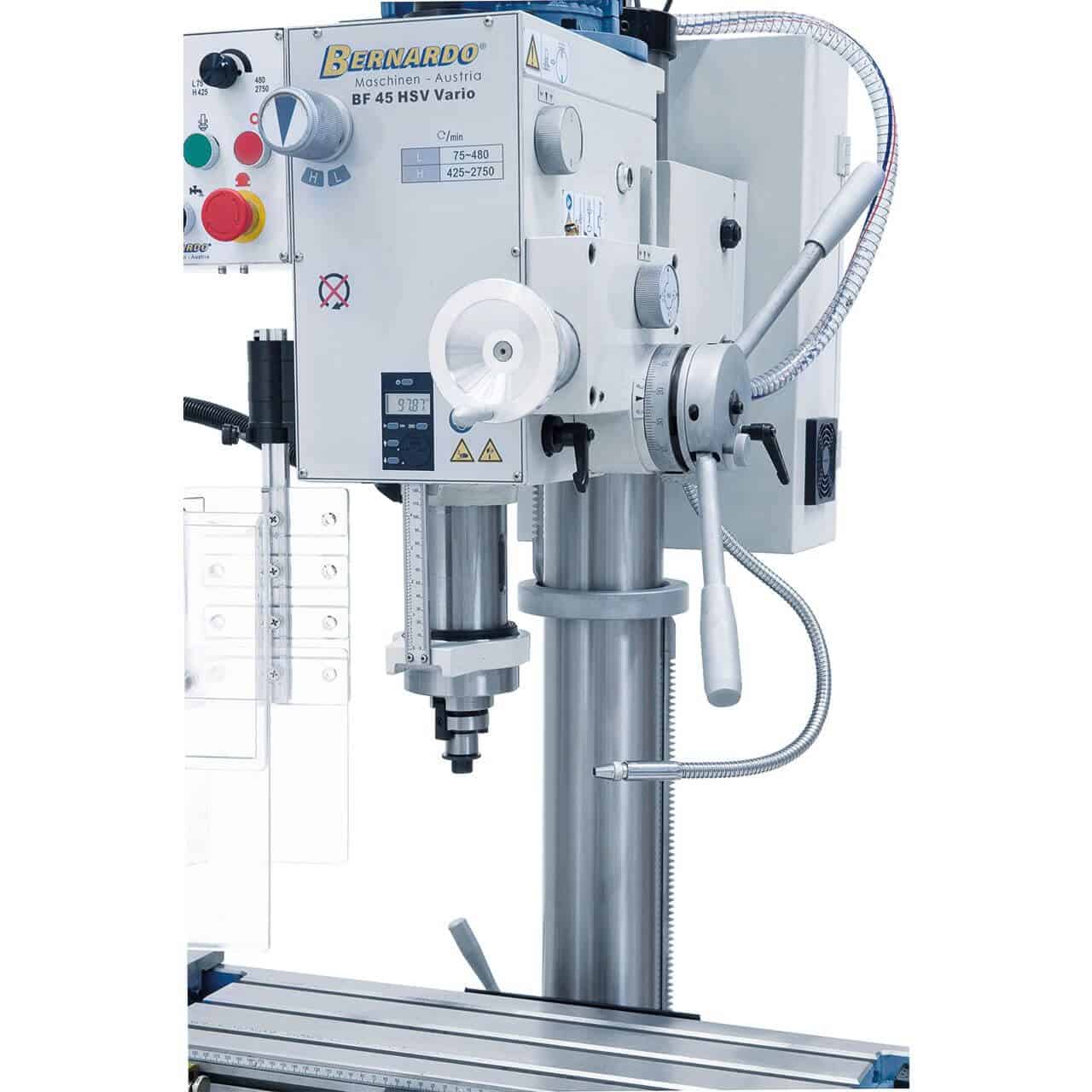

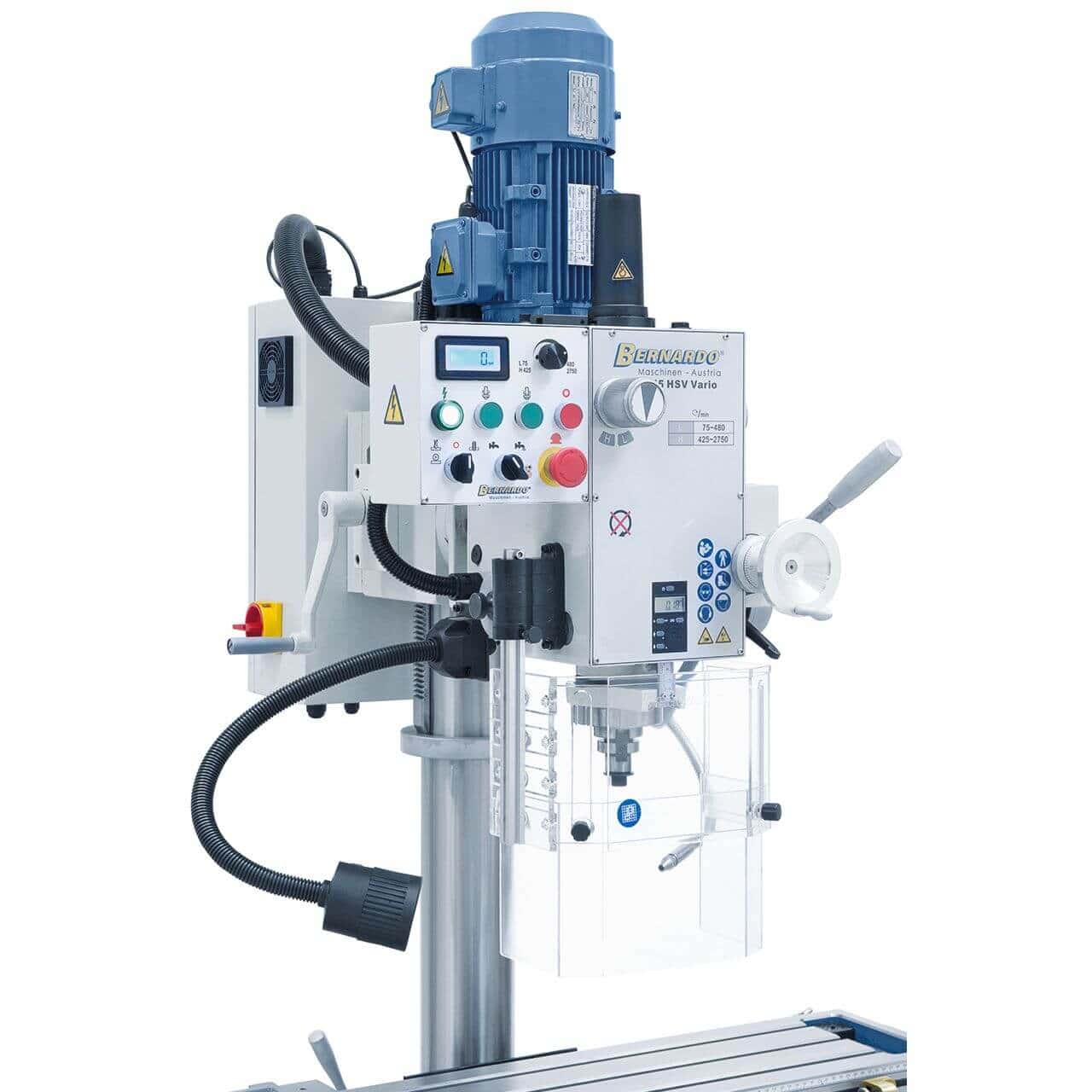

- Digital Display: The integrated digital display provides precise information on spindle speed and hole travel, allowing for accurate control during machining.
- Dovetail Guide: The X and Z axes are equipped with adjustable dovetail guides, ensuring stability and precision even in the most demanding operations.
- Sturdy Steel Column: The column, made of polished steel, is designed to withstand heavy stress, ensuring durability and reliability over time.
- Automatic Spindle Feed: The automatic spindle feed system simplifies operations, allowing you to perform thread cutting and other operations quickly and accurately.
- Bi-Directional Rotation: The chuck features a device for clockwise and counterclockwise rotation, ideal for threading operations.
Standard Accessories:

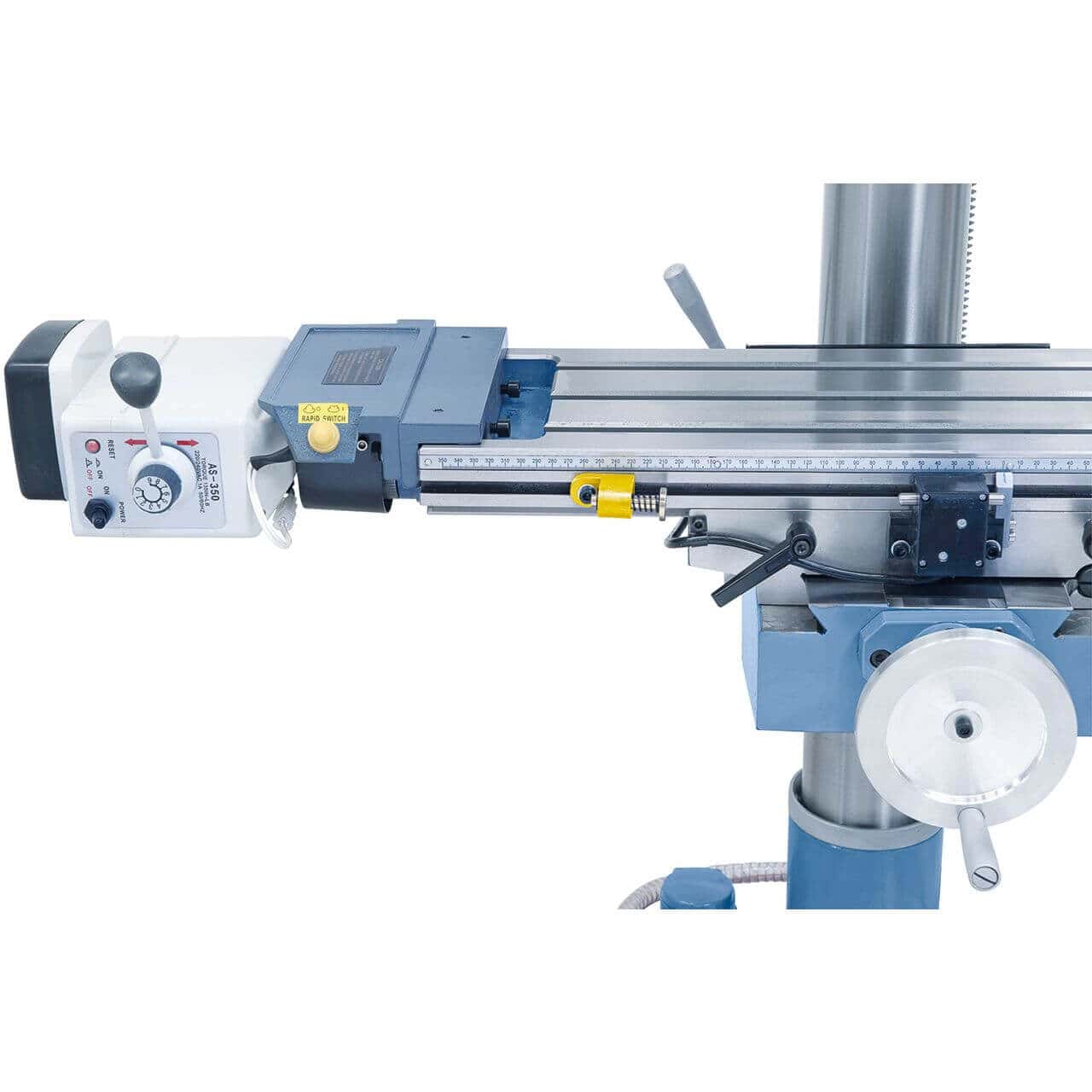

- X-axis feed AL 450 D
- Quick-release drill chuck 1 – 16 mm / B 16
- Arbor spindle MK 4 / B 16
- M 16 clamping chuck
- Reduction socket MK 4 / 3
- Combination drill chuck MK 4 / 27 mm
- Automatic spindle feeding system
- Height-adjustable protective cover
- Digital spindle display
- Digital speedometer
- Frequency converter
- Threading device
- Refrigeration system
- LED car light
- Measurement scale
- Control device
Technical Specifications:
| Characteristic | Values |
|---|---|
| Steel drilling power | 32 mm |
| Cast iron drilling power | 40 mm |
| Milling head max. | 80 mm |
| Length of the arms | 280 mm |
| Continuous spindle speed | 75 – 2750 rpm |
| Spindle attachment | MK 4 |
| Hole stroke | 120 mm |
| Spindle power supply | (3) 0.10 / 0.18 / 0.26 mm/rev |
| Table dimensions | 730 x 210 mm |
| T-slot size | 14 mm |
| Distance spindle – table max. | 640 mm |
| Max. distance spindle – bottom plate | 1190 mm |
| Travel (X / Y) | 495 / 200 mm |
| Rotating milling head | from -90° to +90° |
| Milling head height setting | 260 mm |
| Column diameter | 115 mm |

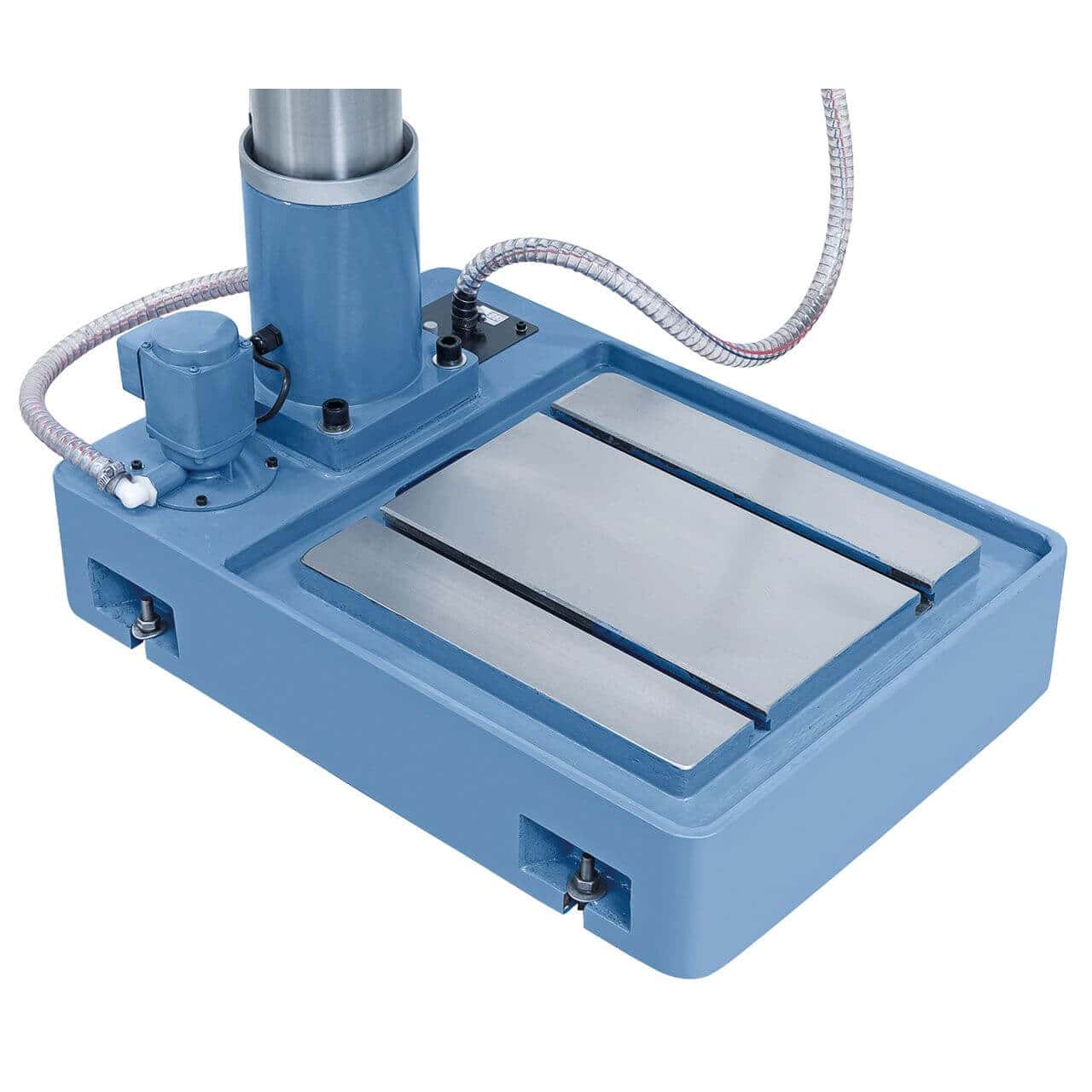

| Bottom plate | 365 x 375 mm |
| S1 motor input power 100% | 1.5 kW (400 V) |
| S6 Motor Output Power 40% | 2.2 kW (400 V) |
| Machine dimensions (L x W x H) | 1070 x 800 x 2060 mm |
| Weight approx. | 362 kg |
The BF 45 HSV Vario Bench Drill/Milling Machine is an essential machine for anyone looking for a robust and versatile solution for high-precision milling and drilling. With its numerous features and included accessories, this model represents an excellent investment for professionals working in repair shops, model making workshops, and craft shops.
