Description

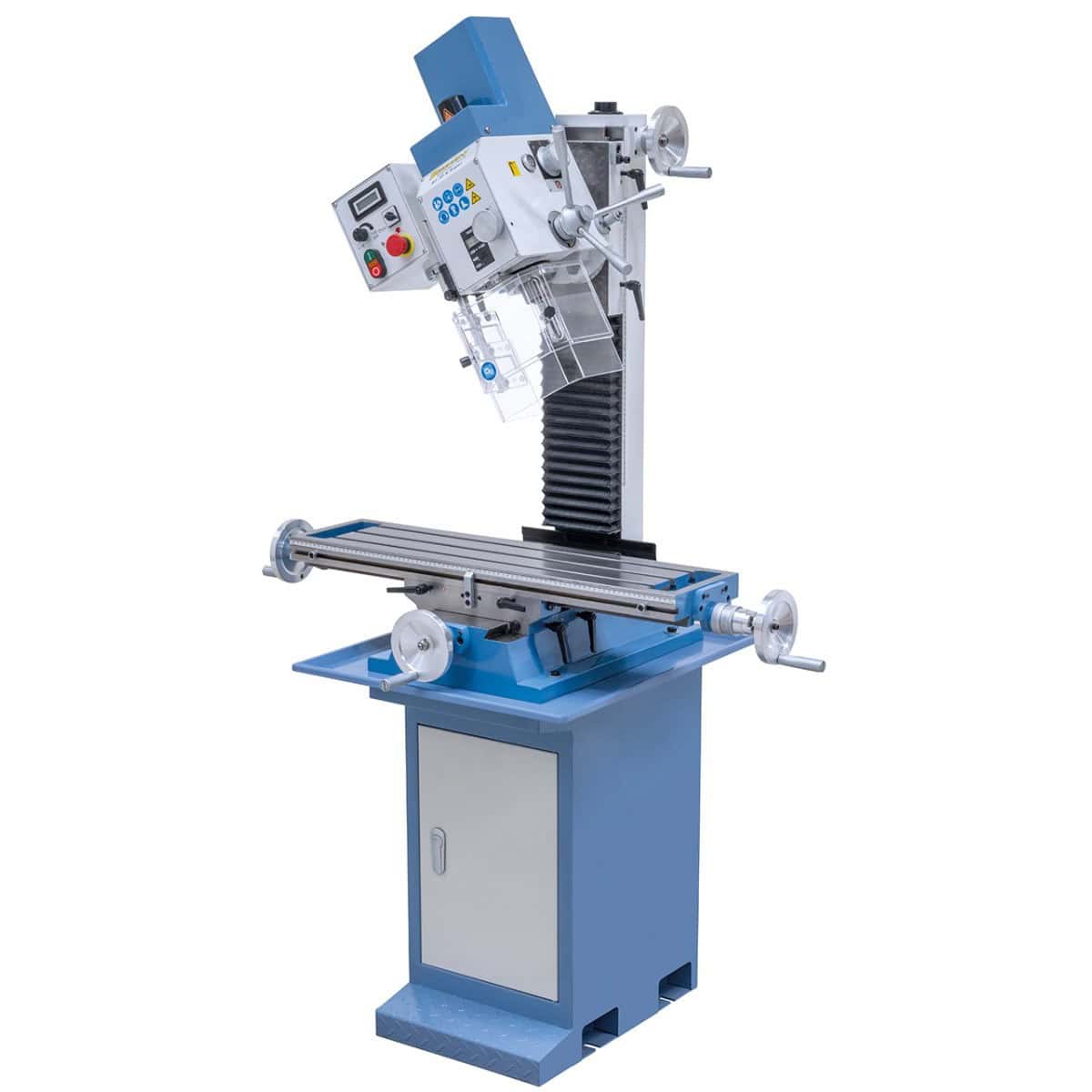

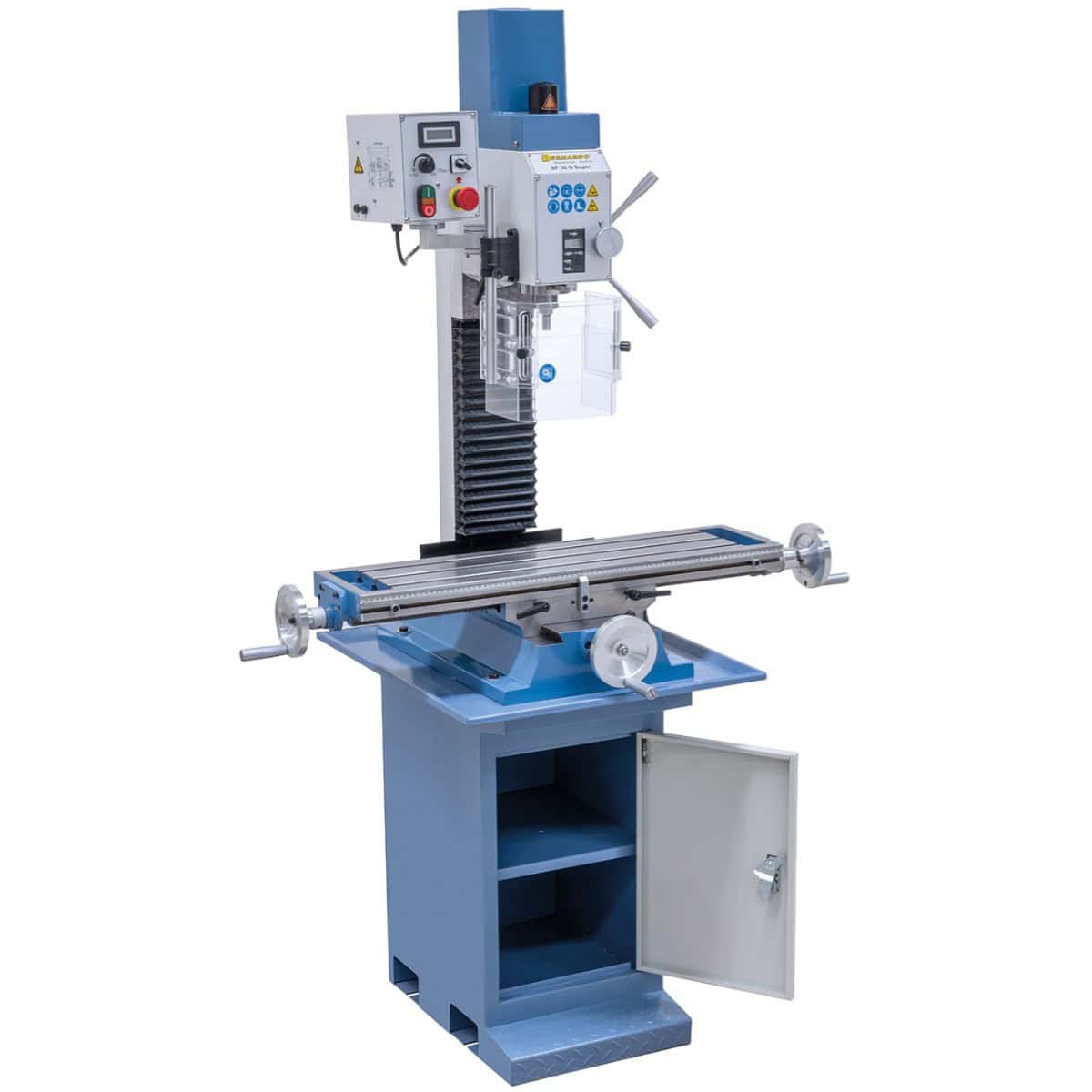

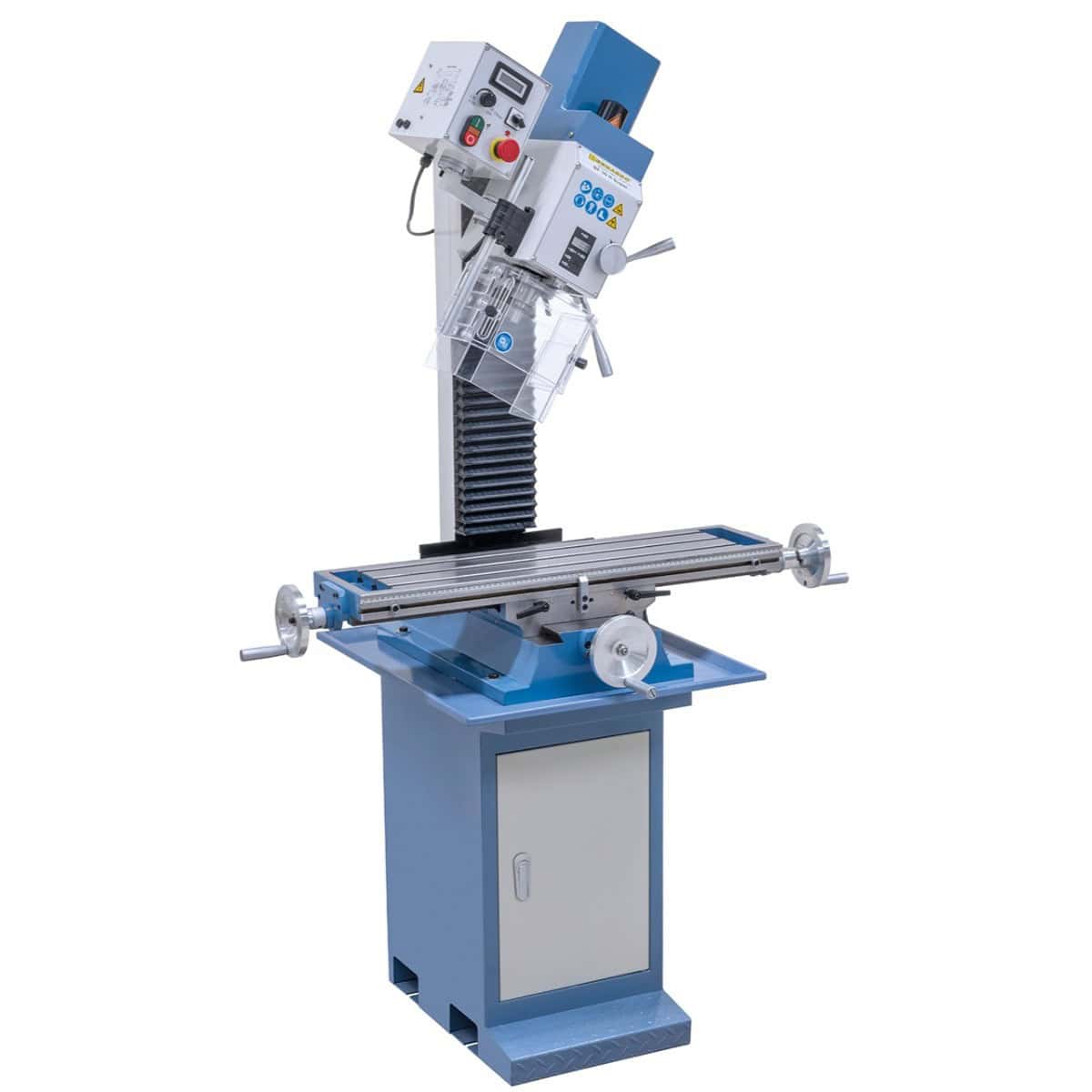

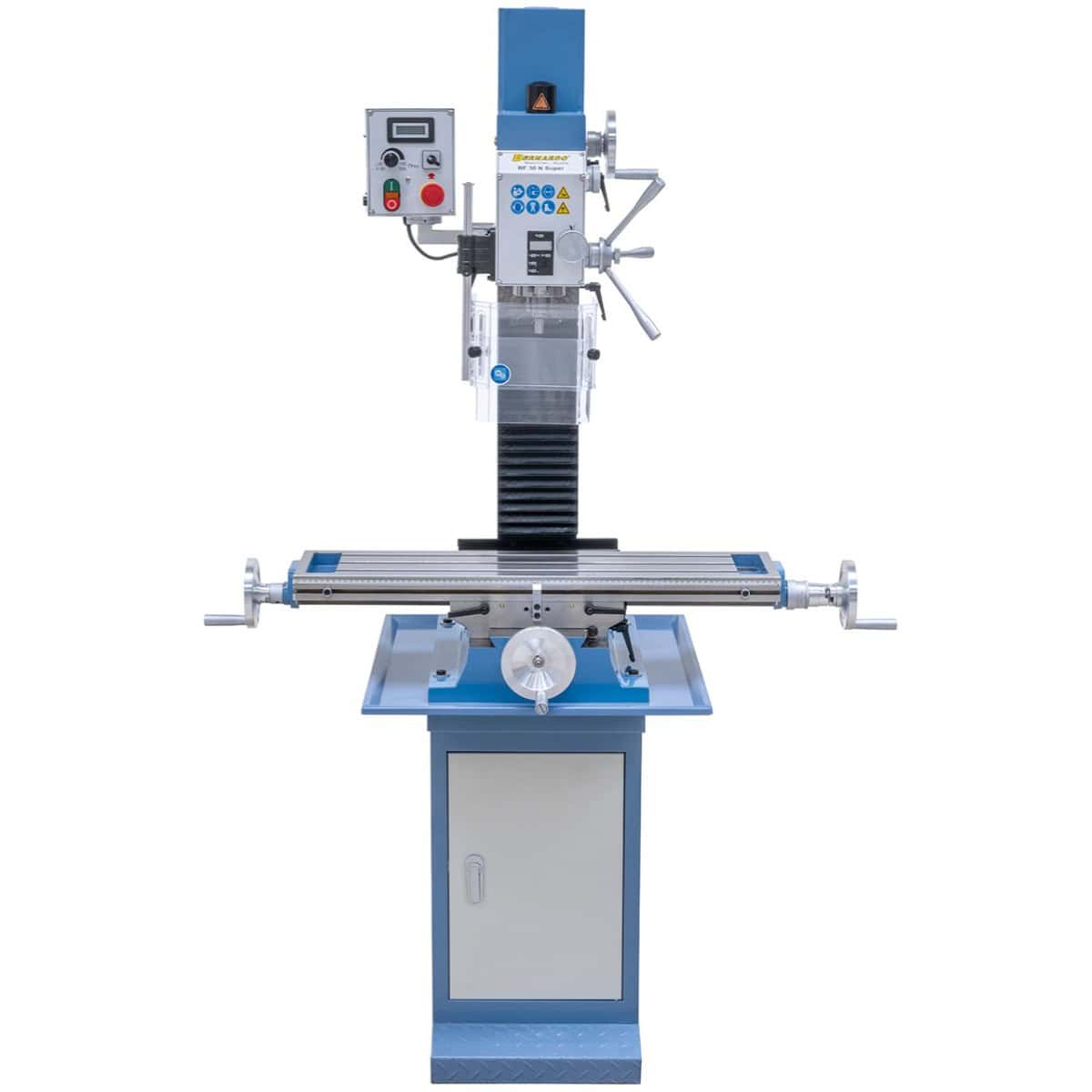

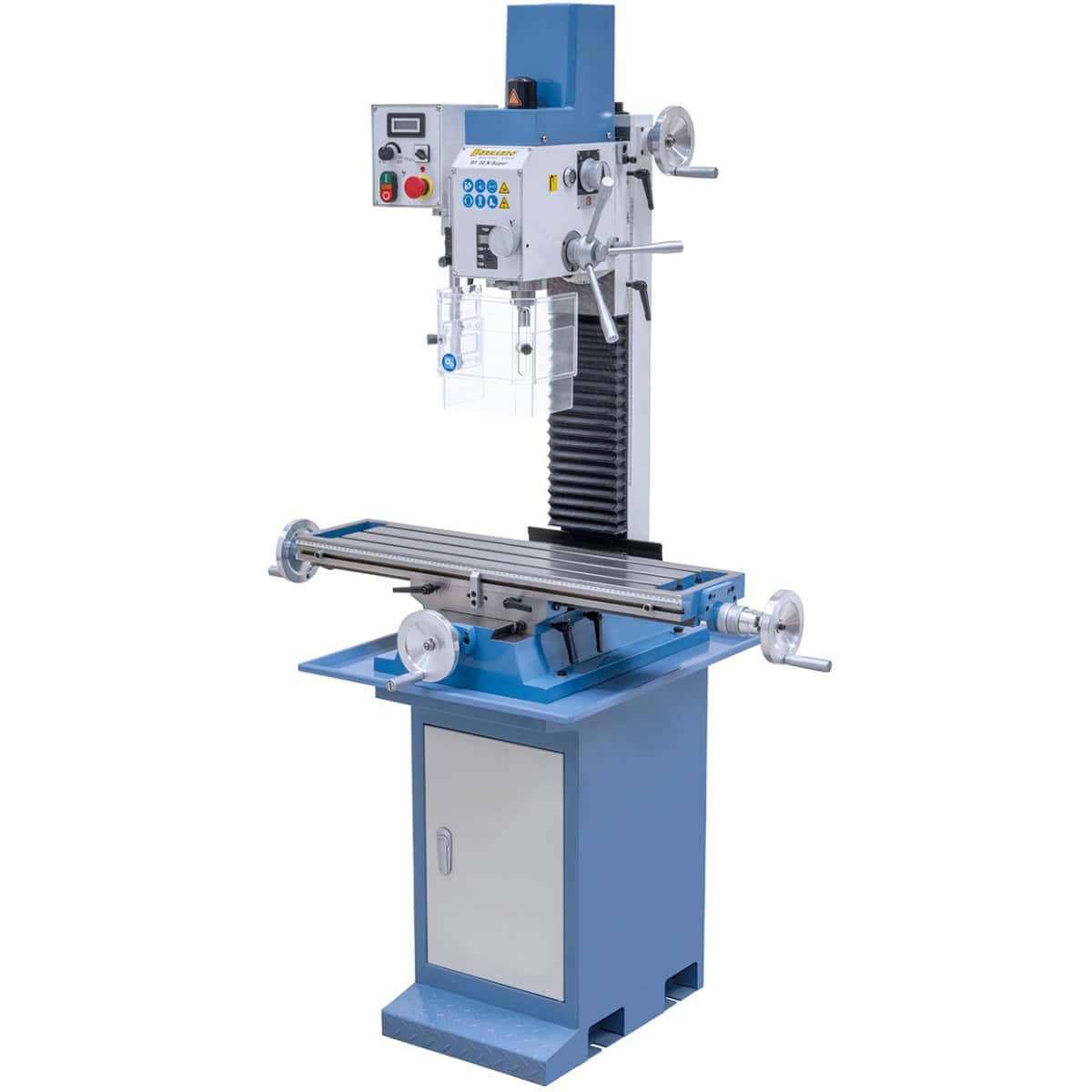

BF 30 N Super Drill Milling Machine

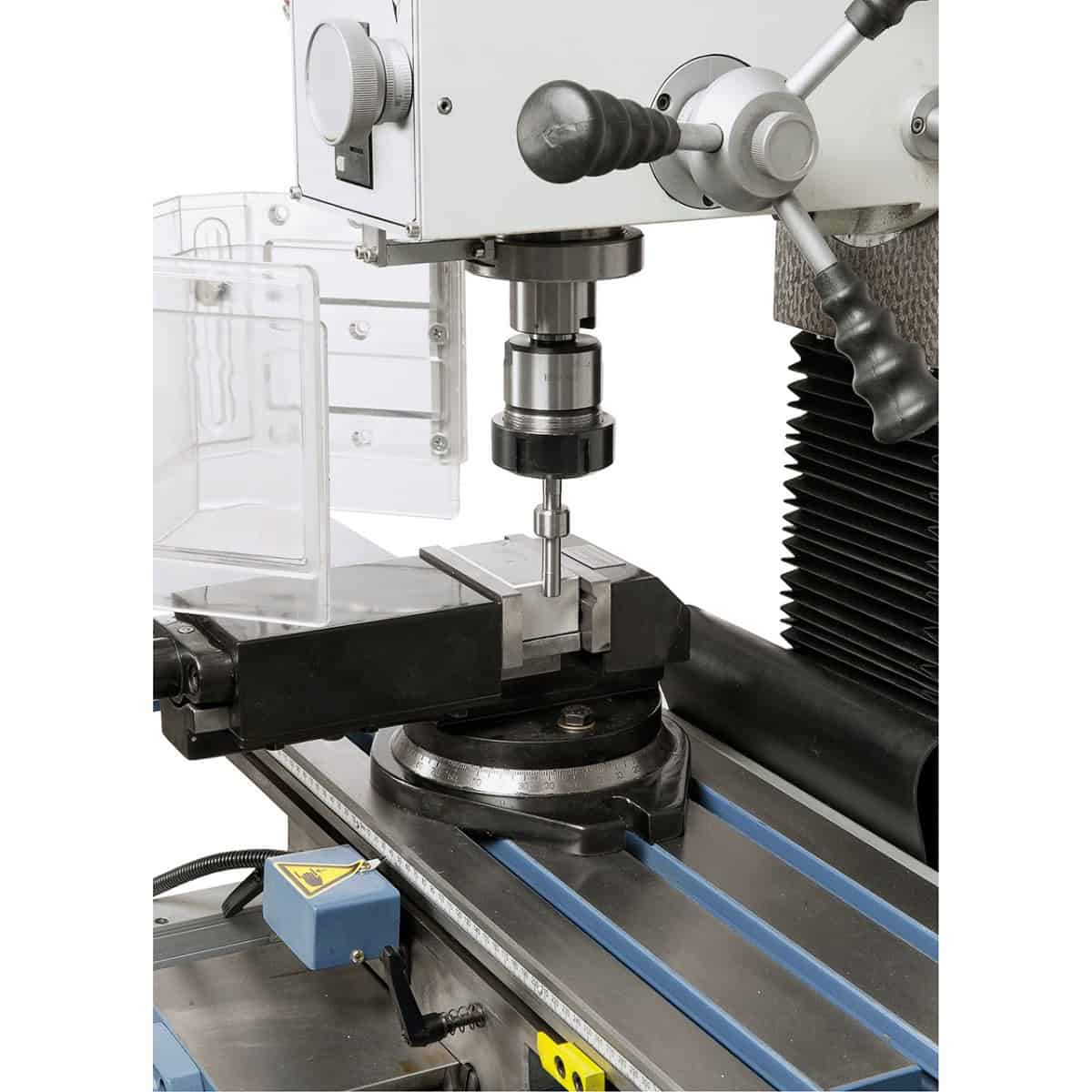

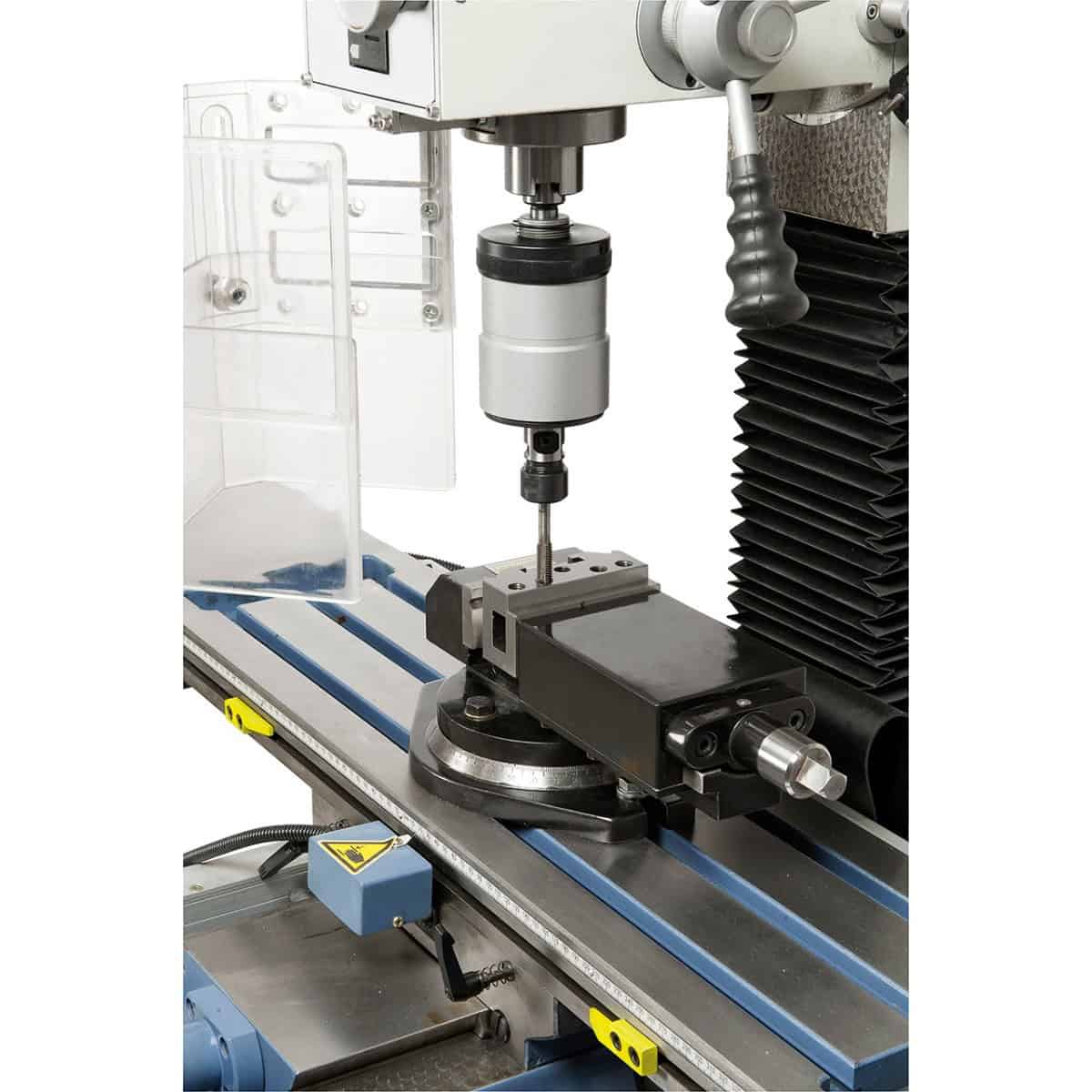

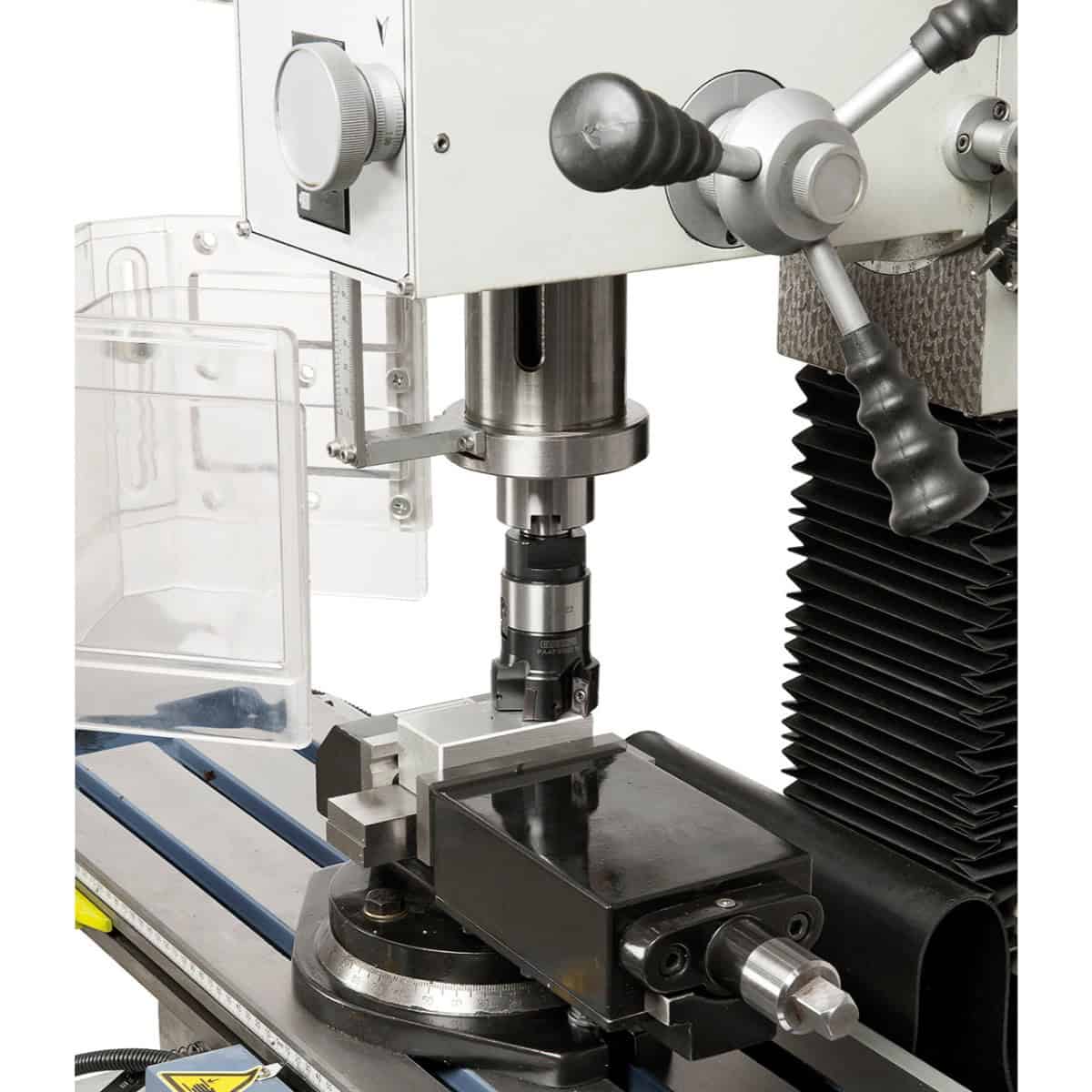

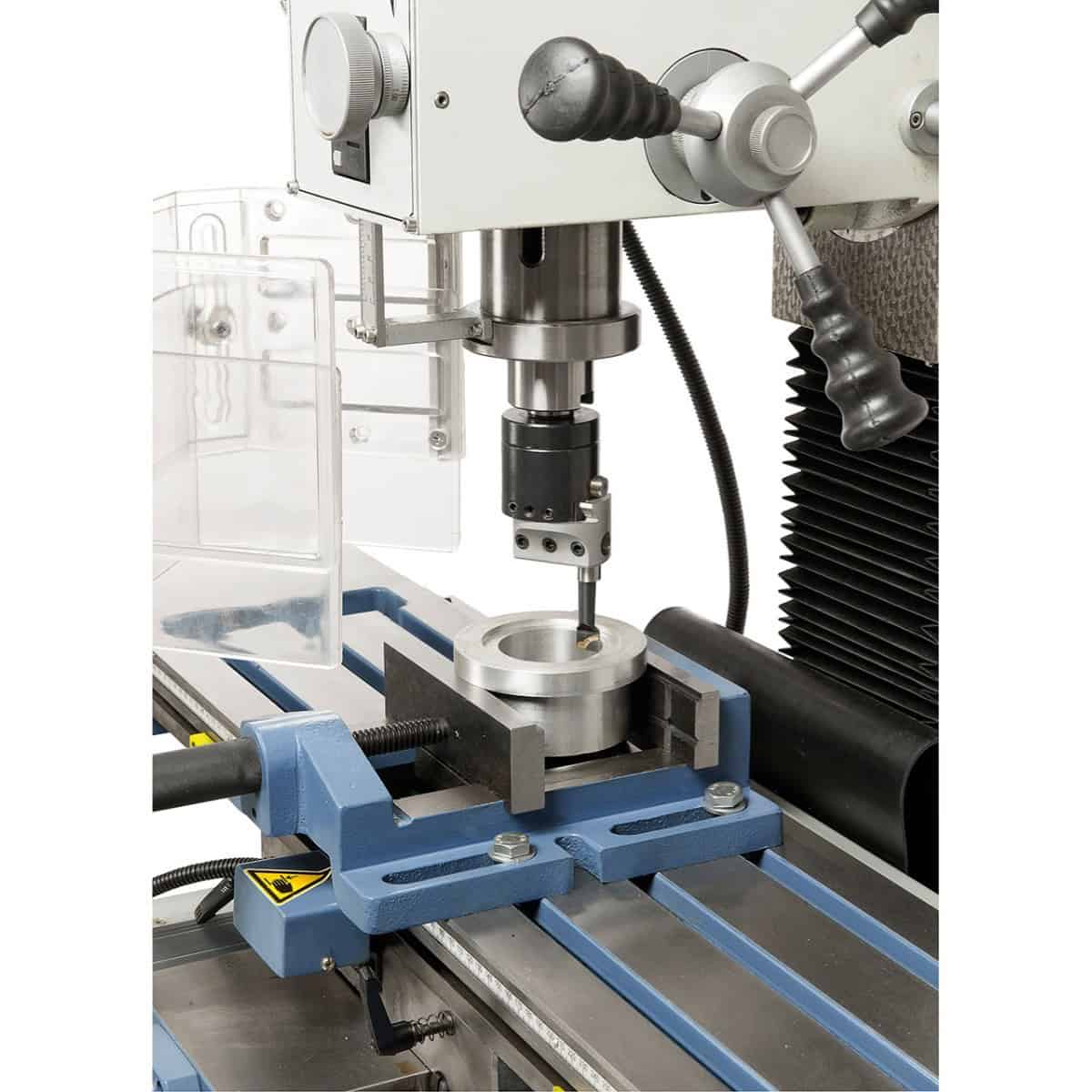

The BF 30 N Super drill/miller represents the evolution of the KF 25 Vario model, with significant improvements such as a larger spindle mount, a larger milling table, and the integration of two digital displays for drilling speed and depth. This versatile and compact tool is ideal for grooving, facing, boring, and many other applications, making it perfect for workshops and professionals.
Main features

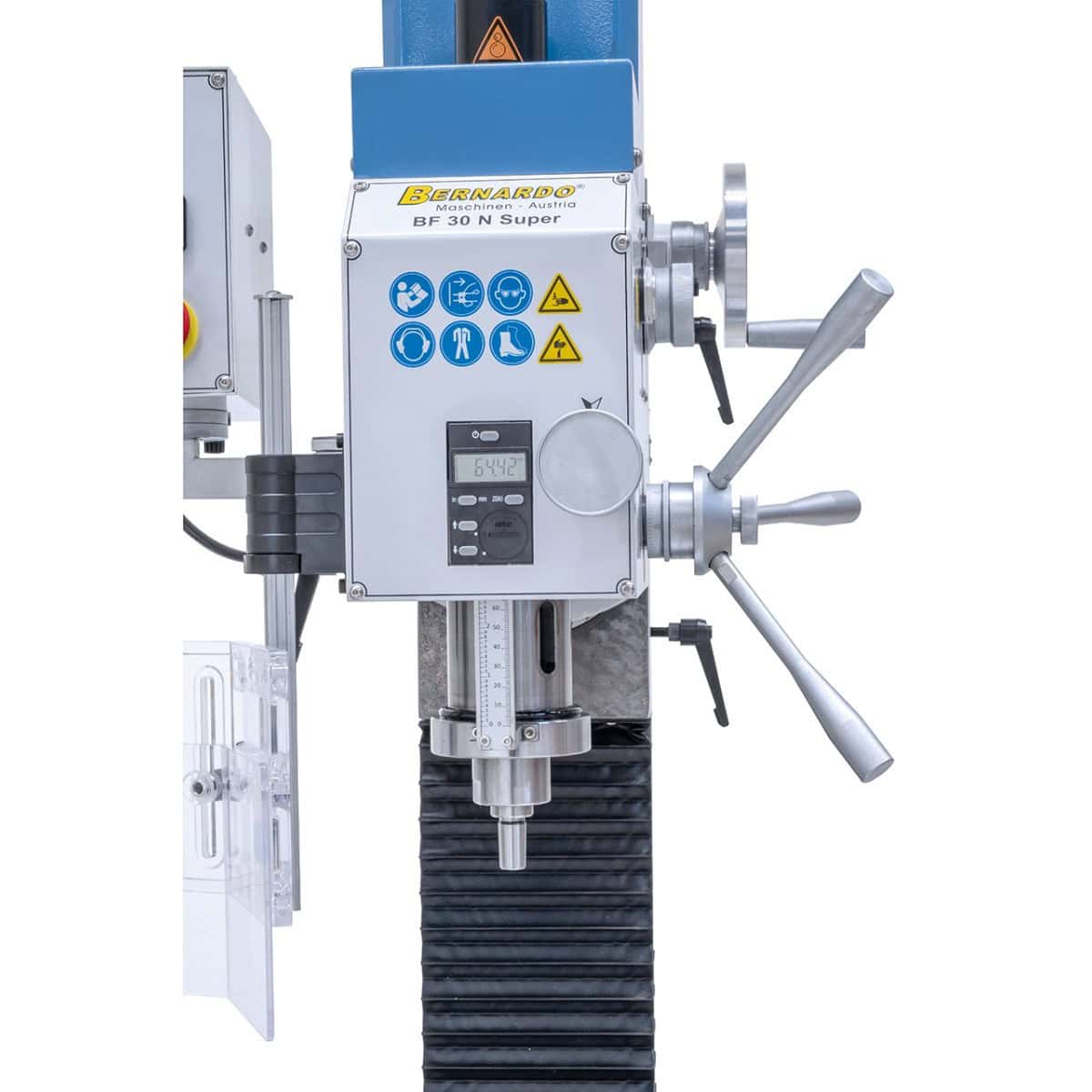

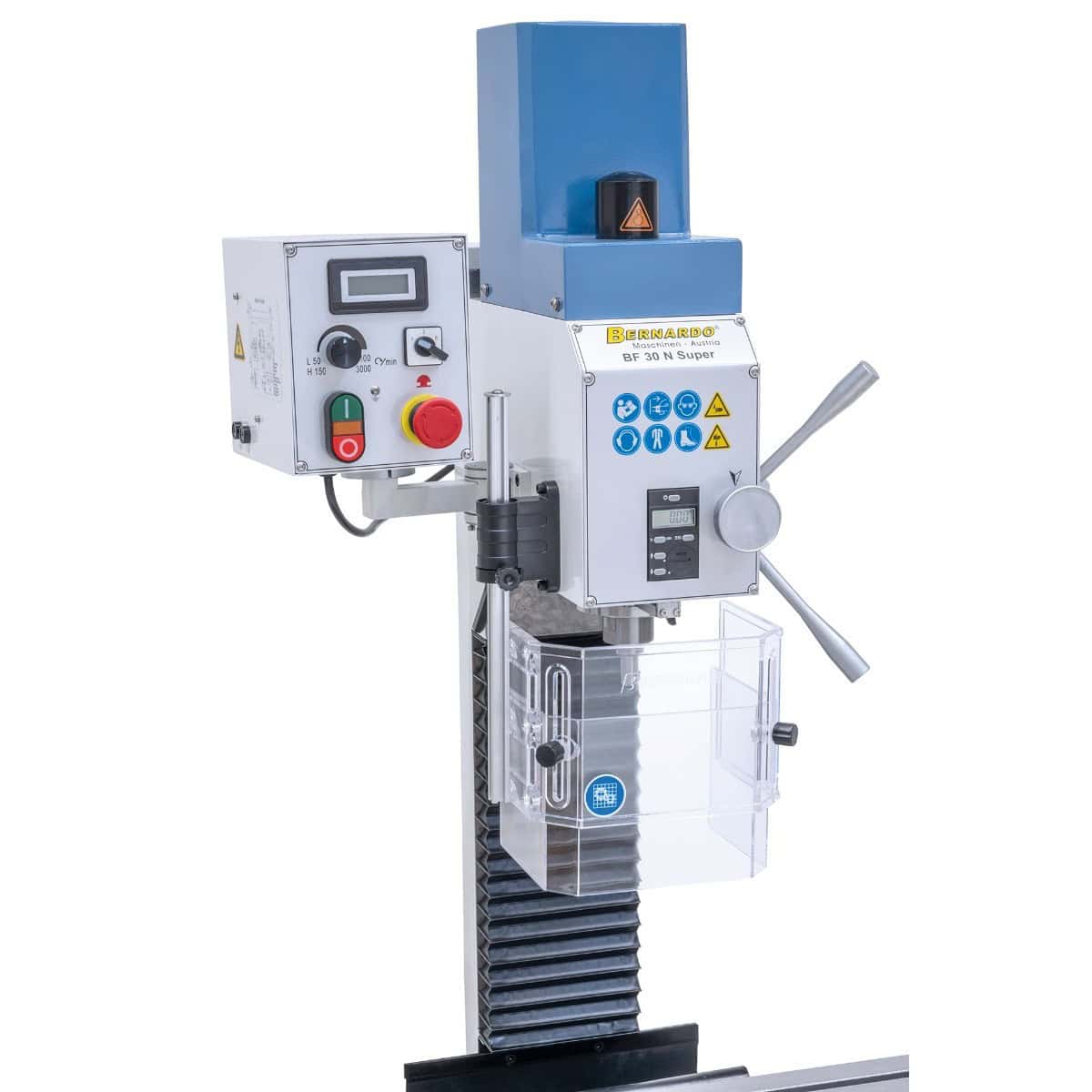

- Integrated digital displays : Spindle speed and drilling depth always under control.
- 2-stage gearbox : Optimal power transfer to adapt to different jobs.
- DC motor : High torque even at low speeds for greater precision.

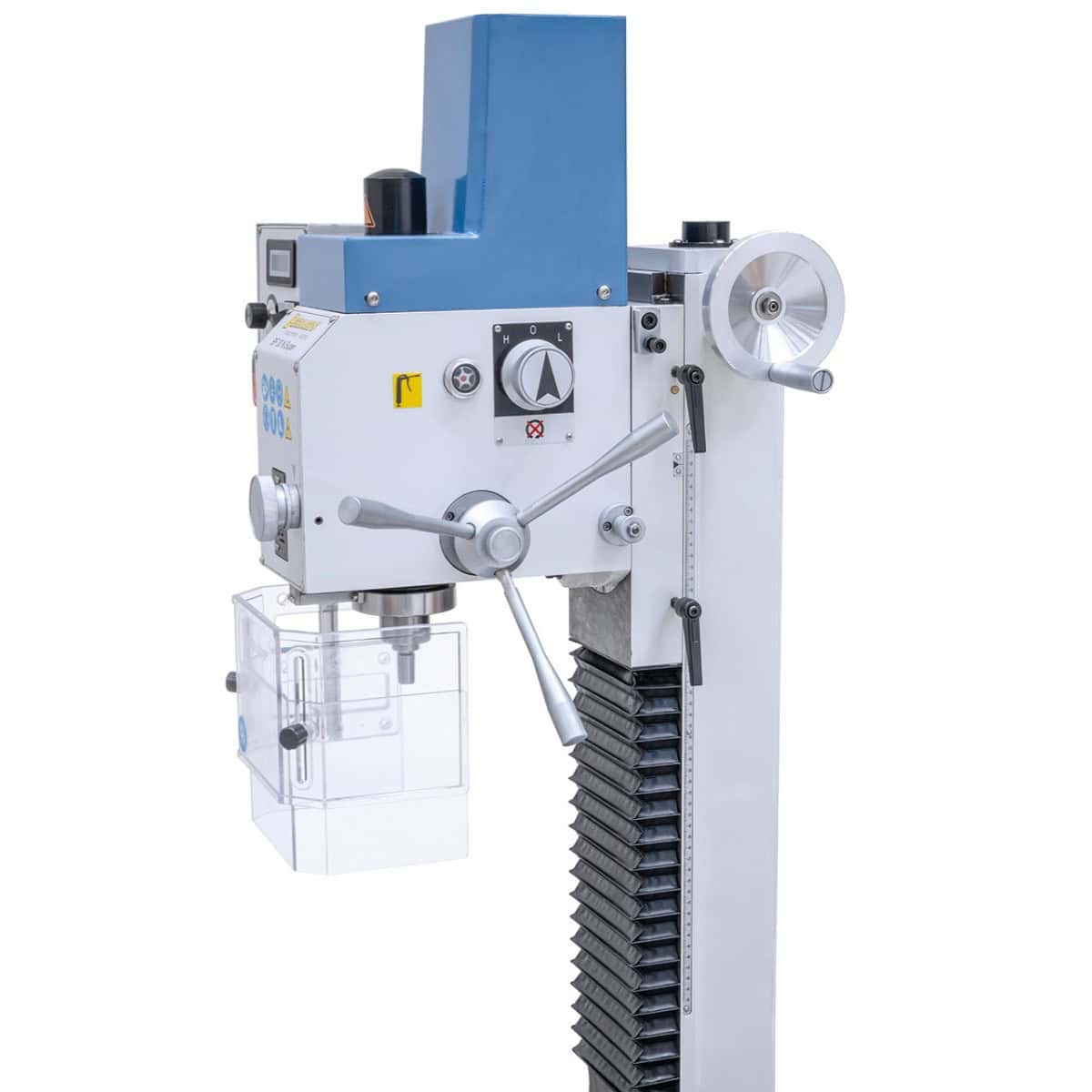

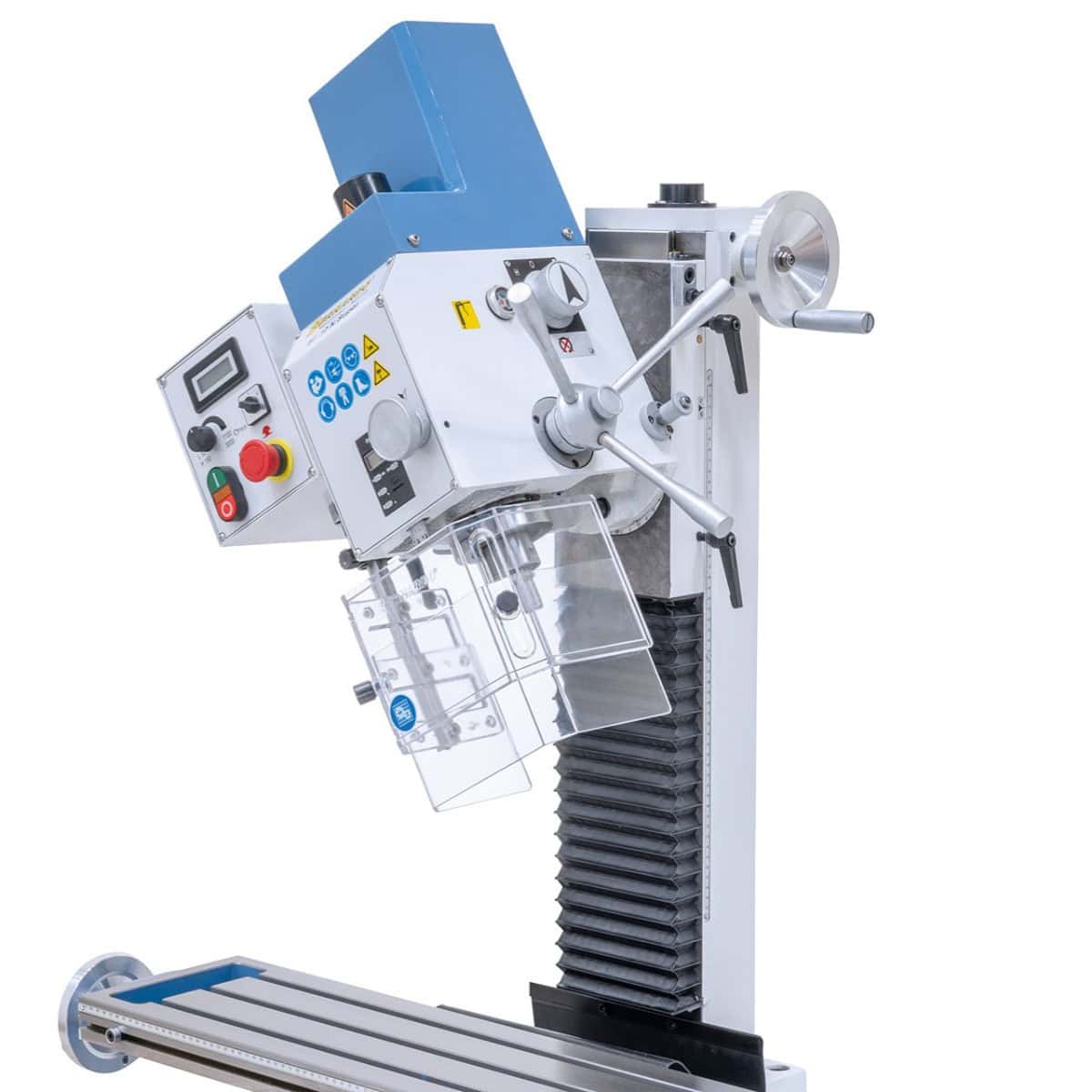

- Tiltable milling head : Wide tilt range from -90° to +90°, ideal for angle machining and chamfer milling.
- Dovetail guide : Precision on the X, Y and Z axes, with adjustment via gibs.

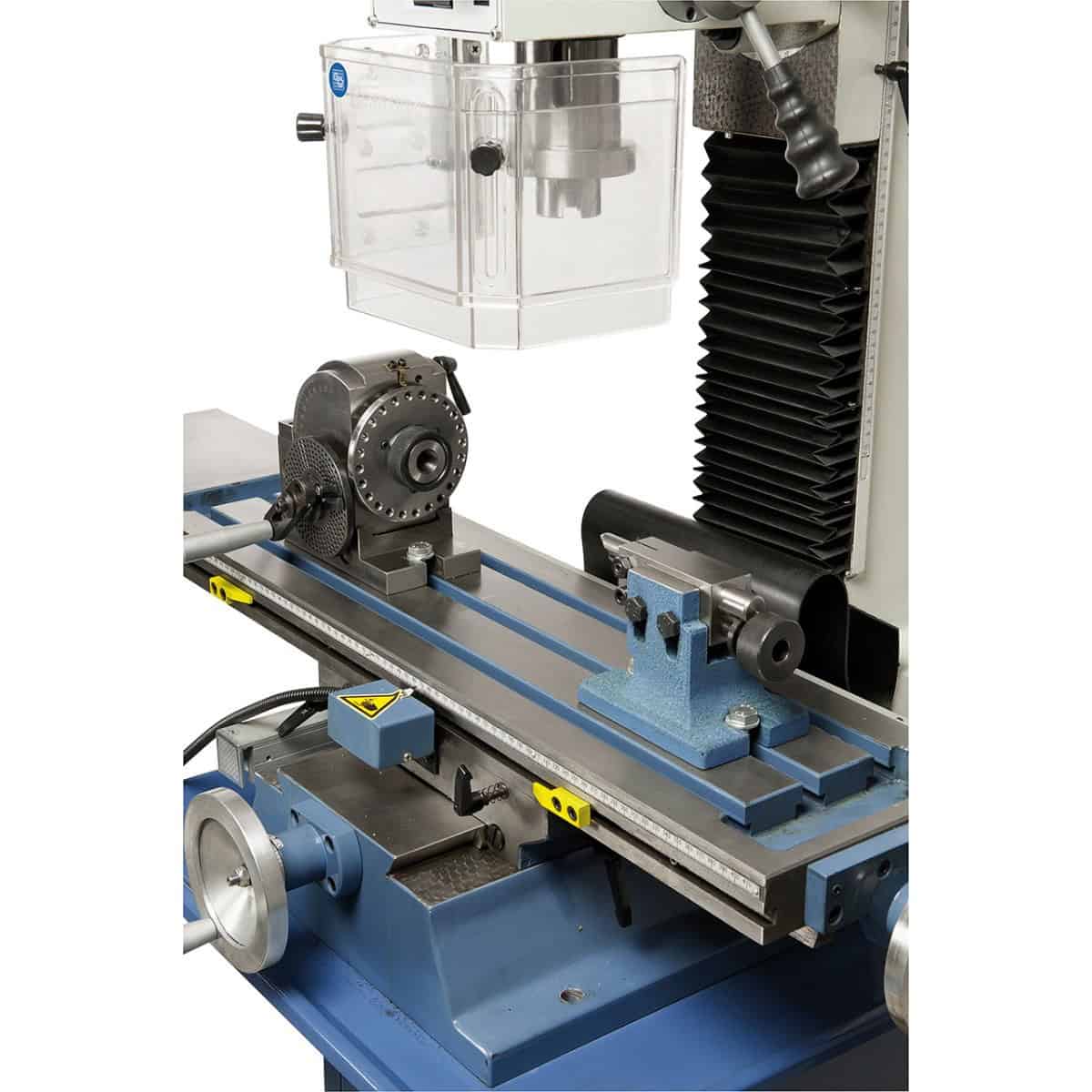

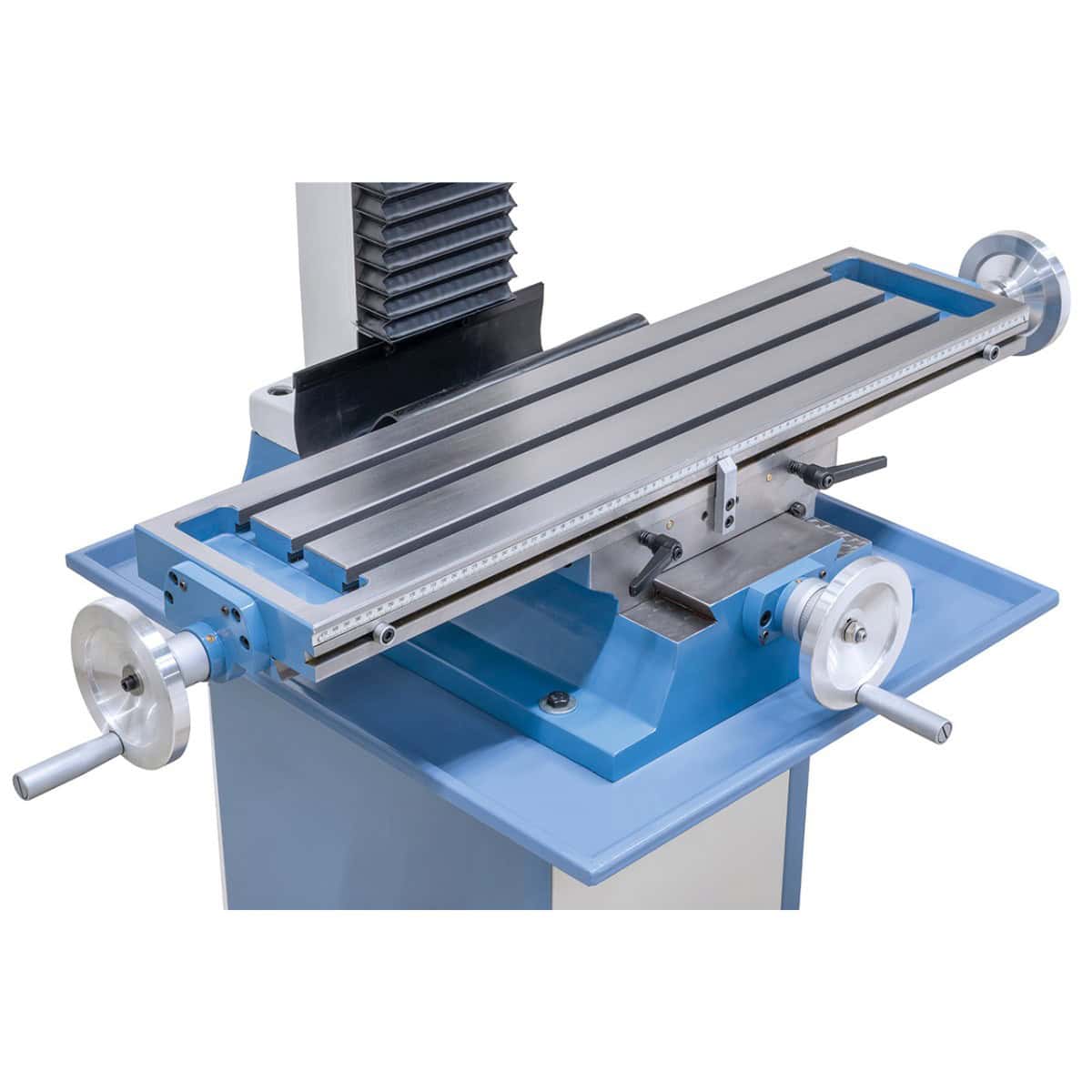

- Large milling table : Finely machined surface, equipped with T-slots for secure fixing.
- Precision feed : Spindle adjustment via handle and handwheel for accurate machining.
Technical specifications
| Technical features | Details |
|---|---|
| Steel drilling power | 30 mm |
| Max. face milling cutter. | 75 mm |
| Milling cutter kit with max. shank. | 25 mm |
| Length of the arms | 180 mm |
| Spindle/table distance | 115 - 465 mm |
| Hole stroke | 70 mm |
| Continuous spindle speed | 50 - 1100 / 150 - 3000 rpm |
| Spindle attachment | MK 3 |
| Table dimensions | 840 x 210 mm |
| Travel (X / Y) | 585 / 225 mm |
| Rotating milling head | From -90° to +90° |
| Milling head height | 350 mm |
| T-slot size | 14 mm |
| Motor input power (S1 100%) | 1.1 kW / 230 V |
| Motor output power (S6 40%) | 1.6 kW / 230 V |
| Machine dimensions (L x W x H)* | 1350 x 710 x 1200 mm |
| Weight | 208 kg |
*Note: Dimensions without base.
Standard accessories included
- Quick-release drill chuck (3 - 16 mm / B 16).
- Arbor spindle (MK 3 / B 16).
- Clamping chuck (M 12).
- Digital display for speed and depth.
- EMC filter compliant with CE regulations.
- Height-adjustable protective cover .
- Control device for simplified control.
Advantages
The BF 30 N Super drill/miller combines precision, versatility, and robustness, offering a complete solution for complex machining operations on steel and other materials. Thanks to its advanced features and included accessories, it's the ideal tool for craftsmen and professionals seeking quality and reliability.
