Description

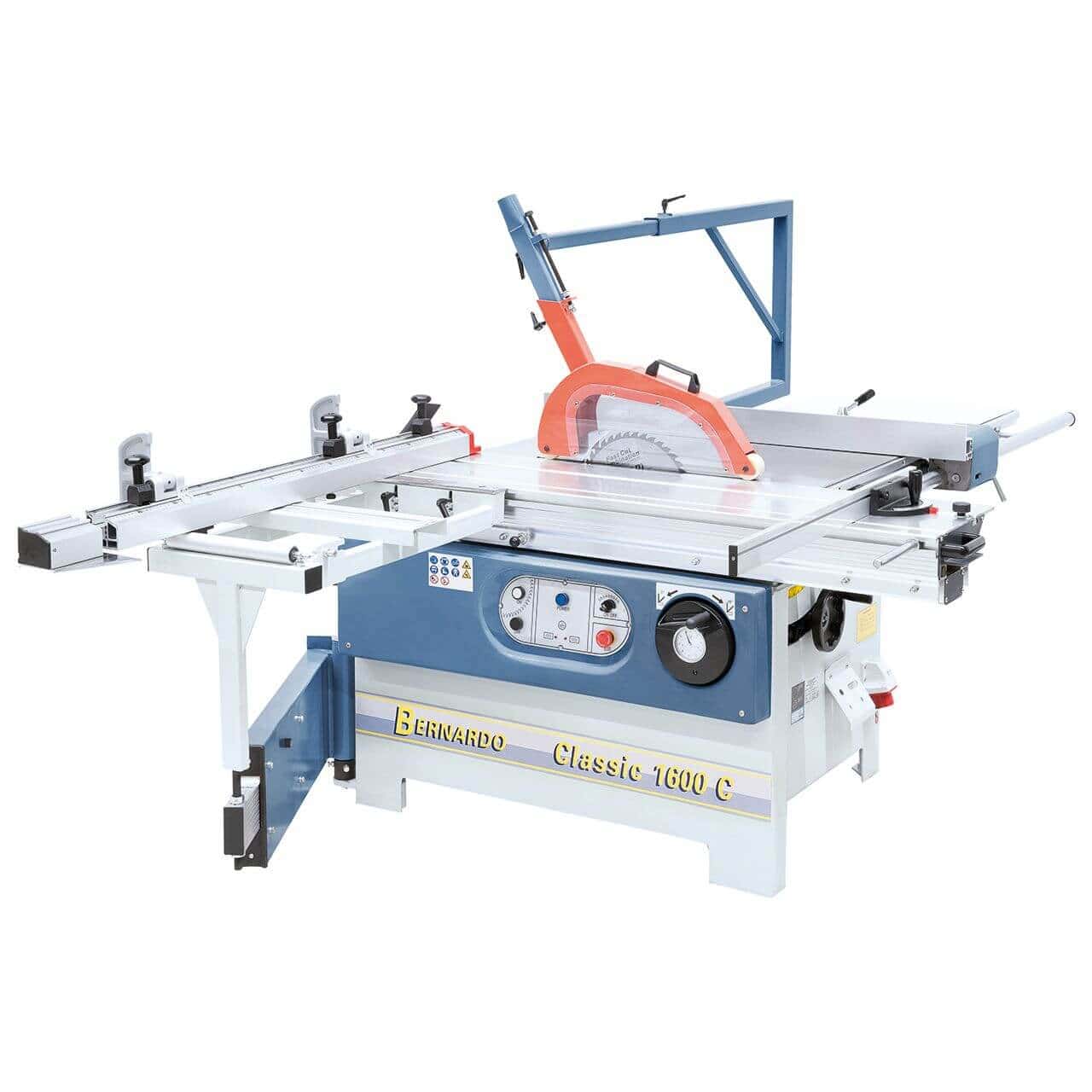

Classic 1600 C sliding table circular saw
The Classic 1600 C is a compact and precise circular saw, designed to complement larger saws or to be the ideal solution for small spaces. With its 1600 mm aluminum carriage , independent scoring unit , and 4.0 kW motor , this machine offers high performance when processing medium-small panels with maximum stability and ease of use.
Main features
• Sliding carriage with 1600 mm hardened prismatic guide
• Square table with roller for supporting large panels
• Powerful 4.0 kW motor for consistent cuts even under load
• Blade tiltable up to 45°, with graduated scale on handwheel
• Telescopic guide with double stop
• Saw group supported on both sides for high precision
• Engraver with independent 0.75 kW motor
• Ground grey cast iron table with polished finish
• Folding parallel guide with micrometric adjustment
• Table extension for cutting width up to 1295 mm
Technical data
| Technical specifications | |
|---|---|
| Table size | 935 x 620 mm |
| Sliding carriage | 1600 x 360 mm |
| Cutting length | 1600 mm |
| Maximum blade diameter | 315 x 30 mm |
| Max. cutting height 90° / 45° | 90 / 60 mm |
| Cutting width on parallel guide | 1295 mm |
| Table height | 850 mm |
| Table extension | 750 x 600 mm |
| Square table with roller | 725 x 550 mm |
| Main blade speed | 4000 / 6000 rpm |
| Engraving blade speed | 8000 rpm |
| Engraving blade | 120 x 20 mm |
| Suction outlet | Ø 100 mm |
| Engine power (S1 100%) | 4.0 kW (5.5 HP) |
| Engine power (S6 40%) | 5.5 kW (7.5 HP) |
| Engraving motor | 0.75 kW |
| Voltage | 400 V |
| Machine dimensions (L x W x H) | 1680 x 3000 x 1520 mm |
| Weight approx. | 550 kg |
Package Contents
• Protective casing with feed roller
• Angle guide
• End of stroke stop
• Table extension
• Extractable telescopic guide
• Longitudinal stop
• Square table with roller
• Pusher
• Engraving group with independent motor
• Tool set
