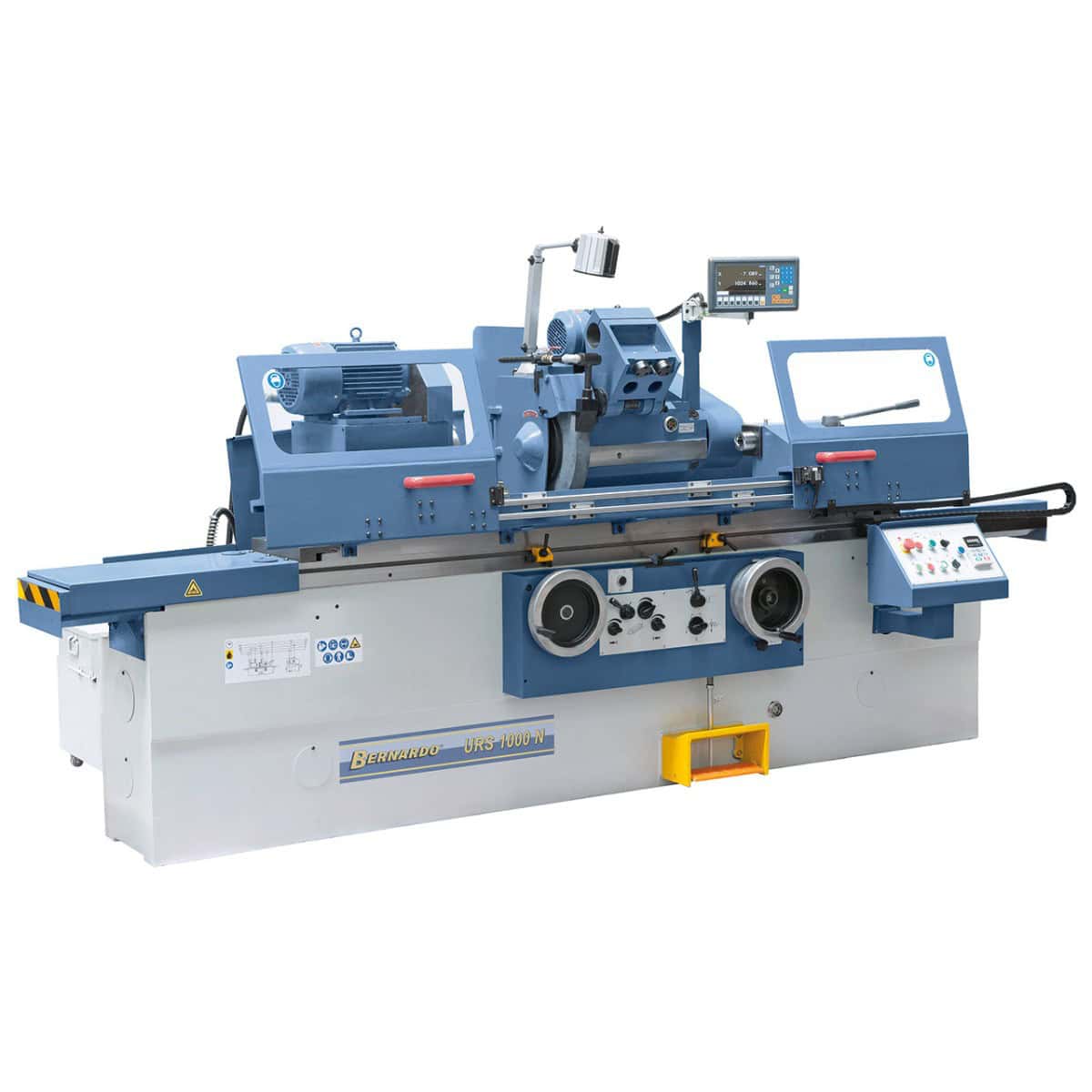

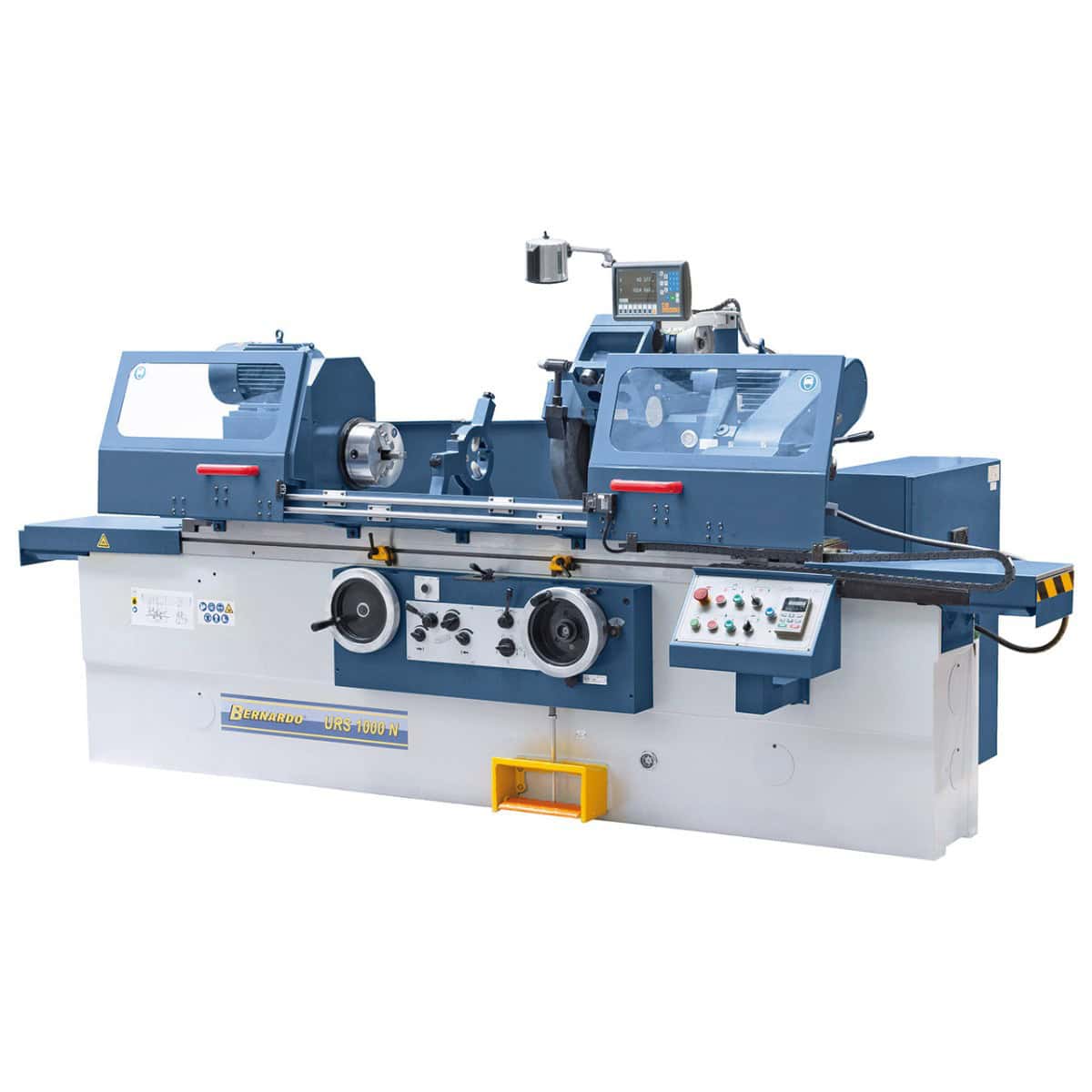

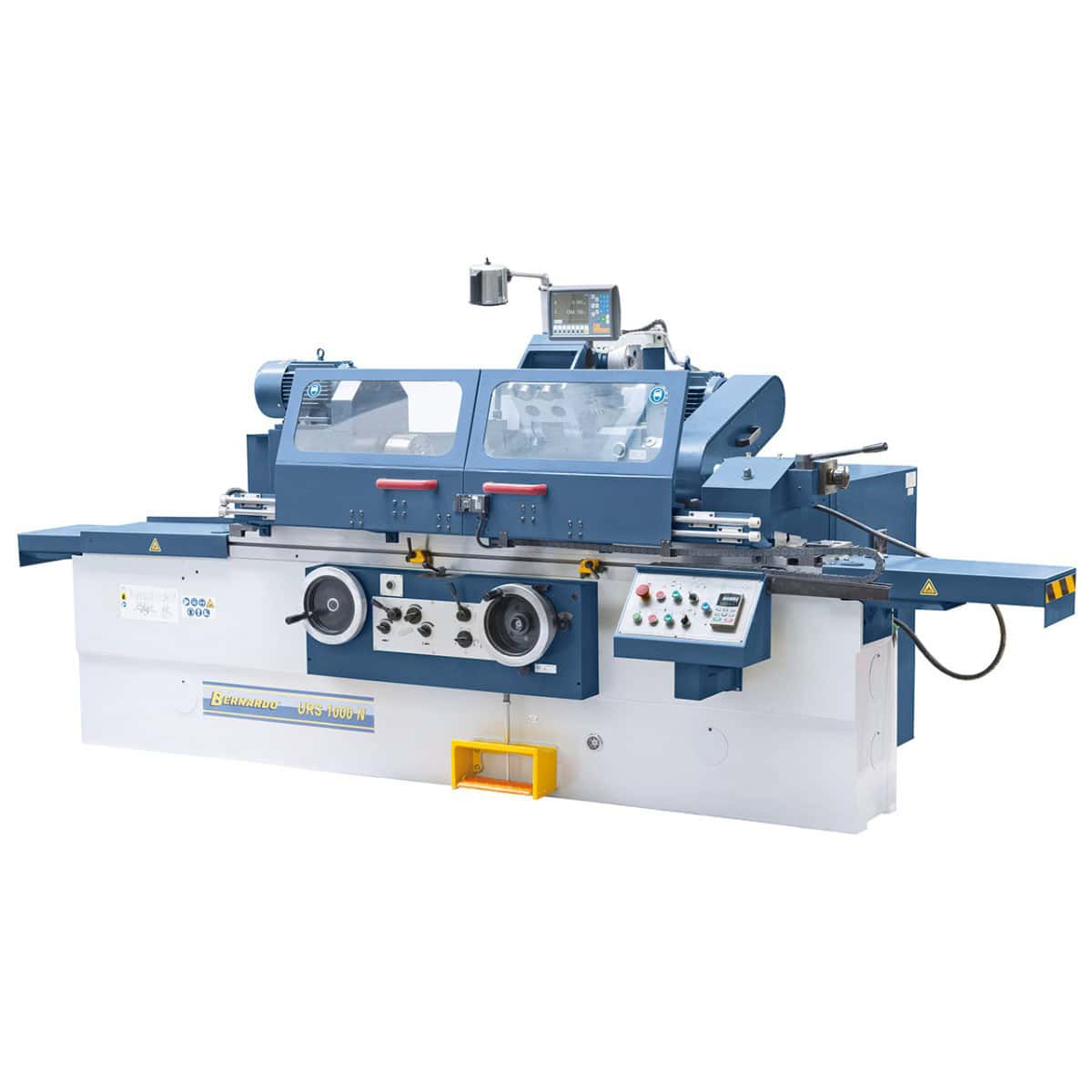

Universal cylindrical grinder URS 1000 N

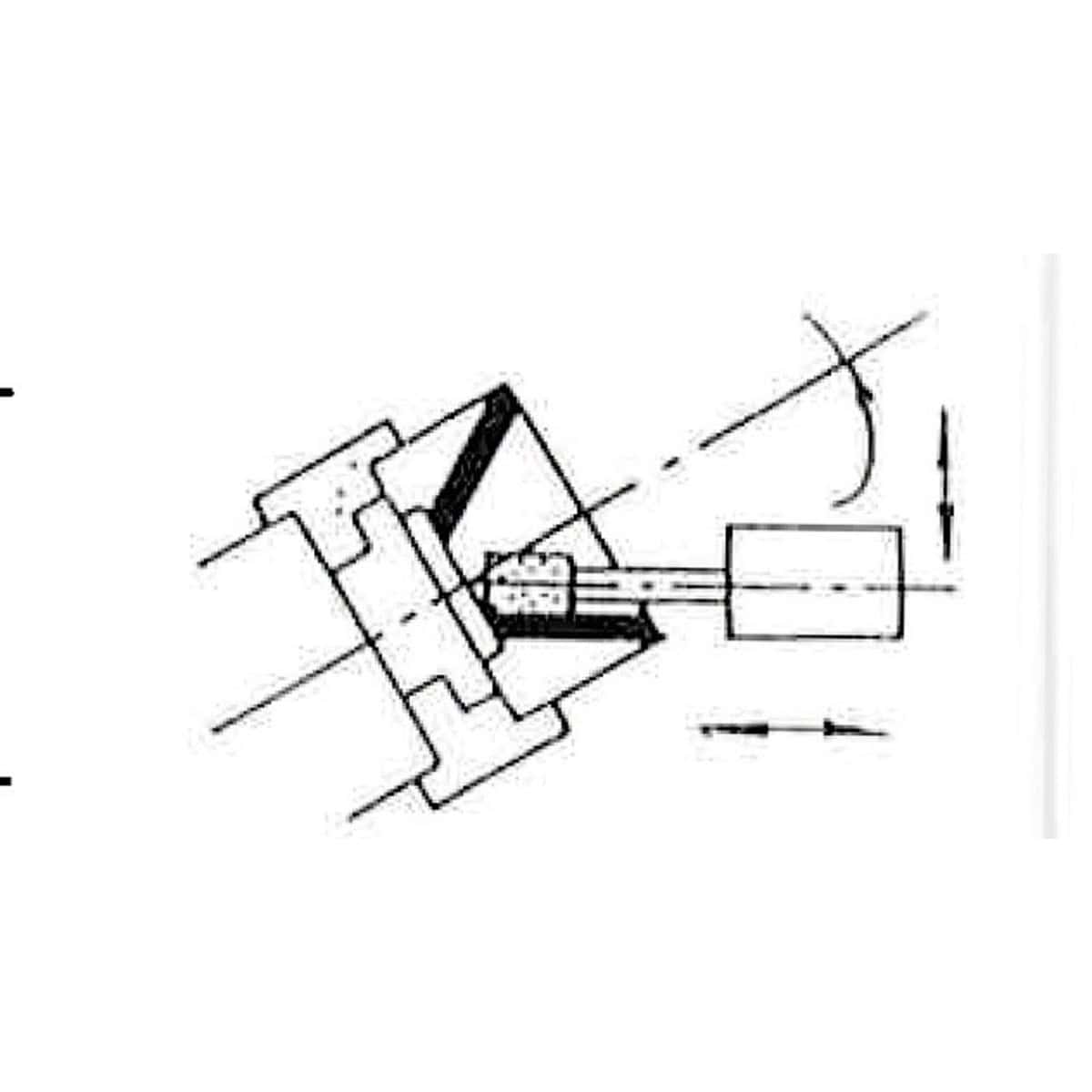

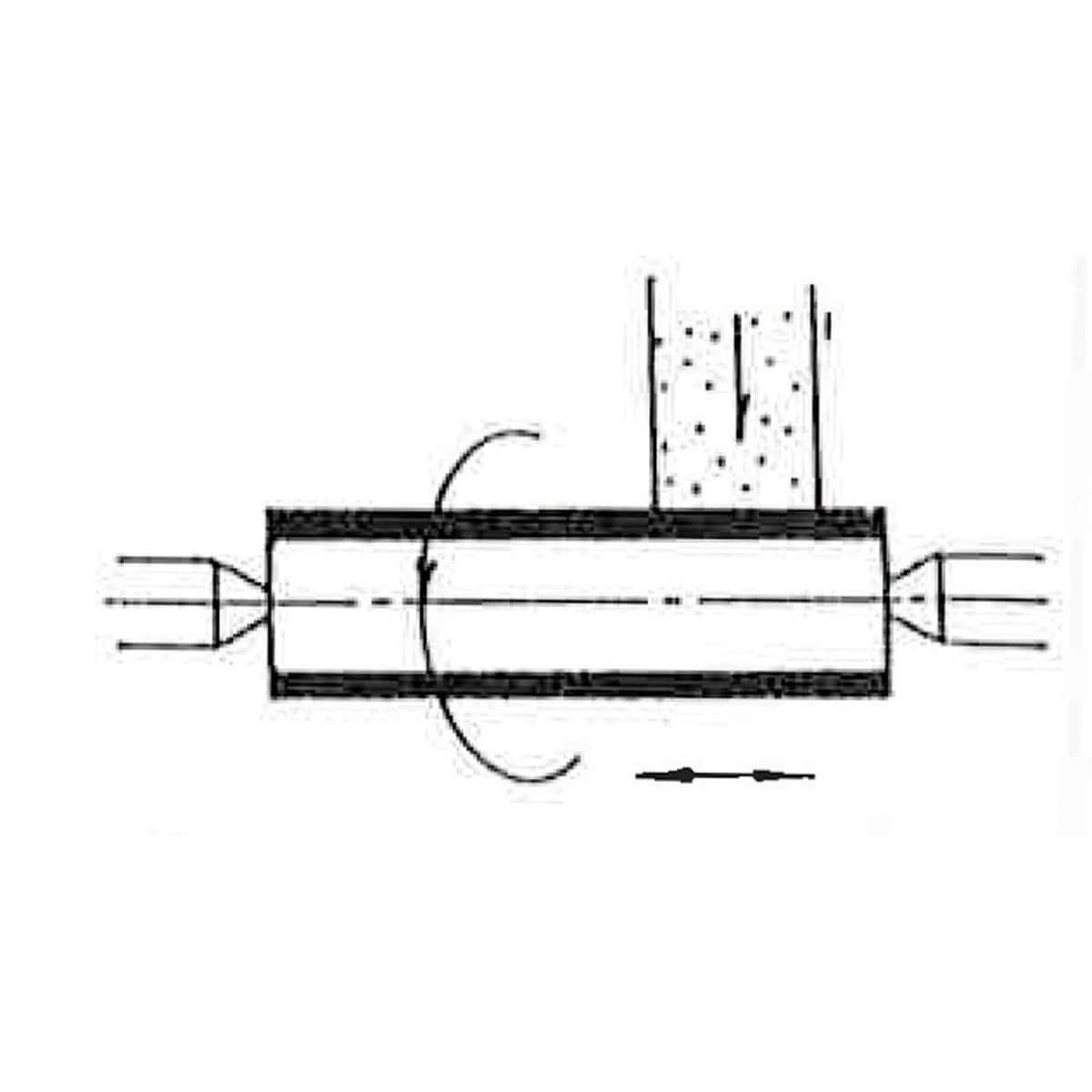

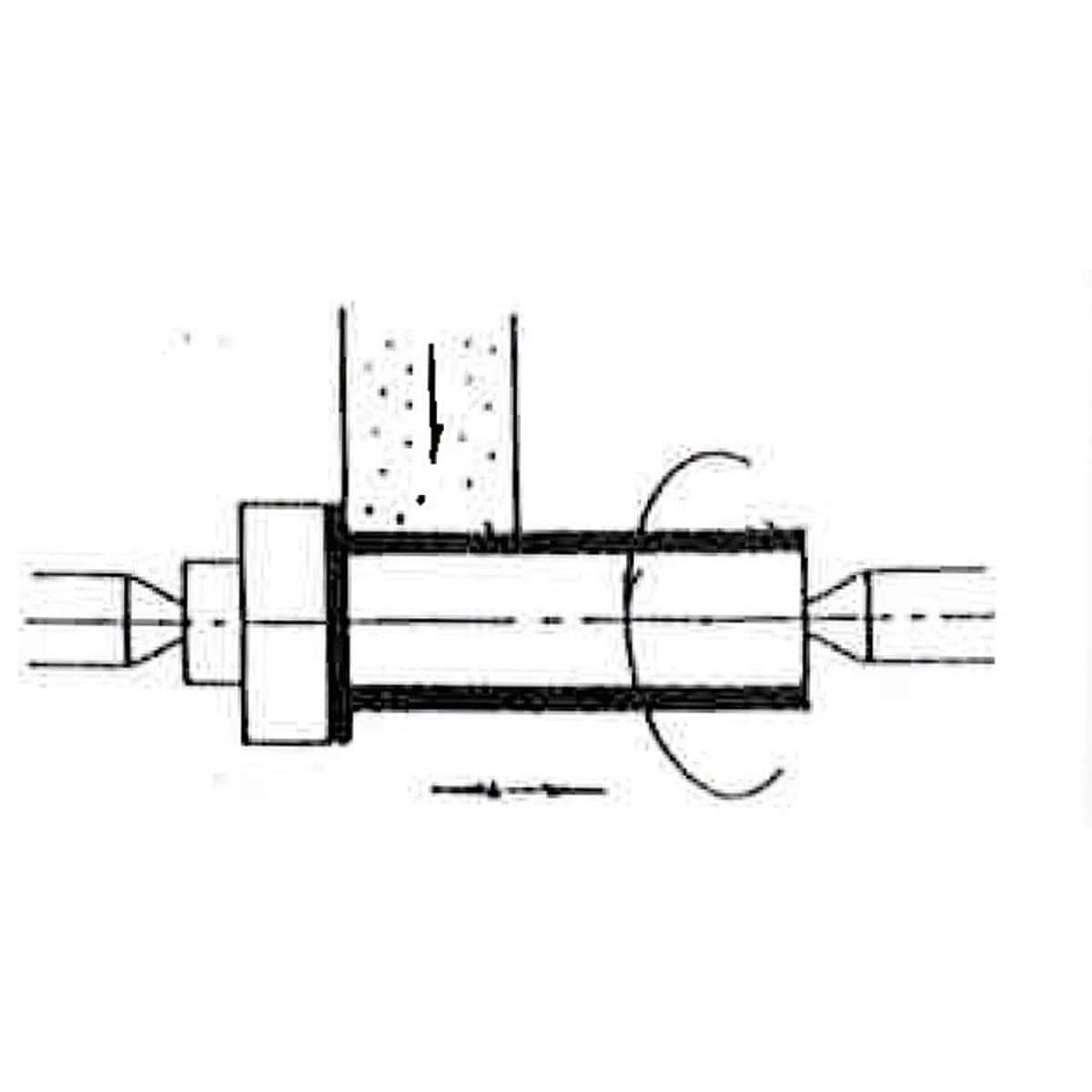

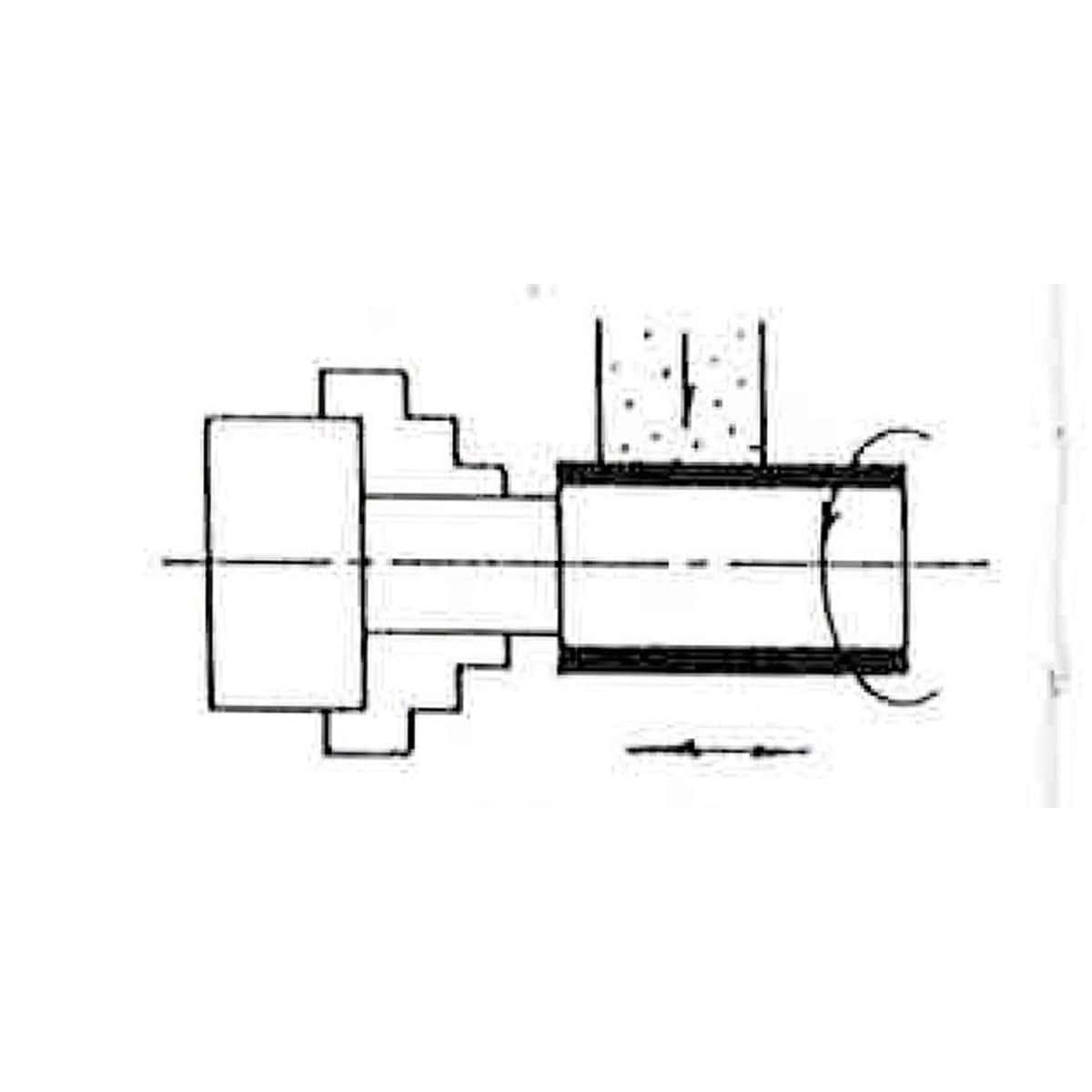

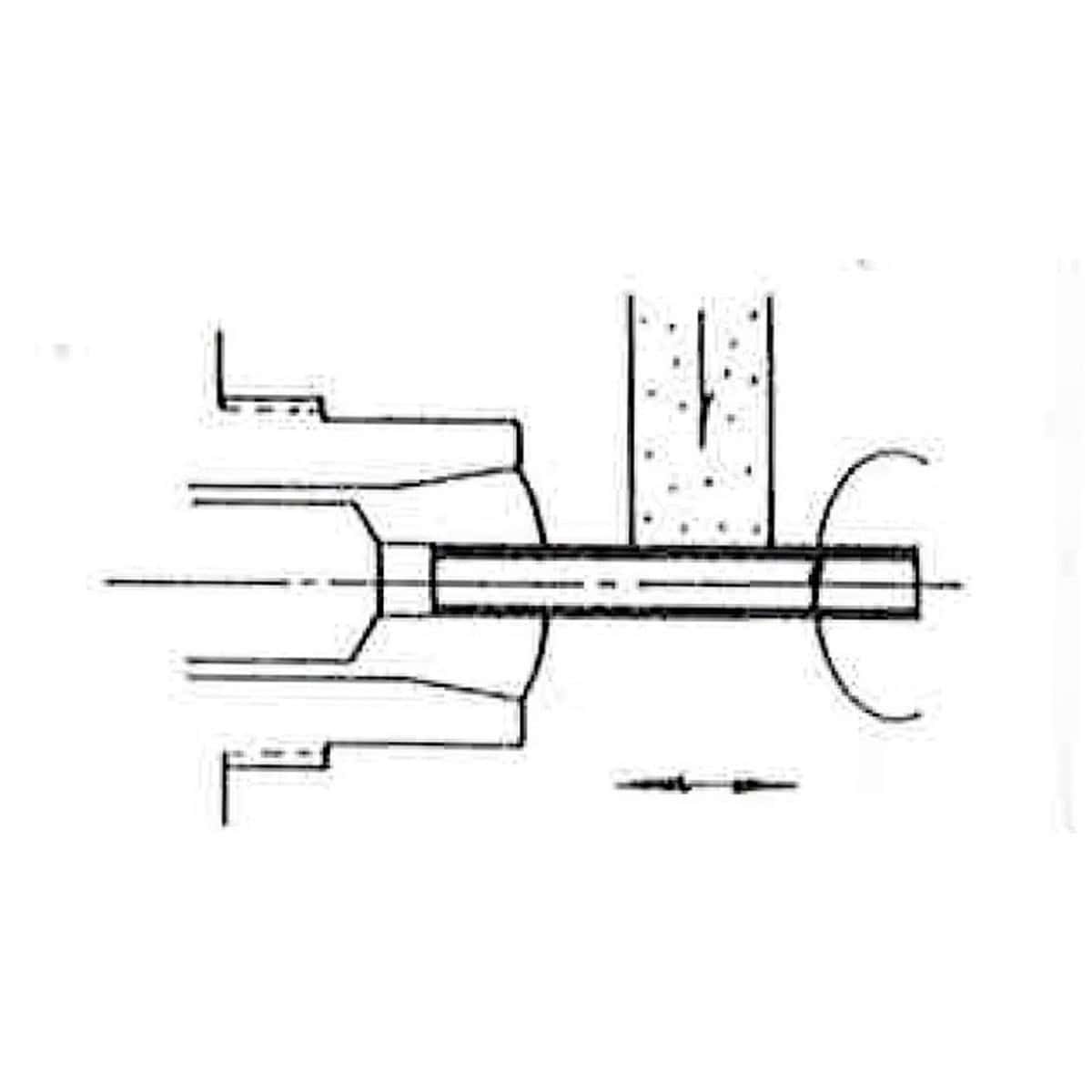

The URS 1000 N universal cylindrical grinder is suitable for external cylindrical grinding operations on workpieces up to 320 mm in diameter; the standard internal grinding attachment further expands its application range. This machine is primarily used in mechanical machining, toolmaking, and forming, as well as for finishing small batches.

Property

• The oil film between the bearing and the spindle minimizes vibrations: this way it is possible to obtain precision and a good surface finish.

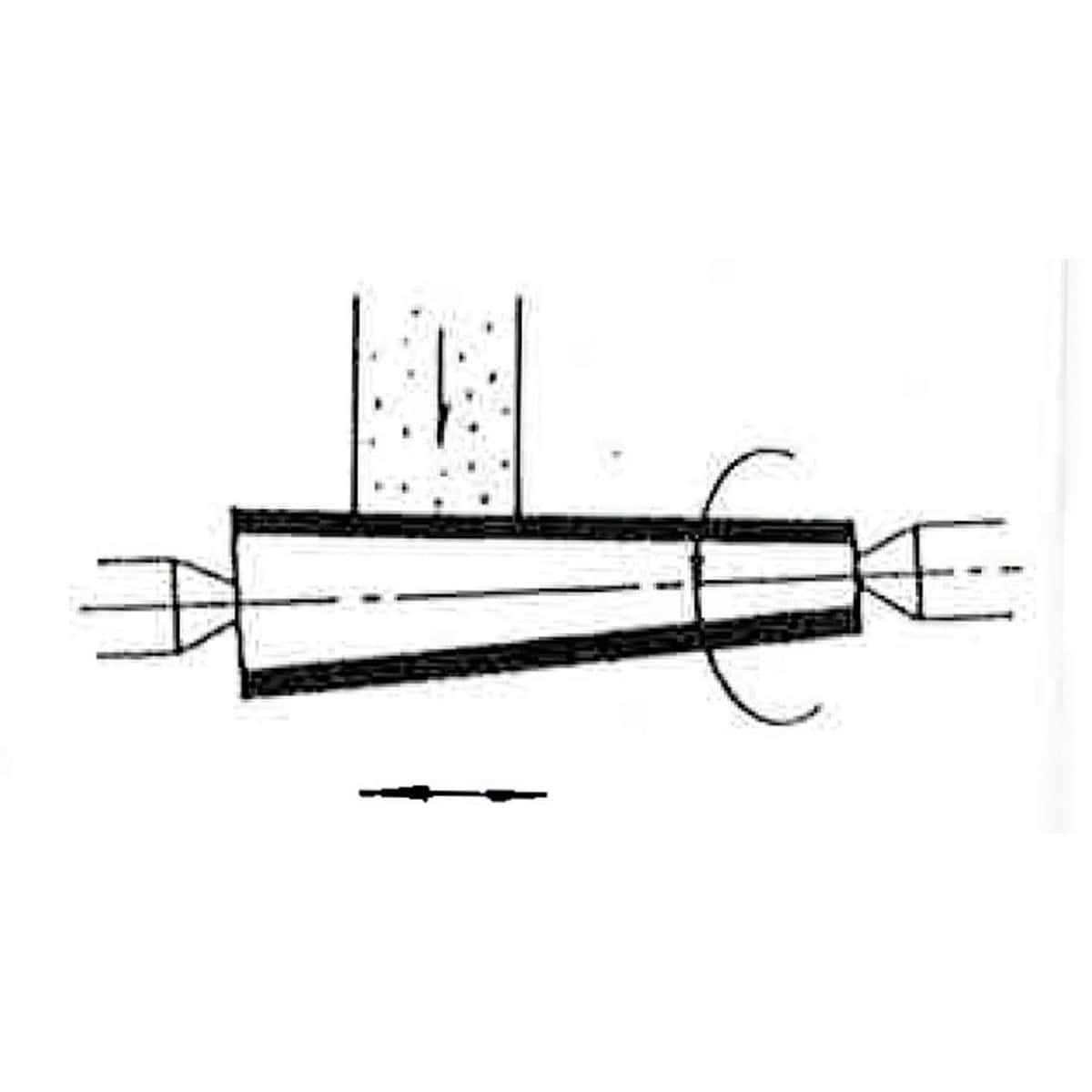

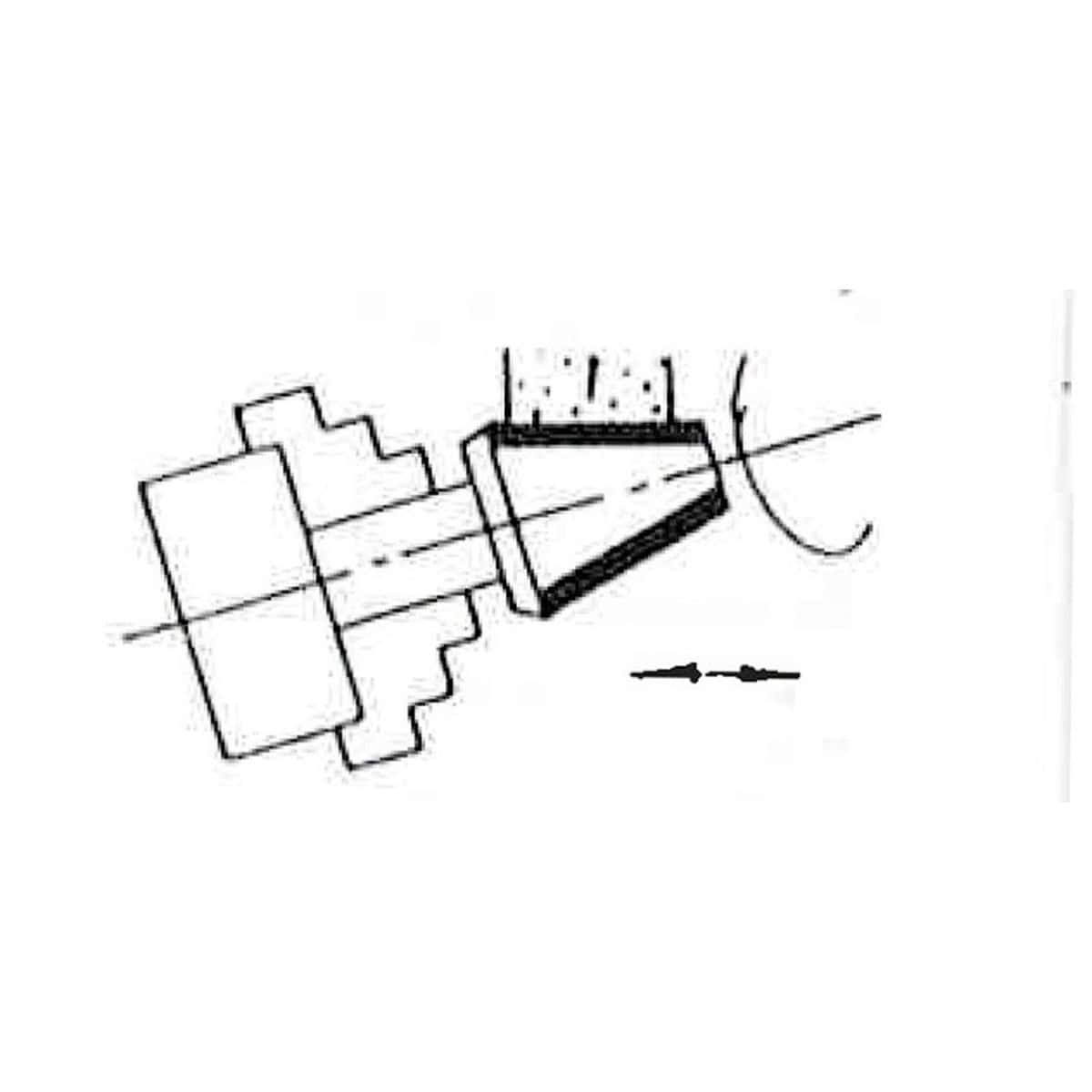

• The large table can be tilted for conical grinding to two different positions and set to the desired position by means of a scale
• Precisely aligned spindle head and stable grinding spindle head for best possible machining results in various grinding processes
• Thanks to the strong ribs and large walls, the machine base is relatively insensitive to temperature changes and deformation.
• Grinding spindle mounted on both sides with tri-segmented and subsequently adjustable surface sliding bearings
• The main spindle is hydrodynamically supported, meaning a film of oil prevents contact between the bearing and the spindle.

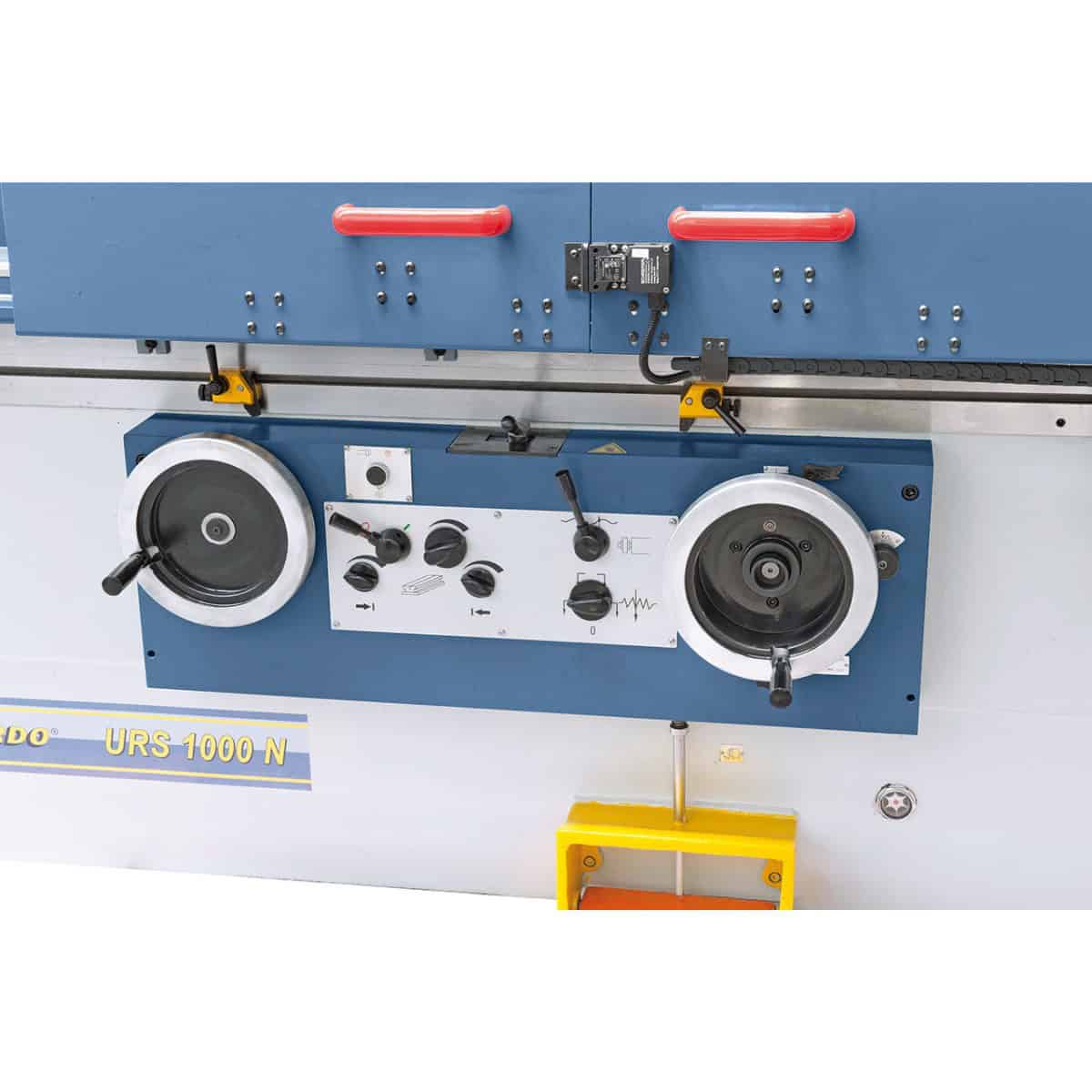

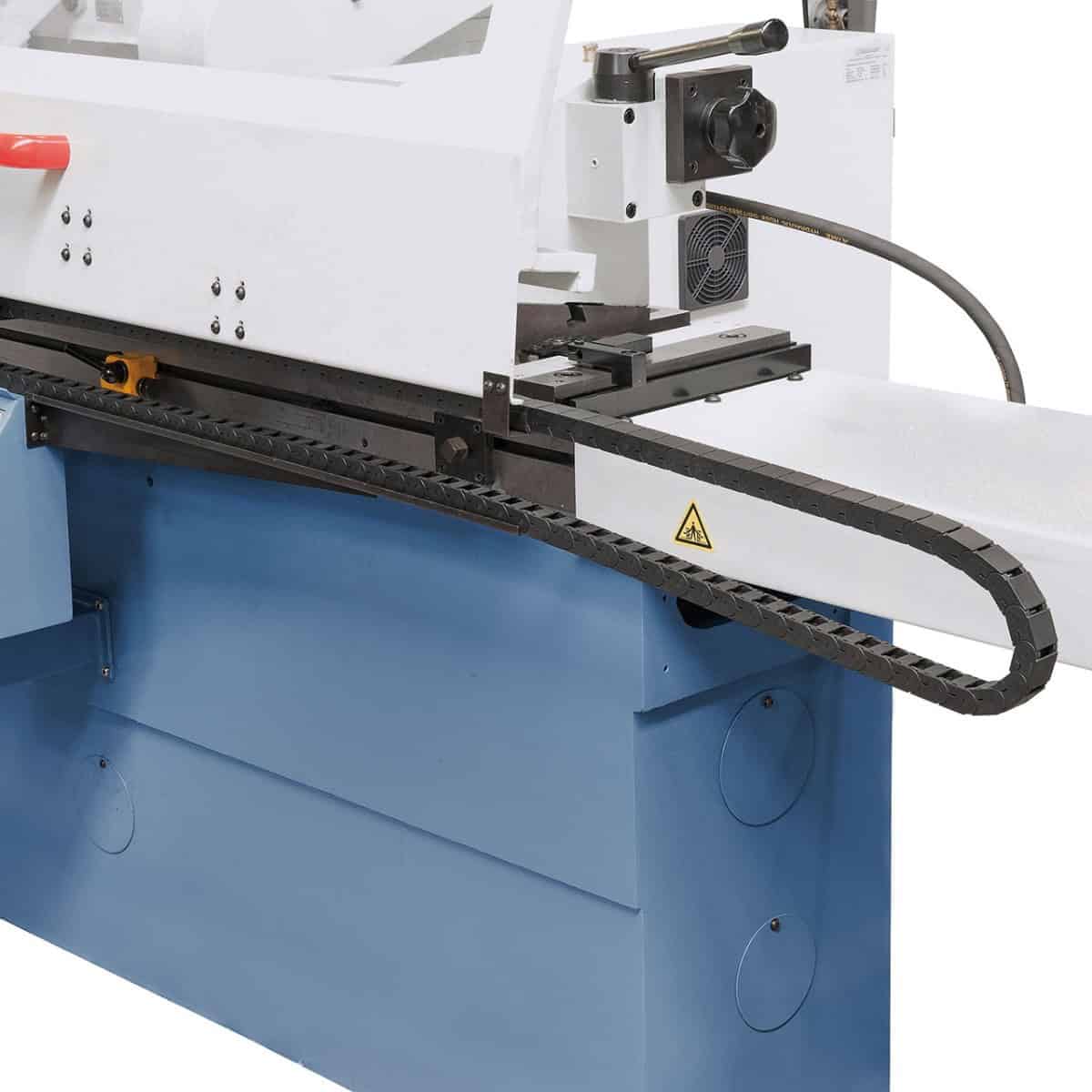

• The longitudinal movement of the table takes place manually by means of a handwheel or automatically by means of the hydraulic power supply.
• Continuously adjustable feed rate with optionally preselectable waiting time at the end of each movement phase
• The grinding spindle head is reset hydraulically or by handwheel
• Precision hardened and hand-scraped guides in the x and y axes
• Longitudinal table guide and cross guide of the grinding spindle head, each with a V-shaped and flat guide

Standard accessories

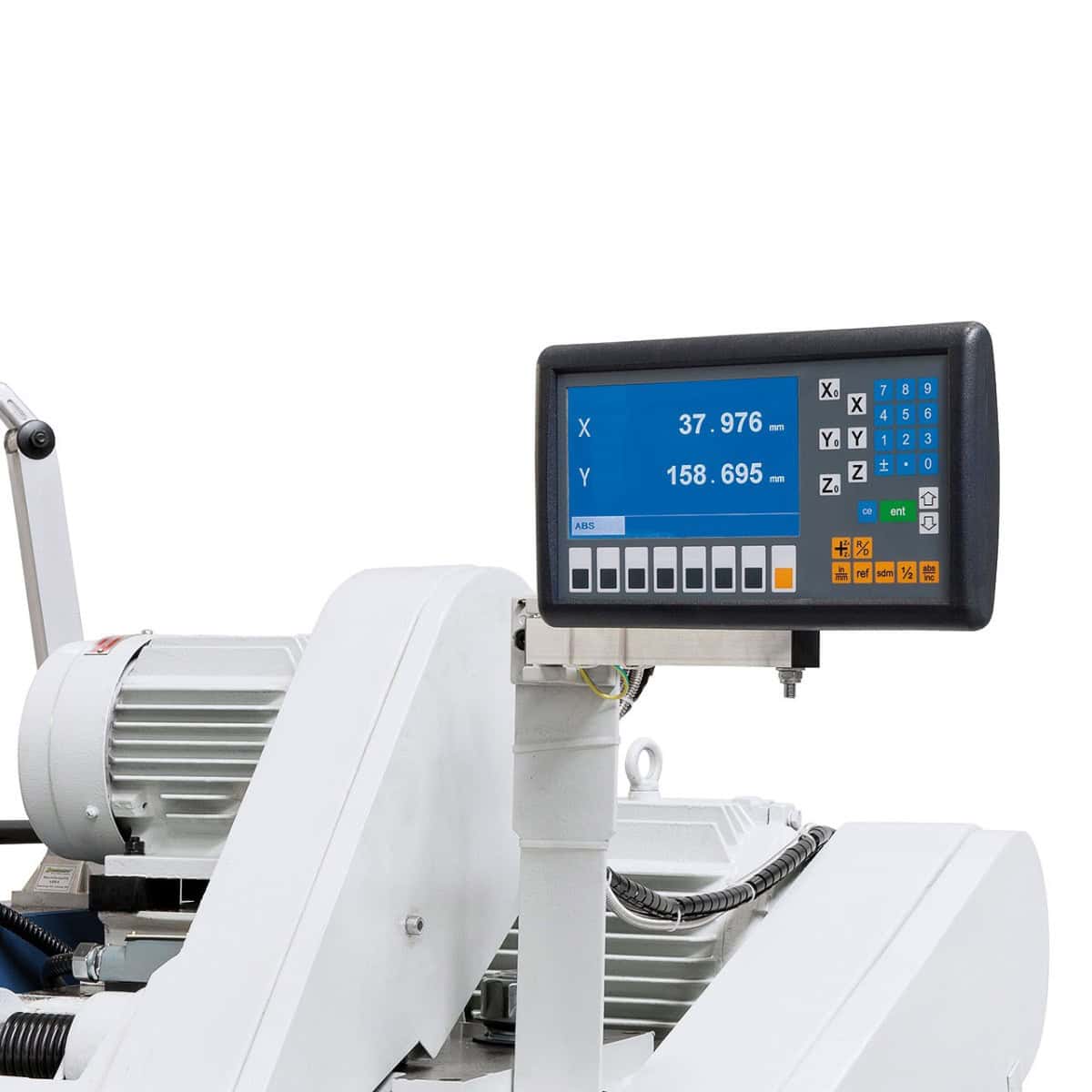

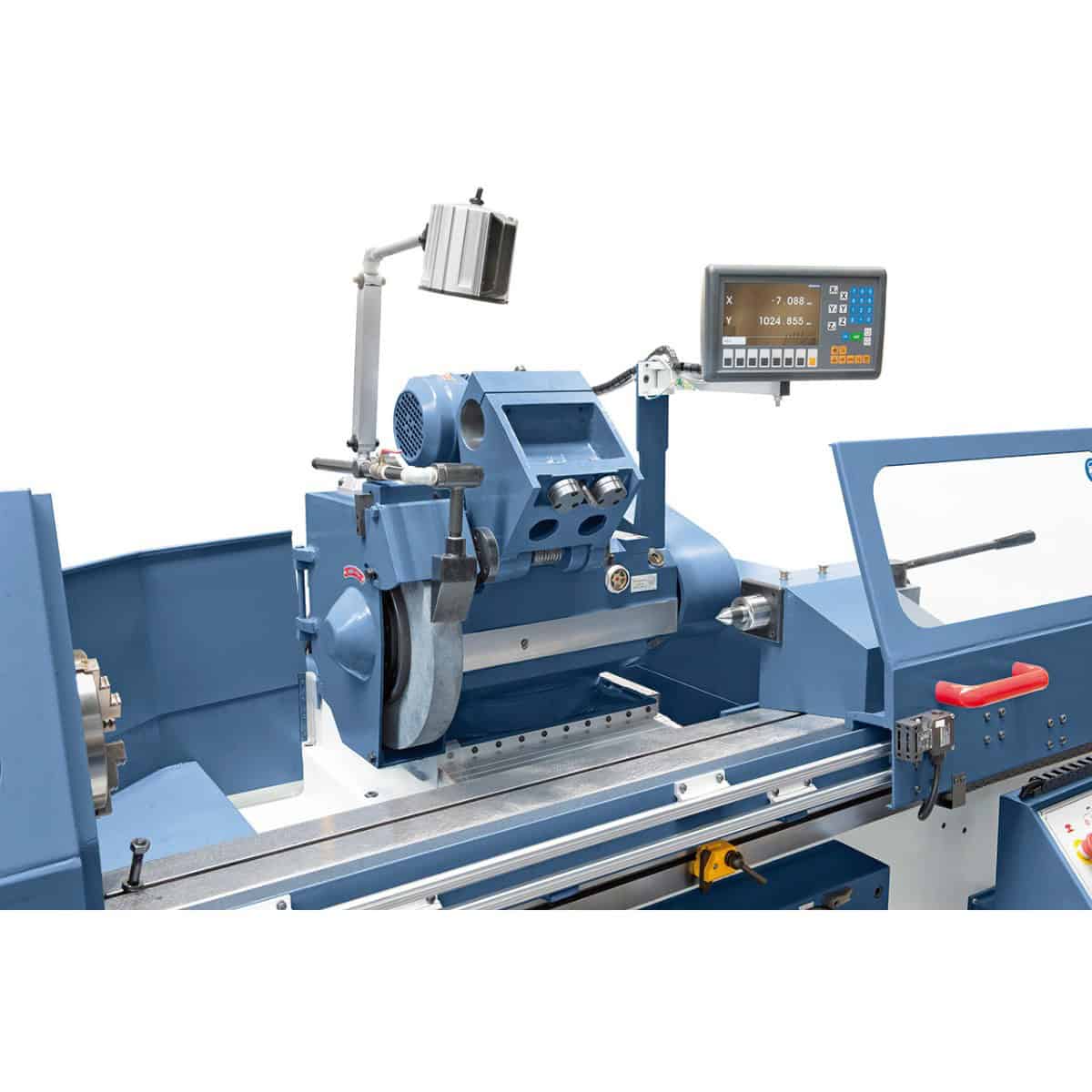

• ES-12 H 2-Axis Position Display with LCD Display
• Grinding wheel boring
• Grinding wheel boring flange
• 3-jaw chuck diam. 200 mm

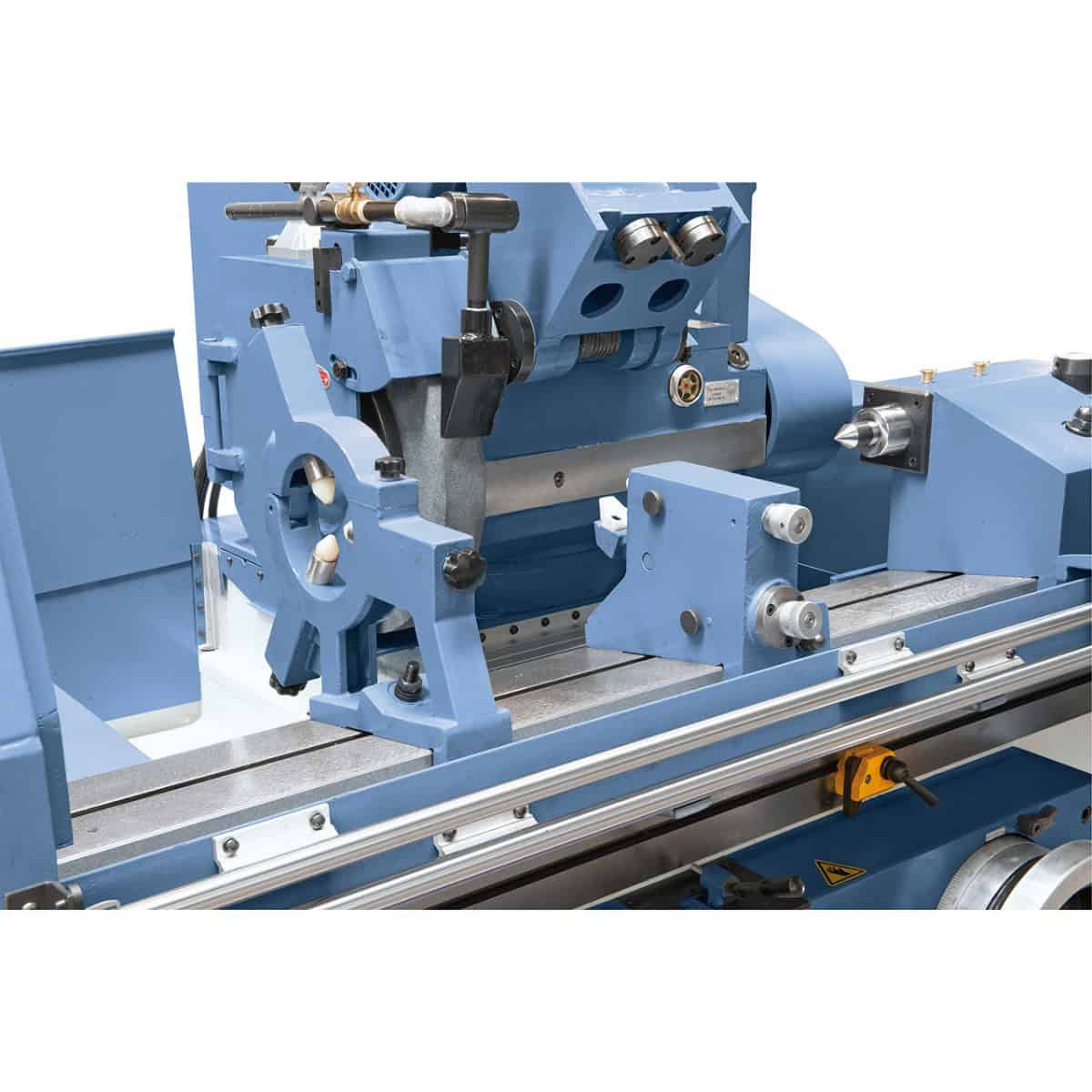

• 2 open lunettes
• Closed bezel

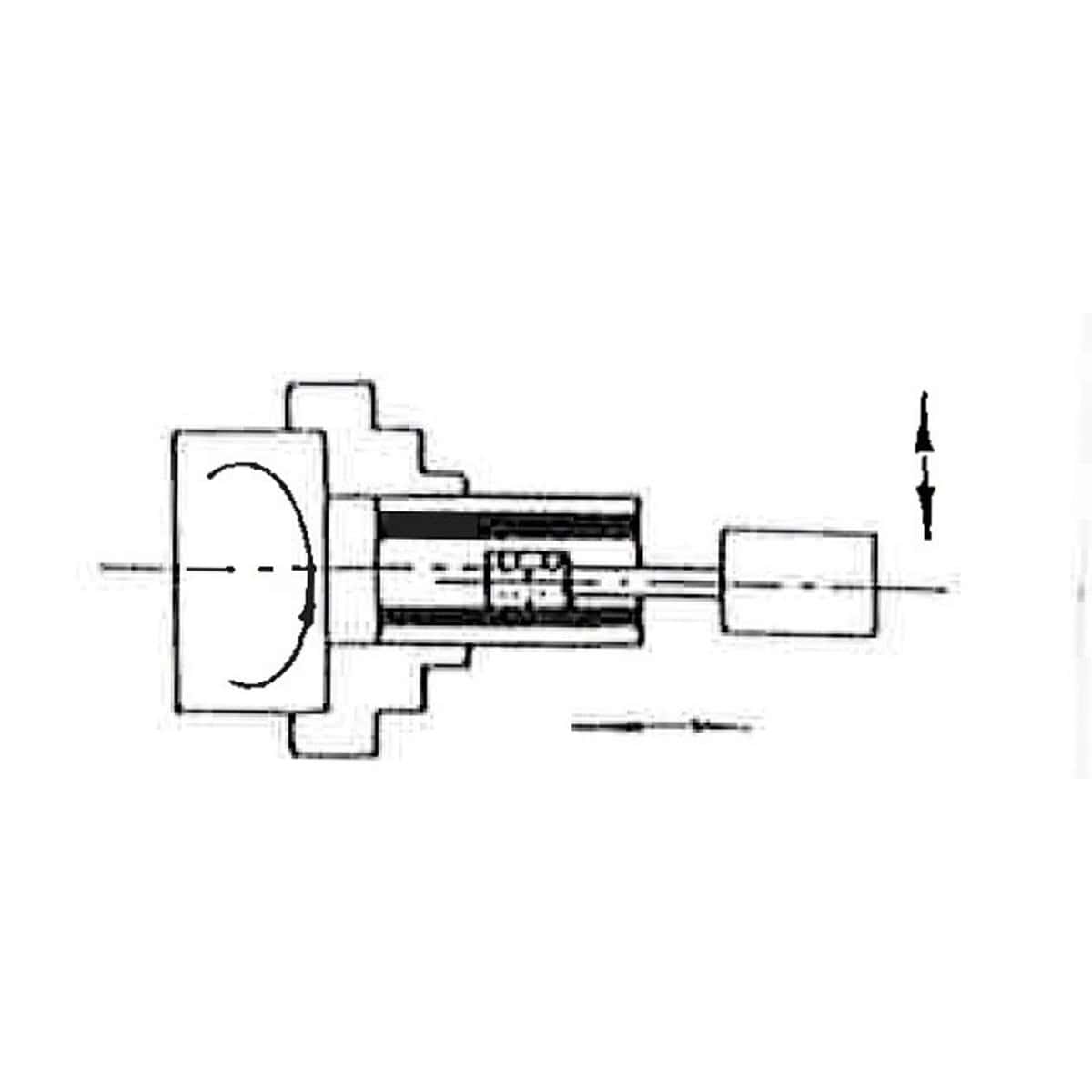

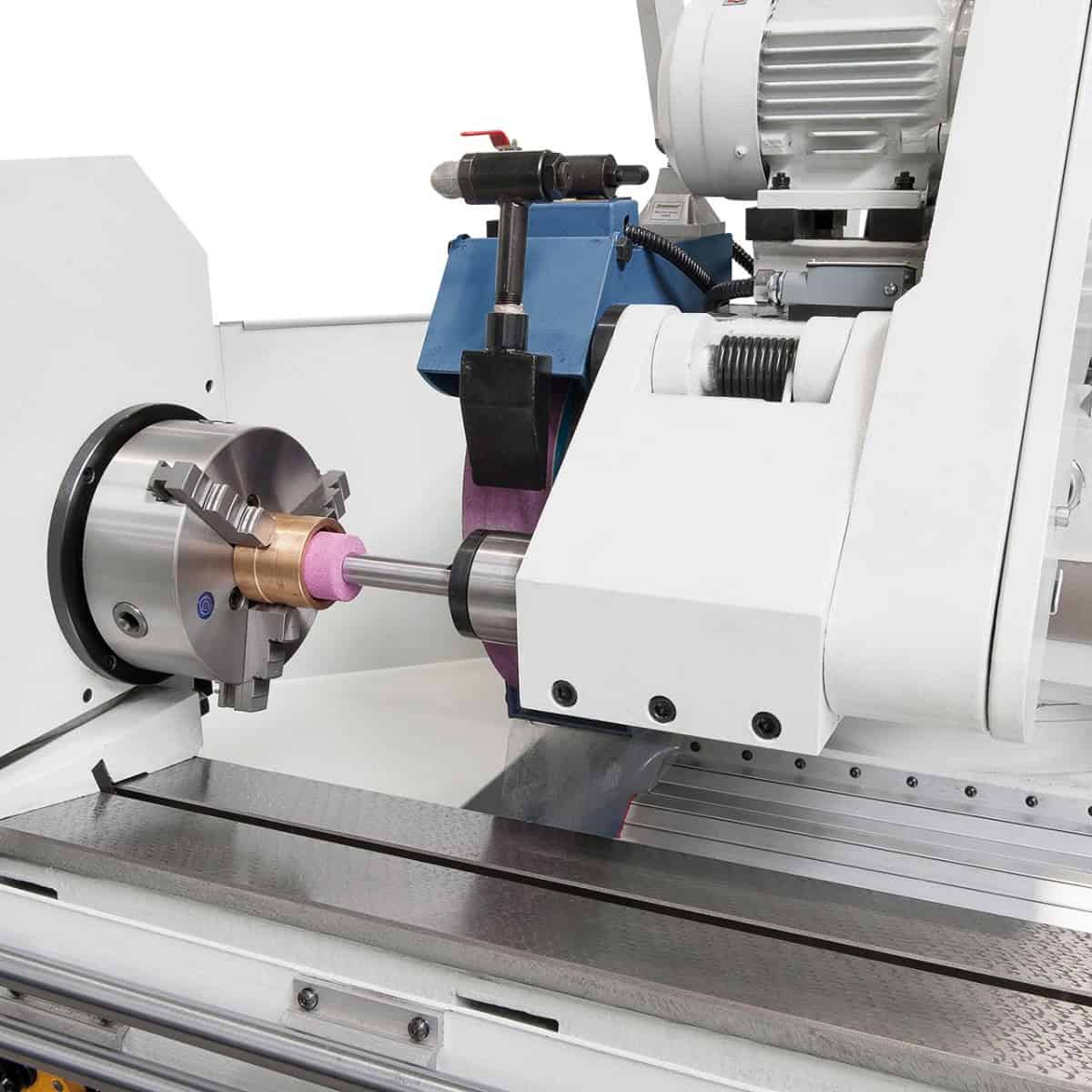

• Internal grinding device
• LED car light
• State of equilibrium
• Balancing spindle
• Frequency converter
• 2 central tips
• Blade plate

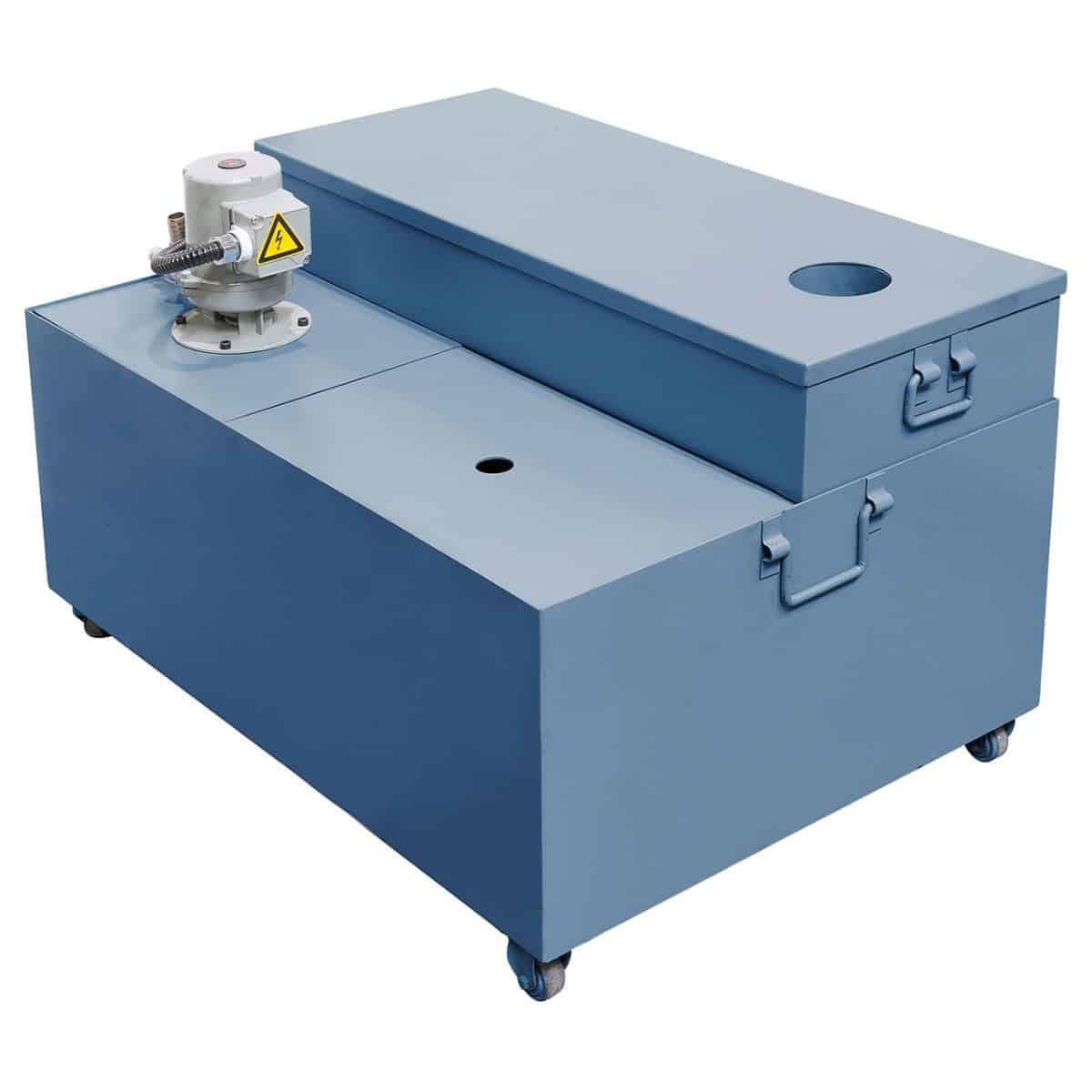

• Refrigeration system
• Mudflaps, front and rear
• Grinding wheel bore aligner
• Piece holder

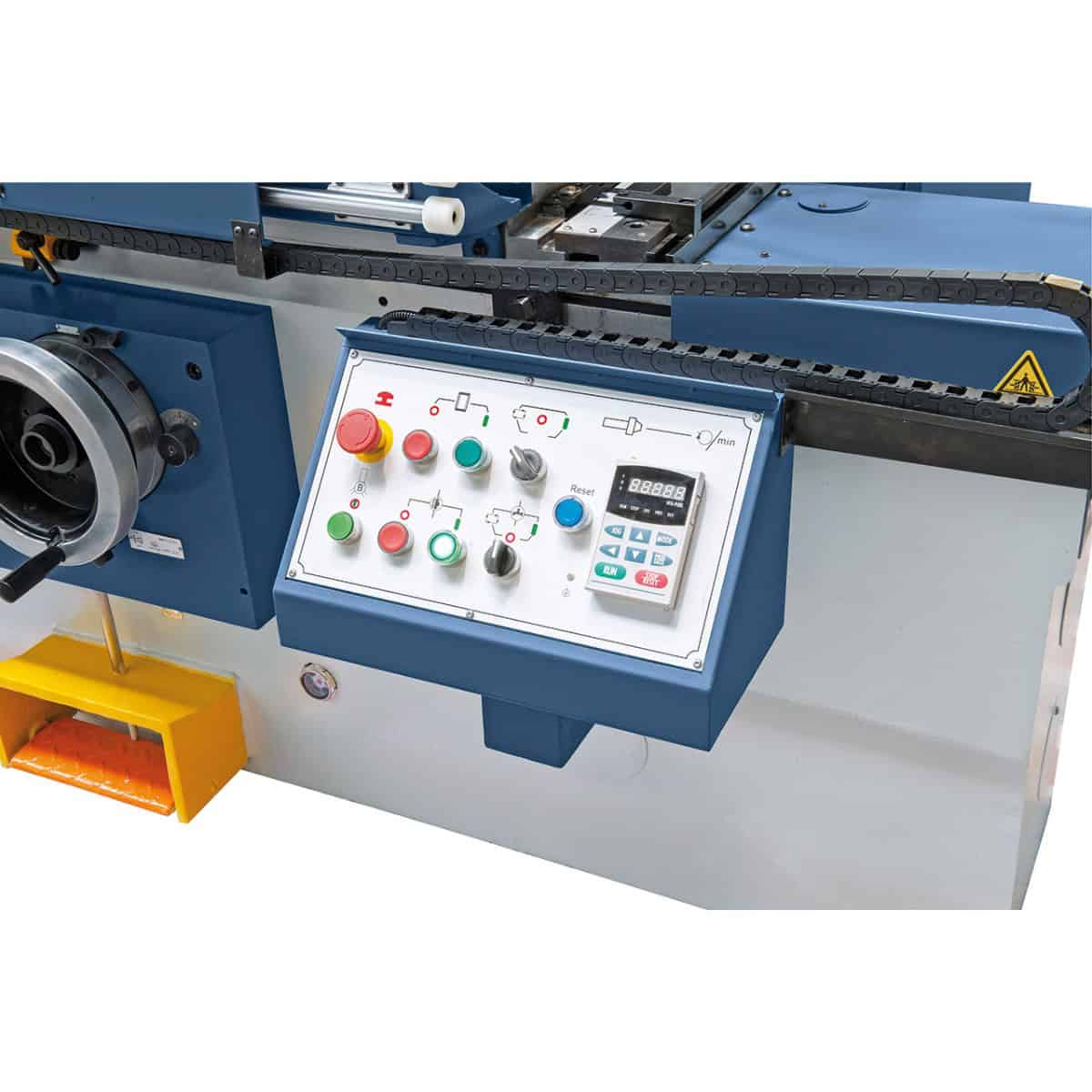

• Control device

  technical specifications

  Distance between tips	1000 mm
  Height of the tips	180 mm
  External grinding dimensions	8 - 320 mm
  Max. piece weight	150 kg
  Internal grinding diameter with bezel	35 - 100 mm
  Internal grinding diameter without bezel	30 - 100 mm
  Max. internal grinding depth	125 mm
  Max. table tilt area	from +3° to -7°
  Max. longitudinal table movement.	1000 mm
  Table advancement	0.1 - 4 m/min
  Man. Table travel/knob turn	6 mm/turn

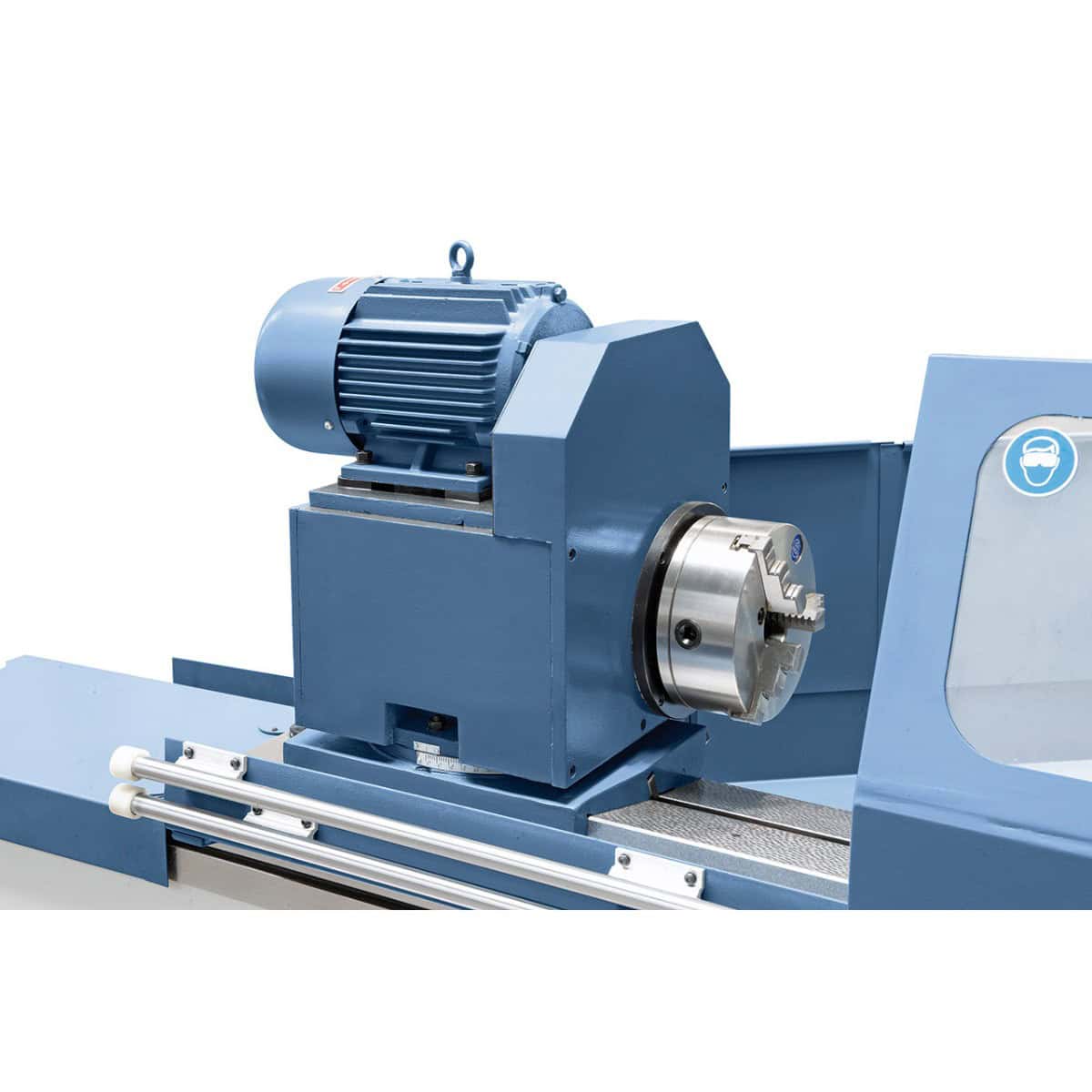

  Spindle head
  Continuous spindle speed	25 - 220 rpm
  Spindle cone	MK 4
  Working spindle tilt area	+90°
  Grinding spindle head
  Abrasive belt dimensions	400 x 50 x 203 mm
  Grinding spindle speed	1670 rpm
  Internal grinding spindle speed	10000 rpm
  Grinding spindle tilt area	+/-30°
  Grinding head stroke	180 mm
  Scale division	0.0025 mm
  Rapid stroke, hydraulic	50 mm/min

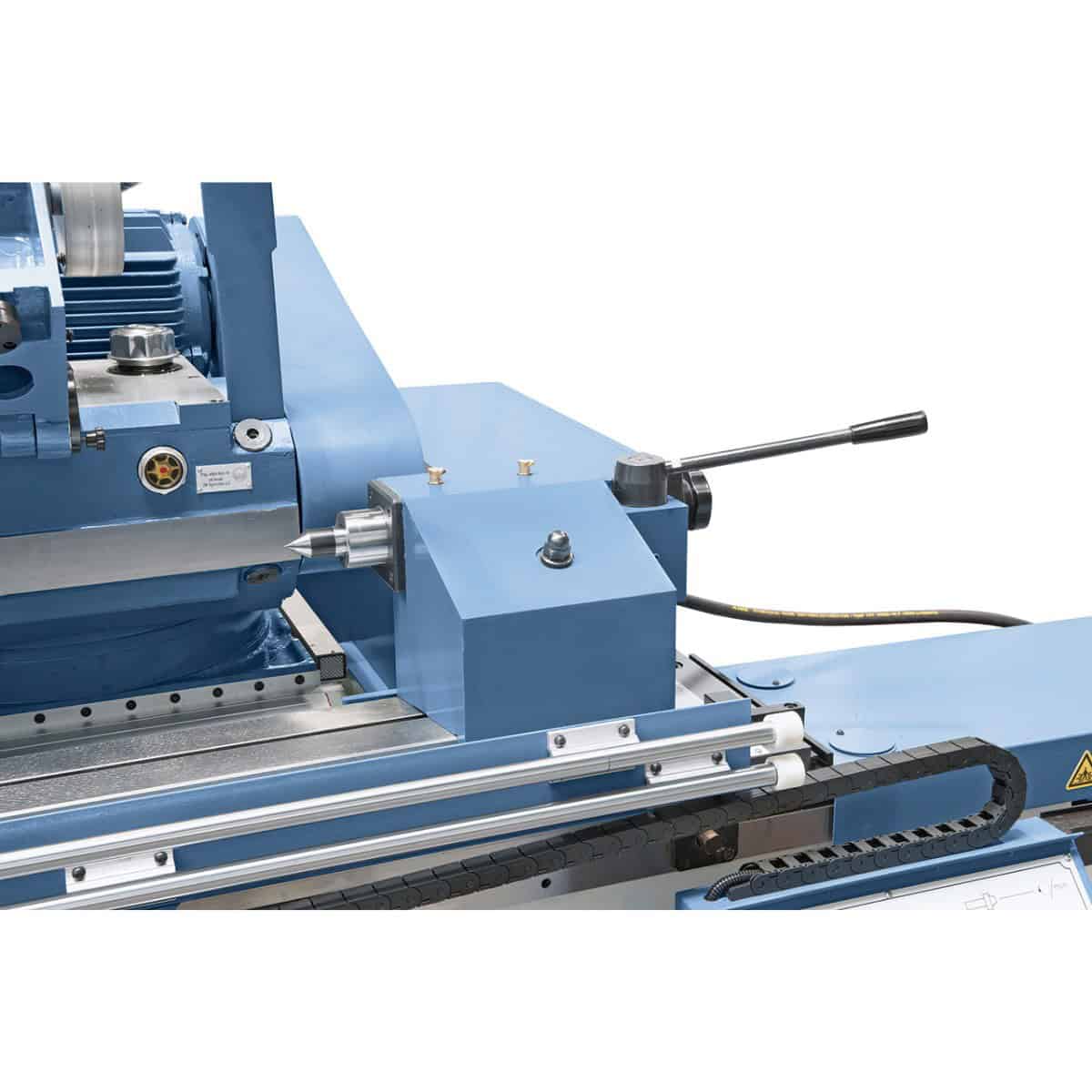

  Tailstock
  Spindle support	MK 4
  Spindle stroke	30 mm
  Engine power
  Grinding spindle	5.5 kW
  Work spindle	1.5 kW
  Internal grinding spindle	1.1 kW
  Machine dimensions (L x W x H)	3700 x 1900 x 1500 mm
  Weight	3700 kg
