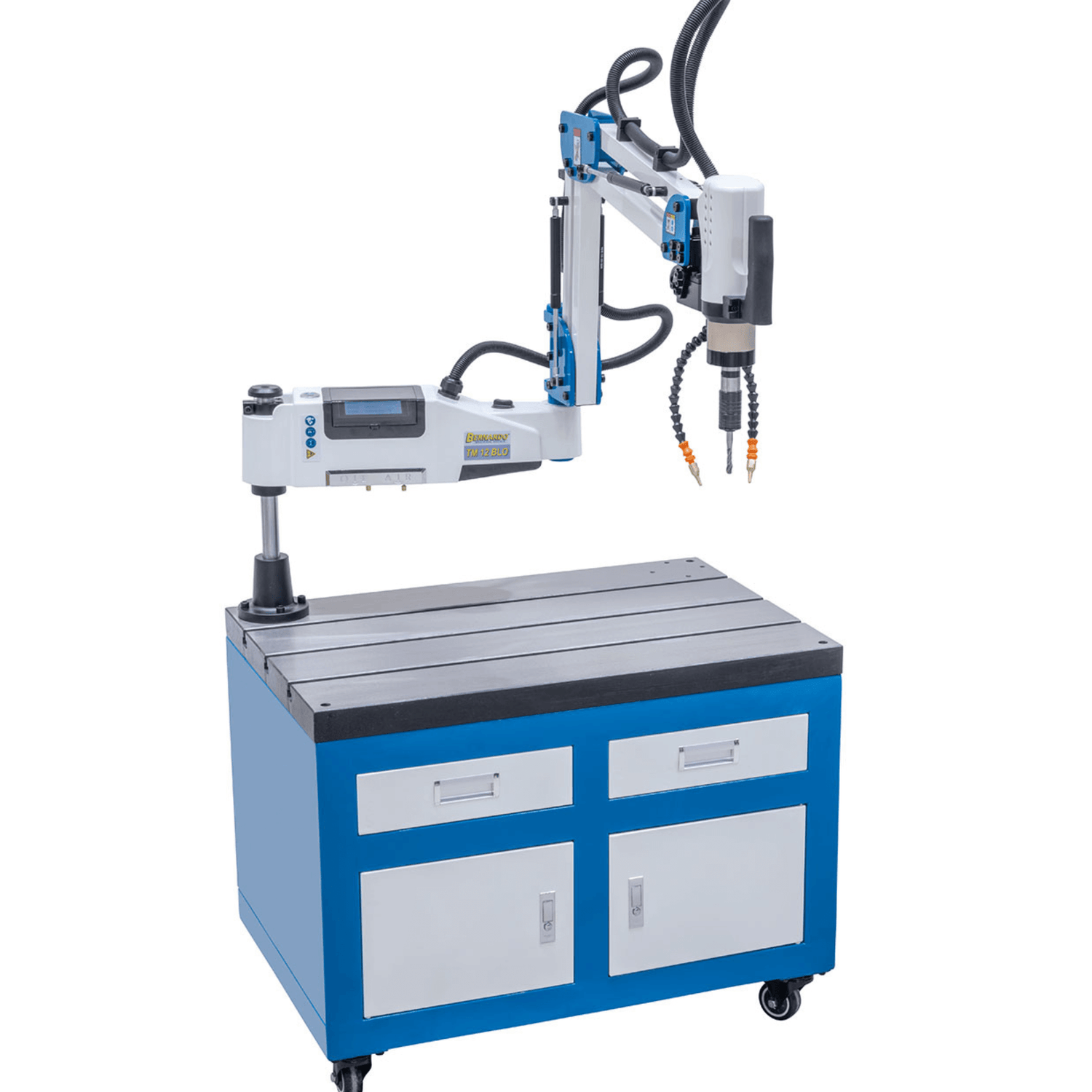

Electric Thread Cutting Machines TM 12 BLO / R 1500

Property

• Standard with micro-spray system for constant cooling and minimal coolant consumption
• Including a blower device to remove chips, thus providing an optimal view of the hole
• Includes quick-change chuck for using through-hole and blind hole taps
• Rotating motor unit for cutting fillets at any desired angle between 0° and 90°
• Greater precision than manual tapping, the thread is guaranteed square (90°)
• High productivity, significant time savings compared to manual threading
• Quick-change chuck with integrated slip clutch prevents tap breakage
• Includes a wide-radius swivel arm for easy positioning of the tap on the workpiece
• For threading steel, stainless steel, aluminum and non-ferrous metals

Standard accessories

• Touch screen operation
• Digital drilling depth display
• micro-spraying system
• blowing device
• quick-change mount
• Quick-change chuck according to DIN
• electric motor
• 90° angle adjustment
• mounting flange

Technical specifications

• Threaded holes* M3 - M12
• Maximum speed 150 - 600 rpm
• Adjustable angle 0° - 90°
• Maximum working radius R 1500 mm
• Quick change chuck DIN 371: M3 / M4 / M5-6 / M8 / M10
• DIN 376: M12
• Motor power 600 W
• Voltage 230V
• Weight about 33 kg
• * Material resistance 400 N/mm2

BASE NOT INCLUDED Please understand that some photos are for demonstration purposes in order to view the potential and functionality of the machine, as in this listing, the machine shown in the photo is equipped with optionally available accessories. Please refer to the table descriptions of the standard accessories included.
