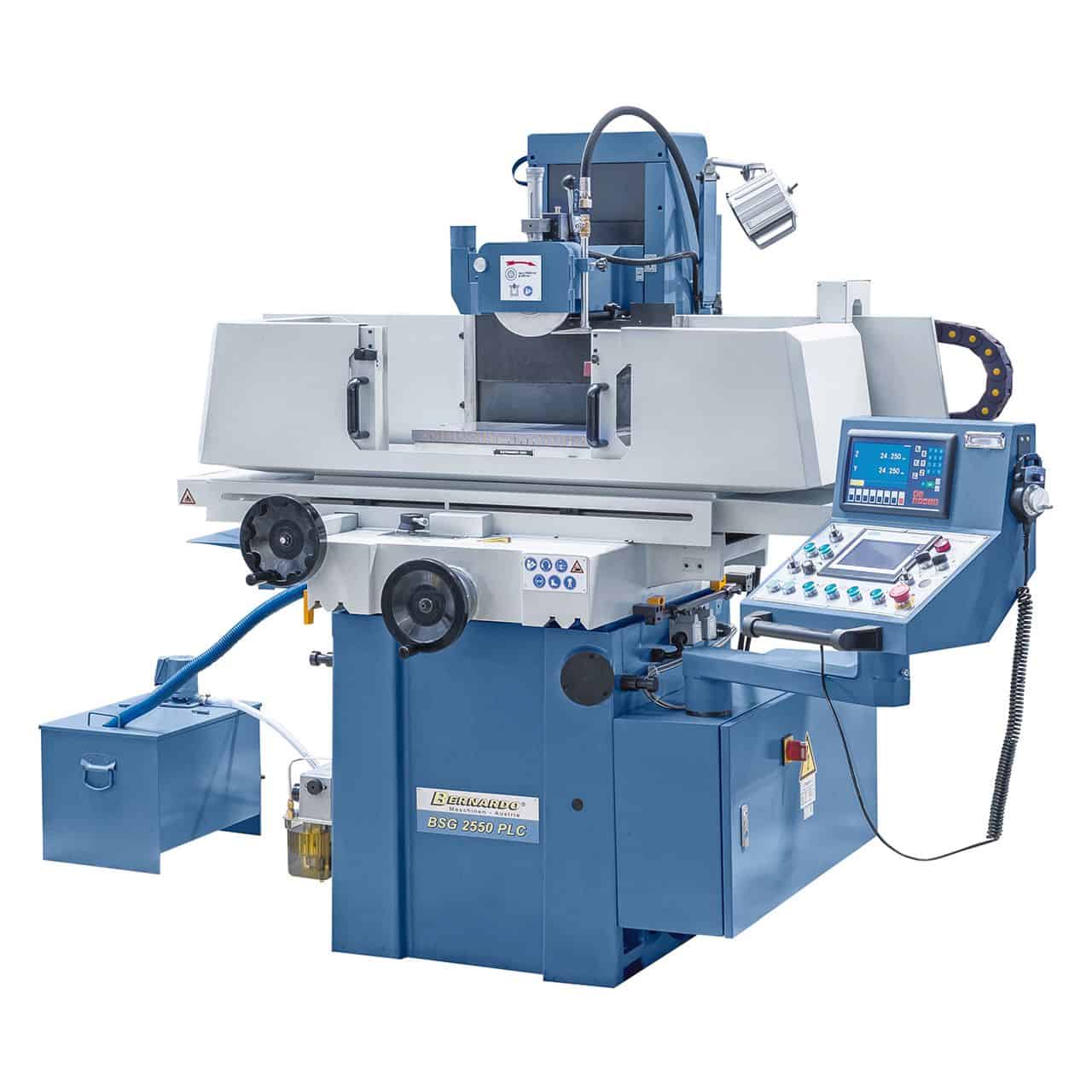

BSG 2550 PLC Flat Grinder
-
Description
-
Technical Specifications
-
Product safety
-
Reviews
Description
Property
- Reduced slip-stick effect thanks to plastic-coated counter-guides in the x- and y-axes
- Longitudinal guide V-flat table, transversal guide double-V table
- Special preloaded bearings without axial and radial play in the grinding spindle
- High stability thanks to strong ribs and large walls
- Automatic vertical feed with digital control and servomotor
- The sophisticated hydraulic system guarantees smooth turning of the table even with high loads of the same
- Rapid approach to workpiece height, adjustable reconciliation stroke and flame suppression; automatic lifting after program end
- Adjustable longitudinal and transverse table movement by limit switches
Standard accessories
- ES-12 H 2-axis position display with LCD display
- Siemens SMART IE V3 panel with touch control
- Electronic knob
- Grinding wheel boring
- Disc flange
- LED work light
- Magnetic clamping plate
- Balancing support
- Balance shaft
- Protective covers
- Parallel extractor arrangement
- Degaussing device
- Refrigeration system
- Diamond extractor
- Machine feet
- Central lubrication
- Control device
technical specifications
|
Table clamping surface |
250 x 510 mm |
|
Number of T-slots / width |
1 / 14 mm |
|
Electronic magnetic clamping plate |
250 x 500 mm |
|
Maximum travel, longitudinal |
560 mm |
|
Maximum travel, transverse |
275 mm |
|
Distance spindle center / table max. |
450 mm |
|
Max. piece weight* |
180 kg |
|
Grinding wheel boring |
200 x 20 x 31.75 mm |
|
Table speed, hydraulic |
5 - 25 m/min |
|
Transverse adjustment |
|
|
Automatic, transversal approach |
0.5 - 8 mm/stroke |
|
Rapid, transverse run |
990 mm/min |
|
Transverse approach per turn of the knob |
4 mm/turn |
|
Scale division on the flyer |
0.02 mm |
|
Vertical approach |
|
|
Manual setup |
0.005 / 0.01 / 0.02 / |
|
0.03 / 0.04 / 0.05 mm |
|
|
Rapid, vertical run |
480 mm/min |
|
Vertical approach per turn of the knob |
2 mm/turn |
|
Scale division on the flyer |
0.005 mm |
|
Grinding spindle motor |
2.2 kW |
|
Spindle speed |
2850 rpm |
|
Hydraulic pump motor |
0.75 kW |
|
Vertical feed motor |
0.5 kW |
|
Length |
1900 mm |
|
Depth |
2050 mm |
|
Height |
1840 mm |
|
Weight approx. |
1750 kg |
|
* with magnetic clamping plate |
