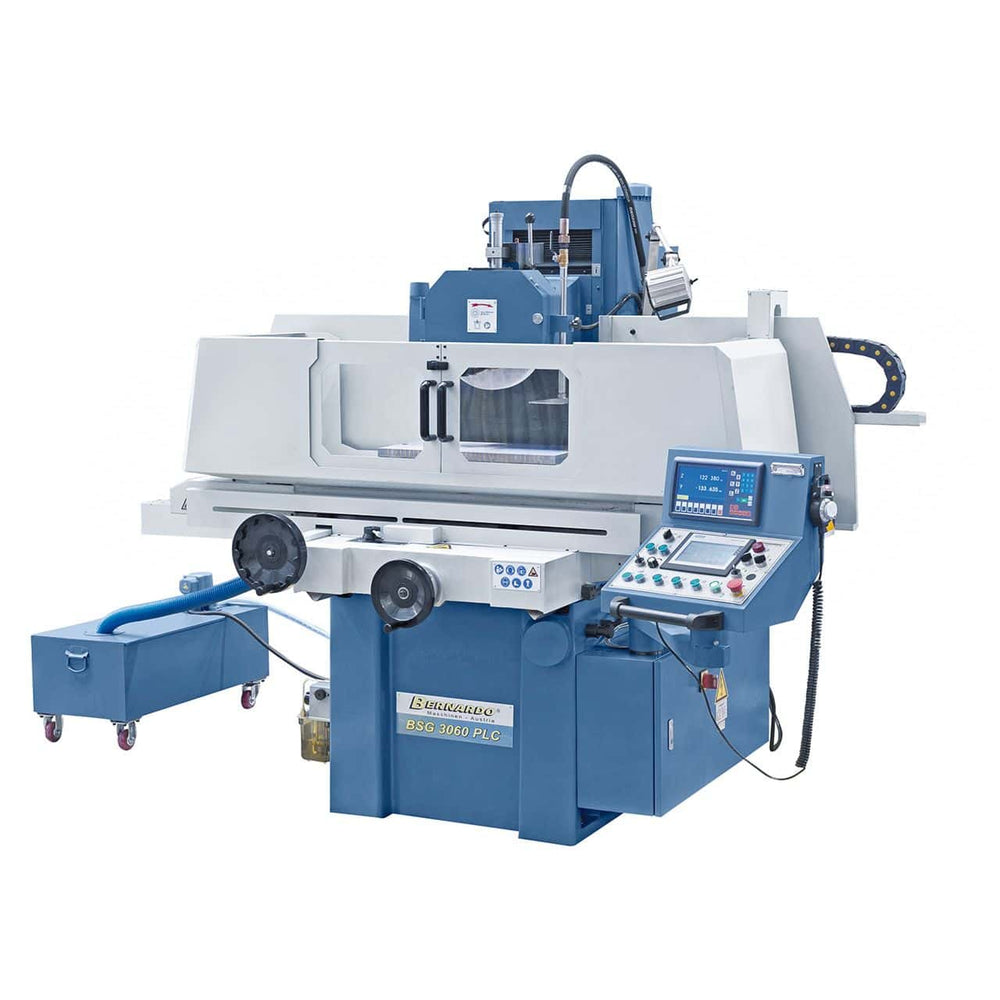

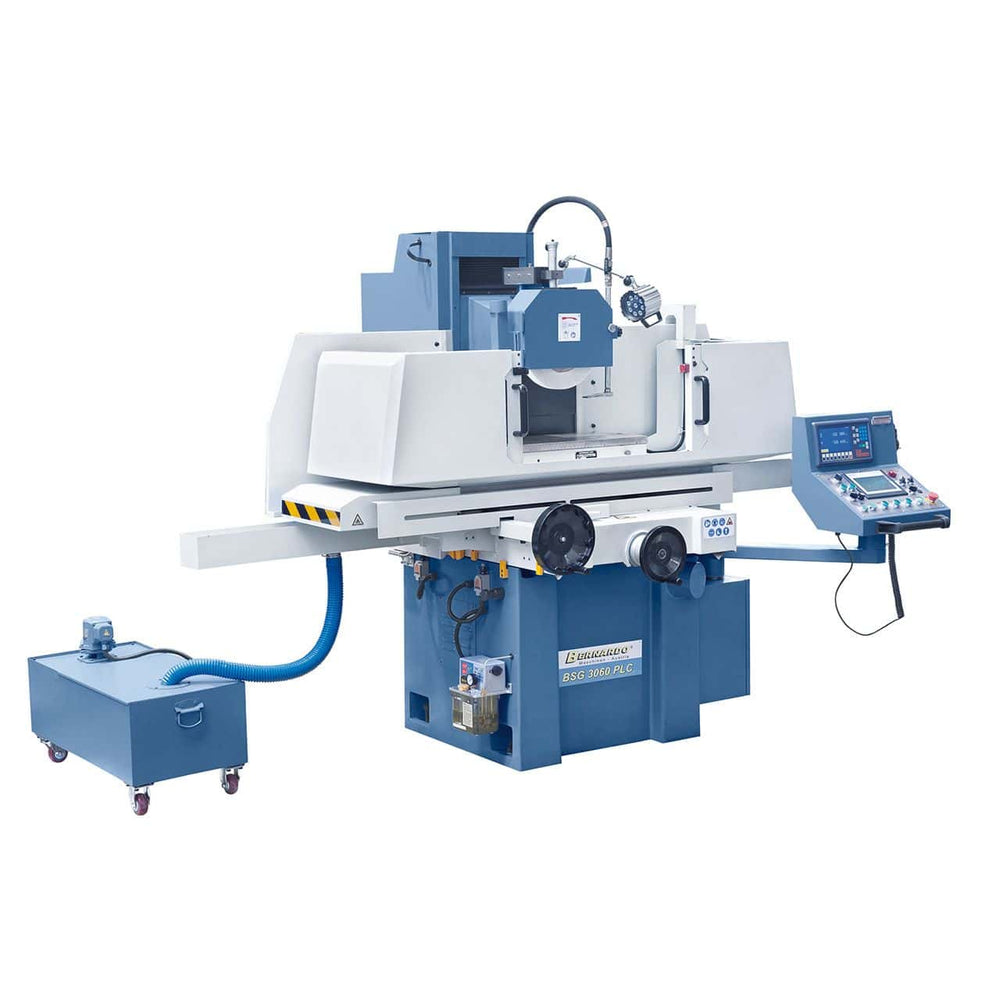

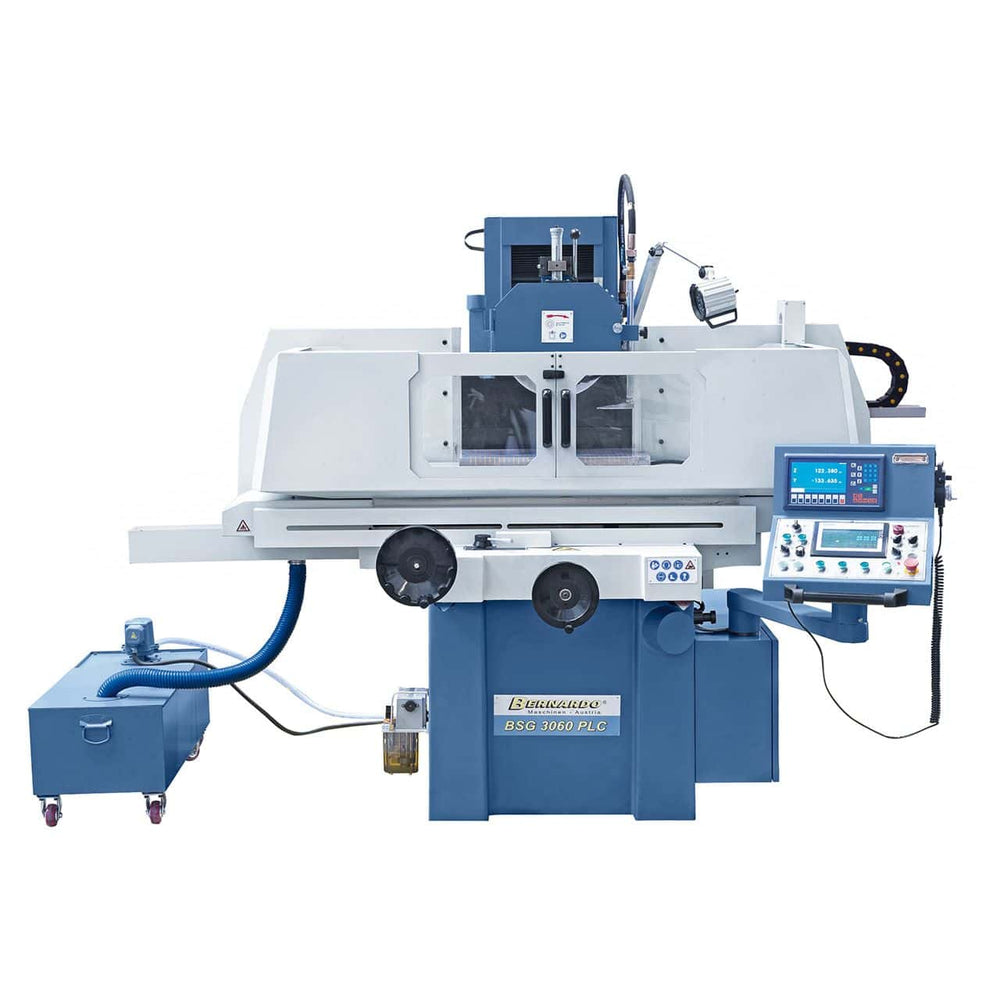

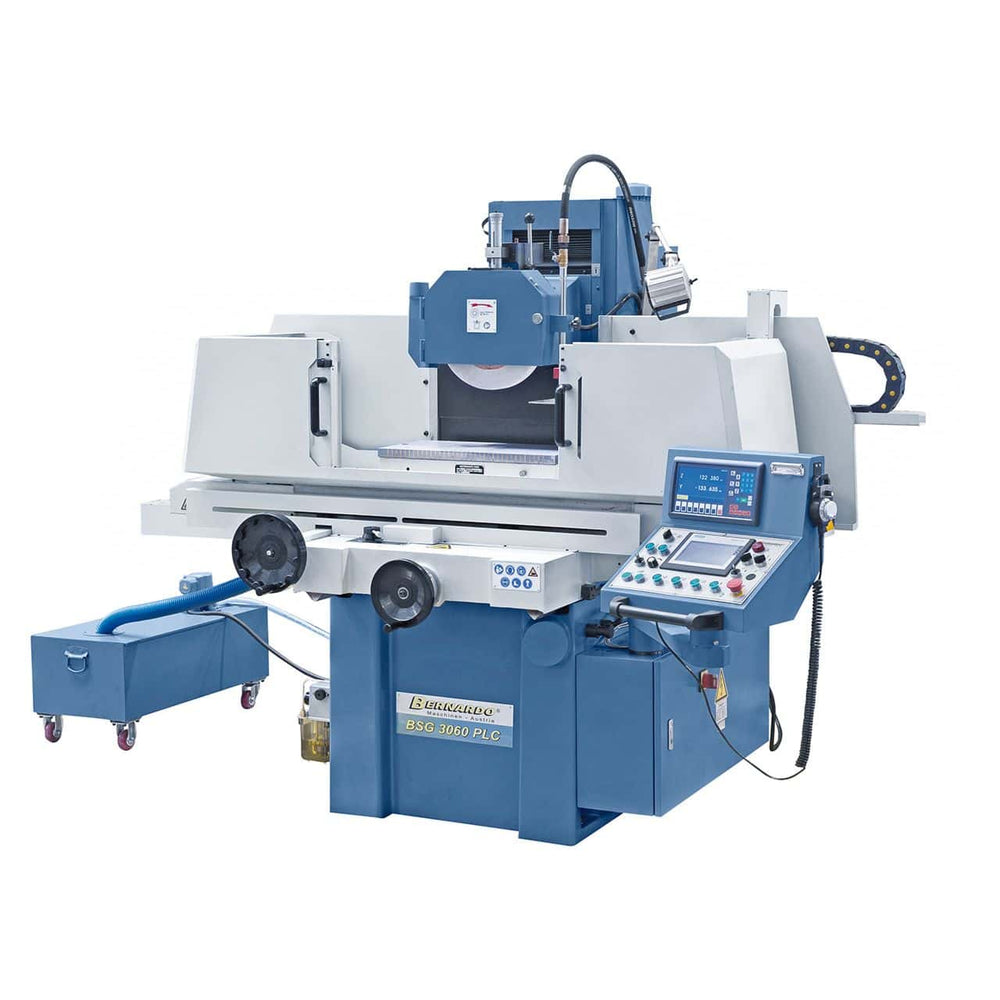

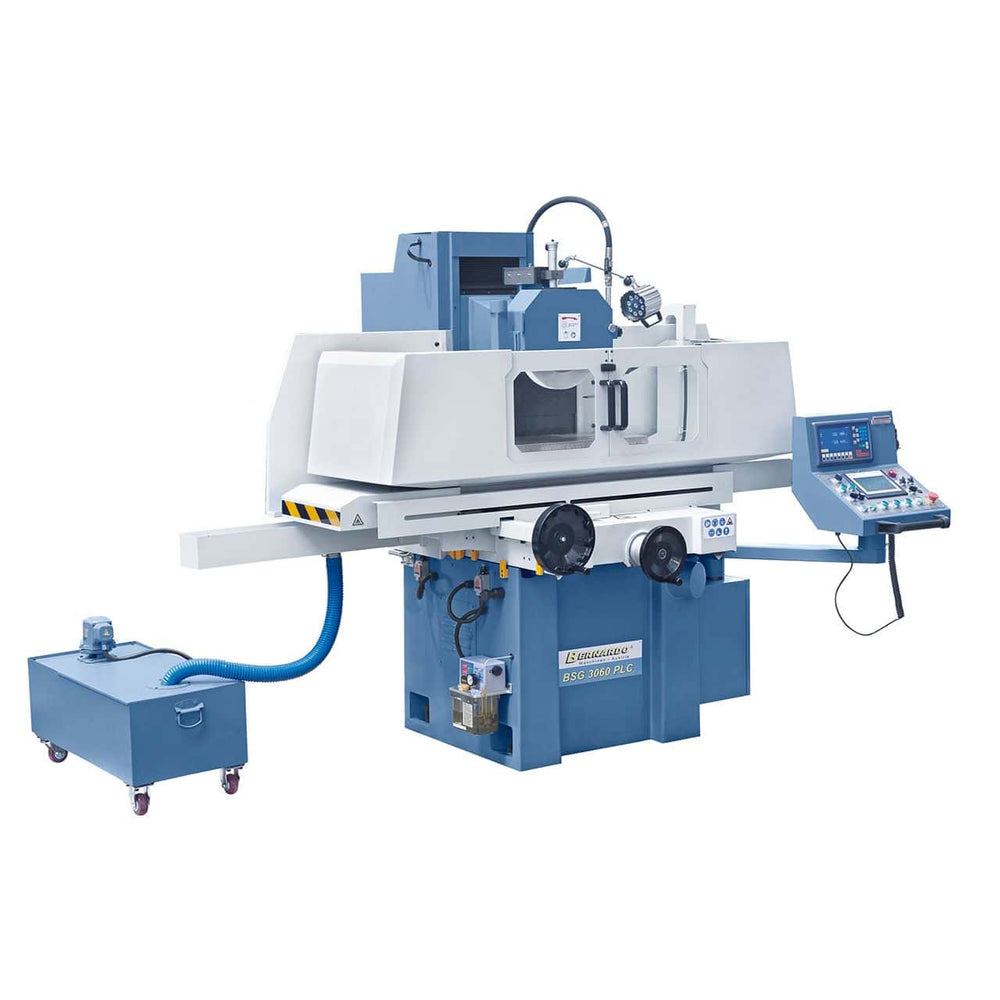

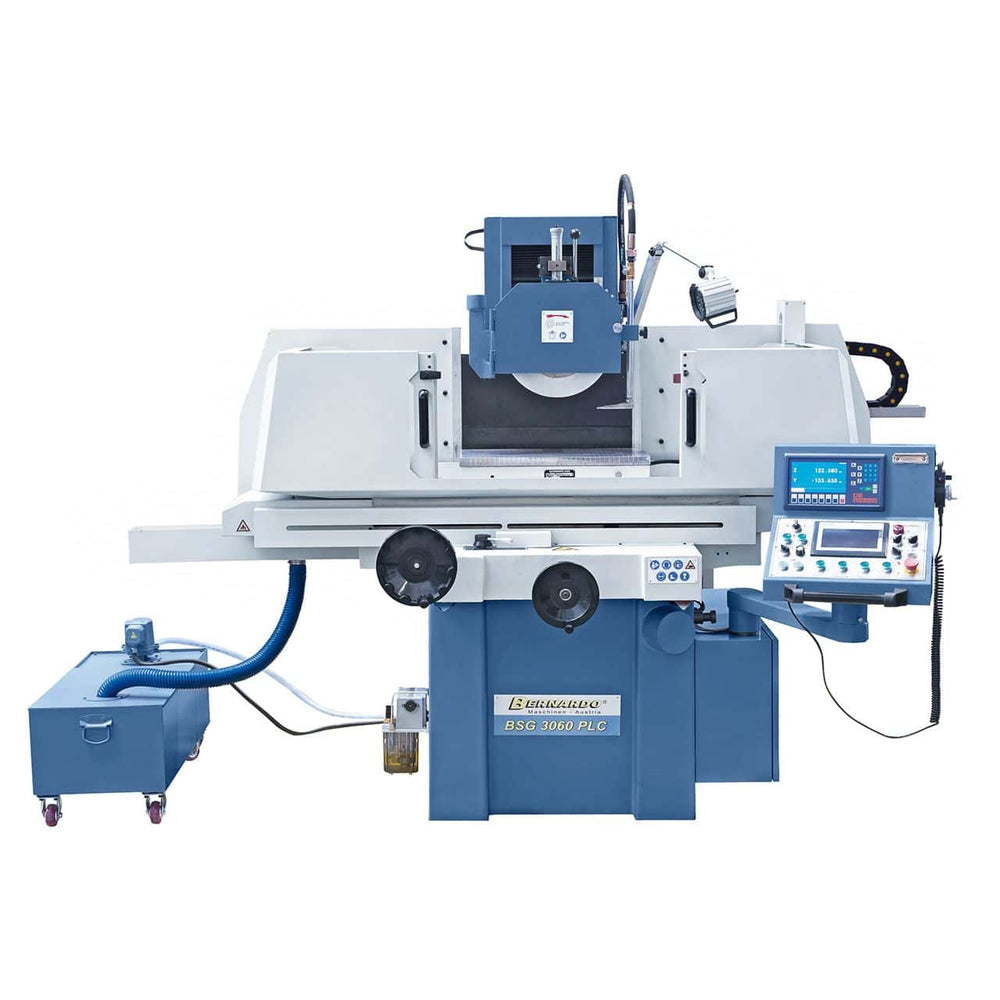

BSG 3060 PLC Flat Grinder
BSG 3060 PLC Flat Grinder is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
BSG 3060 PLC Flat Grinder
-
Description
-
Technical Specifications
-
Product safety
-
Reviews
Description
Property
- Reduced slip-stick effect thanks to plastic-coated counter-guides in the x- and y-axes
- Longitudinal guide V-flat table, transversal guide double-V table
- Special preloaded bearings without axial and radial play in the grinding spindle

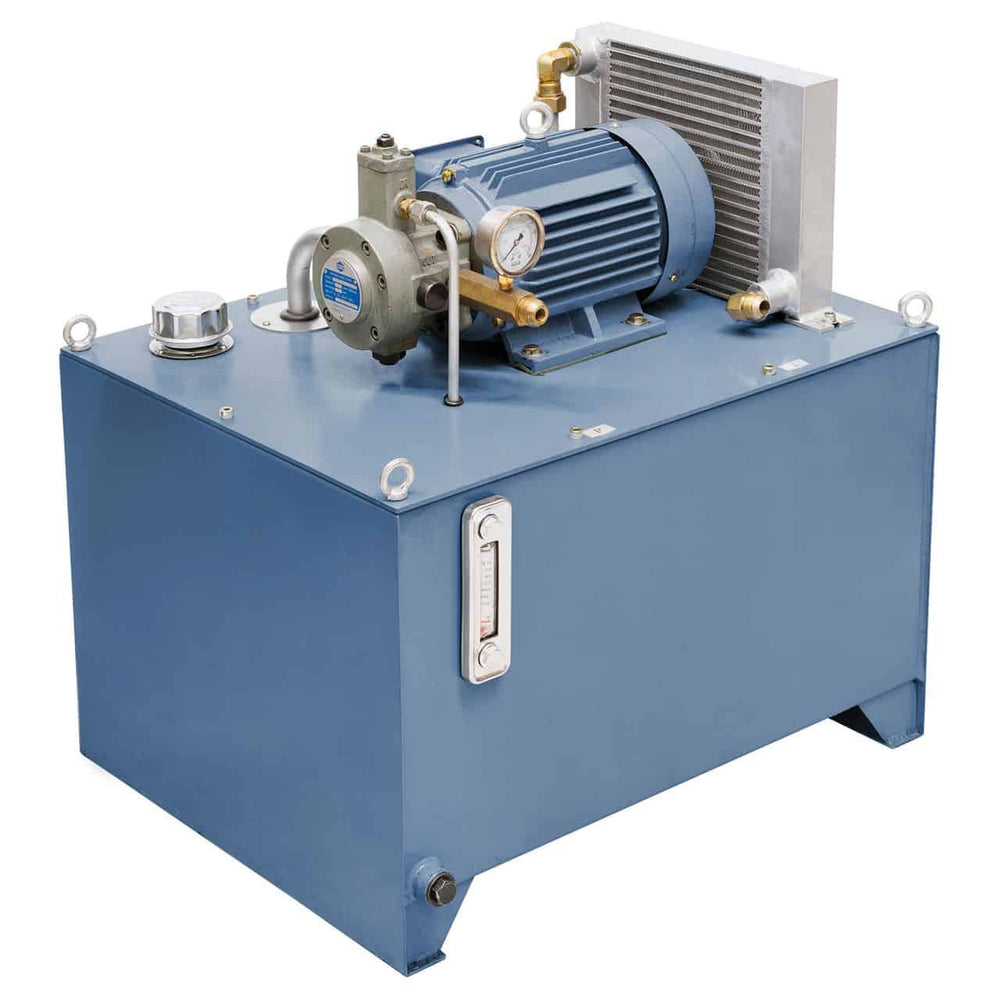

- The independent hydraulic unit with heat exchanger avoids vibrations and thermal stresses
- High stability thanks to strong ribs and large walls
- Automatic vertical feed with digital control and servomotor
- The sophisticated hydraulic system guarantees smooth turning of the table even with high loads of the same
- Rapid approach to workpiece height, adjustable reconciliation stroke and flame suppression; automatic lifting after program end

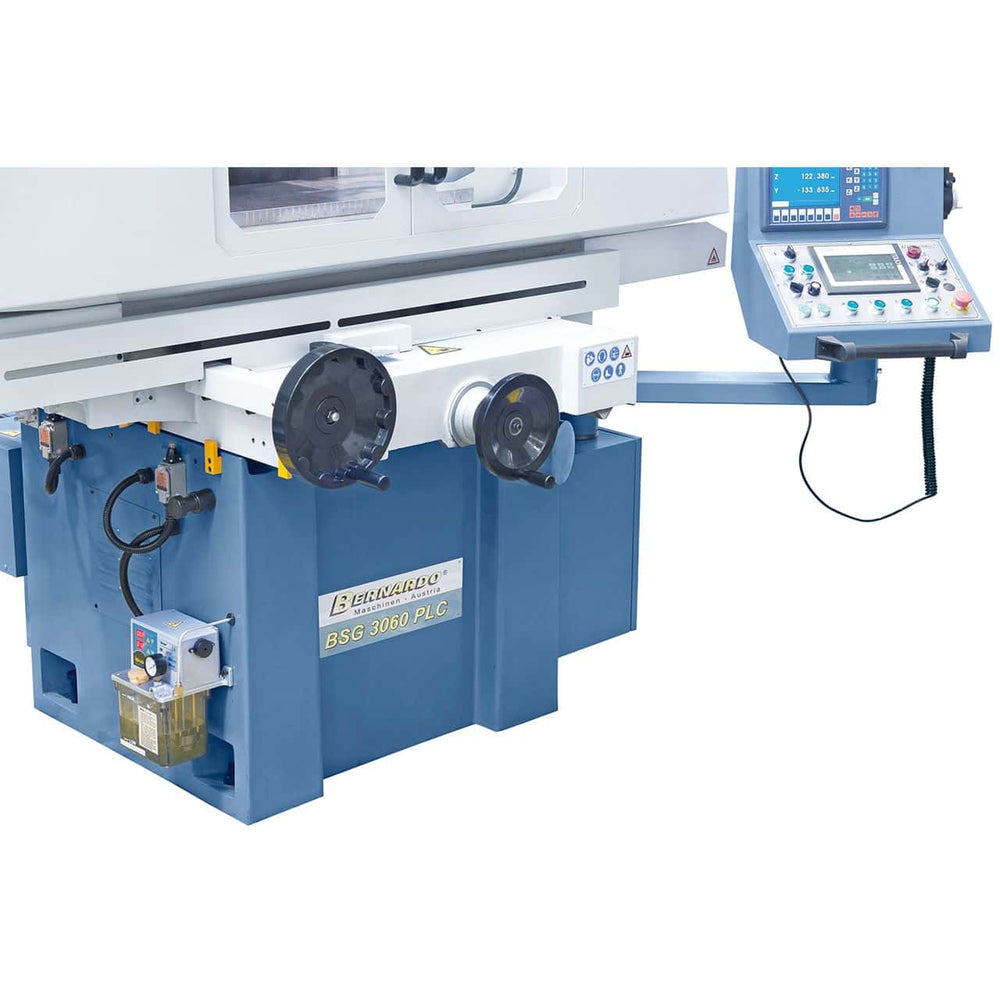

- Adjustable longitudinal and transverse table movement by limit switches
Standard accessories
- ES-12 H 2-axis position display with LCD display

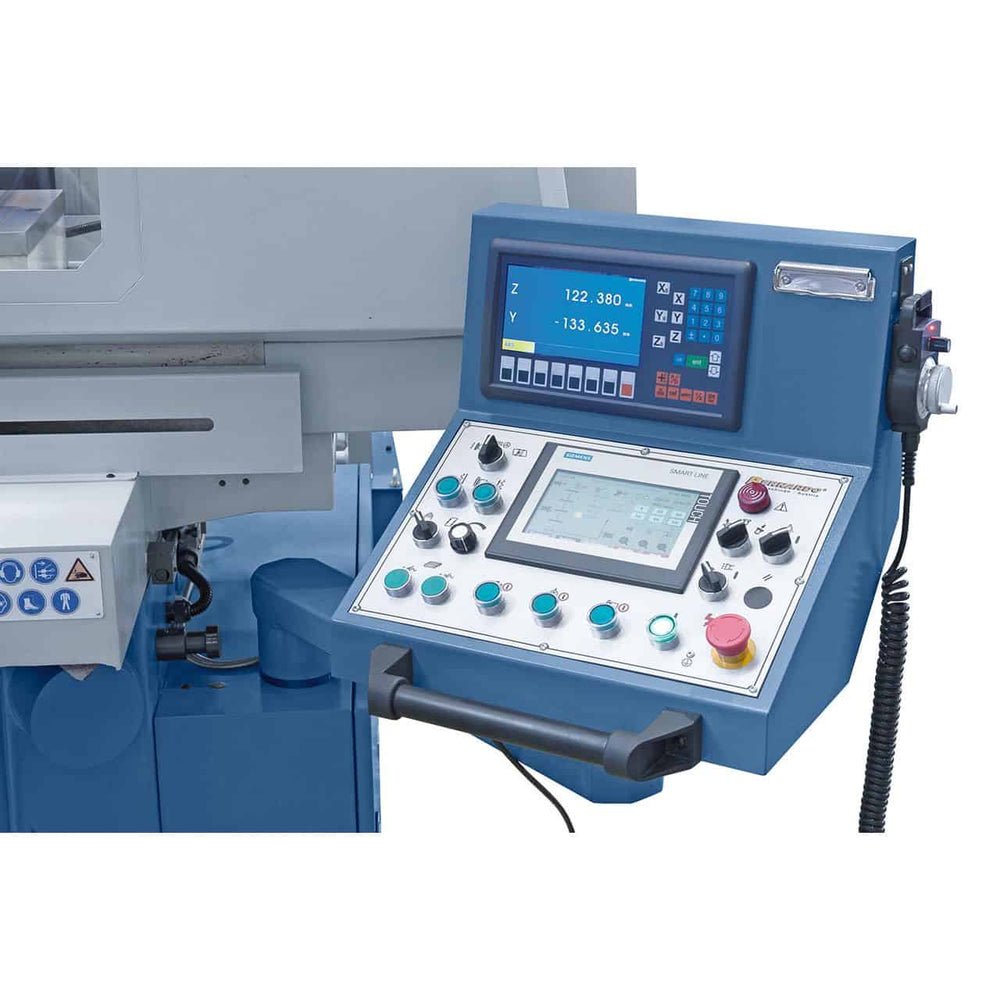

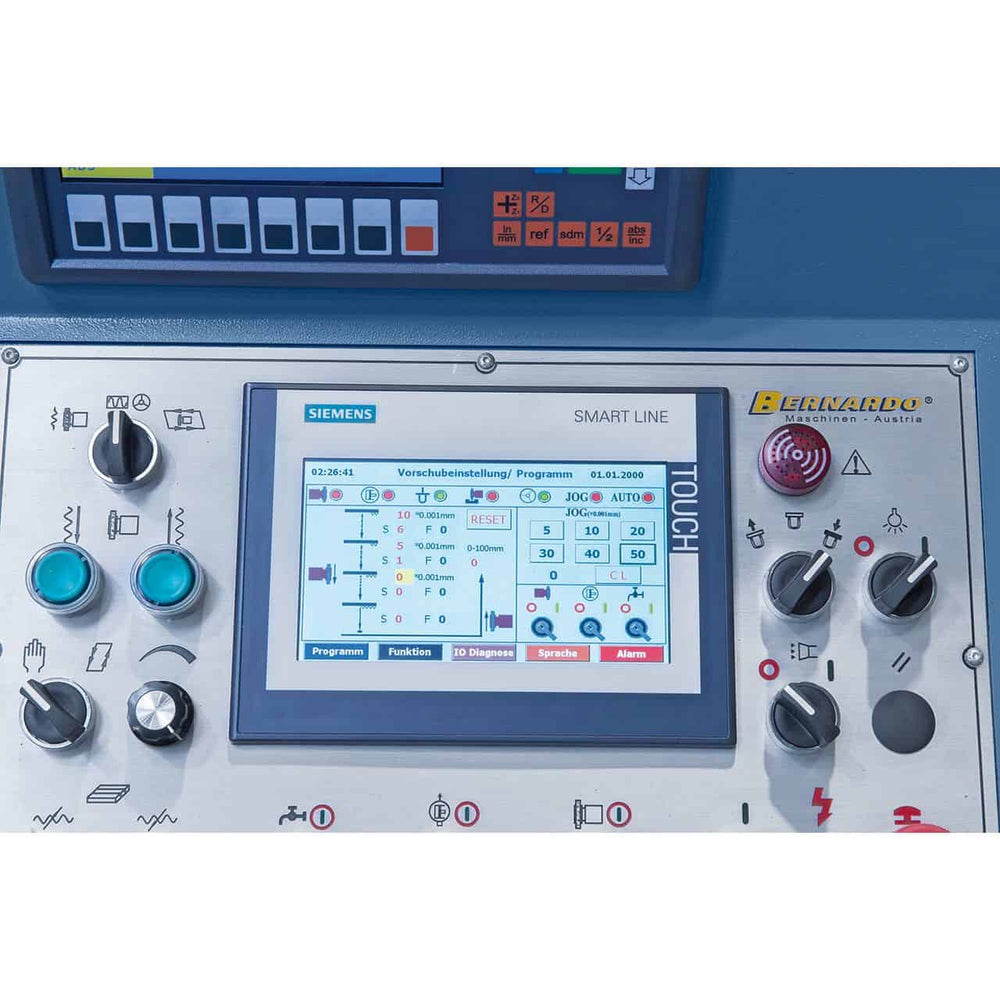

- Siemens SMART IE V3 panel with touch control
- Electronic knob

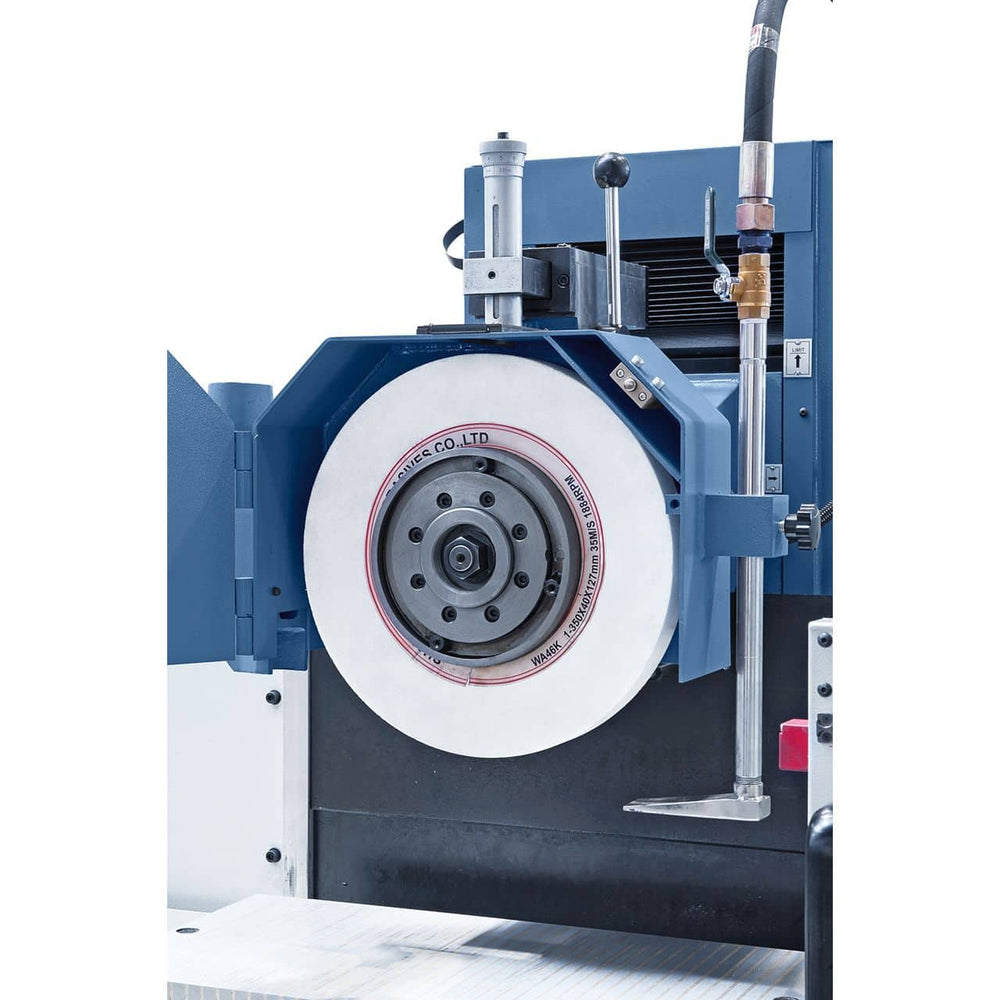

- Grinding wheel boring
- Disc flange
- LED work light
- Magnetic clamping plate
- Balancing support
- Balance shaft
- Protective covers

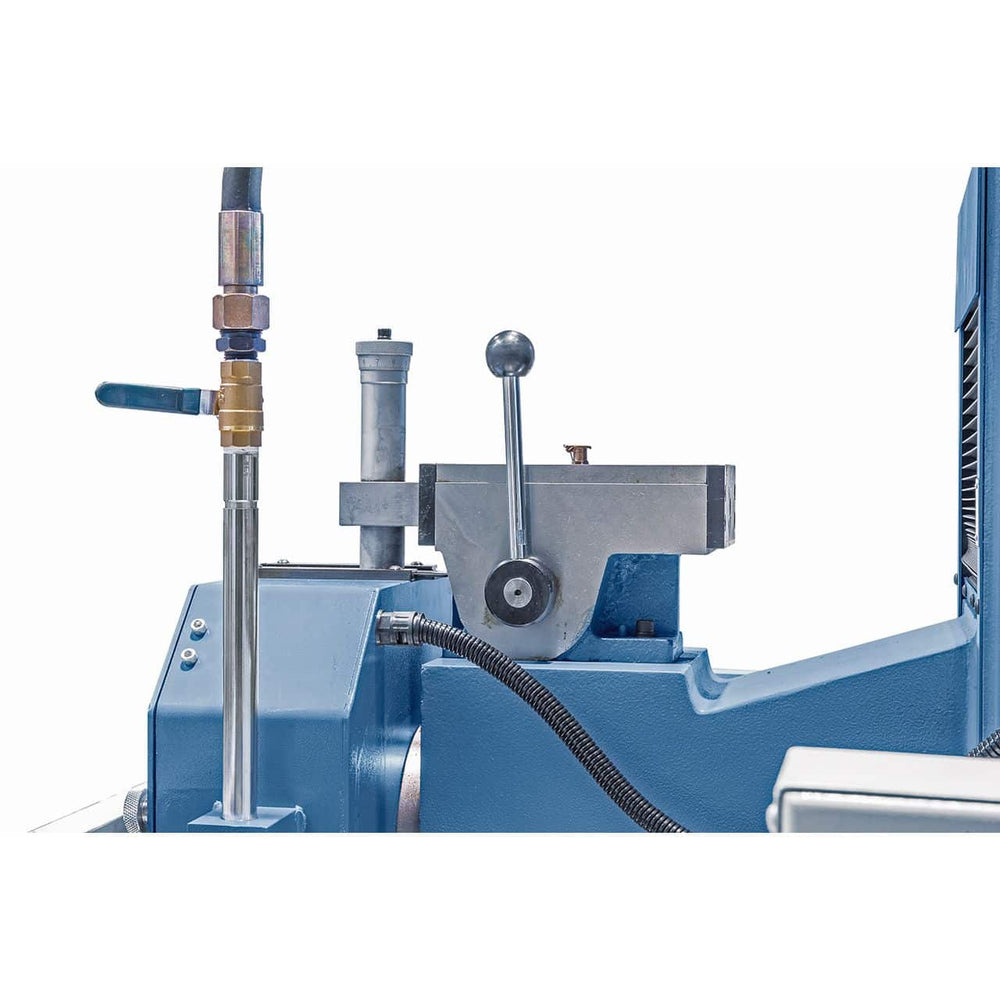

- Parallel grinding device

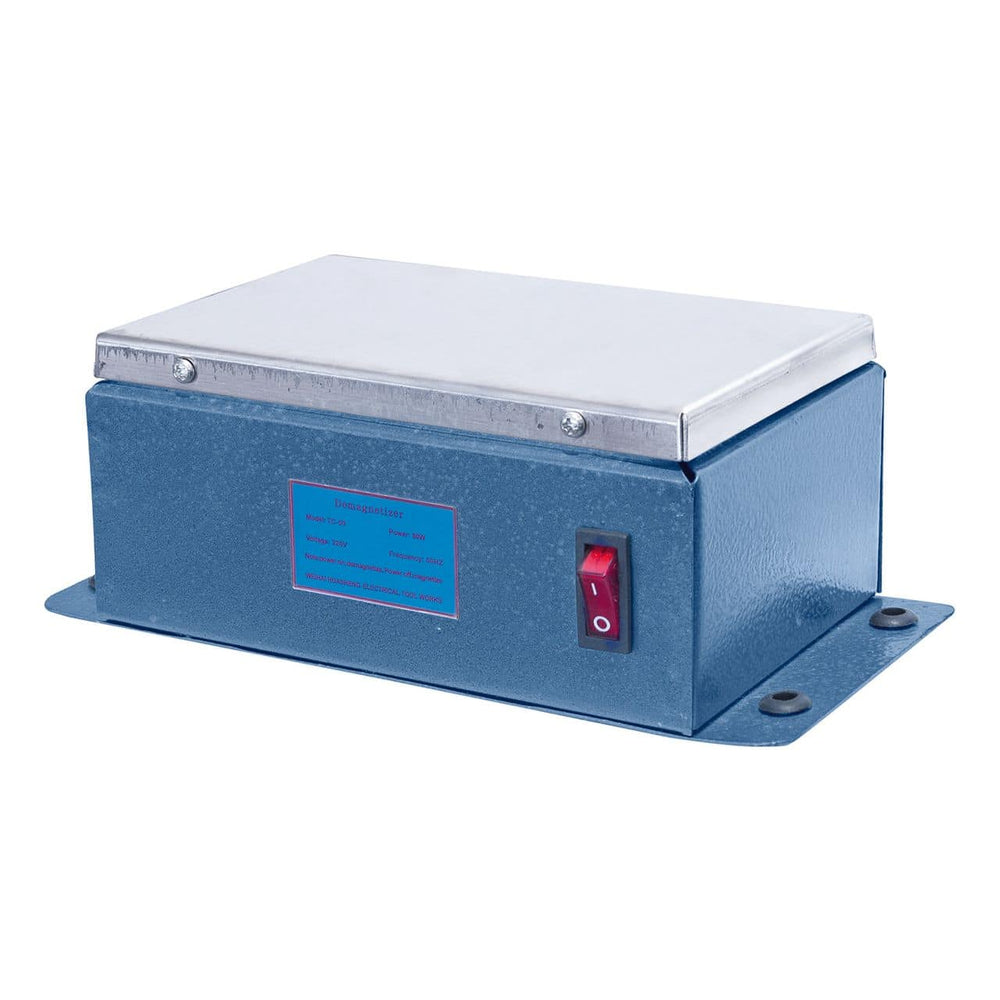

- Degaussing device

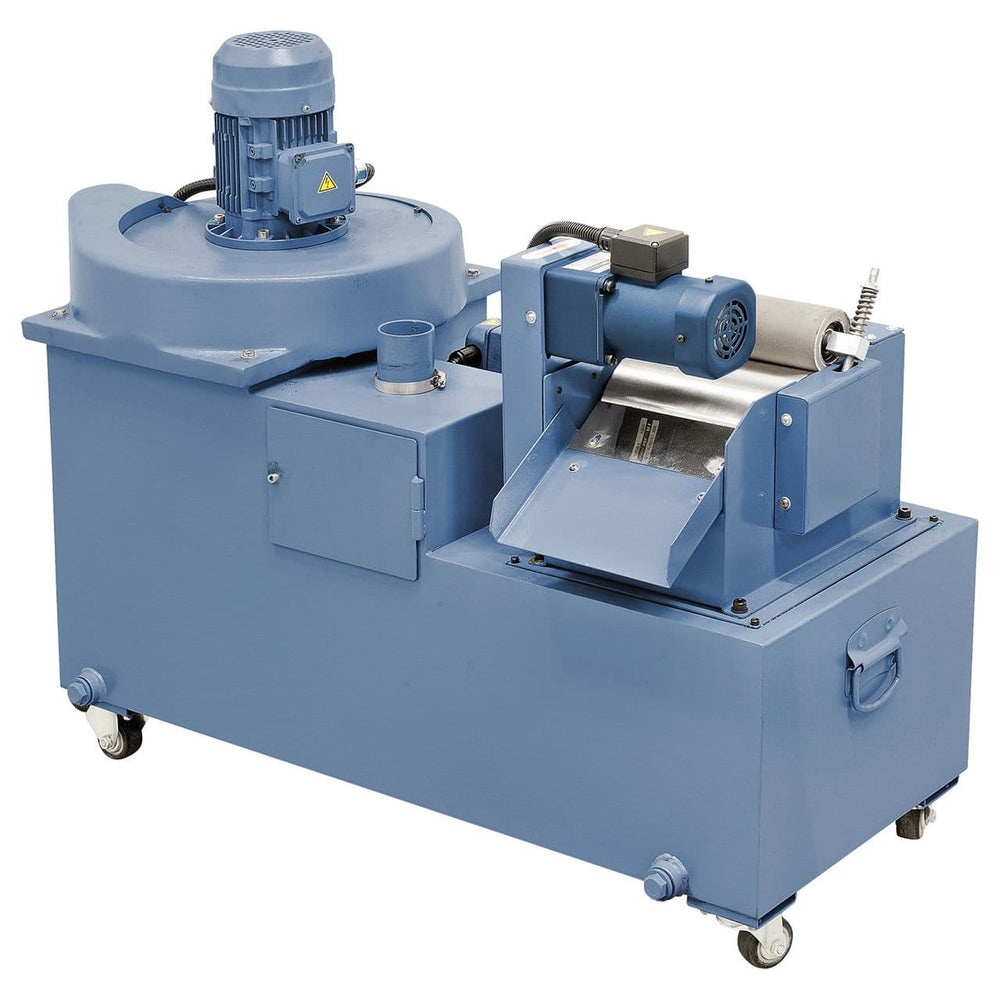

- Refrigeration system
- Diamond extractor
- Machine feet

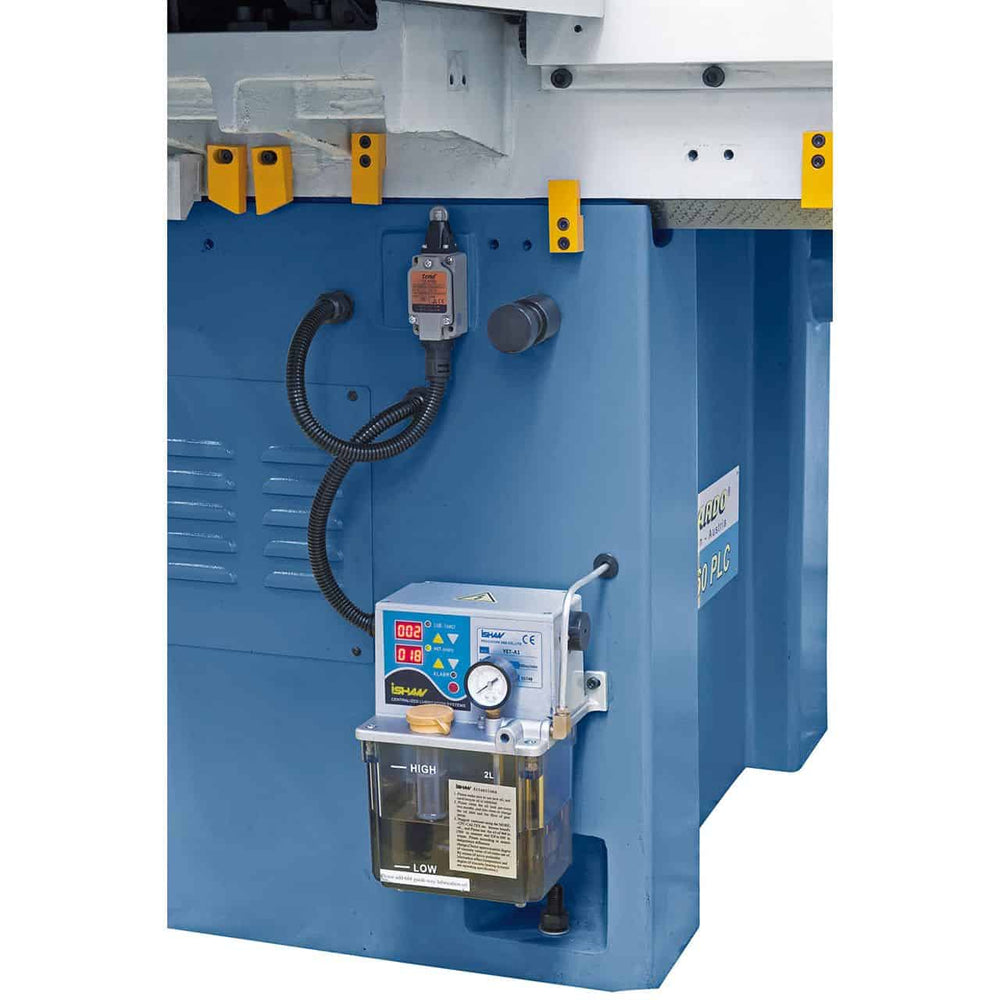

- Central lubrication

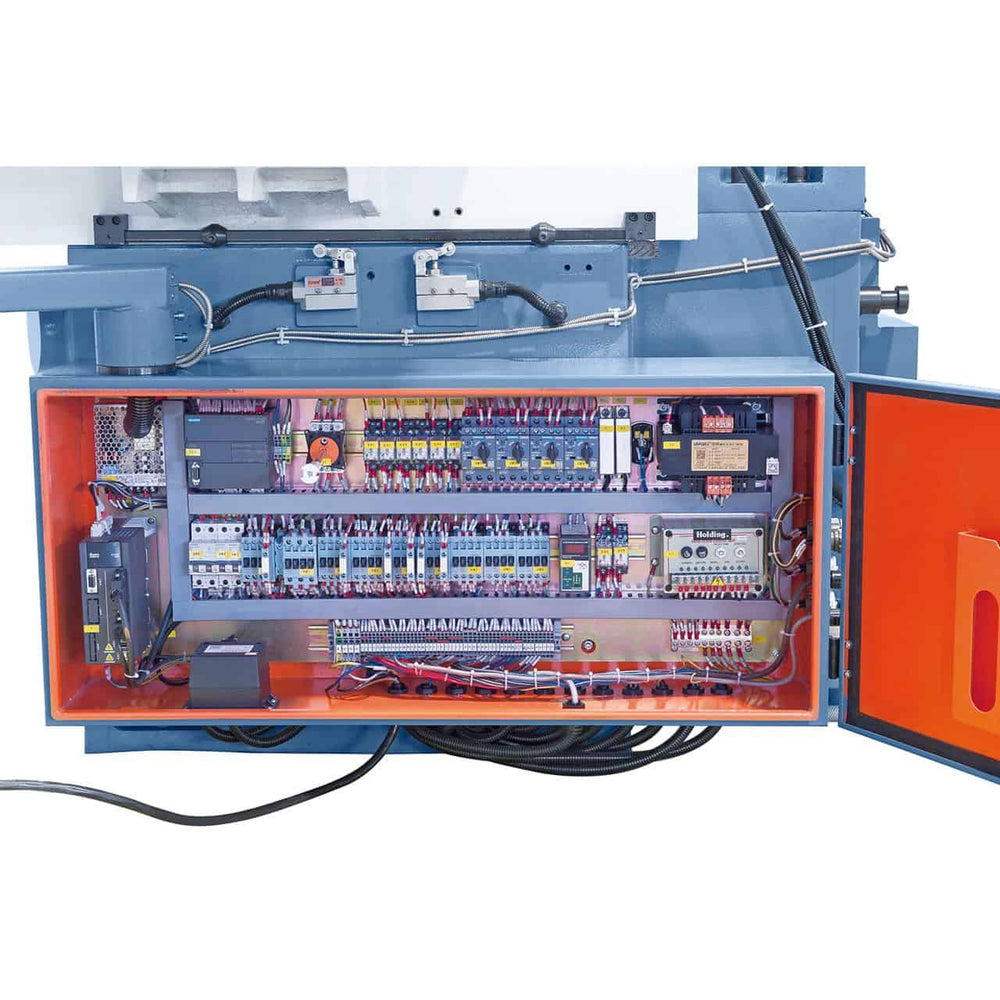

- Control device
technical specifications
|
Table clamping surface |
305 x 635 mm |
|
Number of T-slots / width |
3 / 14 mm |
|
Electronic magnetic clamping plate |
300 x 600 mm |
|
Maximum travel, longitudinal |
765 mm |
|
Maximum travel, transverse |
340 mm |
|
Distance spindle center / table max. |
580 mm |
|
Max. piece weight* |
270 kg |
|
Grinding wheel boring |
350 x 40 x 127 mm |
|
Table speed, hydraulic |
5 - 25 m/min |
|
Transverse adjustment |
|
|
Automatic, transversal approach |
0.5 - 8 mm/stroke |
|
Rapid, transverse run |
990 mm/min |
|
Transverse approach per turn of the knob |
5 mm/turn |
|
Scale division on the flyer |
0.02 mm |
|
Vertical approach |
|
|
Manual setup |
0.005 / 0.01 / 0.02 / |
|
0.03 / 0.04 / 0.05 mm |
|
|
Rapid, vertical run |
480 mm/min |
|
Vertical approach per turn of the knob |
2 mm/turn |
|
Scale division on the flyer |
0.005 mm |
|
Grinding spindle motor |
4.0 kW |
|
Spindle speed |
1450 rpm |
|
Hydraulic pump motor |
2.2 kW |
|
Vertical feed motor |
0.5 kW |
|
Length |
2350 mm |
|
Depth |
2220 mm |
|
Height |
1910 mm |
|
Weight approx. |
2375 kg |
|
* with magnetic clamping plate |
