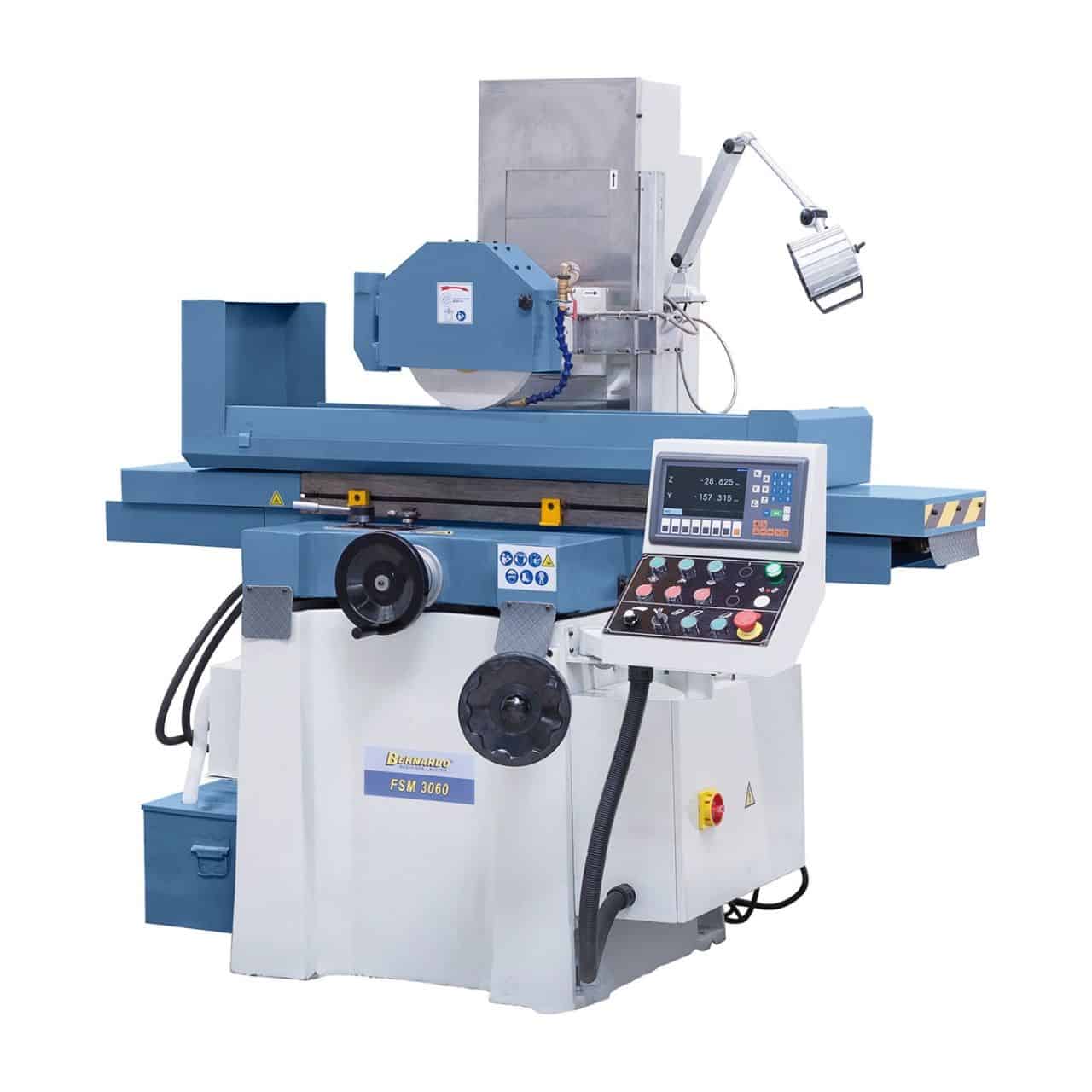

FSM 3060 flat grinder
-
Description
-
Technical Specifications
-
Product safety
-
Reviews
Description
Property
- Reduced slip-stick effect thanks to plastic-coated counter-guides in the x- and y-axes
- Longitudinal guide V-flat table, transversal guide double-V table
- Special preloaded bearings without axial and radial play in the grinding spindle
- The independent hydraulic unit with heat exchanger avoids vibrations and thermal stresses
- High stability thanks to strong ribs and large walls
- The sophisticated hydraulic system guarantees smooth turning of the table even with high loads of the same
- Fully equipped: 2-axis position indicators, permanent magnetic clamping plate and much more
- Central lubrication for all guides
Standard accessories
- ES-12 H 2-axis position display with LCD display
- Grinding wheel boring
- Disc flange
- LED work light
- Permanent magnetic clamping plate
- Balancing support
- Balance shaft
- Protective covers
- Degaussing device
- Refrigeration system
- Diamond for grinding
- Machine feet
- Central lubrication
- Control device
technical specifications
|
Table clamping surface |
300 x 700 mm |
|
Number of T-slots / width |
1 / 14 mm |
|
Permanent magnetic clamping plate |
300 x 600 mm |
|
Maximum travel, longitudinal |
640 mm |
|
Maximum travel, transverse |
320 mm |
|
Distance spindle center / table max. |
520 mm |
|
Max. piece weight* |
200 kg |
|
Grinding wheel boring |
300 x 30 x 75 mm |
|
Table speed, hydraulic |
3 – 20 m/min |
|
Transverse adjustment |
|
|
Transverse approach per turn of the knob |
4 mm/turn |
|
Scale division on the flyer |
0.02 mm |
|
Vertical approach |
|
|
Vertical approach per turn of the knob |
2 mm/turn |
|
Scale division on the flyer |
0.01 mm |
|
Grinding spindle motor |
4.0 kW |
|
Spindle speed |
1440 rpm |
|
Hydraulic pump motor |
1.5 kW |
|
Length |
2000 mm |
|
Depth |
1650 mm |
|
Height |
1850 mm |
|
Weight approx. |
1330 kg |
