Bernardo  |  SKU: 02-1054

FM 40 HSV Drill and Milling Machine

€3.233,00
pay up to 30 installments,

Delivery and Shipping

At Krolit, we are committed to providing a seamless and reliable shipping experience for our customers. Once you place your order, it is generally processed within 1-3 business days, excluding weekends and holidays. As soon as your order ships, you will receive a confirmation email with your tracking number and shipment details, so you can easily track your delivery.

We offer several shipping options, including standard, express, and overnight shipping, to meet your needs. Shipping costs and estimated delivery times are clearly displayed at checkout and vary based on your location and the shipping method selected. Please note that all delivery times are approximate and may be subject to delays due to factors such as weather conditions, high order volume, or courier issues.

Currently, Krolit [offers/does not offer] international shipping. If international shipping is available, please be aware that customs duties, taxes, or other additional fees may apply, which are the responsibility of the recipient. We recommend checking with your local customs office before placing an order.

To ensure timely delivery, please ensure the shipping address provided at checkout is correct and complete. Krolit is not responsible for delays or lost packages due to incorrect or incomplete address information. If your package appears to have been delivered but you haven't received it, we recommend contacting the courier first. If the problem persists, our customer support team is available to assist you.

If you have any questions or concerns regarding shipping or delivery, please do not hesitate to contact us at [your email address] or by phone at [your phone number].

At Krolit, we value your satisfaction and are committed to ensuring your order arrives safely and on time.

Secure payment guaranteed

Description

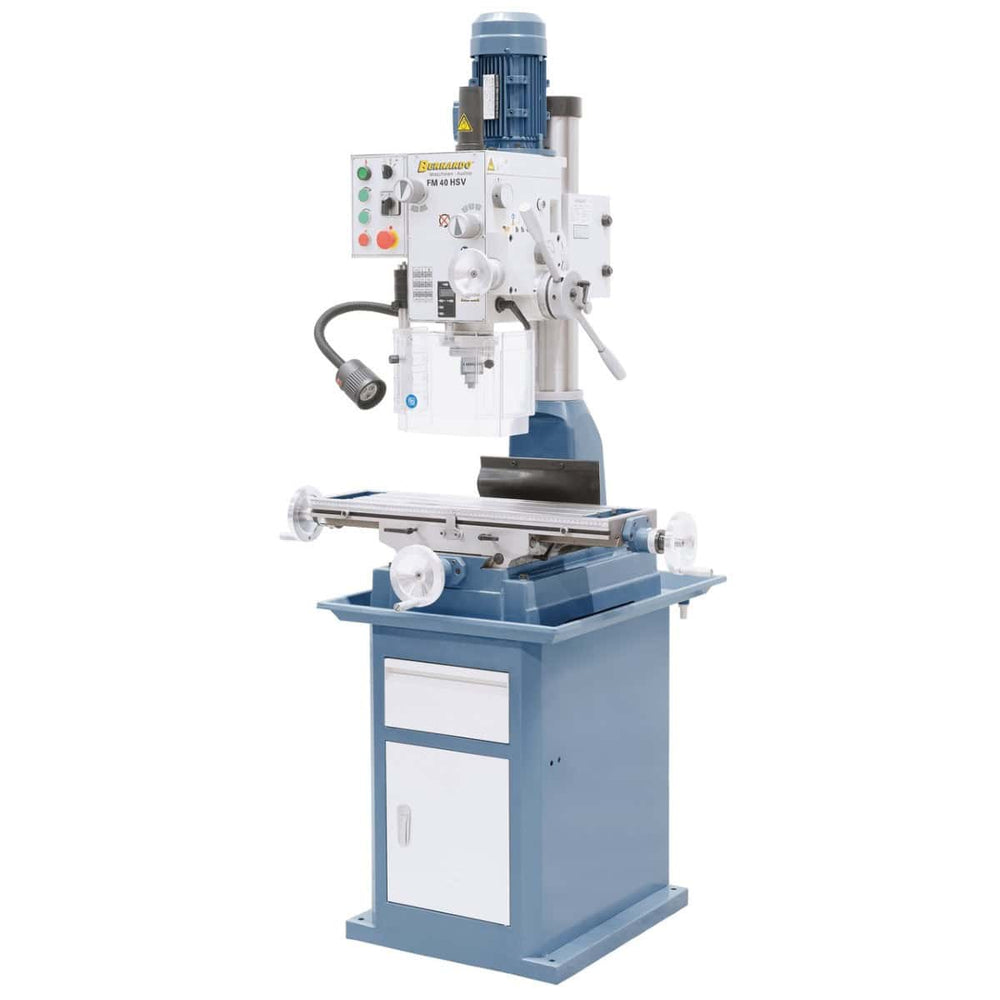

FM 40 HSV Drill and Milling Machine: Precision and Versatility for Model Makers and Craftsmen

The FM 40 HSV drill and milling machine is a compact and powerful machine, designed to meet the needs of model makers, craftsmen, and repair shops. Thanks to its wide range of performance, robust construction, and advanced features, this machine offers an ideal balance of power, precision, and versatility.

Main Features

  • Quick Speed Change : The spindle speed can be easily adjusted via a gear switch, allowing for precise control that can be adapted to different operating needs.
  • Adjustable Feed Systems : The FM 40 HSV features three adjustable drill feed systems, offering flexibility for various operations, including drilling, milling and thread cutting.
  • Robust Composite Table : The machine is equipped with a large composite table with a finely machined surface and adjustable gibs, ensuring a stable and precise base for every job.
  • Quietness and Durability : The transmission gears operate in an oil bath, ensuring quiet operation and a long life of the machine.
  • High Concentricity : Thanks to the tapered roller bearings, the machine offers high concentricity, essential for achieving high-precision results.
  • Clockwise and Counterclockwise Rotation : This function is ideal for threading operations, allowing you to easily reverse the direction of the spindle.
  • Tiltable and Swivel Reducer : The reducer can be tilted up to 180°, rotated 360° and adjusted in height, offering maximum versatility for complex jobs.
  • Powerful 2-Stage Motor : With a speed range of 75 to 3200 rpm, the 2-stage motor provides consistent, adaptable power for different operations.
  • Precision Feed : The spindles are adjusted via a handle, with precision feed controlled by a handwheel, ensuring accurate results in every situation.

Accessories Included

  • Quick-release drill chuck 1 – 16 mm / B 16
  • Arbor spindle MK 3 / B 16
  • M 12 clamping chuck
  • Reduction socket MK 3 / 2
  • Combination drill chuck MK 3 / 27 mm
  • Height-adjustable protective cover
  • Automatic spindle feeding system
  • LED car light
  • Digital spindle display
  • Threading device
  • Measurement scale
  • Control device

Technical Specifications

Characteristic Specifications
Steel drilling power 32 mm
Cast iron drilling power 40 mm
Milling head max. 80 mm
Length of the arms 255 mm
Spindle speed (12) 75 – 3200 rpm
Spindle attachment MK 3
Hole stroke 120 mm
Spindle power supply 0.10 / 0.18 / 0.26 mm/rev
Table Size / T-Slots 730 x 210 mm / 14 mm
Run (x / y) 520 mm / 175 mm
Rotating milling head from -90° to + 90°
Spindle/table distance 135 – 460 mm
Milling head height setting 325 mm
Column diameter 115 mm
S1 motor input power 100% 1.1 / 1.5 kW (400 V)
S6 Motor Output Power 40% 1.5 / 2.2 kW (400 V)
Machine dimensions (L x W x H) 1100 x 830 x 1450 mm
Weight approx. 270 kg

The FM 40 HSV drill and milling machine is an ideal solution for those seeking a compact yet powerful machine capable of tackling a wide range of tasks with precision and reliability. With advanced features such as clockwise and counterclockwise rotation, a tilt and swivel gearhead, and a 2-stage motor, this machine is perfect for model makers, craftsmen, and repair shops requiring high performance and operational versatility.
