Bernardo  |  SKU: 02-1087

FM 45 HSV Drill and Milling Machine

€3.436,74 €3.818,60
pay up to 30 installments,

Delivery and Shipping

At Krolit, we are committed to providing a seamless and reliable shipping experience for our customers. Once you place your order, it is generally processed within 1-3 business days, excluding weekends and holidays. As soon as your order ships, you will receive a confirmation email with your tracking number and shipment details, so you can easily track your delivery.

We offer several shipping options, including standard, express, and overnight shipping, to meet your needs. Shipping costs and estimated delivery times are clearly displayed at checkout and vary based on your location and the shipping method selected. Please note that all delivery times are approximate and may be subject to delays due to factors such as weather conditions, high order volume, or courier issues.

Currently, Krolit [offers/does not offer] international shipping. If international shipping is available, please be aware that customs duties, taxes, or other additional fees may apply, which are the responsibility of the recipient. We recommend checking with your local customs office before placing an order.

To ensure timely delivery, please ensure the shipping address provided at checkout is correct and complete. Krolit is not responsible for delays or lost packages due to incorrect or incomplete address information. If your package appears to have been delivered but you haven't received it, we recommend contacting the courier first. If the problem persists, our customer support team is available to assist you.

If you have any questions or concerns regarding shipping or delivery, please do not hesitate to contact us at [your email address] or by phone at [your phone number].

At Krolit, we value your satisfaction and are committed to ensuring your order arrives safely and on time.

Secure payment guaranteed

Description

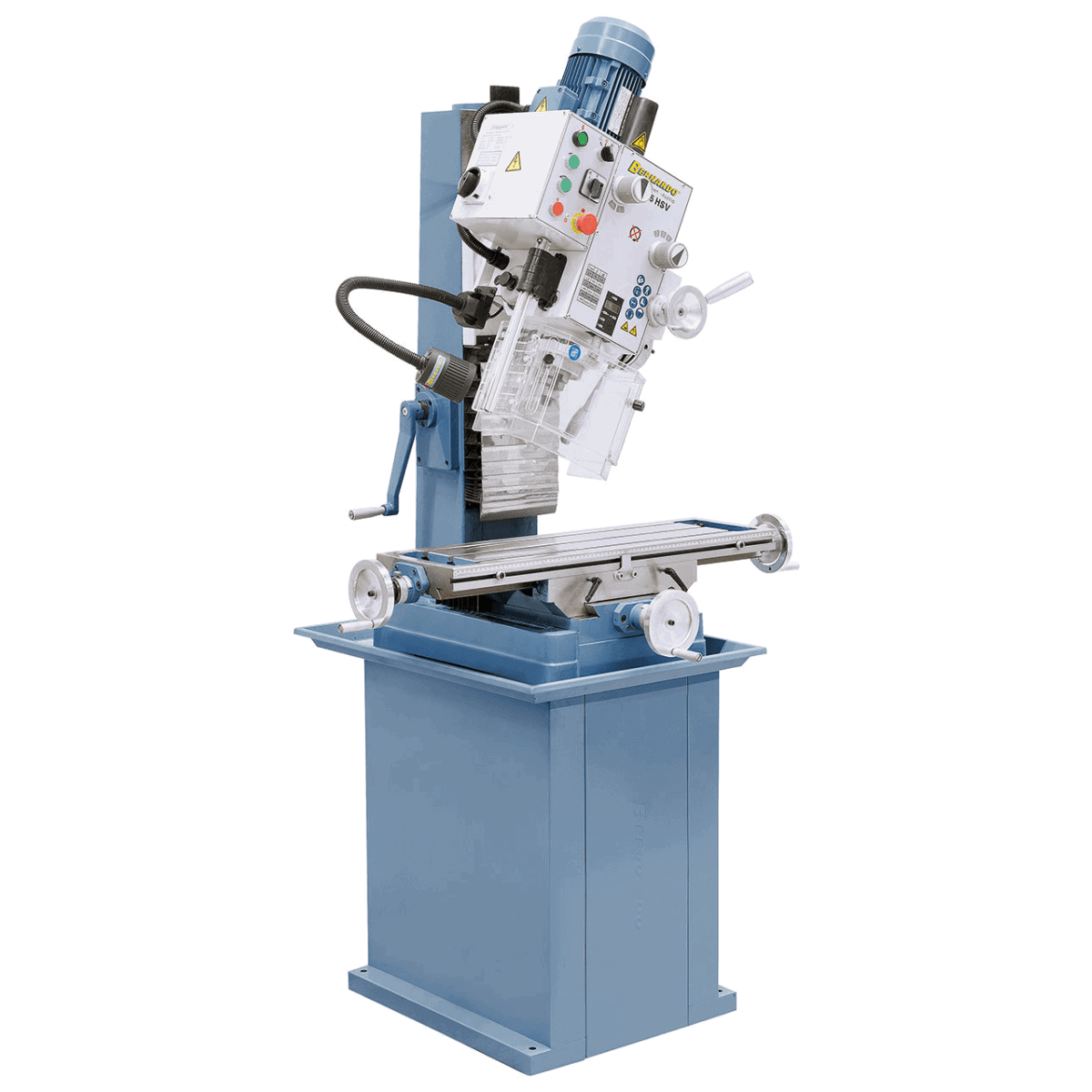

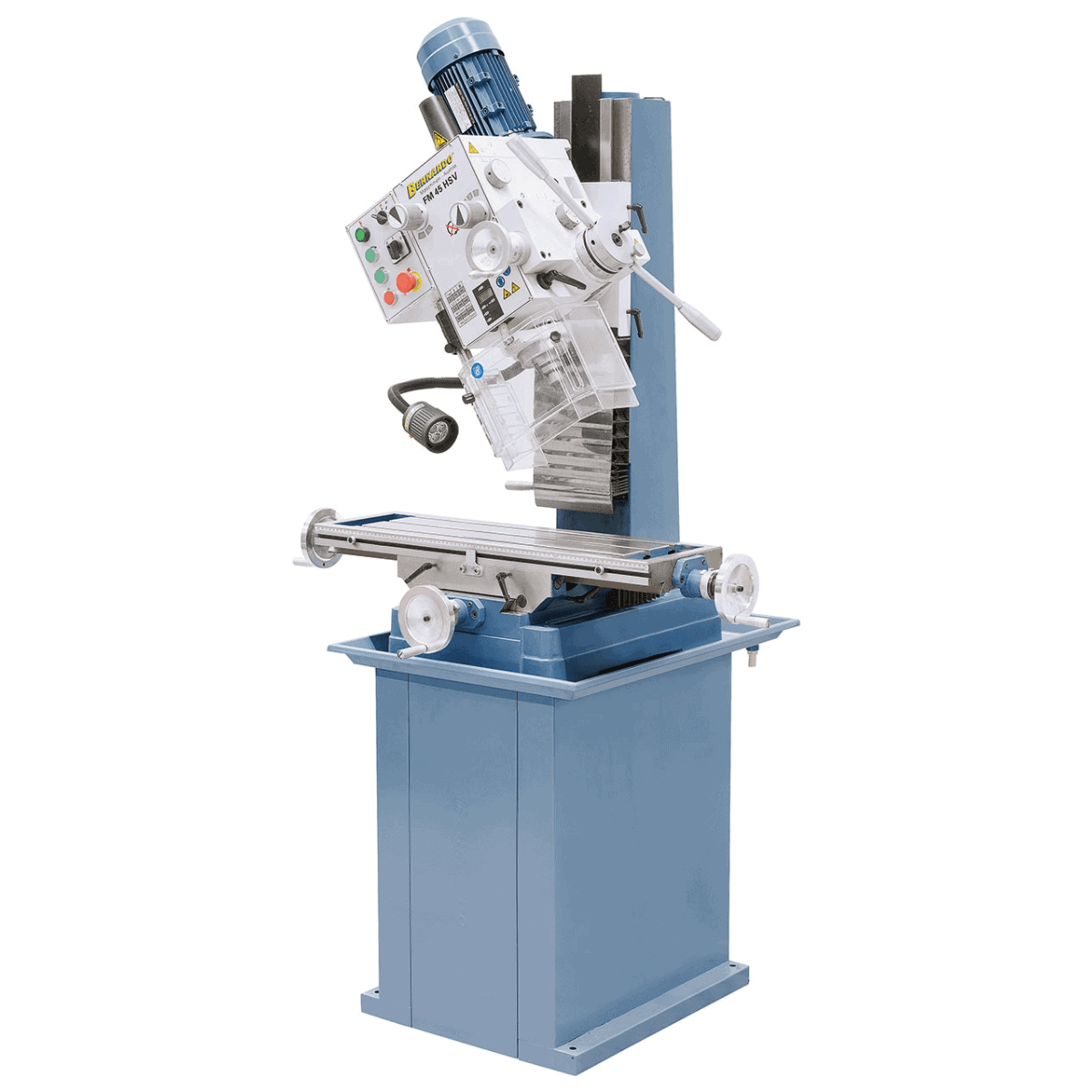

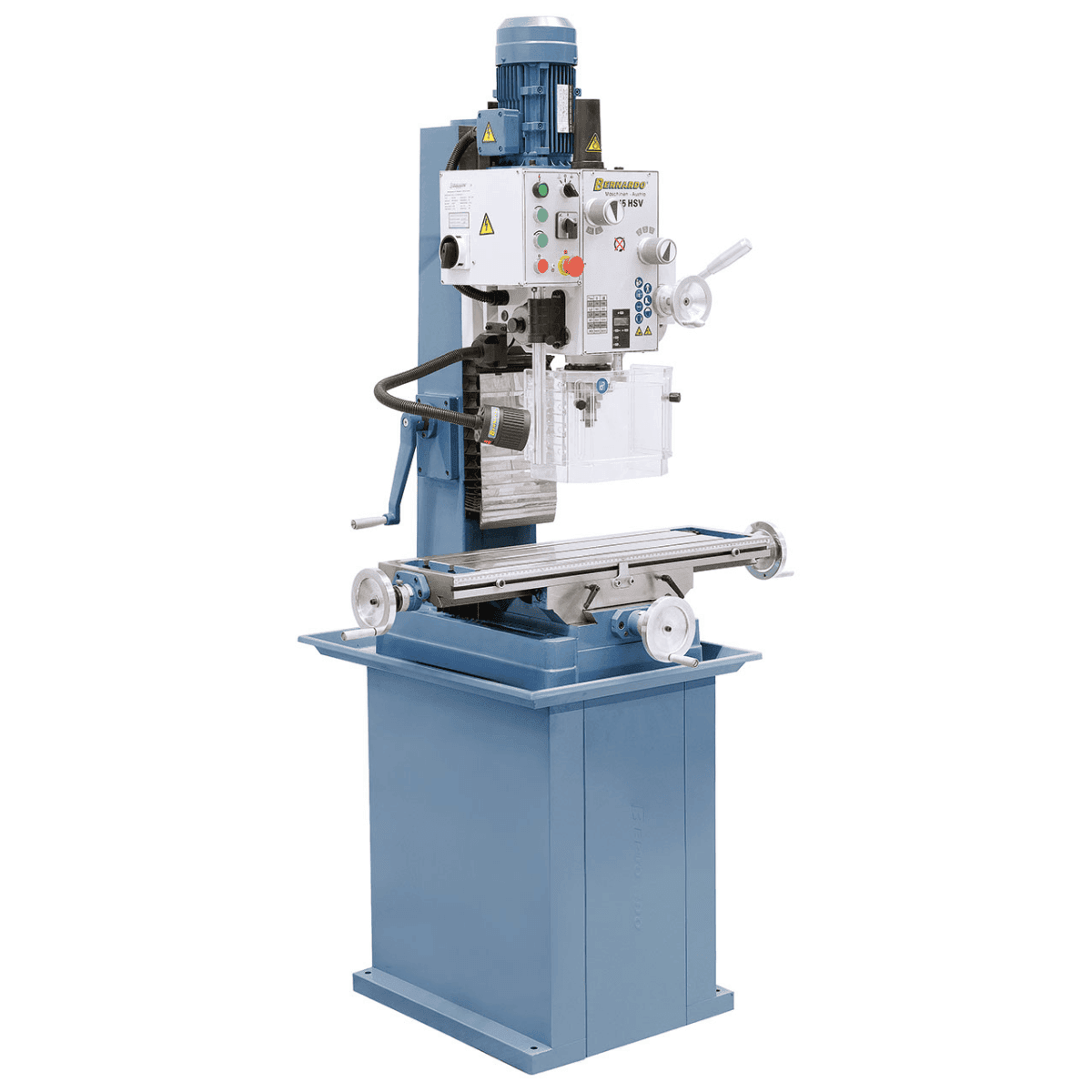

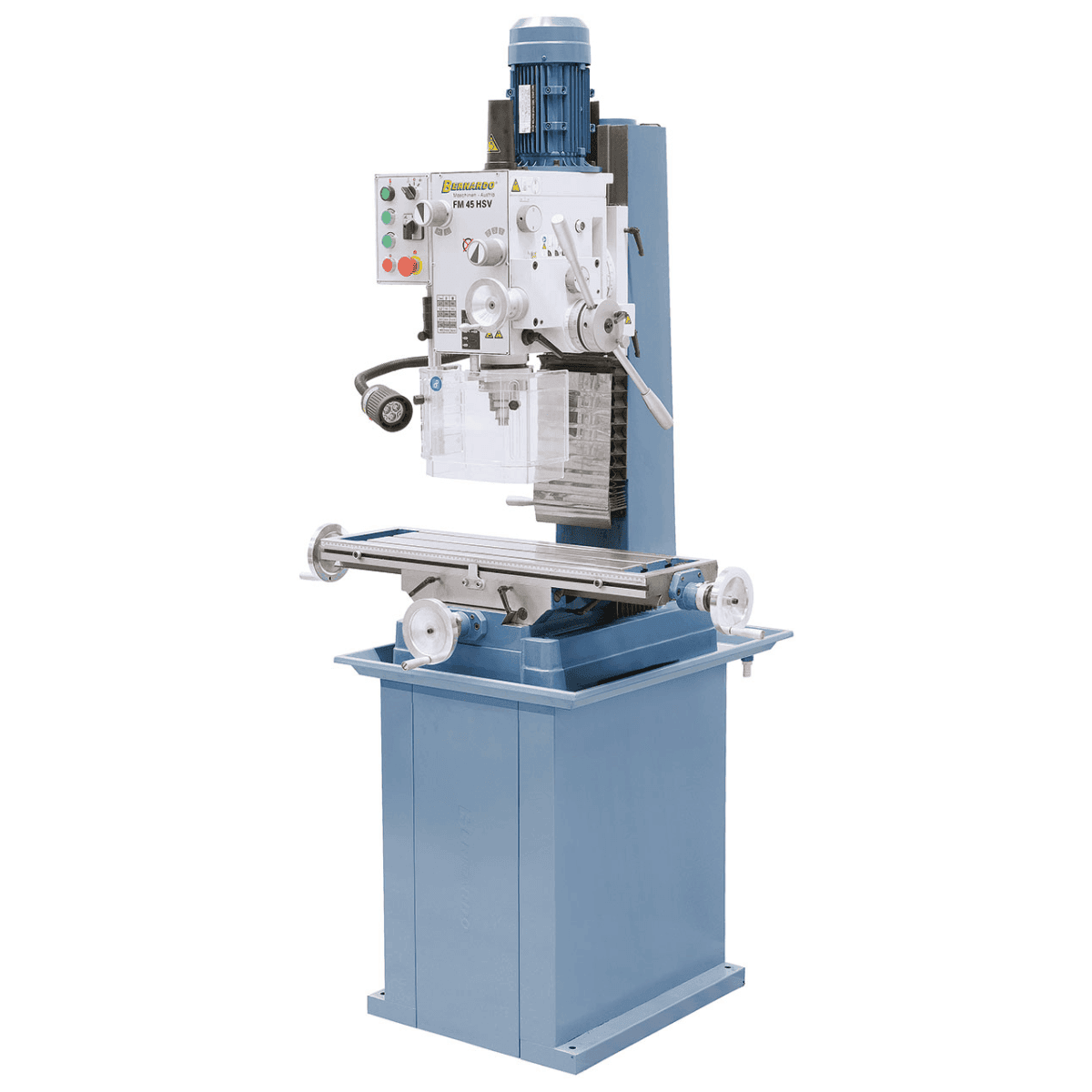

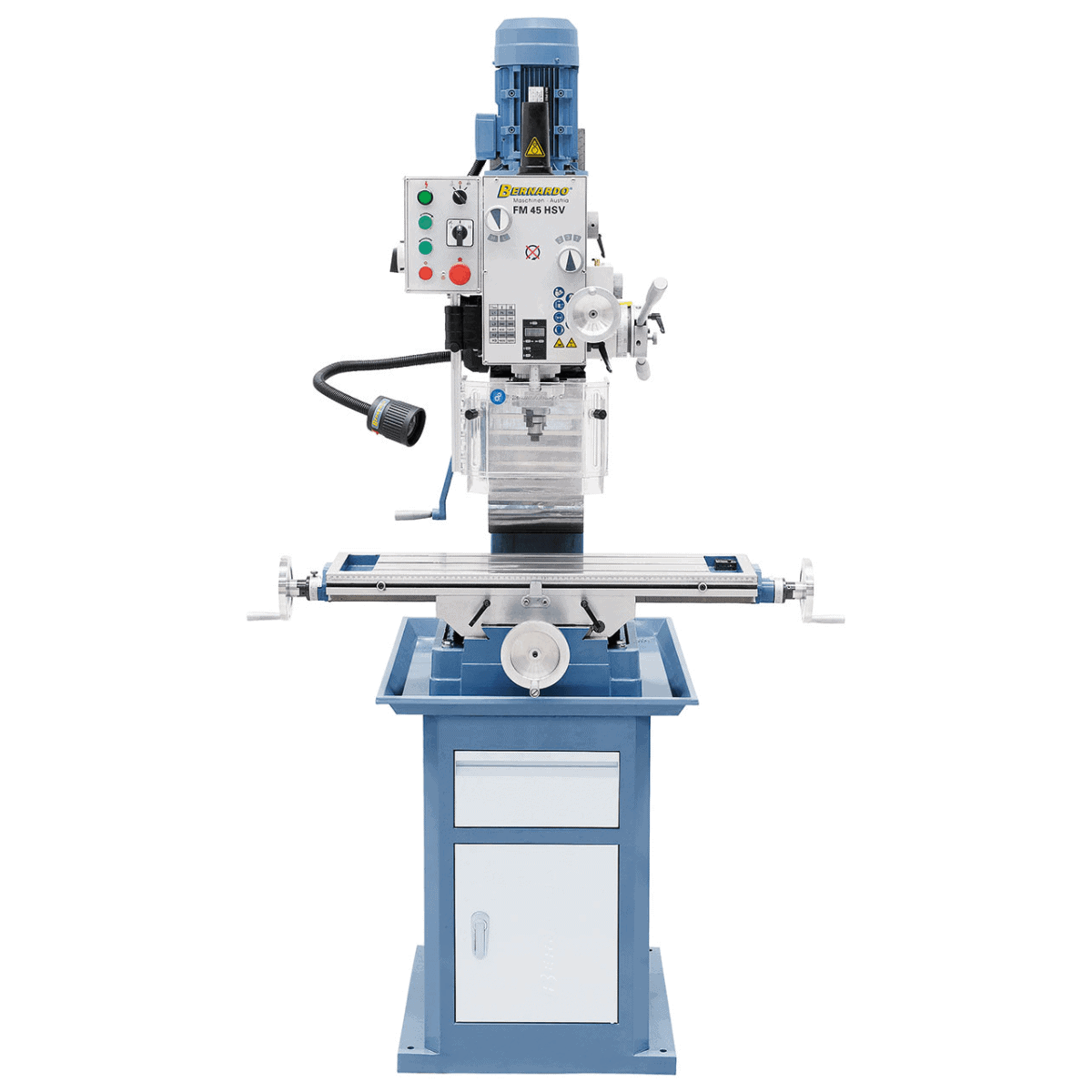

FM 45 HSV Drill and Milling Machine: Versatility and Precision for Workshops and Training

The FM 45 HSV is a high-quality drill and milling machine designed to deliver excellent performance in machine shops, repair shops, and training environments. Thanks to its wide speed range (75–3200 rpm) and extensive features, this machine is ideal for a variety of applications, ensuring precise and reliable results in every job.

Main Features

  • Powerful 2-Stage Motor : The 2-stage motor offers a speed range from 75 to 3200 rpm, allowing you to adapt the speed to your specific job needs with a simple shift switch.

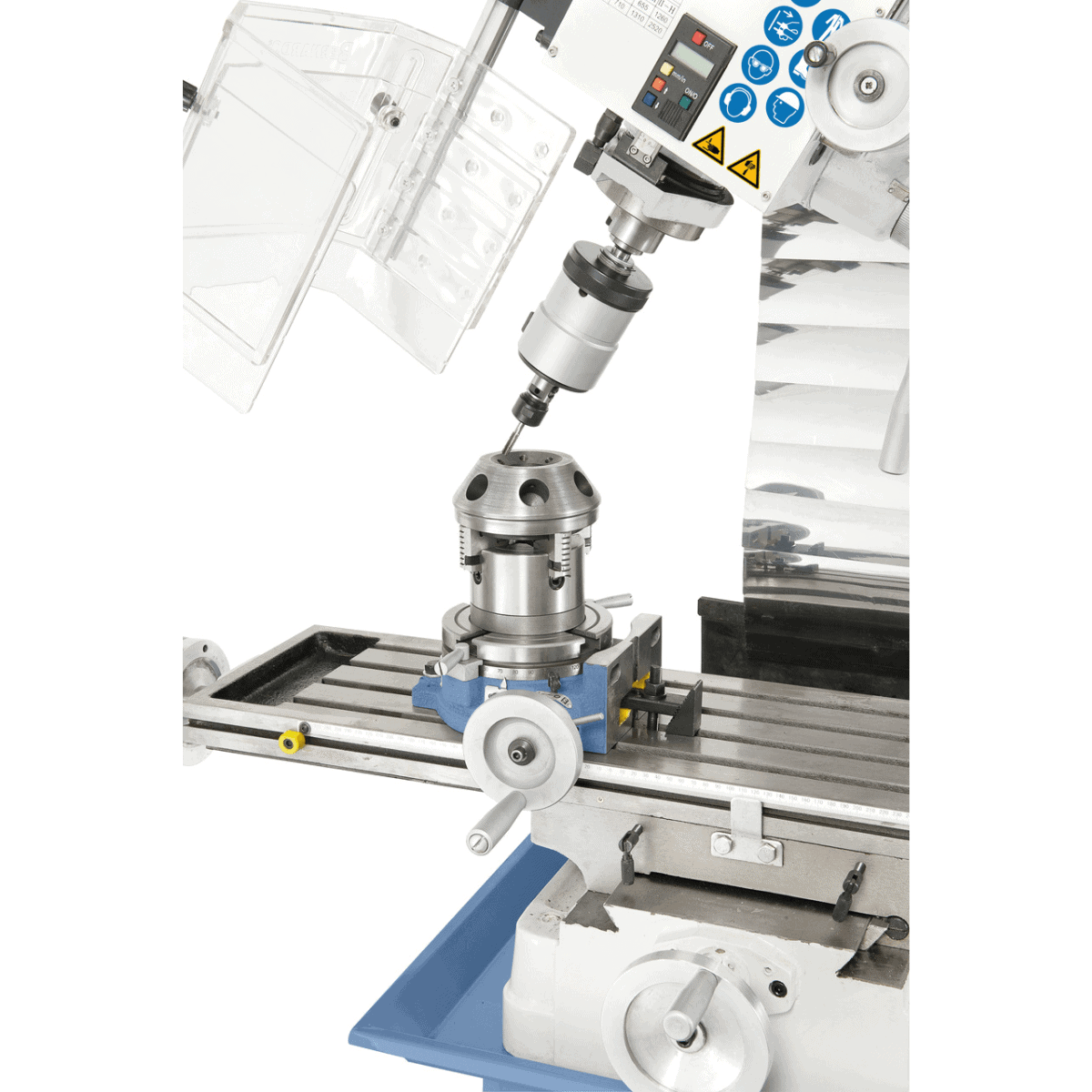

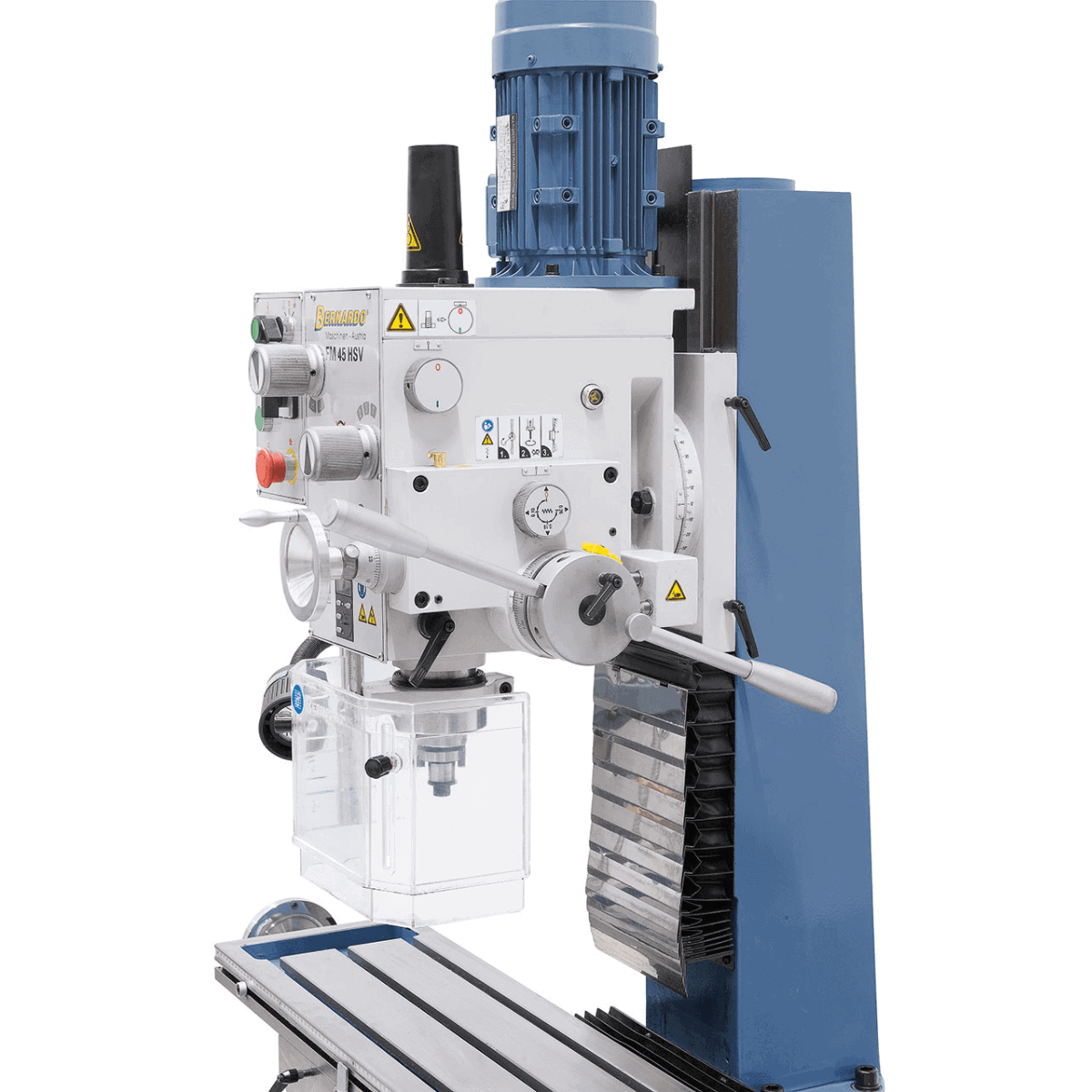

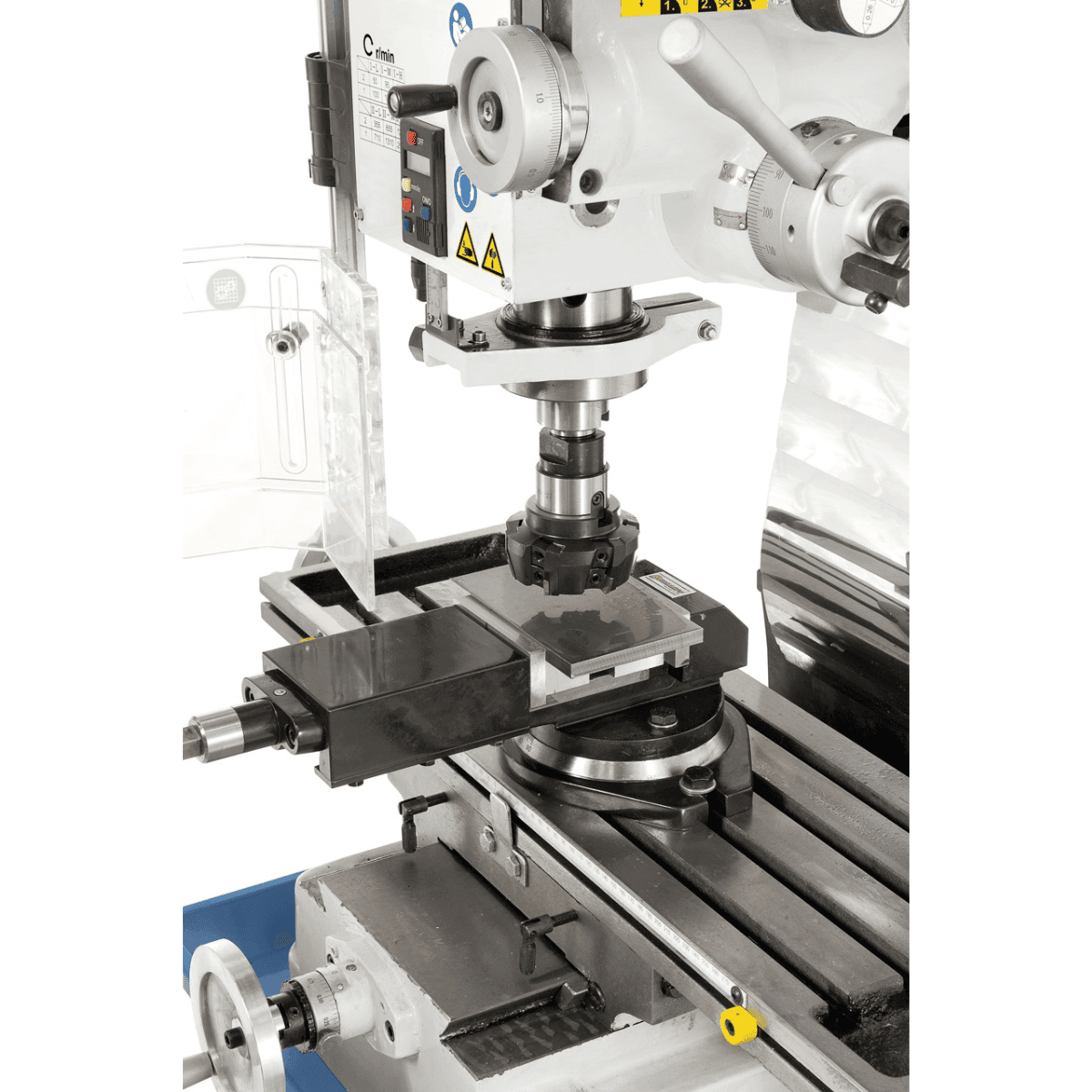

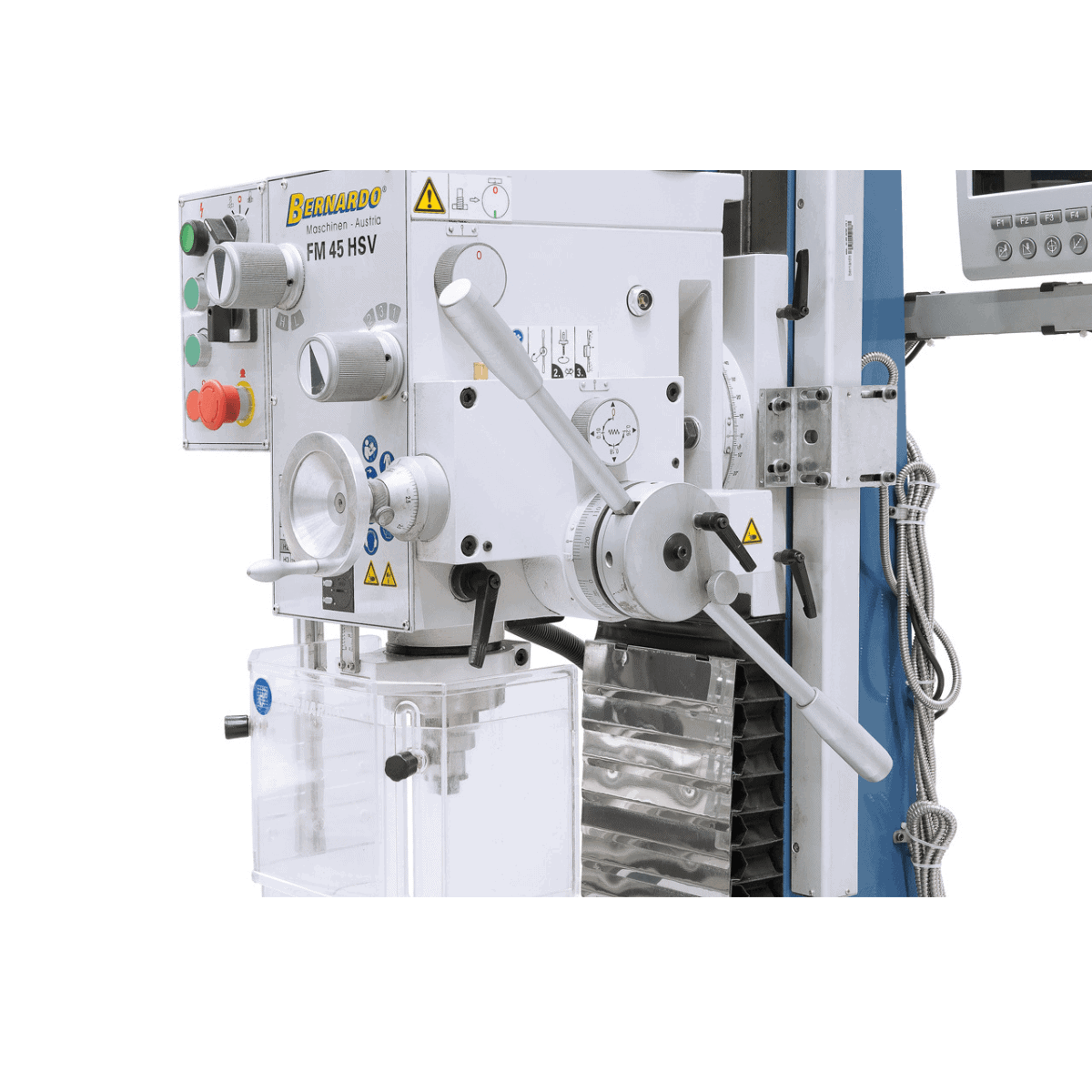

  • Tiltable Milling Head : The head can be tilted to both sides (-60° to +60°), ideal for angle drilling, chamfer milling and other complex operations.

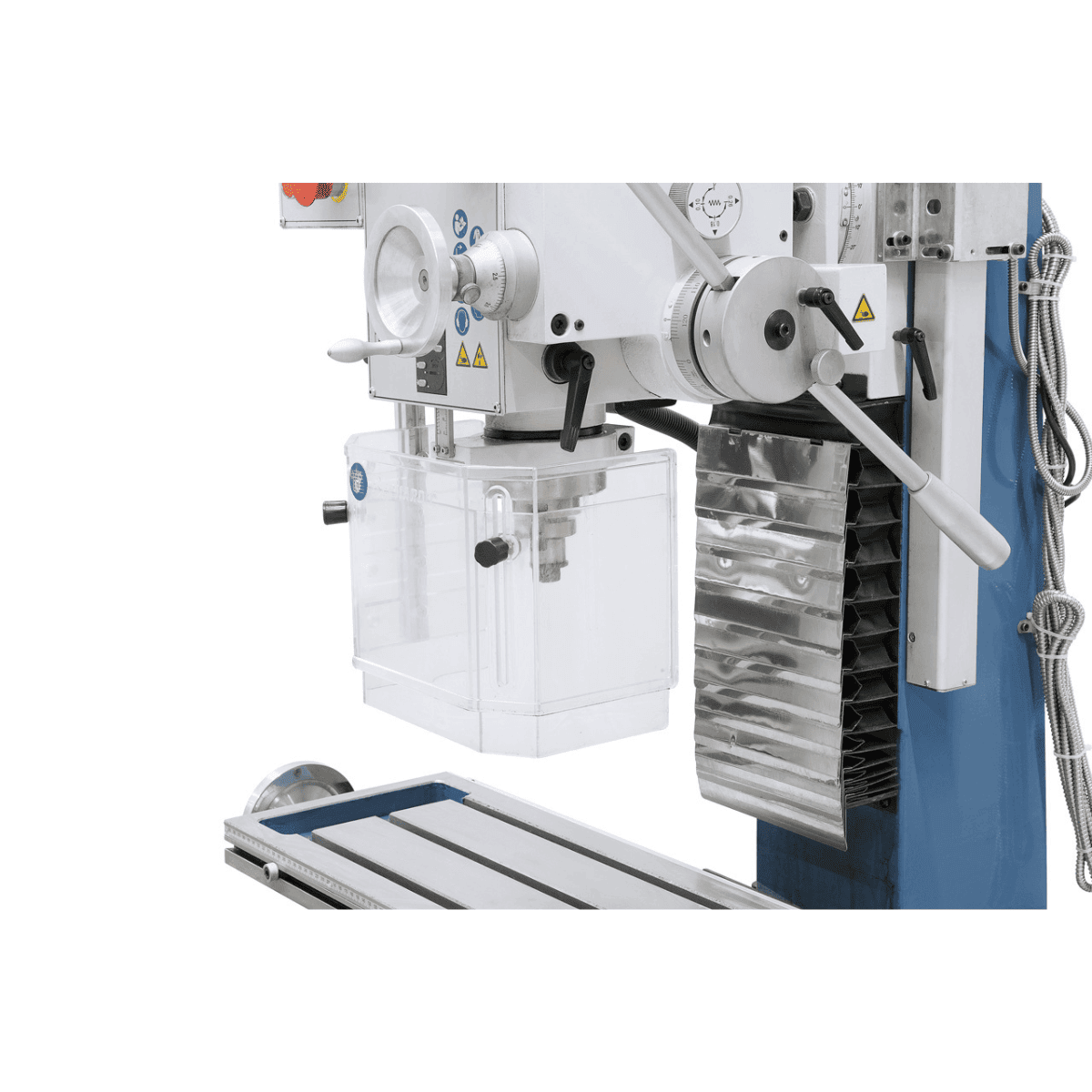

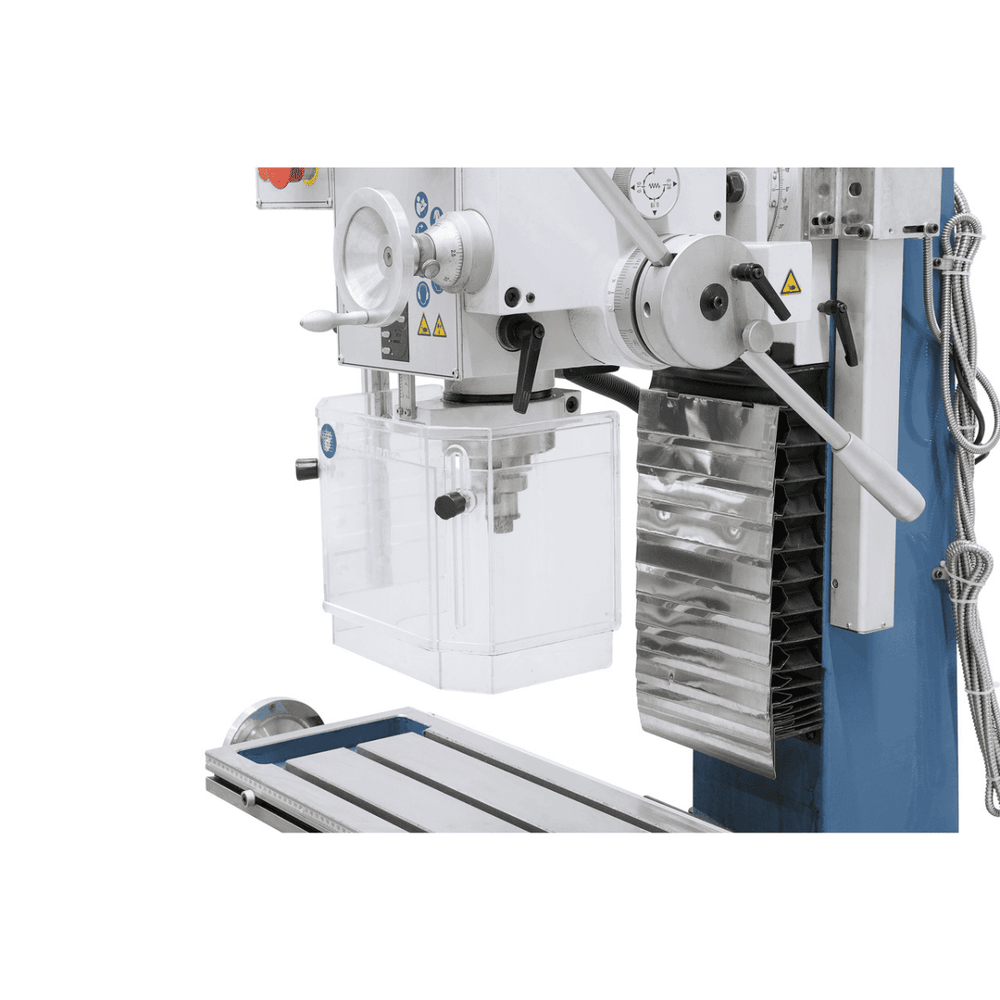

  • Advanced Safety : Equipped with a height-adjustable spindle guard with microswitch, the FM 45 HSV ensures a high level of safety during use.
  • Automatic Spindle Feed : The machine is equipped with an automatic spindle feed system, with three feed settings (0.10 / 0.18 / 0.26 mm/rev), which makes drilling and threading operations easier.

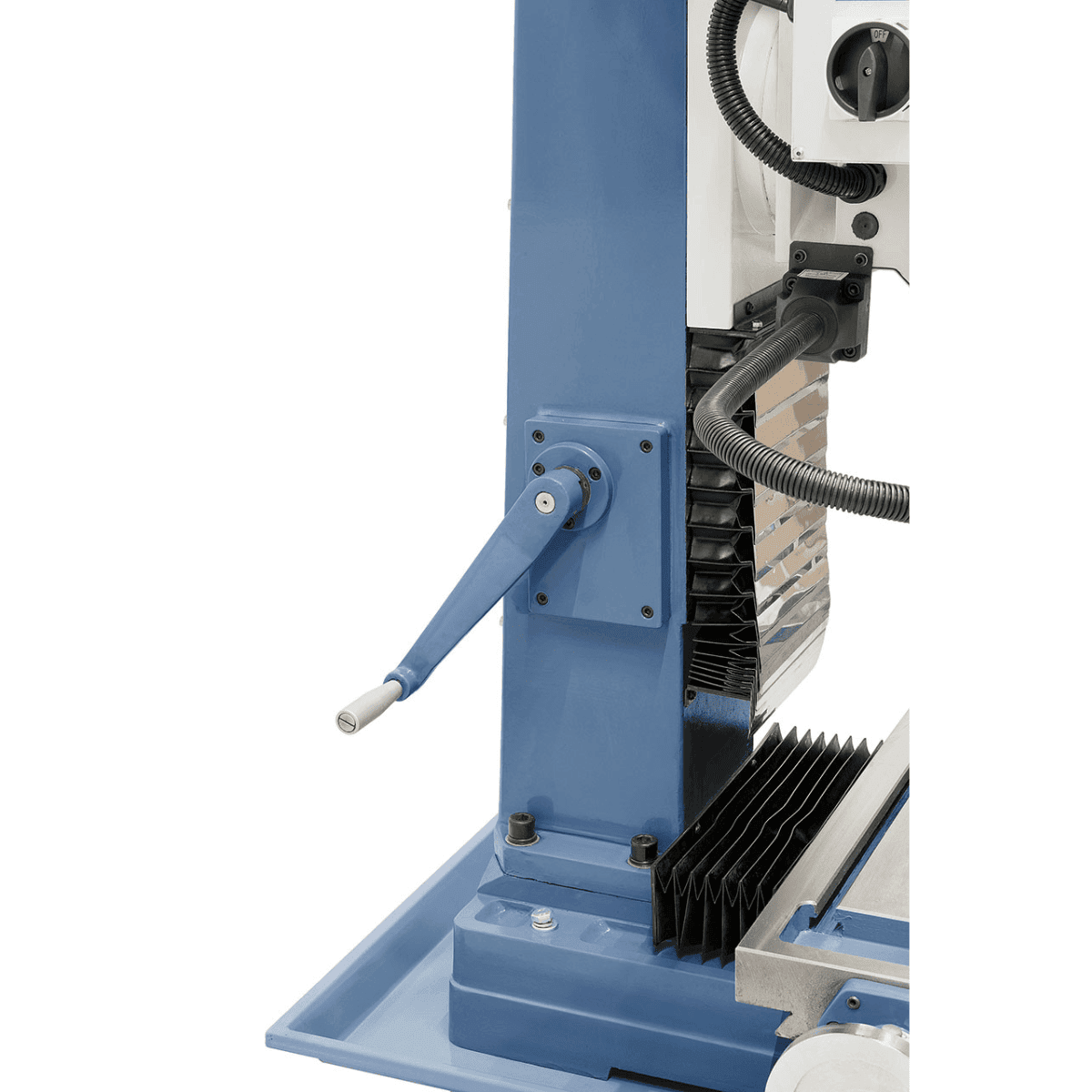

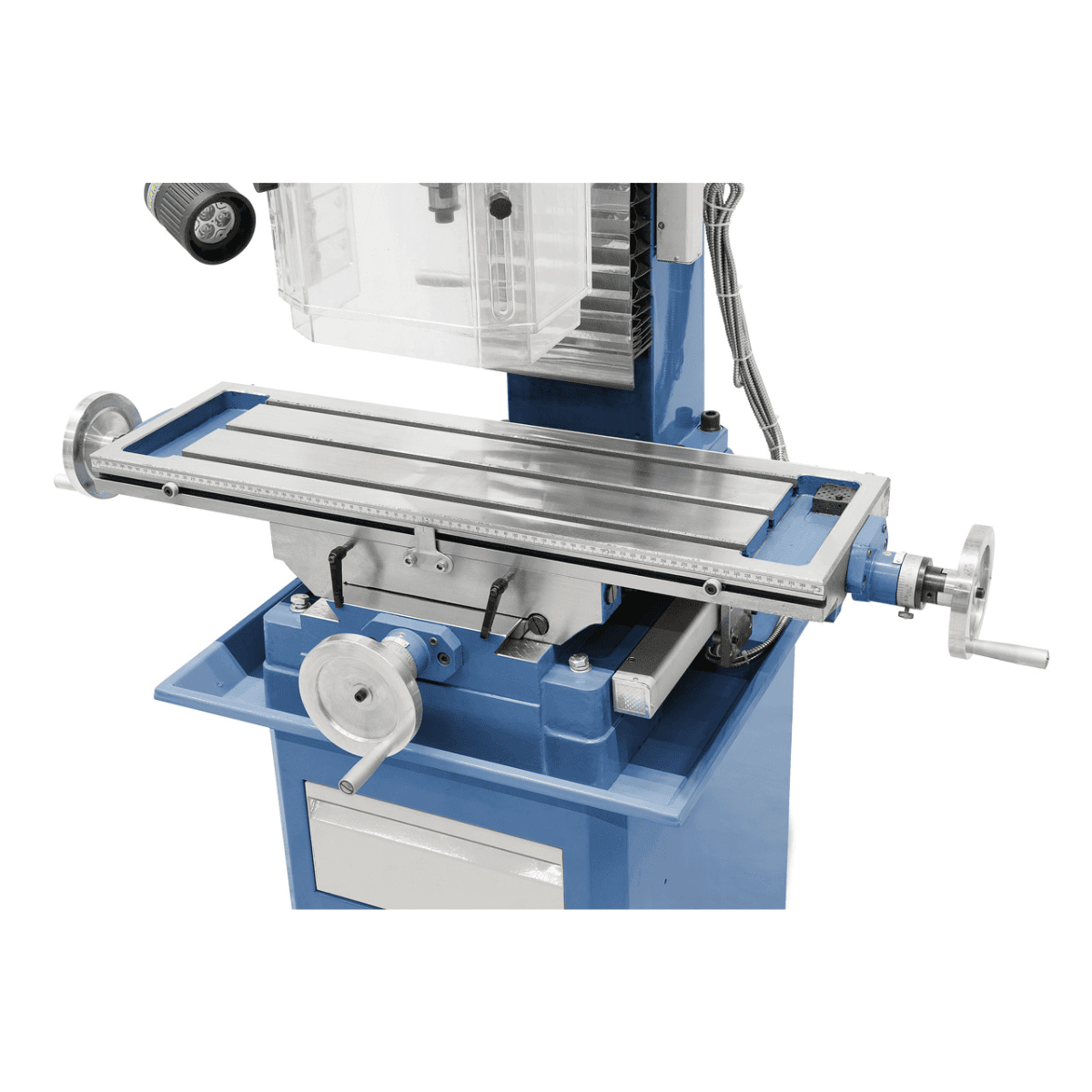

  • Dovetail Guide : The x, y and z axes feature a dovetail guide, adjustable via gibs, to ensure superior stability and precise movements.

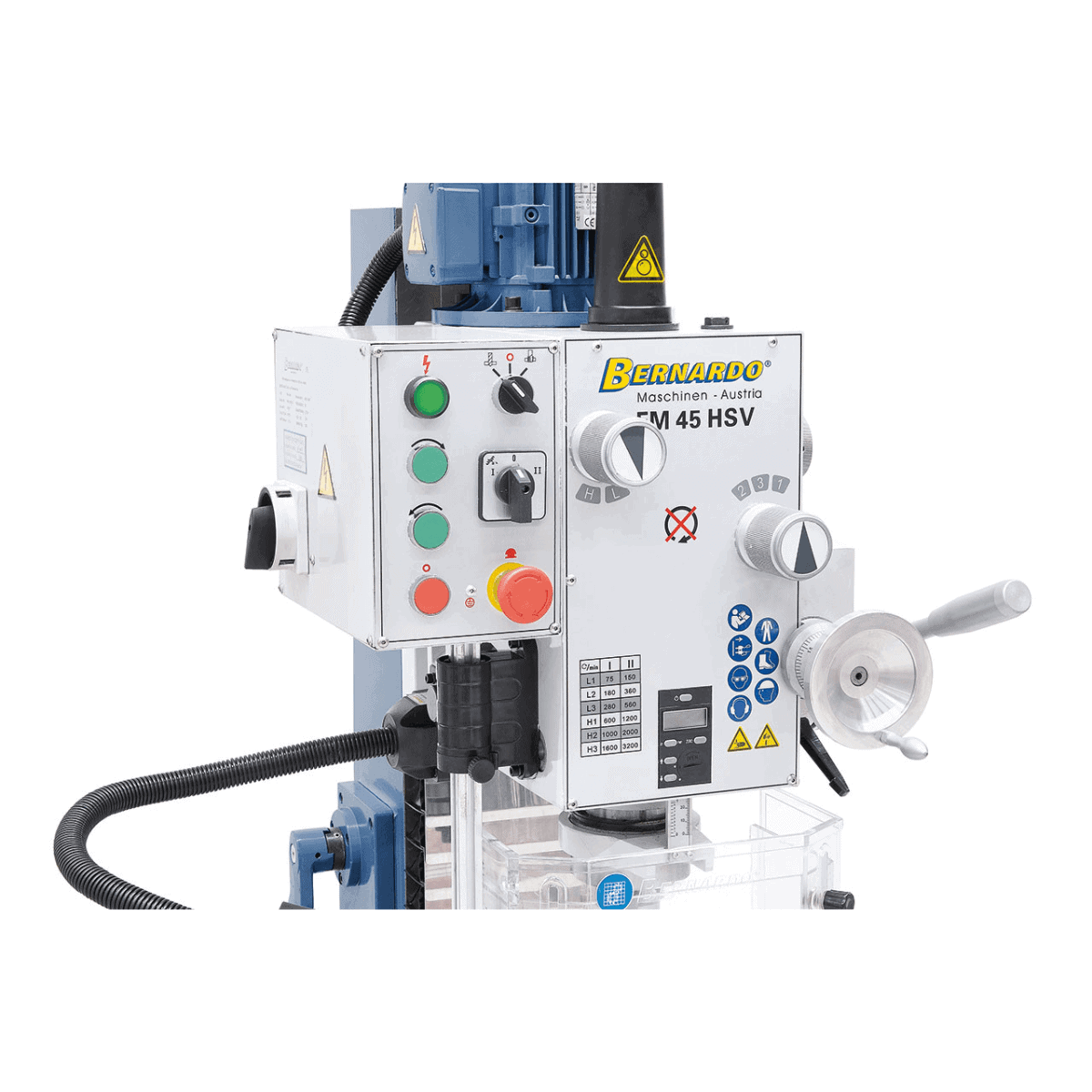

  • Digital Display : An integrated digital display allows you to precisely monitor spindle power, improving control and quality of your work.
  • Robustness and Stability : The machine's solid structure, combined with stable, vibration-free cast iron valve guides, ensures long life and consistent results.

Accessories Included

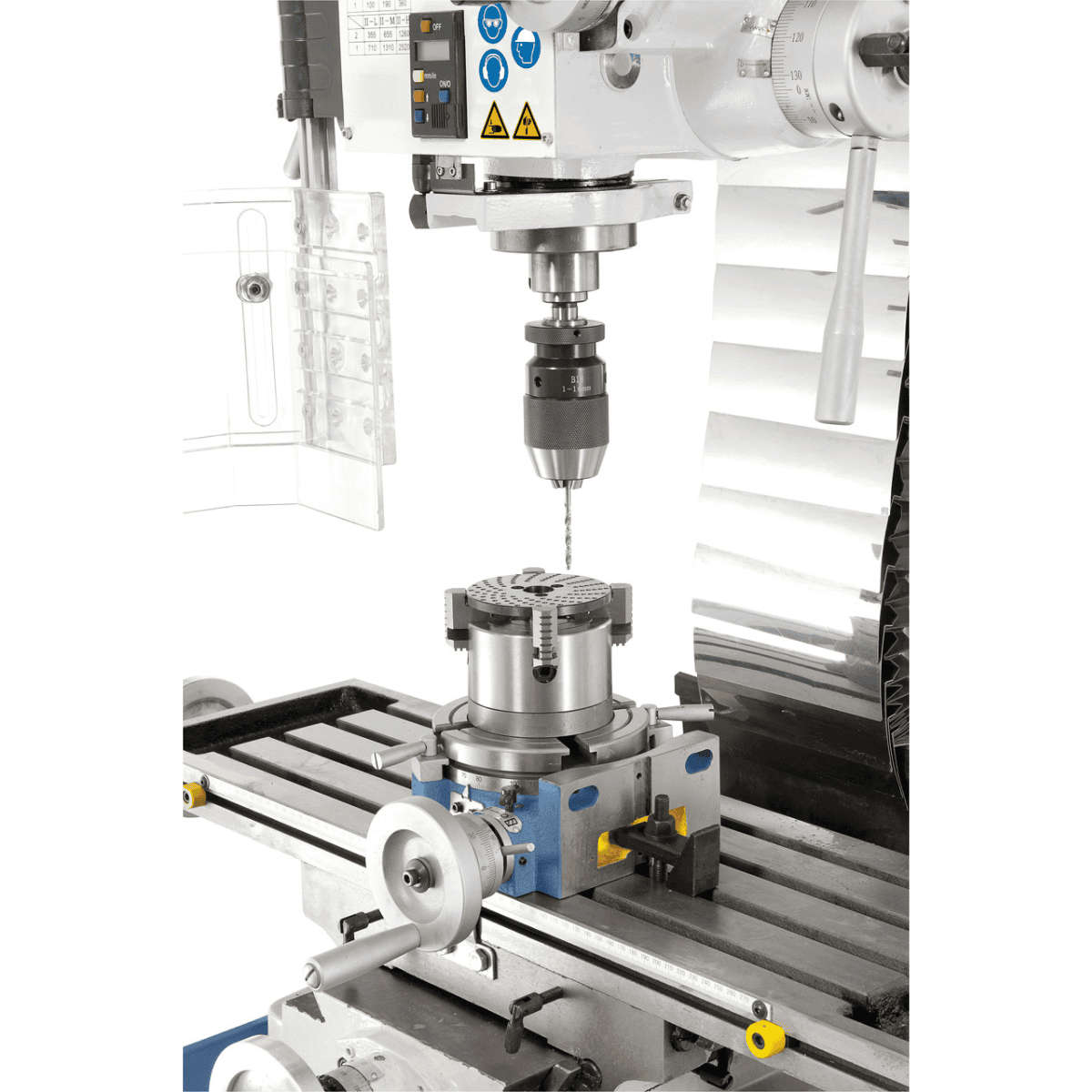

  • Quick-release drill chuck 3 – 16 mm / B 16
  • Arbor spindle MK 4 / B 16
  • M 16 clamping chuck
  • Reduction socket MK 4 / 3
  • Combination drill chuck MK 4 / 27 mm
  • Height-adjustable protective cover
  • Automatic spindle feeding system
  • LED car light
  • Digital spindle display
  • Threading device
  • Slat protection cover
  • Measurement scale
  • Control device

Technical Specifications

Characteristic Specifications
Steel drilling power 32 mm
Cast iron drilling power 40 mm
Milling head max. 80 mm
Length of the arms 220 mm
Spindle speed (12) 75 – 3200 rpm
Spindle attachment MK 4
Hole stroke 120 mm
Spindle power supply (3) 0.10 / 0.18 / 0.26 mm/rev
Table dimensions 800 x 240 mm
Run (x / y) 555 mm / 225 mm
Rotating milling head from -60° to +60°
Spindle/table distance 60 – 485 mm
Milling head height setting 425 mm
T-slot size 14 mm
S1 motor input power 100% 1.1 / 1.5 kW (400 V)
S6 Motor Output Power 40% 1.5 / 2.2 kW (400 V)
Machine dimensions (L x W x H) 1140 x 770 x 1500 mm
Weight approx. 308 kg

The FM 45 HSV drill and milling machine is the ideal solution for those seeking a versatile, safe, and powerful machine for complex mechanical machining. With its wide speed range, tilting milling head, and a range of included accessories, this model is perfect for workshops, repair shops, and training environments. Choose the FM 45 HSV to improve the quality and efficiency of your operations.
