Bernardo  |  SKU: 02-1088

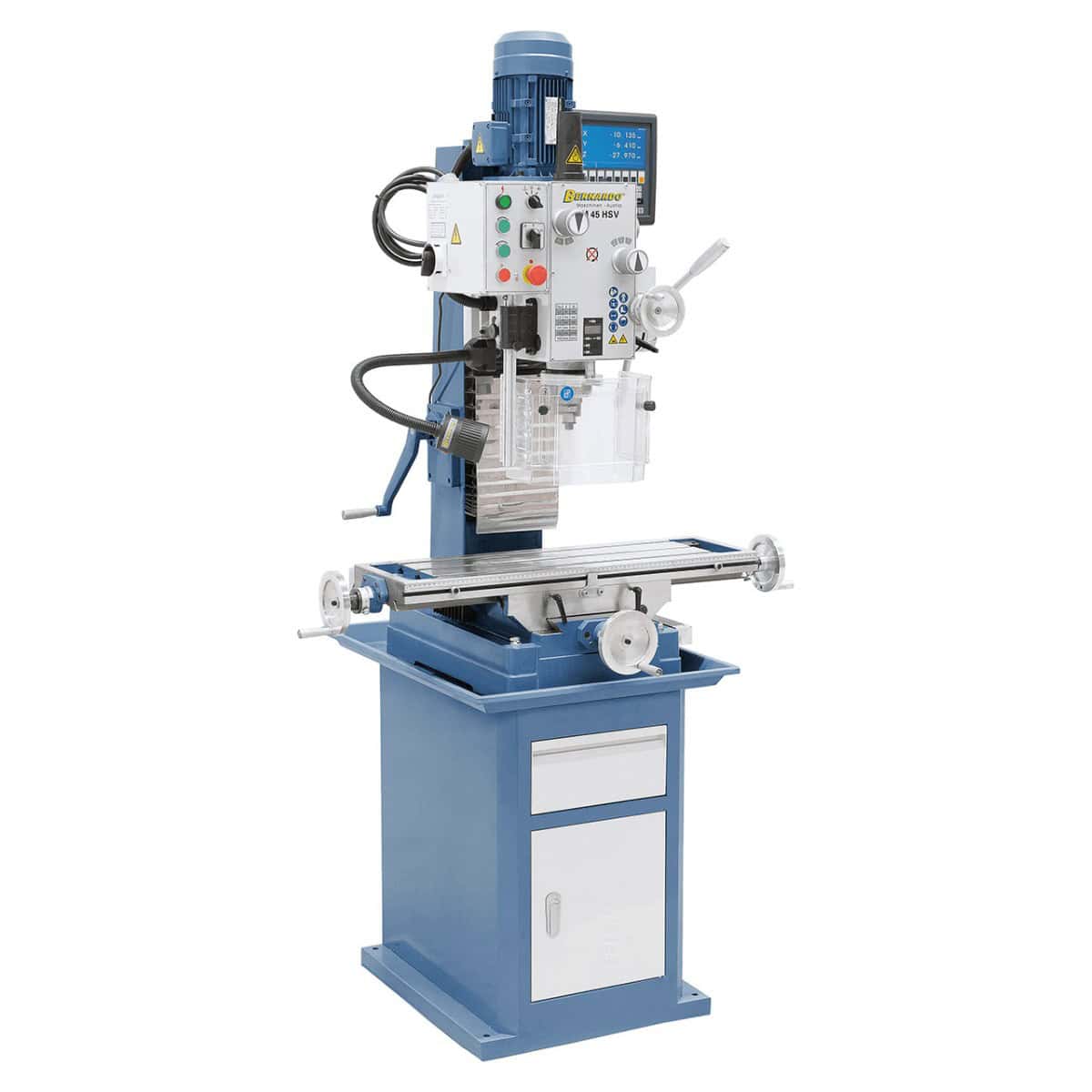

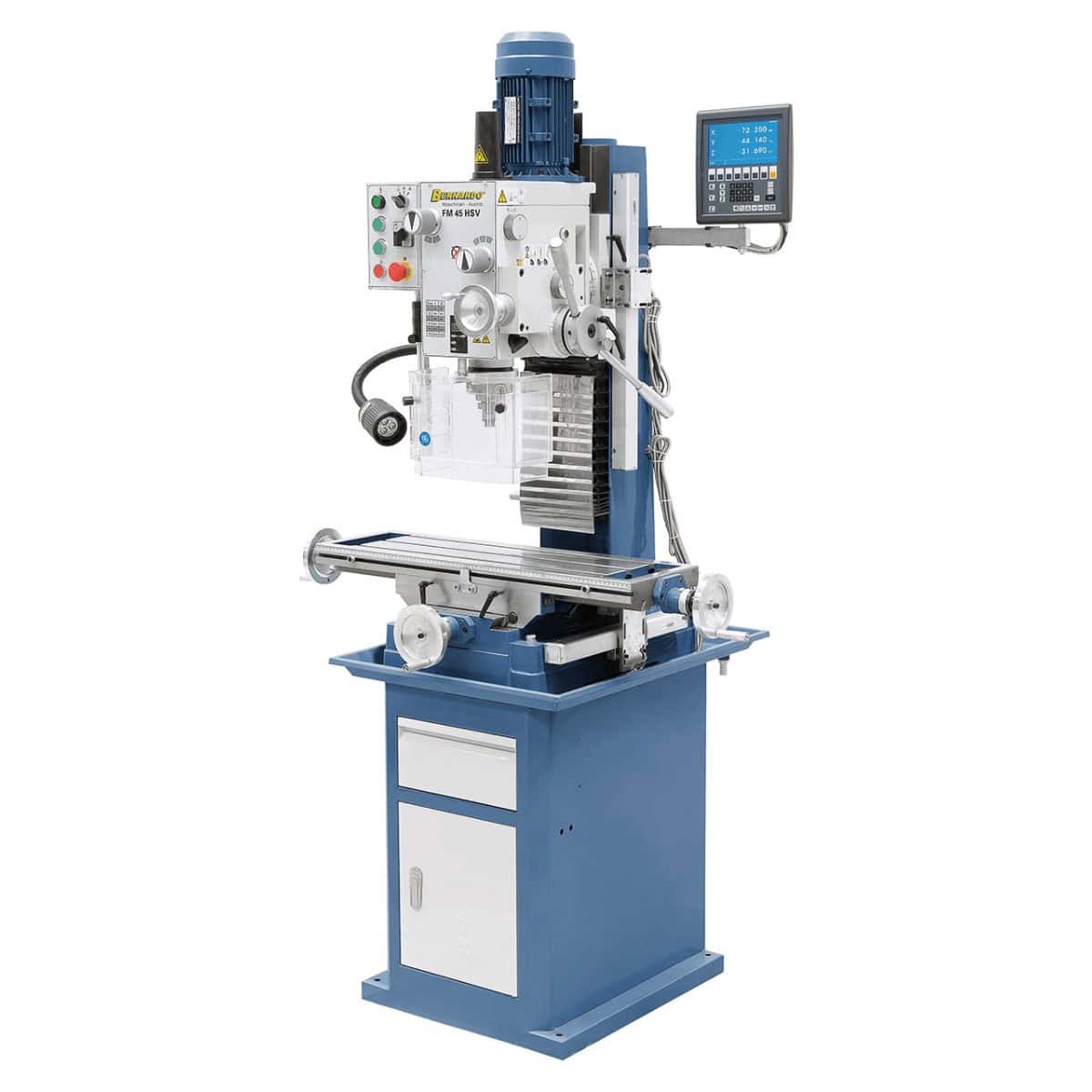

FM 45 HSV drilling and milling machine with 3-axis position display

€4.526,20
pay up to 30 installments,

Delivery and Shipping

At Krolit, we are committed to providing a seamless and reliable shipping experience for our customers. Once you place your order, it is generally processed within 1-3 business days, excluding weekends and holidays. As soon as your order ships, you will receive a confirmation email with your tracking number and shipment details, so you can easily track your delivery.

We offer several shipping options, including standard, express, and overnight shipping, to meet your needs. Shipping costs and estimated delivery times are clearly displayed at checkout and vary based on your location and the shipping method selected. Please note that all delivery times are approximate and may be subject to delays due to factors such as weather conditions, high order volume, or courier issues.

Currently, Krolit [offers/does not offer] international shipping. If international shipping is available, please be aware that customs duties, taxes, or other additional fees may apply, which are the responsibility of the recipient. We recommend checking with your local customs office before placing an order.

To ensure timely delivery, please ensure the shipping address provided at checkout is correct and complete. Krolit is not responsible for delays or lost packages due to incorrect or incomplete address information. If your package appears to have been delivered but you haven't received it, we recommend contacting the courier first. If the problem persists, our customer support team is available to assist you.

If you have any questions or concerns regarding shipping or delivery, please do not hesitate to contact us at [your email address] or by phone at [your phone number].

At Krolit, we value your satisfaction and are committed to ensuring your order arrives safely and on time.

Secure payment guaranteed

Description

FM 45 HSV Drill and Milling Machine: Versatility and Precision for Mechanical Workshops and Training

The FM 45 HSV is a high-performance drilling and milling machine designed to meet the needs of machine shops, repair shops, and the training sector. Thanks to its wide speed range (75–3200 rpm) and comprehensive equipment, this machine offers versatility, precision, and safety in all drilling and milling operations.

Main Features

  • Powerful 2-Stage Motor : With an adjustable speed range from 75 to 3200 rpm, the motor offers the flexibility to adapt to different jobs.

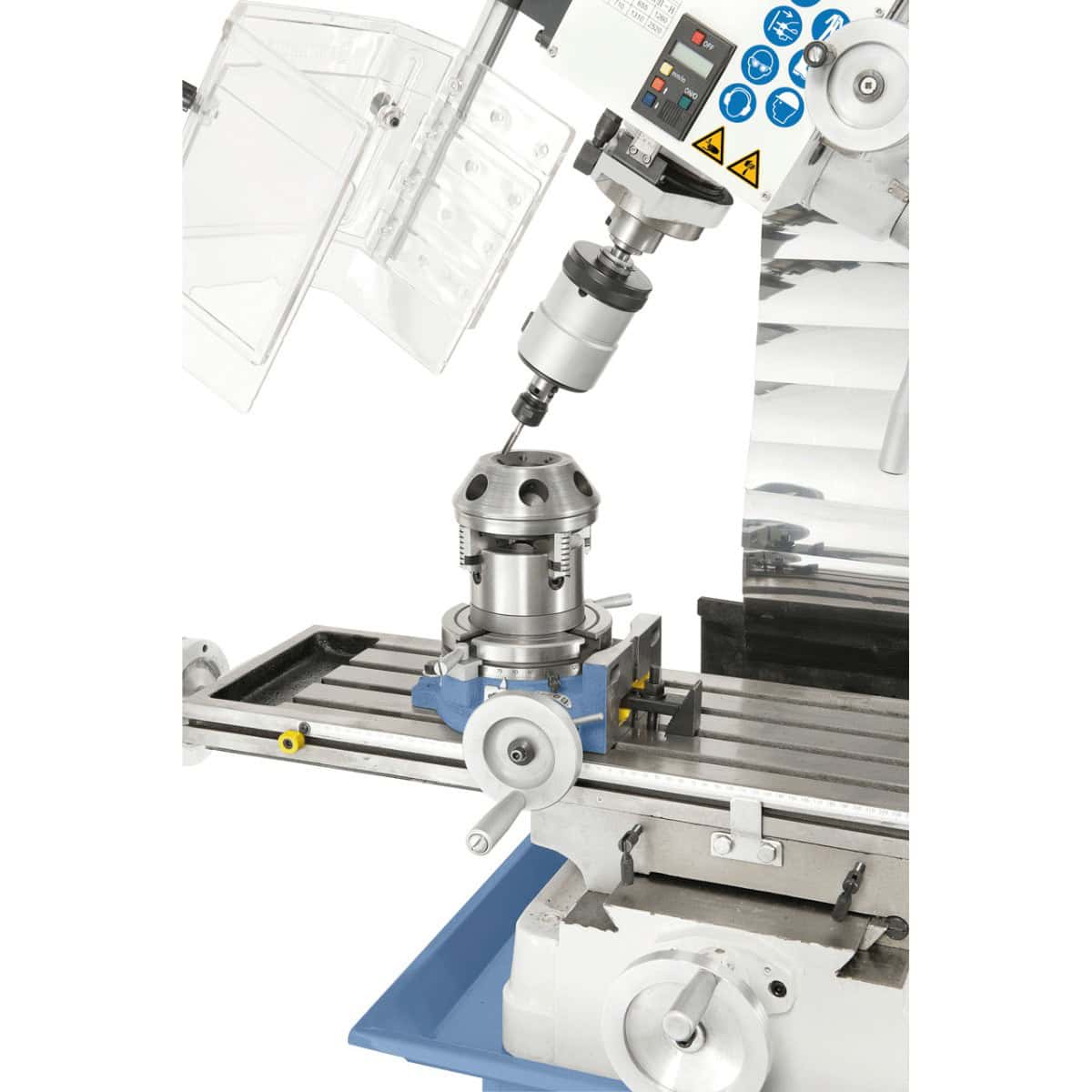

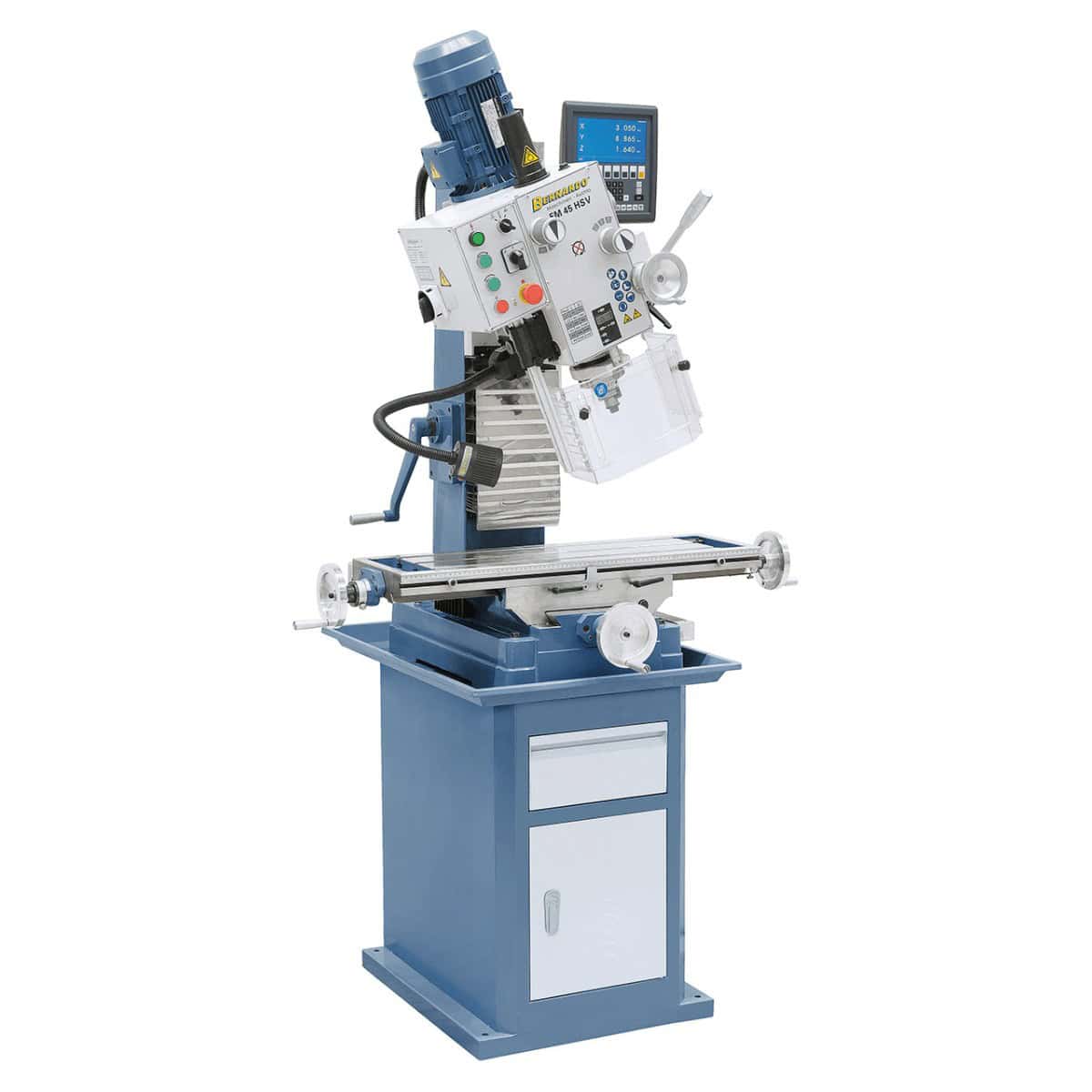

  • Tiltable Milling Head : The head can be tilted to both sides, ideal for angle drilling, chamfer milling and other complex operations.

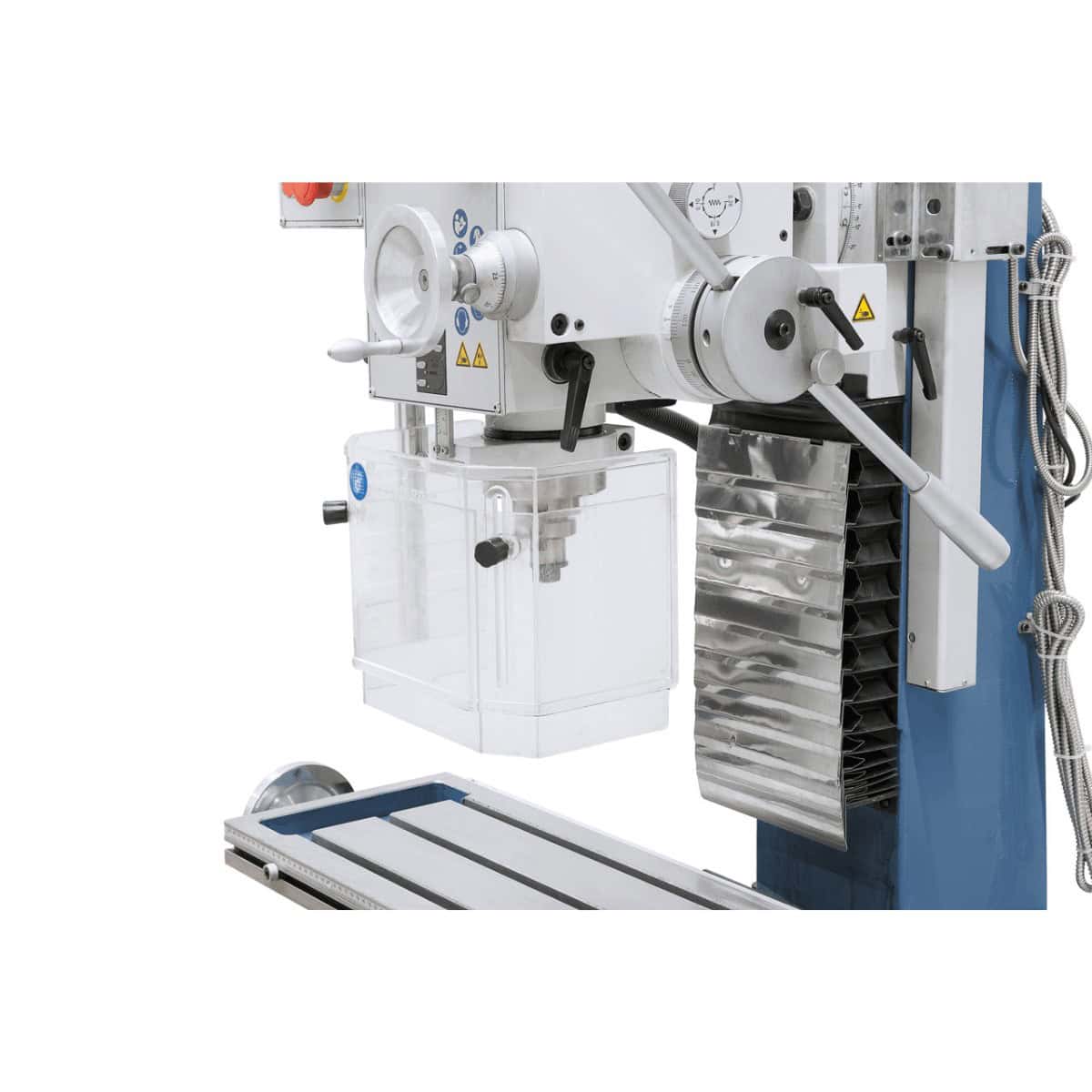

  • Advanced Safety : Equipped with height-adjustable spindle guard with microswitch, it ensures a safe working environment.
  • Automatic Spindle Feed : Allows for precise and uniform spindle feed, reducing operator fatigue.
  • Dovetail Guide : Present on the x, y and z axes, with precise setting via gibs, for optimal stability and precision during machining.

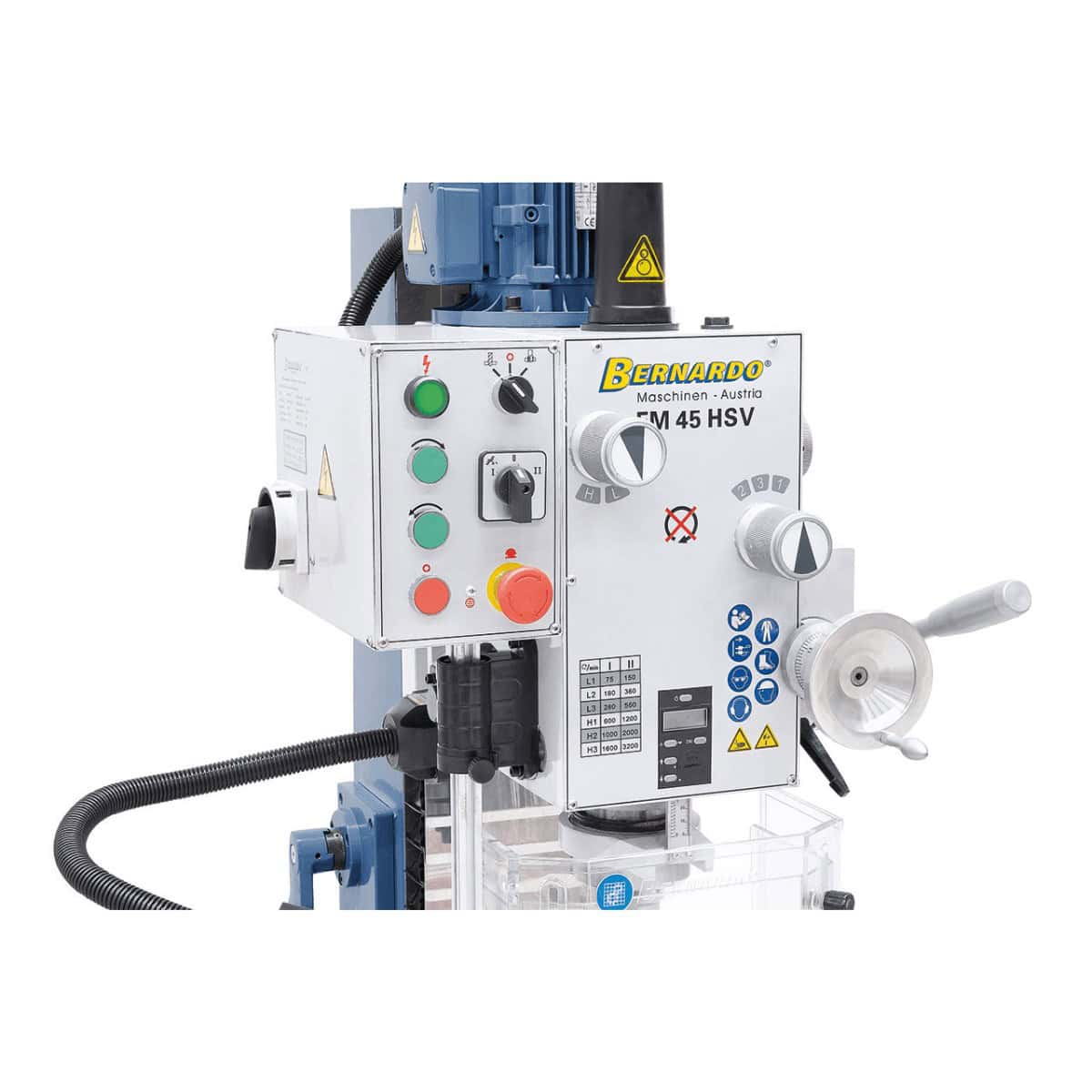

  • Built-in Digital Display : Clearly and accurately displays power and spindle speed, making it easy to control operations.

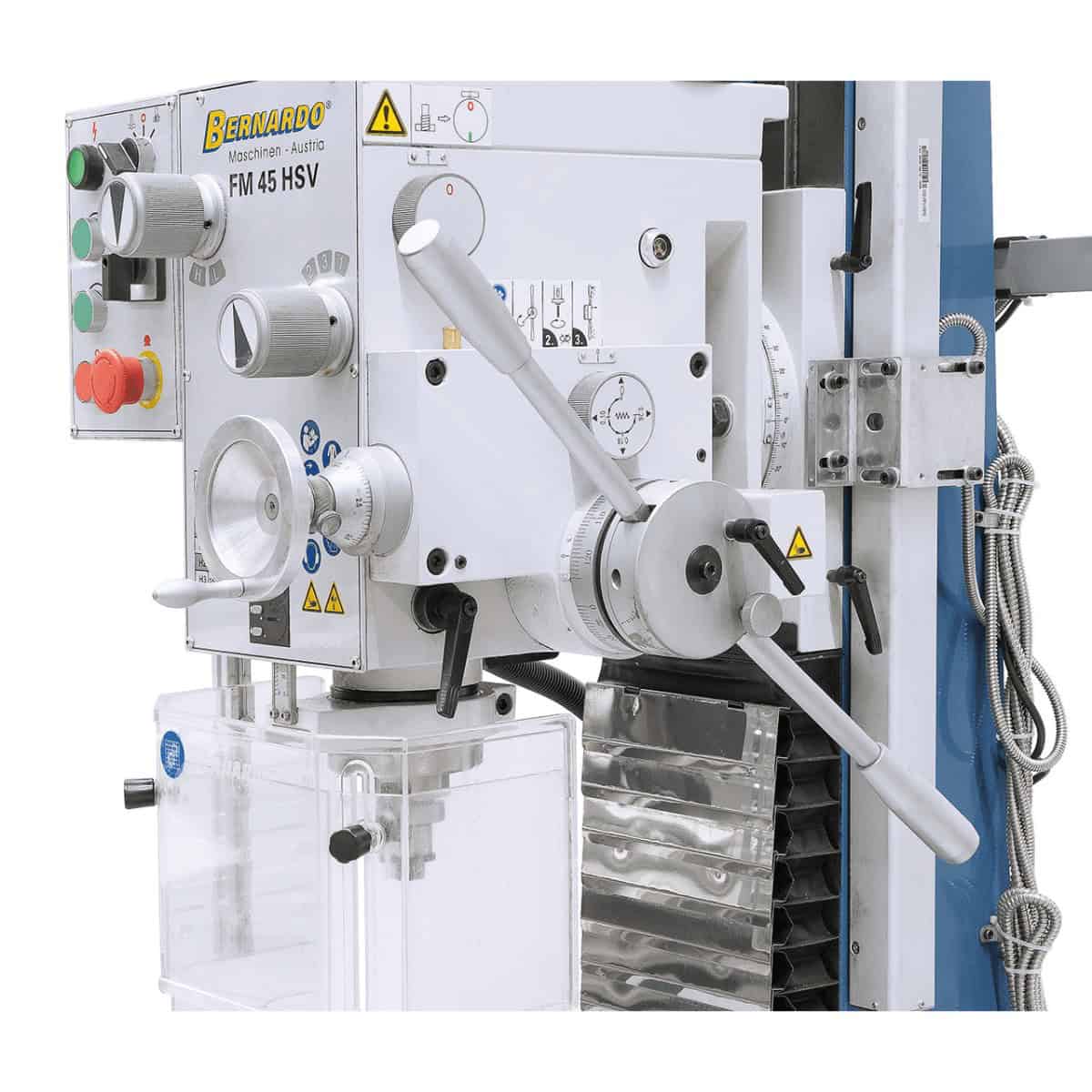

  • Quick Speed Regulation : Speed changes are quick and intuitive thanks to the gear switch, adapting the machine to specific processing needs.
  • Stability and Robustness : The dovetail guide of the reducer and the cast iron valve guides guarantee a stable and vibration-free structure, for always precise machining.

Accessories Included

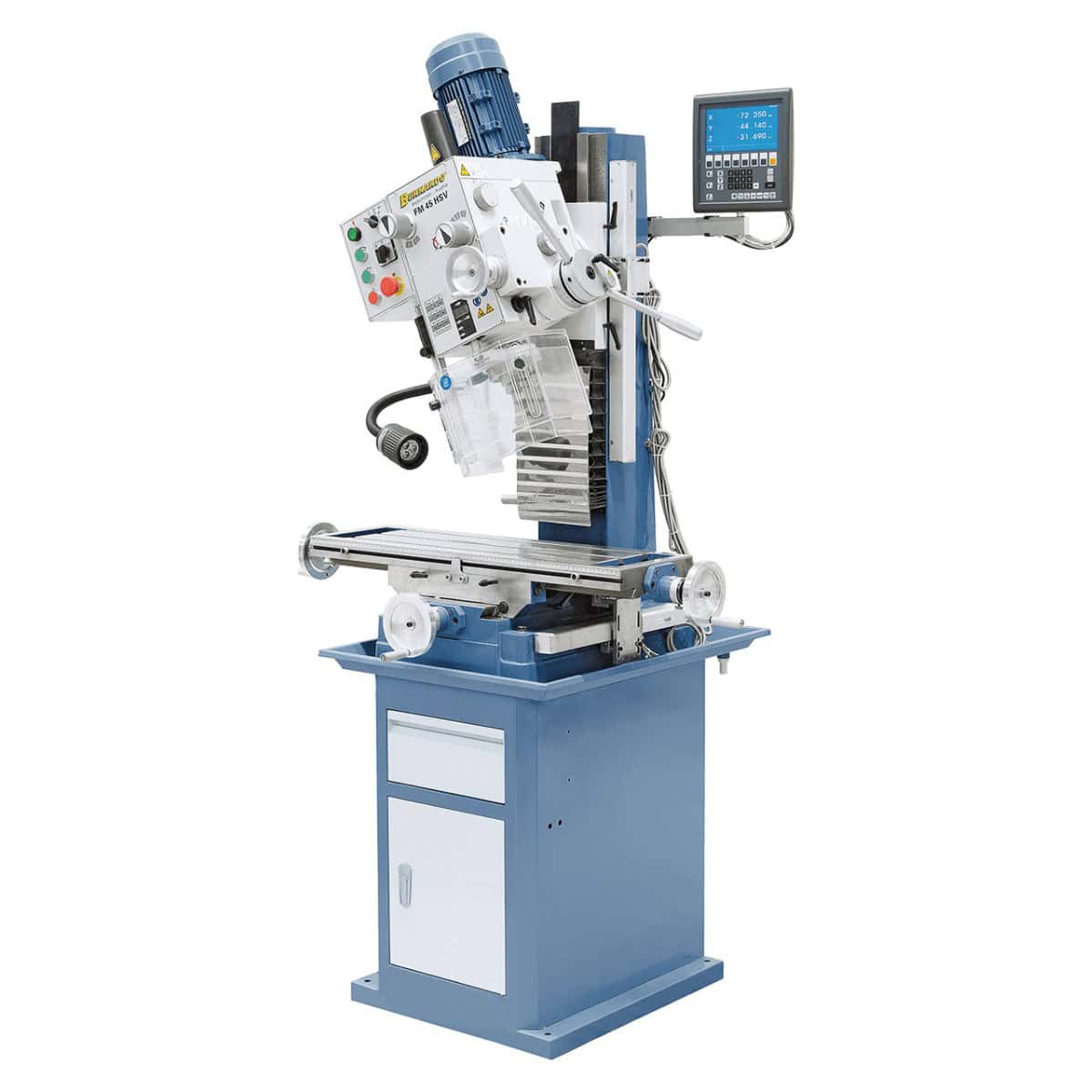

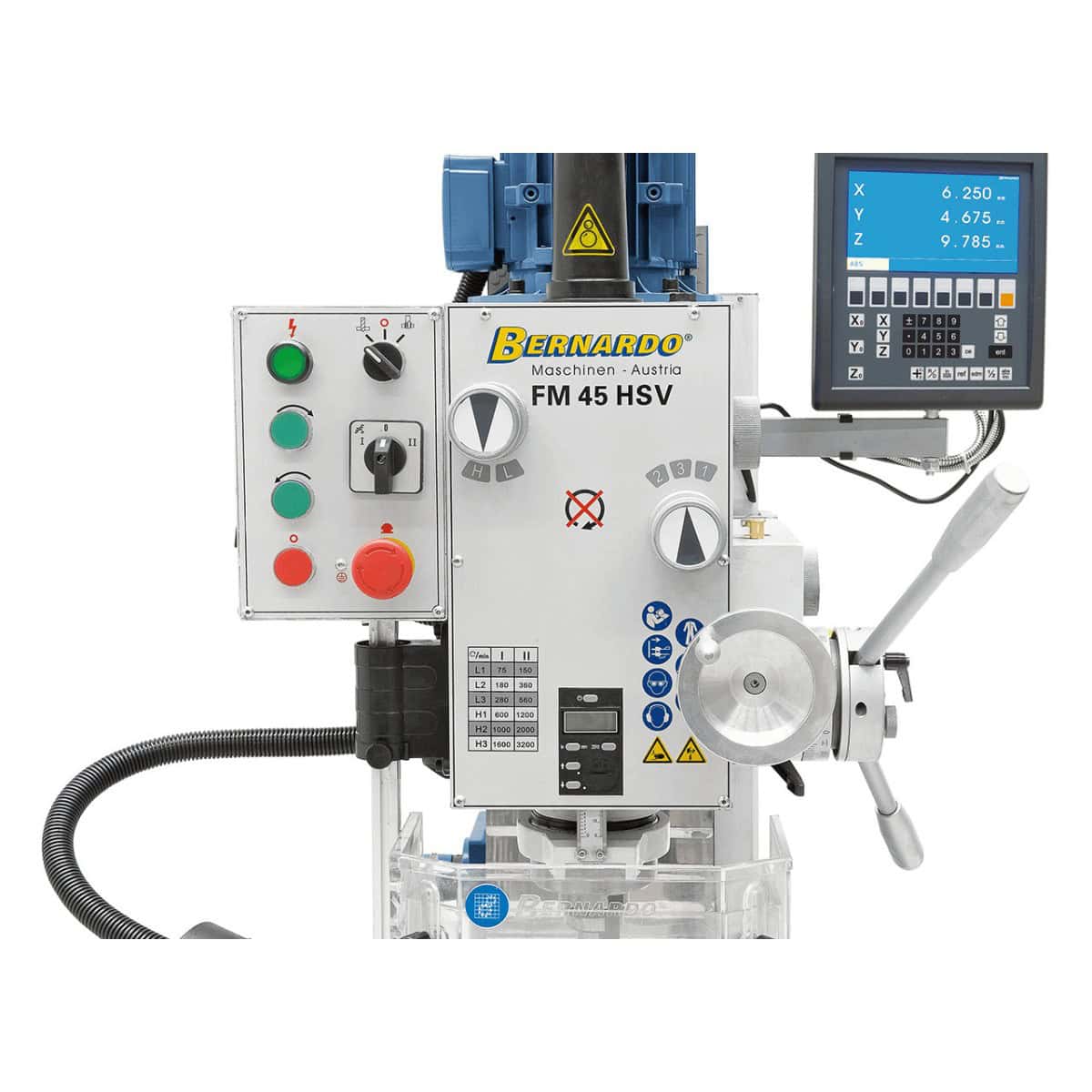

  • ES-12V 3-Axis Position Display with LCD Display

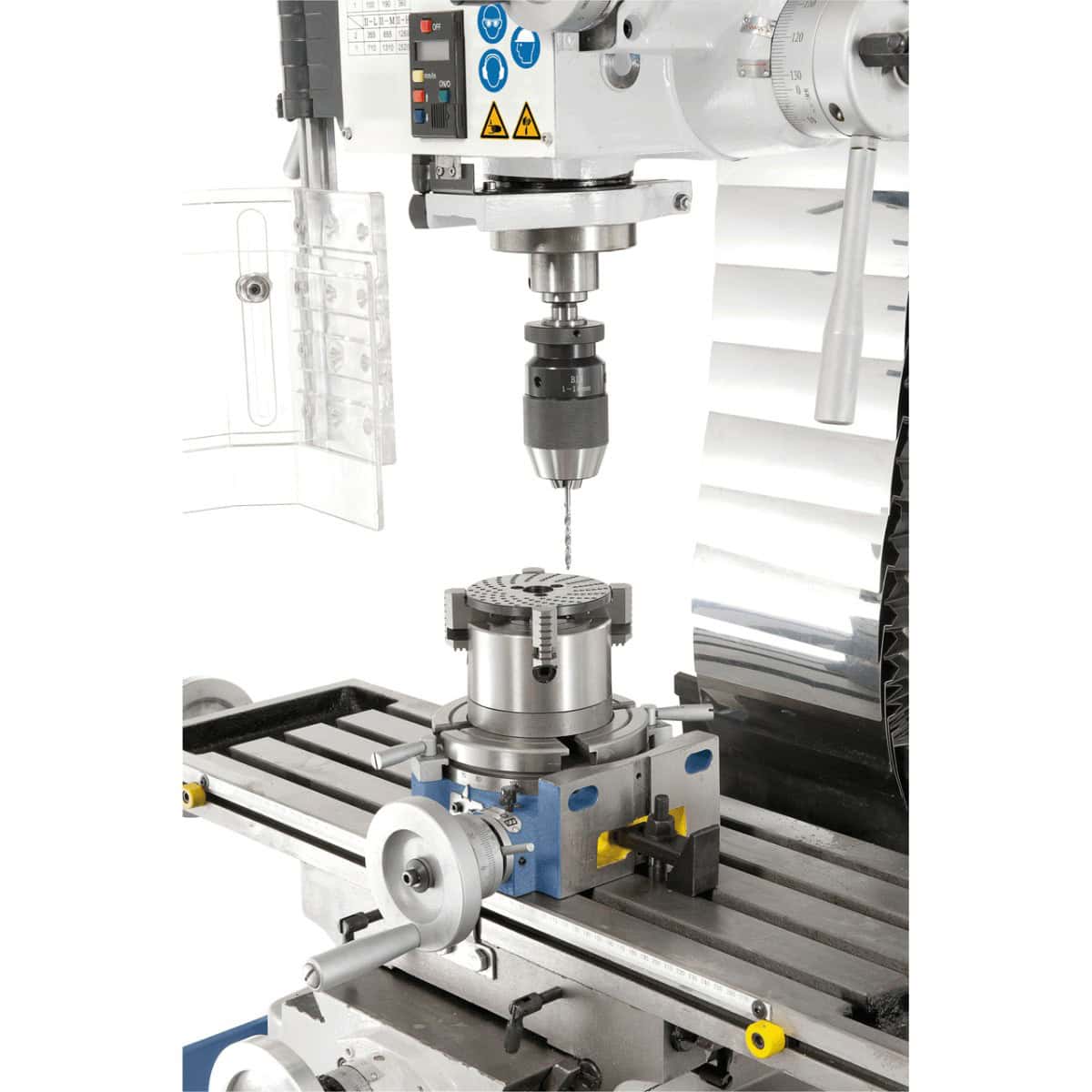

  • Quick-release drill chuck 3 – 16 mm / B 16
  • Arbor spindle MK 4 / B 16
  • M 16 clamping chuck
  • Reduction socket MK 4 / 3
  • Combination drill chuck MK 4 / 27 mm
  • Height-adjustable protective cover
  • Automatic spindle feeding system
  • LED car light
  • Digital spindle display
  • Threading device
  • Slat protection cover
  • Measurement scale
  • Control device

Technical Specifications

Characteristic Specifications
Steel drilling power 32 mm
Cast iron drilling power 40 mm

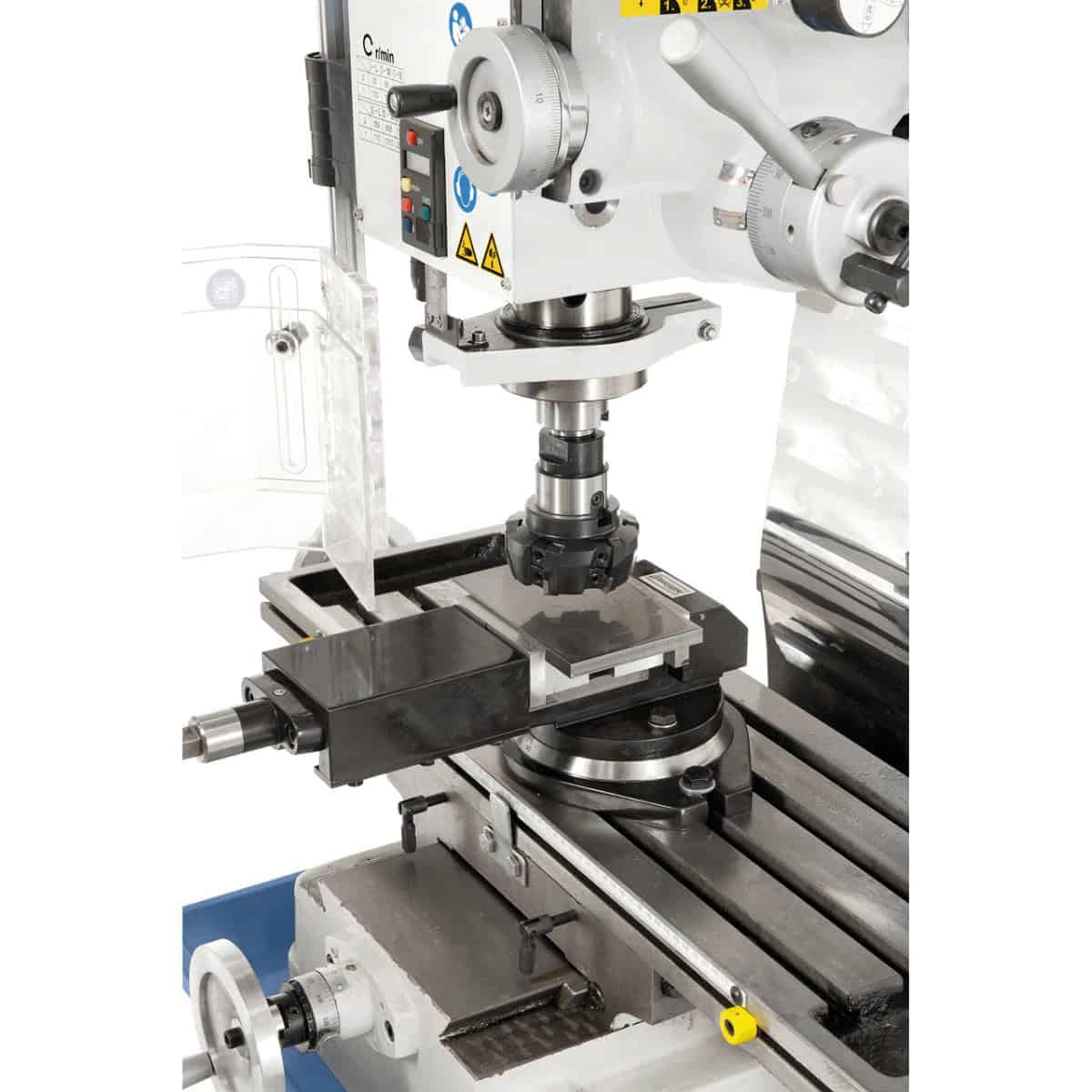

Milling head max. 80 mm
Length of the arms 220 mm
Spindle speed (12) 75 – 3200 rpm
Spindle attachment MK 4
Hole stroke 120 mm
Spindle power supply (3) 0.10 / 0.18 / 0.26 mm/rev

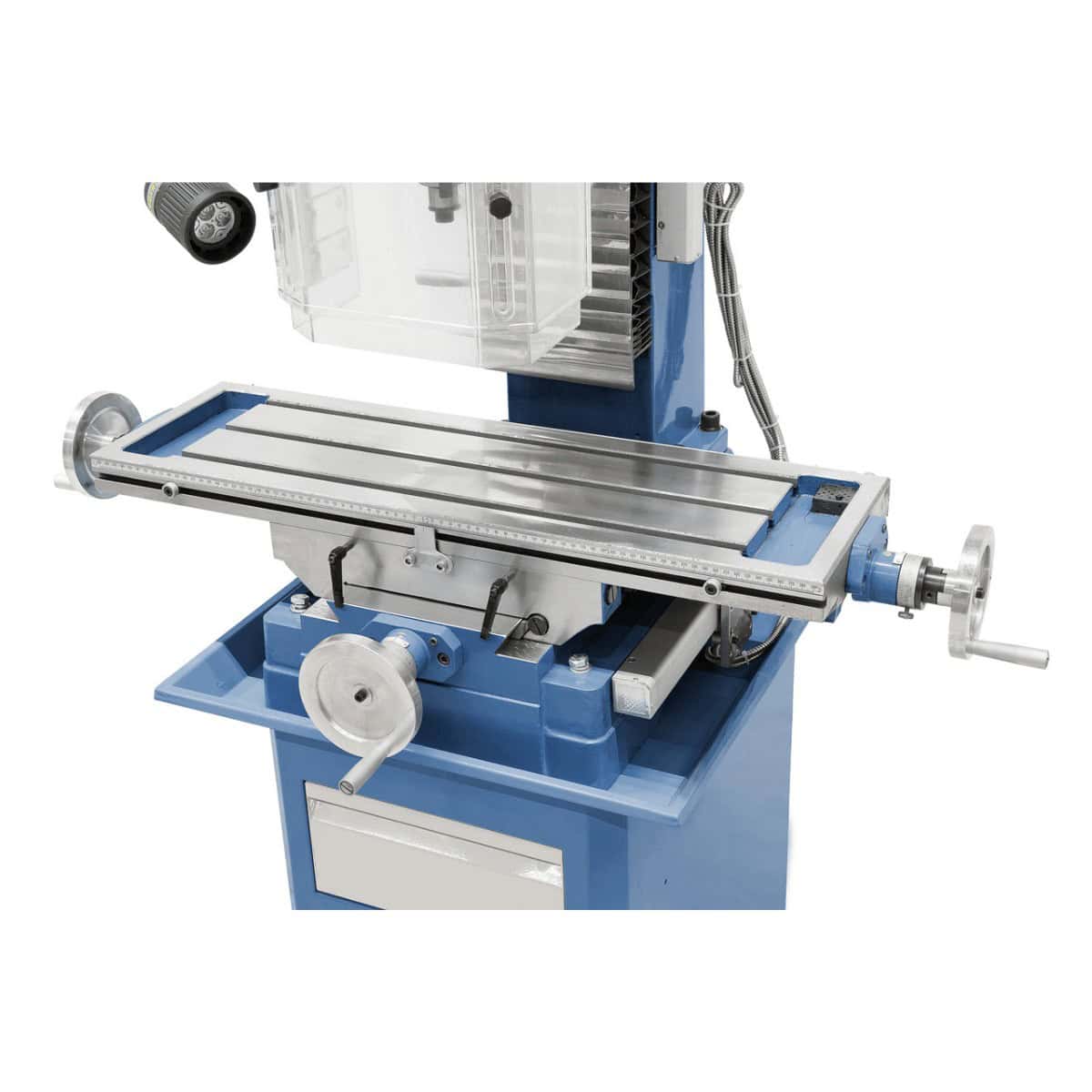

Table dimensions 800 x 240 mm
Run (x / y) 555 / 205 mm
Rotating milling head from -60° to +60°
Spindle/table distance 60 – 485 mm
Milling head height setting 425 mm
T-slot size 14 mm
S1 motor input power 100% 1.1 / 1.5 kW (400 V)
S6 Motor Output Power 40% 1.5 / 2.2 kW (400 V)
Machine dimensions (L x W x H) 1140 x 770 x 1500 mm
Weight approx. 308 kg

The FM 45 HSV Drill and Milling Machine is a versatile and powerful machine, perfect for machine shops, repair jobs, and professional training. With its robust design, wide speed range, and comprehensive accessories, it offers excellent performance for all types of machining, ensuring precision, safety, and ease of use. Choose the FM 45 HSV model to improve the quality and efficiency of your mechanical operations.
