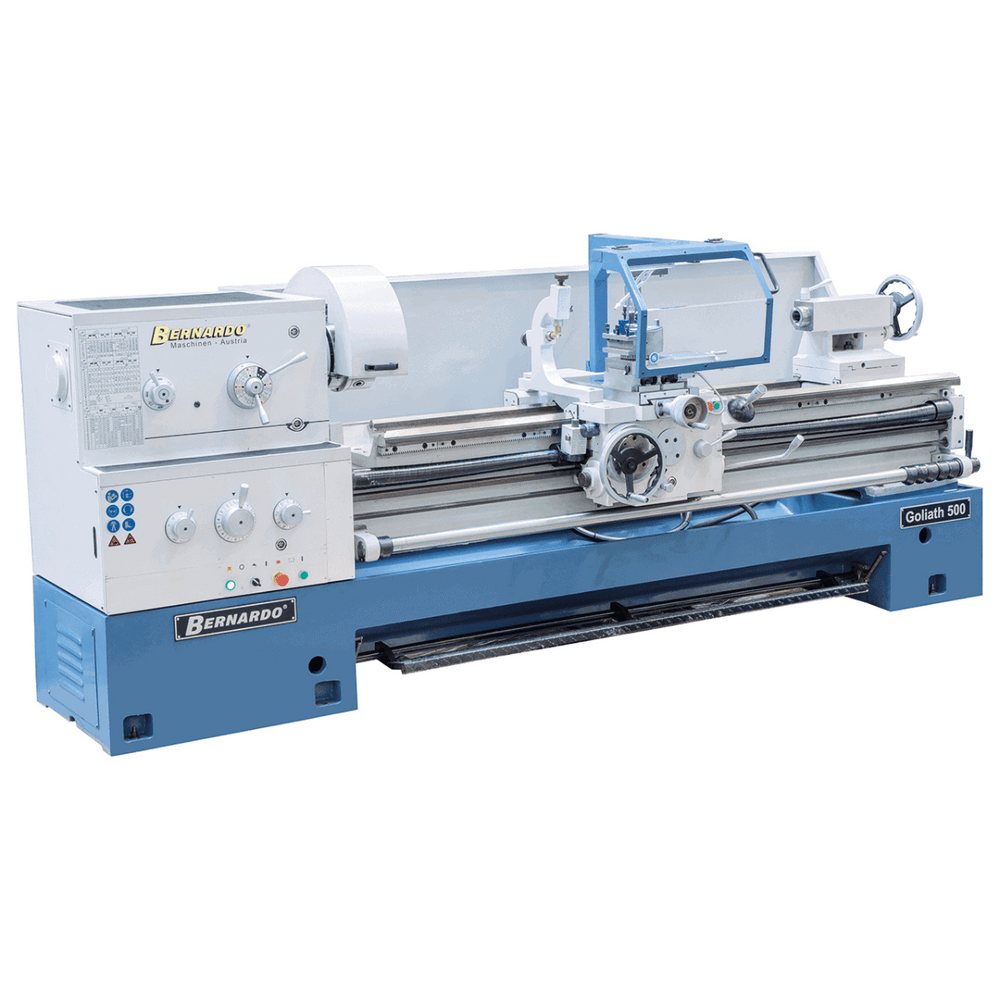

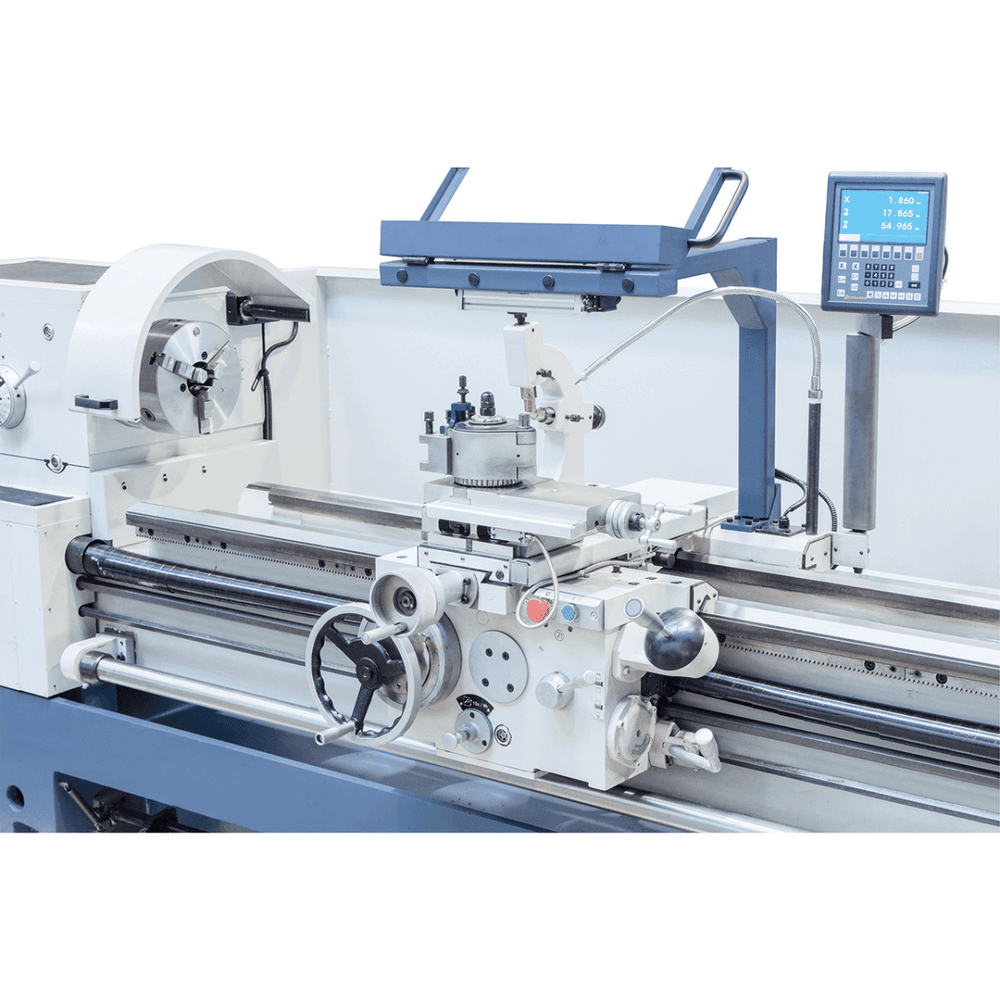

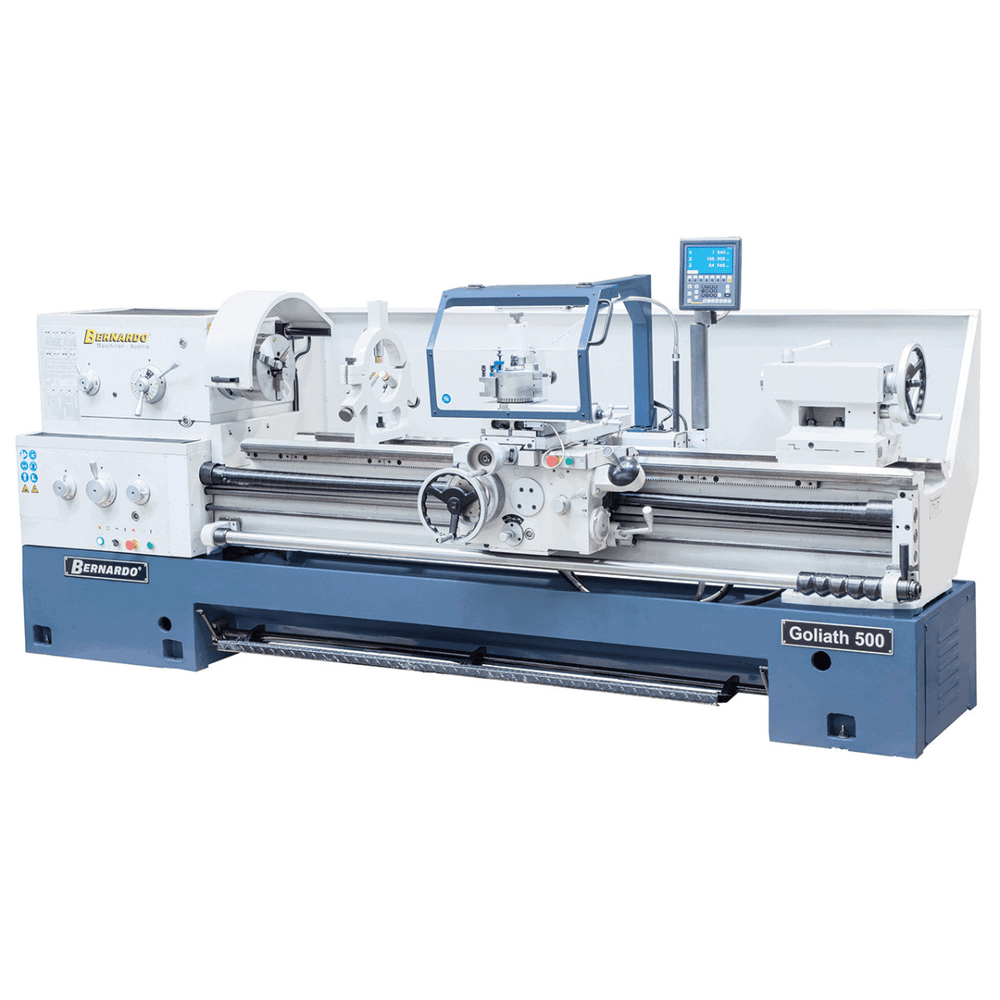

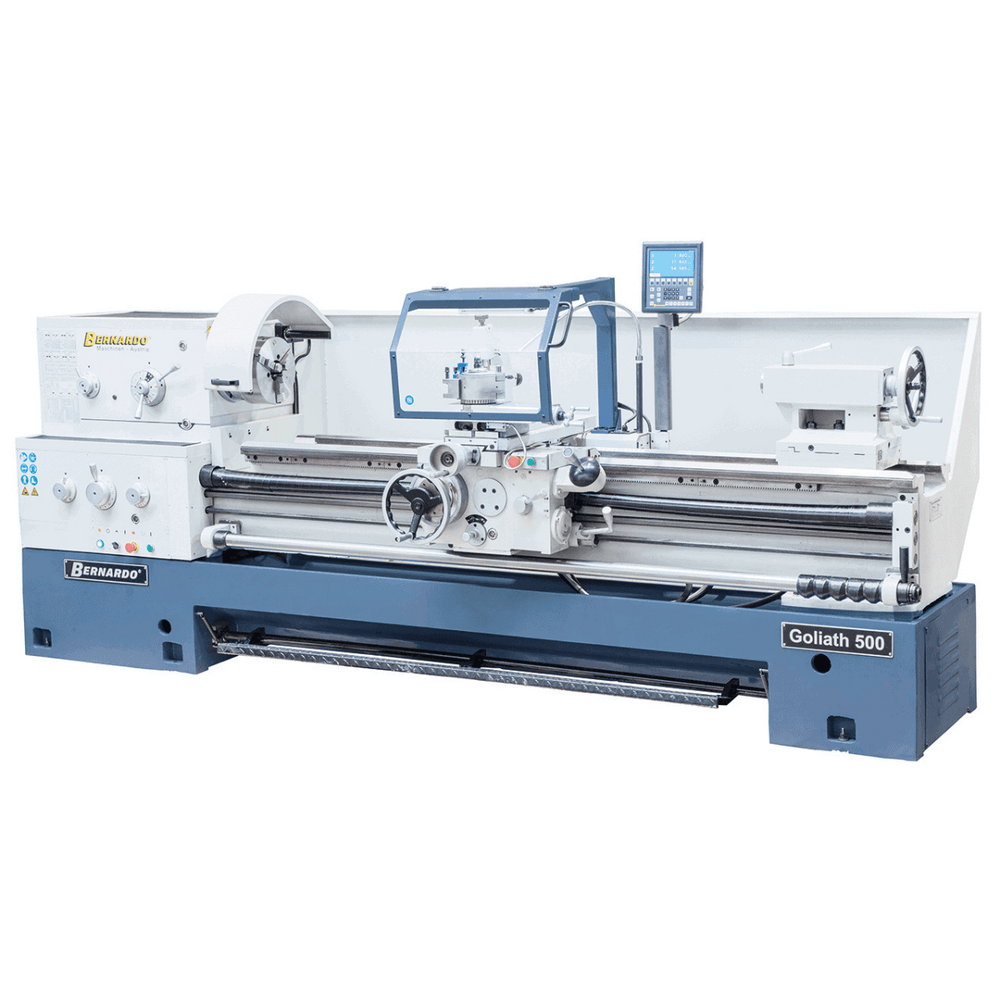

⚙️ Goliath 500 x 2000 Heavy Duty Industrial Lathe with 3-Axis Digital Readout

High precision, power and reliability for medium-heavy machining

The Goliath 500 x 2000 lathe is designed to deliver high performance and maximum precision even in the most demanding applications. The rigid, single-piece cast iron structure , combined with high-quality components, minimizes vibration and ensures stability and long-lasting durability.

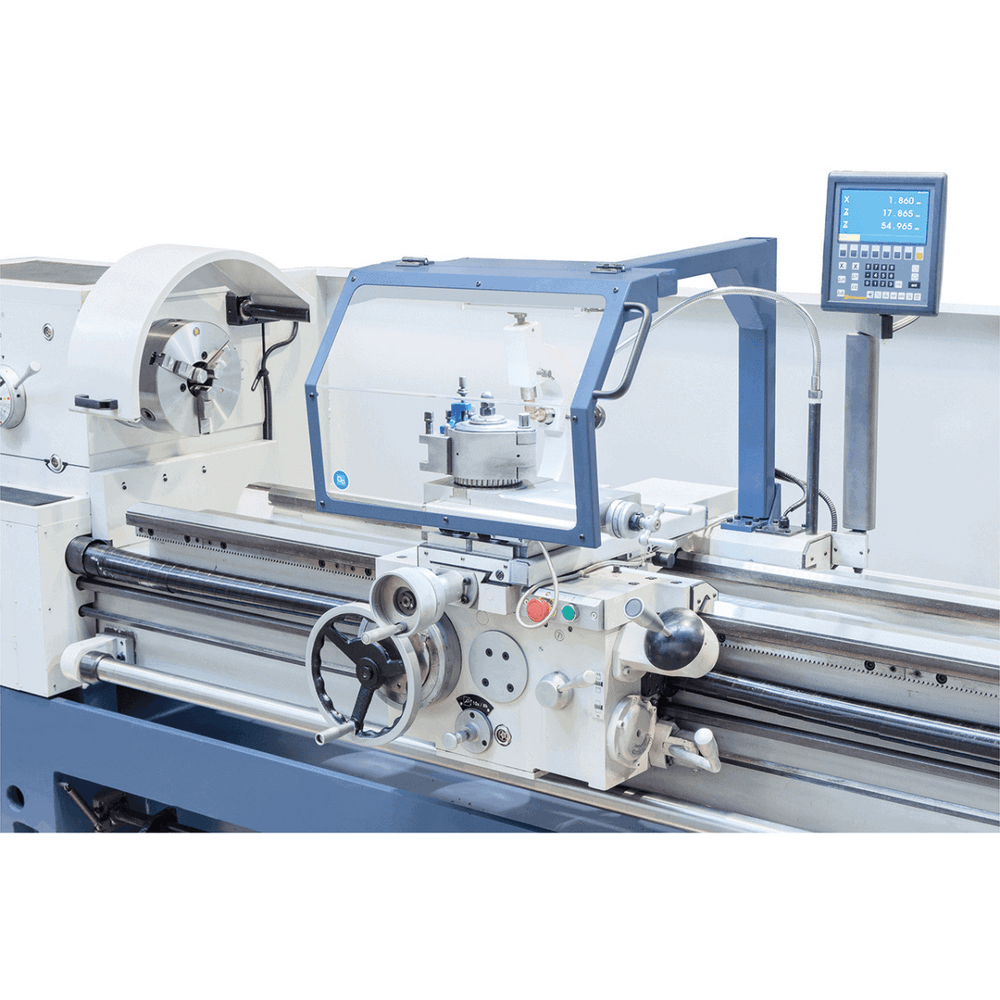

The 3-axis digital readout (ES-12V) included as standard reduces non-productive time, increasing operational efficiency. The removable bridge also allows for the machining of oversized workpieces, significantly expanding the machine's range of applications.

Main Features

  • Ideal for mechanical construction, series production and single jobs
  • Monoblock cast iron bed: maximum rigidity, no torsion
  • High precision angular contact ball spindle bearings

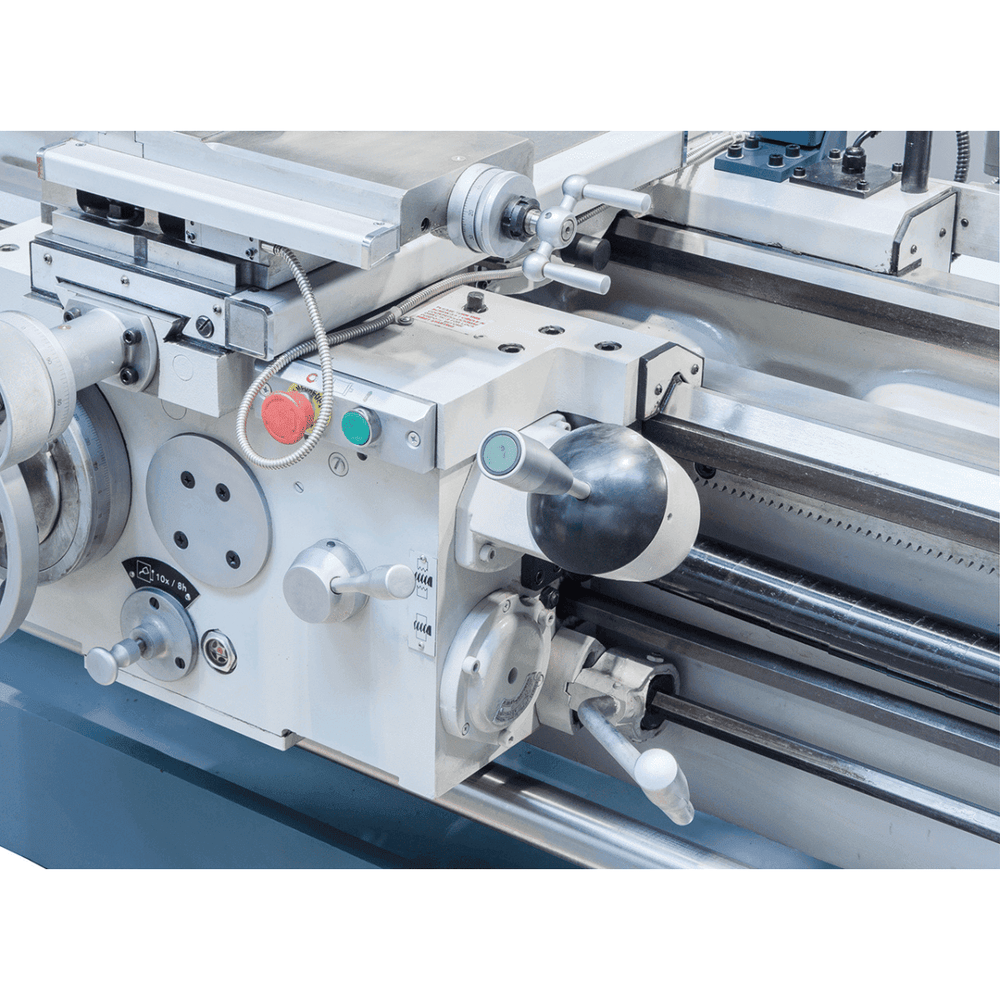

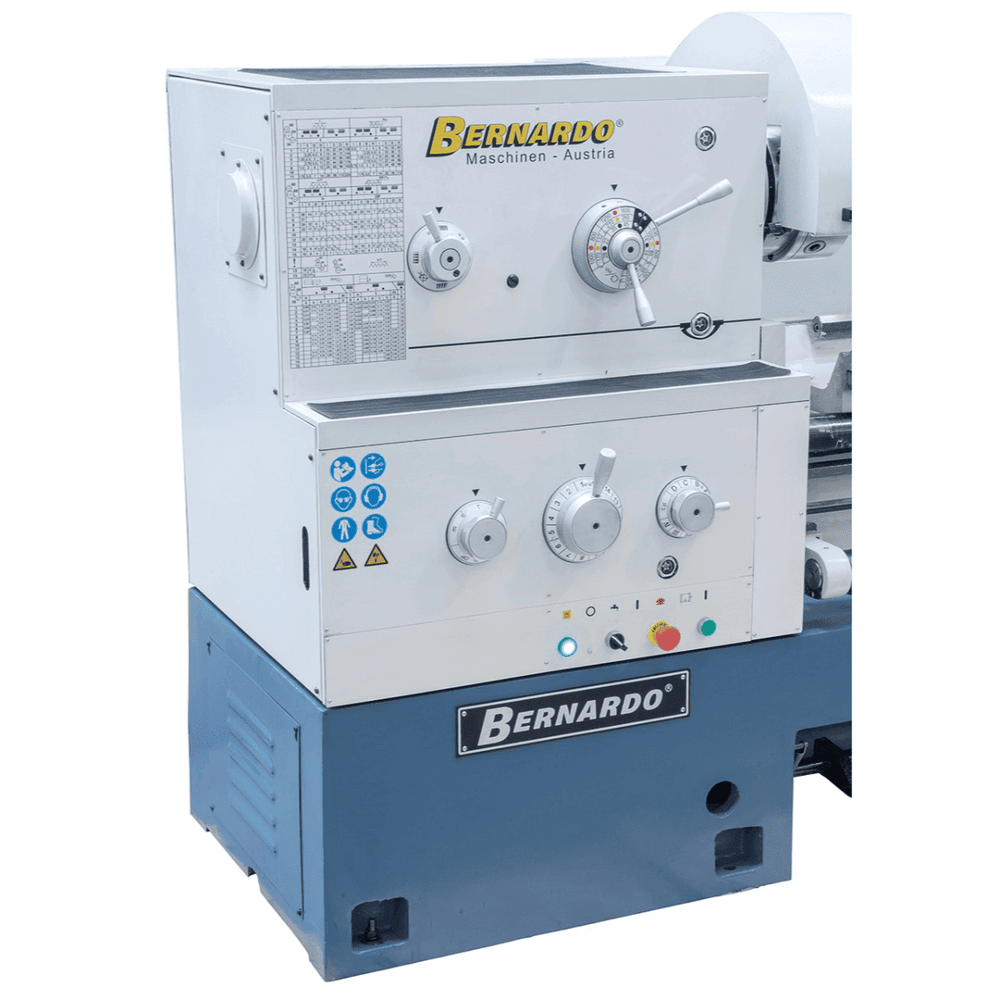

  • Centralized controls for feed and threading
  • Rapid longitudinal and transverse advance

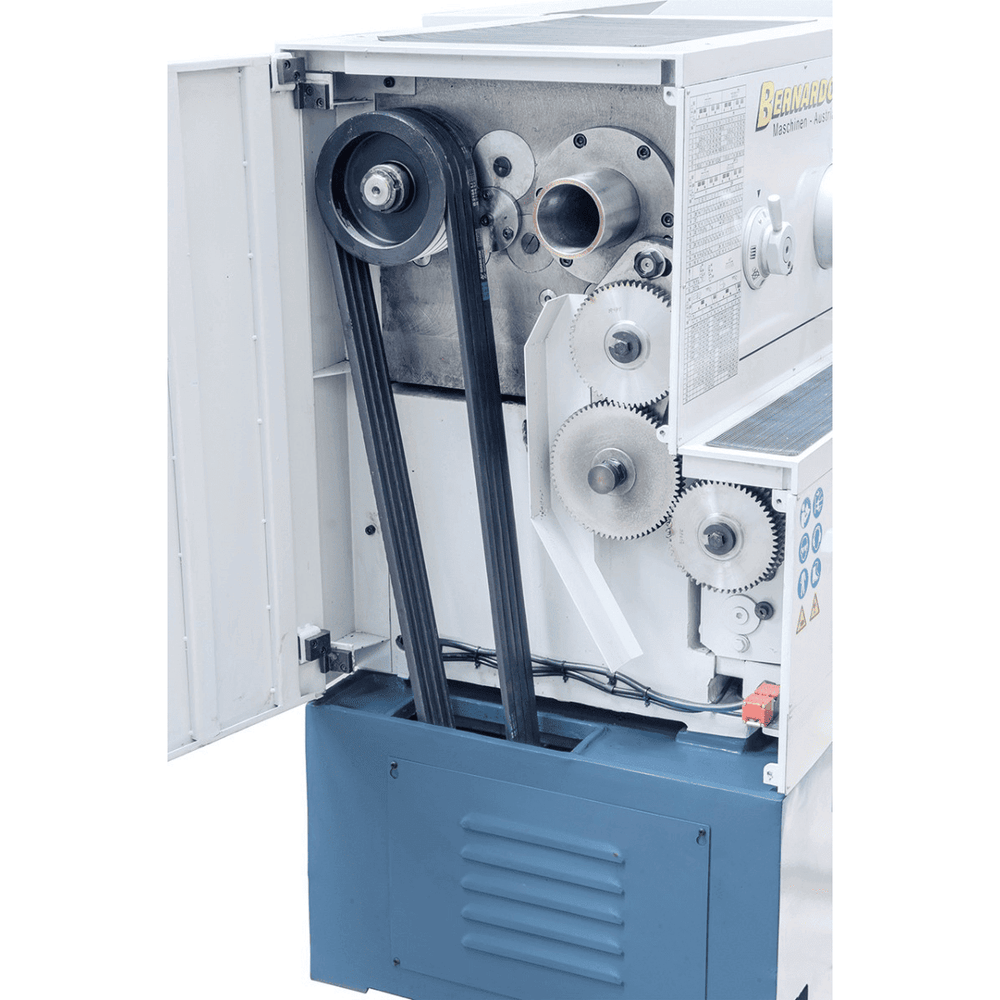

  • Hardened and ground gears
  • Removable bridge for machining large diameters

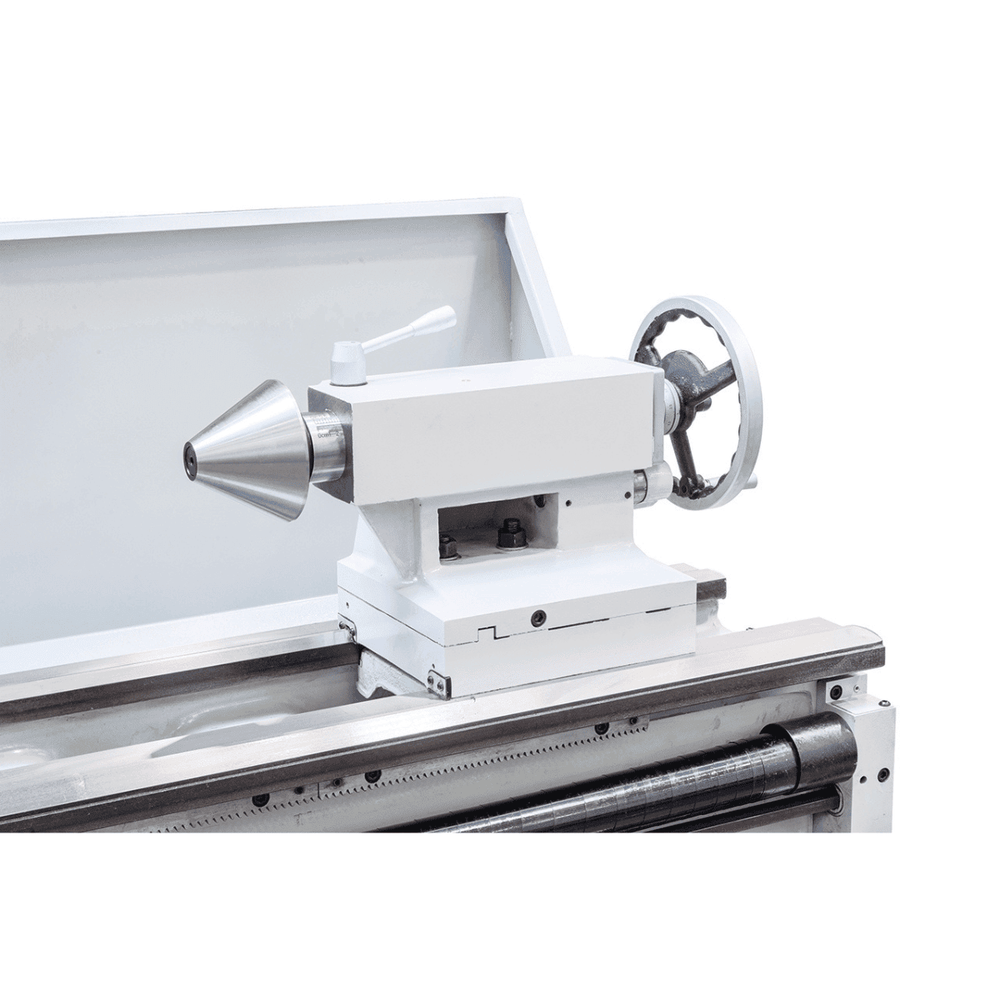

  • Traslatable tailstock with handwheel and adjustable scale (0.02 mm)
  • Electromechanical foot brake to reduce downtime
  • Excellent performance even in frontal turning

? Technical Specifications

Parameter Value
Distance between tips 2000 mm
Tip height 250 mm
Turning diameter on the bench 500 mm
Turning diameter on the bridge 720 mm
Turning diameter on the carriage 310 mm
Bench width 400 mm
Spindle bore 80 mm
Spindle attachment DIN 55029, D1-8
Speed range 24 speeds, 9 – 1600 rpm
Longitudinal advances (80) 0.063 – 6.43 mm/rev
Transversal advances (80) 0.027 – 2.73 mm/rev
Metric threads (46) 1 – 224 mm
Inch threads (44) 1/8 – 28 threads/inch
Tailstock quill diameter 75 mm
Tailstock stroke 150 mm
Tailstock cone quill MT 5
Engine power 7.5 kW (10 HP)
Machine dimensions (L x W x H) 3520 x 1240 x 1550 mm
Weight approximately 3375 kg
Removable bridge length 200 mm

? Accessories Included as Standard

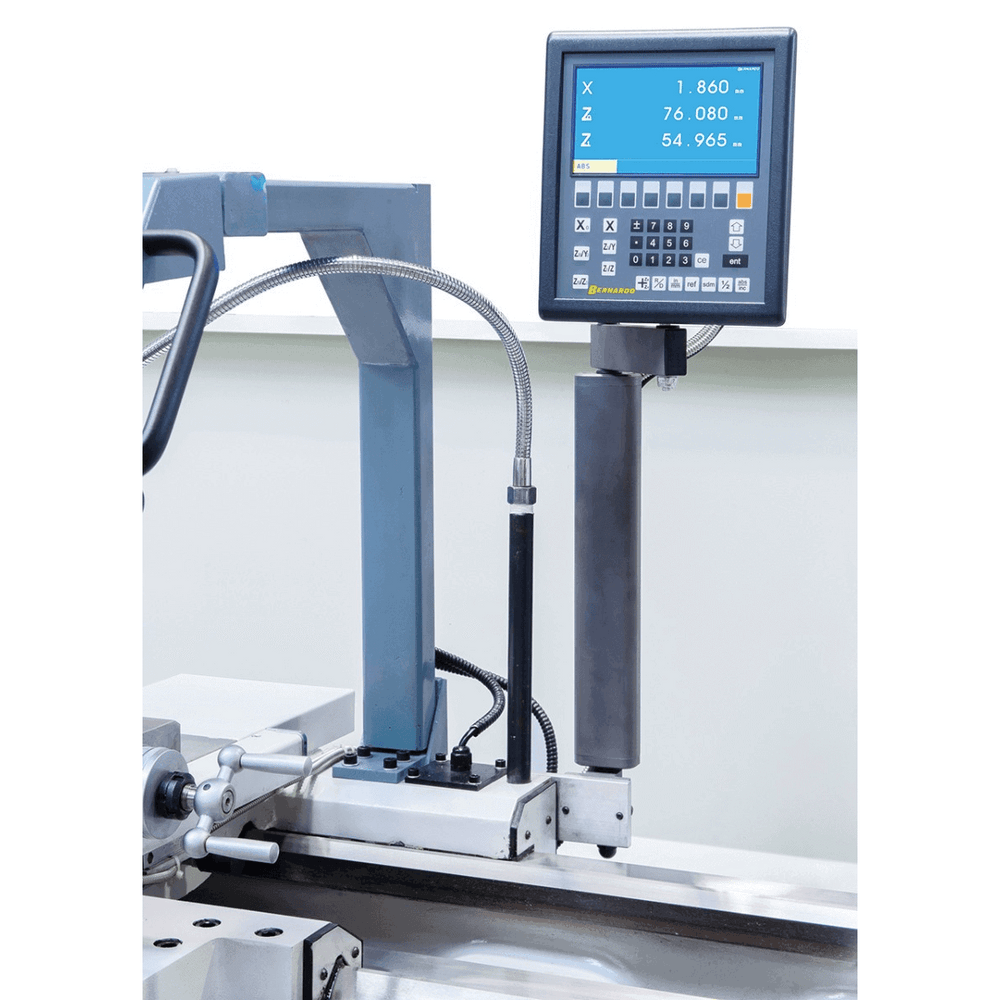

  • ES-12V 3-Axis Digital Display with LCD Display

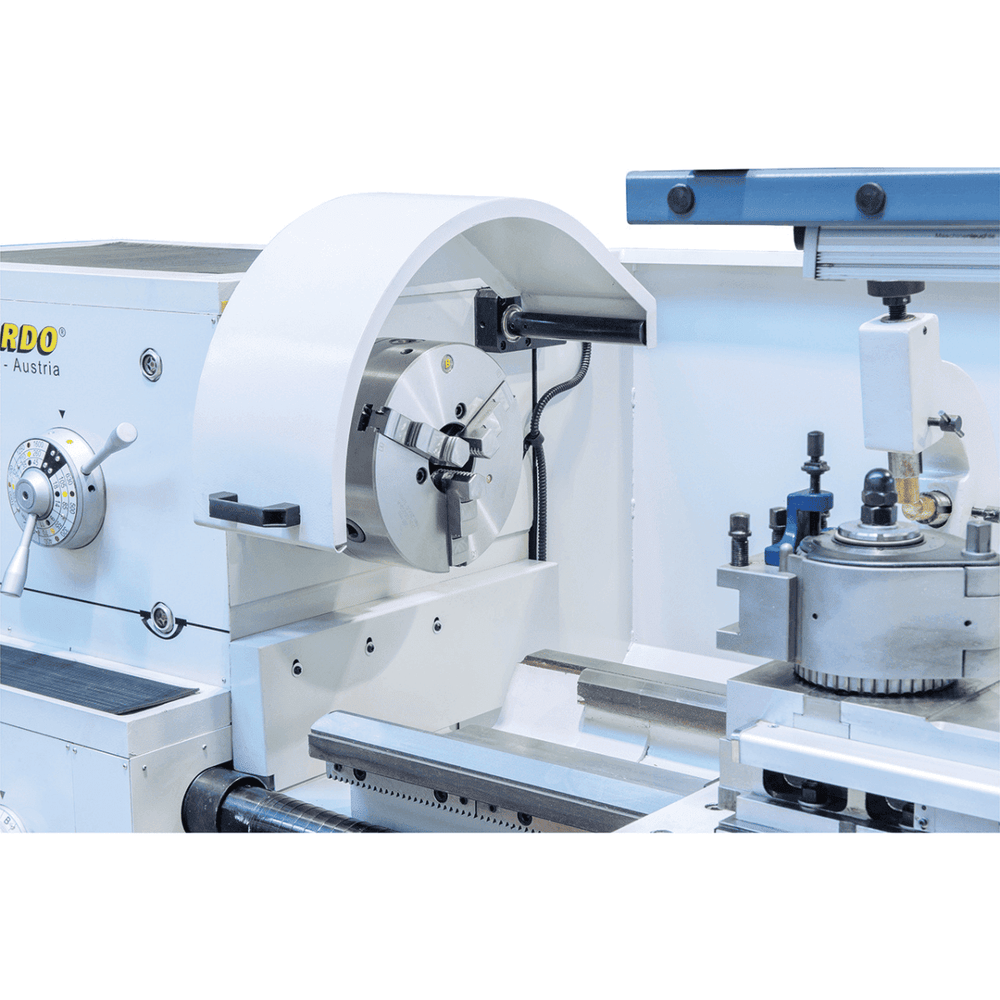

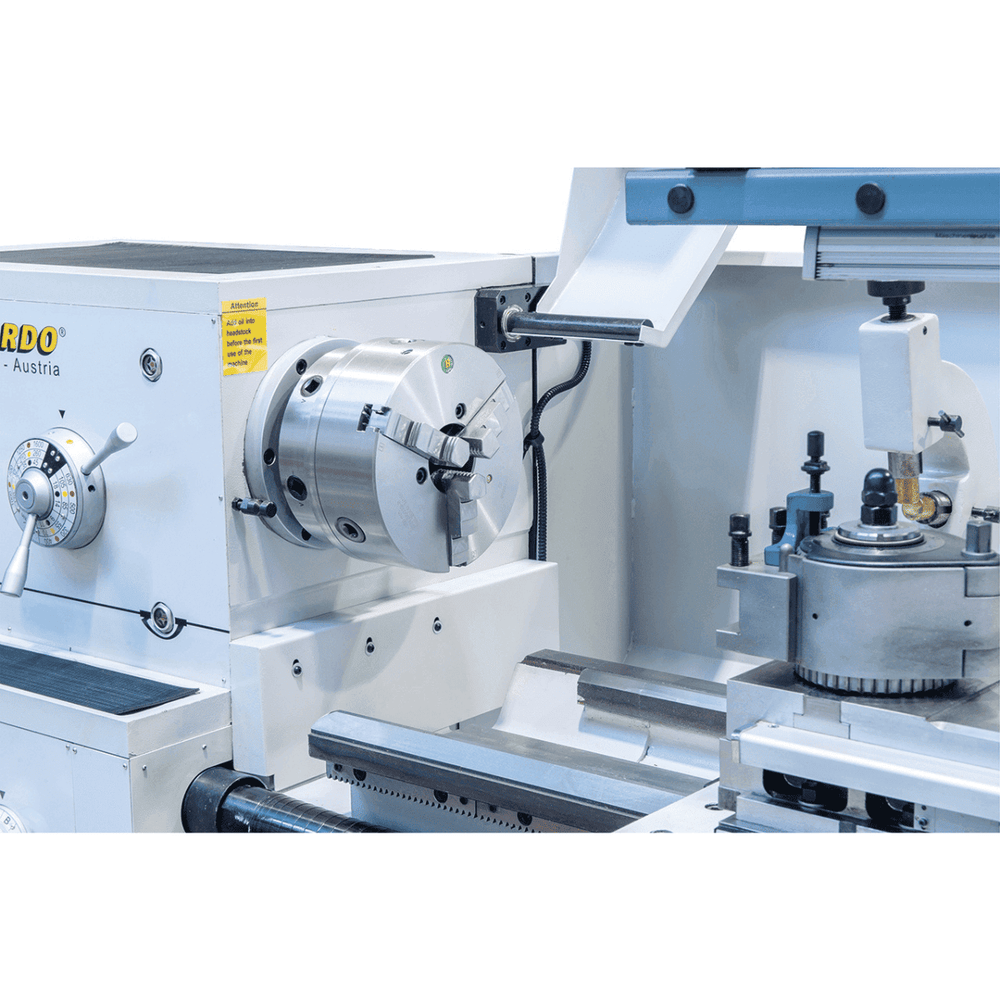

  • PS3-250 mm 3-jaw self-centering chuck / D8 connection

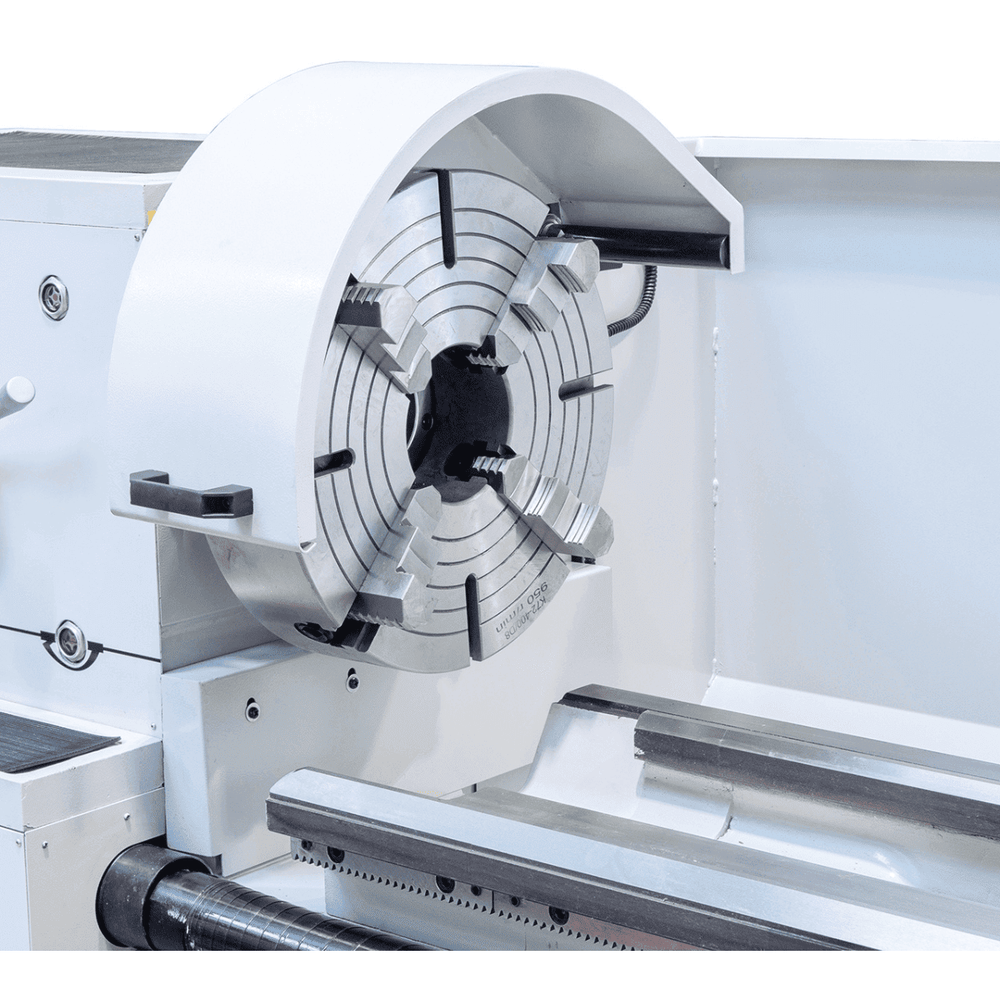

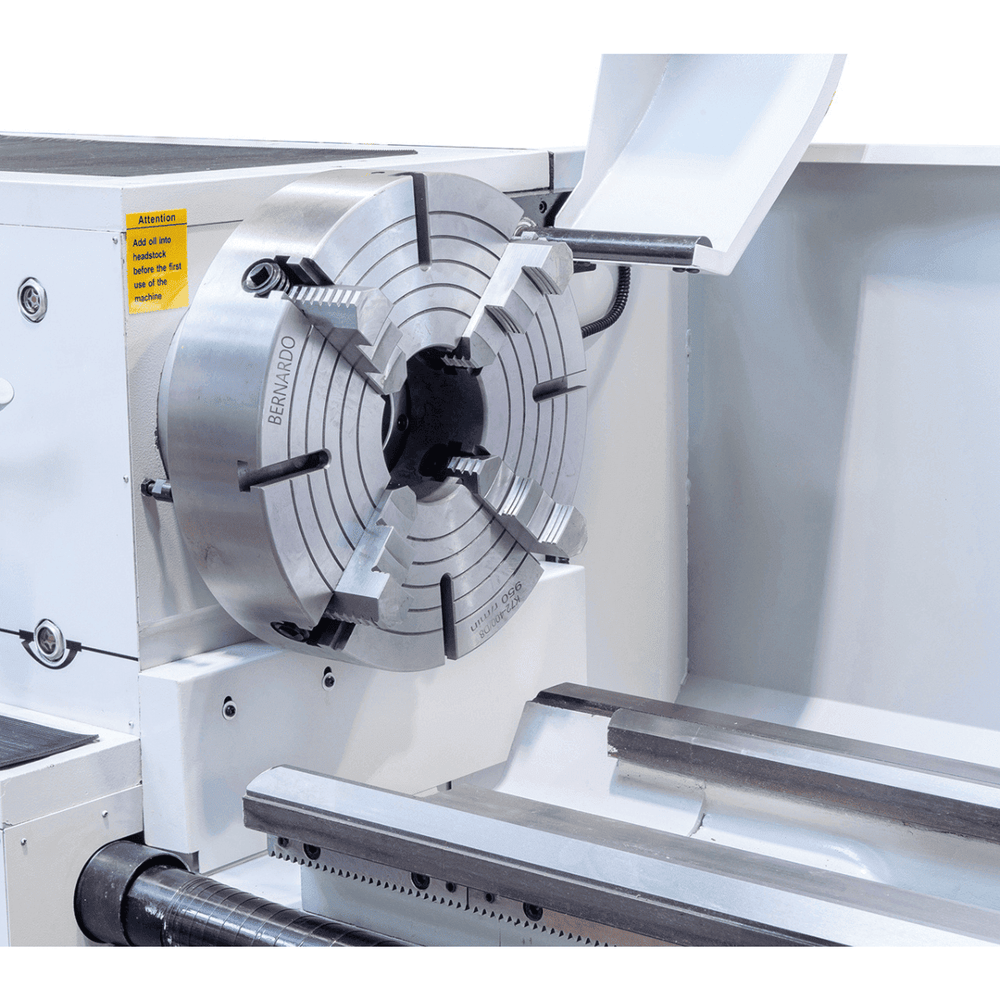

  • Front plate Ø 400 mm

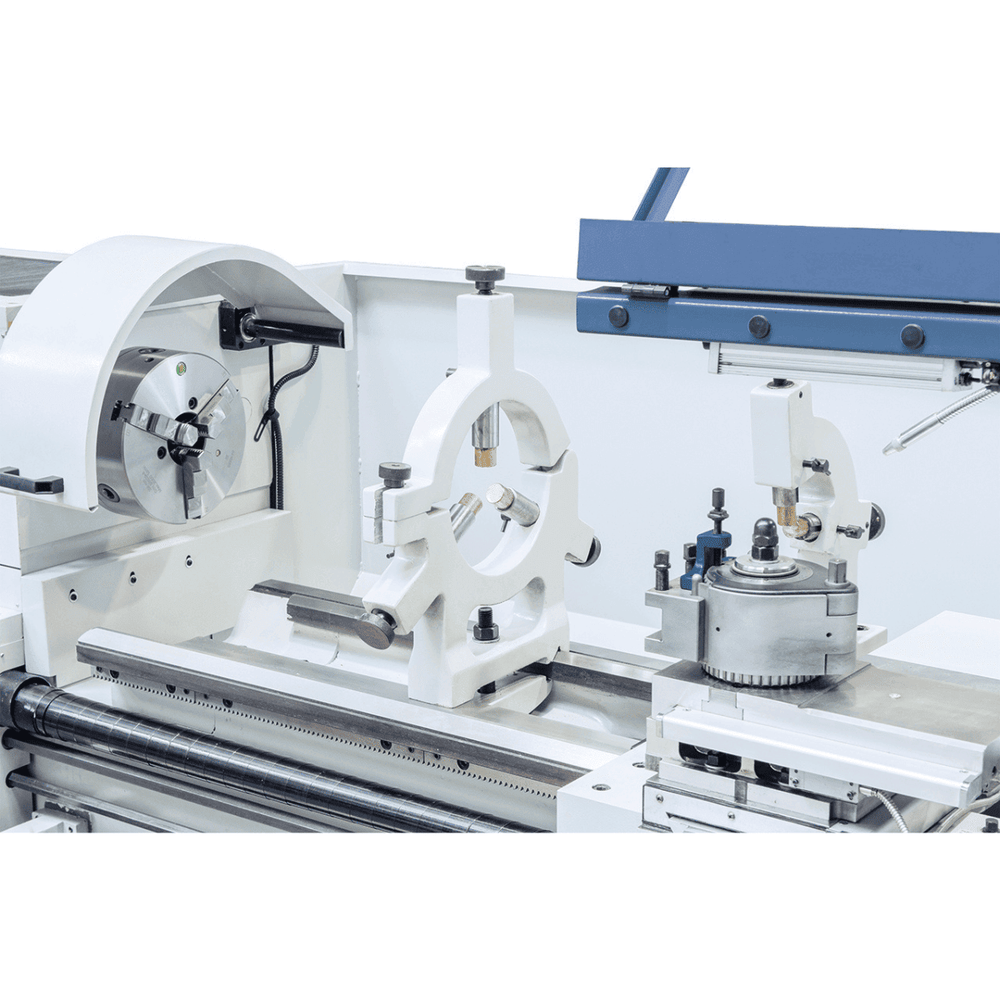

  • Fixed bezel (max passage 200 mm)

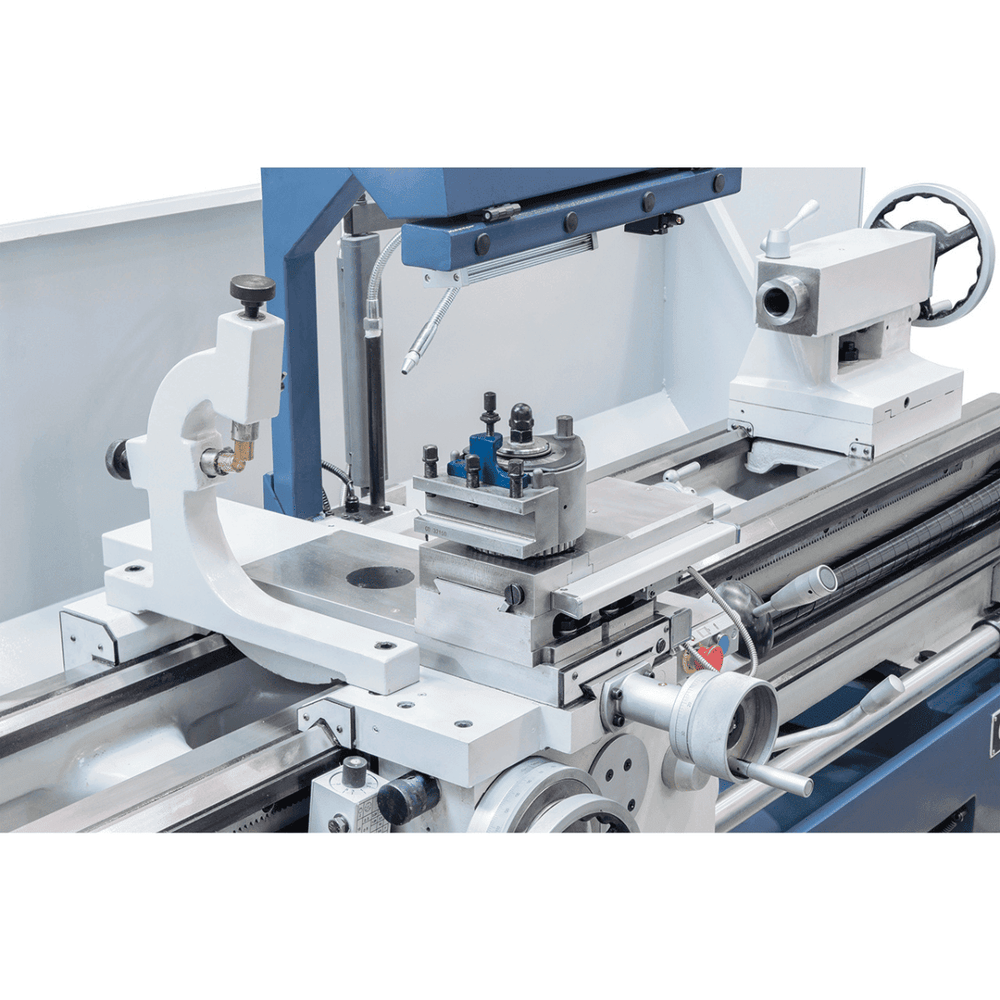

  • Movable bezel (max passage 110 mm)
  • 1 fixed tailstock + 1 rotating tailstock
  • Tailstock with adjustable scale

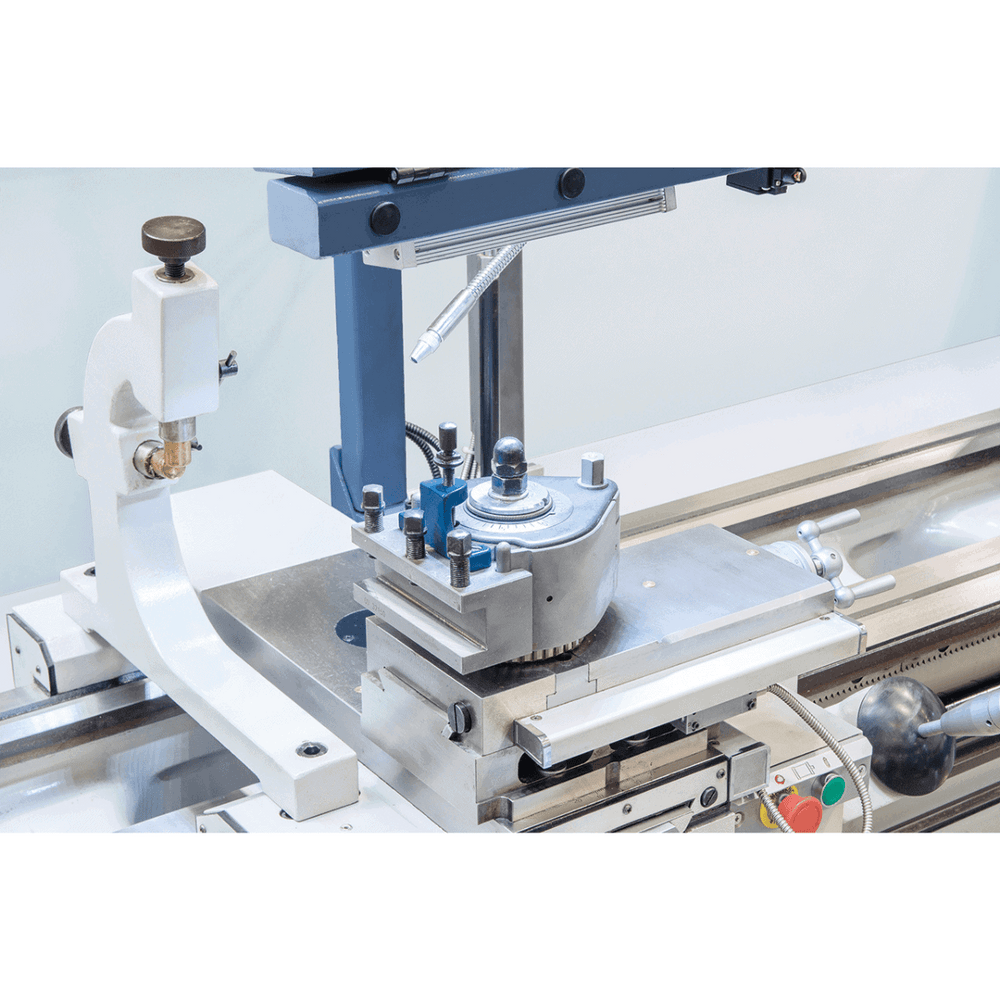

  • 40-Position Turret Tool Holder Set with 4 Inserts

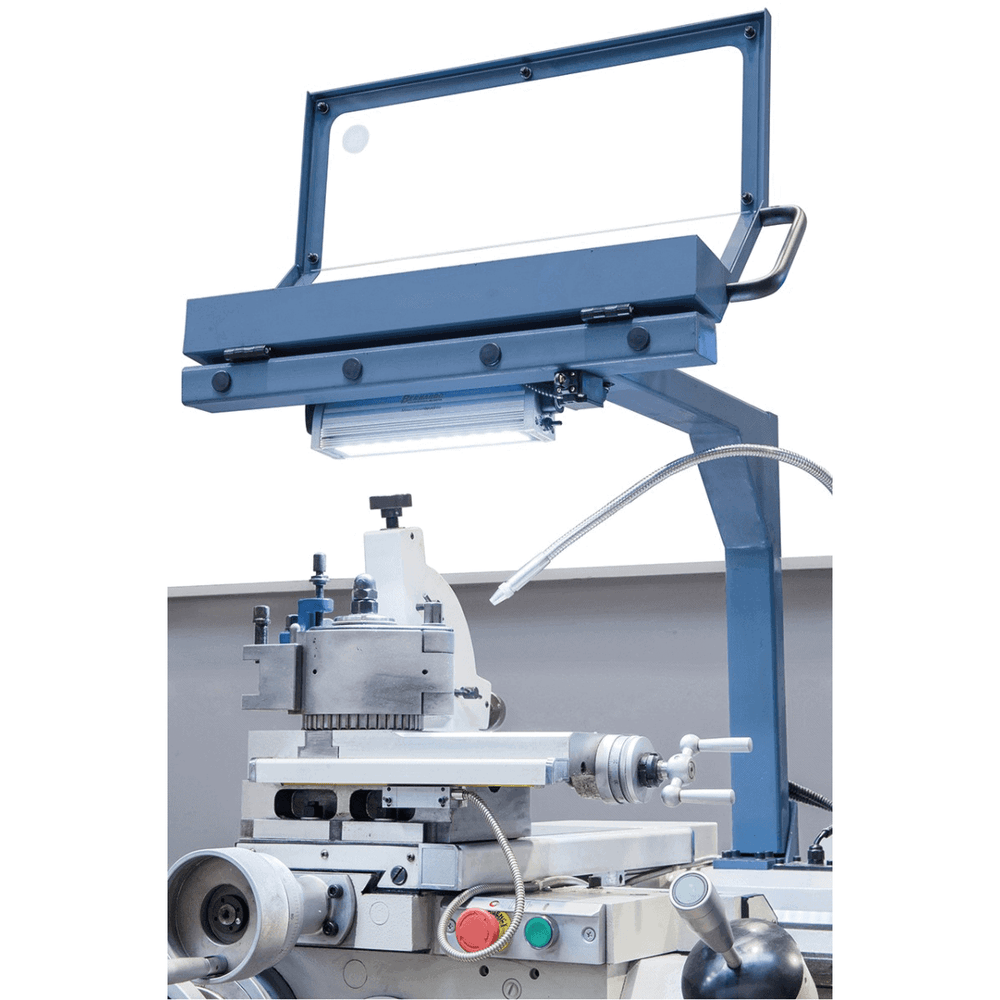

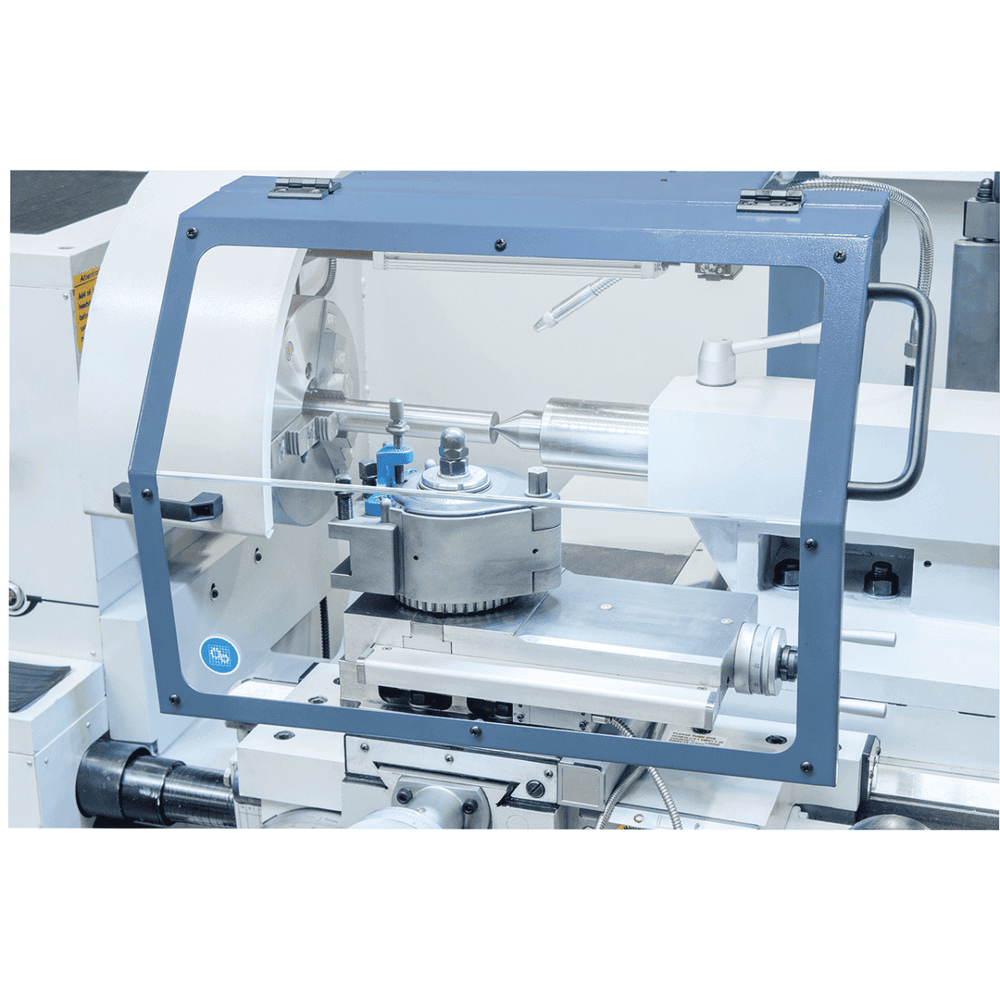

  • Protective device on tool holders
  • Morse taper sleeve
  • LED car light
  • Pedal with CE compliant brake function
  • Motor with CE compliant magnetic brake
  • Lubricating-cooling device
  • Initial fill with Shell Tellus 46 oil
  • Splash guard fairing
  • Maintenance tools
  • Safety clutch
  • Rapid longitudinal and transverse advances
