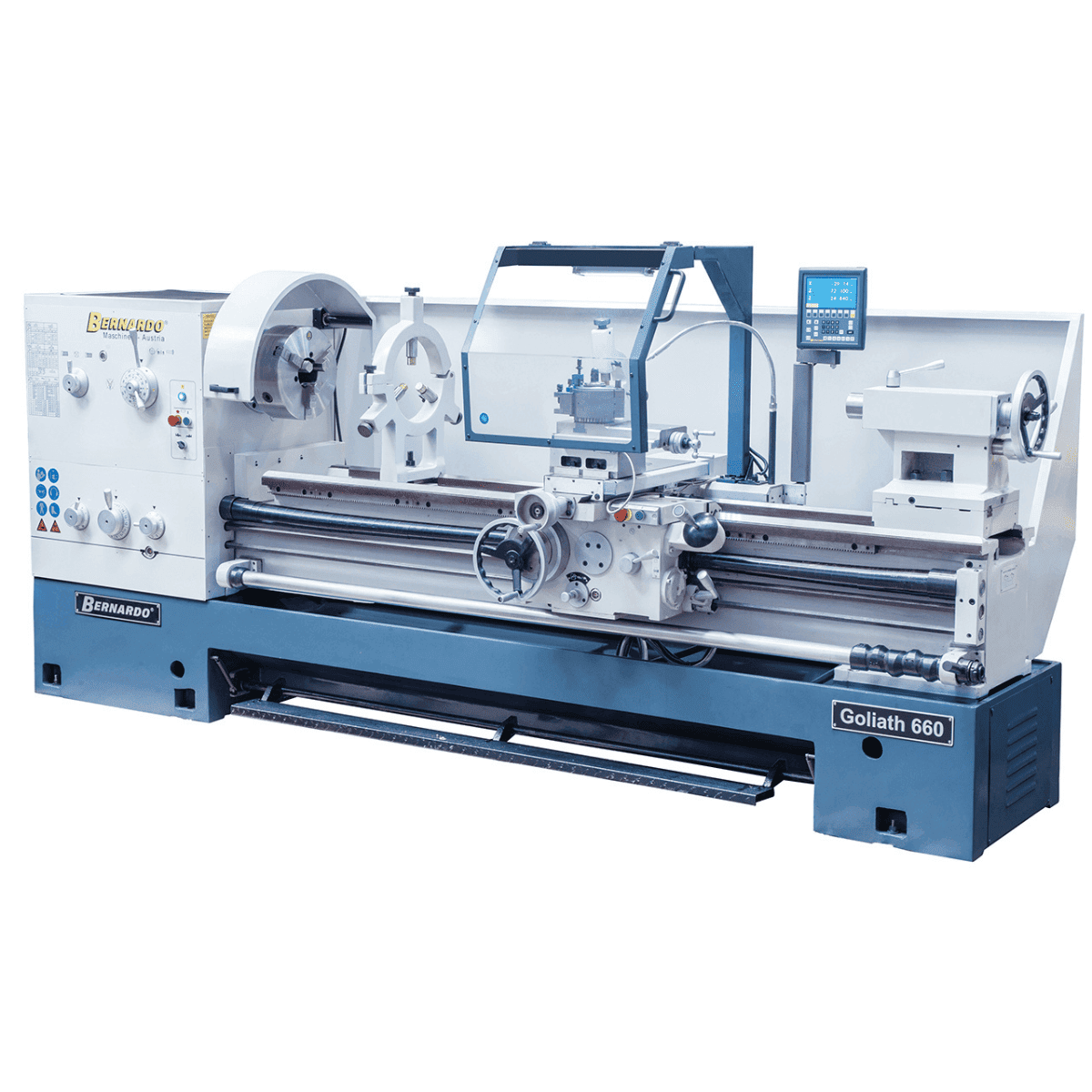

Goliath 660 x 2000 Universal Lathe with Digital Display

The Goliath 660 production lathe is a modern, state-of-the-art machine. Even the basic equipment includes all the essential accessories (three-jaw chuck, footrest, gear change, three-axis digital display, quick-change tool holders, etc.), making this machine universally applicable.

Characteristics

• Versatile application possibilities in general mechanical engineering, manufacturing, single-part production, ...
• The machine base, cast in a single piece, is extremely resistant to torsion and vibration, an essential requirement for precise turning.
• Modern main spindle bearings with precision-engineered angular contact ball bearings
• Central and practical control for feeds and threads, with guide and pull spindle
• Rapid longitudinal and flat translation as standard to reduce non-productive times
• The gears are large, hardened and precision ground
• The removable bridge allows the machining of large diameter workpieces
• Adjustable tailstock for conical turning, handwheel with adjustable fine scale (0.02 mm)
• Electromechanical foot brake to reduce non-productive time
• Optimal cutting performance even when planing

Included in the delivery

• Slip clutch
• Rapid longitudinal and plane translation
• LED car light
• ES-12V 3-axis digital display with LCD display
• 3-jaw chuck PS3-315 mm / D8
• Clamping disc 630 mm
• Fixed position - max. passage diameter 250 mm
• Fixed mobile station - max. passage diameter 110 mm
• 1 center point / 1 moving center point
• Motor with CE compliant magnetic brake
• Pedal with CE-compliant brake function
• Initial fill with Shell Tellus 46
• Cooling device
• Quick-change tool holder with 4 inserts
• Safety device for quick-change tool holders
• Reduction sleeve
• Chipping back plate
• Operating tool

Technical features

• Center width 2000 mm
• Center height 330 mm
• Tipping plane 660 mm
• Crank throw* 870 mm
• Cross slide tilt 420 mm
• Bed width 400 mm
• Spindle bore 105 mm
• Mounting of the DIN 55029, D1-8 spindle
• Speed range (16) 36 - 1600 rpm
• Longitudinal feed range (65) 0.063 - 2.52 mm/rev.
• Front feed range (65) 0.027 - 1.07 mm/rev
• Metric threads (22) 1 - 14 mm
• Inch threads (26) 2 - 28 Gg/1"
• Pinhole diameter 75 mm
• 150mm steerer tube travel
• MK 5 Spindle Bushing Holder
• Engine power 9.0 kW (12.0 hp)
• Machine dimensions (W x D x H) 3500 x 1280 x 1650 mm
• Weight approximately 3750 kg
• * Removable bed length: 240 mm
