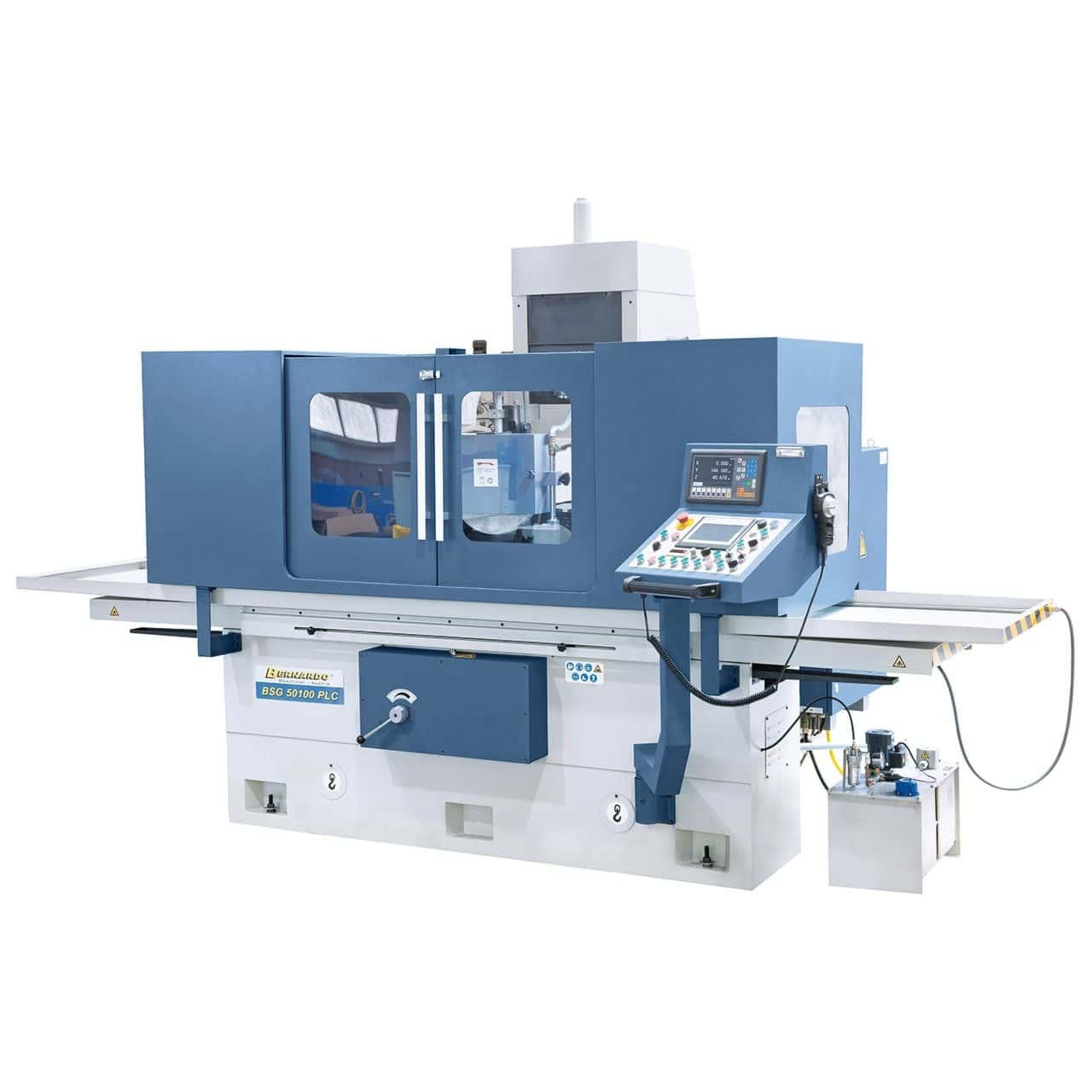

BSG 50100 PLC Flat Grinder
BSG 50100 PLC Flat Grinder is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
BSG 50100 PLC Flat Grinder
Unit price
/
Unavailable
-
Description
-
Technical Specifications
-
Product safety
-
Reviews
Description
This model is suitable for processing workpieces weighing up to 700 kg and a grinding surface of up to 1150 x 560 mm. Thanks to its extensive standard features, including computer-controlled vertical feed, a parallel extractor with micrometric adjustment, a magnetic plate with demagnetization device, and a 2-axis digital display, this model offers customers an optimal service package.
Property
- Hardened and longitudinally and transversely ground bench guide belts; counter guides with Turcite B coating for high wear resistance and low friction
- The longitudinal or transverse movement takes place via a flat V-shaped guide
- Computer-controlled rapid approach to the workpiece height, adjustable reconciliation stroke and spark suppression; automatic lifting to the starting position after the end of the program
- Special preloaded bearings without axial and radial play in the grinding spindle
- The annealed and tension-free machine base body ensures high precision
- High stability thanks to strong ribs and large walls
- Adjustable longitudinal and transverse table movement by limit switches
- The sophisticated hydraulic system guarantees smooth turning of the table even with high loads of the same
- PLC control unit for programming simple grinding cycles via touchscreen included
Standard accessories
- ES-12 H 2-axis position display with LCD display
- Siemens SMART IE V3 panel with touch control
- Electronic knob
- Grinding wheel boring
- Disc flange
- LED work light
- Magnetic clamping plate
- Balancing support
- Balance shaft
- Protective covers
- Parallel grinding device
- Degaussing device
- Refrigeration system
- Diamond extractor
- Machine feet
- Central lubrication
- Hydraulic oil cooling
- Control device
technical specifications
| Table clamping surface | 500 x 1100 mm |
| Number of T-slots / width | 3 / 18 mm |
| Electronic magnetic clamping plate | 500 x 1000 mm |
| Maximum travel, longitudinal | 1150 mm |
| Maximum travel, transverse | 560 mm |
| Distance spindle center / table max. | 600 mm |
| Max. piece weight * | 700 kg |
| Grinding wheel boring | 350 x 50 x 127 mm |
| Table speed, hydraulic | 5 - 25 m/min |
| Transverse adjustment | |
| Automatic, transversal approach | 0.5 - 30 mm/stroke |
| Rapid, transversal run | 0 - 600 mm/min |
| Vertical approach | |
| Automatic vertical approach | 0.005 / 0.01 / 0.015 / |
| 0.02 / 0.03 / 0.04 mm | |
| Rapid, vertical run | 0 - 300 mm/min |
| Grinding spindle motor | 7.5 kW |
| Spindle speed | 1440 rpm |
| Hydraulic pump motor | 3.0 kW |
| Overall connection value | 13.2 kW |
| Length | 3880 mm |
| Depth | 2150 mm |
| Height | 2420 mm |
| Weight approx. | 5500 kg |
| * with magnetic clamping plate |
Technical Specifications
La macchina combina precisione, rigidità e facilità d’uso grazie al controllo Siemens PLC, tavola idraulica e DRO a 2 assi.
La piastra magnetica misura 500 x 1000 mm e consente di fissare pezzi fino a 700 kg per operazioni di rettifica precise.
Sì, tramite il controllo Siemens PLC è possibile programmare avanzamenti, sgrossature, rettifiche di finitura e ritorno automatico.
Con una corsa longitudinale di 1150 mm, trasversale di 560 mm e distanza mola-tavola di 600 mm, è adatta a pezzi fino a 700 kg.
La macchina viene fornita con accessori completi: DRO a 2 assi, piastra magnetica, mola, sistema di refrigerazione, smagnetizzatore e utensili.
