Bernardo | SKU:
05-1452XL

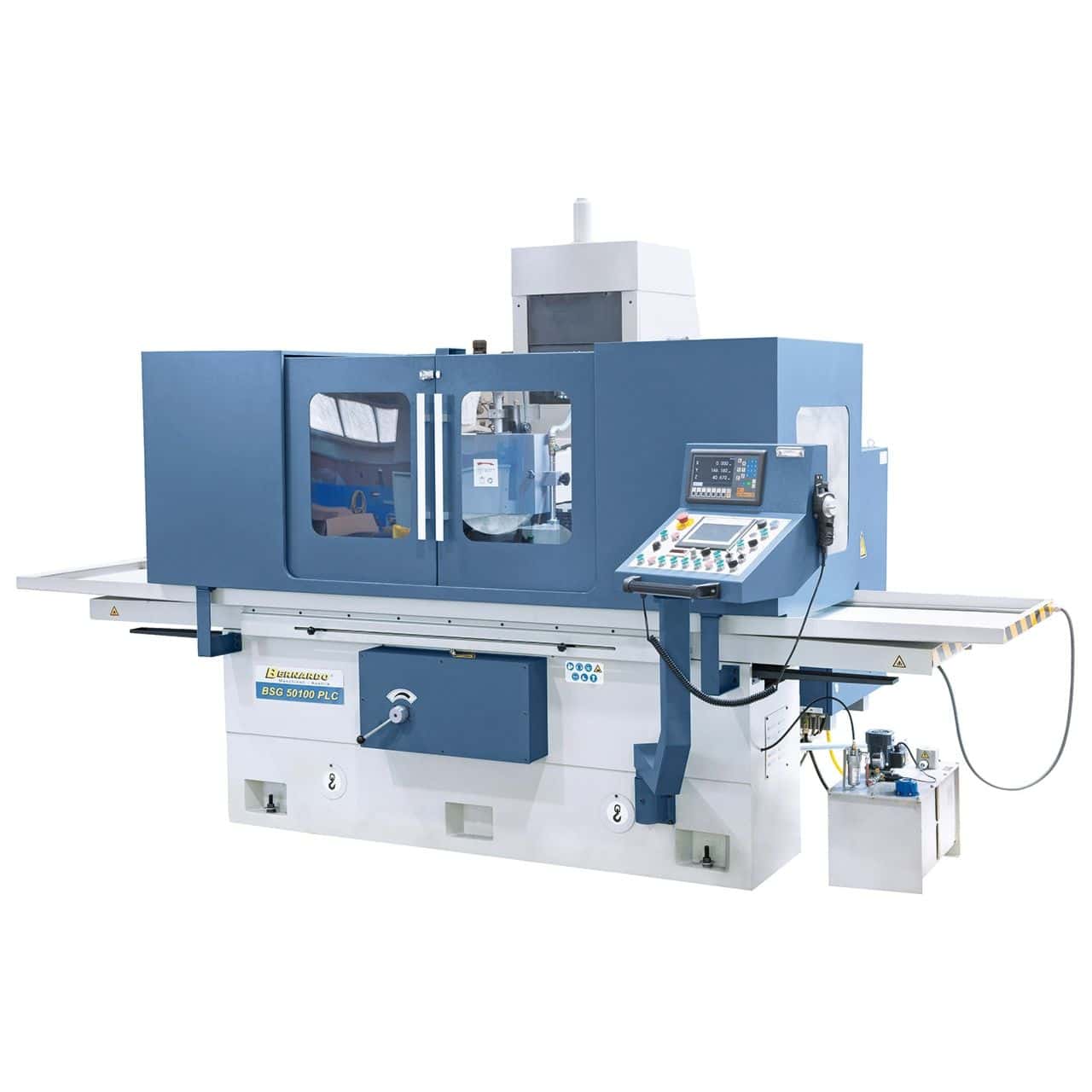

BSG 50160 PLC Flat Grinder
BSG 50160 PLC Flat Grinder is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
BSG 50160 PLC Flat Grinder
Unit price
/
Unavailable
-
Description
-
Technical Specifications
-
Product safety
-
Reviews
Description
This model is suitable for processing workpieces weighing up to 900 kg and a grinding surface of up to 1700 x 560 mm. Thanks to its extensive standard features, including computer-controlled vertical feed, a parallel extractor with micrometric adjustment, a magnetic plate with demagnetization device, and a 2-axis digital display, this model offers customers an optimal service package.
Property
- Hardened and longitudinally and transversely ground bench guide belts; counter guides with Turcite B coating for high wear resistance and low friction
- The longitudinal or transverse movement takes place via a flat V-shaped guide
- Computer-controlled rapid approach to the workpiece height, adjustable reconciliation stroke and spark suppression; automatic lifting to the starting position after the end of the program
- Special preloaded bearings without axial and radial play in the grinding spindle
- The annealed and tension-free machine base body ensures high precision
- High stability thanks to strong ribs and large walls
- Adjustable longitudinal and transverse table movement by limit switches
- The sophisticated hydraulic system guarantees smooth turning of the table even with high loads of the same
- PLC control unit for programming simple grinding cycles via touchscreen included
Standard accessories
- ES-12 H 2-axis position display with LCD display
- Siemens SMART IE V3 panel with touch control
- Electronic knob
- Grinding wheel boring
- Disc flange
- LED work light
- Magnetic clamping plate
- Balancing support
- Balance shaft
- Protective covers
- Parallel grinding device
- Degaussing device
- Refrigeration system
- Diamond extractor
- Machine feet
- Central lubrication
- Hydraulic oil cooling
- Control device
technical specifications
| Table clamping surface | 500 x 1600 mm |
| Number of T-slots / width | 3 / 18 mm |
| Electronic magnetic clamping plate | 500 x 800 mm (2 pieces) |
| Maximum travel, longitudinal | 1700 mm |
| Maximum travel, transverse | 560 mm |
| Distance spindle center / table max. | 600 mm |
| Max. piece weight * | 900 kg |
| Grinding wheel boring | 350 x 50 x 127 mm |
| Table speed, hydraulic | 5 - 25 mm/min |
| Transverse adjustment | |
| Automatic, transversal approach | 0.5 - 30 mm/stroke |
| Rapid, transversal run | 50 - 600 m/min |
| Vertical approach | |
| Automatic vertical approach | 0.005 / 0.01 / 0.015 / |
| 0.02 / 0.03 / 0.04 mm | |
| Rapid, vertical run | 50 - 500 mm/min |
| Grinding spindle motor | 7.5 kW |
| Spindle speed | 1450 rpm |
| Hydraulic pump motor | 3.0 kW |
| Overall connection value | 13.2 kW |
| Length | 5640 mm |
| Depth | 2250 mm |
| Height | 2500 mm |
| Weight approx. | 6000 kg |
| * with magnetic clamping plate |
Technical Specifications
La smerigliatrice offre alta rigidità, tavola idraulica fluida, controllo Siemens PLC per cicli automatizzati e capacità di lavoro fino a 900 kg.
La smerigliatrice è equipaggiata con due piastre magnetiche da 500 x 800 mm ciascuna, che permettono di bloccare pezzi fino a 900 kg.
Con il PLC Siemens puoi programmare avanzamento rapido, sgrossatura, finitura e ritorno automatico alla posizione iniziale della smerigliatura.
La macchina consente una corsa longitudinale di 1700 mm, una trasversale di 560 mm e una distanza mola-tavola fino a 600 mm.
La smerigliatrice viene consegnata su pallet protetto con tutti gli accessori inclusi: piastre magnetiche, DRO, mola, sistema di raffreddamento, utensili e smagnetizzatore.
