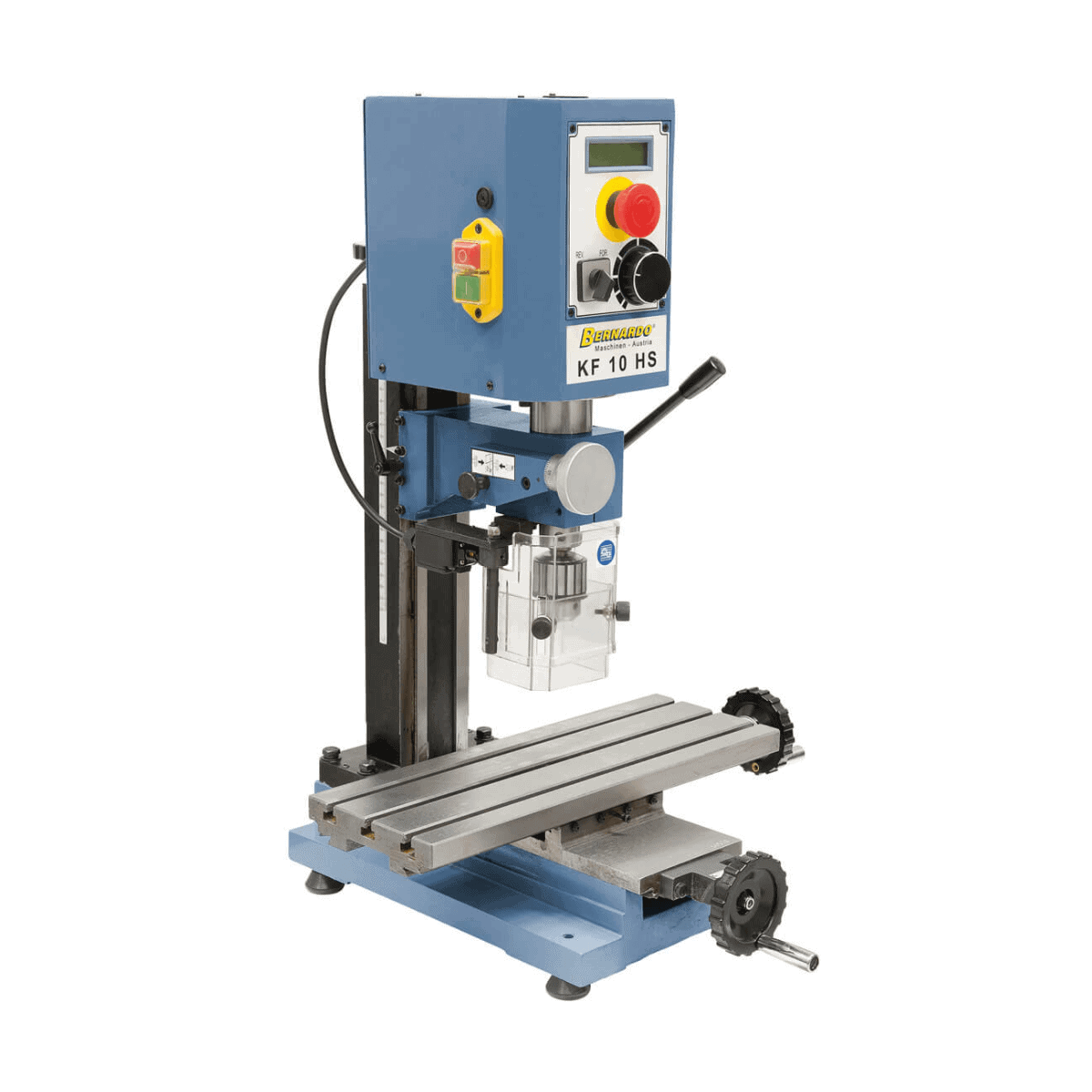

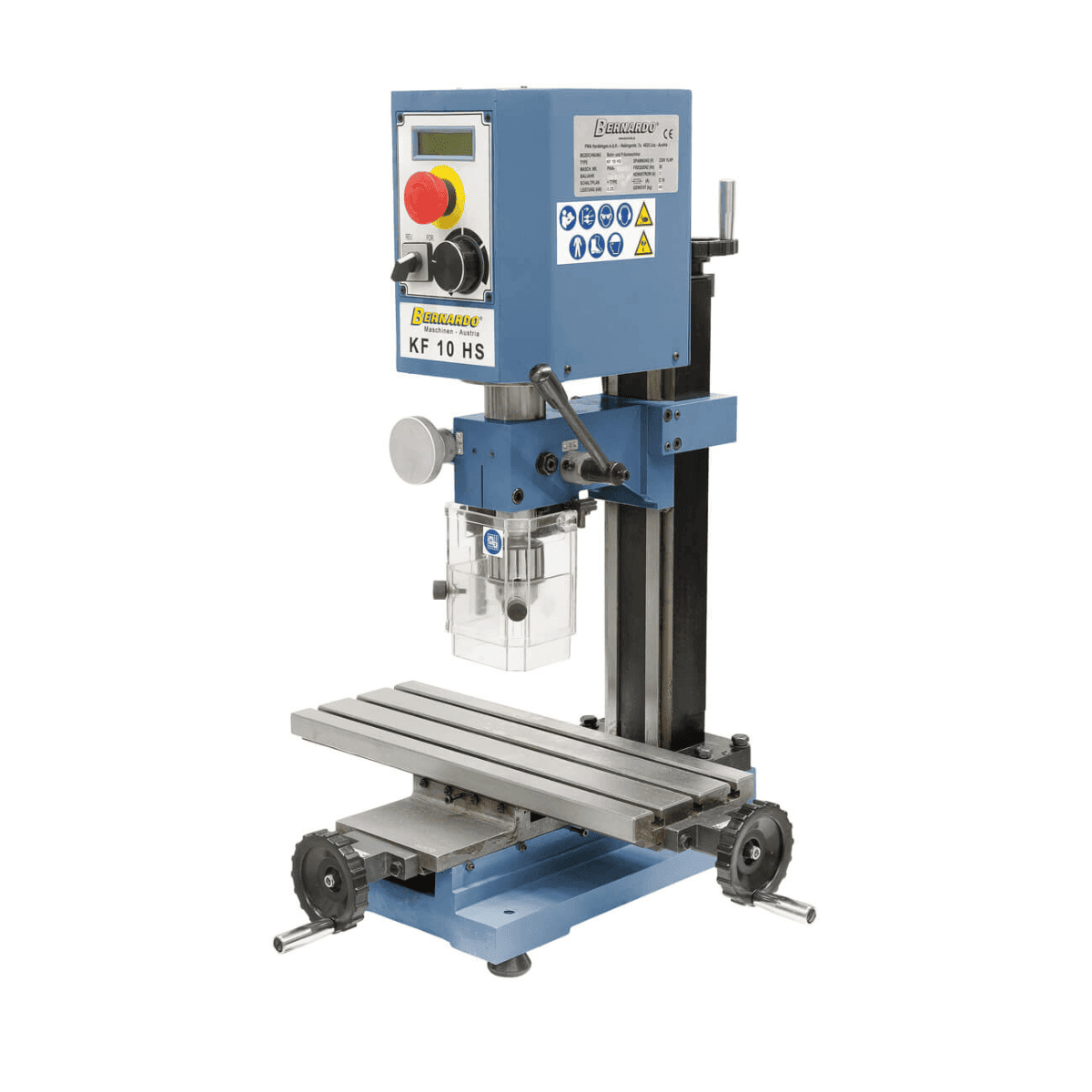

Product Description: KF 10 HS Drill and Milling Machine
The KF 10 HS drill and milling machine represents a versatile and affordable solution for model makers, beginners, and hobbyists. Designed for precision and reliability, this model features a brushless DC motor, ensuring quiet operation and smooth spindle drive. Thanks to its excellent price-performance ratio, the KF 10 HS is the ideal choice for those seeking a high-quality tool without compromise.
Property
- Versatile Use: The KF 10 HS is suitable for a wide range of applications, including face milling, grooving and slot milling, making it an indispensable tool in any laboratory.

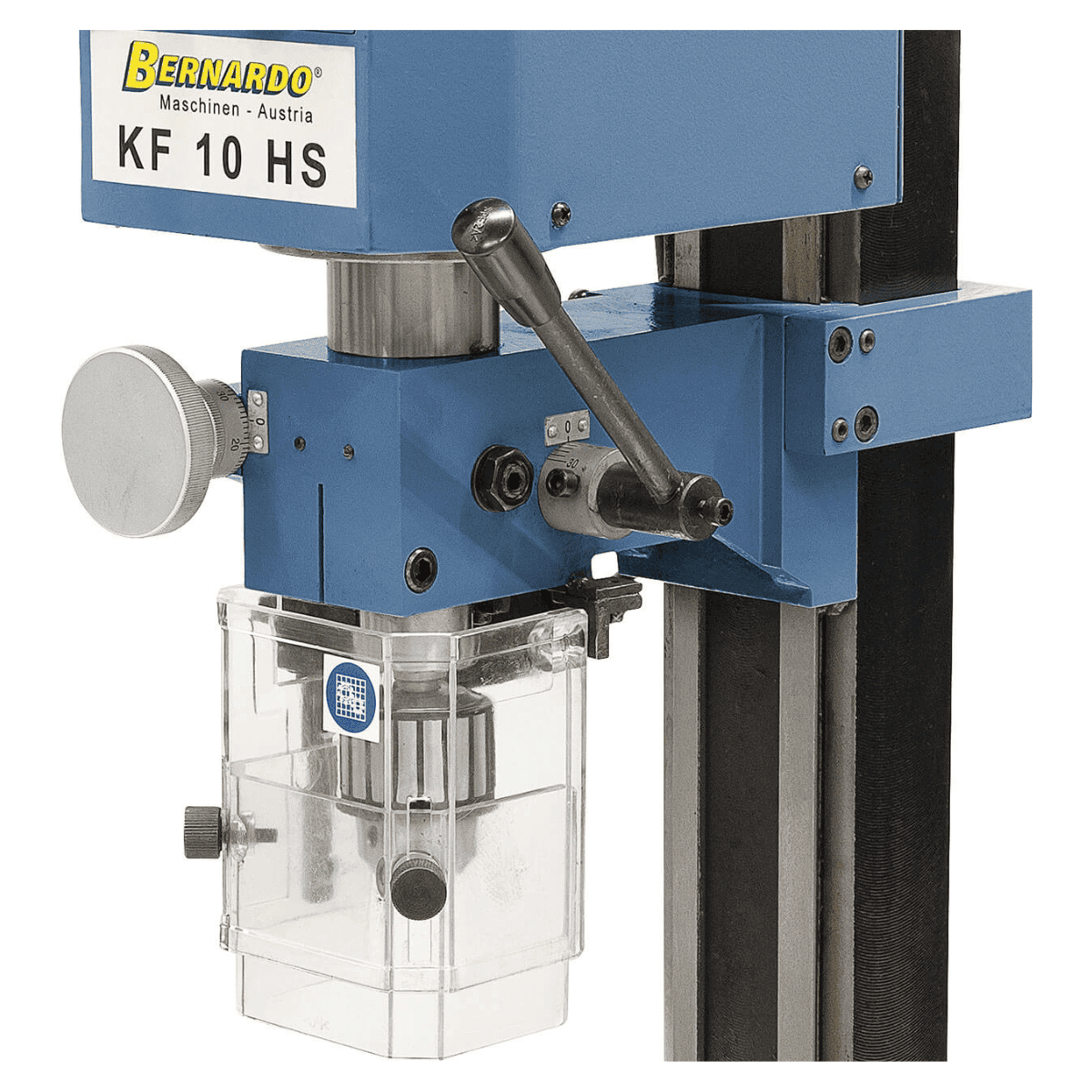

- Precision Feed: The milling spindle is equipped with a handwheel with scale for precise feed, ensuring accurate working results.
- Clockwise and Counterclockwise Spindle Rotation: The device allows you to change the direction of rotation of the spindle, expanding the possibilities of use and improving operational flexibility.

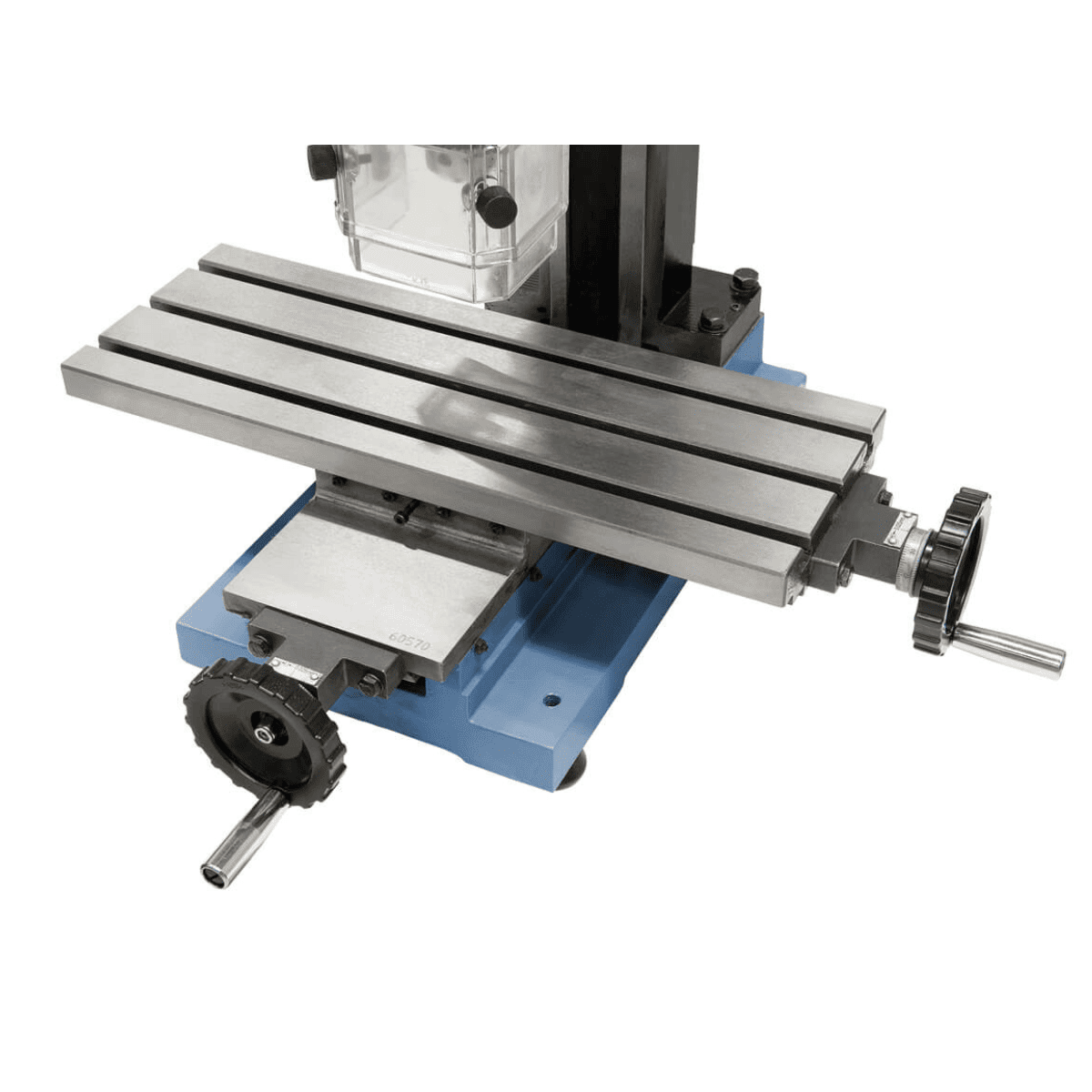

- Dovetail Guide: The dovetail guide on all axes, adjustable by means of gibs, ensures smooth and play-free movement, increasing the precision of the machining.
- High Concentricity: Thanks to precision bearings, the spindle offers high concentricity, minimizing vibrations and ensuring superior machining quality.
- Wide Speed Range: With a speed range from 100 to 5000 rpm, you can easily adjust the rotation speed to the specific needs of the workpiece.
- Sturdy Structure: The cast iron machine base provides a stable, vibration-free base, essential for achieving precise work results.
- Accessories Included: The KF 10 HS comes with a range of standard accessories, including chucks, digital speed indicator and protective cover, for a complete and safe operating experience.
Standard Accessories
- Pergola Mandrel MK 2 / B 12
- M 10 Clamping Chuck

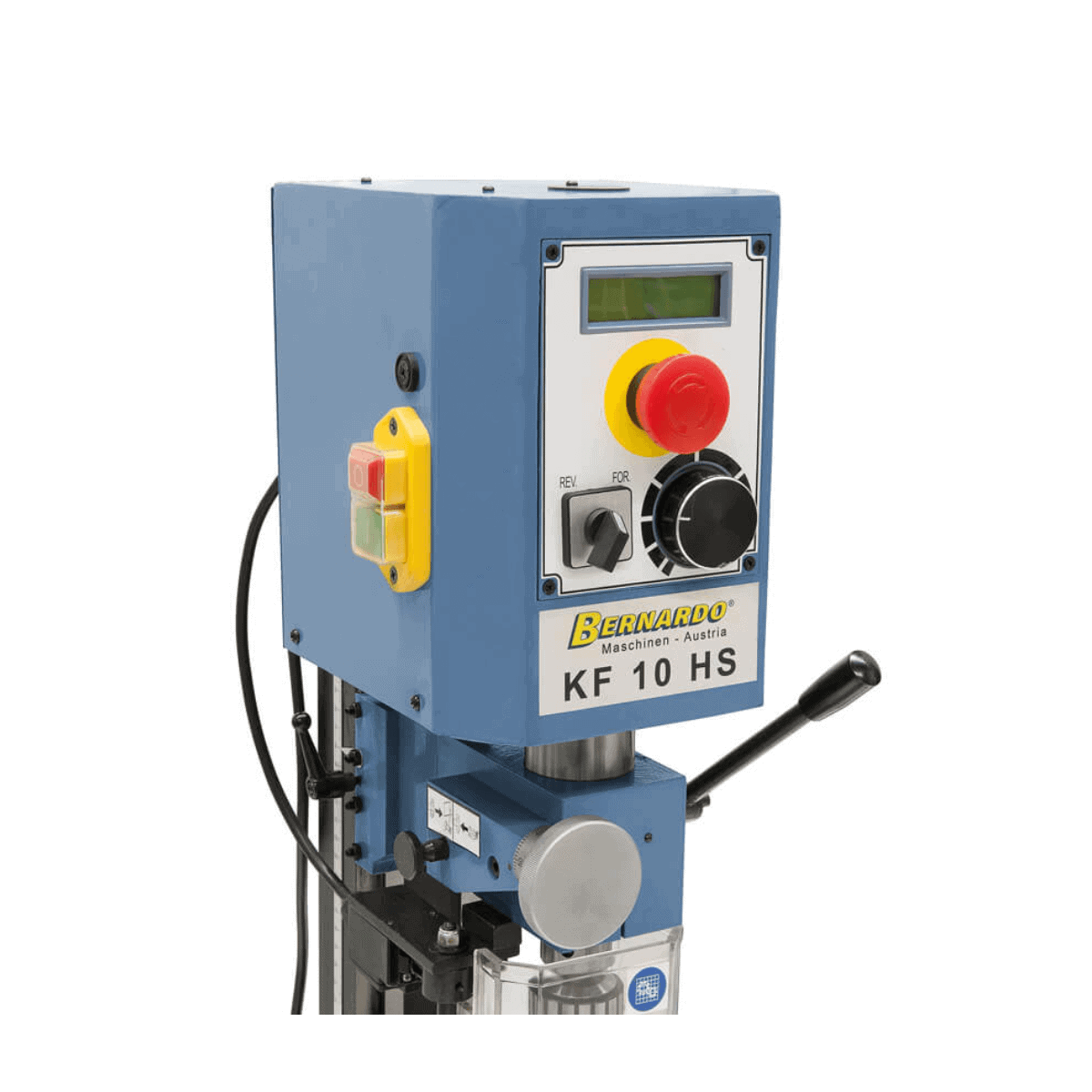

- Digital Speed Indicator
- Drill Chuck with Rack 1 – 10 mm / B 12
- Height-Adjustable Protective Cover
- 4 M6 T-Sliding Dowels
- Control Device
Technical Specifications
| Characteristic | Specifications |
|---|---|
| Steel Drilling Power | 10 mm |
| Max. Front Milling Cutter | 20 mm |
| Milling Cutter Kit with Max Shank. | 10 mm |
| Arm Length | 140 mm |
| Spindle/Table Distance | 90 – 260 mm |
| Race Hole | 30 mm |
| Number of Continuous Spindle Revolutions | 100 – 5000 rpm |
| Spindle Attachment | MK 2 |
| Table Dimensions | 400 x 145 mm |
| Run (x / y) | 330 / 170 mm |

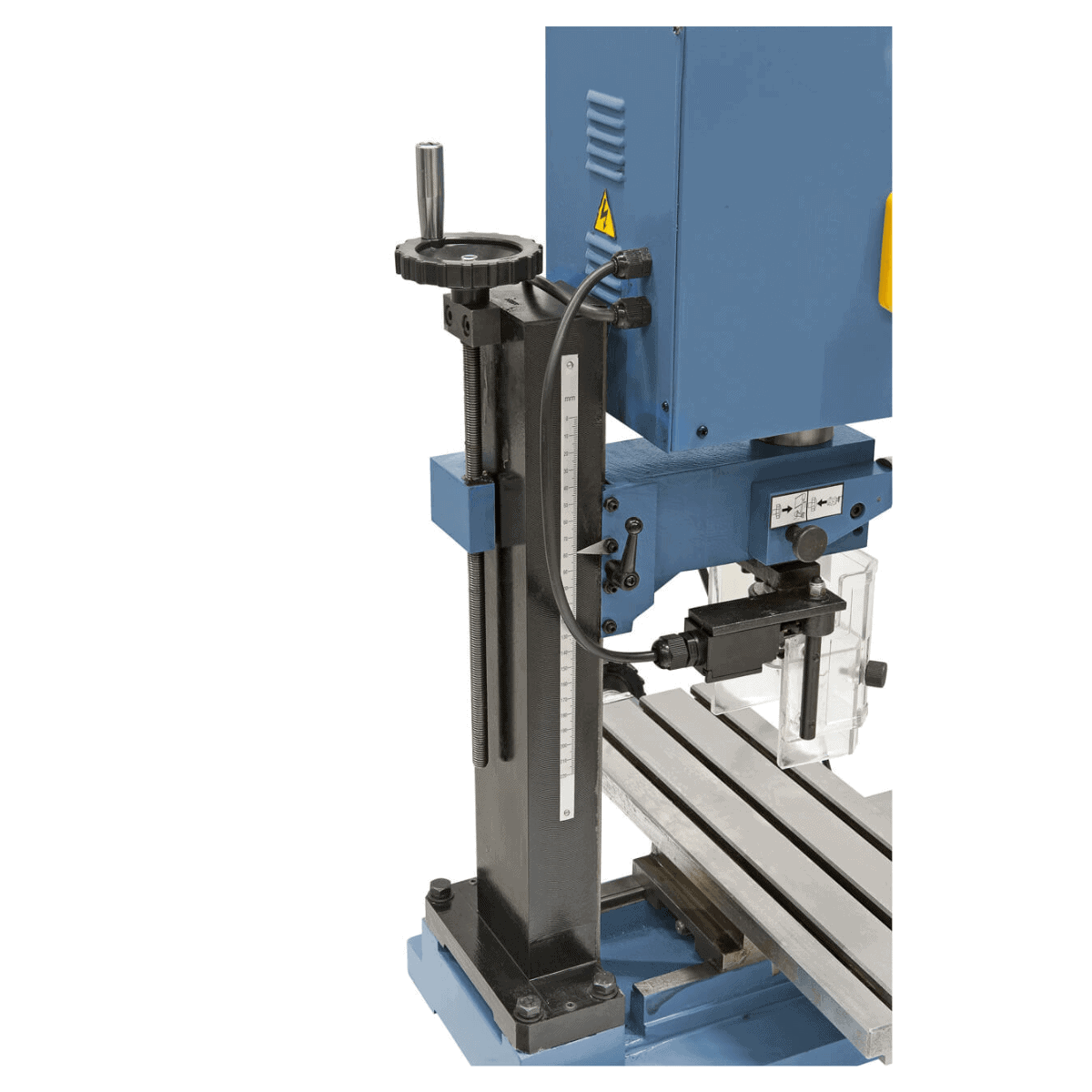

| Milling Head Height Setting | 170 mm |
| T-Slot Size | 8 mm |
| Motor Input Power S1 100% | 0.25 kW |
| S6 Motor Output Power 40% | 0.35 kW |
| Voltage | 230 V |
| Machine Dimensions (L x W x H) | 520 x 480 x 750 mm |
| Weight approx. | 50 kg |
The KF 10 HS is a compact and versatile drill and milling machine, designed for precision and reliability in every operation. Ideal for model makers and apprentices, this tool combines a powerful motor, robust construction, and a wide range of features, making it a valuable addition to any workshop or laboratory.
