Bernardo  |  SKU: 02-1021

KF 16 L Vario Drill and Milling Machine

€1.525,00
pay up to 30 installments,

Delivery and Shipping

At Krolit, we are committed to providing a seamless and reliable shipping experience for our customers. Once you place your order, it is generally processed within 1-3 business days, excluding weekends and holidays. As soon as your order ships, you will receive a confirmation email with your tracking number and shipment details, so you can easily track your delivery.

We offer several shipping options, including standard, express, and overnight shipping, to meet your needs. Shipping costs and estimated delivery times are clearly displayed at checkout and vary based on your location and the shipping method selected. Please note that all delivery times are approximate and may be subject to delays due to factors such as weather conditions, high order volume, or courier issues.

Currently, Krolit [offers/does not offer] international shipping. If international shipping is available, please be aware that customs duties, taxes, or other additional fees may apply, which are the responsibility of the recipient. We recommend checking with your local customs office before placing an order.

To ensure timely delivery, please ensure the shipping address provided at checkout is correct and complete. Krolit is not responsible for delays or lost packages due to incorrect or incomplete address information. If your package appears to have been delivered but you haven't received it, we recommend contacting the courier first. If the problem persists, our customer support team is available to assist you.

If you have any questions or concerns regarding shipping or delivery, please do not hesitate to contact us at [your email address] or by phone at [your phone number].

At Krolit, we value your satisfaction and are committed to ensuring your order arrives safely and on time.

Secure payment guaranteed

Description

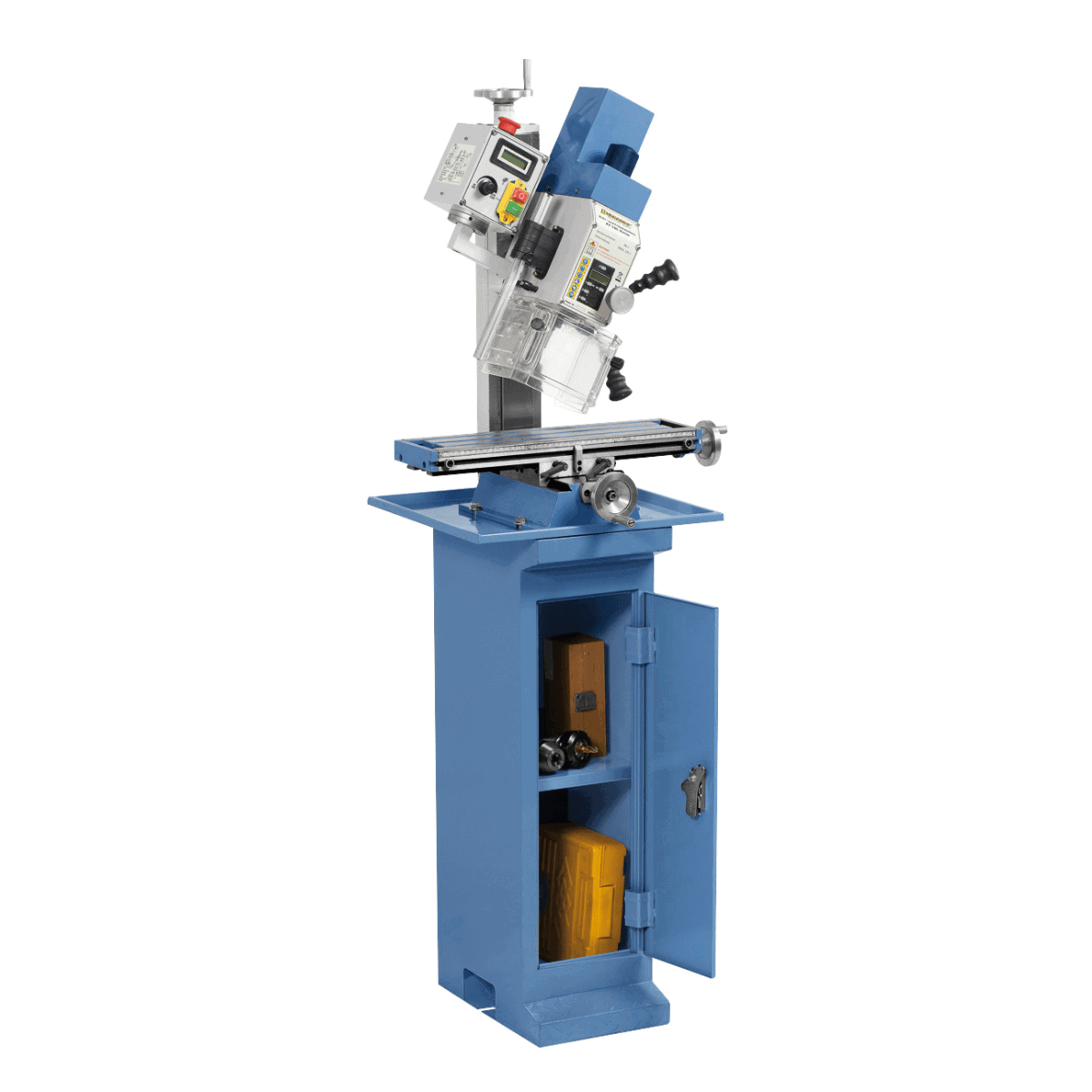

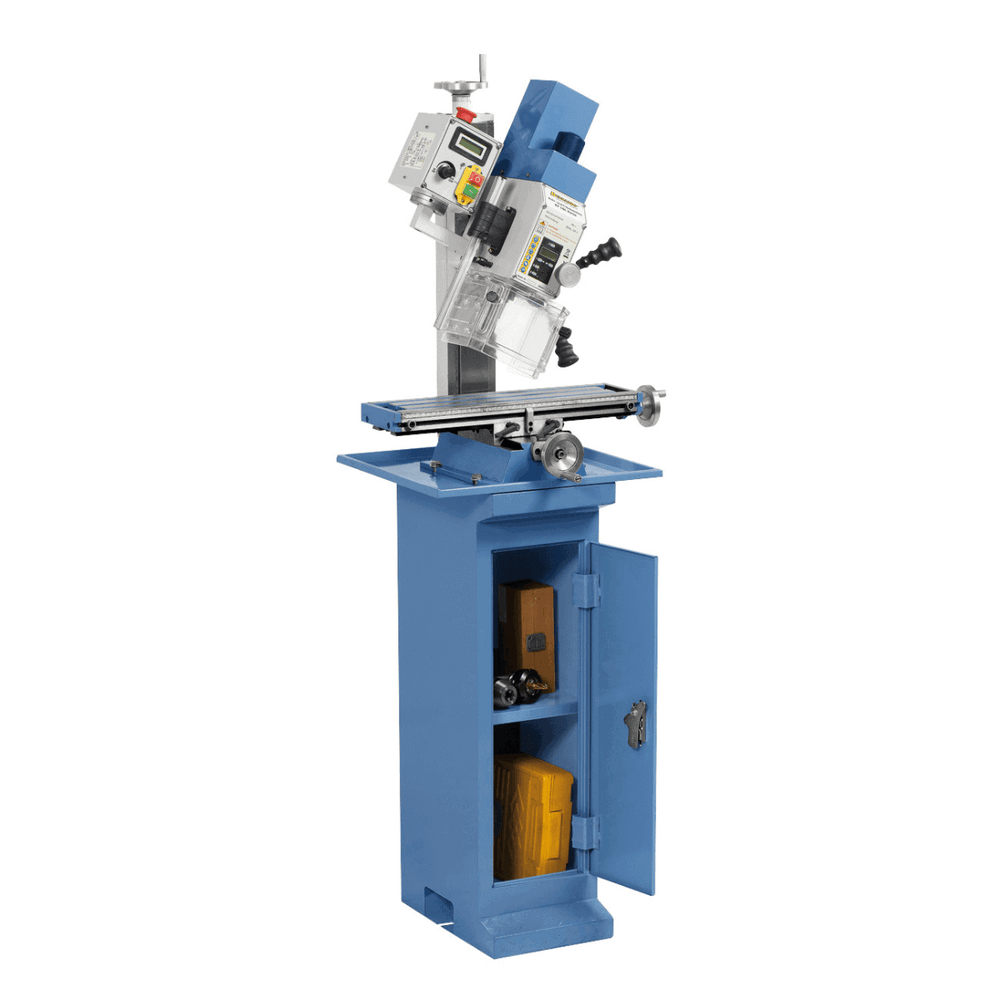

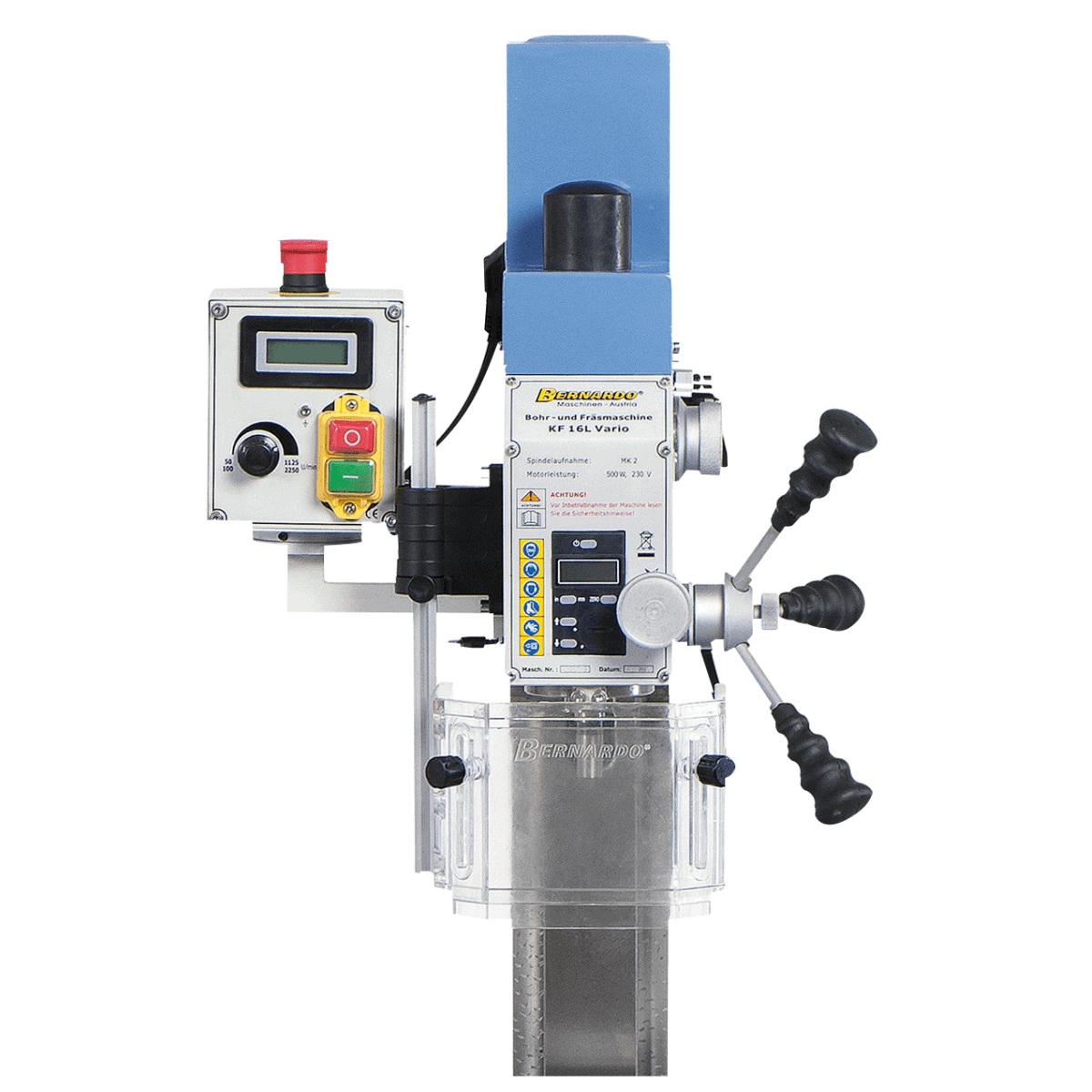

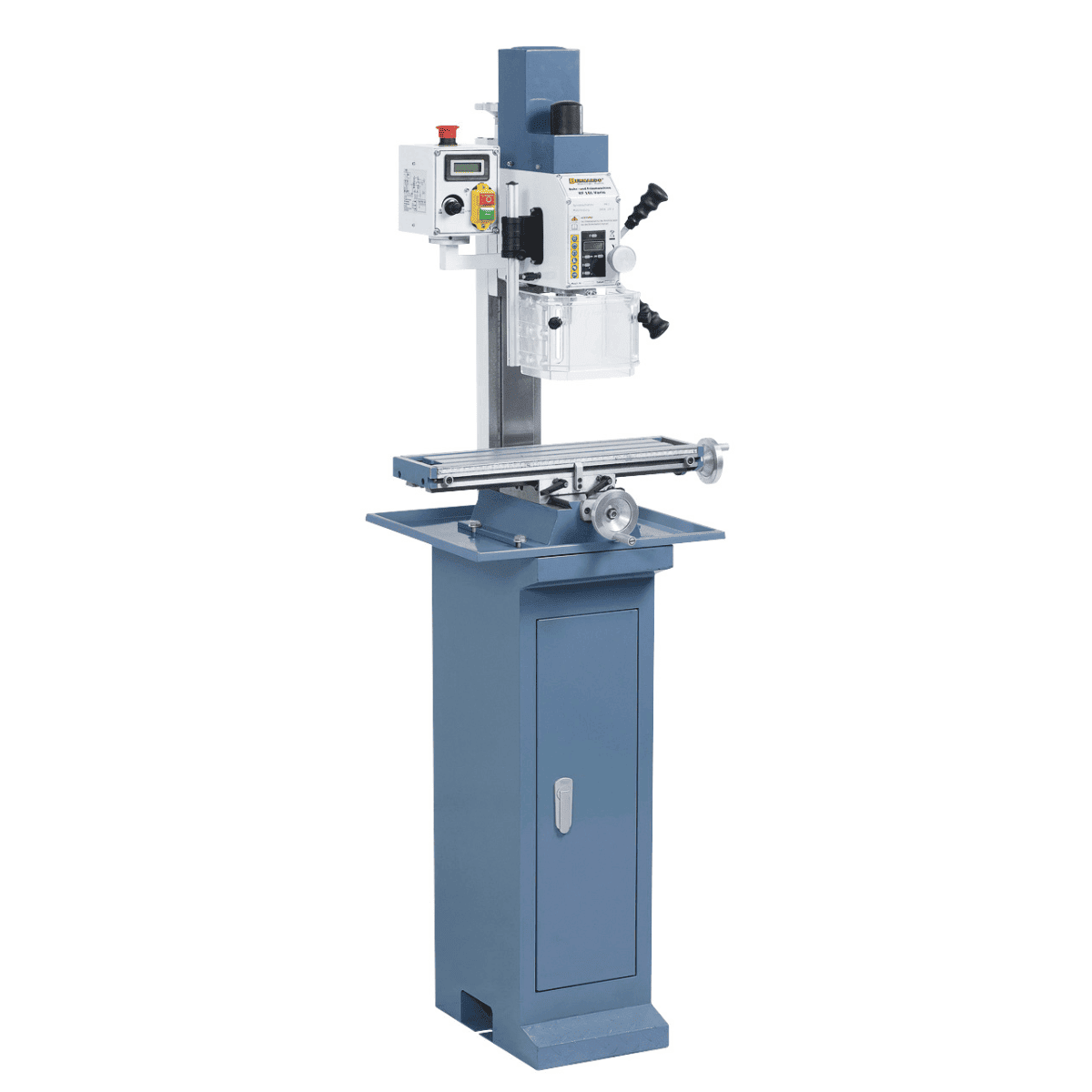

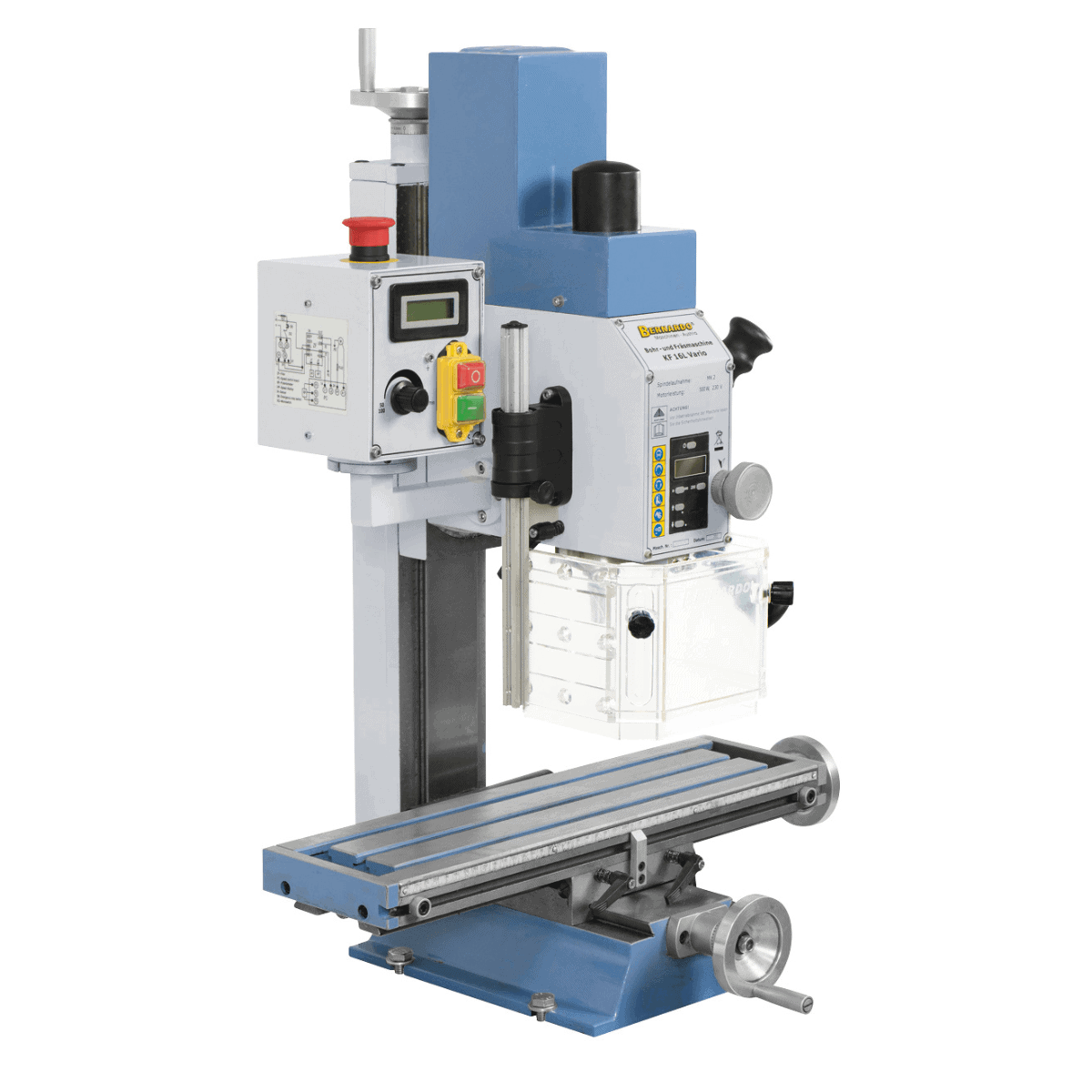

Product Description: KF 16 L Vario Drill/Milling Machine

The KF 16 L Vario Drill/Milling Machine is a compact and precise solution, ideal for demanding model makers and precision mechanics. Designed to handle a variety of operations, including tapping, grooving, and slot milling, this model stands out for its robustness and reliability, ensuring excellent results even for the most detailed work.

Main Features

  • Robust Structure: The machine base, made of cast iron, ensures exceptional stability and reduces vibrations to a minimum, improving the precision of the machining operations.
  • DC Motor: The DC motor provides optimal torque, particularly useful in the low speed ranges, ensuring constant torque even under load.
  • Adjustable Dovetail Guide: The x, y and z axes are equipped with an adjustable dovetail guide, which allows for smooth and precise movement during machining.
  • Variable Speed: The spindle speed can be continuously adjusted from 50 to 2250 rpm, allowing you to perfectly adapt the speed to the type of material and the job to be done.
  • Tiltable Milling Head: The head can be tilted from -90° to +90°, offering great versatility in drilling and angle milling operations.
  • Quiet: The drive gears are designed to operate with maximum silence, making the working environment more comfortable.

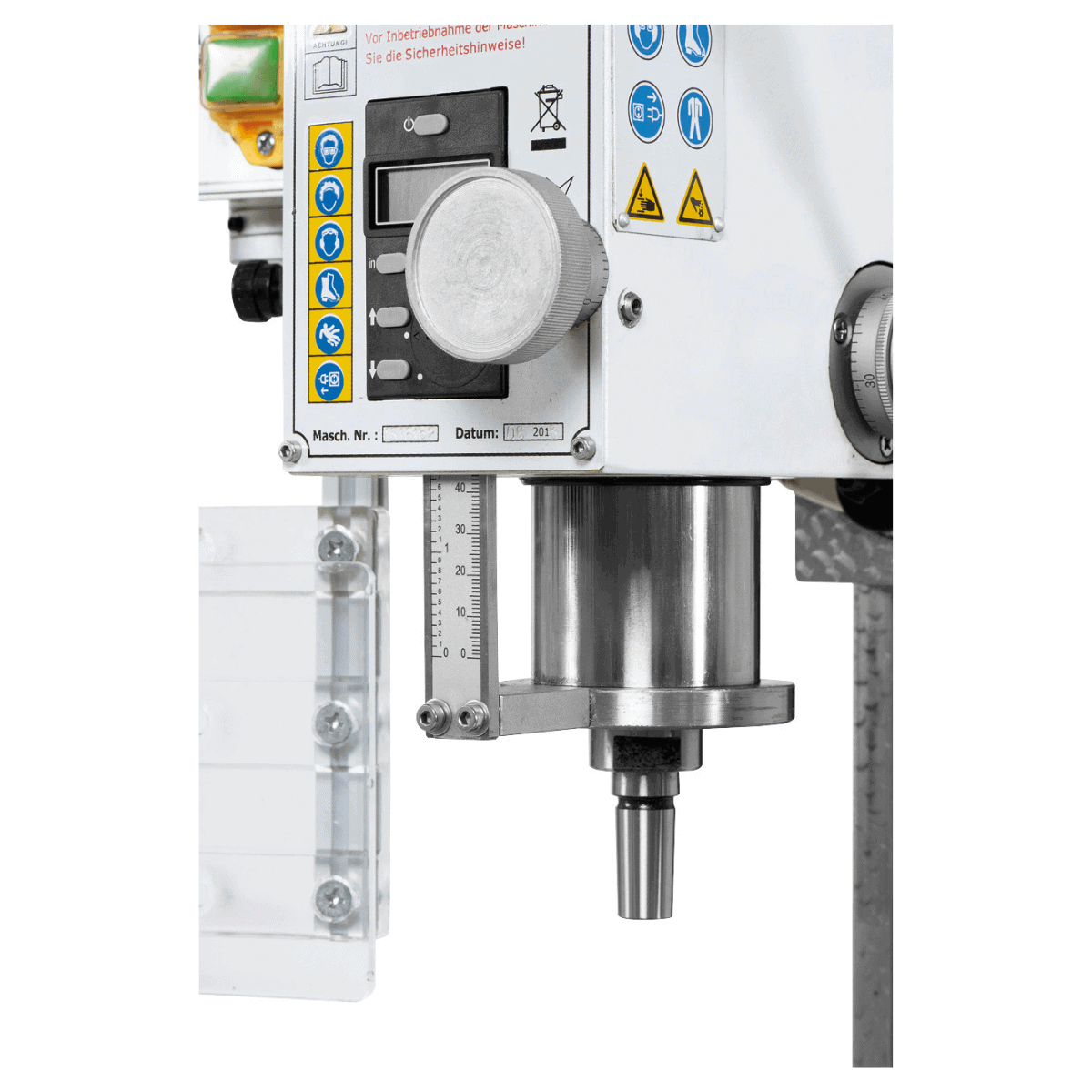

  • Precision Feed: Spindle feed is managed via a handwheel, allowing for precise and controlled adjustments during milling operations.

Standard Accessories

  • M 10 clamping chuck
  • Digital spindle display
  • Digital speedometer
  • Arbor spindle MK 2 / B 16
  • EMC filter according to CE standard
  • Height-adjustable protective cover
  • Control device

Technical Specifications

Characteristic Specifications
Steel drilling power 16 mm
Max. face milling cutter. 50 mm
Milling cutter with max. shank. 20 mm
Length of the arms 170 mm
Max. spindle/table distance. 275 mm
Hole stroke 50 mm
Continuous spindle speed 50 – 1125 / 100 – 2250 rpm
Spindle attachment MK 2
Table dimensions 500 x 140 mm
Run (x / y) 365 / 140 mm
Rotating milling head from -90° to +90°
Milling head height setting 200 mm
T-slot size 10 mm
S1 motor input power 100% 0.50 kW / 230 V
S6 Motor Output Power 40% 0.80 kW / 230 V
Machine dimensions (L x W x H) 610 x 500 x 820 mm
Weight approx. 65 kg
Notes * without base

The KF 16 L Vario Drill/Milling Machine is the perfect choice for those who need a compact yet powerful machine suitable for high-precision operations. Ideal for model makers and precision mechanics, it offers a combination of versatility, reliability, and ease of use, always guaranteeing professional results.
