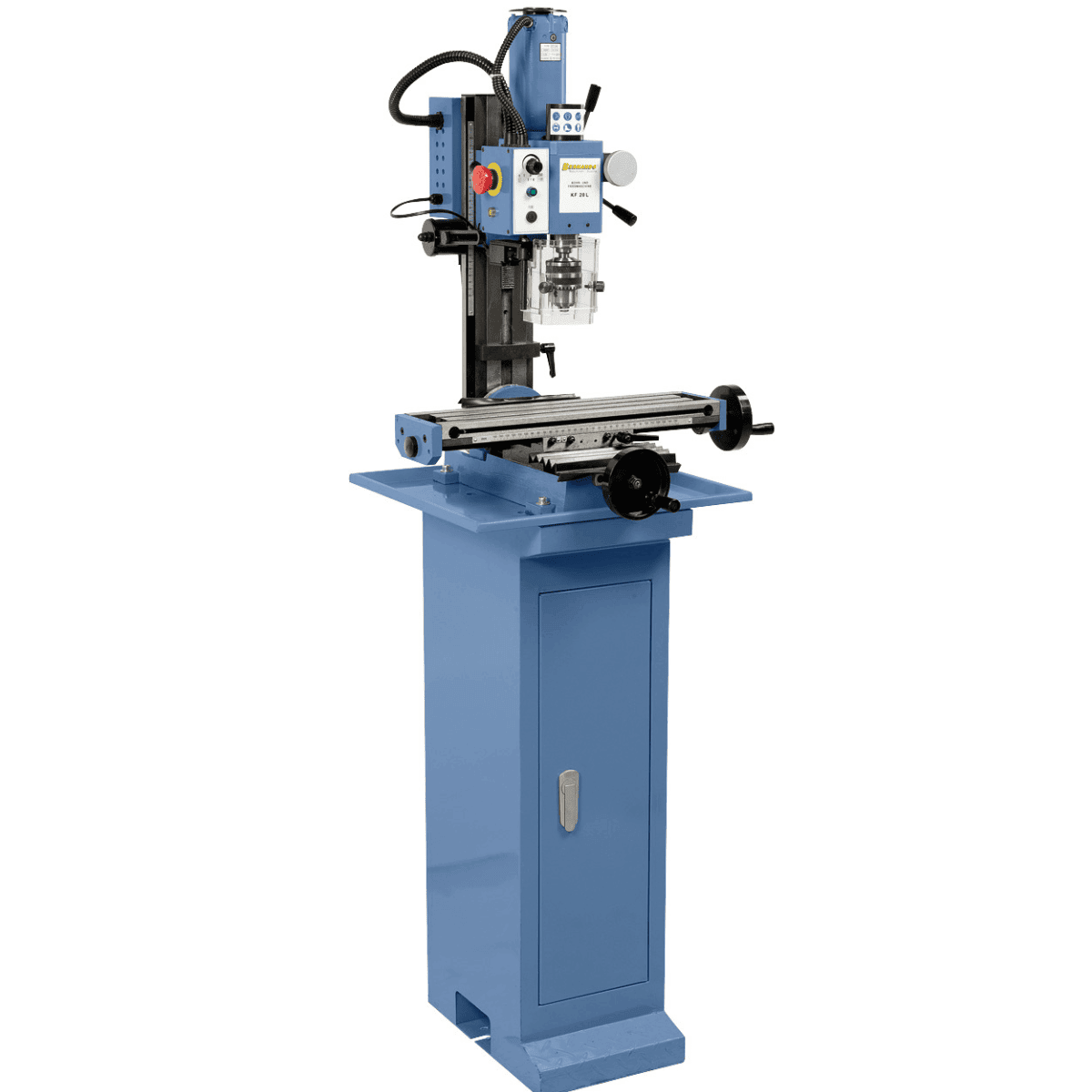

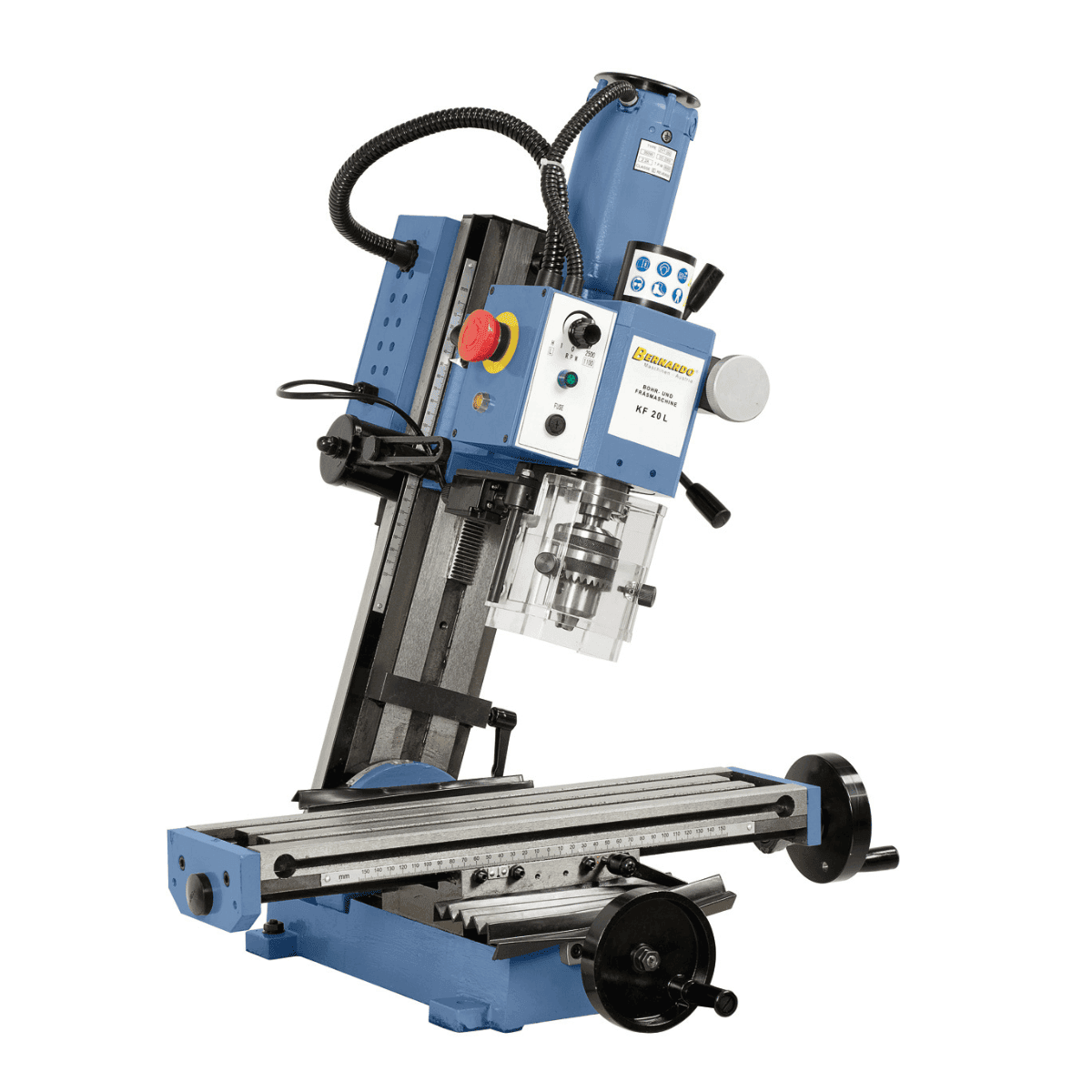

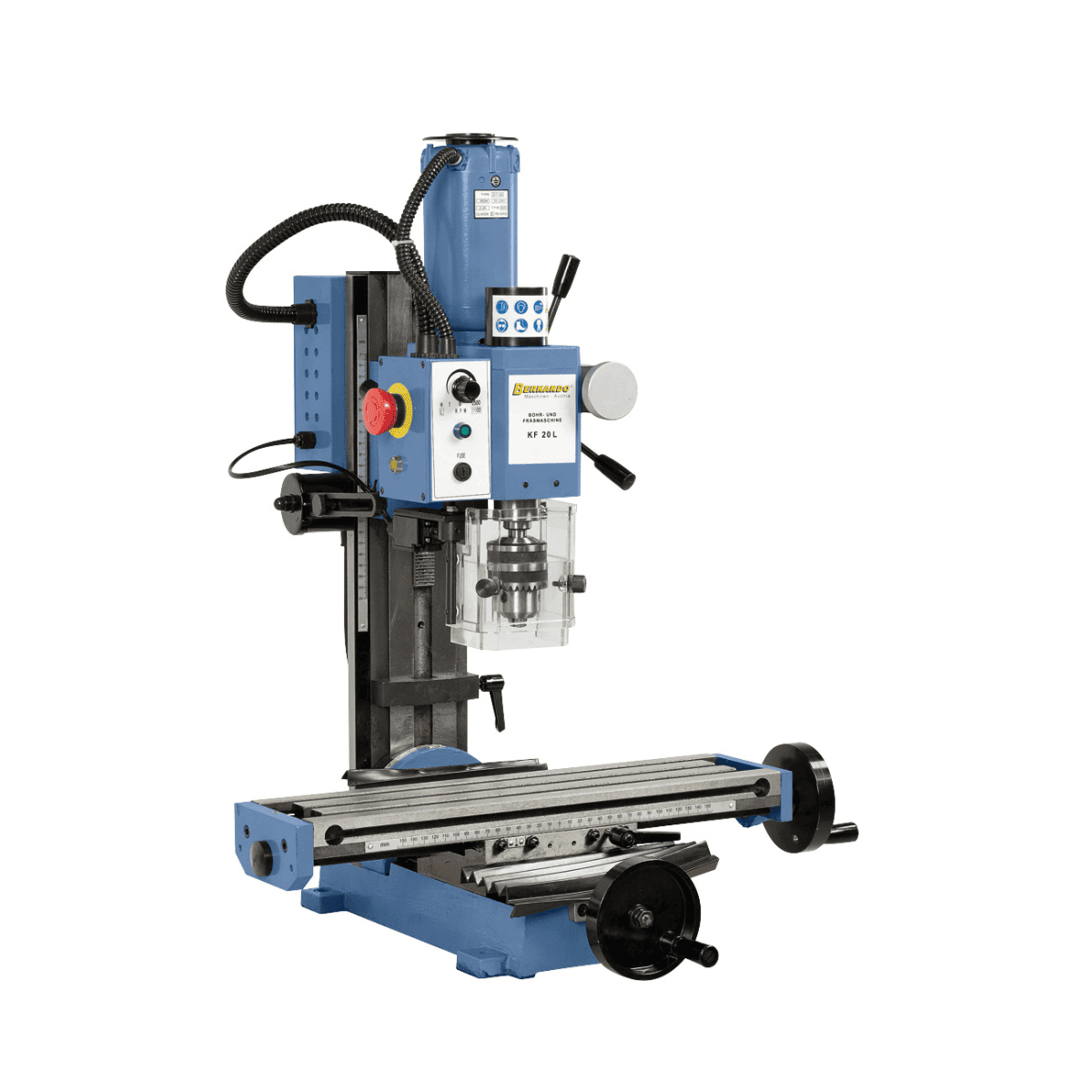

Product Description: Precision Milling Machine KF 20 L
The KF 20 L precision milling machine is the ideal solution for drilling, milling, and boring small parts. Designed to meet the needs of demanding model makers, this compact machine offers superior performance with a vibration-free construction, ensuring high-quality results.
Property
- Clamp Guides: Individual clamp guides ensure a clean and precise milling path, minimizing errors and improving work quality.

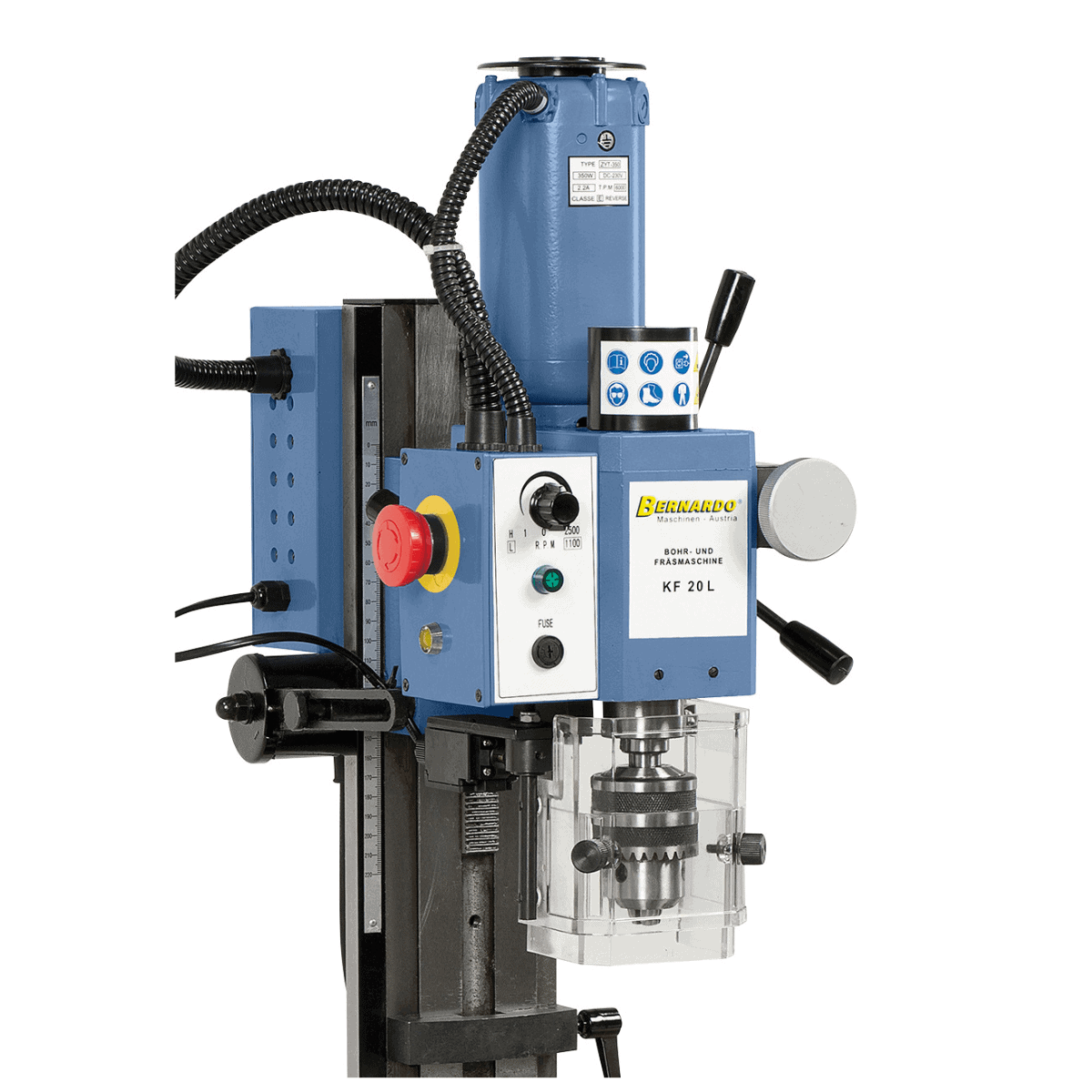

- Tilting Milling Head: The tilting head allows for an extended angle range (-45° to +45°), allowing for greater versatility in angle drilling and chamfer milling operations.
- Continuously Variable Electronic Drive: Offers a wide speed range (2 stages), from 0 to 2500 rpm, to suit different operating needs, with precise speed control.
- Dovetail Guide: Present on the x, y and z axes, it guarantees smooth and precise movements during milling and drilling operations.
- Readable Drilling Depth: The drilling depth is easily readable thanks to the built-in scale, facilitating accurate work.
- Precision Spindle Feed: Milling is done by feeding the spindle via the handwheel, while drilling is done using the star knob, offering optimal control in both operations.
Standard Accessories
- Drill Chuck with Rack 1 – 13 mm / B 16
- Pergola Mandrel MK 3 / B 16
- M 12 Clamping Chuck
- Height-Adjustable Protective Cover
- Service Keys
Technical Specifications
| Characteristic | Specifications |
|---|---|
| Steel Drilling Power | 13 mm |
| Max. Front Milling Cutter | 30 mm |
| Milling cutter with max. shank. | 16 mm |
| Arm Length | 165 mm |
| Spindle/Table Distance | 100 – 290 mm |
| Number of Continuous Spindle Revolutions | L= 0 – 1000 rpm H= 0 – 2500 rpm |
| Spindle Attachment | MK 3 |
| Table Dimensions | 460 x 120 mm |
| Races (x / y) | 300 / 130 mm |
| Rotating Milling Head | from -45° to +45° |
| Milling Head Height Setting | 190 mm |
| T-Slot Size | 12 mm |
| Motor Input Power S1 100% | 0.35 kW / 230 V |
| S6 Motor Output Power 40% | 0.55 kW / 230 V |
| Machine Dimensions (L x W x H) | 510 x 550 x 760 mm |
| Weight approx. | 53 kg |
The KF 20 L milling machine is perfect for those seeking precision and reliability in a compact, vibration-free machine. Ideal for model makers and demanding hobbyists, this model offers excellent versatility for drilling, milling, and boring, ensuring high-quality results in every operation.
