Bernardo | SKU:
02-1028
Pre-order

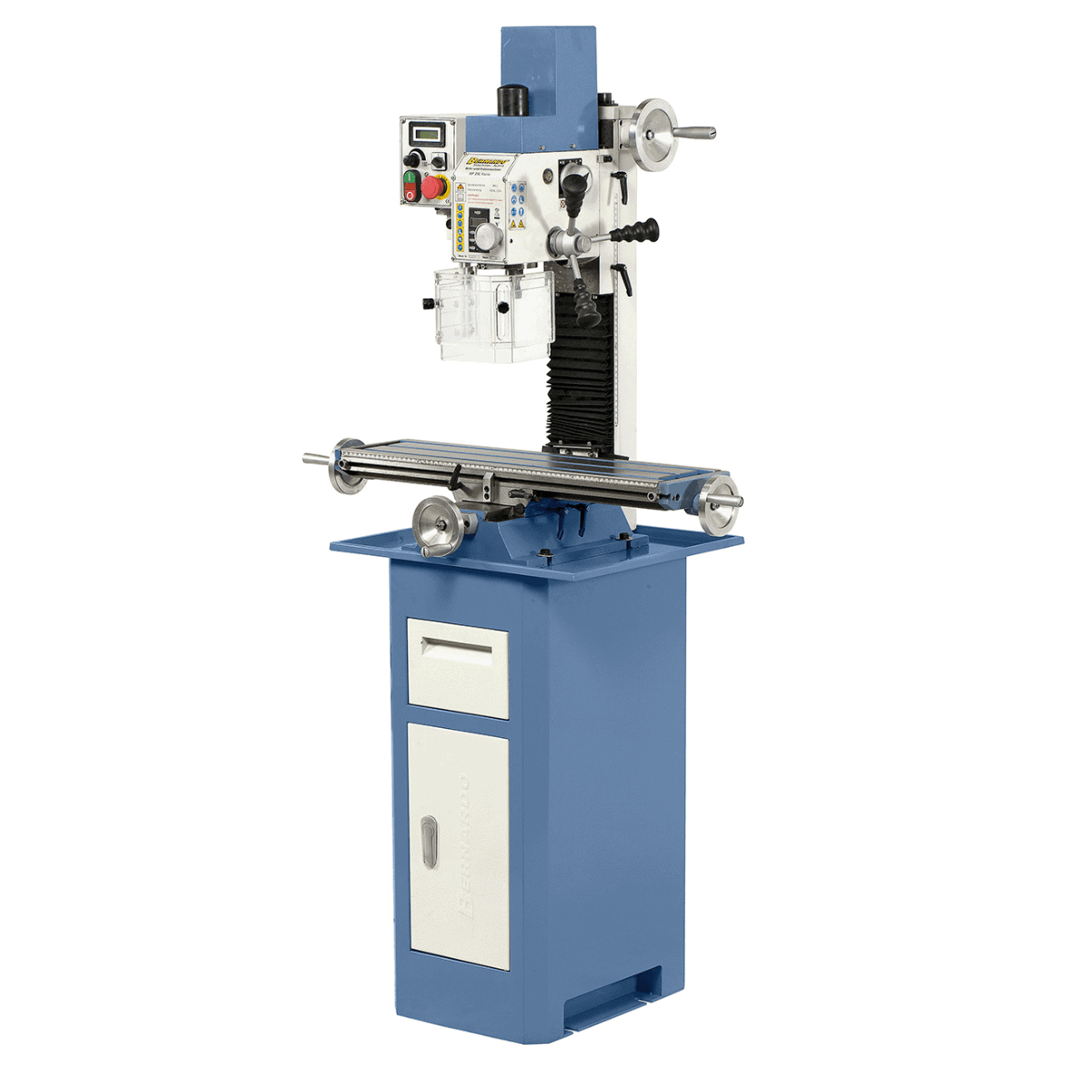

KF 25 L Vario Drill and Milling Machine
€2.110,60
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
KF 25 L Vario Drill and Milling Machine is backordered and will ship as soon as it is back in stock.
Subscribe to our newsletter
Get the latest updates on all our new collections, sales, offers and product arrival dates.
-
Description
-
Technical Specifications
-
Product safety
-
Reviews
Description

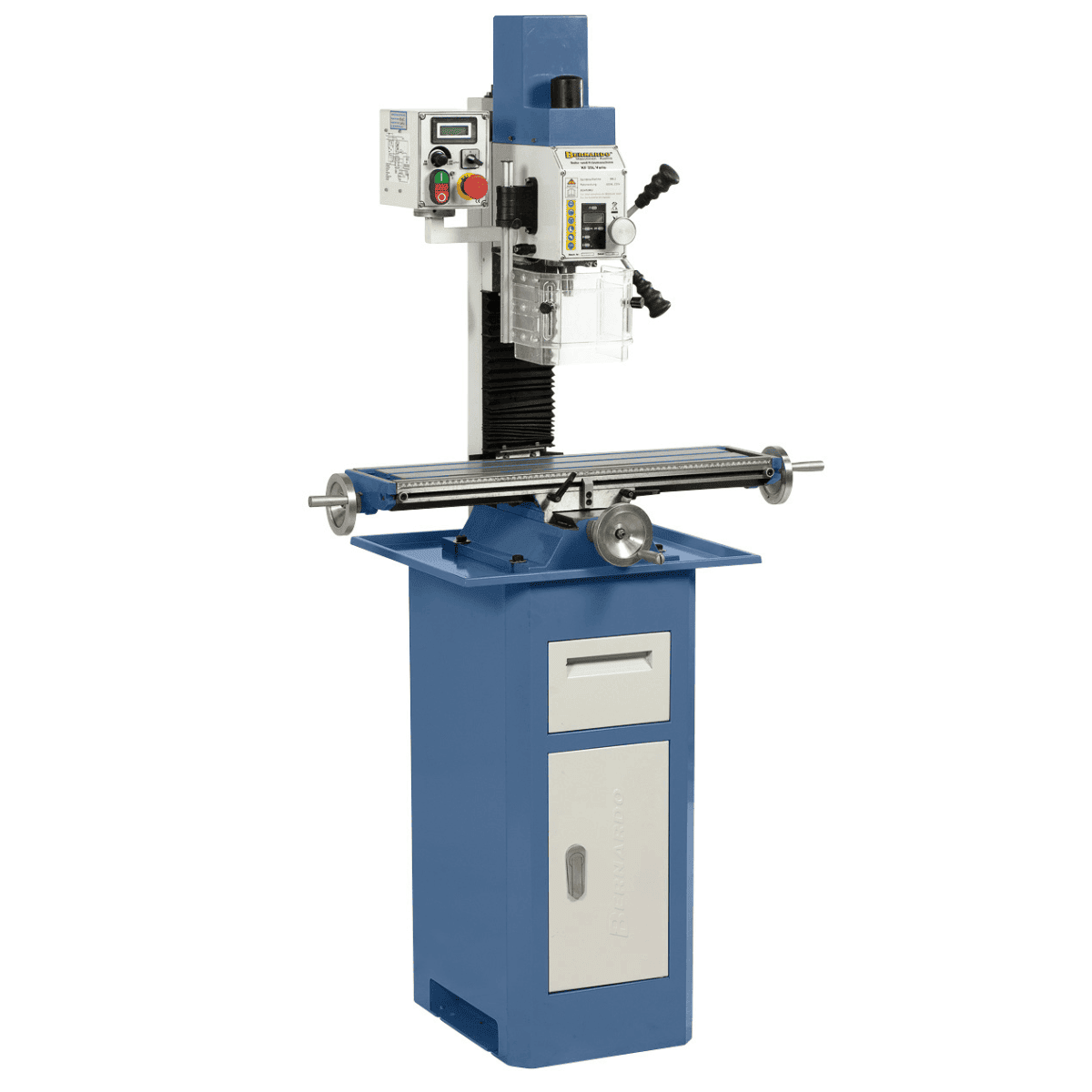

The KF 25 L Vario drilling and milling machine comes standard with a digital speed and spindle display. This model also offers 490 mm of X-axis travel. This machine is ideal for professional users, modelers, and trainees.
Property

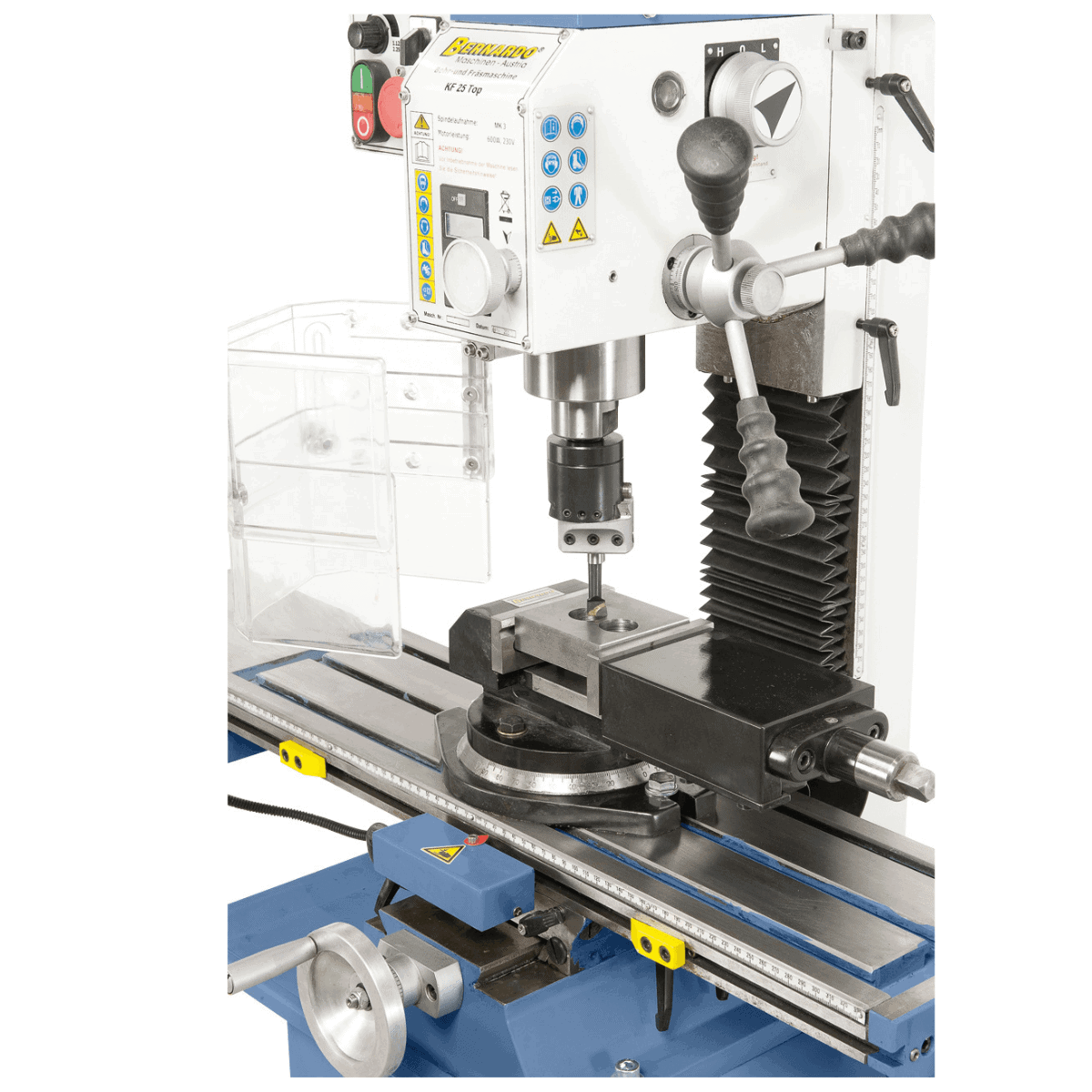

- Multiple uses, such as: tapping, grooving, slot milling, ...
- Equipped with clockwise and anticlockwise rotation device for threading
- Ergonomically positioned switching and functional elements
- Solid composite board with easy-to-read length measurement scale
- The speed can be continuously adapted to the workpiece
- 2-stage gearbox for optimal power transfer
- High spindle concentricity thanks to tapered roller bearings (≤ 0.015 mm)
- Milling head tiltable on both sides for angle drilling, chamfer milling, etc.
- Equipped with a digital speed and spindle display
- Dovetail guide for x, y and z axes, adjustable by means of gibs
- Spindle adjustment via handle, precision feed via handwheel
- Incl. EMC filter; protects electrical equipment against electromagnetic interference
Standard accessories
- Arbor spindle MK 2 / B 16
- Clamping chuck

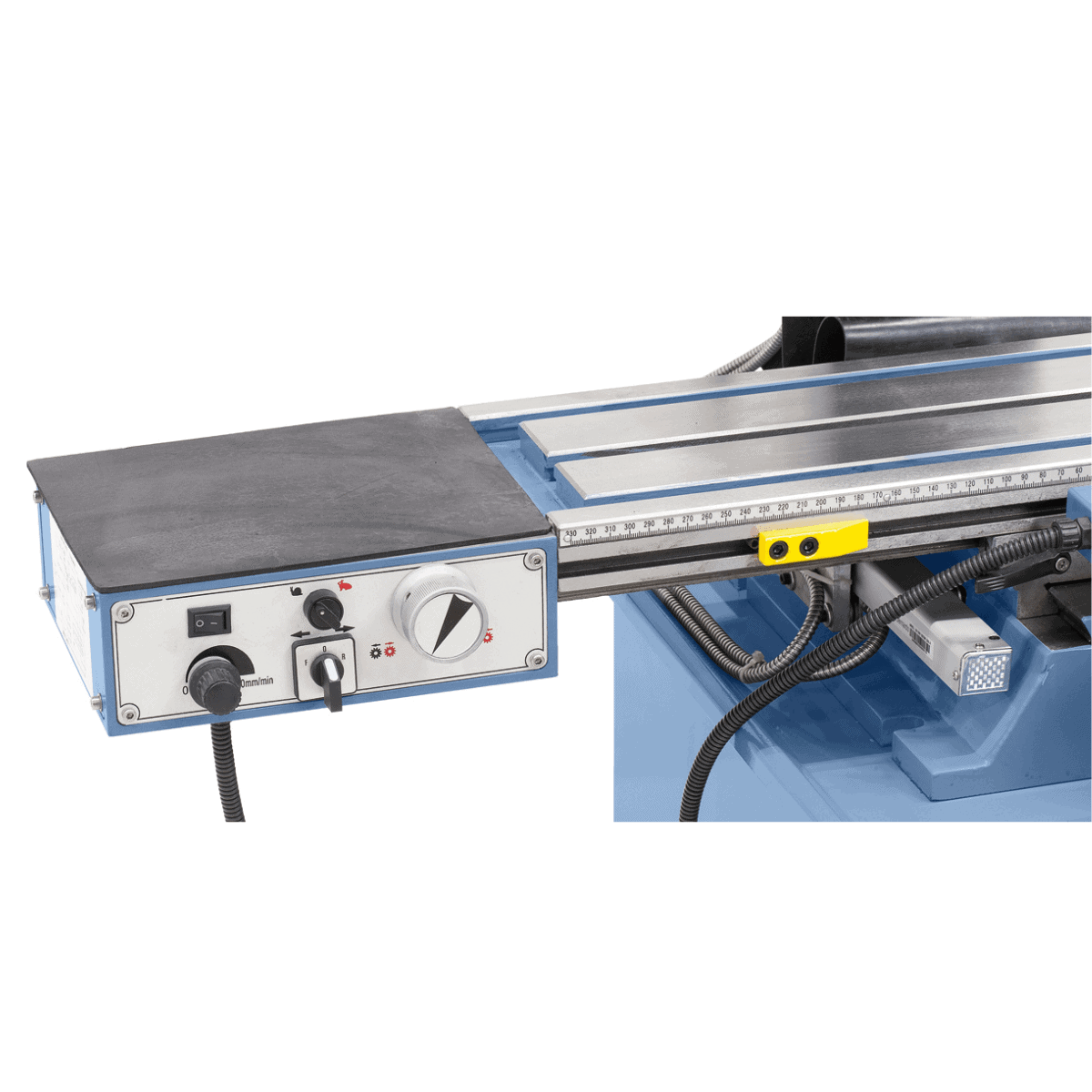

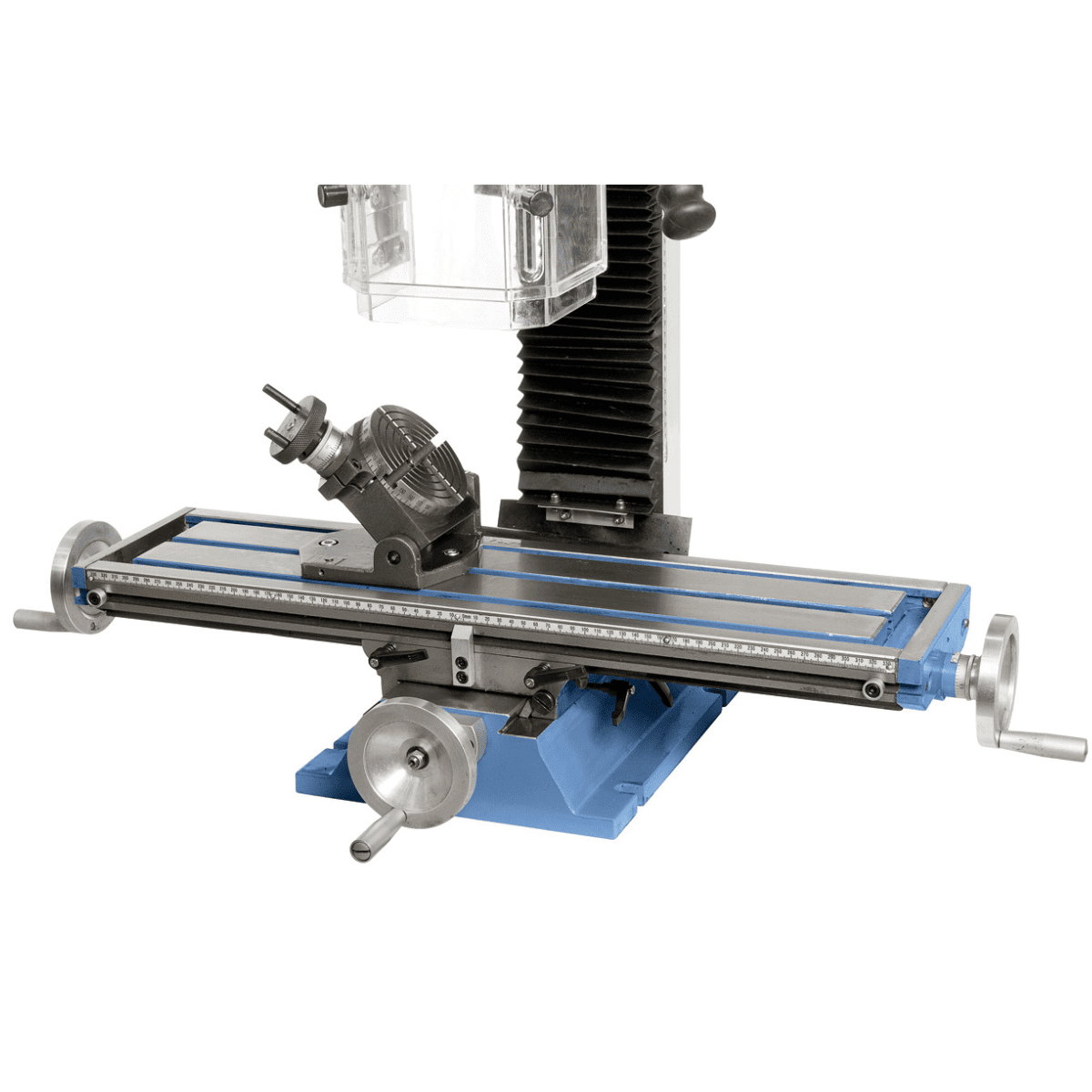

- Table length 700 mm
- Digital spindle display
- Digital speedometer
- EMV filter according to CE standard
- Height-adjustable protective cover

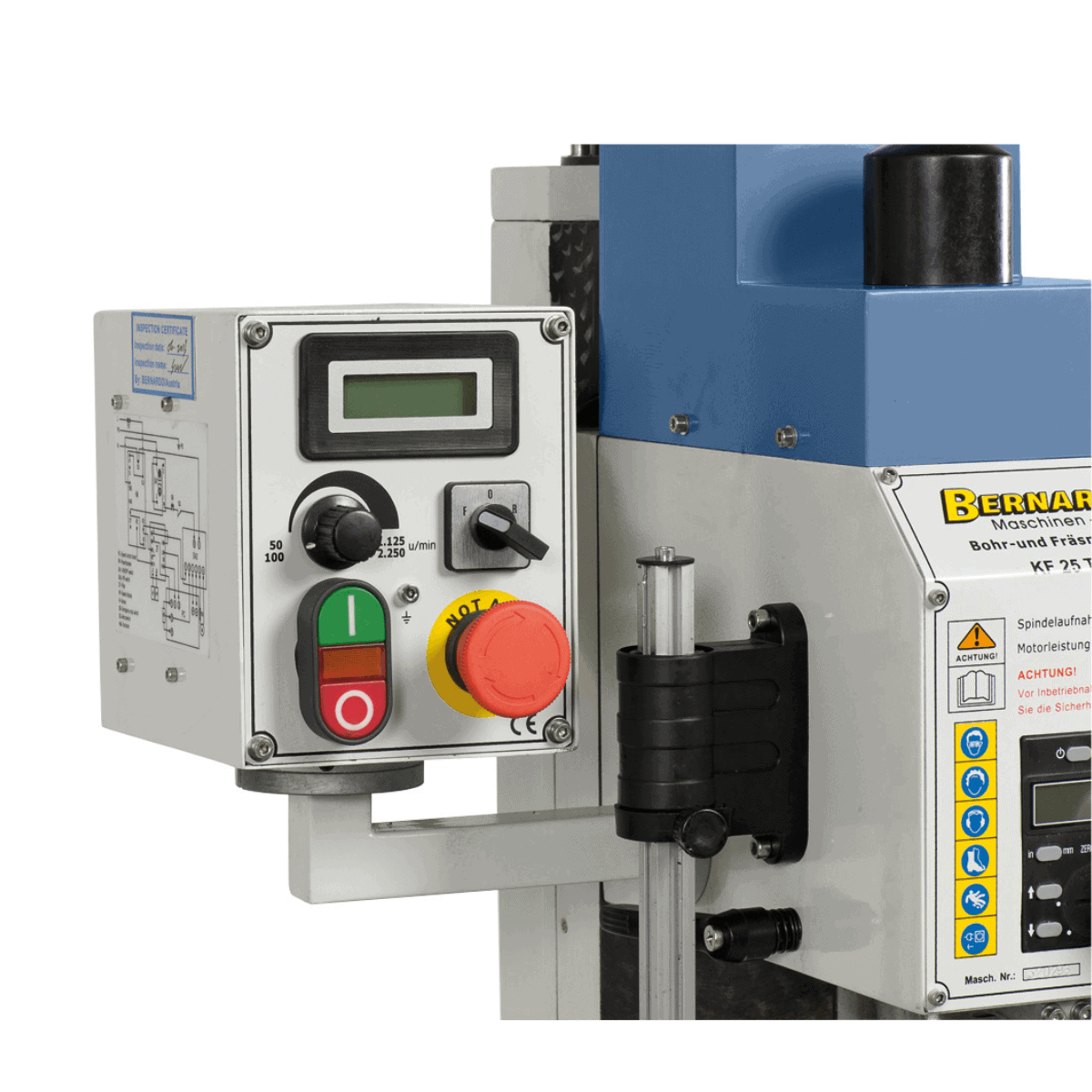

- Control device
technical specifications
| Steel drilling power | 20 mm |
| Max. face milling cutter. | 63 mm |
| Milling cutter with max. shank. | 20 mm |
| Length of the arms | 170 mm |
| Distance spindle / table min./max. | 45/325 mm |
| Hole stroke | 52 mm |
| Continuous spindle speed | 50 - 1125 / 100 - 2250 rpm |
| Spindle attachment | MK 2 |
| Table dimensions | 700 x 180 mm |
| Run (x / y) | 490 / 150 mm |
| Rotating milling head | from -90° to +90° |
| Milling head height setting | 275 mm |
| T-slot size | 12 mm |
| S1 motor input power 100% | 0.60 kW / 230 V |
| S6 Motor Output Power 40% | 0.90 kW / 230 V |
| Machine dimensions (L x W x H)* | 950 x 560 x 930 mm |
| Weight approx. | 120 kg |
Technical Specifications
Può forare fino a Ø 20 mm in acciaio, fresare frontalmente fino a Ø 63 mm e a candela fino a Ø 20 mm.
Consente di adattare i giri del mandrino al materiale e all’utensile, migliorando la qualità della lavorazione e la durata degli utensili.
Sì, la testa può inclinarsi da -90° a +90°, rendendo possibili smussi, fresature angolari e forature oblique.
È dotata di filtro EMC, protezione regolabile in altezza, display digitali e struttura conforme agli standard CE.
Sono inclusi: alberino MT2/B16, tirante, tavola 700 mm, display digitali corsa e velocità, filtro EMC, protezione regolabile e set utensili.
