Bernardo  |  SKU: 02-10221

KF 18 Top drilling and milling machine incl. 3-axis digital display

€2.183,80
pay up to 30 installments,

Delivery and Shipping

At Krolit, we are committed to providing a seamless and reliable shipping experience for our customers. Once you place your order, it is generally processed within 1-3 business days, excluding weekends and holidays. As soon as your order ships, you will receive a confirmation email with your tracking number and shipment details, so you can easily track your delivery.

We offer several shipping options, including standard, express, and overnight shipping, to meet your needs. Shipping costs and estimated delivery times are clearly displayed at checkout and vary based on your location and the shipping method selected. Please note that all delivery times are approximate and may be subject to delays due to factors such as weather conditions, high order volume, or courier issues.

Currently, Krolit [offers/does not offer] international shipping. If international shipping is available, please be aware that customs duties, taxes, or other additional fees may apply, which are the responsibility of the recipient. We recommend checking with your local customs office before placing an order.

To ensure timely delivery, please ensure the shipping address provided at checkout is correct and complete. Krolit is not responsible for delays or lost packages due to incorrect or incomplete address information. If your package appears to have been delivered but you haven't received it, we recommend contacting the courier first. If the problem persists, our customer support team is available to assist you.

If you have any questions or concerns regarding shipping or delivery, please do not hesitate to contact us at [your email address] or by phone at [your phone number].

At Krolit, we value your satisfaction and are committed to ensuring your order arrives safely and on time.

Secure payment guaranteed

Description

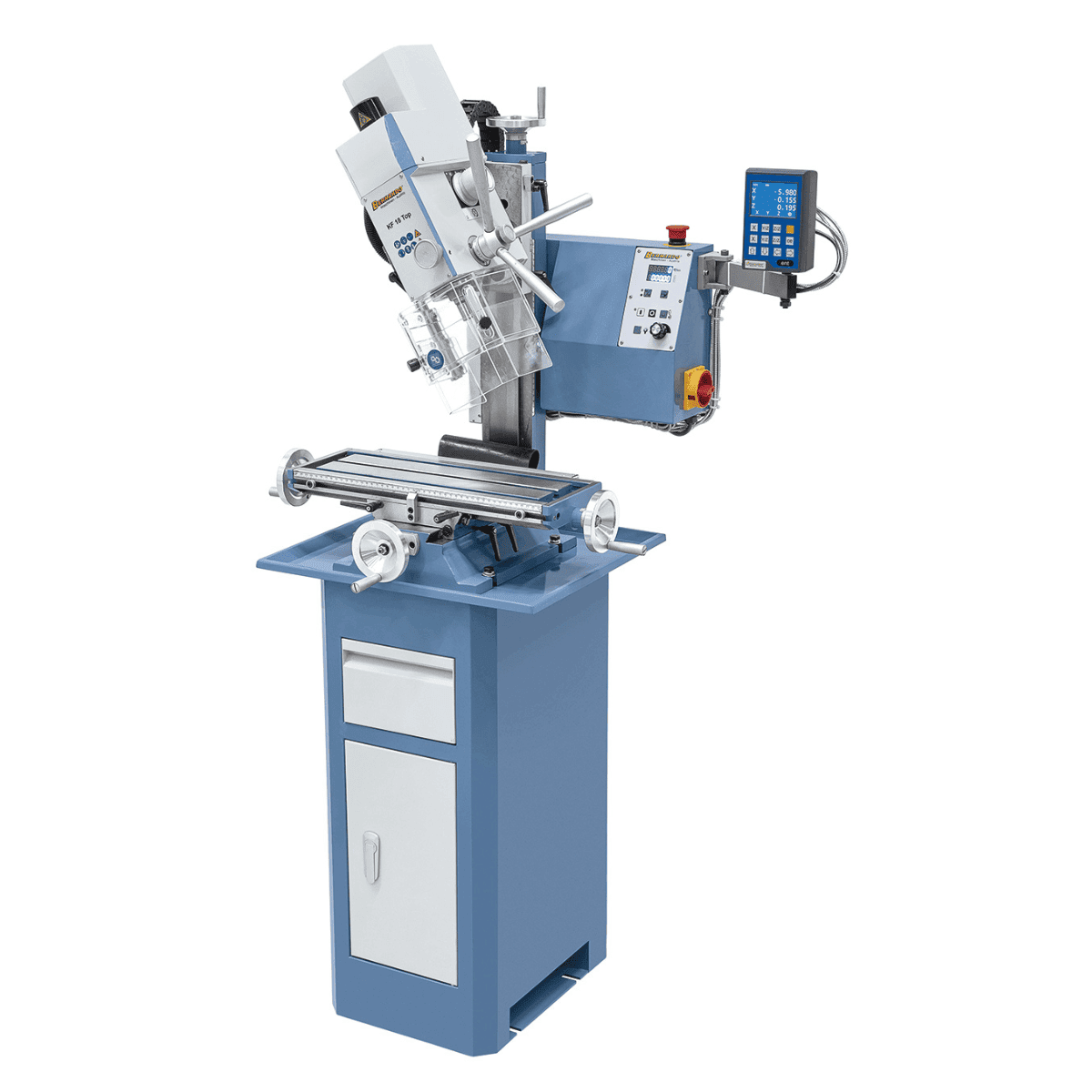

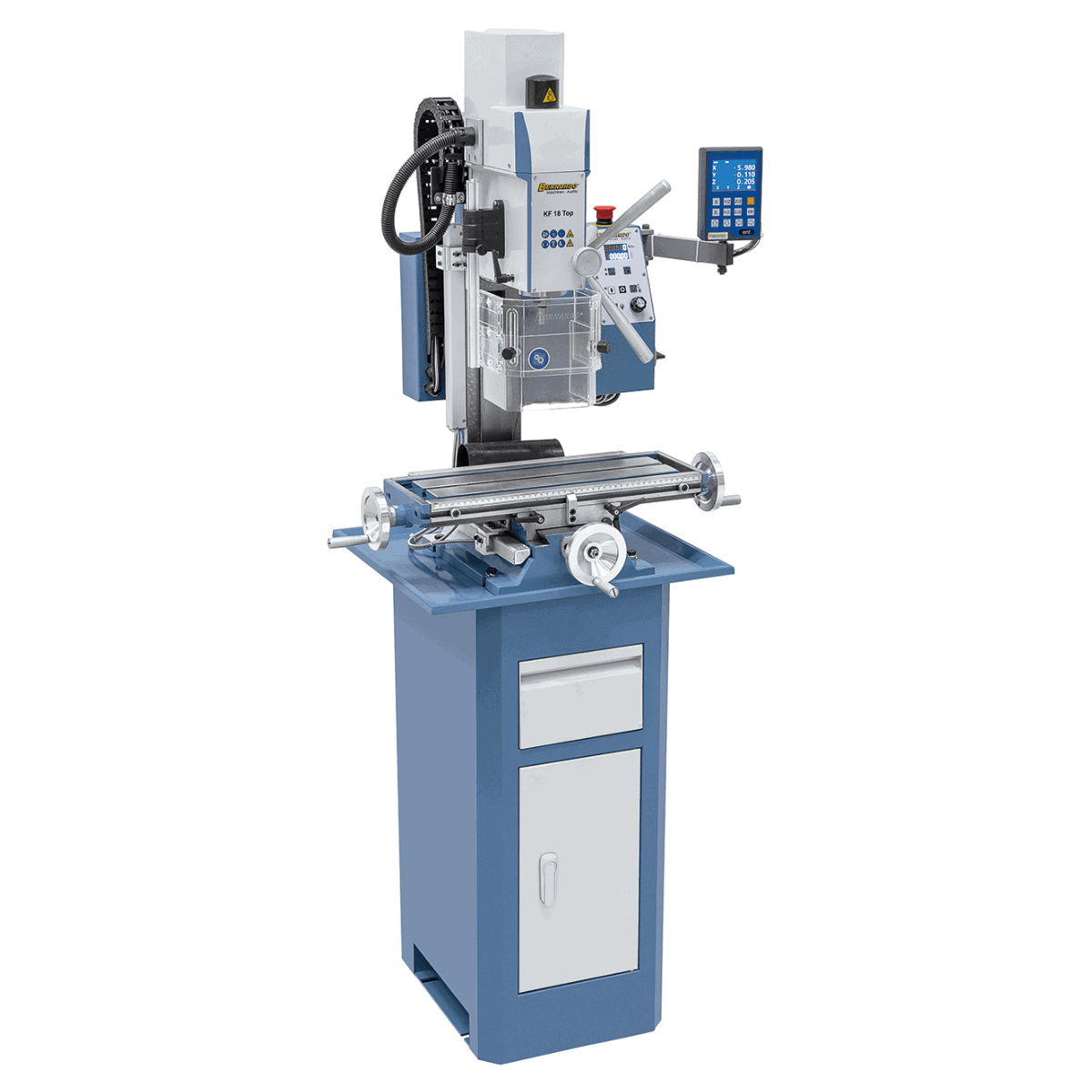

Product Description: KF 18 Top Drill and Milling Machine

The KF 18 Top Drill and Milling Machine is a versatile, high-performance machine, ideal for professional users, modelers, and students. Equipped with a high-quality DC motor, this model delivers high torque at low speeds and maintains constant torque even under load, ensuring precision and reliability in every job.

Main Features

  • High Speed Range: With an adjustable speed range from 50 to 3000 rpm, the KF 18 Top ensures optimal power transfer thanks to the 2-stage gearbox, allowing the speed to be adapted to the workpiece.
  • Adjustable Speed: The speed can be easily varied continuously, providing the flexibility needed for various operations such as grooving, facing, boring and more.

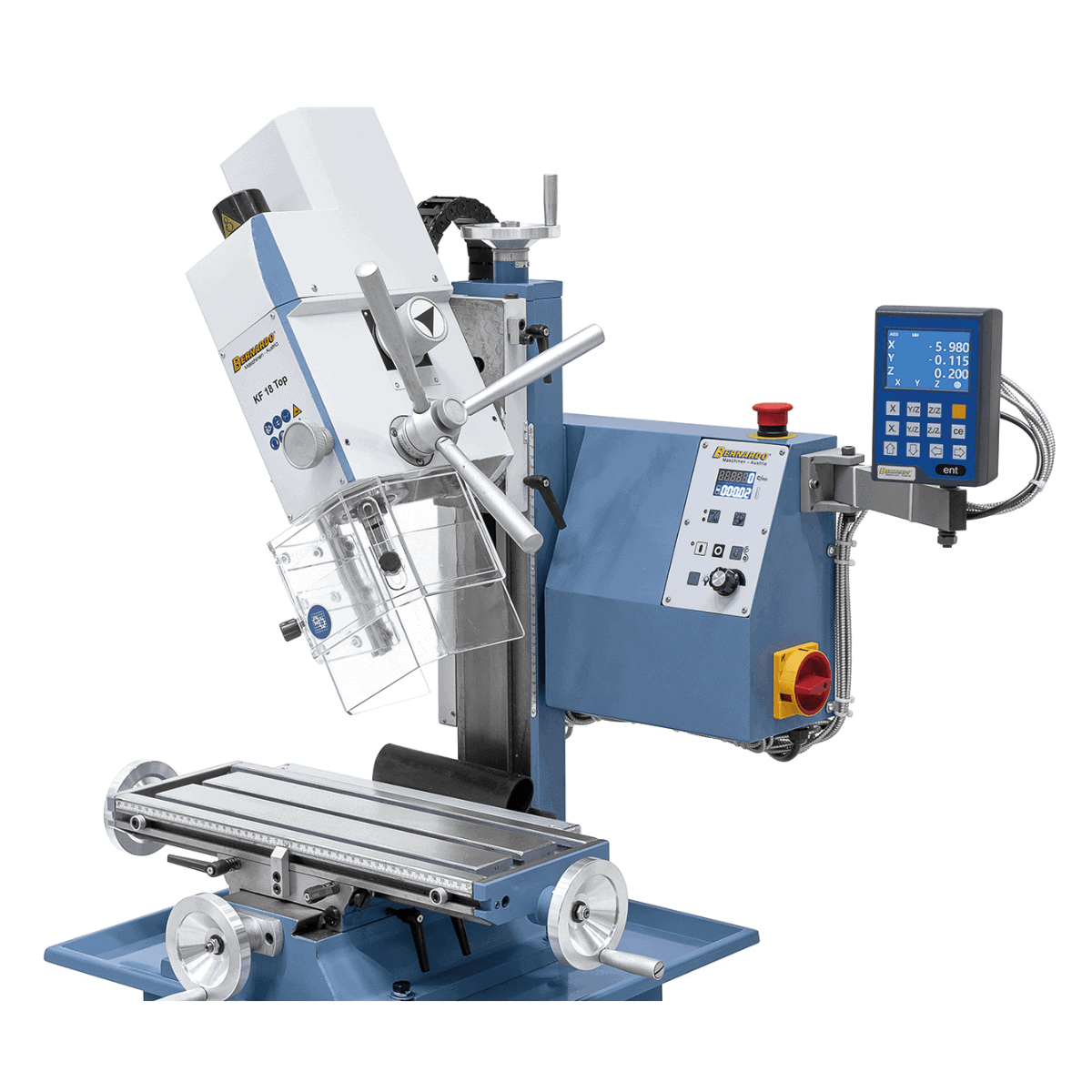

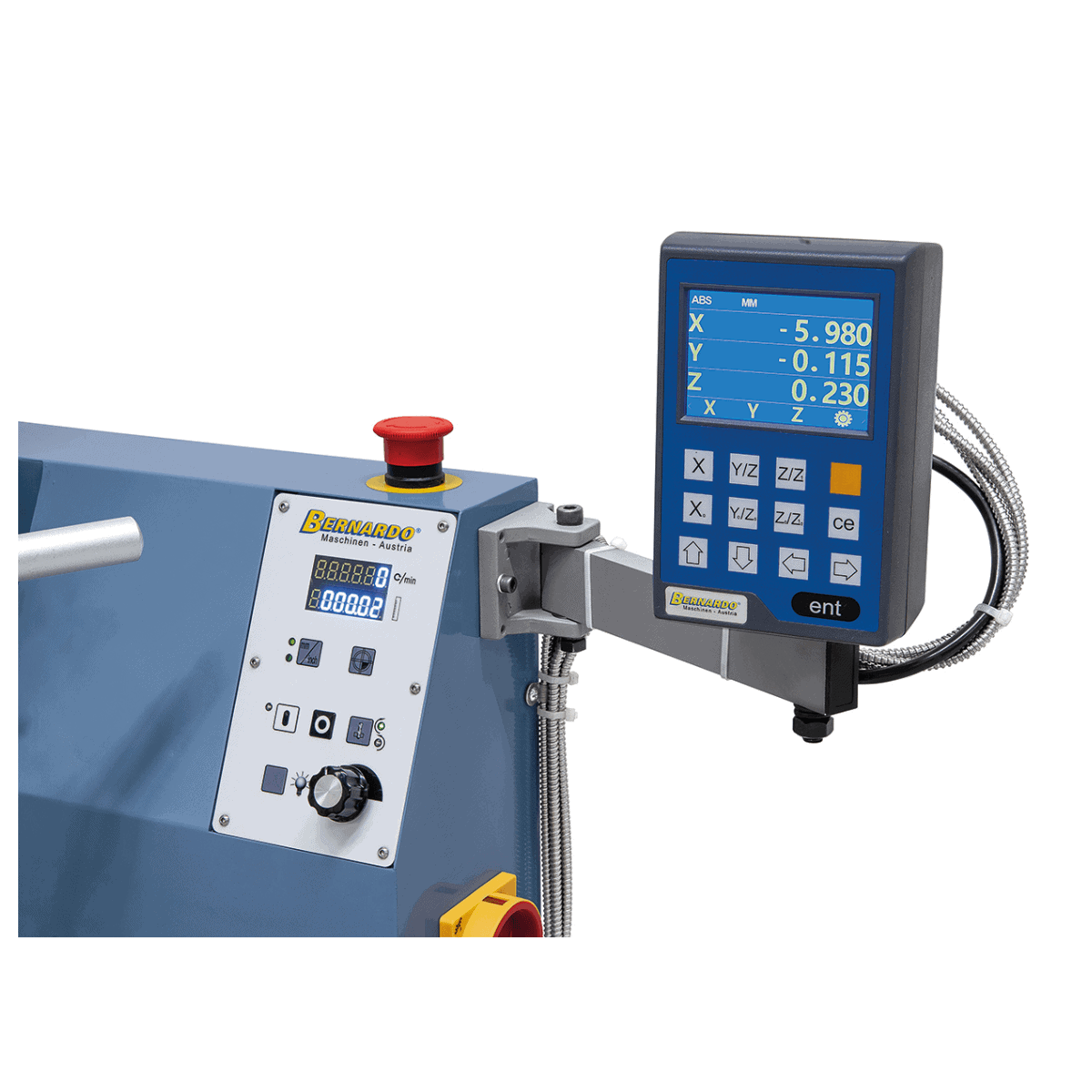

  • 3-Axis Position Indicator: The model is also available with a DT 30 3-axis position indicator, which facilitates machining accuracy.

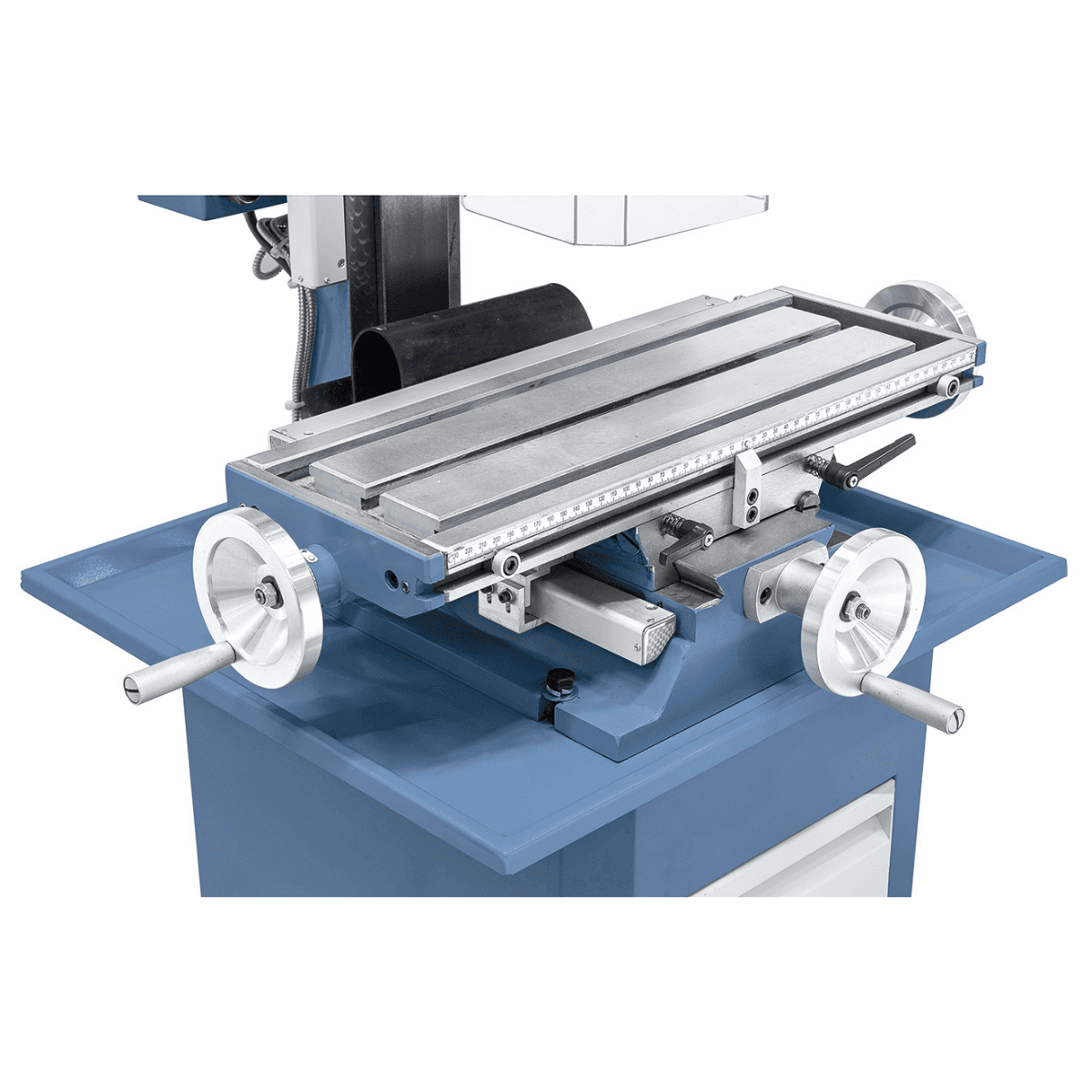

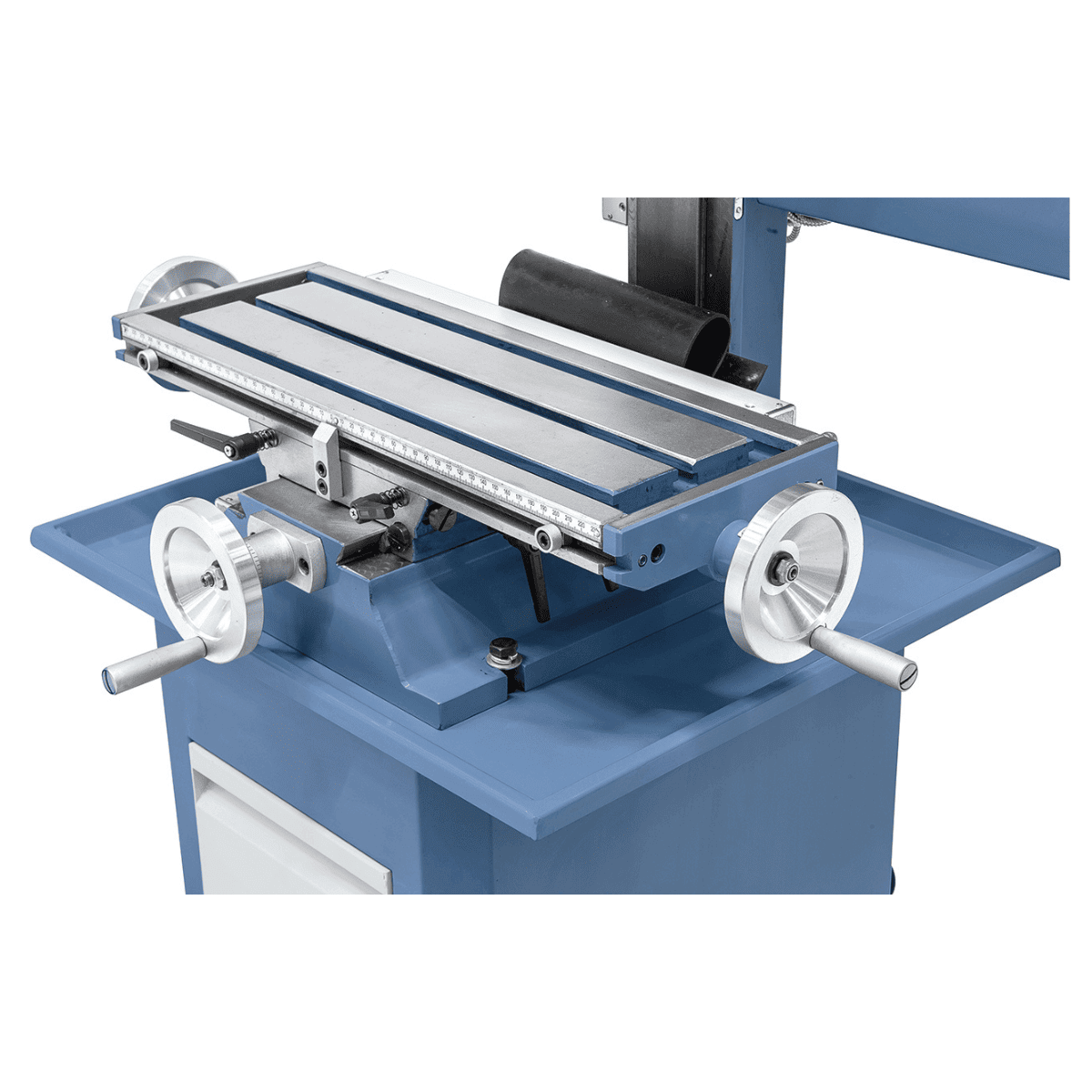

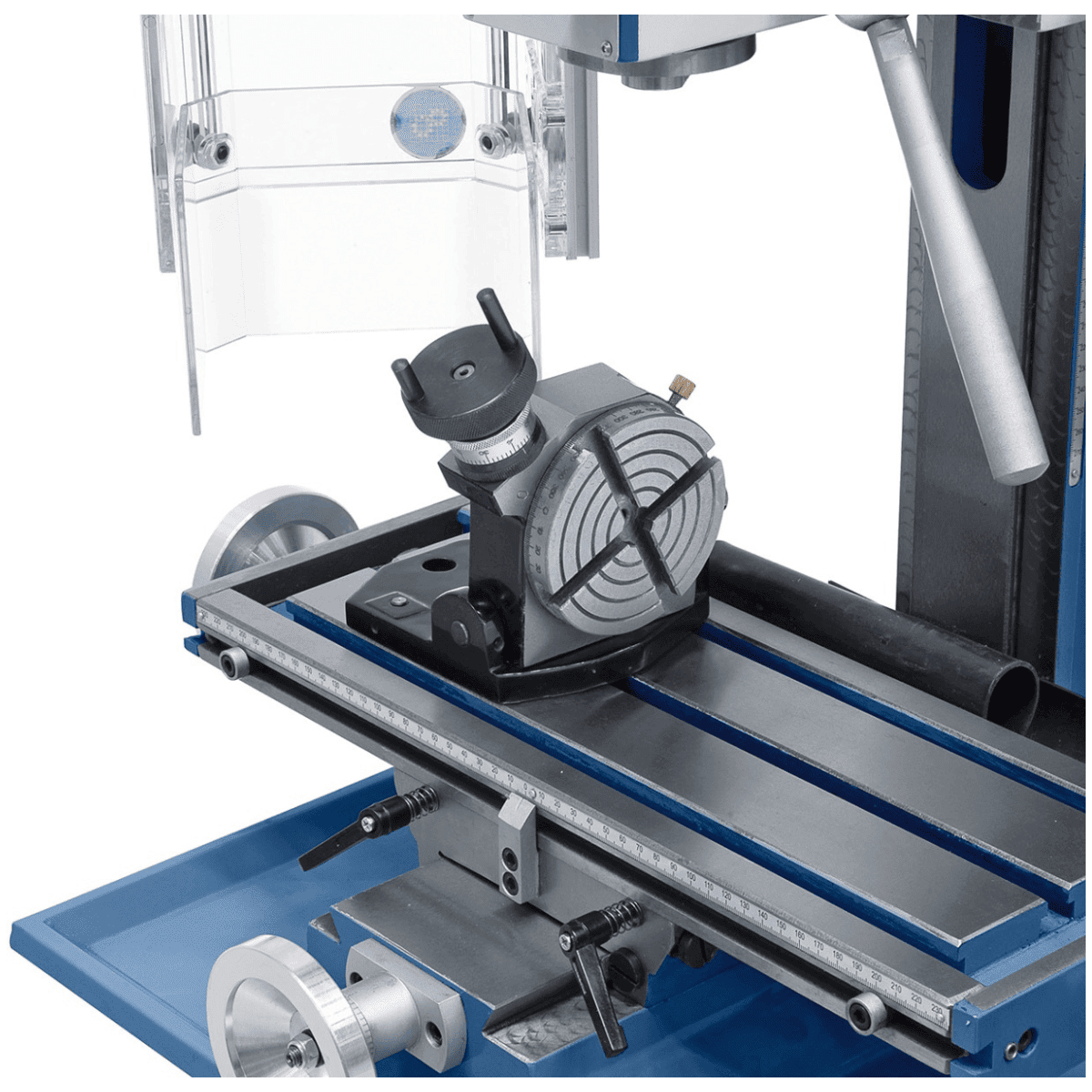

  • Large Composite Board: Featuring T-slots, the composite board is precision machined to ensure stability and support during use.

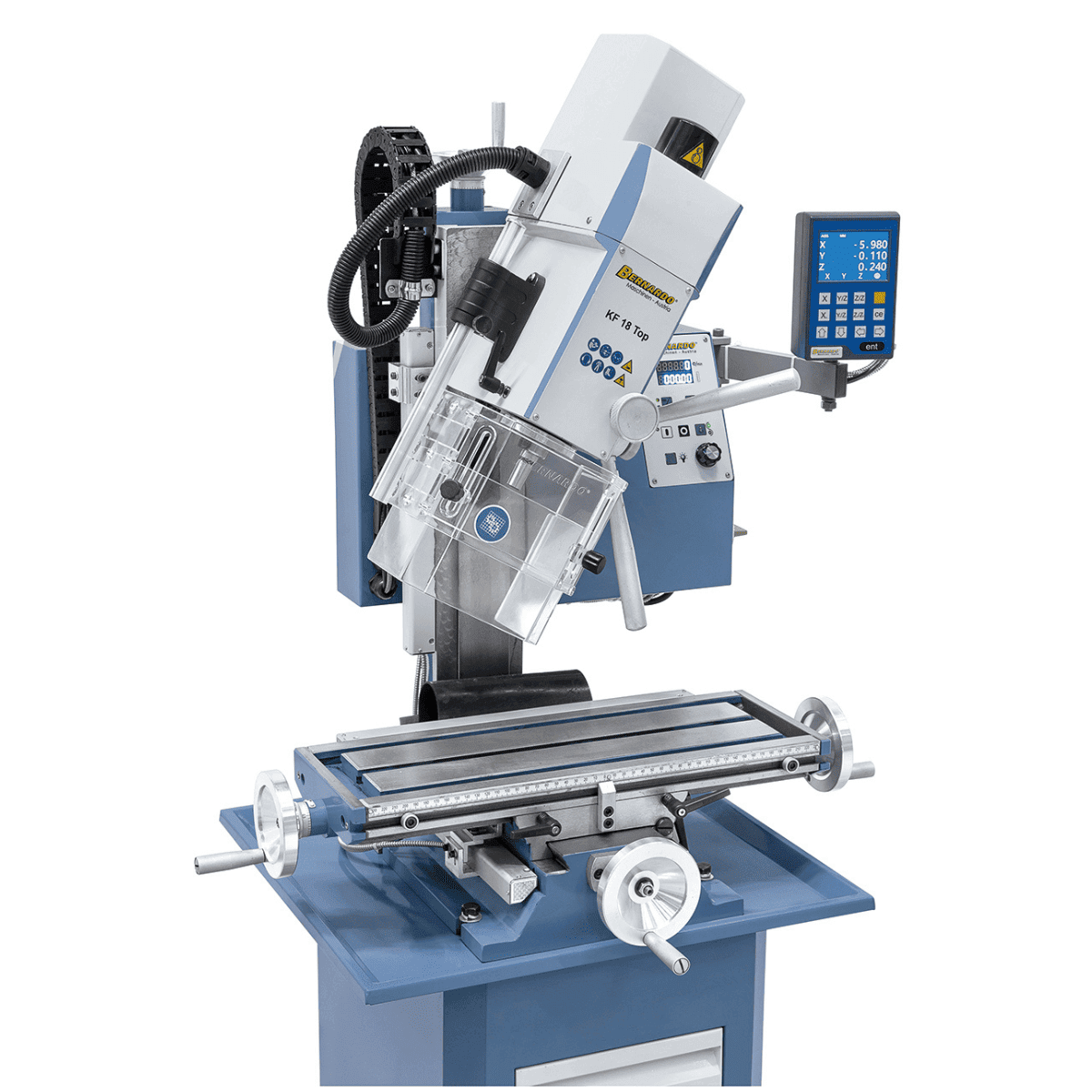

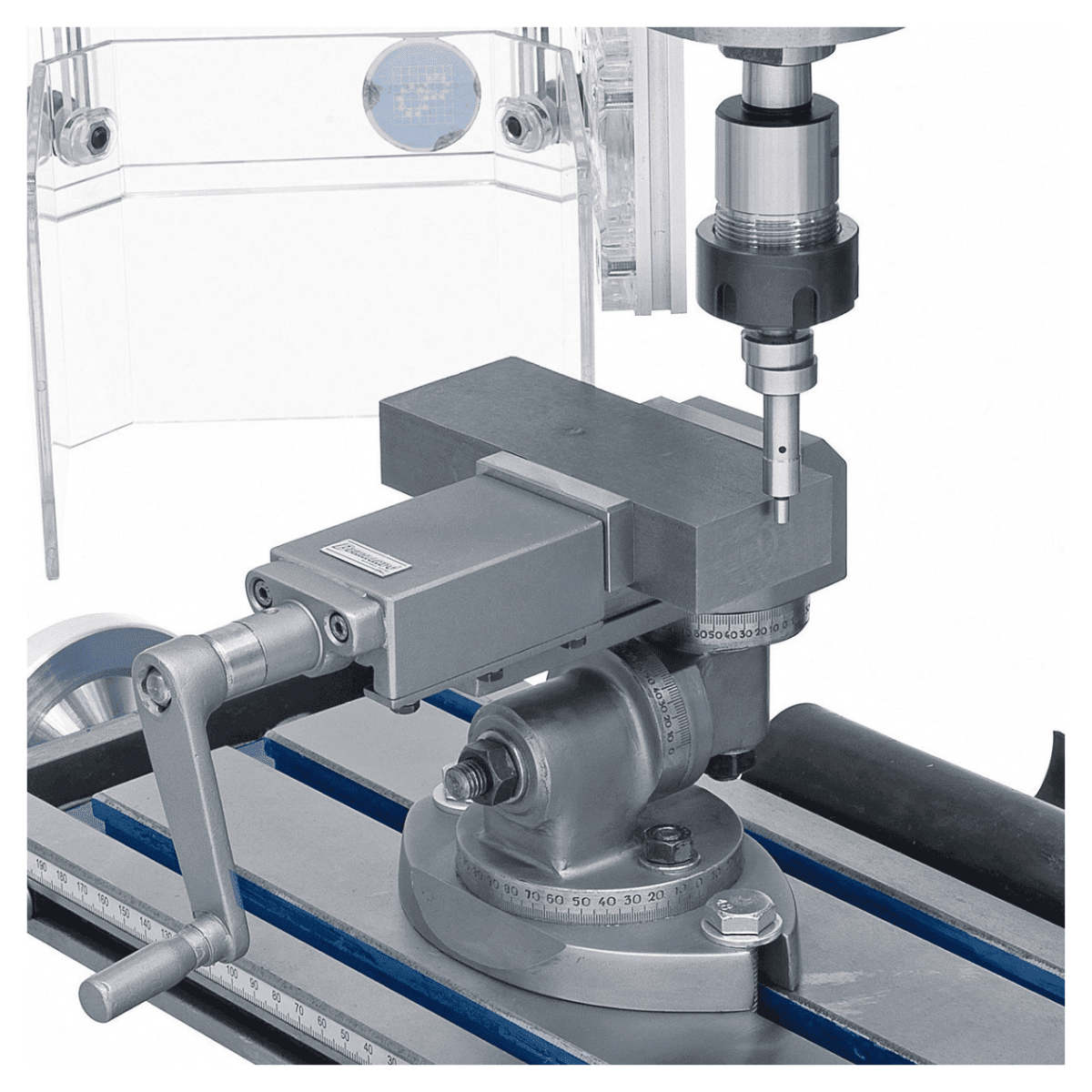

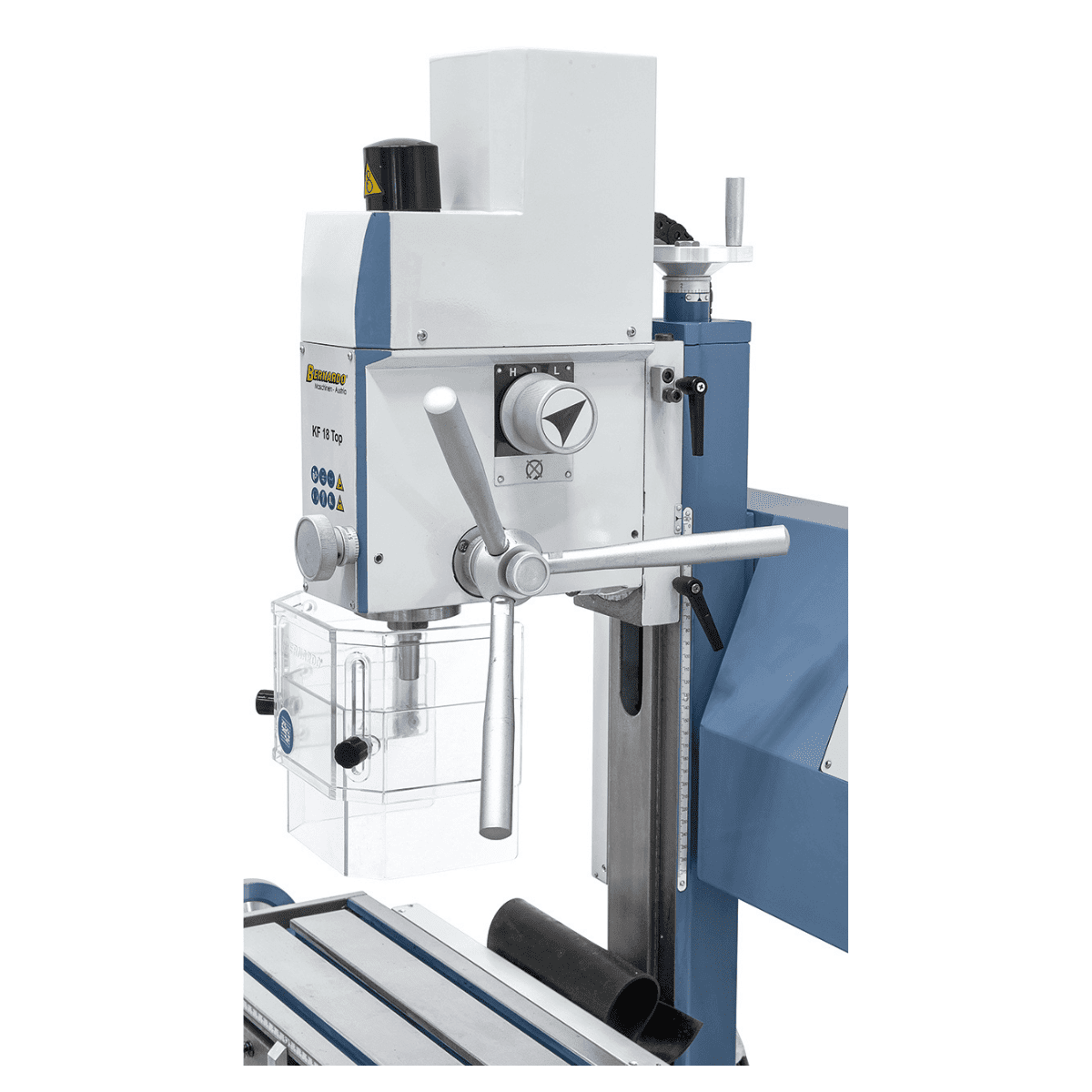

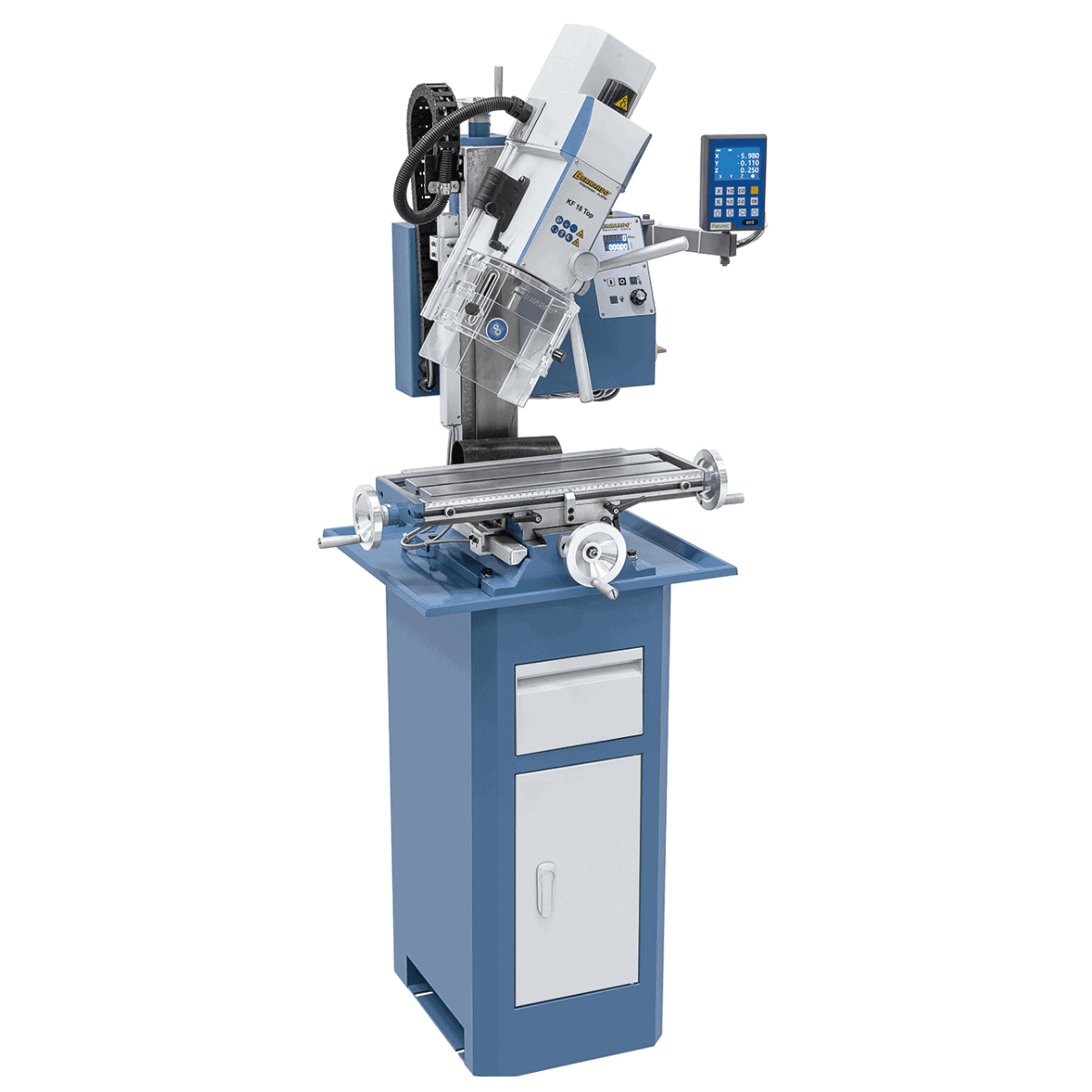

  • Tiltable Milling Head: The milling head can be tilted to both sides, allowing for angle drilling and chamfer milling, expanding the machine's usability possibilities.
  • EMC Protection: Integrated with an EMC filter, the KF 18 Top protects electrical equipment from electromagnetic interference.
  • High Concentricity: Thanks to precision tapered roller bearings, the spindle maintains high concentricity (≤ 0.015 mm), essential for precise machining.

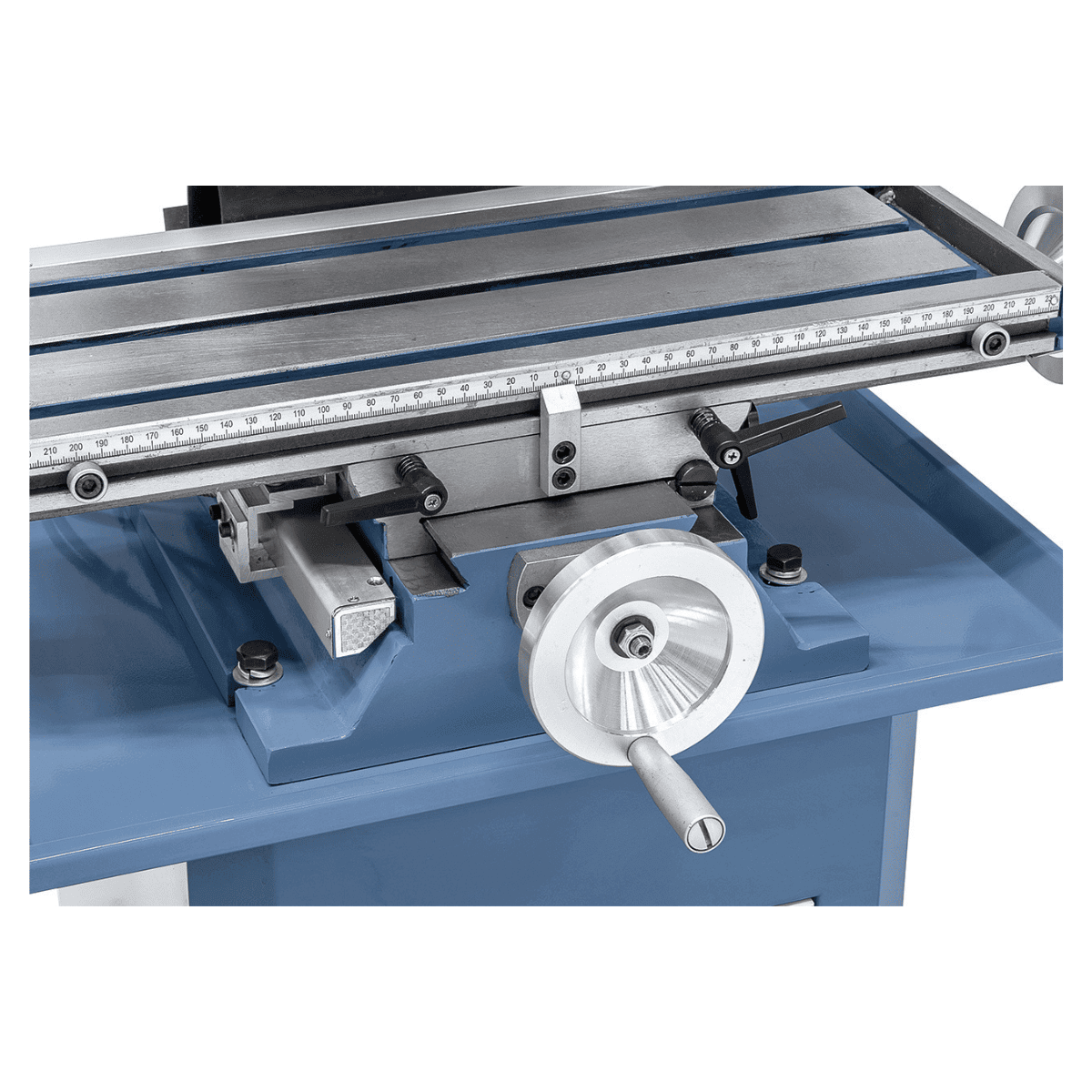

  • Dovetail Guide: The x, y and z axes feature a dovetail guide that can be adjusted via gibs, ensuring smooth and accurate movements.
  • LED lighting: The machine is equipped with an integrated LED light, improving visibility during processing.

Standard Accessories

  • DT 30 3-axis position display
  • Drill chuck with rack 3 – 16 mm / B 16
  • Arbor spindle MK 2 / B 16
  • M 10 clamping chuck
  • LED car light
  • Digital spindle display
  • Digital speedometer
  • EMC filter according to CE standard
  • Height-adjustable protective cover

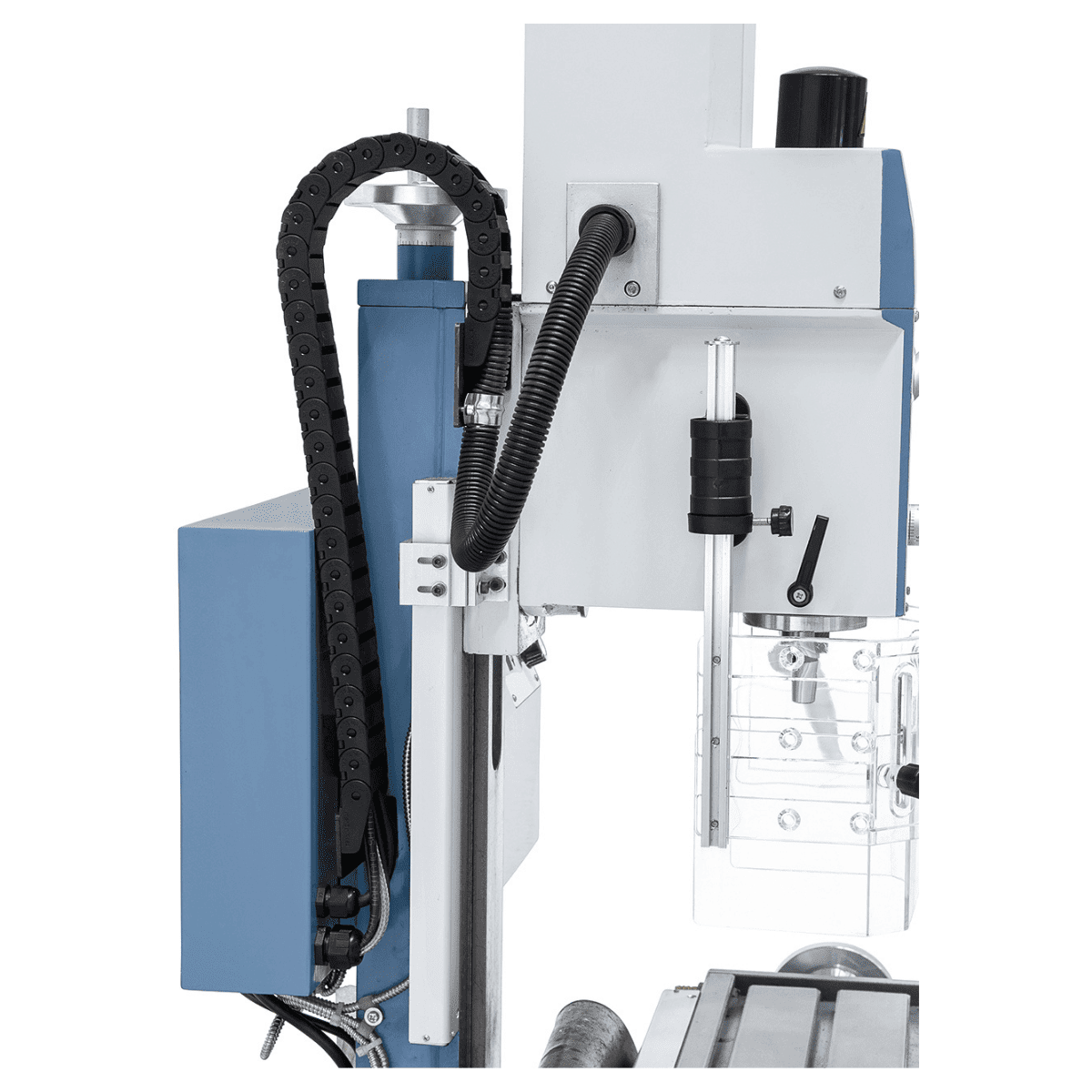

  • Energy chain
  • Control device

Technical Specifications

Characteristic Specifications
Steel drilling power 18 mm

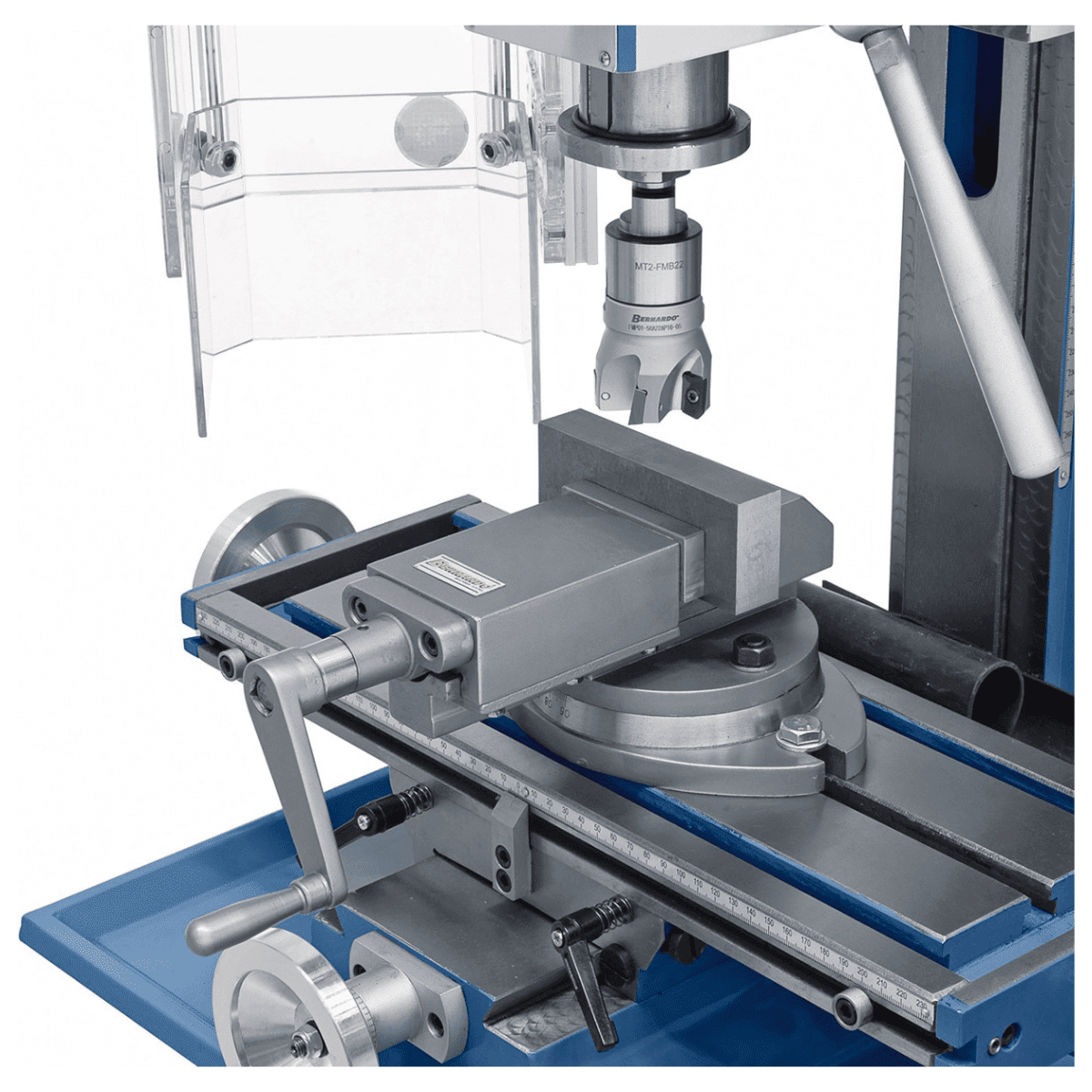

Max. face milling cutter. 63 mm

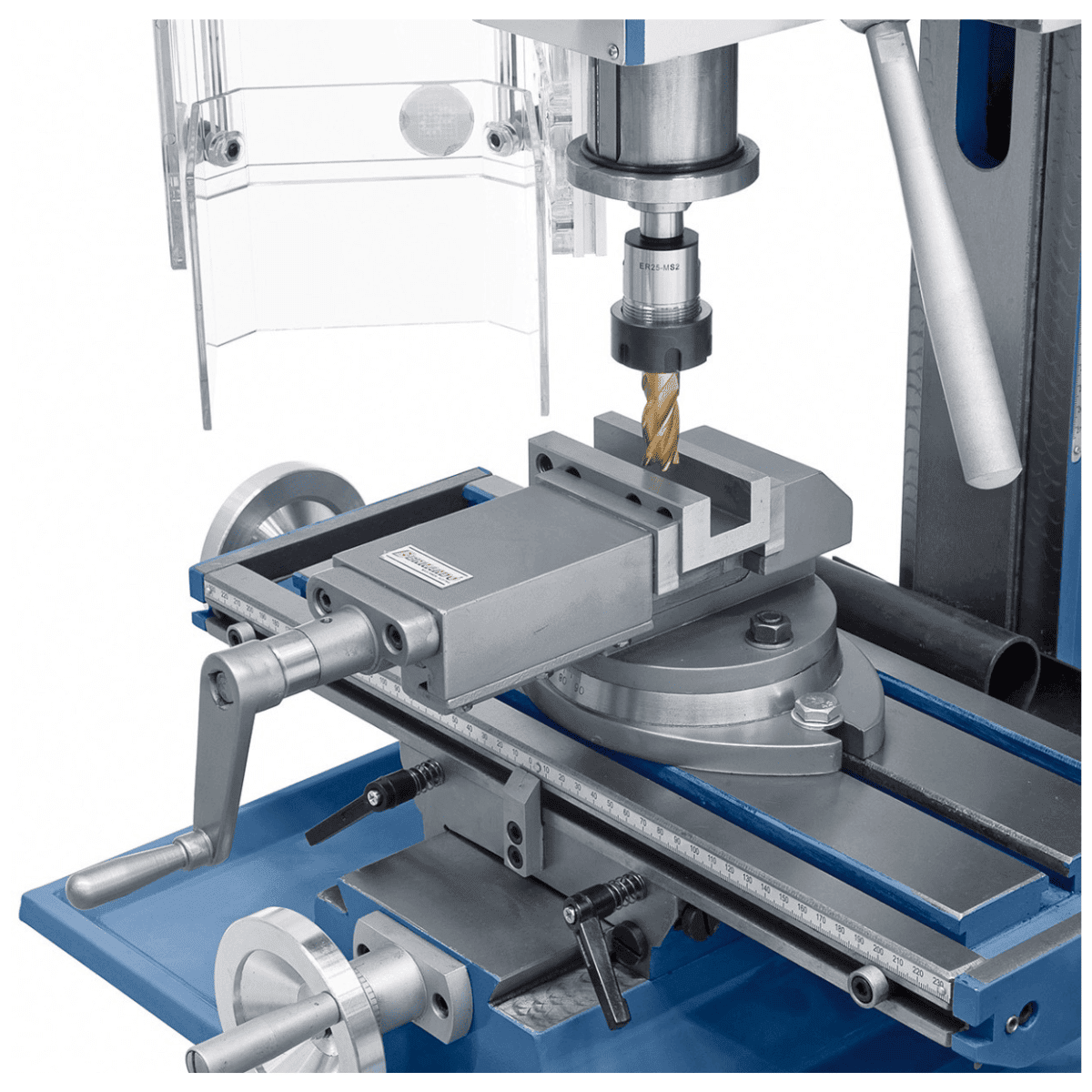

Milling cutter kit with max. shank. 20 mm
Length of the arms 195 mm
Min./max. spindle/table distance 110/280 mm
Hole stroke 52 mm
Continuous spindle speed 50 – 1500/100 – 3000 rpm
Spindle attachment MK 2
Table dimensions 500 x 180 mm
Run (x / y) 285 / 160 mm
Rotating milling head from -90° to +90°
Milling head height setting 170 mm
T-slot size 12 mm
S1 motor input power 100% 0.50 kW / 230 V
S6 Motor Output Power 40% 0.80 kW / 230 V
Machine dimensions (L x W x H) 740 x 640 x 850 mm
Weight approx. 95 kg
Notes * without base

The KF 18 Top Drill and Milling Machine is an indispensable tool for those seeking high performance and precision in a compact and versatile machine. Ideal for professional and educational applications, this model offers a wide range of features that make it perfect for a variety of milling and drilling operations.
