Bernardo  |  SKU: 02-10341

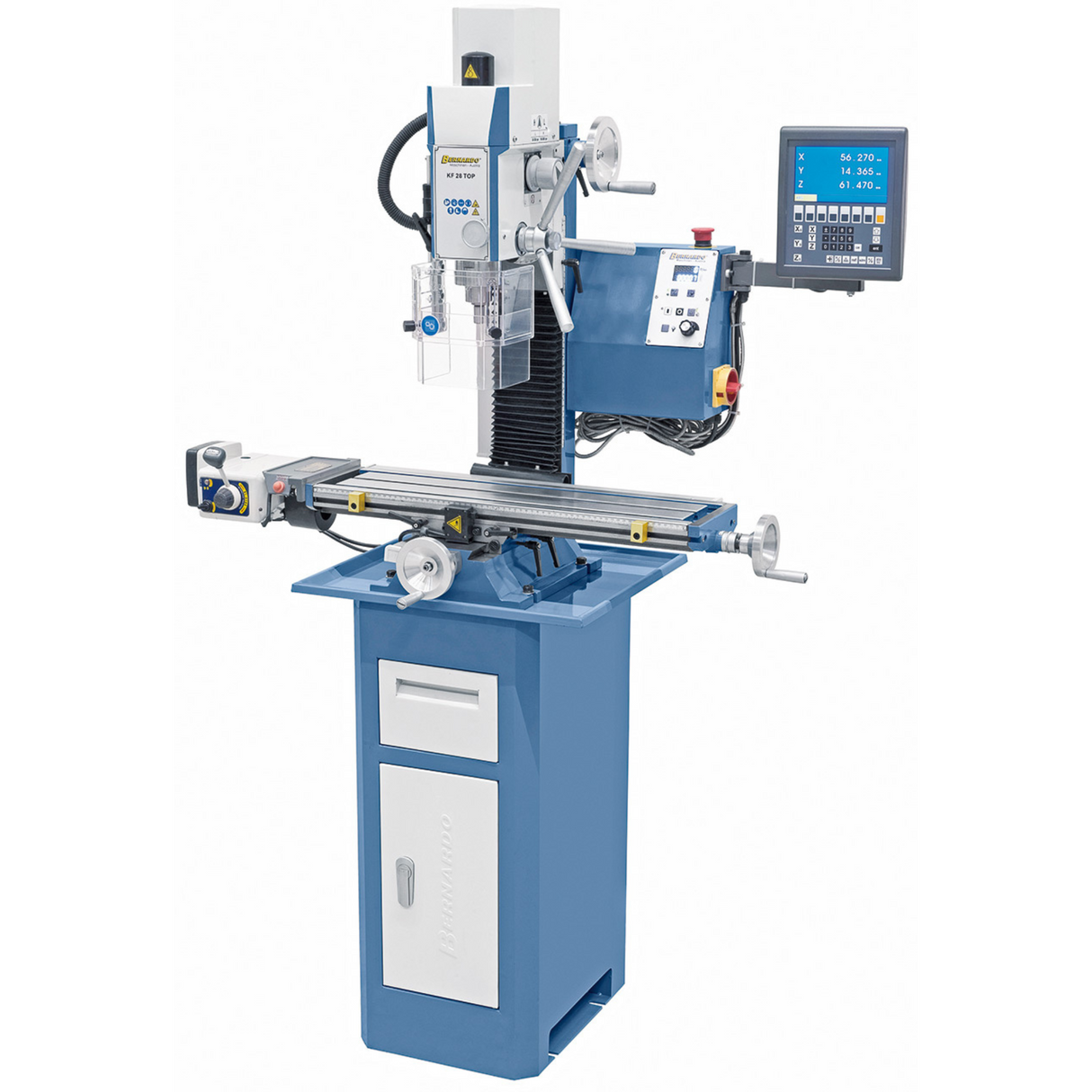

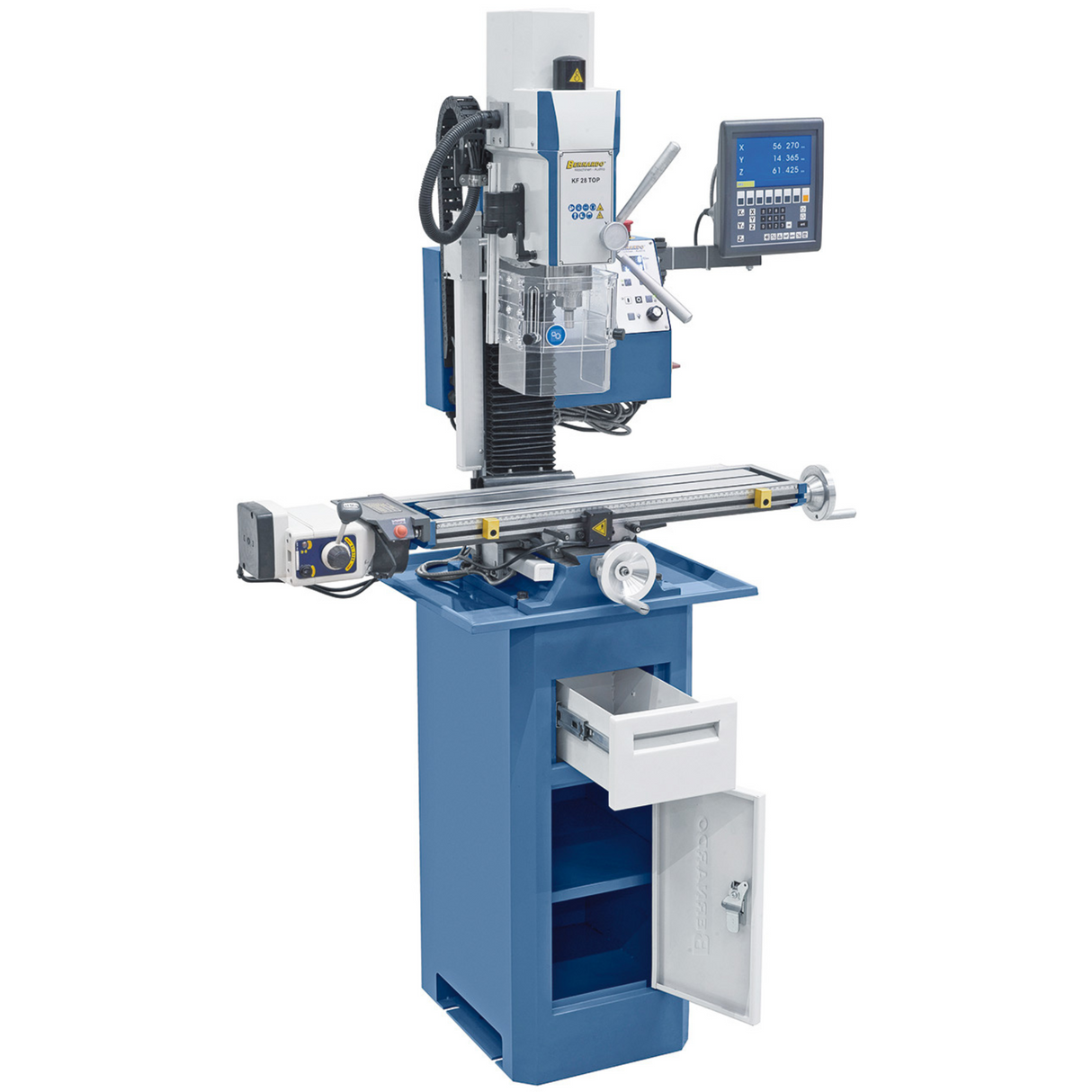

KF 28 Top drilling and milling machine with 3-axis feed and digital display

€3.281,80
pay up to 30 installments,

Delivery and Shipping

At Krolit, we are committed to providing a seamless and reliable shipping experience for our customers. Once you place your order, it is generally processed within 1-3 business days, excluding weekends and holidays. As soon as your order ships, you will receive a confirmation email with your tracking number and shipment details, so you can easily track your delivery.

We offer several shipping options, including standard, express, and overnight shipping, to meet your needs. Shipping costs and estimated delivery times are clearly displayed at checkout and vary based on your location and the shipping method selected. Please note that all delivery times are approximate and may be subject to delays due to factors such as weather conditions, high order volume, or courier issues.

Currently, Krolit [offers/does not offer] international shipping. If international shipping is available, please be aware that customs duties, taxes, or other additional fees may apply, which are the responsibility of the recipient. We recommend checking with your local customs office before placing an order.

To ensure timely delivery, please ensure the shipping address provided at checkout is correct and complete. Krolit is not responsible for delays or lost packages due to incorrect or incomplete address information. If your package appears to have been delivered but you haven't received it, we recommend contacting the courier first. If the problem persists, our customer support team is available to assist you.

If you have any questions or concerns regarding shipping or delivery, please do not hesitate to contact us at [your email address] or by phone at [your phone number].

At Krolit, we value your satisfaction and are committed to ensuring your order arrives safely and on time.

Secure payment guaranteed

Description

KF 28 Top Drill and Milling Machine: Power and Precision for Professionals and Trainers

The KF 28 Top drill and milling machine is a versatile and powerful machine, designed to meet the needs of professional users, modelers, and students in training. Equipped with a high-quality DC motor, this model offers high torque at low speeds and constant torque under load, ensuring exceptional performance across a wide range of applications.

Main Features

  • DC Motor : The motor ensures optimal torque at low speeds and maintains constant torque under load, ideal for precise and complex machining.
  • Wide Speed Range : Spindle speed ranges from 50 to 2600 rpm, with a 2-stage gearbox that optimizes power transfer for different operations.
  • Variable Speed Regulation : The speed can be continuously adapted to the workpiece, offering maximum flexibility and control during machining.
  • Large Composite Board : The board measures 700 x 180mm, with T-slots and a finely machined surface, ensuring a large and stable work area.

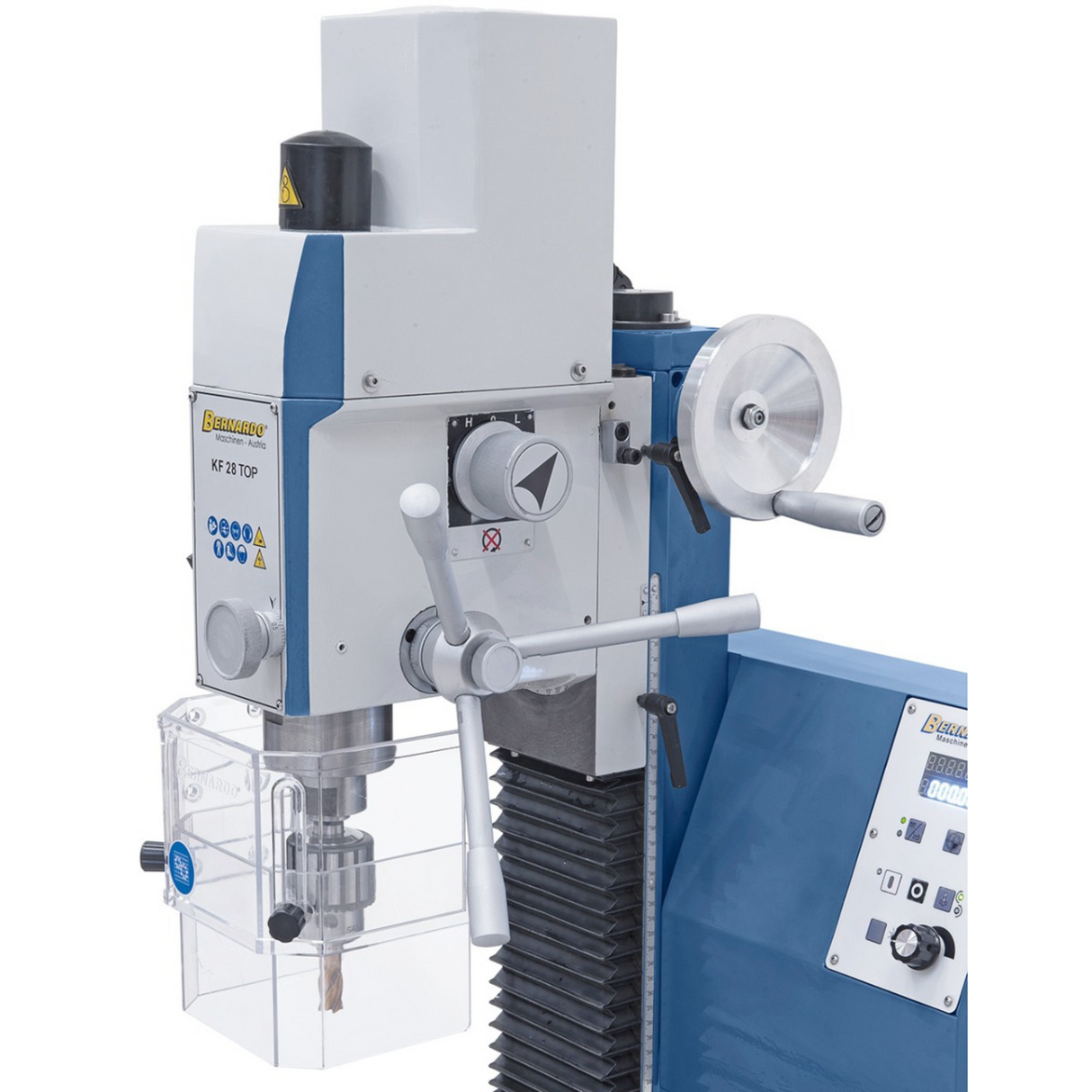

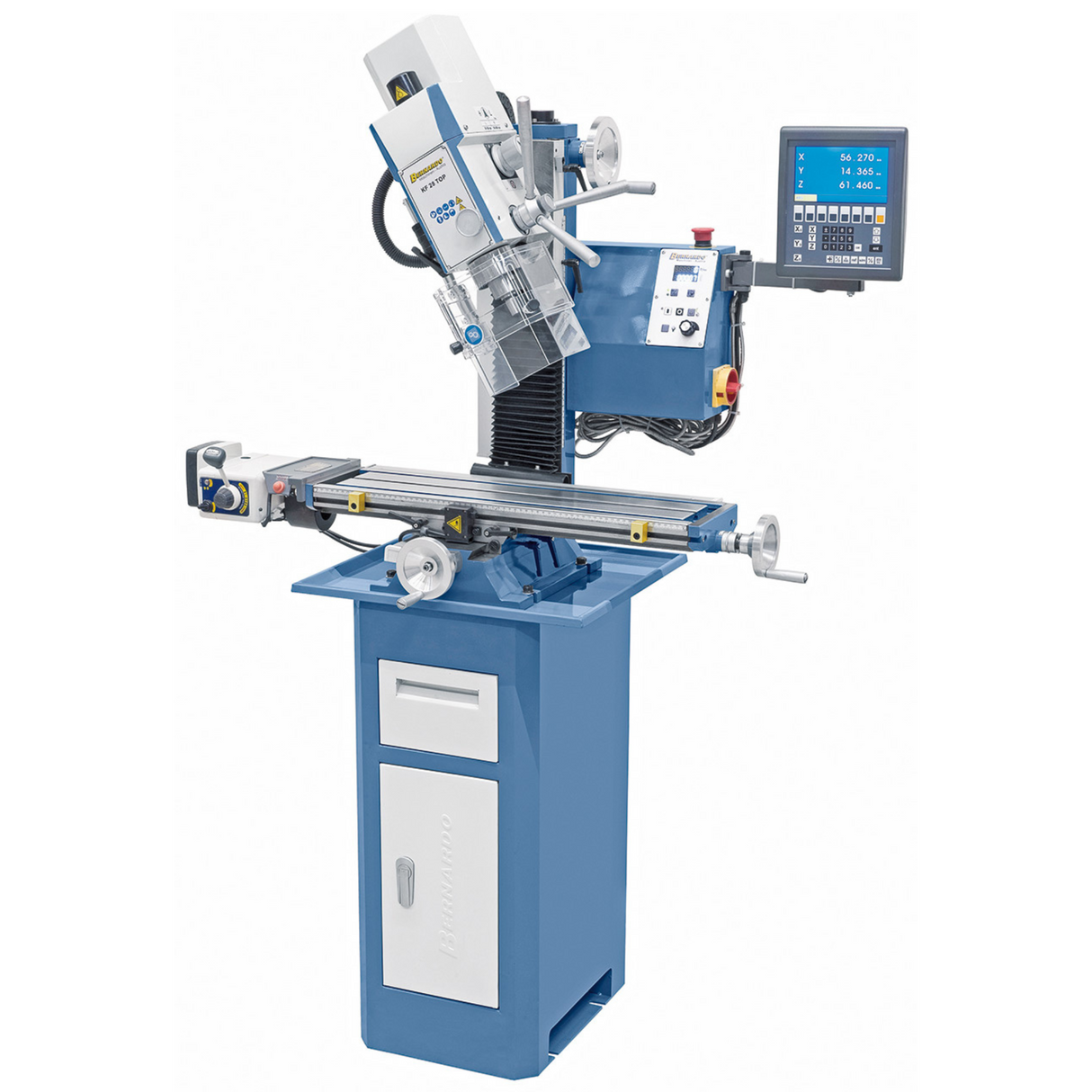

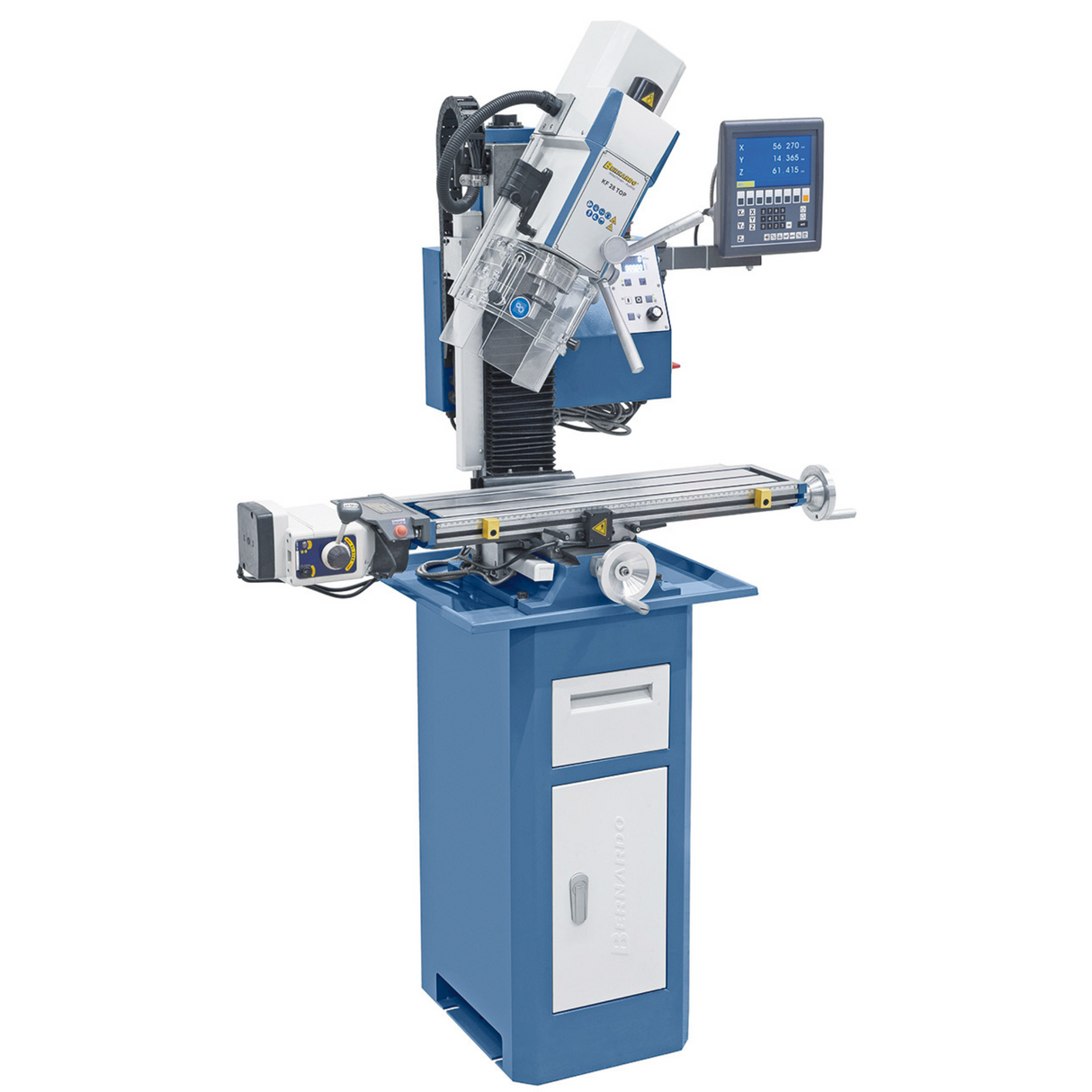

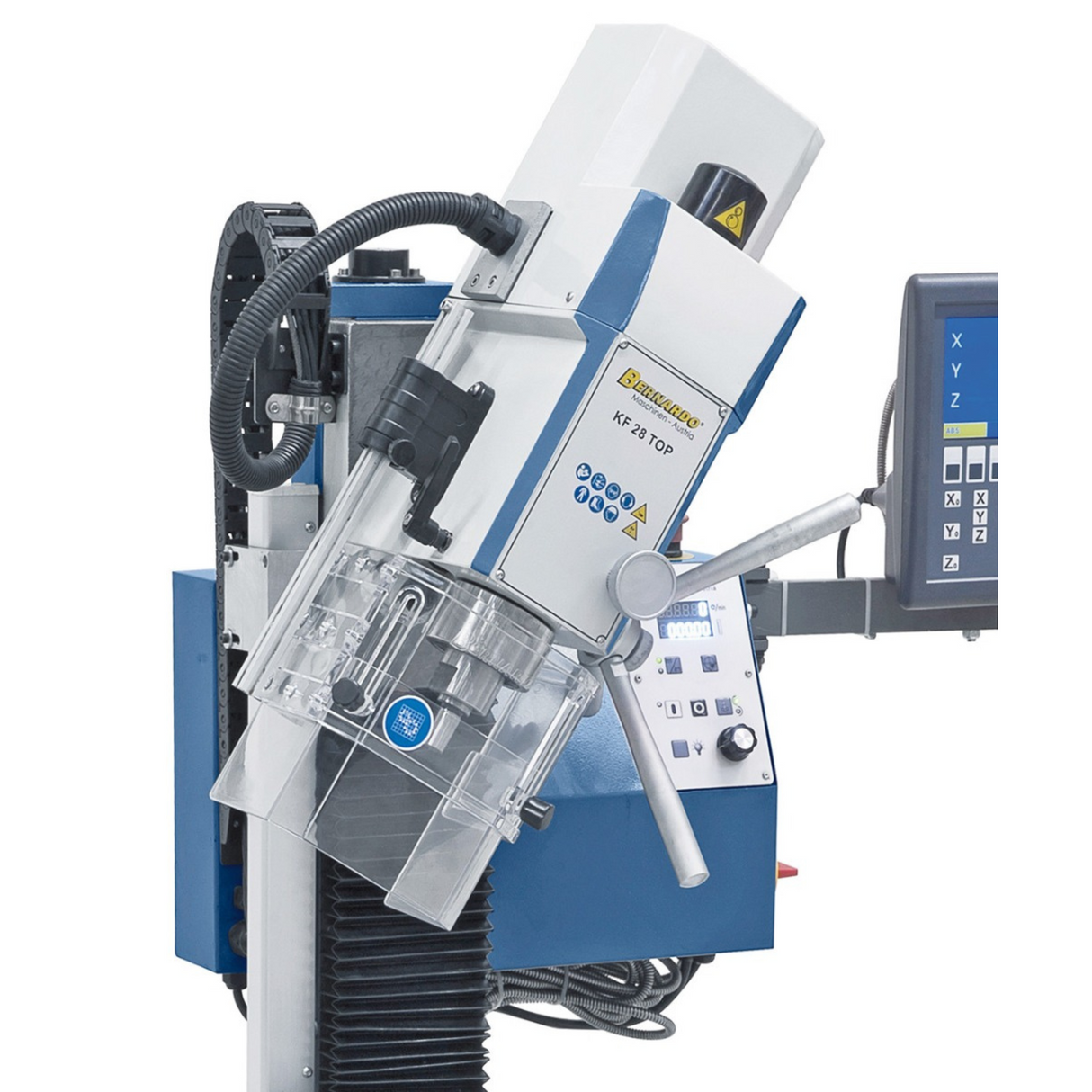

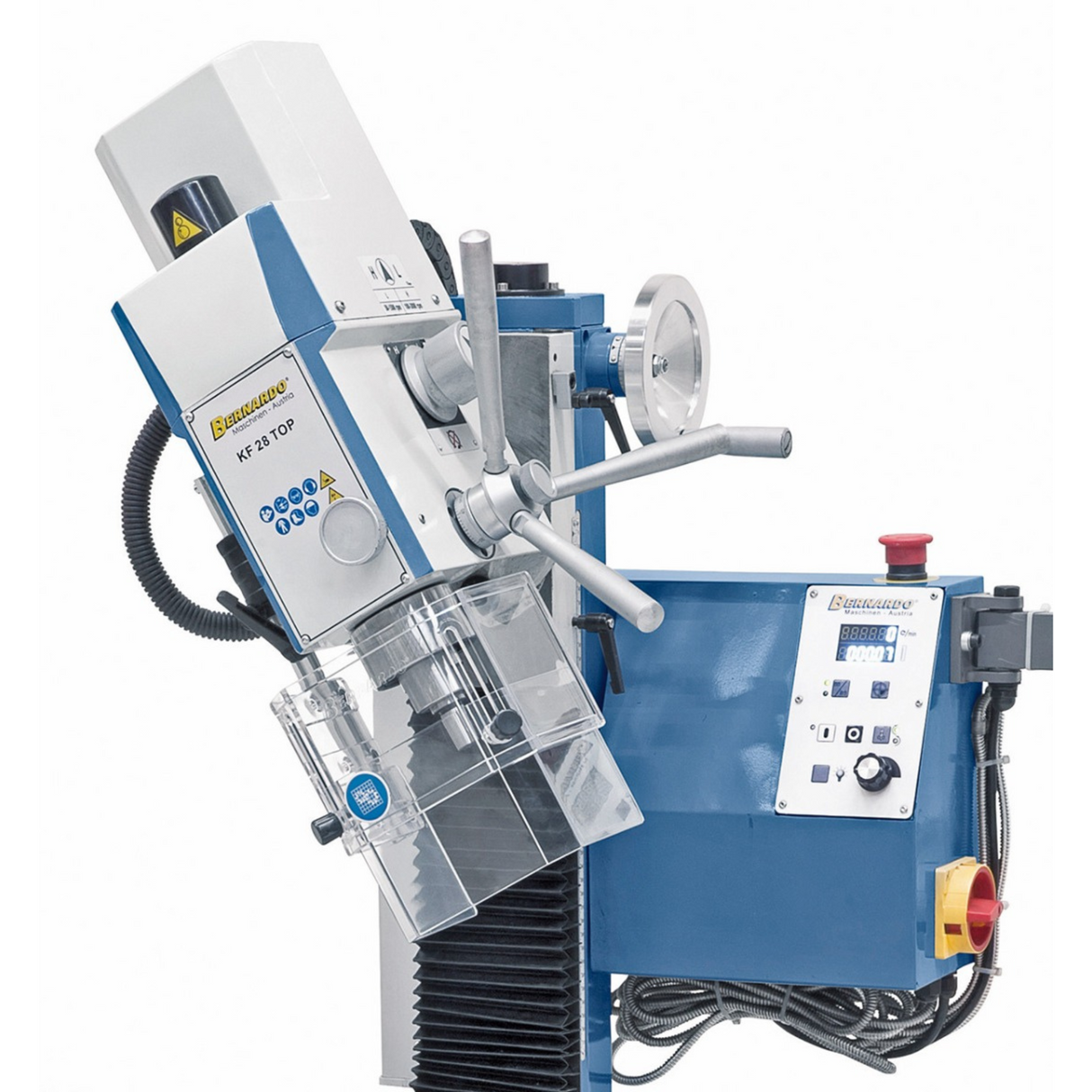

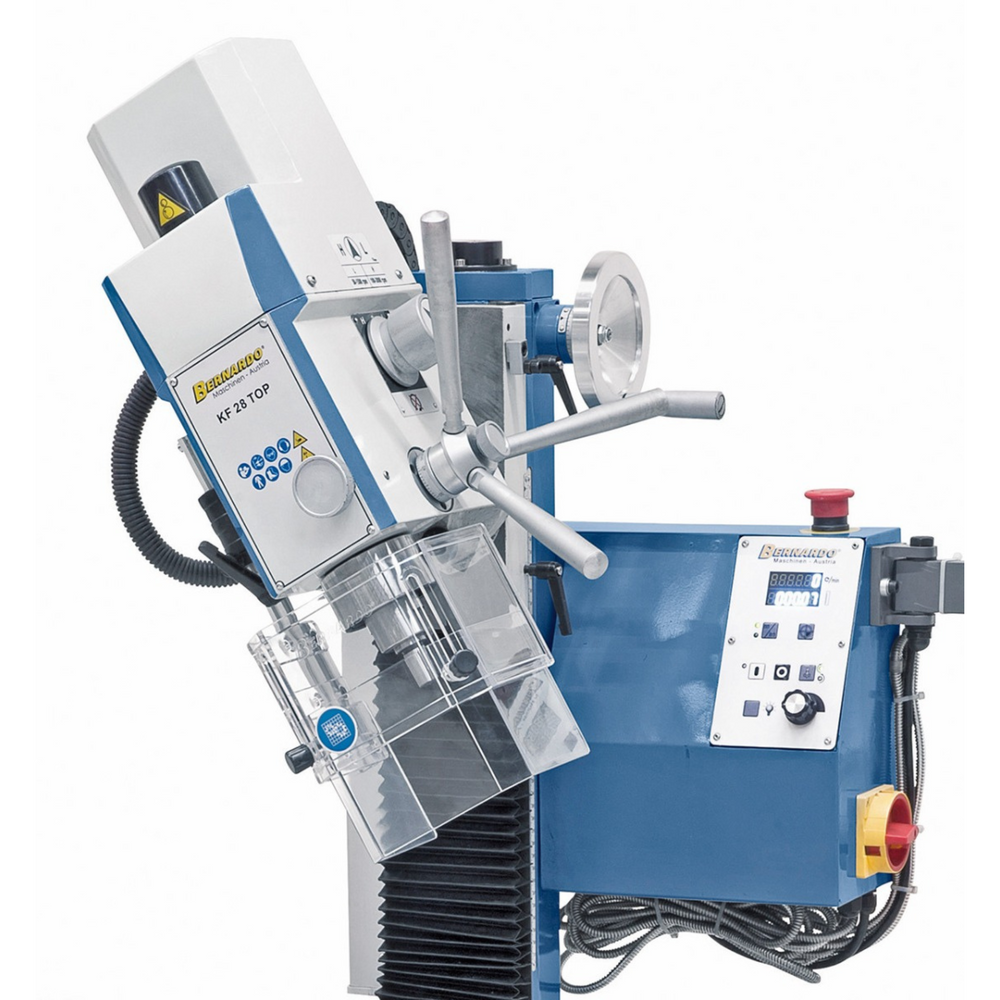

  • Tiltable Milling Head : The head can be tilted from -90° to +90°, allowing for angle drilling, chamfer milling and much more.
  • High Spindle Concentricity : Thanks to the tapered roller bearings, the spindle concentricity is guaranteed at ≤ 0.015 mm, ensuring high precision results.
  • Dovetail Guide : The x, y and z axes are equipped with adjustable dovetail guides, which provide superior stability and precise movements.
  • Built-in EMC Filter : Protects electrical equipment from electromagnetic interference, ensuring safe and stable operation.
  • Additional Features : The clockwise and counterclockwise rotation device is ideal for threading operations, while the integrated LED light perfectly illuminates the work area.

Accessories Included

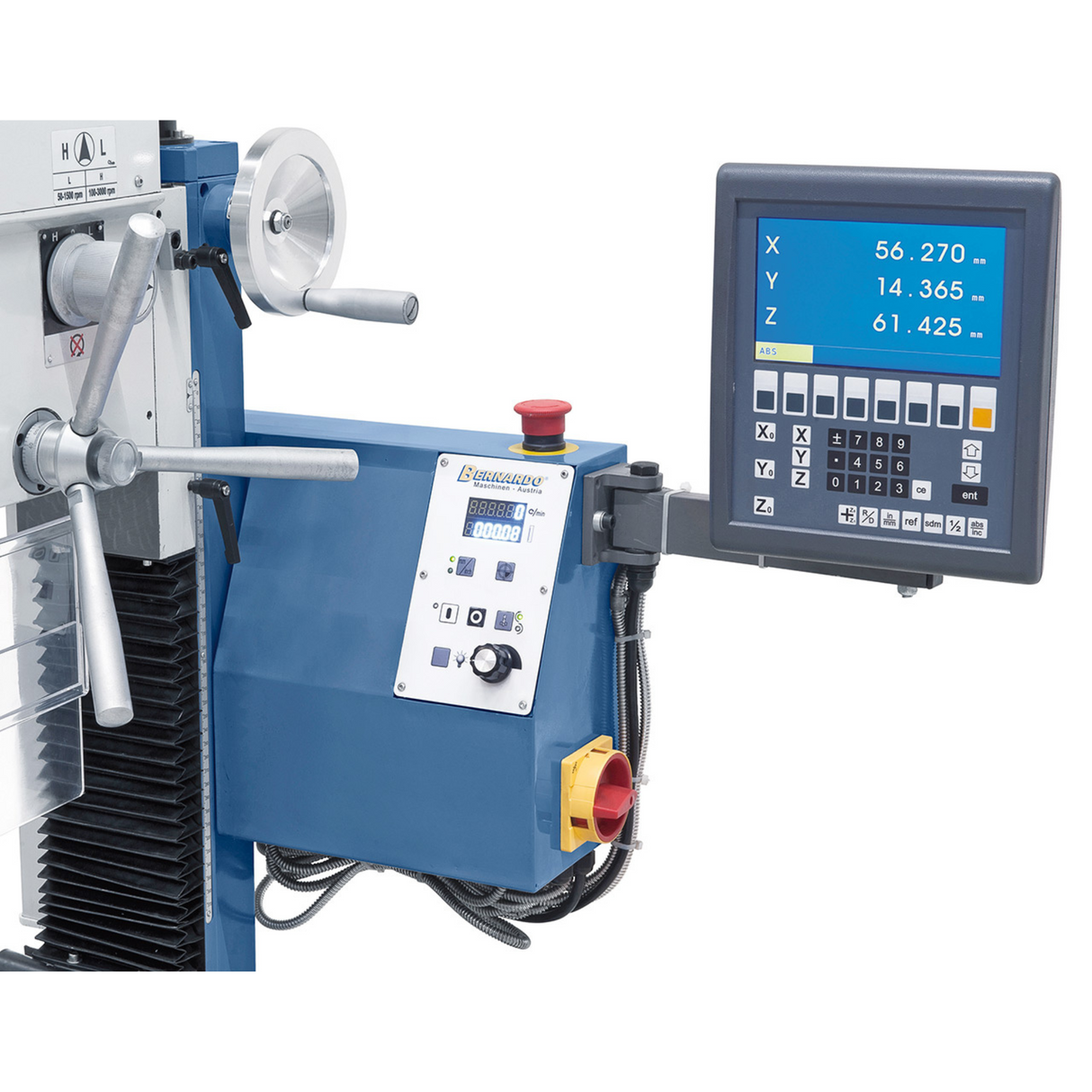

  • ES-12V 3-Axis Position Display with LCD Display
  • Drill chuck with rack 3 – 16 mm / B 16
  • Arbor spindle MK 3 / B 16
  • Clamping chuck

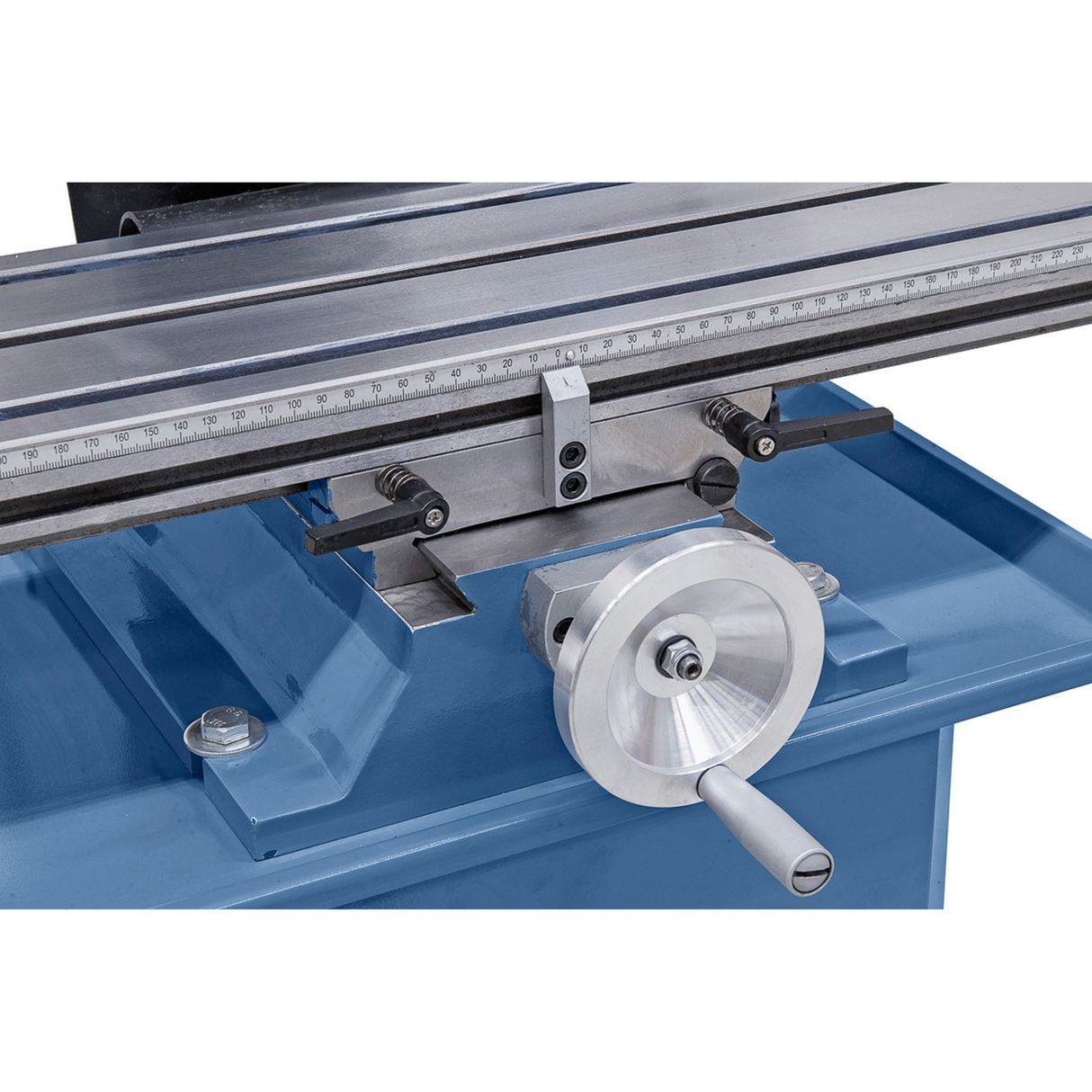

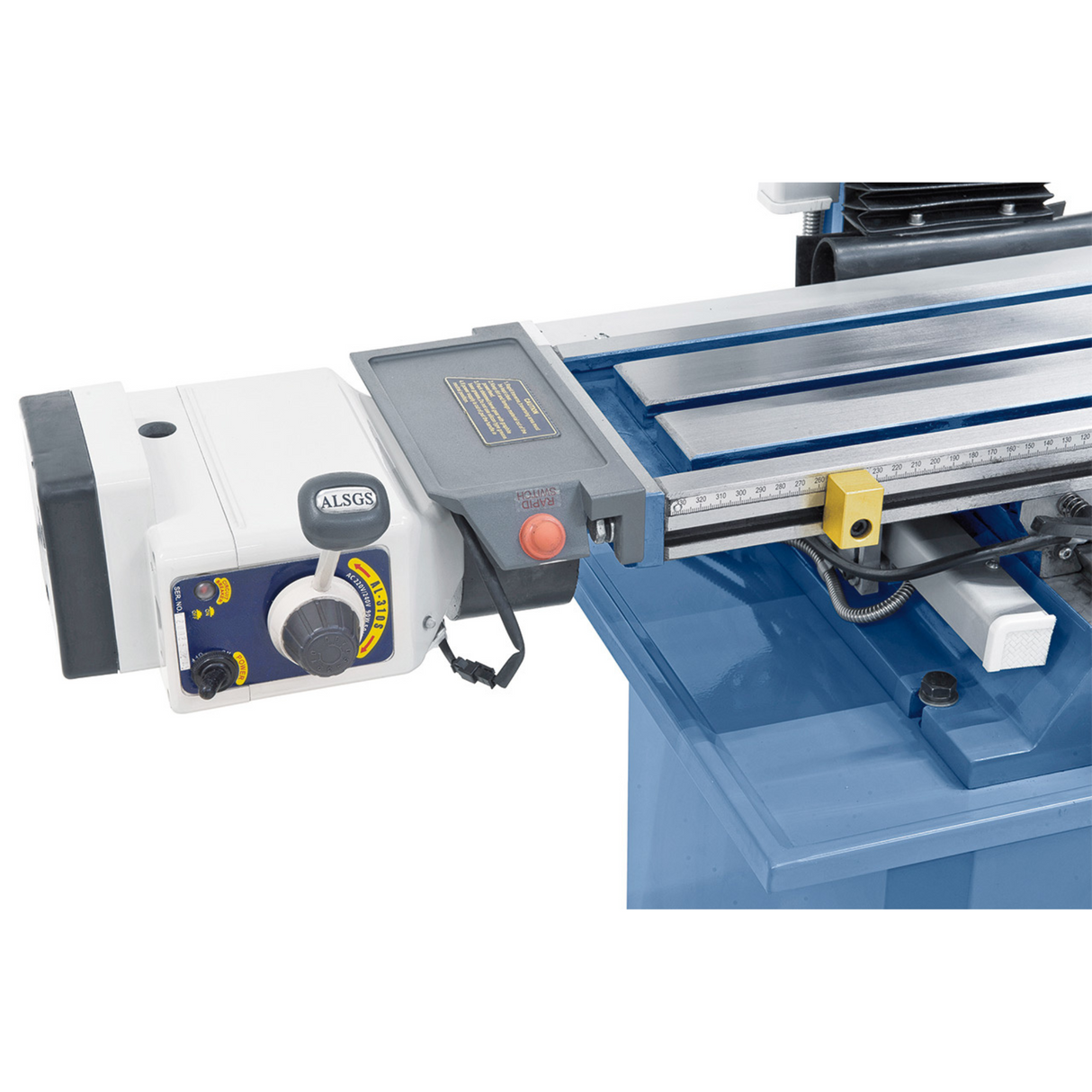

  • X-axis advance
  • LED car light
  • Digital spindle display
  • Digital speedometer
  • EMC filter compliant with CE standards
  • Height-adjustable protective cover

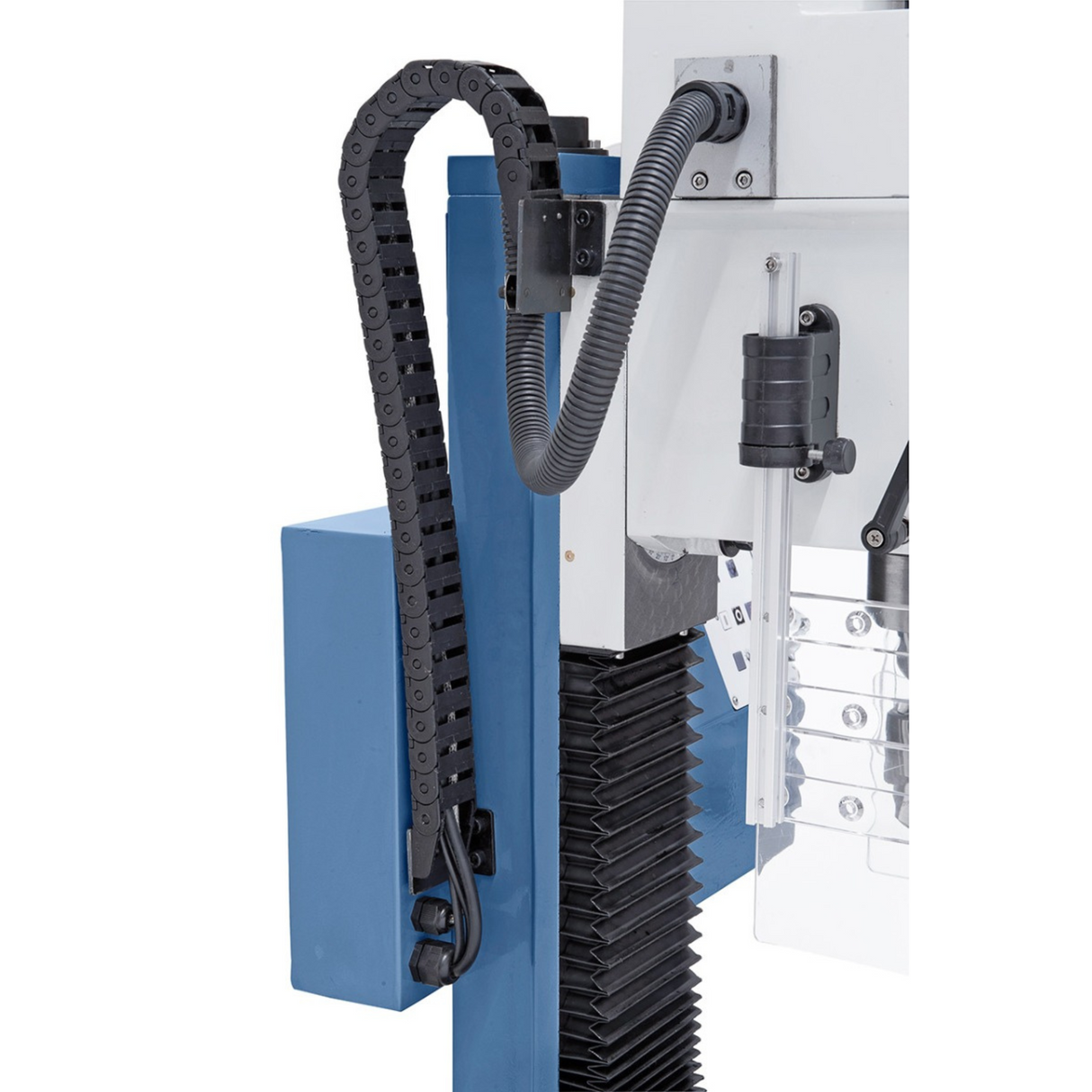

  • Energy chain
  • Control device

Technical Specifications

Characteristic Specifications
Steel drilling power 25 mm
Max. face milling cutter. 63 mm
Milling cutter with max. shank. 25 mm
Length of the arms 170 mm
Distance spindle / table min./max. 50 / 315 mm
Hole stroke 52 mm
Continuous spindle speed 50 – 1400 / 100 – 2600 rpm
Spindle attachment MK 3
Table dimensions 700 x 180 mm
Run (x / y) 430 / 150 mm
Rotating milling head from -90° to +90°
Milling head height setting 265 mm
T-slot size 12 mm
S1 motor input power 100% 0.90 kW / 230 V
S6 Motor Output Power 40% 1.35 kW / 230 V
Machine dimensions (L x W x H) 940 x 650 x 930 mm
Weight approx. 135 kg

The KF 28 Top drill and milling machine is a powerful and versatile machine, ideal for those seeking precision and control across a wide range of tasks. Perfect for professionals, modelers, and students in training, this model offers superior performance thanks to its DC motor, tilting milling head, and variable speed control. With the KF 28 Top, you can tackle any project with maximum efficiency and reliability.
