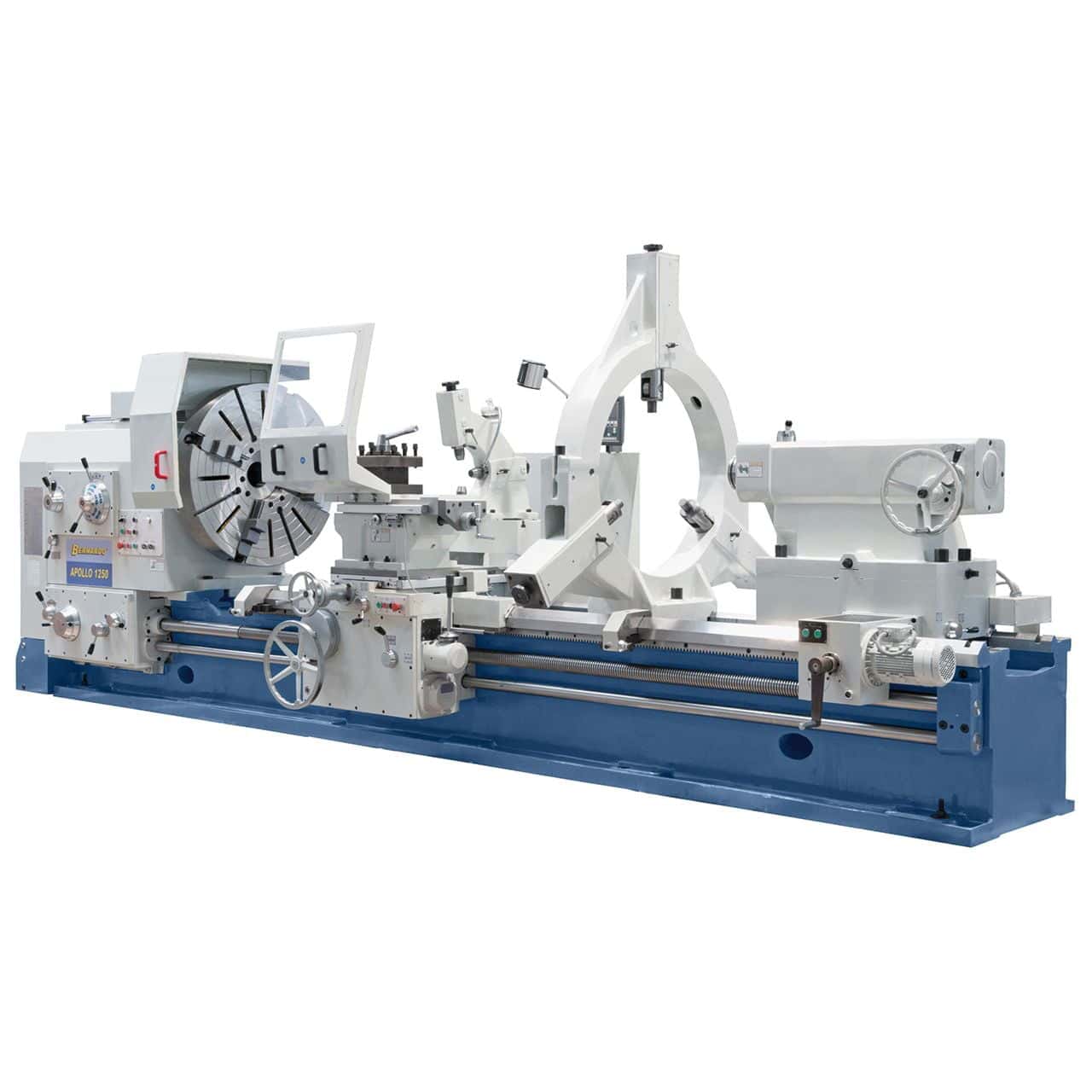

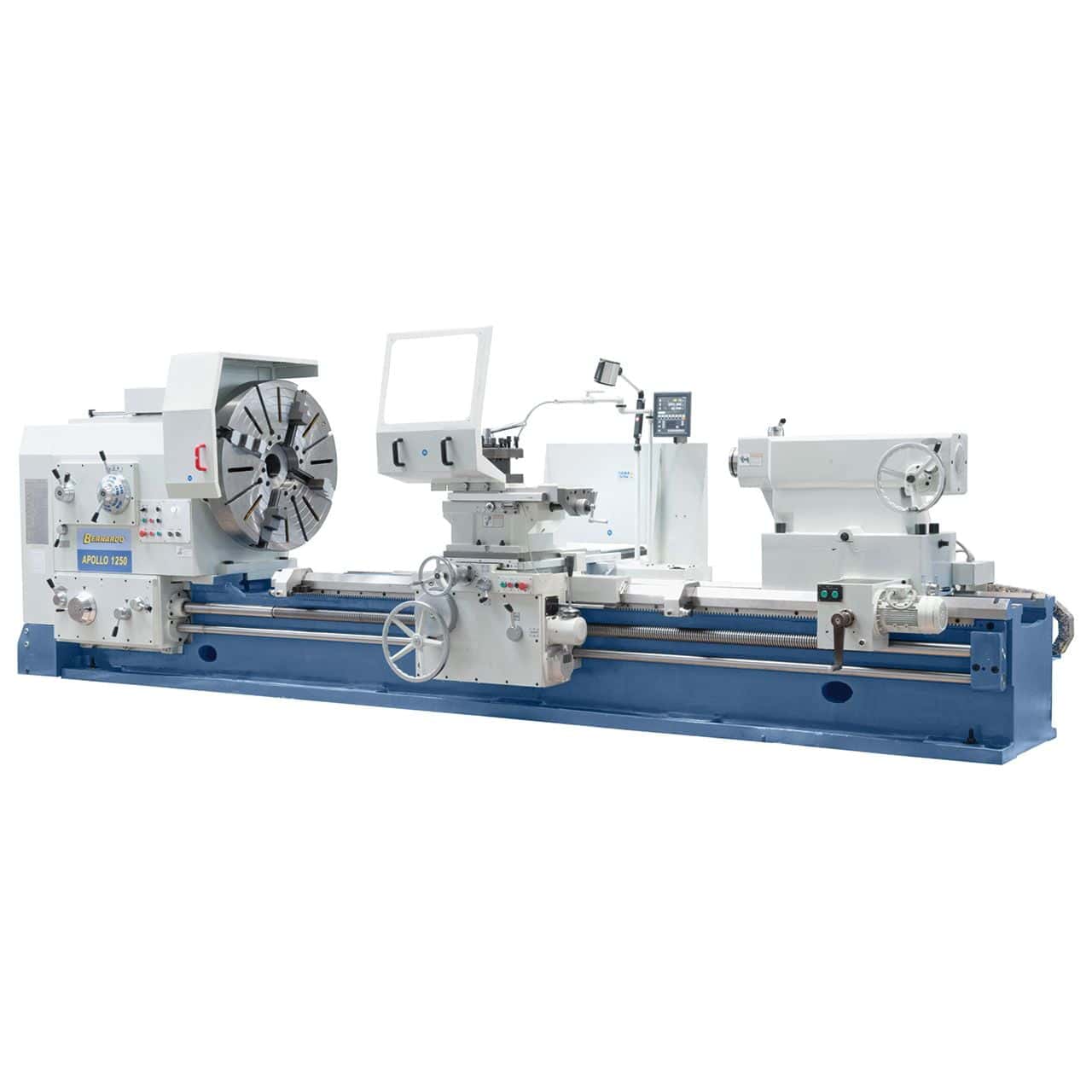

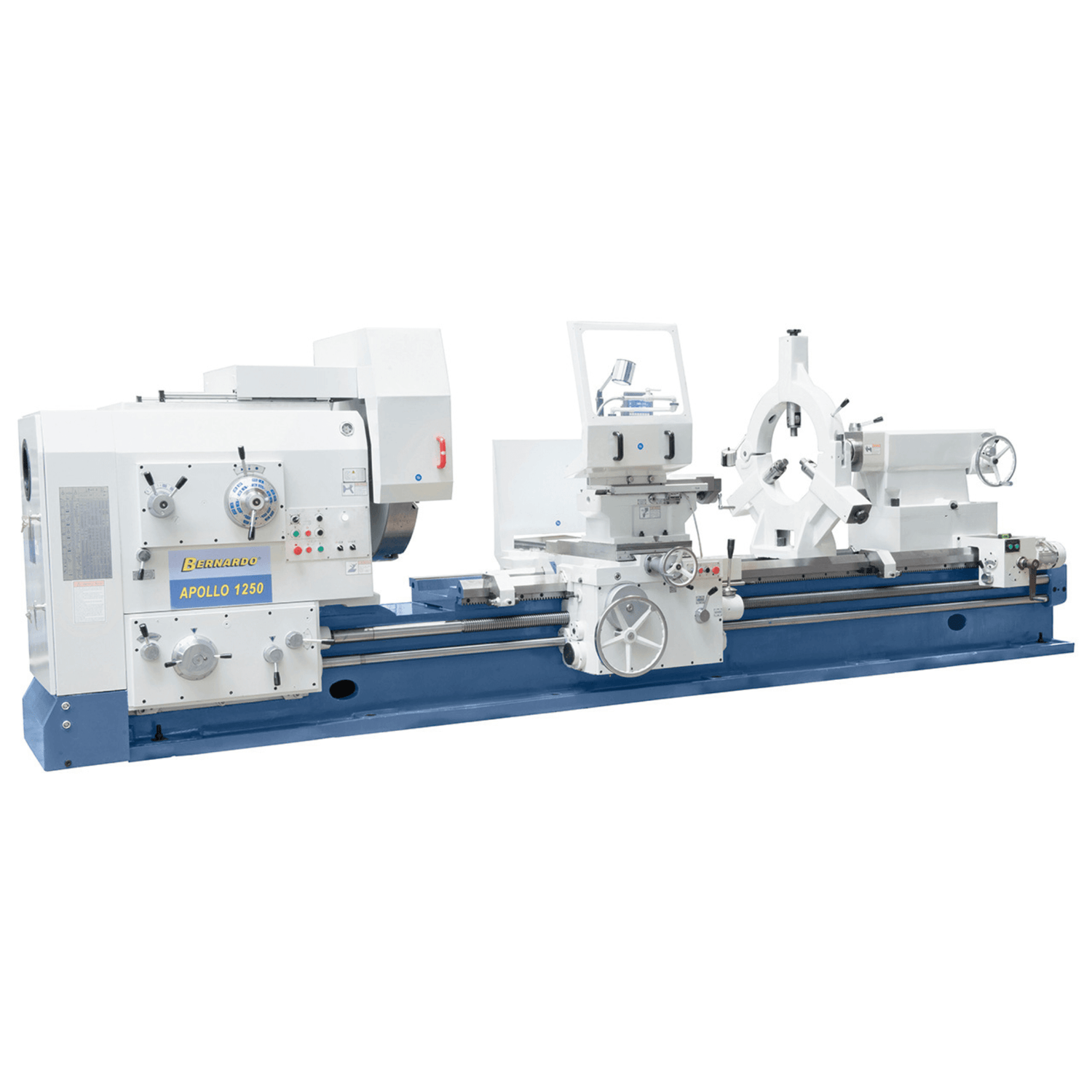

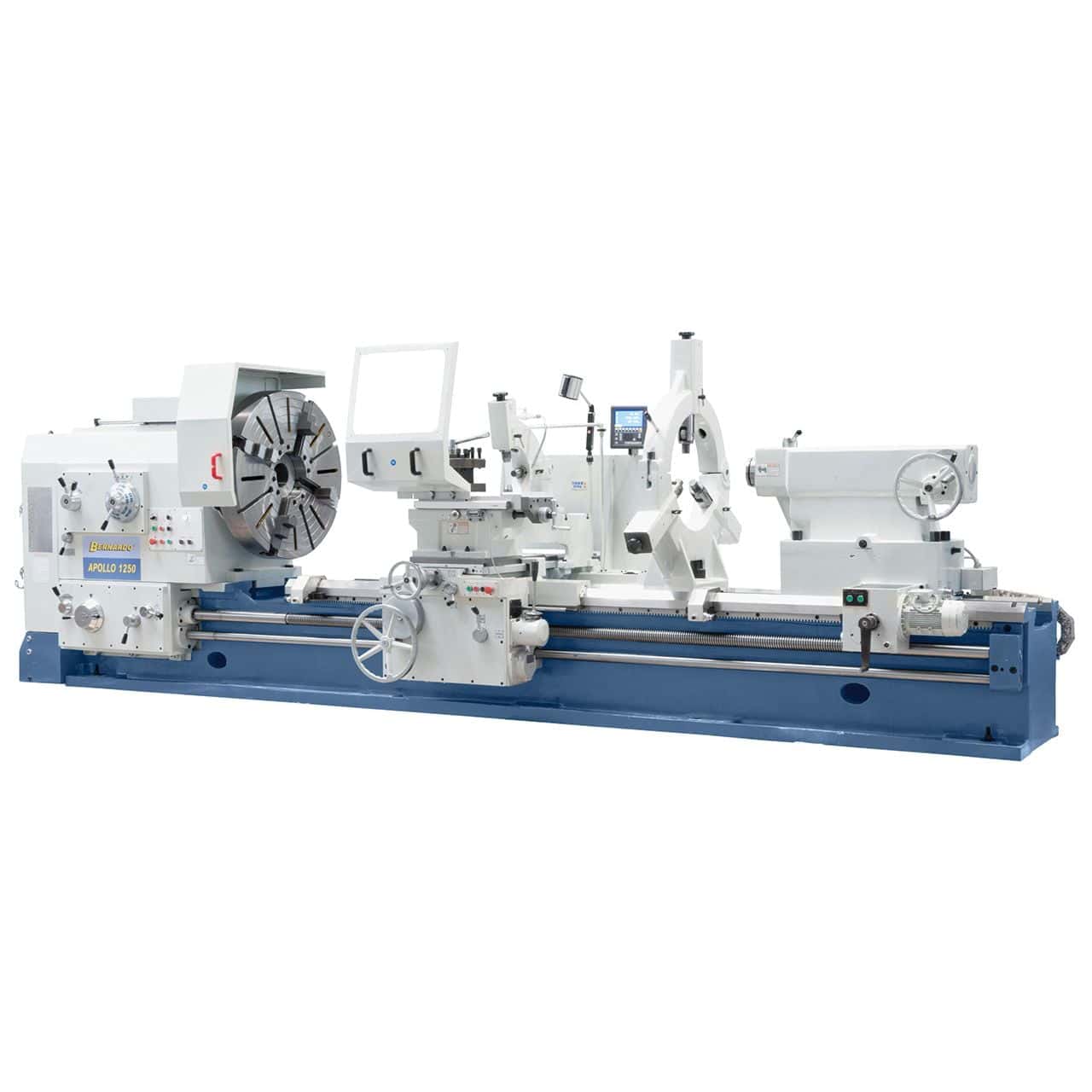

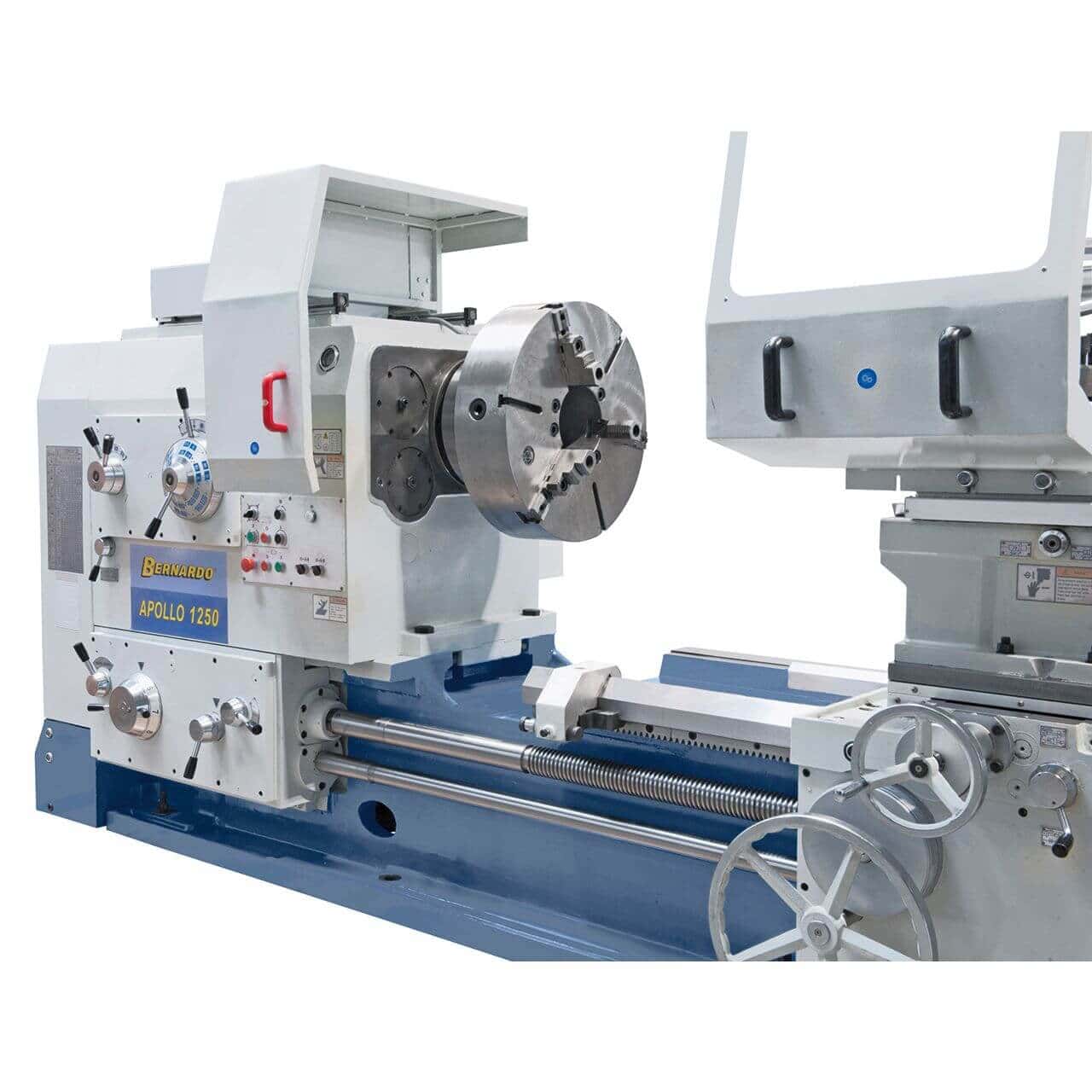

APOLLO 1600 x 8000 lathe
APOLLO 1600 x 8000 lathe is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
APOLLO 1600 x 8000 lathe
-
Description
-
Technical Specifications
-
Product safety
-
Reviews
Description
Property
- Gears and shafts hardened and ground even during power operation
- The transmission of the rotary motion (forward/backward) takes place via a drive shaft with hydraulic coupling
- The gears are large, hardened and precision ground

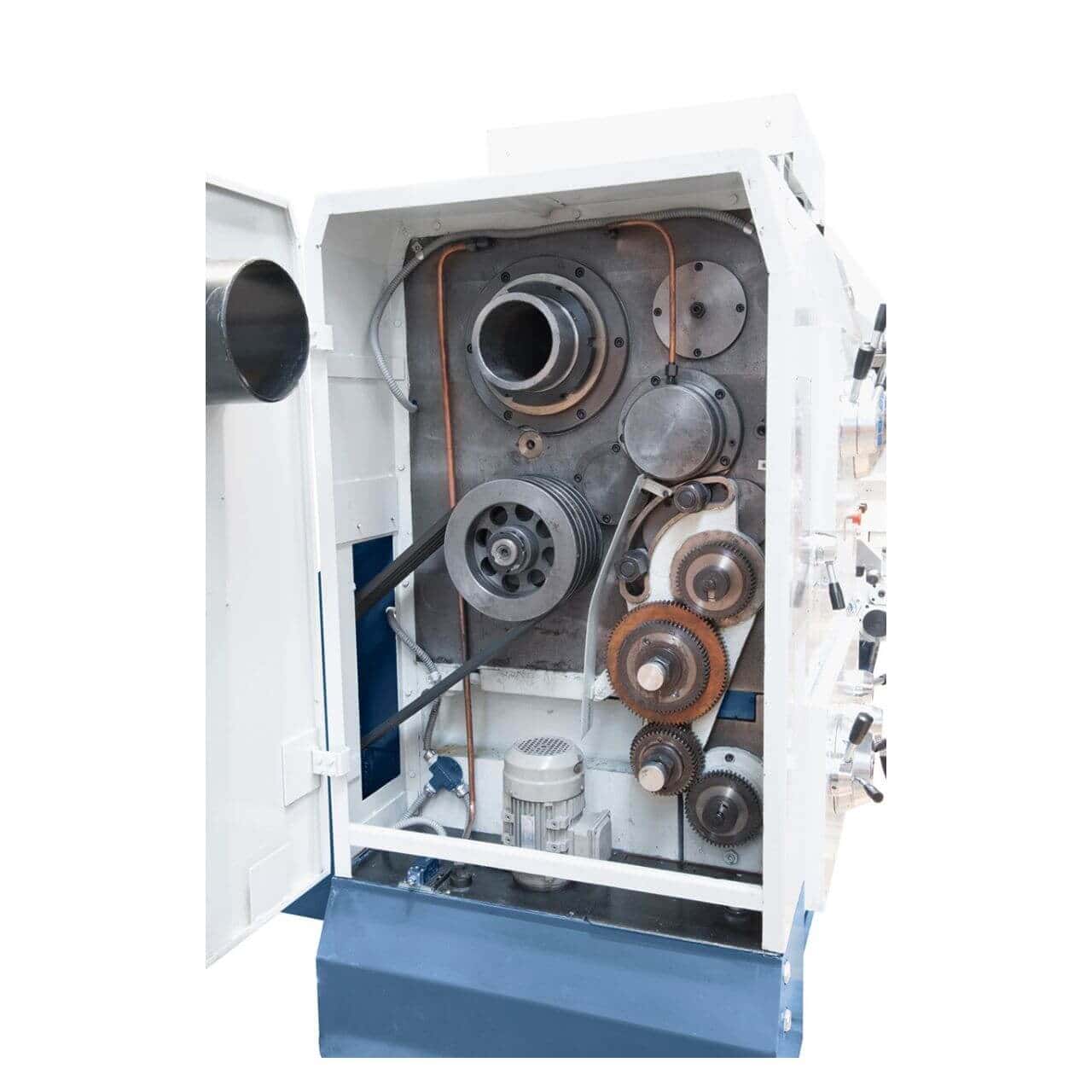

- The closed gear box allows a high number of thread advances and pitches
- Large speed range with 33 speeds for machining a wide variety of workpieces
- Smooth start of the main spindle by means of the mechanical disc clutch

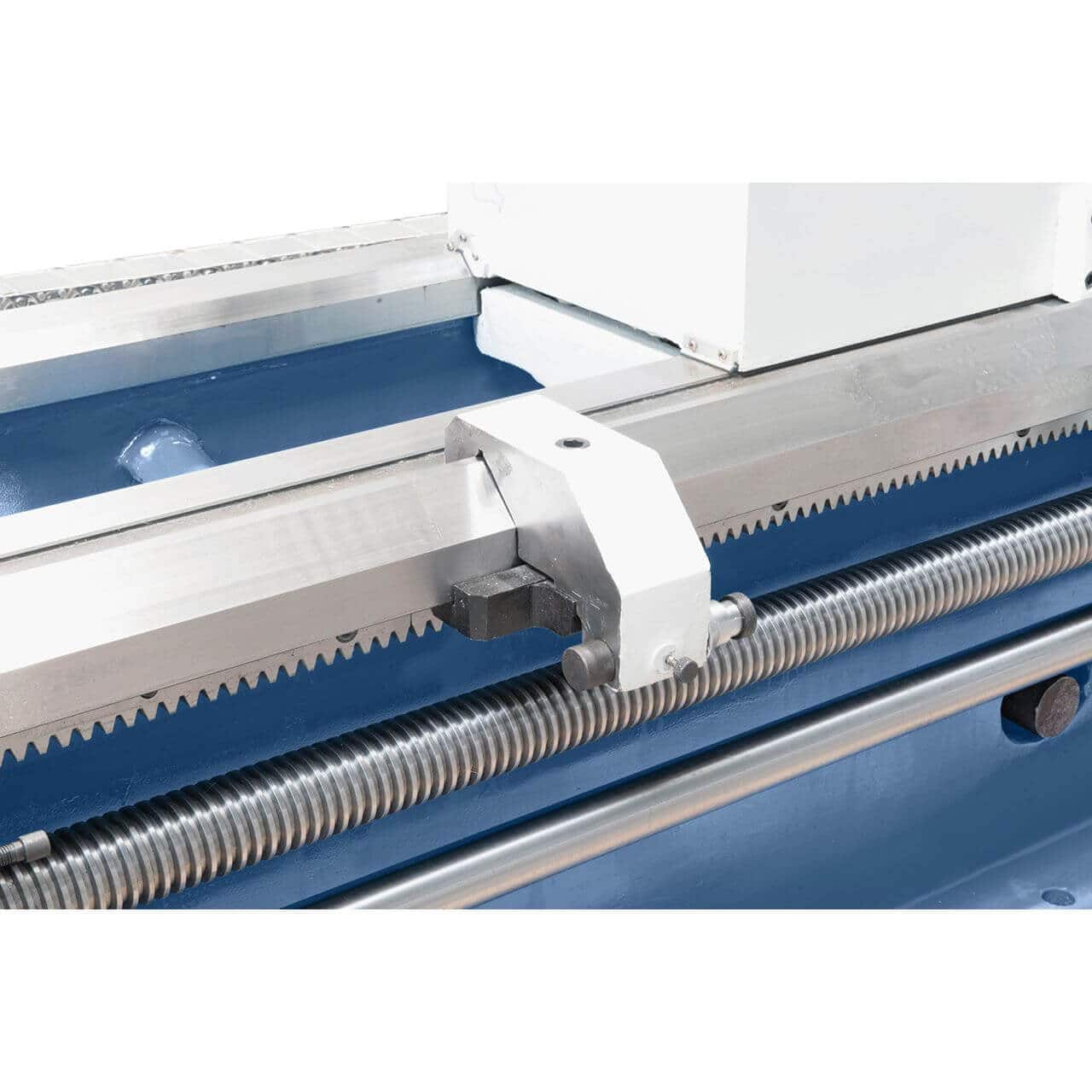

- Large size guides are induction hardened and ground
Standard accessories

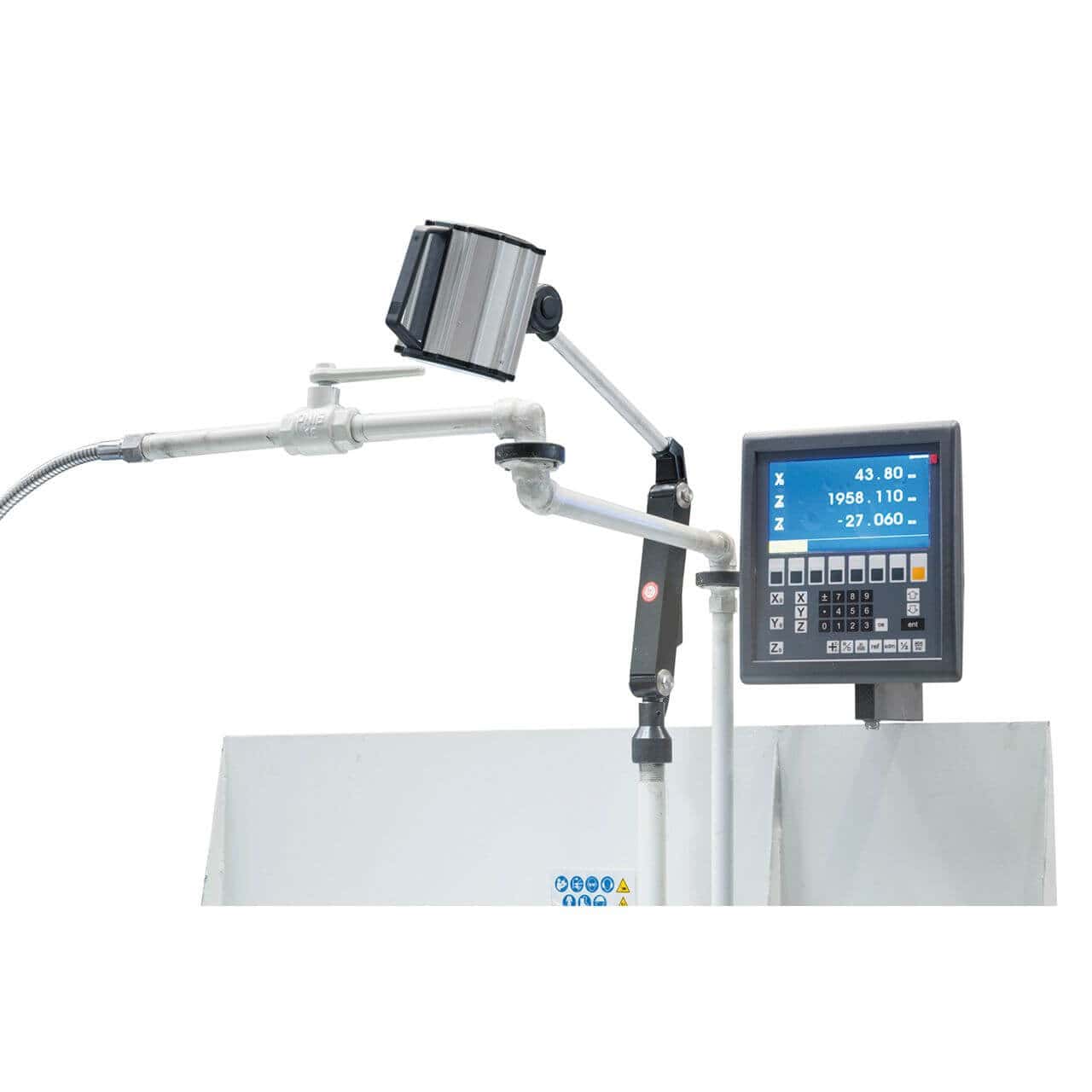

- ES-12V 3-Axis Position Display with LCD Display
- Platform 1400 mm

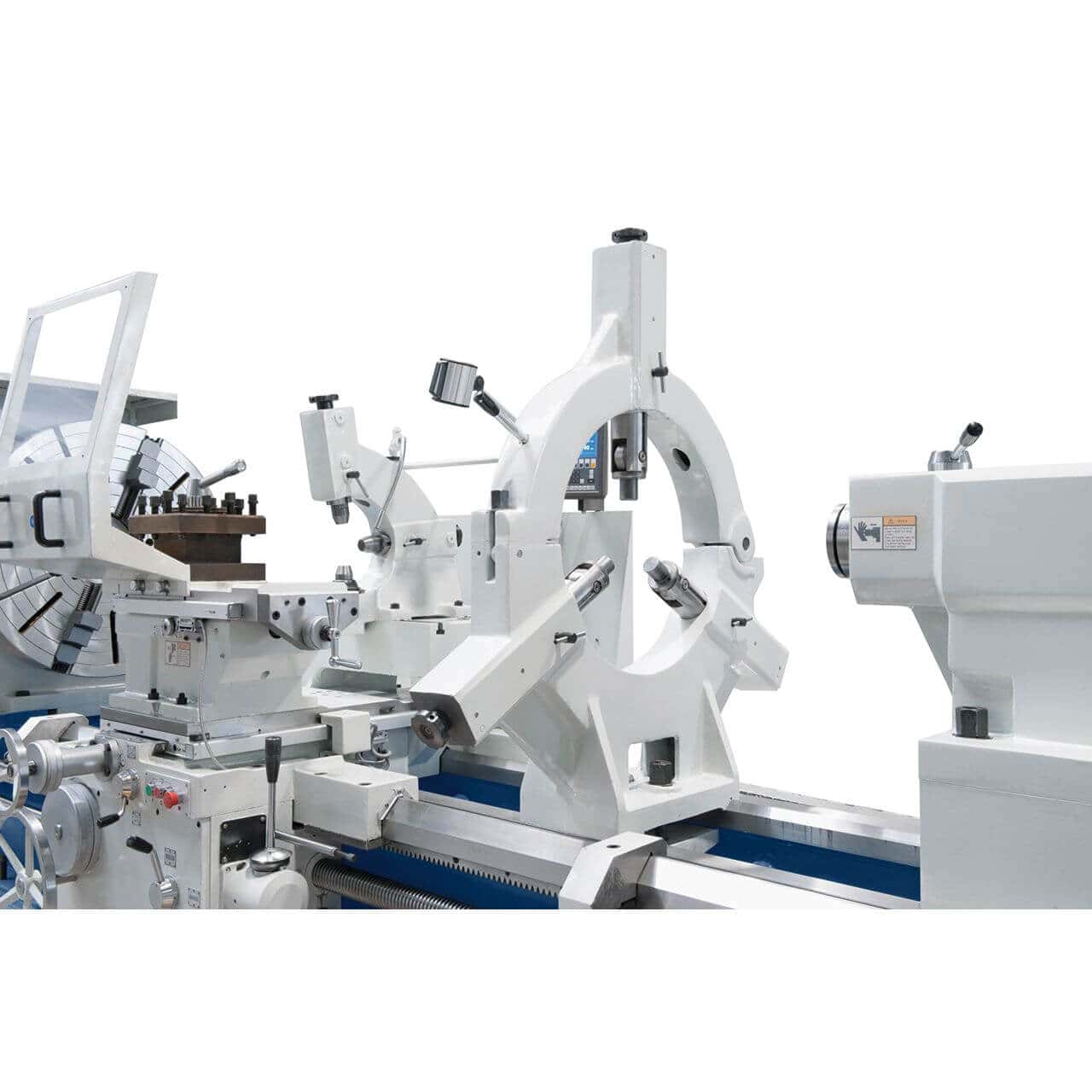

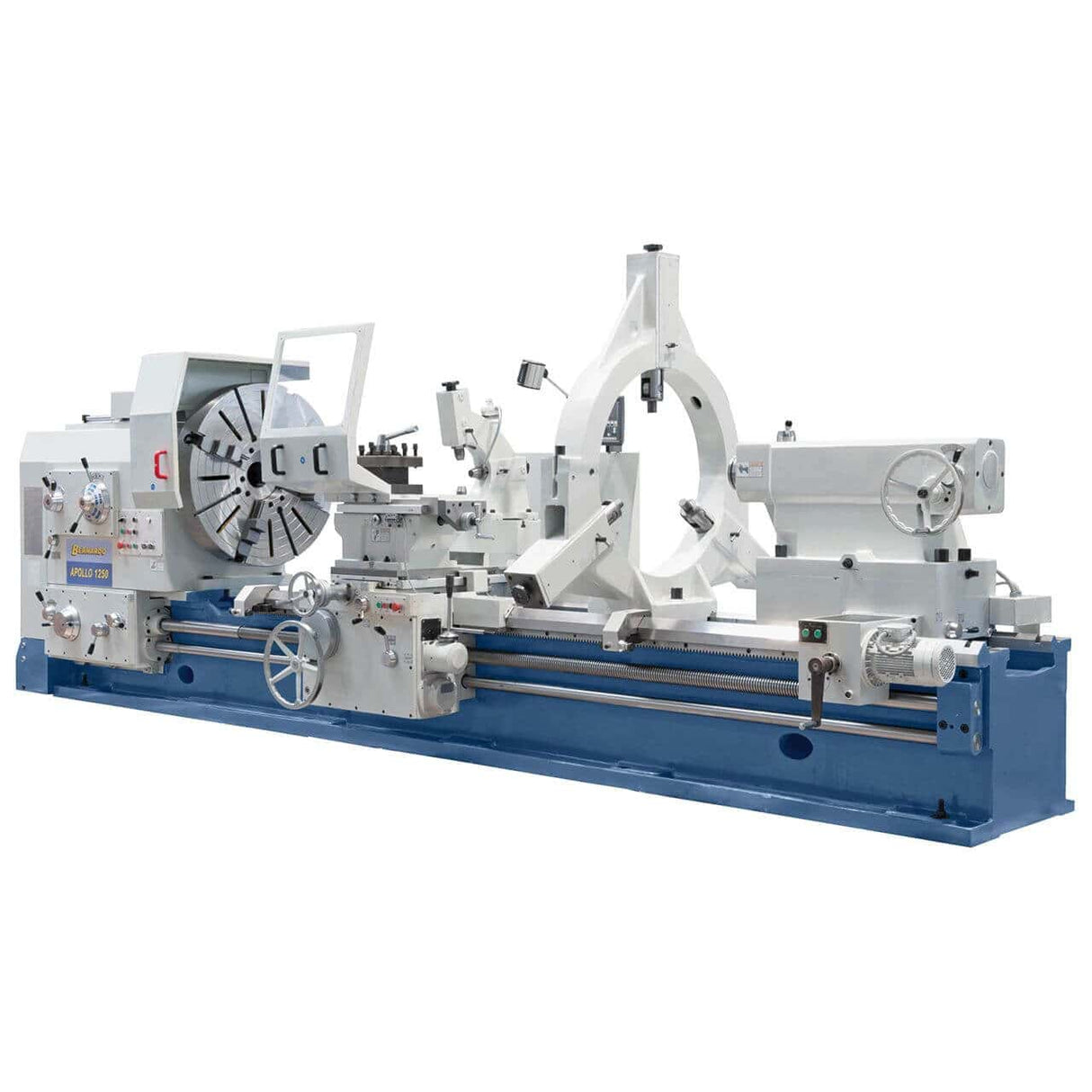

- Fixed bezel - 220 - 630 mm diameter
- Rotating bezel - 50 mm diameter - 220 mm diameter

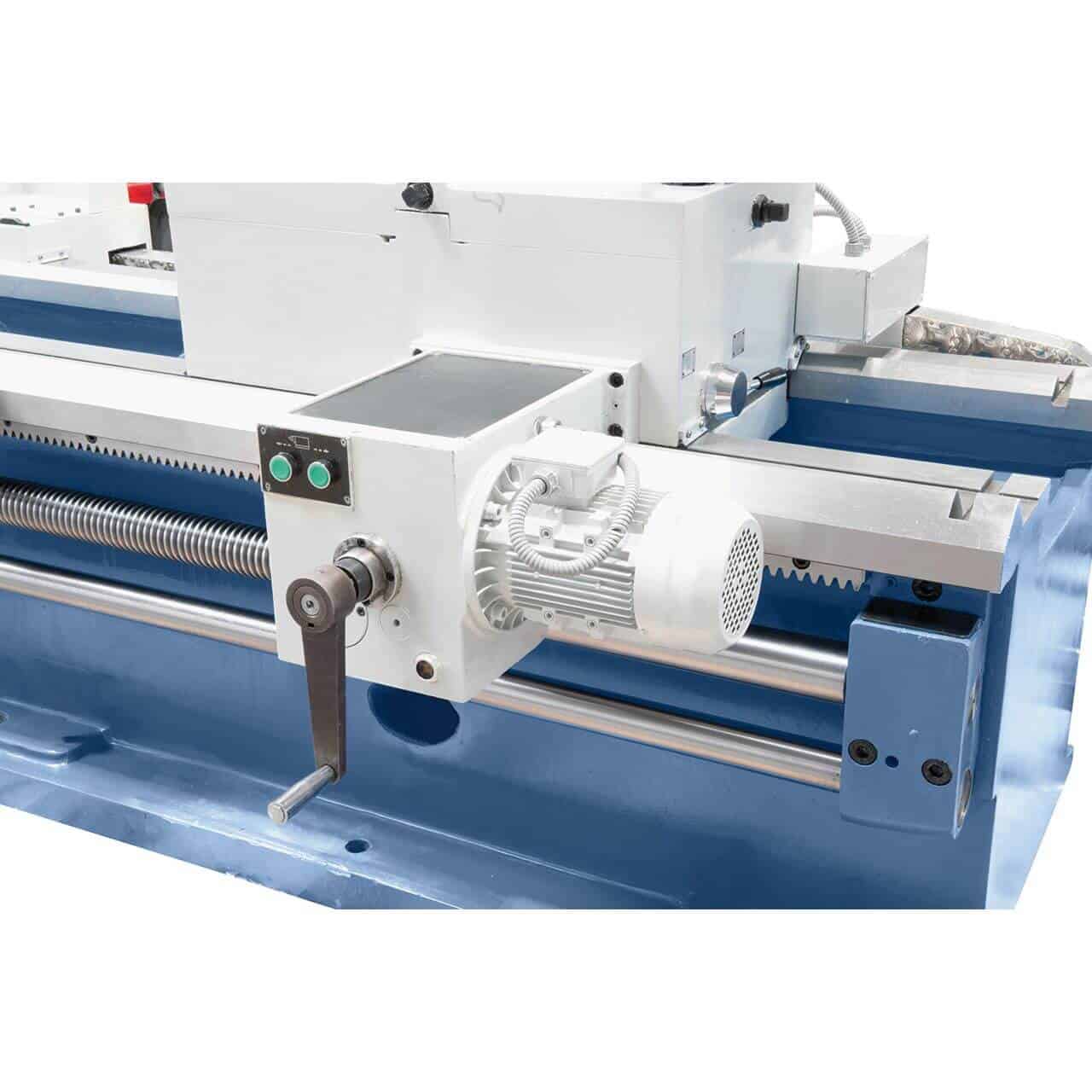

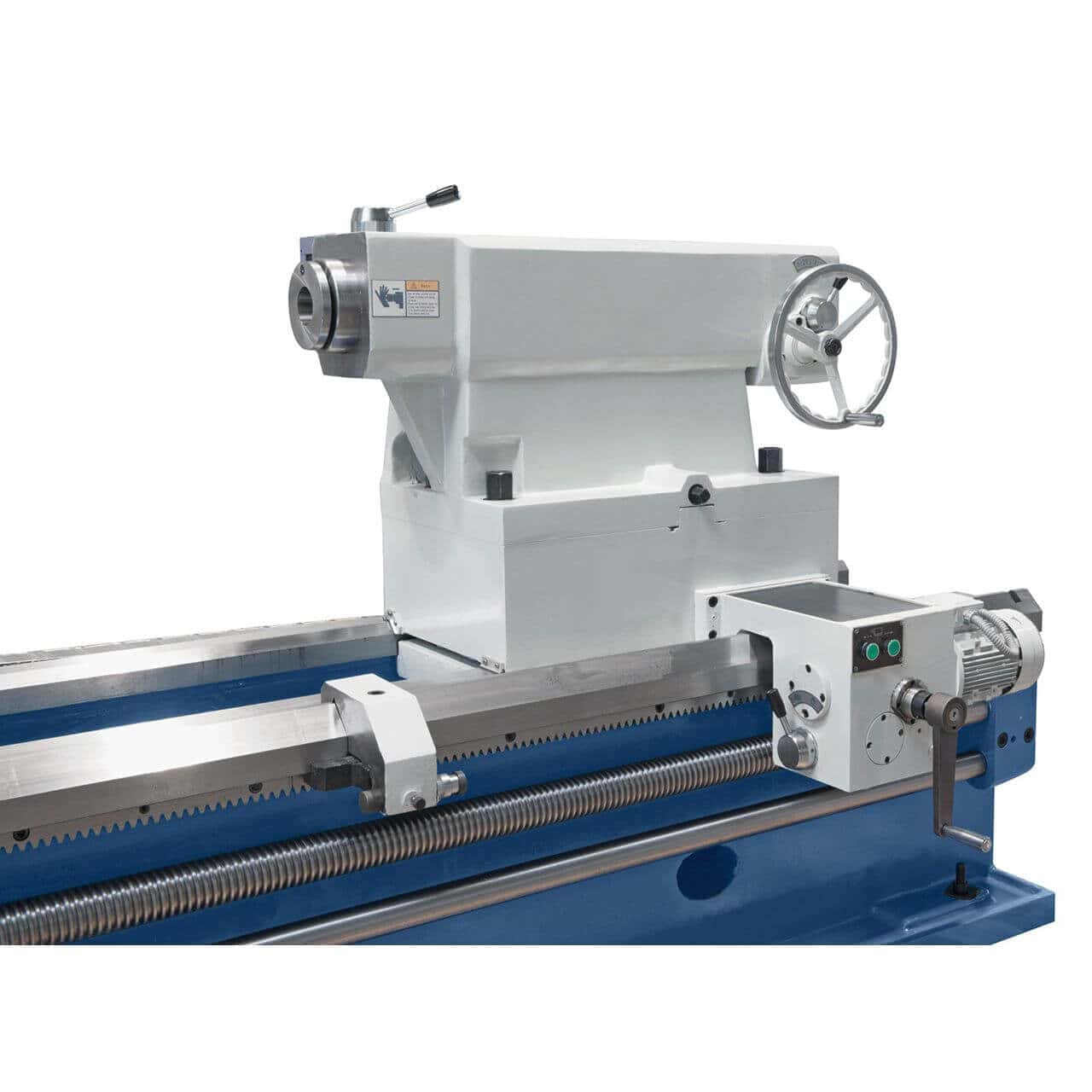

- Motorized tailstock
- Central points
- Central lubrication
- Initial fill with Shell Tellus 46

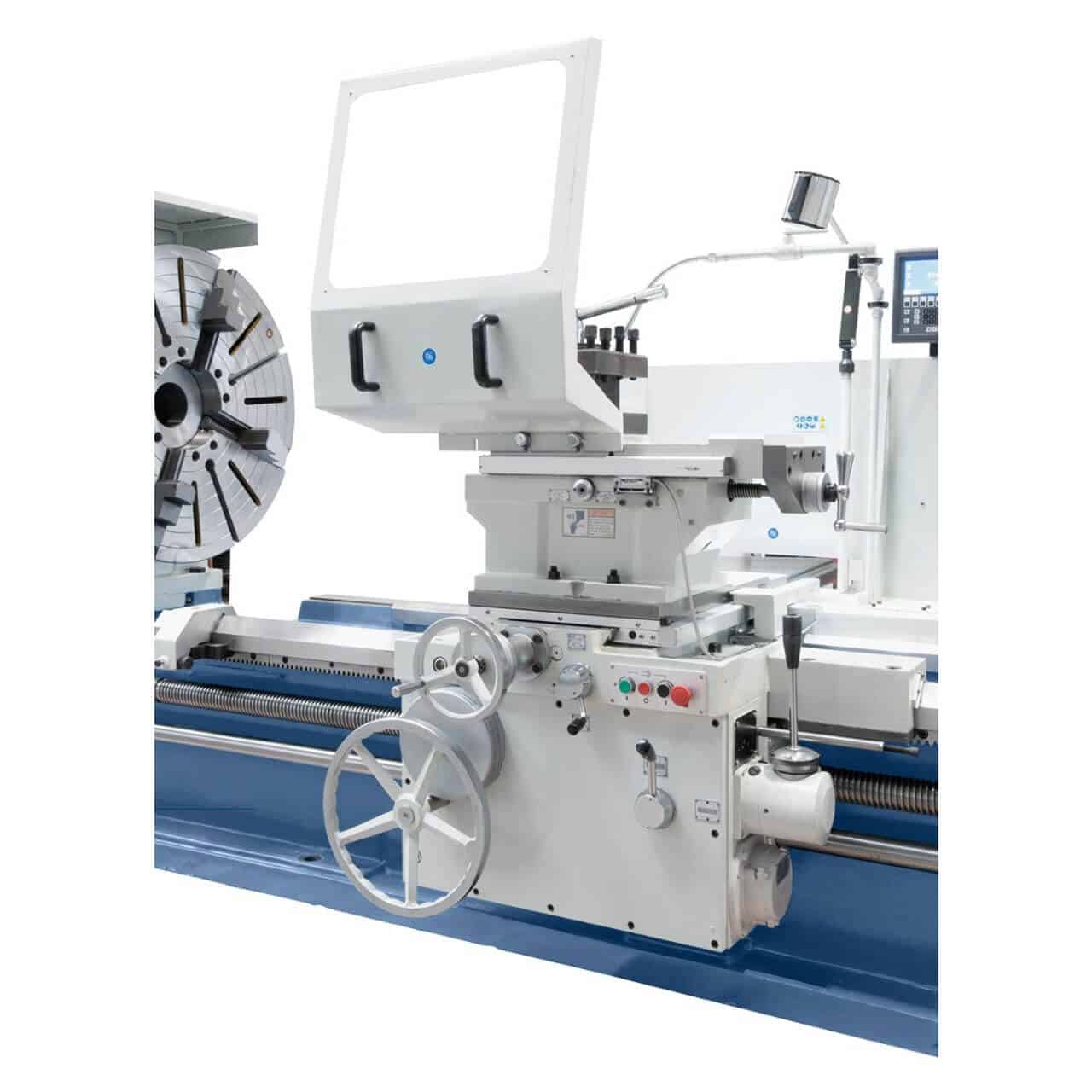

- Quadruple tool holder
- Quadruple tool holder protection device
- Refrigeration system
- LED car light
- Reduction compass
- Foundation screws
technical specifications
Distance between tips |
8000 mm |
Rotation diameterrotation |
|
on bed |
1600 mm |
on support |
1280 mm |
Race |
|
x-axis |
820 mm |
Z-axis |
7800 mm |
Z1 axis |
200 mm |
Max. piece weight |
6000 kg |
| Bed width |
970 mm |
Upper slide orientation field |
± 180° |
Spindle speed (forward/reverse) |
(21) 2.5 - 250 / (12) 3.15 - 250 rpm |
Spindle hole |
130 mm |
Spindle attachment |
ISO A2-15 |
Progress |
|
x-axis | z-axis | z1-axis |
0.064 - 12 mm/rev |0.032 - 6 mm/rev | 0.016 - 3 mm/rev |
Fast run |
|
x-axis | z-axis |
1870 mm/min | 3740 mm/min |
Thread |
|
metric | diametrical |
(45) 1 - 120mm | (42) 30 - 1/4 DP |
Modular | Whitworth |
(46) 0.5 - 60mm | (48) 0.5 - 60 GPZ |
Tailstock quill cone / Ø |
metric 80 / 160 mm |
Tailstock quill stroke |
300 mm |
Tailstock cross adjustment |
± 2.5 mm |

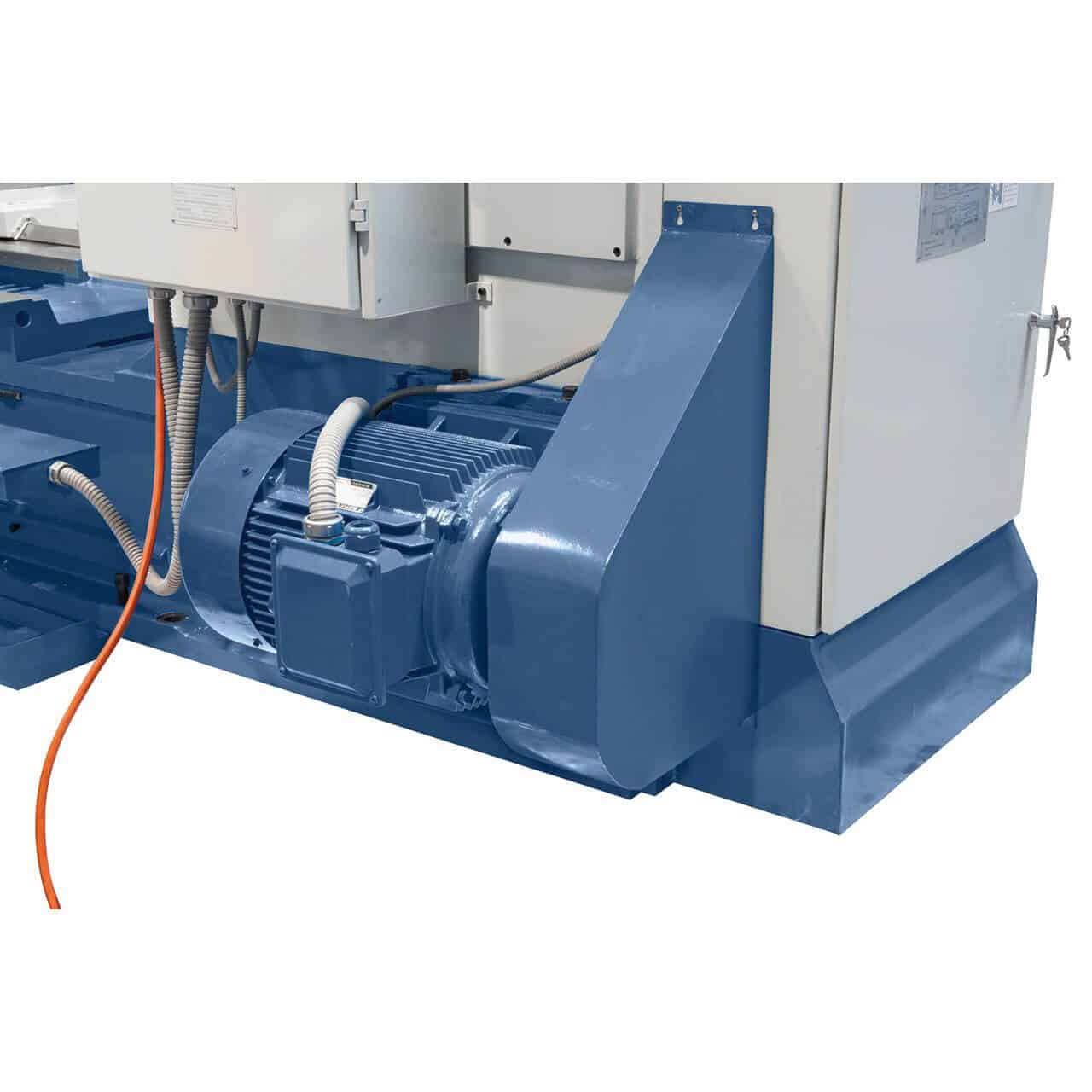

Engine power |
22 kW |
Length x Width |
11.04 x 2.06 m |
Height |
2.23 m |
Weight approx. |
21,020 kg |
