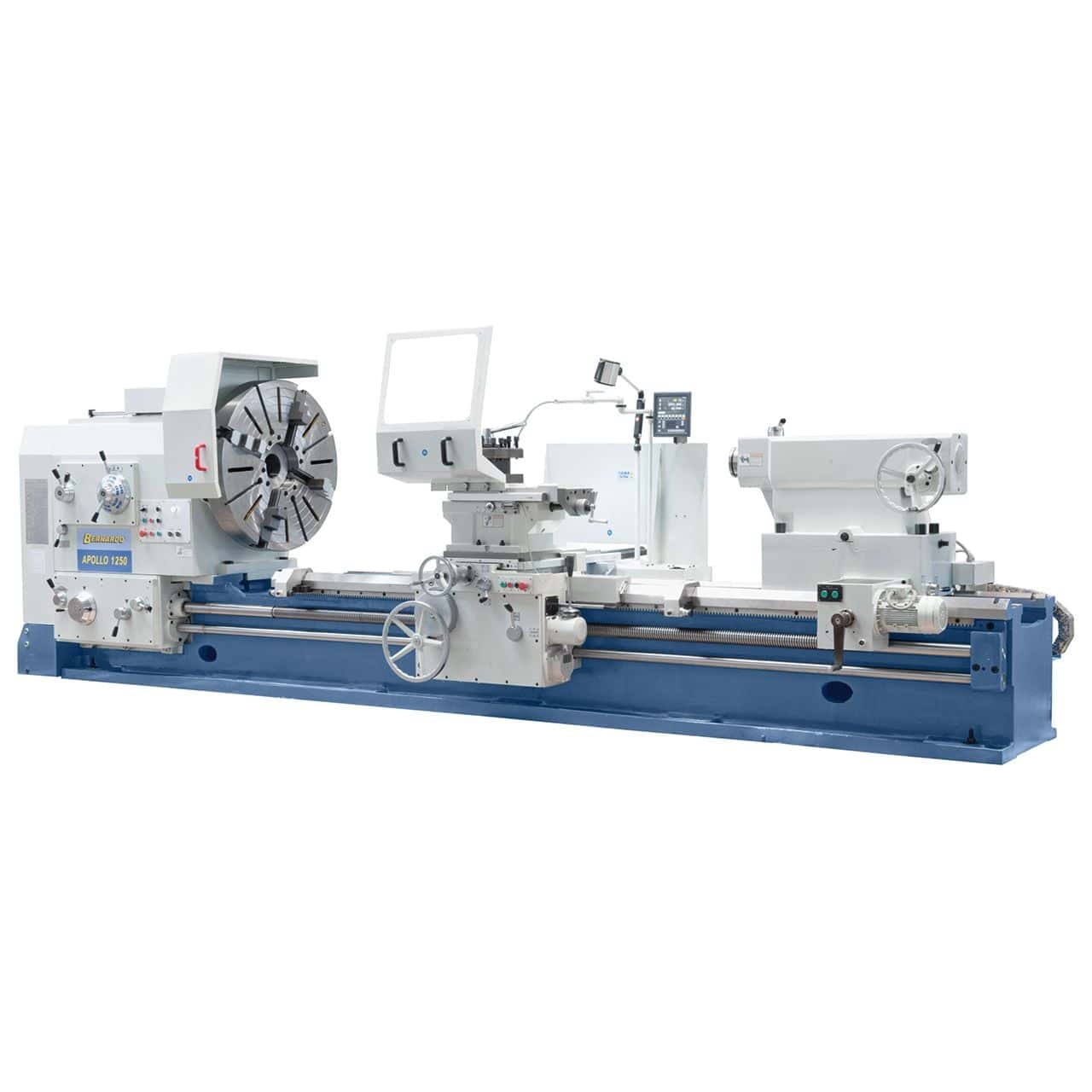

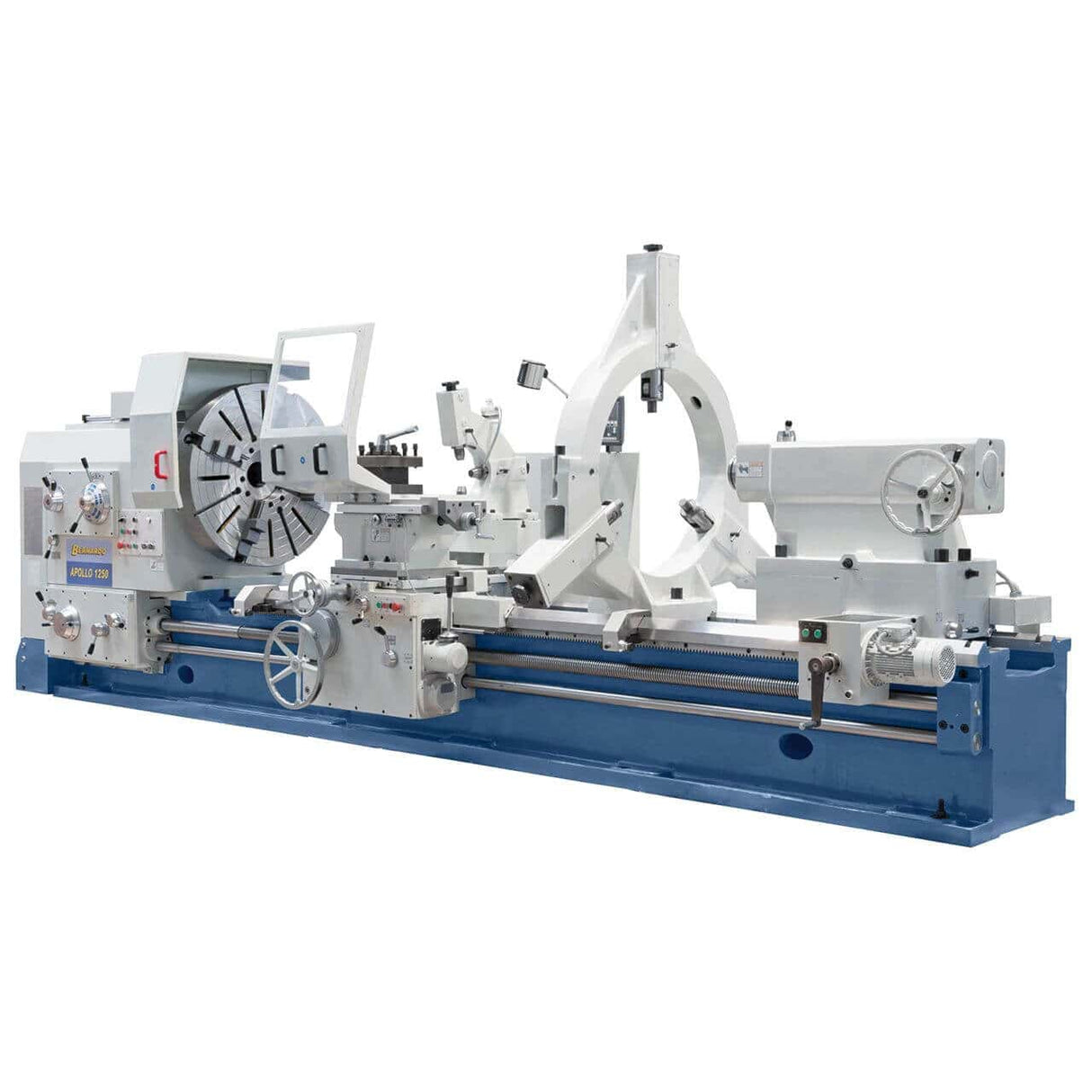

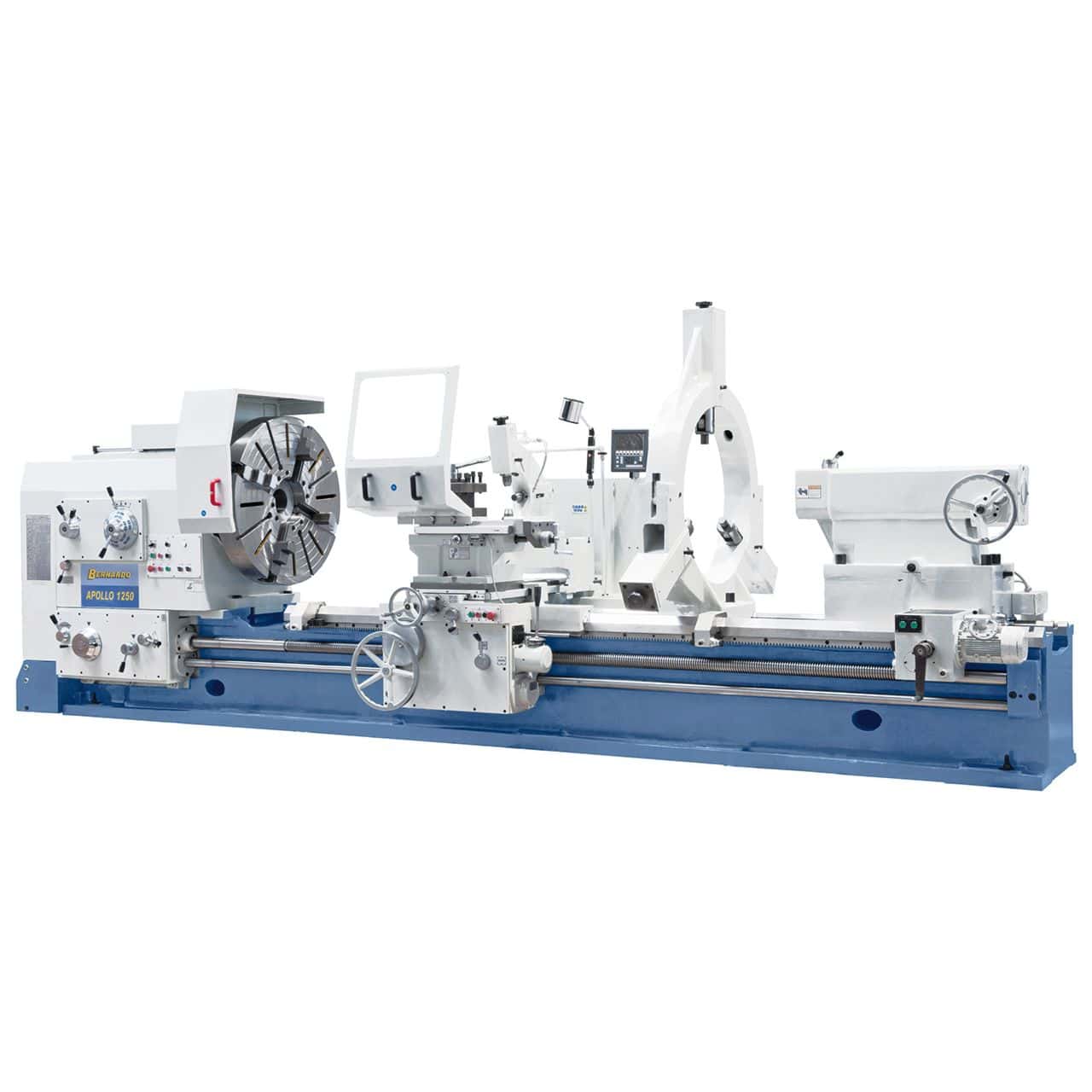

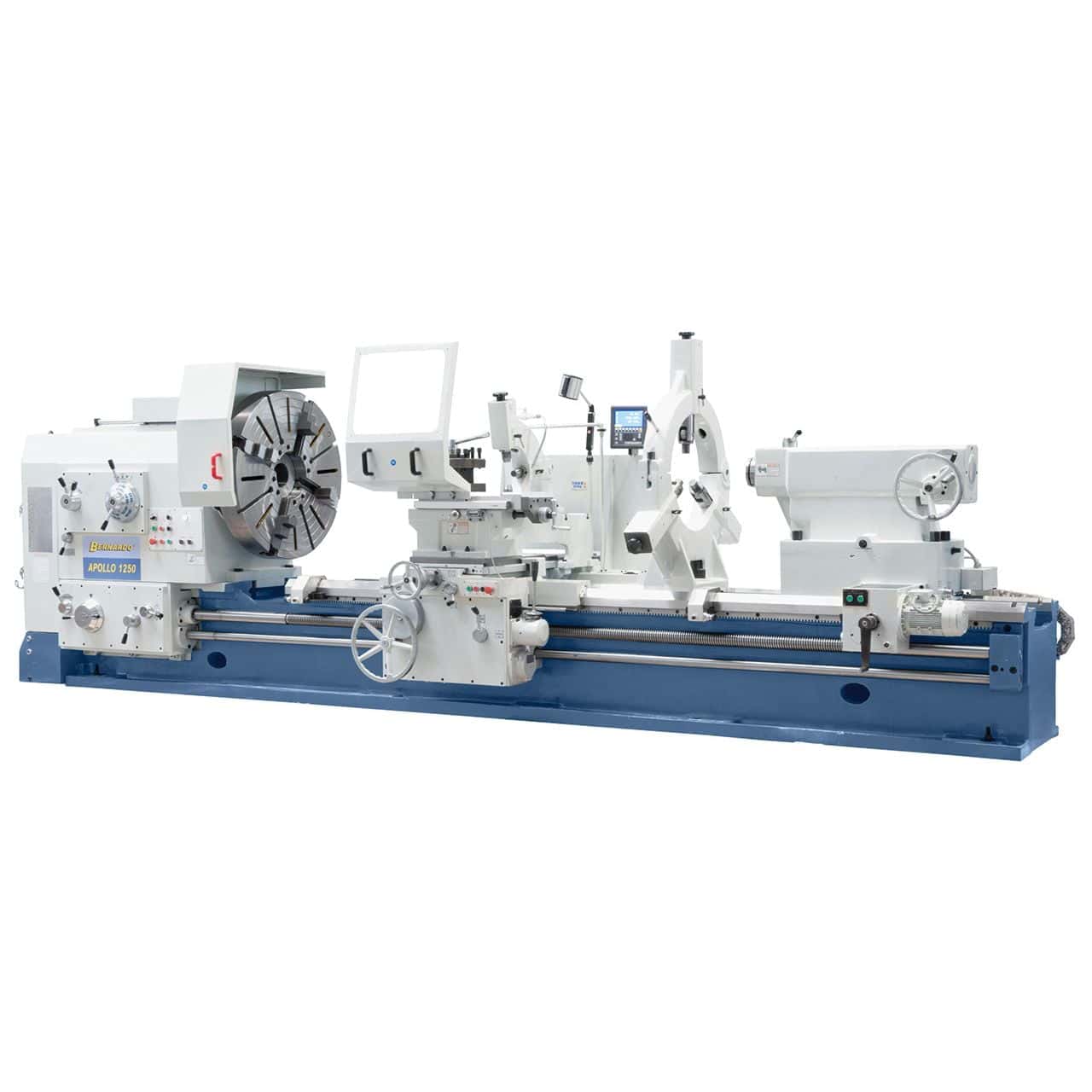

APOLLO 2000 x 3000 lathe
APOLLO 2000 x 3000 lathe is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.

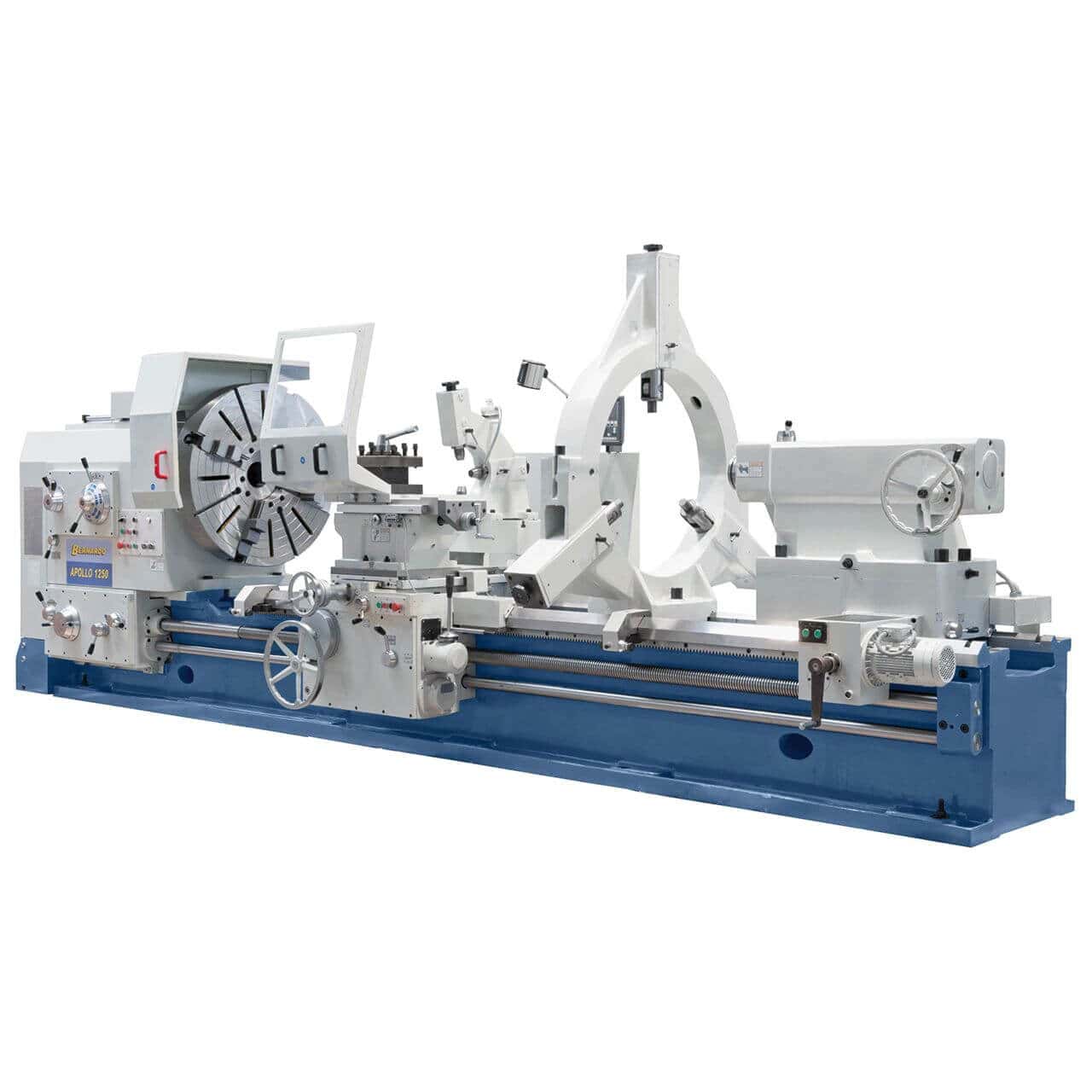

APOLLO 2000 x 3000 lathe
-
Description
-
Technical Specifications
-
Product safety
-
Reviews
Description
Property
- Gears and shafts hardened and ground even during power operation
- The transmission of the rotary motion (forward/backward) takes place via a drive shaft with hydraulic coupling

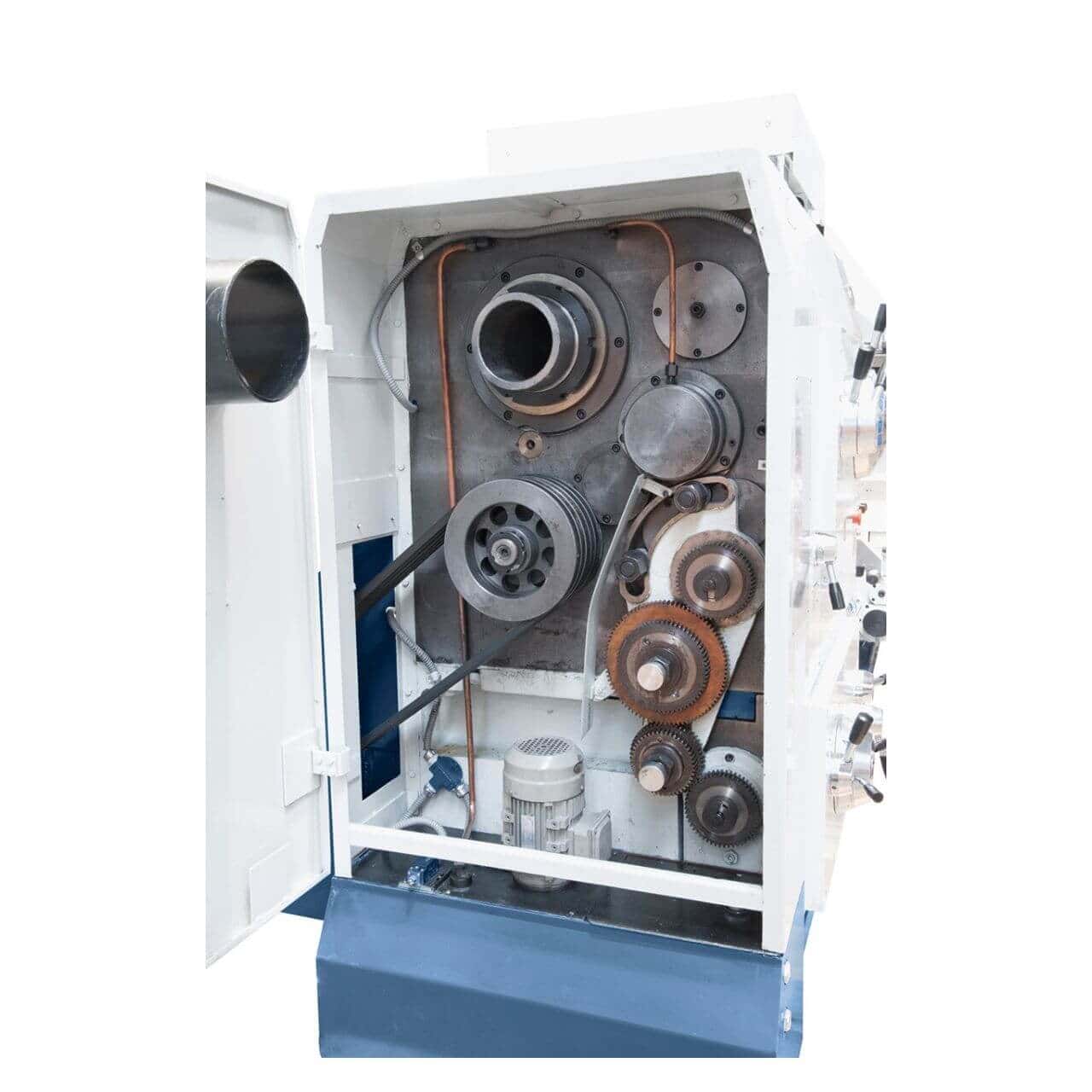

- The gears are large, hardened and precision ground
- The closed gear box allows a high number of thread advances and pitches
- Large speed range with 33 speeds for machining a wide variety of workpieces
- Smooth start of the main spindle by means of the mechanical disc clutch
- Large size guides are induction hardened and ground
Standard accessories

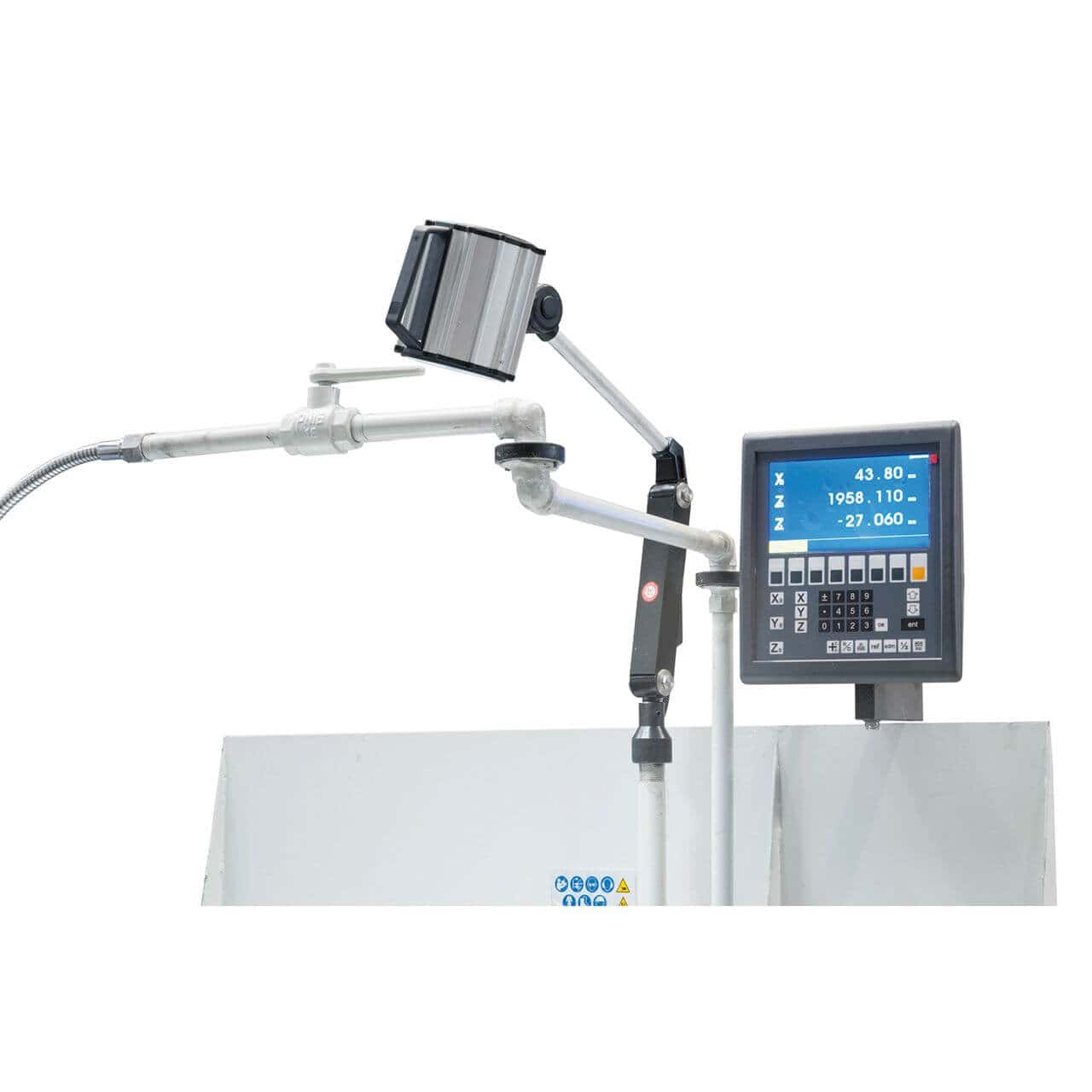

- ES-12V 3-Axis Position Display with LCD Display
- Platform 1600 mm

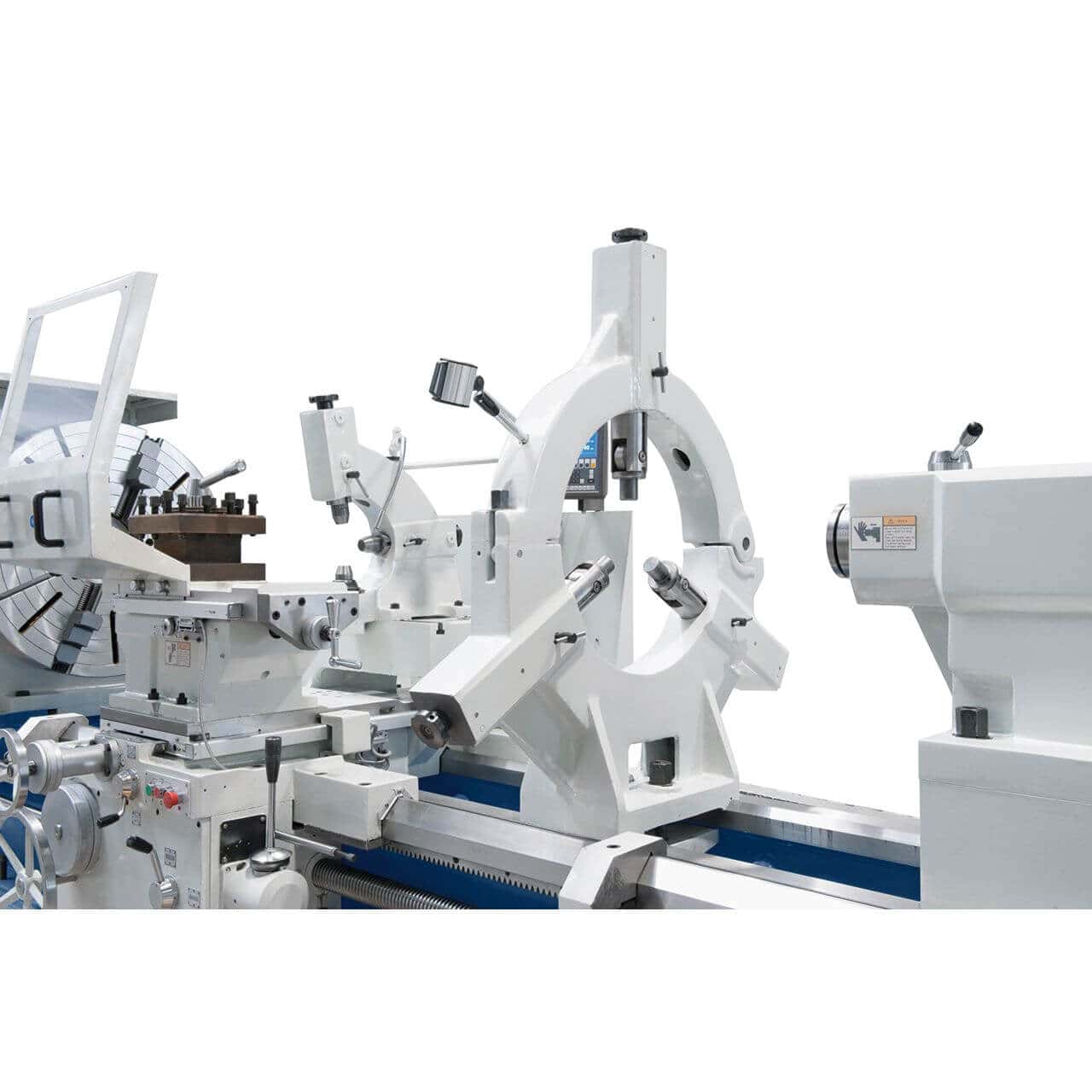

- Fixed bezel - loop diam. 400 - 750 mm
- Rotating bezel - 50 mm diameter - 220 mm diameter

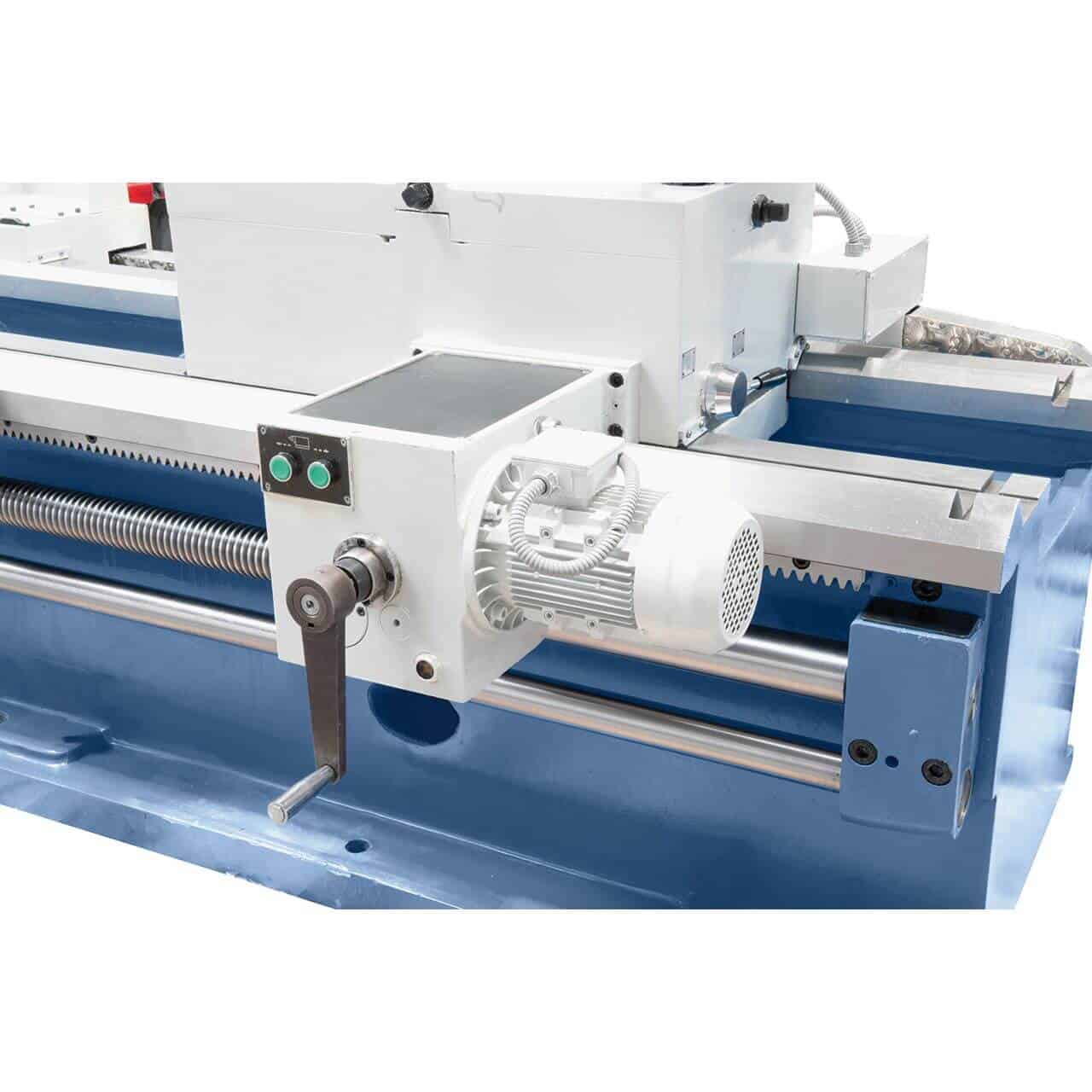

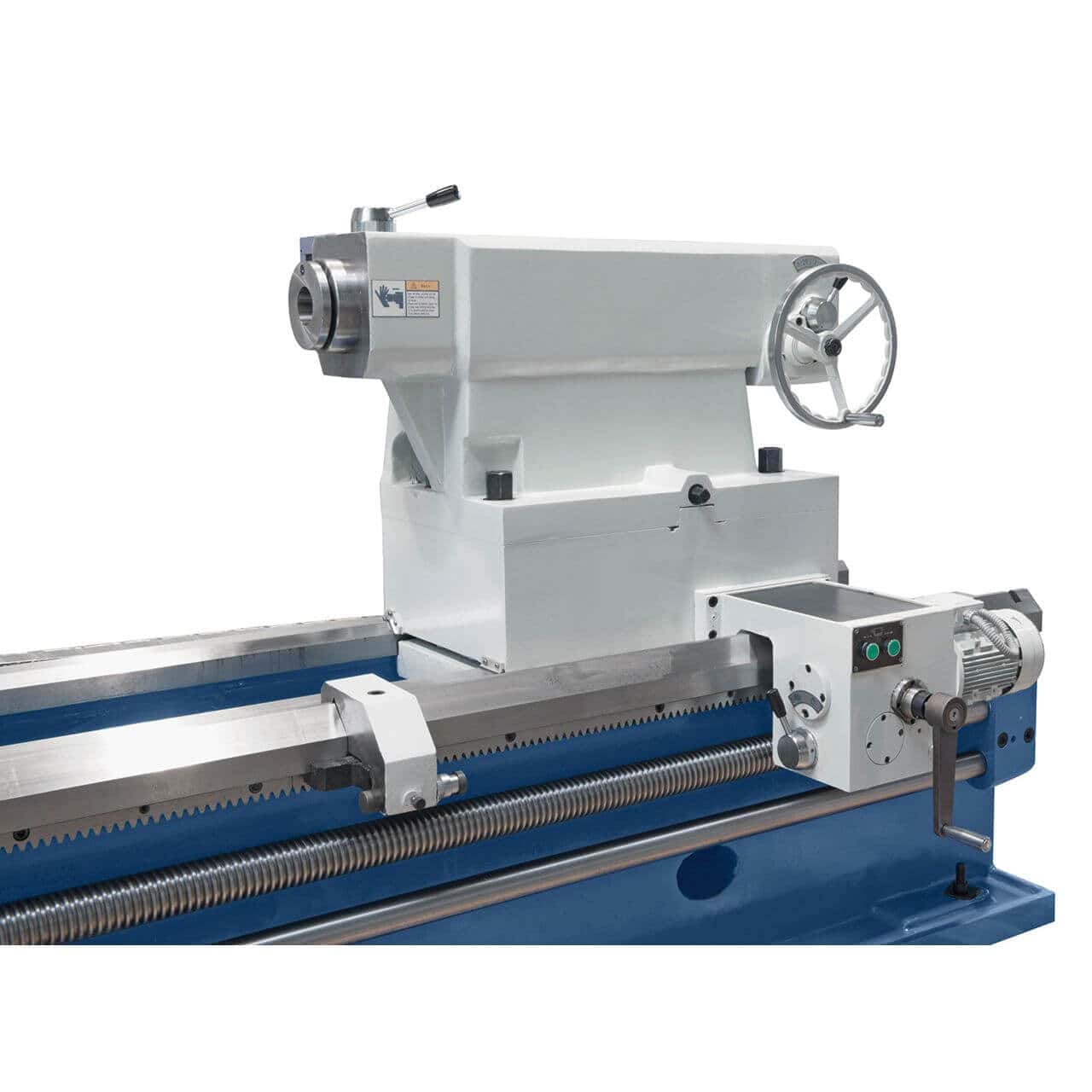

- Motorized tailstock
- Central points
- Central lubrication
- Initial fill with Shell Tellus 46
- Quadruple tool holder
- Quadruple tool holder protection device
- Refrigeration system
- LED car light
- Reduction compass
- Foundation screws
technical specifications
Distance between tips |
3000 mm |
Rotation diameterrotation |
|
on bed |
2000 mm |
on support |
1600 mm |
Race |
|
x-axis |
1020 mm |
Z-axis |
2800 mm |
Z1 axis |
200 mm |
Max. piece weight |
10,000 kg |
Bed width |
1100 mm |
Upper slide orientation field |
± 180° |
Spindle speed (forward/reverse) |
(21) 2 - 200 / (12) 2.5 - 200 rpm |
Spindle hole |
130 mm |
Spindle attachment |
ISO A2-15 |
Progress |
|
x-axis | z-axis | z1-axis |
0.064 - 12 mm/rev |0.032 - 6 mm/rev | 0.016 - 3 mm/rev |
Fast run |
|
x-axis | z-axis |
1870 mm/min | 3740 mm/min |
Thread |
|
metric | diametrical |
(45) 1 - 120mm | (42) 30 - 1/4 DP |
Modular | Whitworth |
(46) 0.5 - 60mm | (48) 0.5 - 60 GPZ |
Tailstock quill cone / Ø |
MK 6 / 200 mm |
Tailstock quill stroke |
300 mm |
Tailstock cross adjustment |
± 2.5 mm |

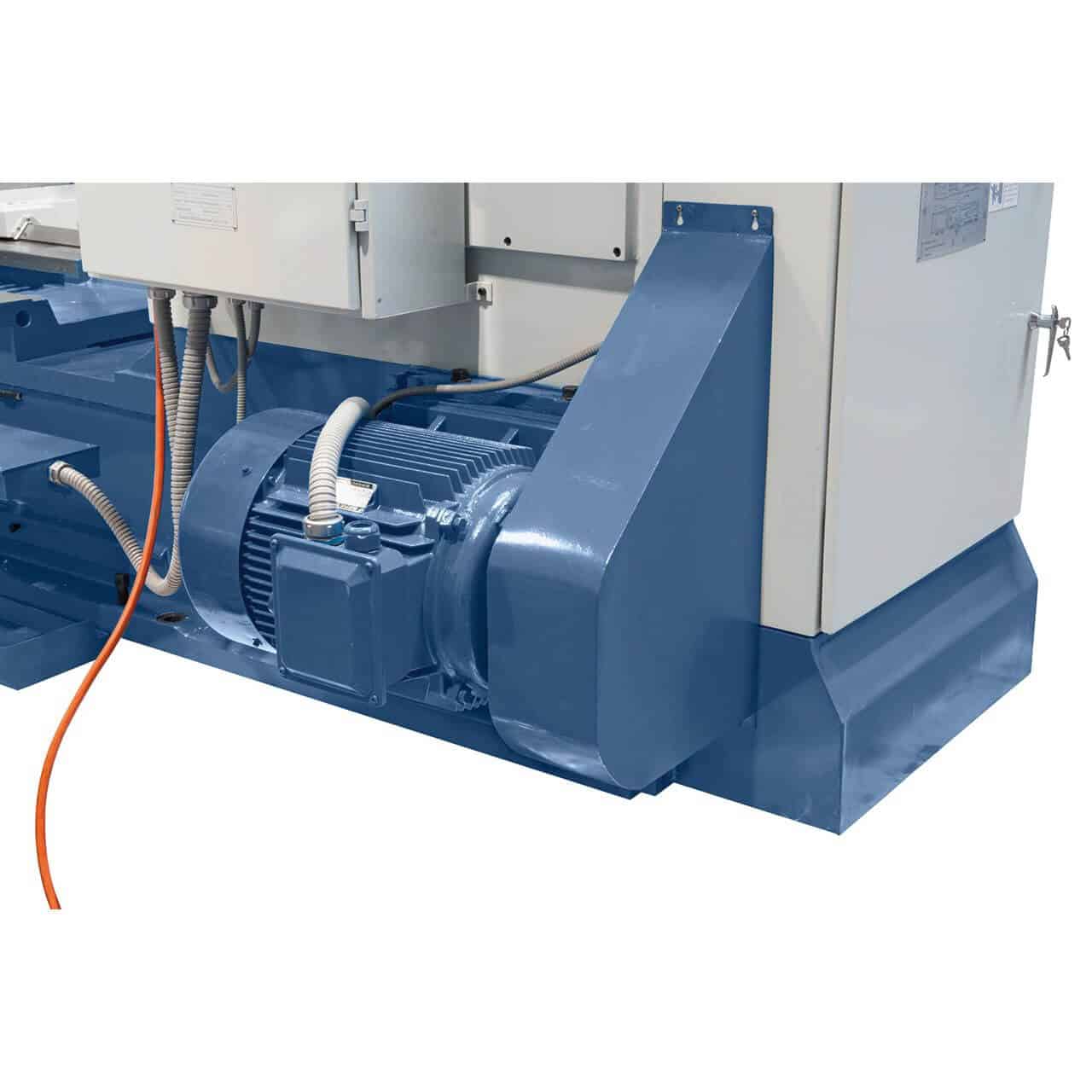

Engine power |
30 kW |
| Length x Width |
6.1 x 2.2 m |
Height |
2.4 m |
Weight approx. |
18,500 kg |
