Hobby 140 patron lathe
Hobby 140 patron lathe is backordered and will ship as soon as it is back in stock.
Subscribe to our newsletter
Get the latest updates on all our new collections, sales, offers and product arrival dates.
-
Description
-
Technical Specifications
-
Product safety
-
Reviews
Description

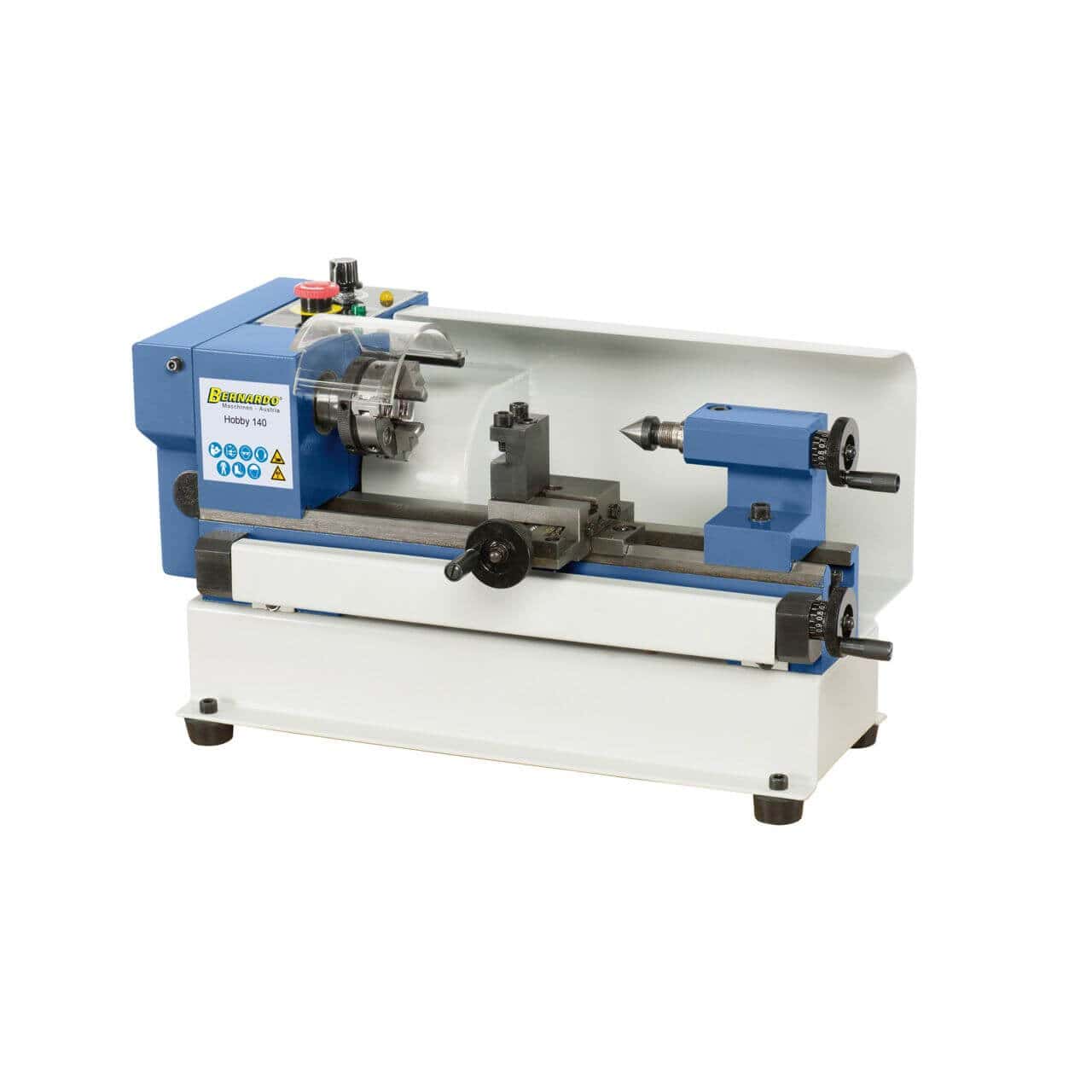

The precise Hobby 140 lathe is ideal for machining small workpieces. Thanks to its compact, vibration-free design, this model is ideal for precision mechanics, watchmakers, goldsmiths, and model makers.
Property
- Continuously adjustable electronic drive via DC motor
- Wide speed range from 0 - 3800 rpm
- Wide range, thanks to optional special accessories
- Small and compact structure, excellent quality-price ratio
- Ideal for machining steel, non-ferrous materials and plastics
- High concentricity thanks to precision bearings
- Inductively hardened and polished prism base
- Adjustable guides with gibs
- Small compact structure for low vibration operation
Standard accessories
- 3-jaw chuck 50 mm
- Spindle protection
- Simple steel support
- Rotating cylindrical centering tip
- Chip back wall
- Control device
technical specifications
Distance between tips |
140 mm |
Height of the tips |
55 mm |
Vaulting on the table |
110 mm |
Vaulting on flat sleds |
60 mm |
Spindle hole |
10 mm |
Continuous speed range |
0 - 3800 rpm |
Spindle stroke |
25 mm |
Spindle support |
cylindrical Ø 10 mm |
Motor input power S 1 100% |
0.15 kW / 230 V |
S 6 40% engine output power |
0.20 kW / 230 V |
| Machine dimensions (L x W x H) |
420 x 300 x 230 mm |
Weight approx. |
14 kg |
