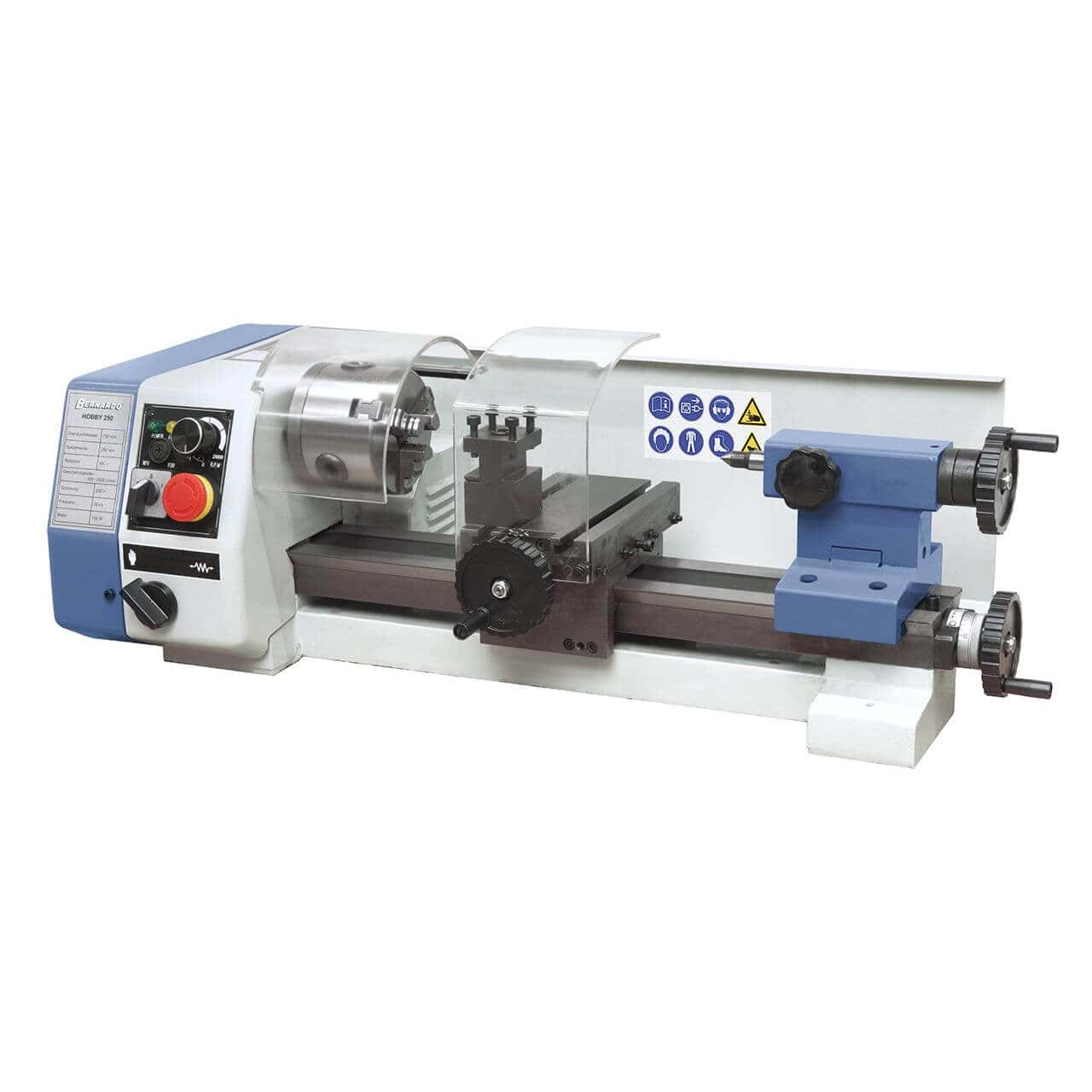

Hobby 250 patron lathe
Hobby 250 patron lathe is backordered and will ship as soon as it is back in stock.
Subscribe to our newsletter
Get the latest updates on all our new collections, sales, offers and product arrival dates.
-
Description
-
Technical Specifications
-
Product safety
-
Reviews
Description
The small and compact Hobby 250 lathe, thanks to its precision machining and the possibility of flat or longitudinal turning, as well as thread cutting, is suitable for the work of hobbyists and apprentices.
Property
- Continuously variable setting of the main spindle speed
- Simple arrangement of switching elements
- Quick and easy speed variation
- Inductively hardened and polished prism base
- Longitudinal feed selector, manual or automatic
- Adjustable guides with gibs
- Excellent value for money
- Precision spindle bearing with 2 adjustable tapered roller bearings
- Small compact structure for low vibration operation
- High concentricity of the spindle nose (≤ 0.015 mm) thanks to precision bearings
Standard accessories
- 3-jaw chuck 80 mm
- Spindle protection
- Double tool holder
- MK 1 center tip
- Chip back wall
- Control device
technical specifications
Distance between tips |
250 mm |
Height of the tips |
75 mm |
Vaulting on the table |
150 mm |
Spindle hole |
10 mm |
Support in the spindle hole |
MK 2 |
Continuous speed range |
100 - 2000 rpm |
Metric threads * |
(5) 0.5 - 1.25 mm |
Inch threads * |
(5) 16 - 24 TPI |
Spindle stroke |
25 mm |
Spindle support |
MK 1 |
Motor input power S 1 100% |
0.15 kW / 230 V |
S 6 40% engine output power |
0.20 kW / 230 V |
Machine dimensions (L x W x H) |
650 x 350 x 220 mm |
Weight approx. |
23 kg |
* optional
