Hobby Lathe 300 Top / 230 V
Hobby Lathe 300 Top / 230 V is backordered and will ship as soon as it is back in stock.
Subscribe to our newsletter
Get the latest updates on all our new collections, sales, offers and product arrival dates.
-
Description
-
Technical Specifications
-
Product safety
-
Reviews
Description

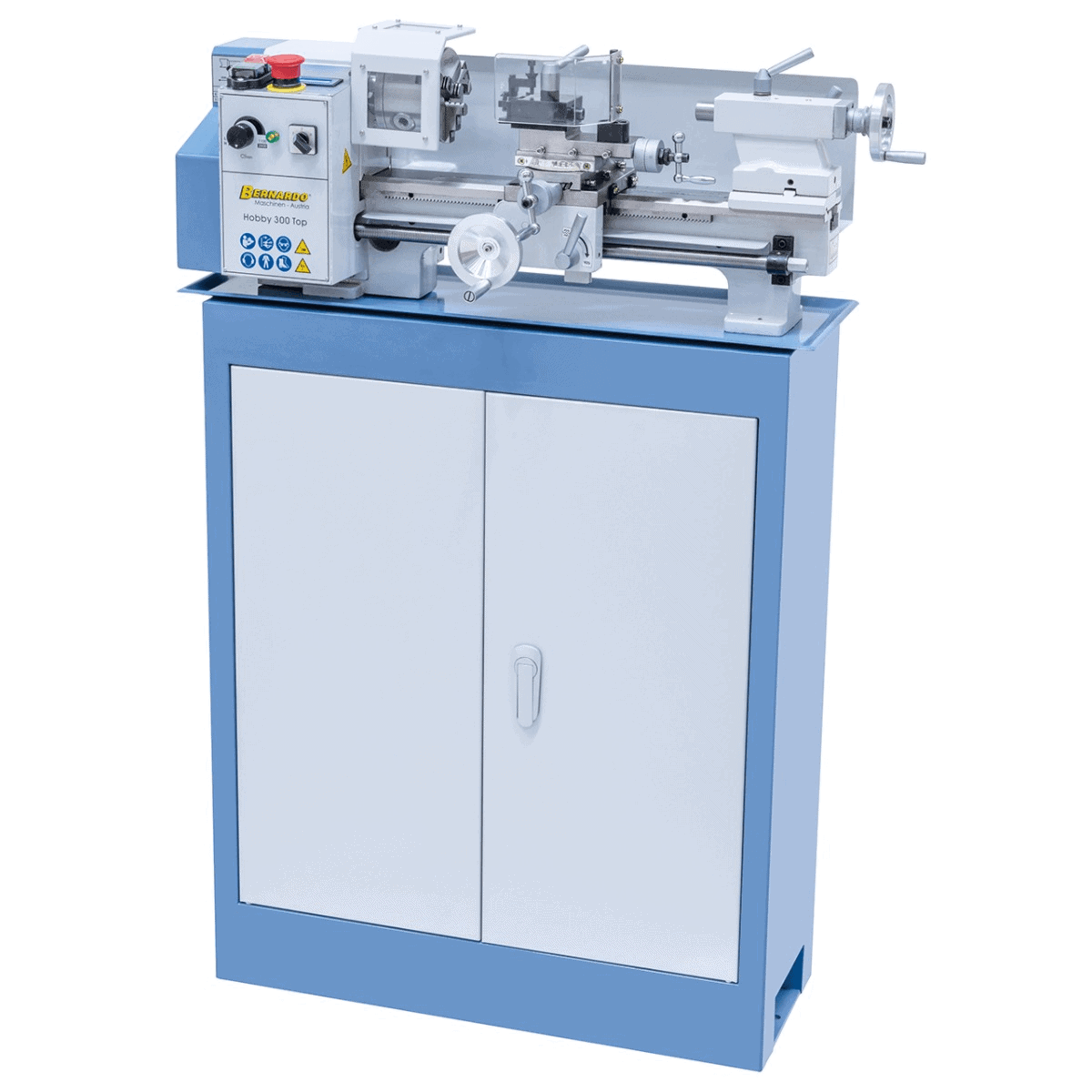

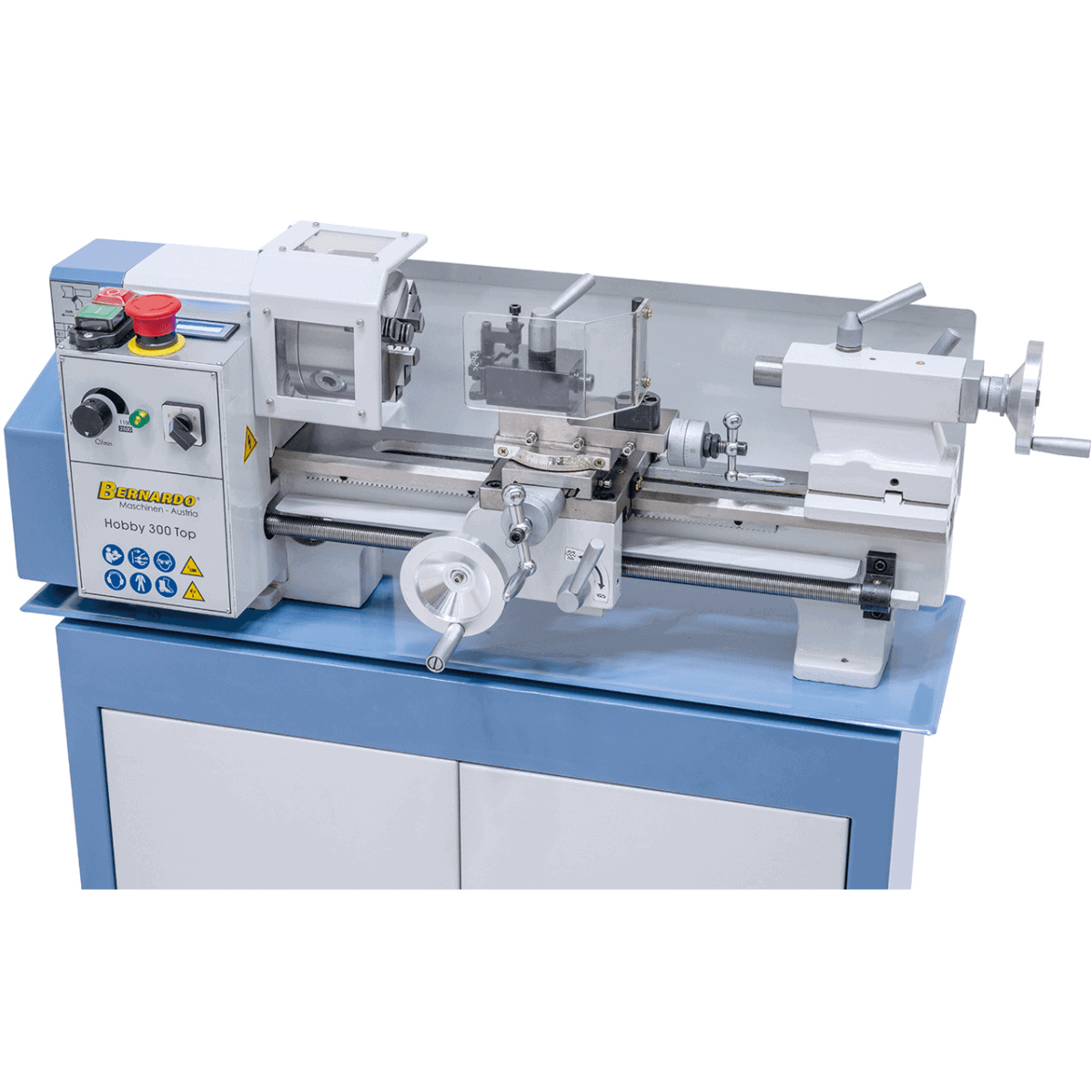

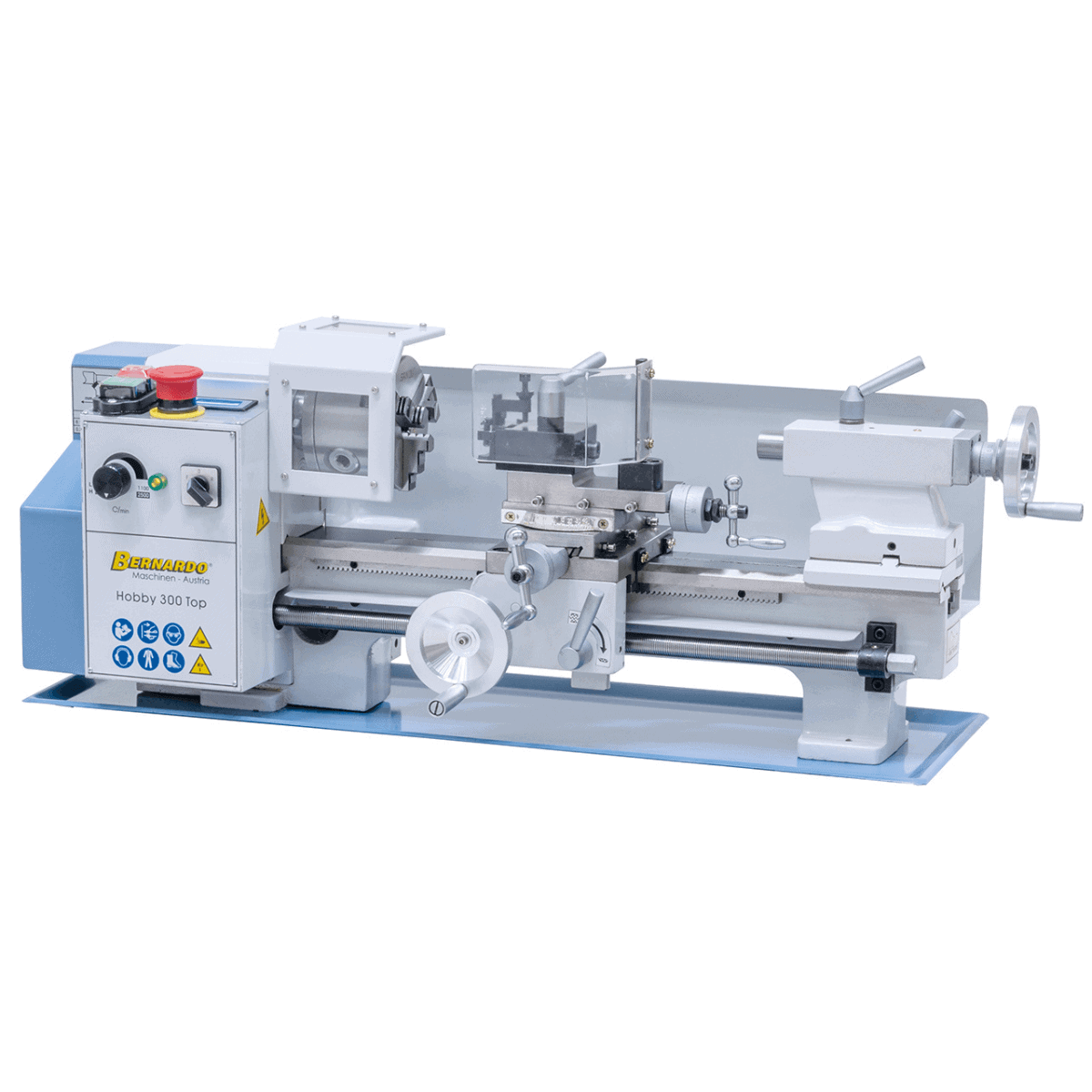

The Hobby 300 Top bench lathe offers extremely quiet operation and smooth spindle action thanks to its brushless DC motor. Thanks to its excellent price-performance ratio, this model is ideal for model makers and DIY enthusiasts.
Property
- DC motor for optimal low-speed torque
- High concentricity accuracy of the spindle tip (better than 0.015 mm) thanks to precision ball bearings
- Excellently suited for working steel, non-ferrous materials and plastics
- Equipped as standard with a lead screw for threading or automatic longitudinal feed
- Precise spindle support with 2 adjustable tapered roller bearings
- Powerful DC motor with a power of 450 W

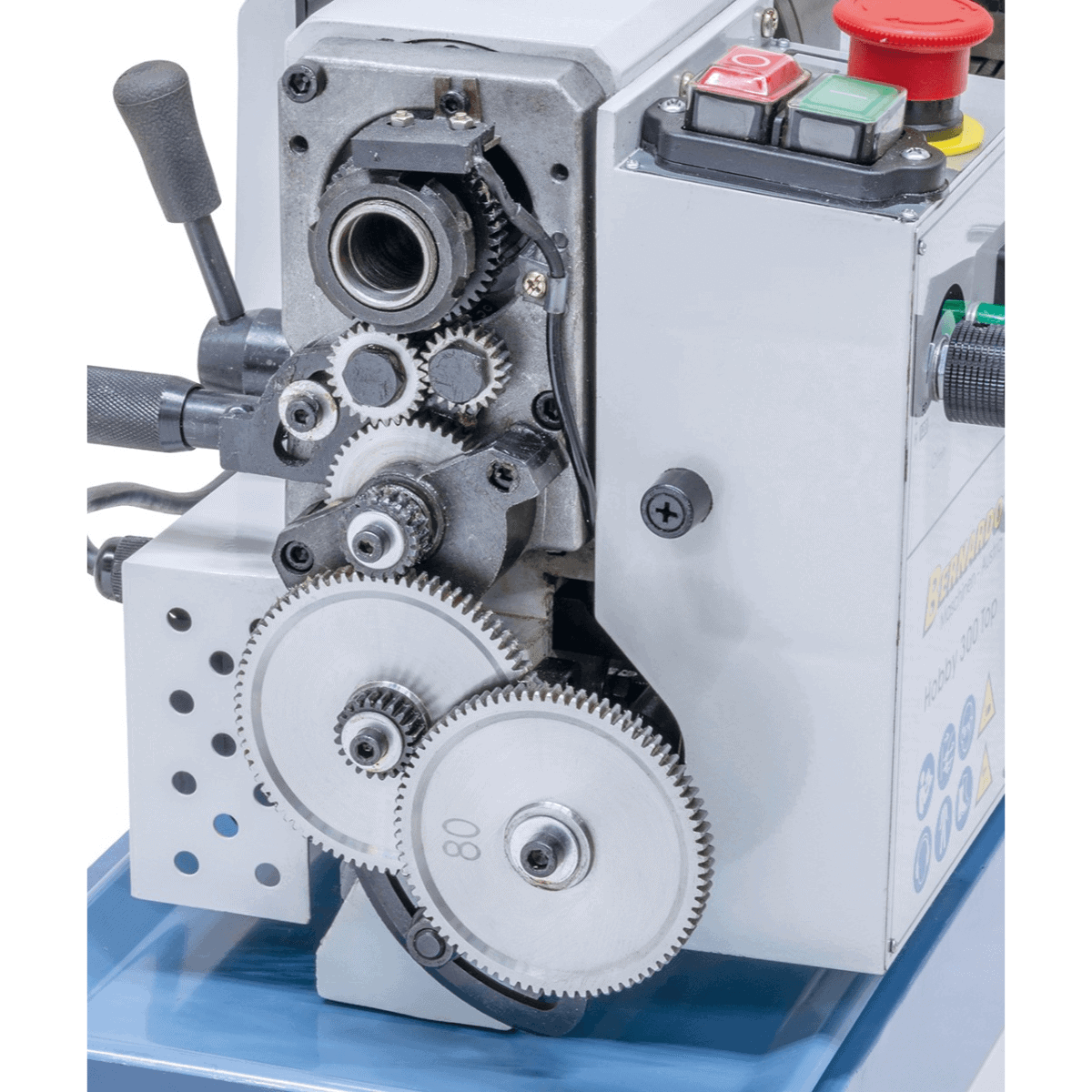

- Equipped with interchangeable metal gears as standard for cutting metric threads
- Versatile in use: longitudinal turning, face turning, boring, threading, ...
Standard accessories

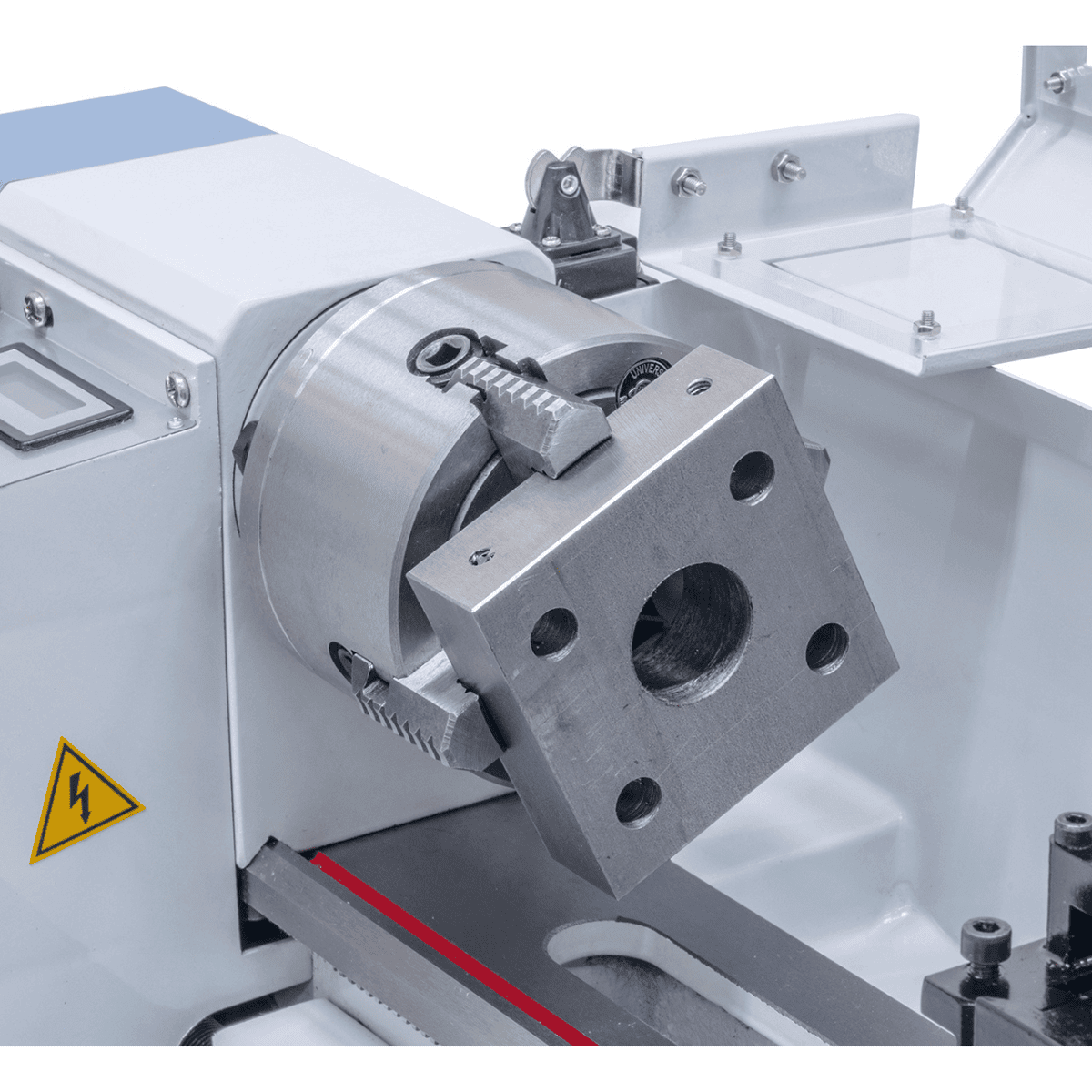

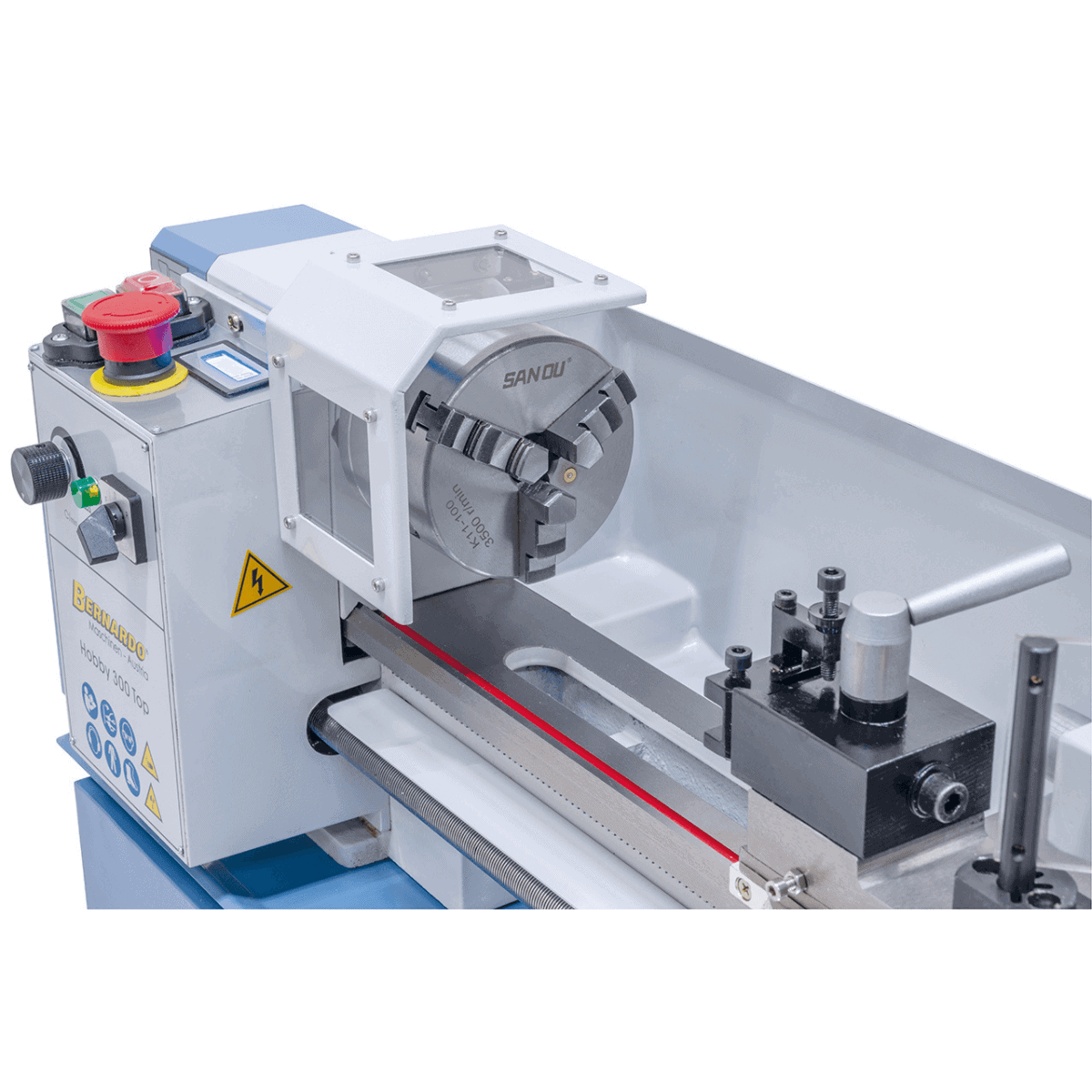

- 100mm three-jaw chuck

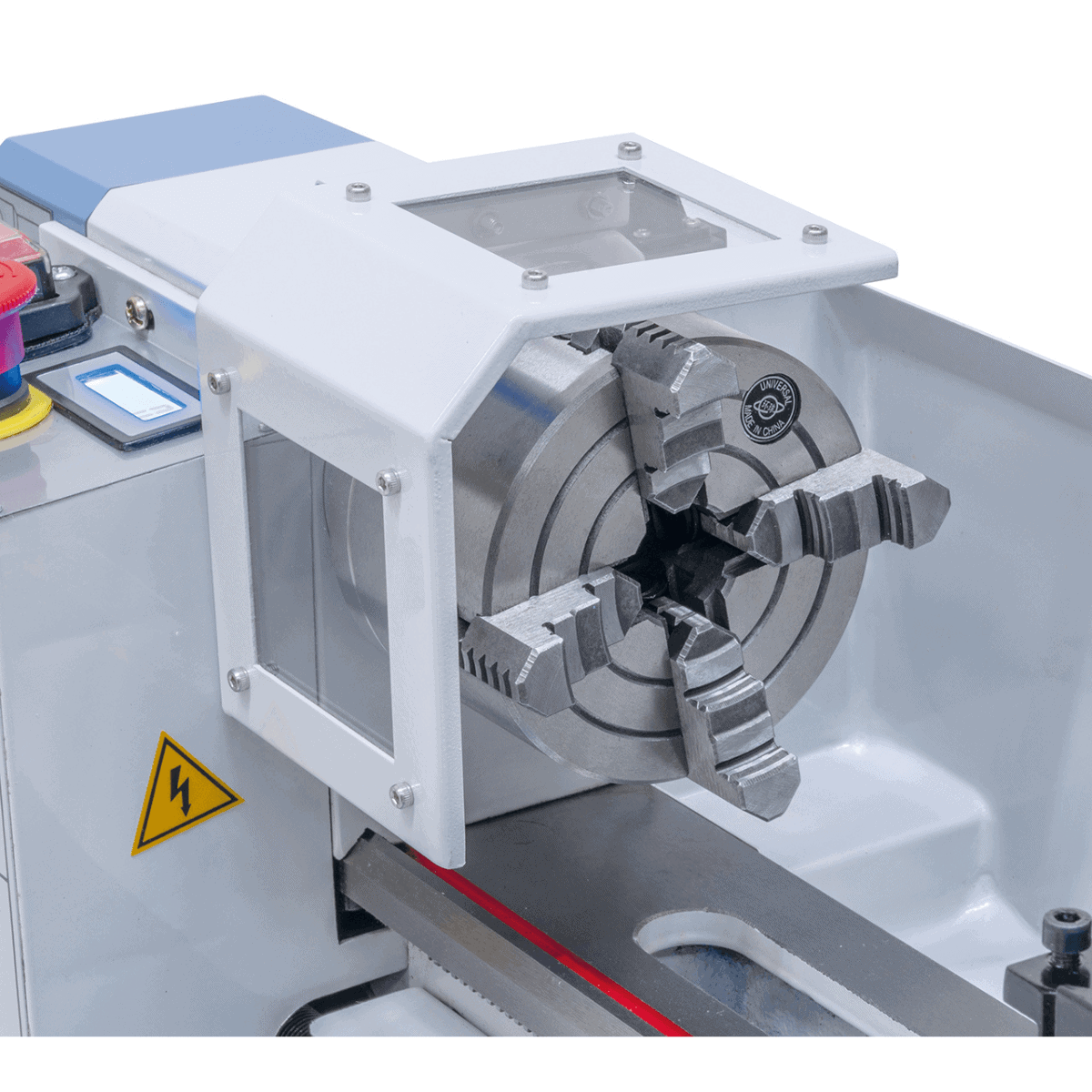

- Spindle protection

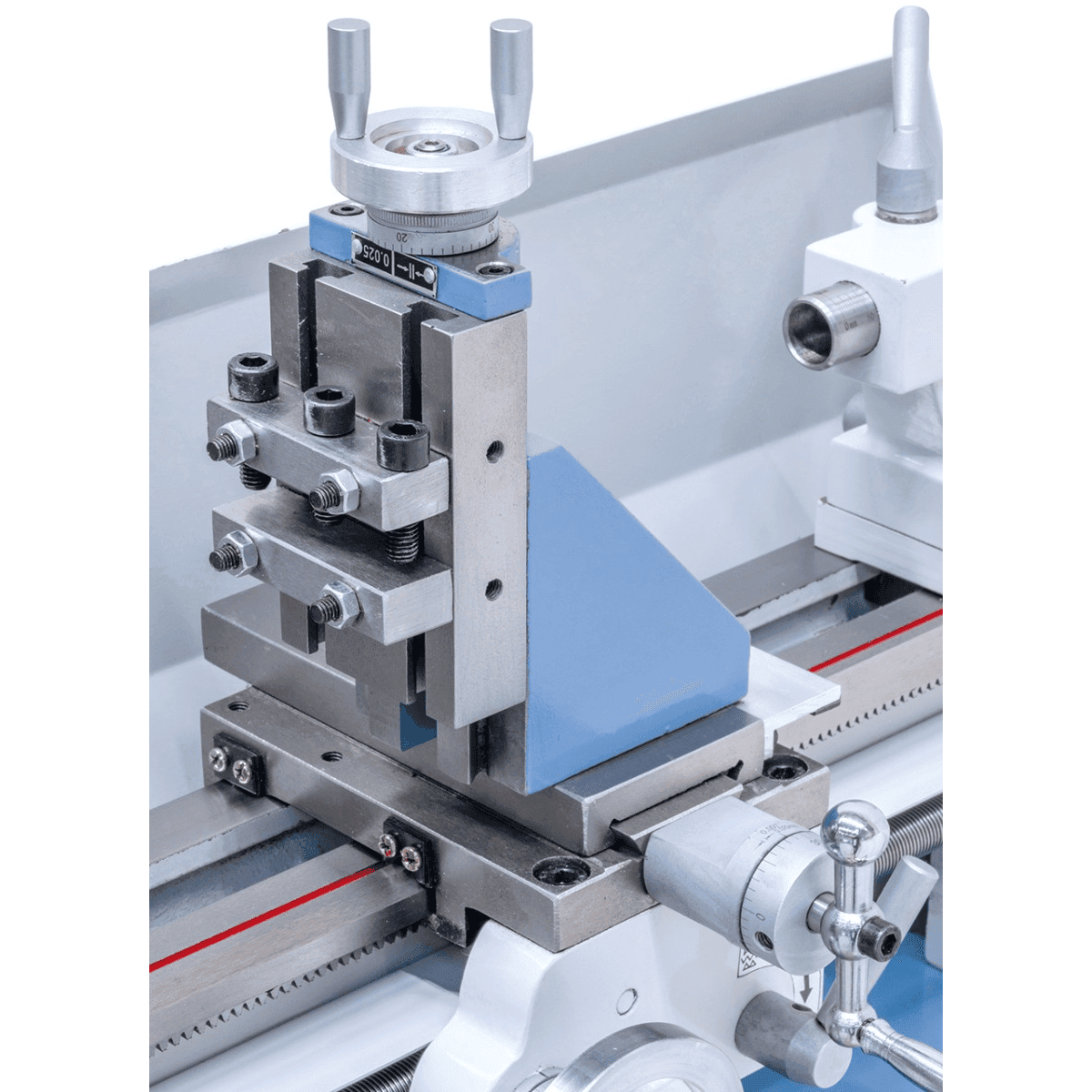

- Quick-change tool holder with 4 inserts
- Interchangeable metal gears
- Anti-splinter screen

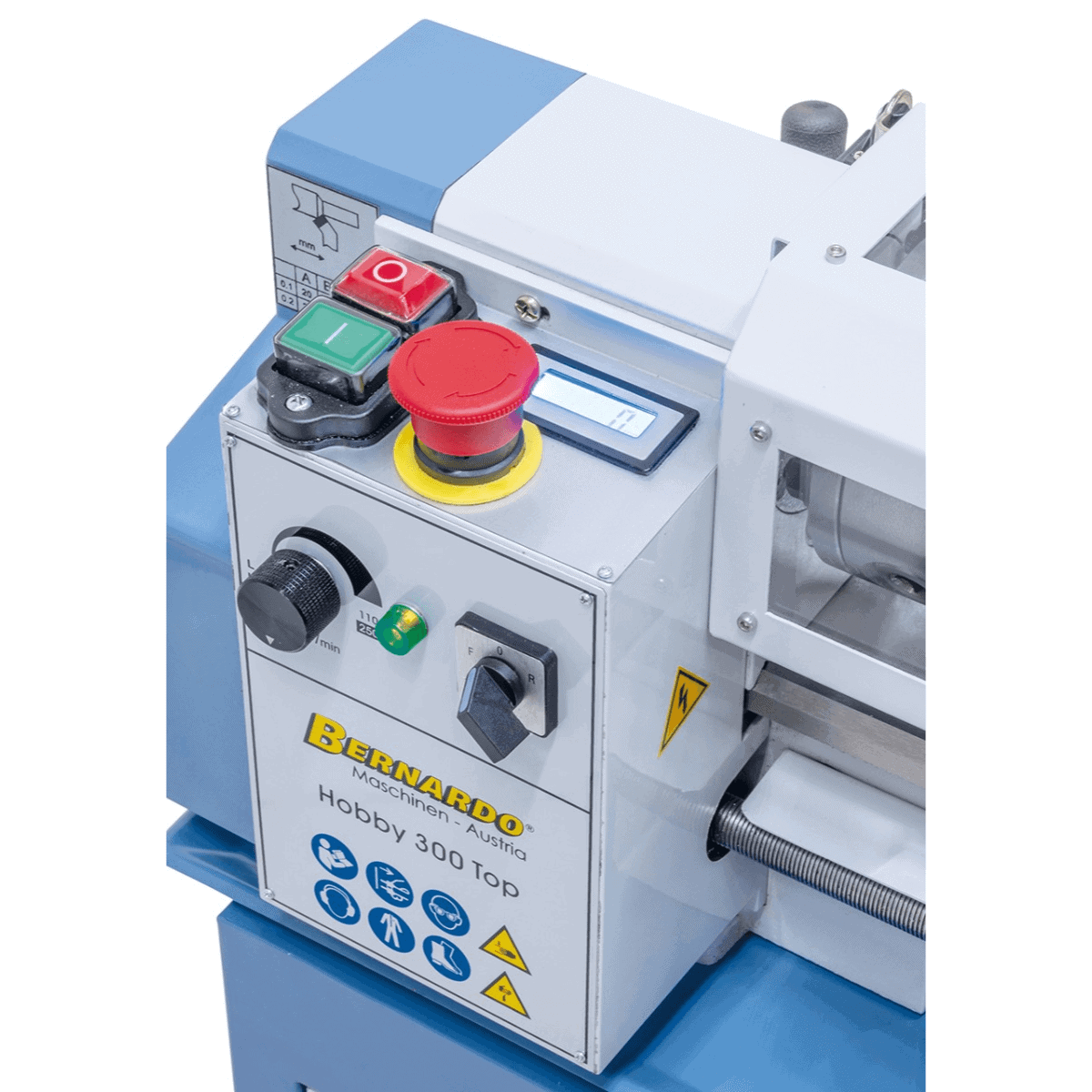

- Digital display of rotation speed
- Metal knobs
- Fixed points
- Control tool
| Technical Specifications | Values |
|---|---|
| Tip length | 300 mm |
| Tip height | 90 mm |
| Rotation diameter above the bench | 180 mm |
| Rotation diameter above the trolley | 110 mm |
| Spindle hole | 20 mm |
| Mounting in the spindle hole | MK 3 |
| Continuous speed range | 50 - 1100 / 120 - 2500 rpm |
| Longitudinal feed range | 0.1 / 0.2 mm/rev |
| Metric thread pitches | (9) 0.5 - 2.5 mm |

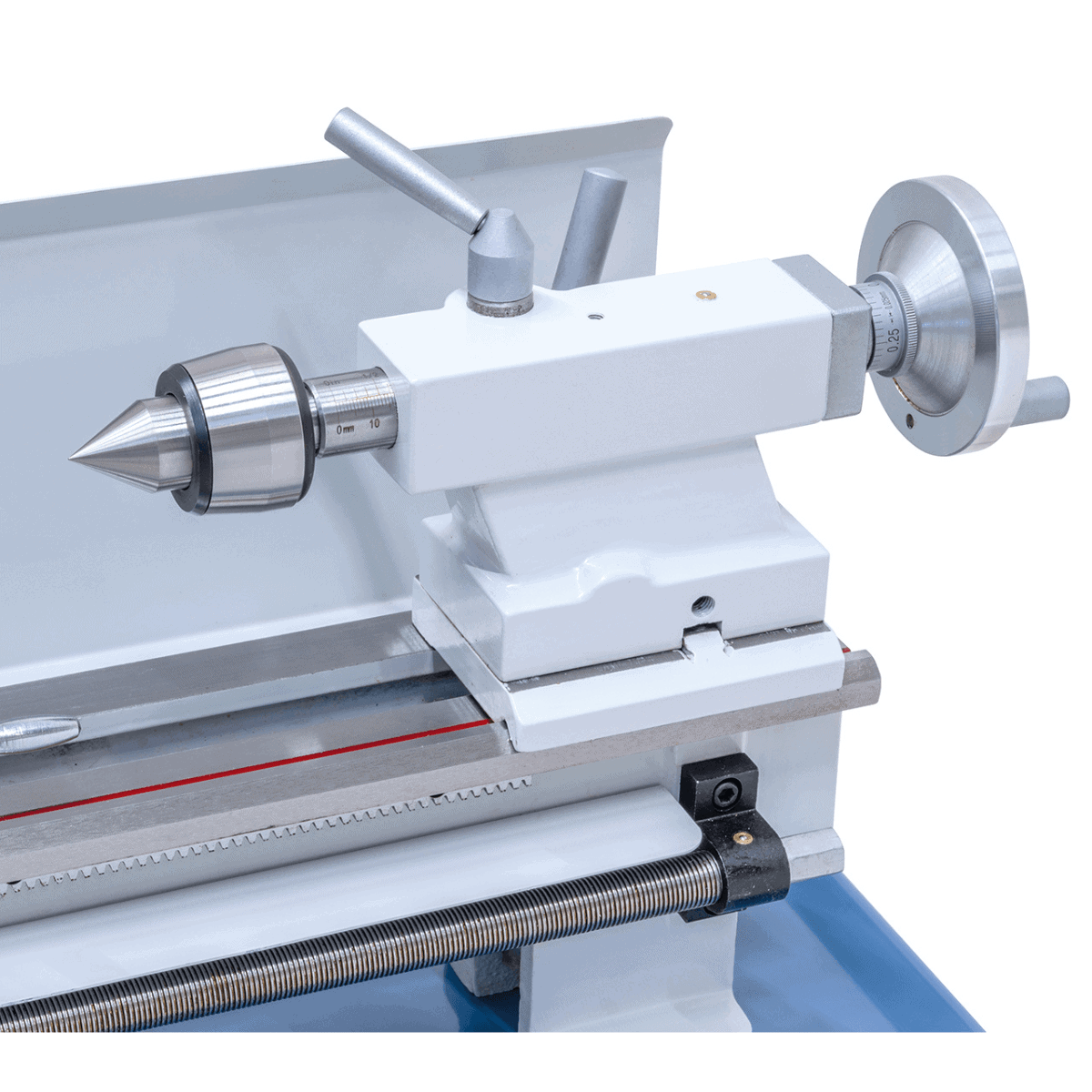

| Tailstock stroke | 60 mm |
| Mounting the tailstock | MK 2 |
| Motor output power S1 100% | 0.45 kW |
| Power absorbed by the S6 engine 40% | 0.60 kW |
| Machine dimensions (L x W x H)* | 820 x 310 x 300 mm |
| Approximate weight | 48 kg |
- Without lower support
Technical Specifications
Il motore DC brushless offre funzionamento silenzioso, coppia costante anche a bassi giri e maggiore efficienza energetica.
La concentricità è di massimo 0,015 mm, garantendo lavorazioni estremamente accurate.
Supporta filettature metriche (9 passi) da 0,5 a 2,5 mm, con ruote di cambio in metallo incluse.
Mandrino 3 griffe, porta-utensili rapido, ruote cambio filettatura, protezione, parete trucioli, punta di centraggio e manuale.
