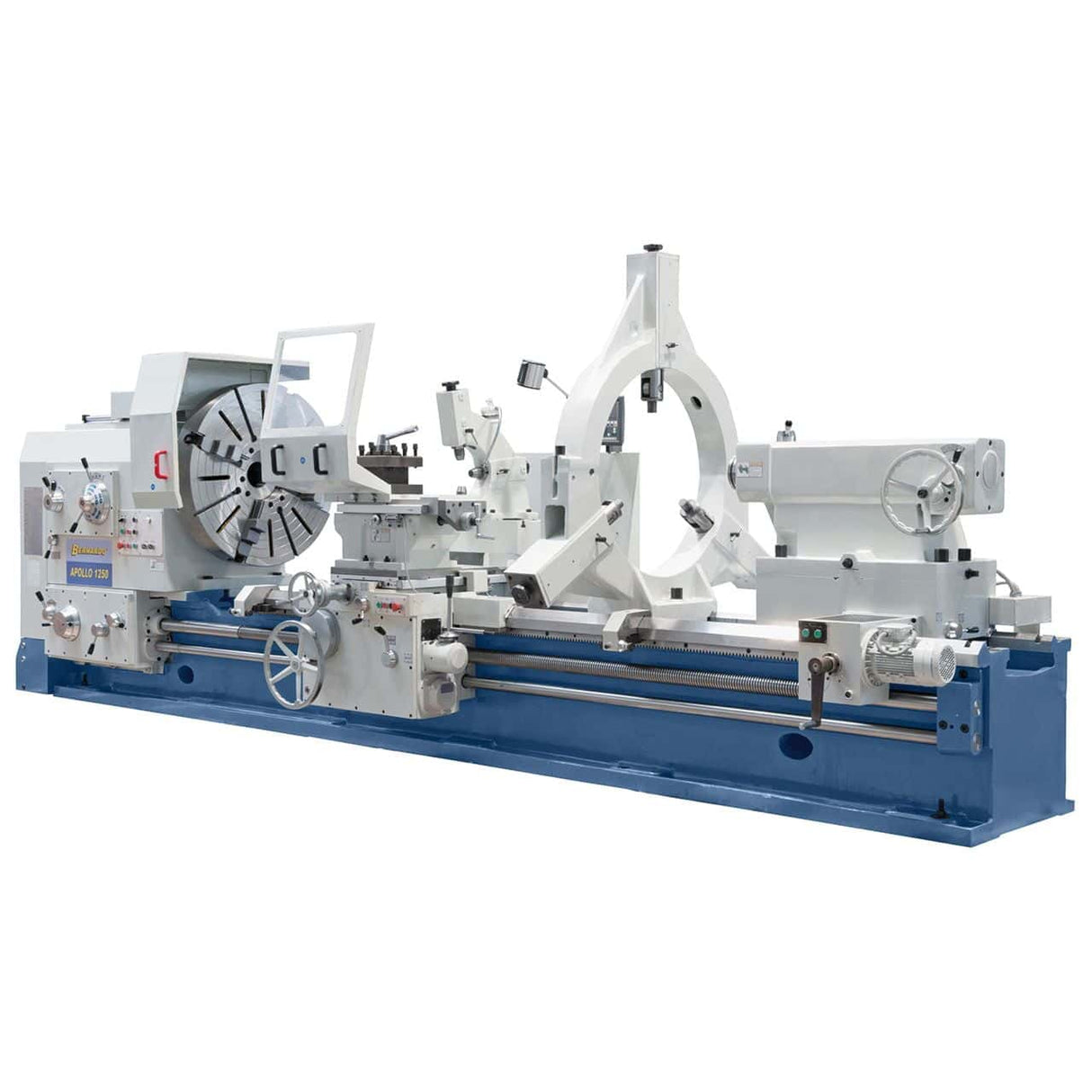

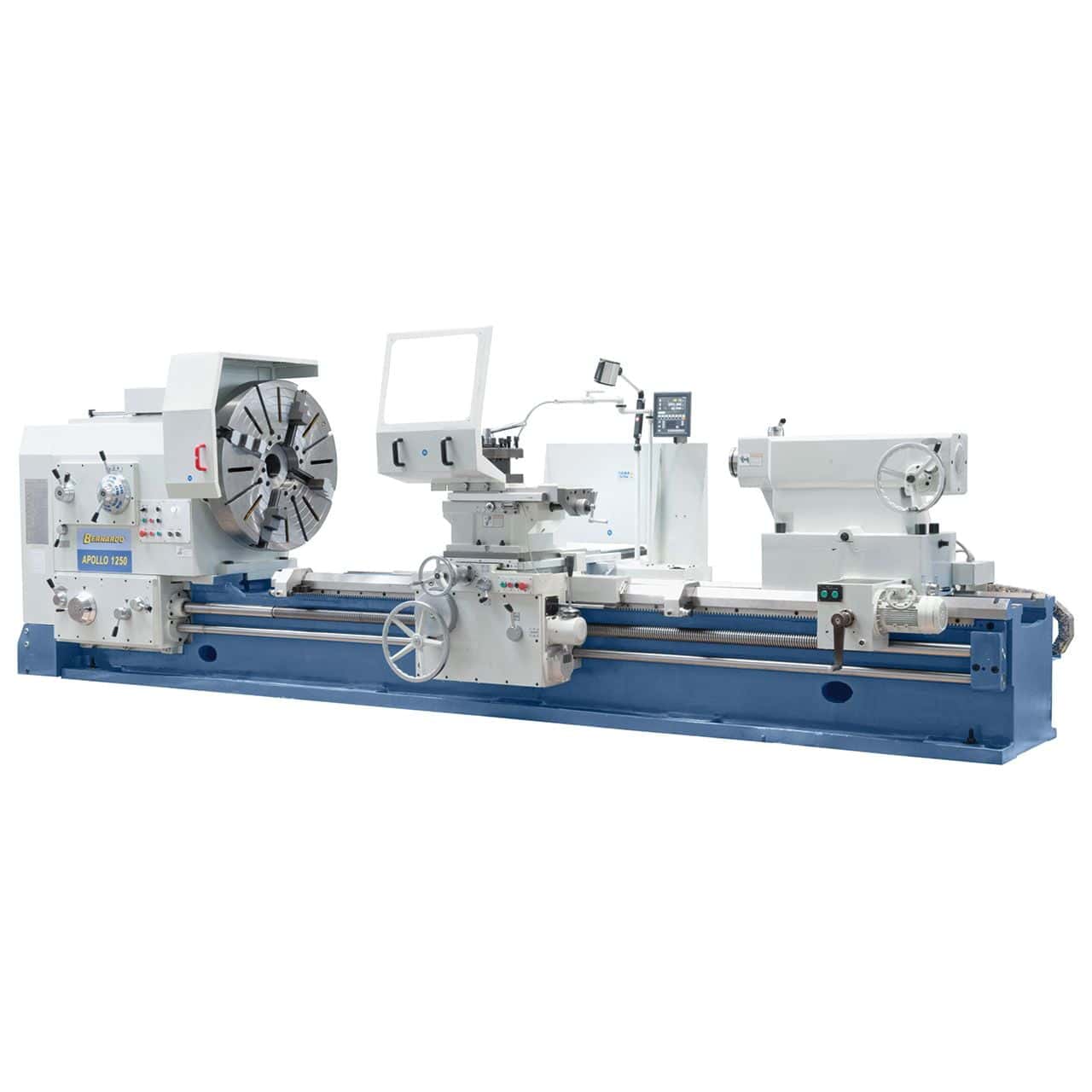

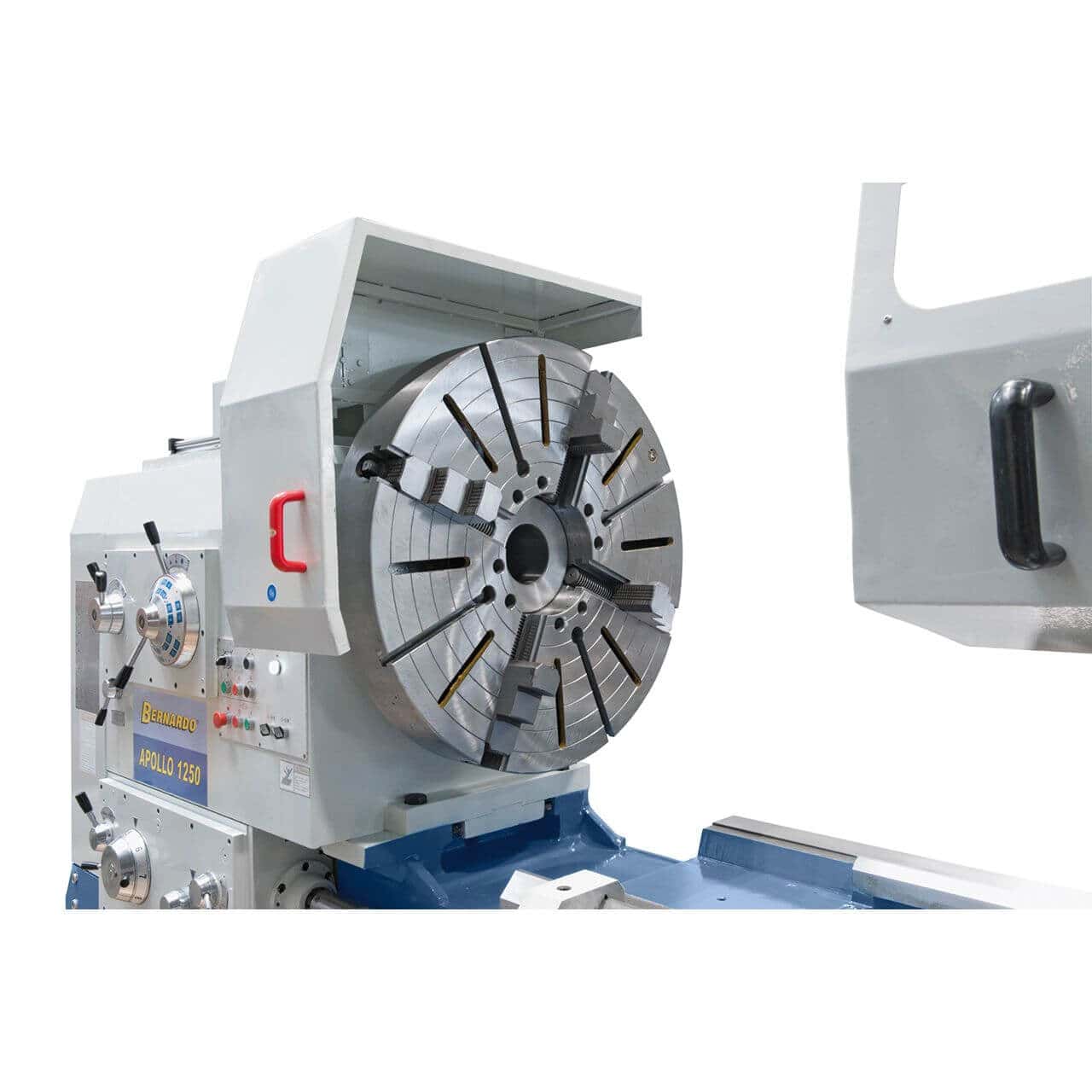

APOLLO 1250 x 1500 lathe
APOLLO 1250 x 1500 lathe is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
APOLLO 1250 x 1500 lathe
-
Description
-
Technical Specifications
-
Product safety
-
Reviews
Description
Property
- The pallet is extremely resistant to torsion and vibration: this satisfies an essential requirement to ensure high torsion
- The transmission of the rotary motion (forward/backward) takes place via a drive shaft with hydraulic coupling

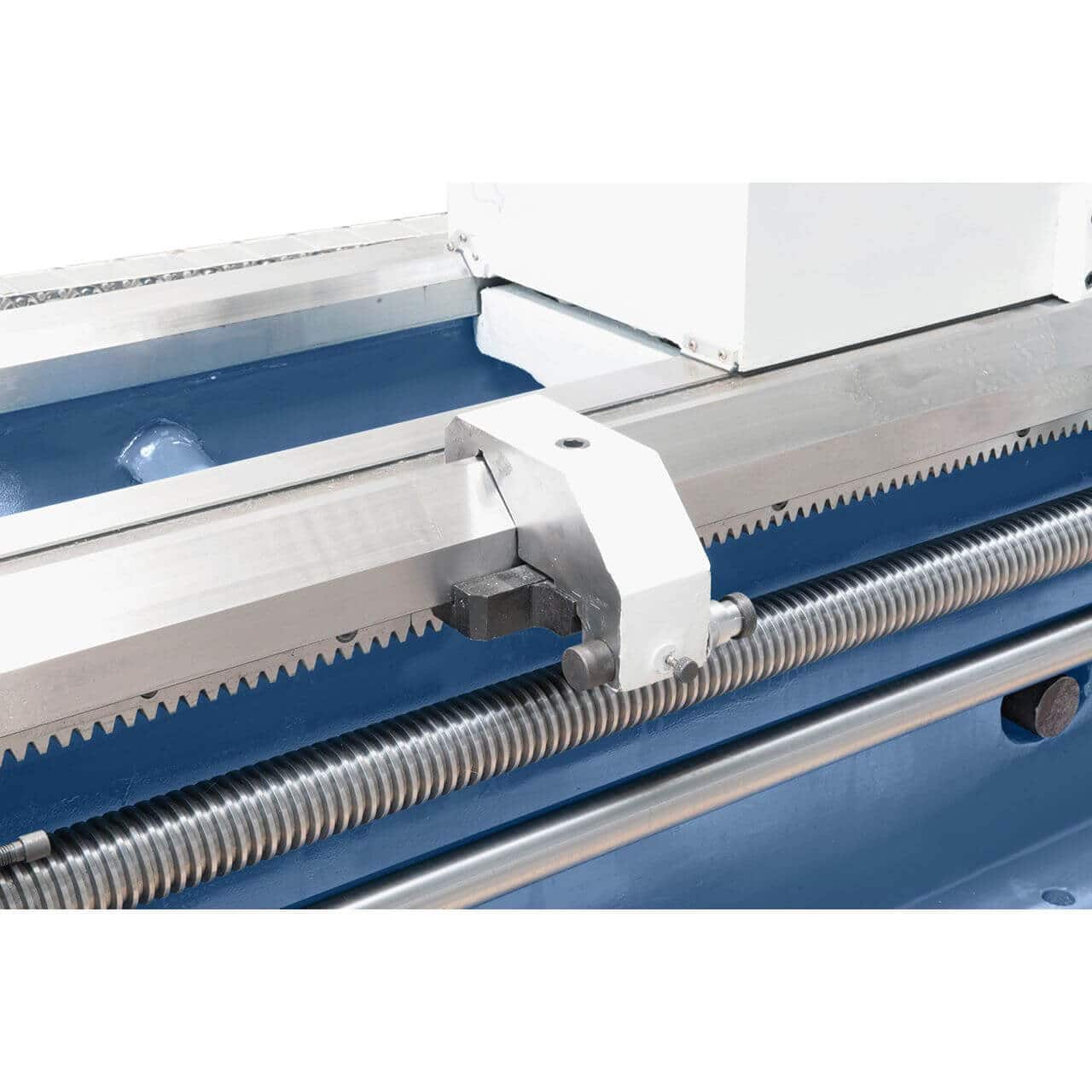

- Large size guides are induction hardened and ground

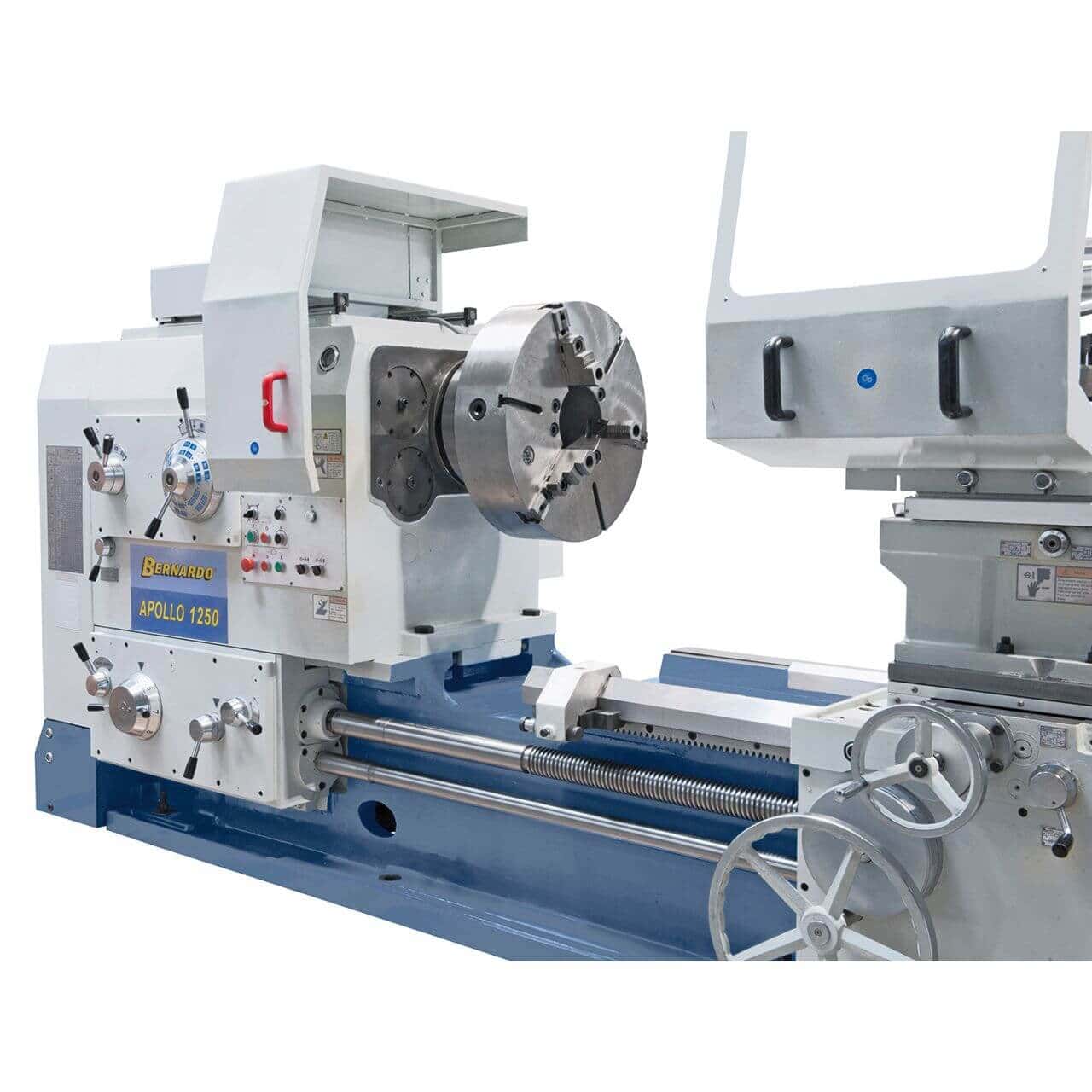

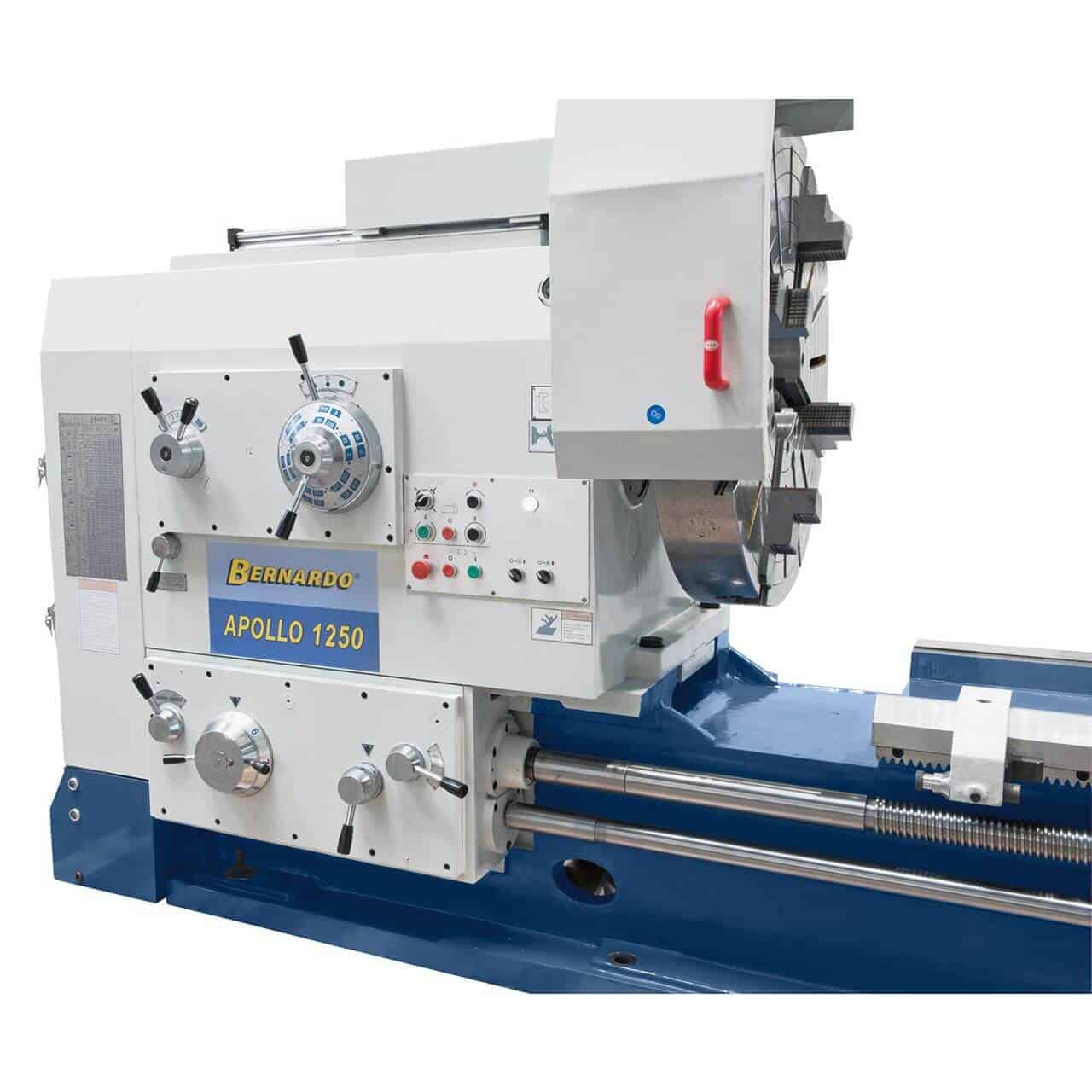

- The cast iron spindle head with high wall thickness and compact construction ensures rigidity and stability

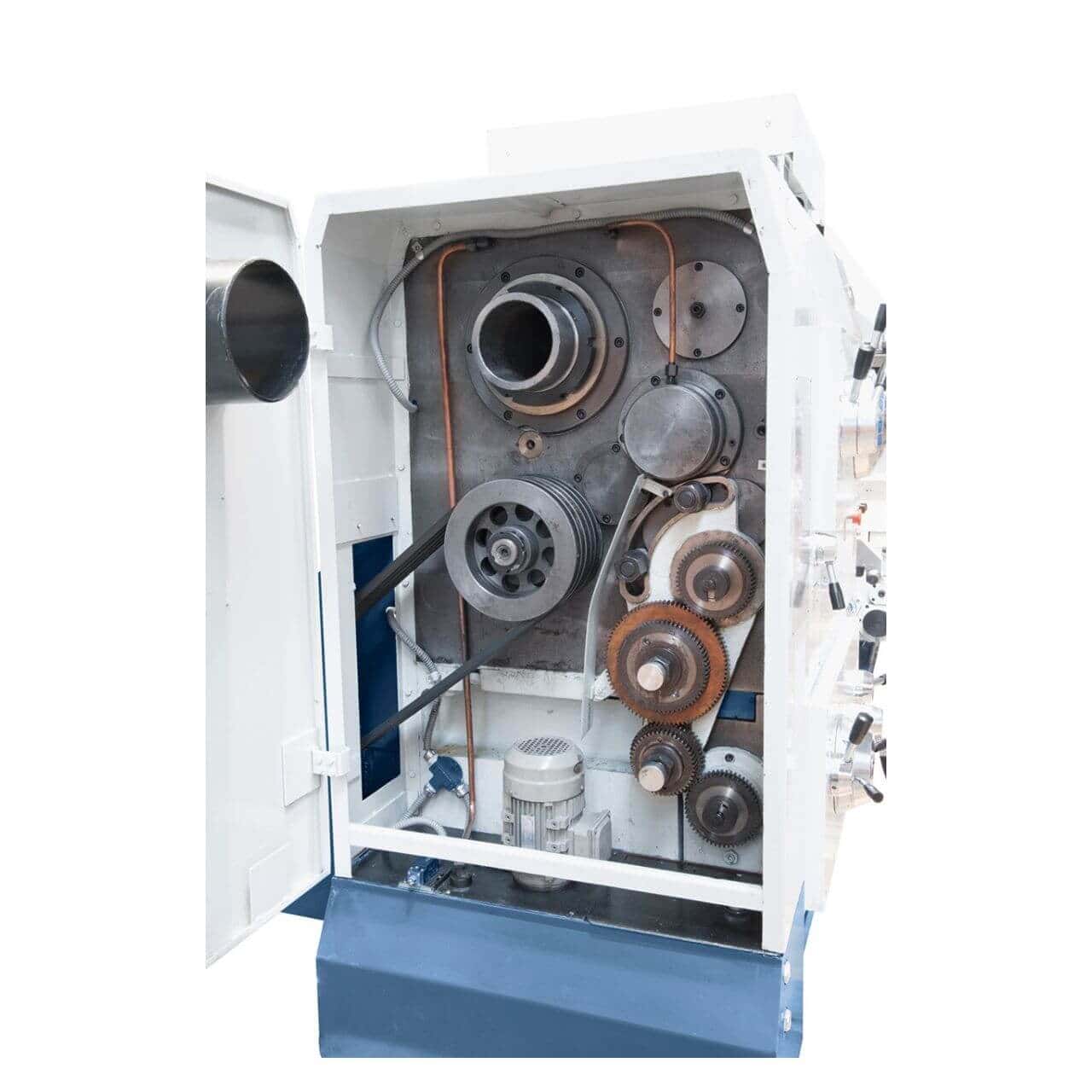

- Gears and shafts hardened and ground even during power operation
- For processing different workpieces, the machine has a speed range of 3.15 - 400 rpm with 36 speeds
- Smooth start of the main spindle by means of the mechanical disc clutch
Standard accessories

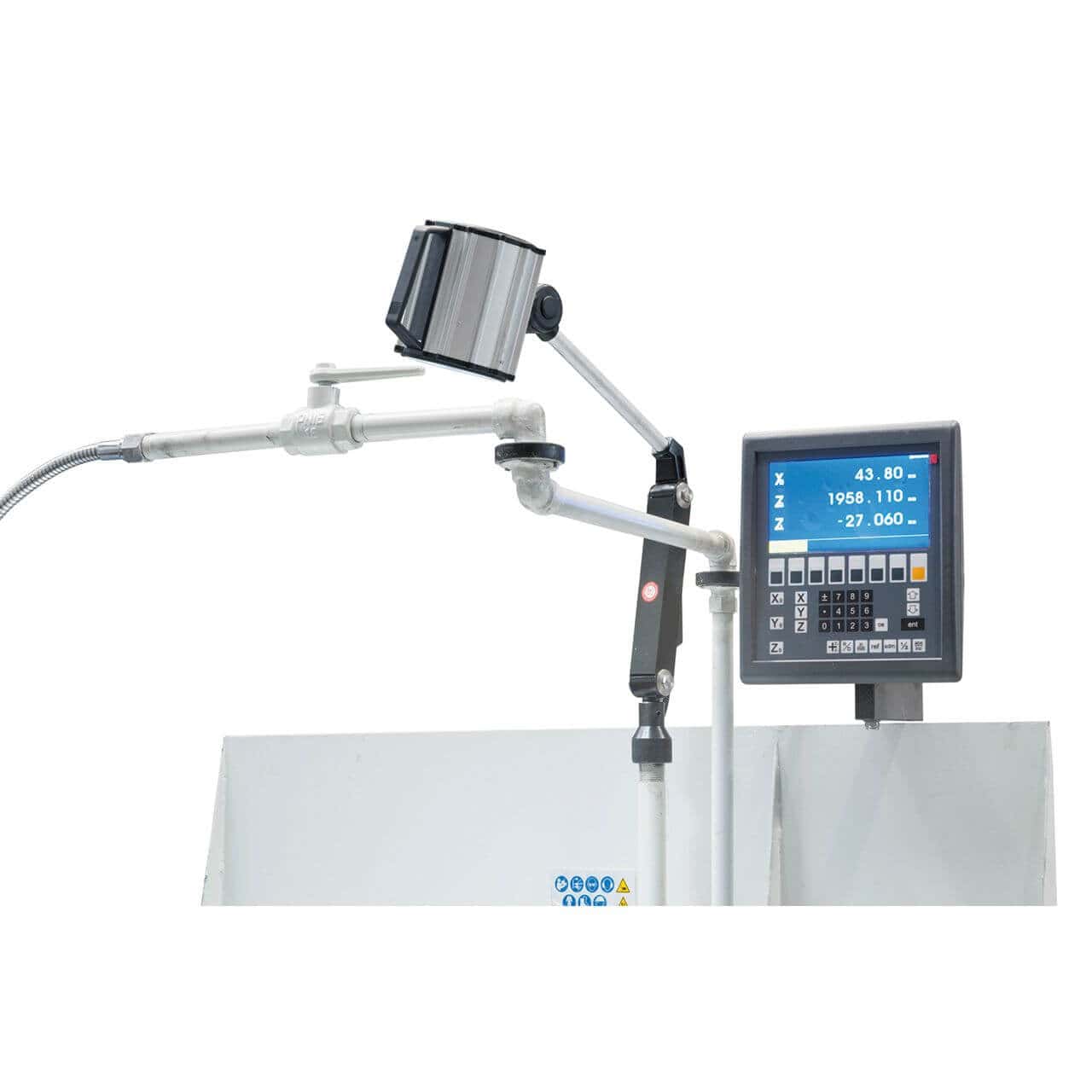

- ES-12V 3-Axis Position Display with LCD Display
- 1000 mm platform

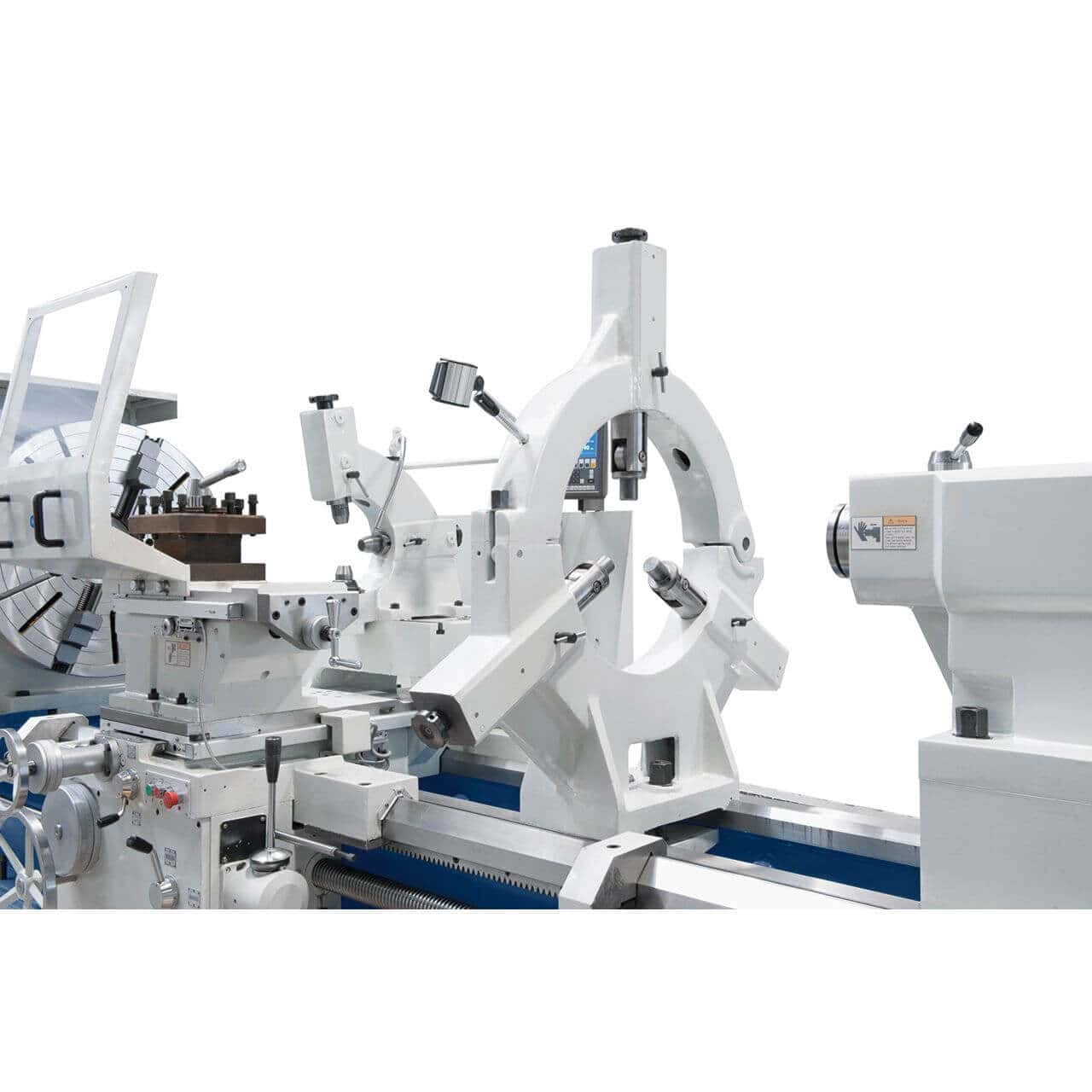

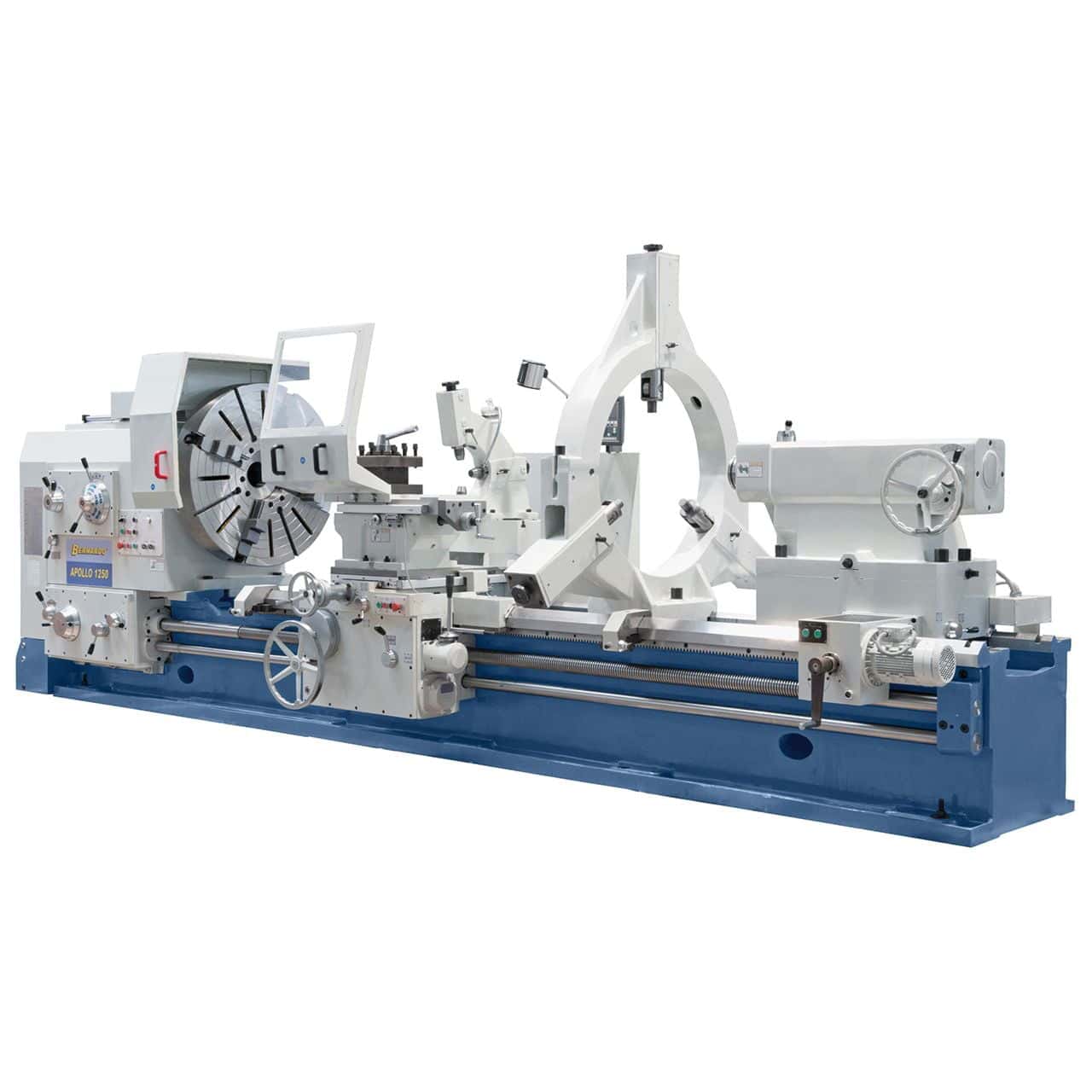

- Fixed bezel - loop diam. 50 - 590 mm
- Rotating bezel - 50 mm diameter - 220 mm diameter
- Central points
- Central lubrication
- Initial fill with Shell Tellus 46

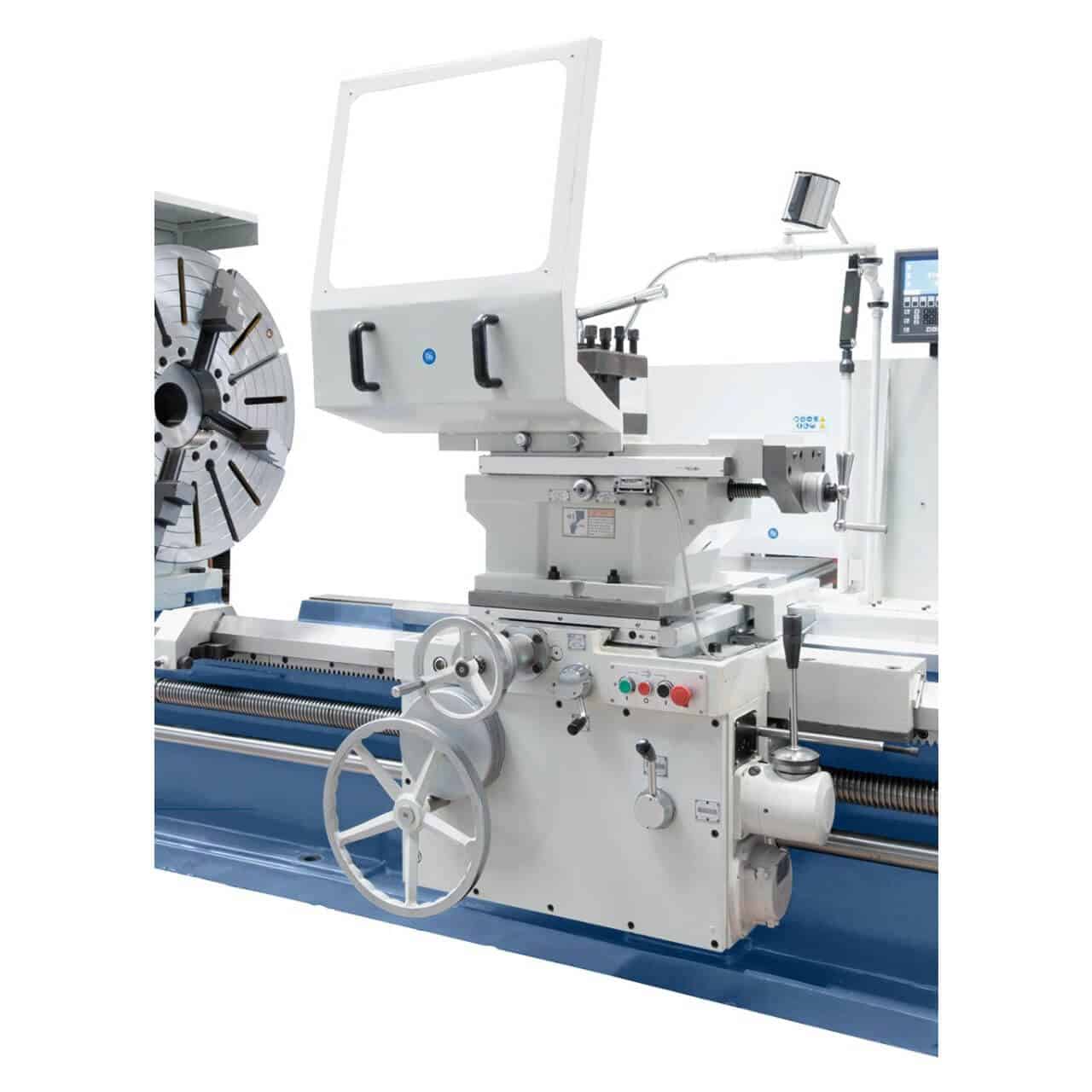

- Quadruple tool holder
- Quadruple tool holder protection device
- Refrigeration system
- LED car light
- Reduction compass
- Foundation screws
technical specifications
Distance between tips |
1500 mm |
Rotation diameterrotation |
|
on bed |
1250 mm |
on support |
900 mm |
Race |
|
x-axis |
630 mm |
Z-axis |
1300 mm |
Z1 axis |
300 mm |
Max. piece weight |
6000 kg |
Bed width |
755 mm |
Upper slide orientation field |
± 180° |
Spindle speed (forward/reverse) |
(24) 3.15 - 315 / (12) 5 - 400 rpm |
Spindle hole |
130 mm |
Spindle attachment |
ISO A2-15 |
Progress |
|
x-axis | z-axis | z1-axis |
0.064 - 12 mm/rev |0.032 - 6 mm/rev | 0.016 - 3 mm/rev |
Fast run |
|
x-axis | z-axis |
1870 mm/min | 3740 mm/min |
Thread |
|
metric | diametrical |
(45) 1 - 120mm | (42) 30 - 1/4 DP |
Modular | Whitworth |
(46) 0.5 - 60mm | (48) 0.5 - 60 GPZ |

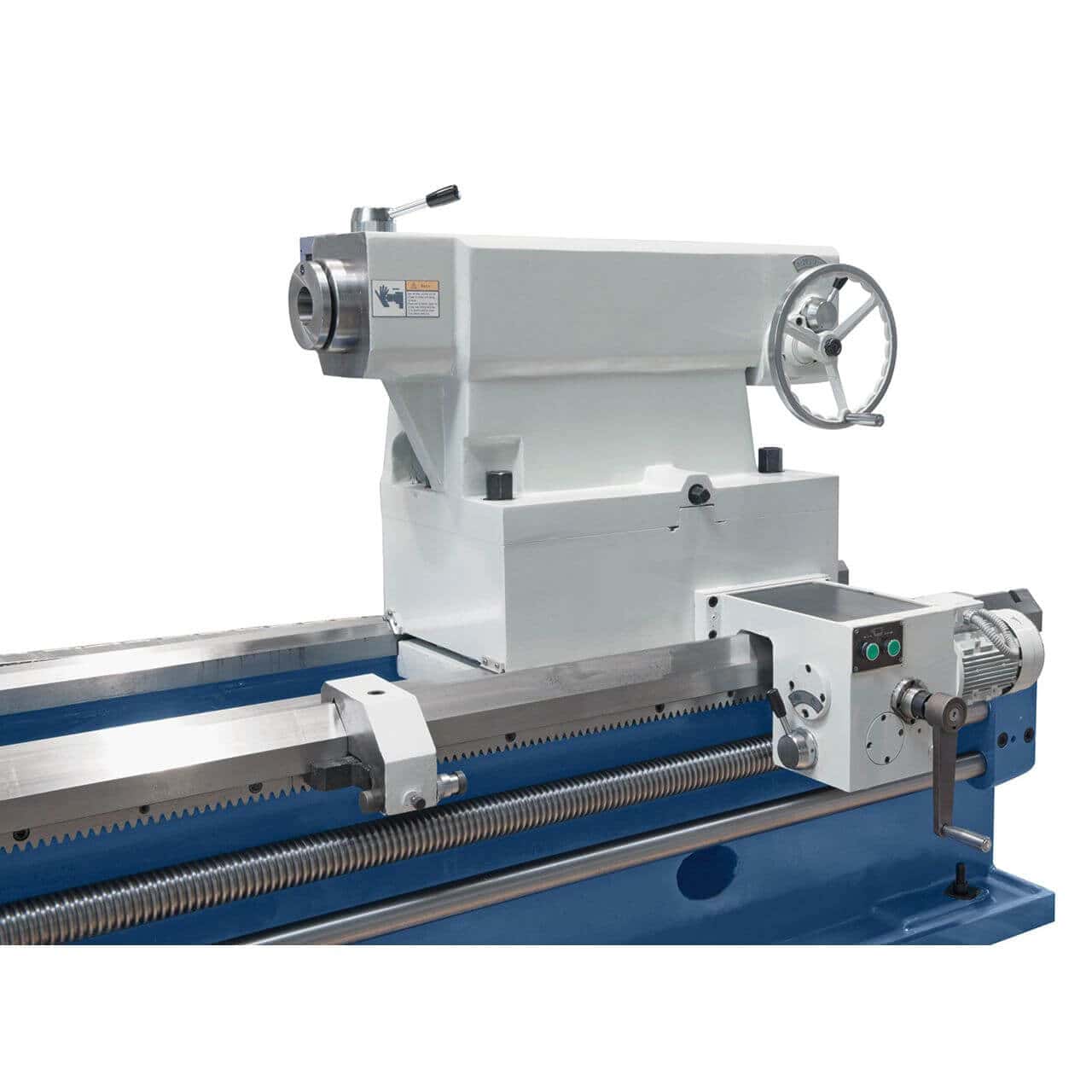

Tailstock quill cone / Ø |
metric 80 / 160 mm |
Tailstock quill stroke |
300 mm |
| Tailstock cross adjustment |
± 2.5 mm |

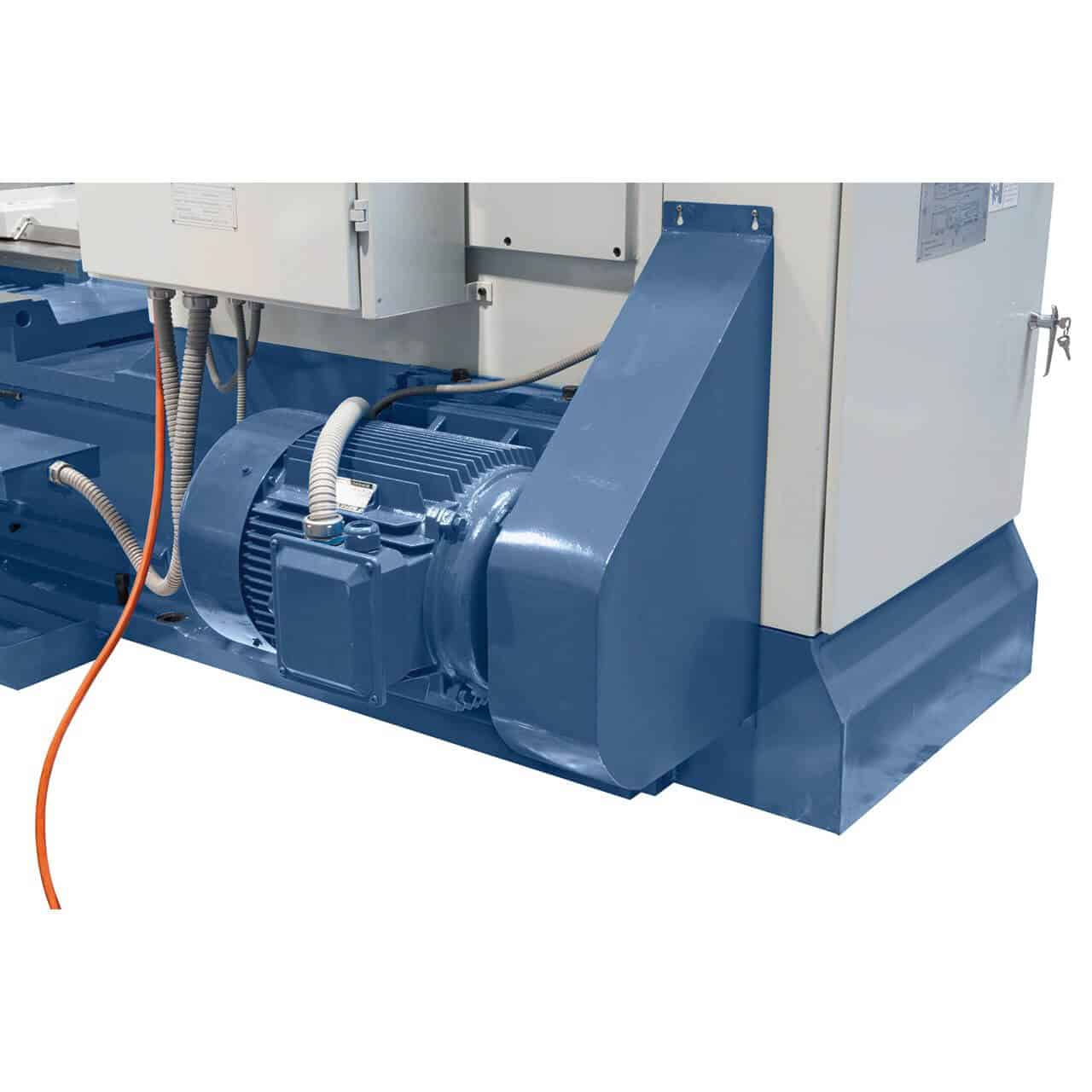

Engine power |
22 kW |
Length x Width |
4.6 x 1.88 m |
Height |
1.92 m |
Weight approx. |
10,050 kg |
