Description
The Profi 400 V lathe features stepless speed control; the set speed is read on a digital display. Thanks to its good price-performance ratio, this model is ideal for model makers and beginners.
Property
- Ideal for machining steel, non-ferrous materials and plastics
- Versatile: longitudinal, flat, simple turning, threading, ...
- Equipped with a guide for threading or for automatic longitudinal feed
- Equipped with replacement wheels for cutting in metric threads
- High concentricity of the spindle nose (greater than 0.009 mm) thanks to precision bearings
- Simple arrangement of switching elements
- Small and compact structure, excellent quality-price ratio
- Continuous, electronic speed control for optimal adaptation of the cutting speed to the workpiece
Standard accessories

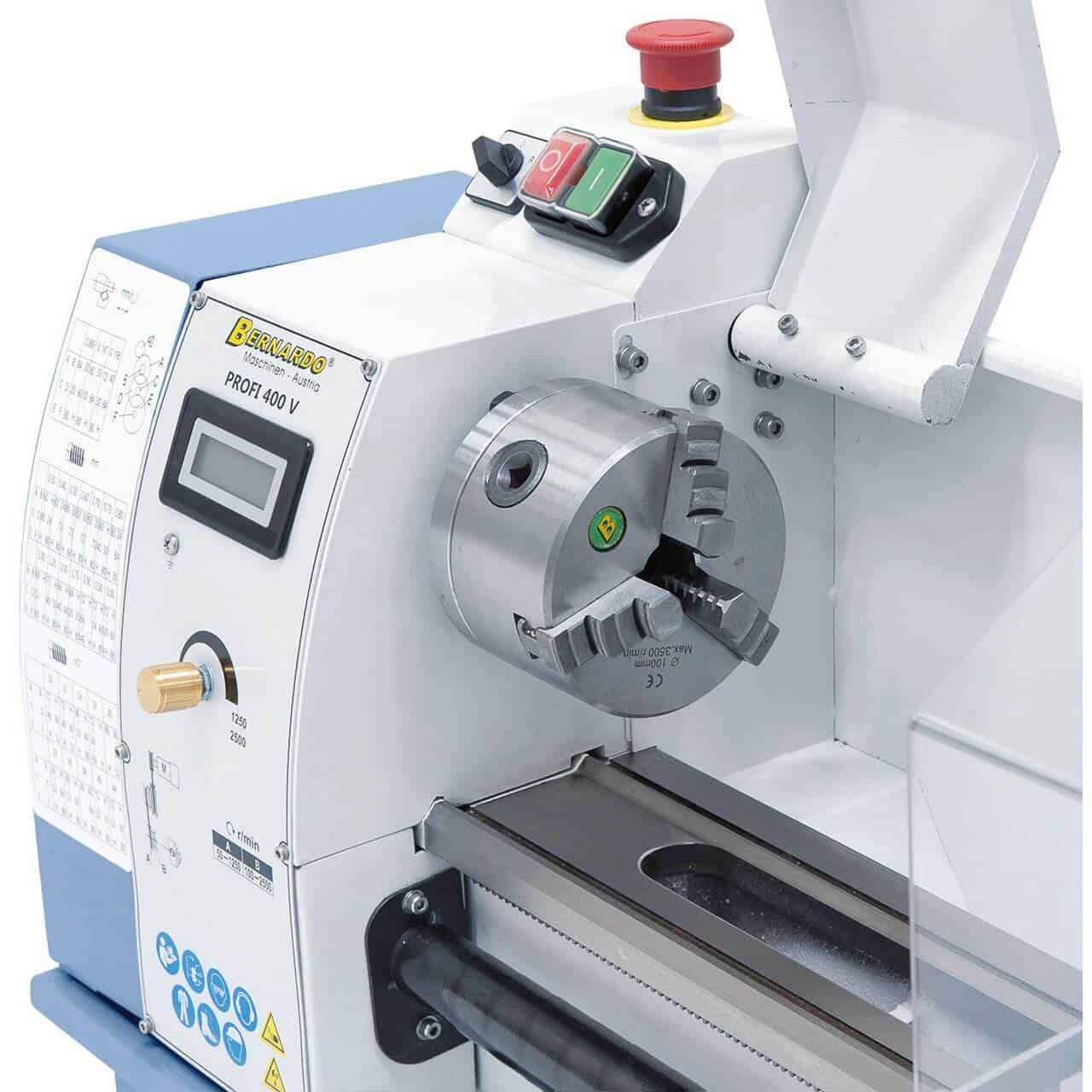

- 3-jaw chuck DK 11-100 mm

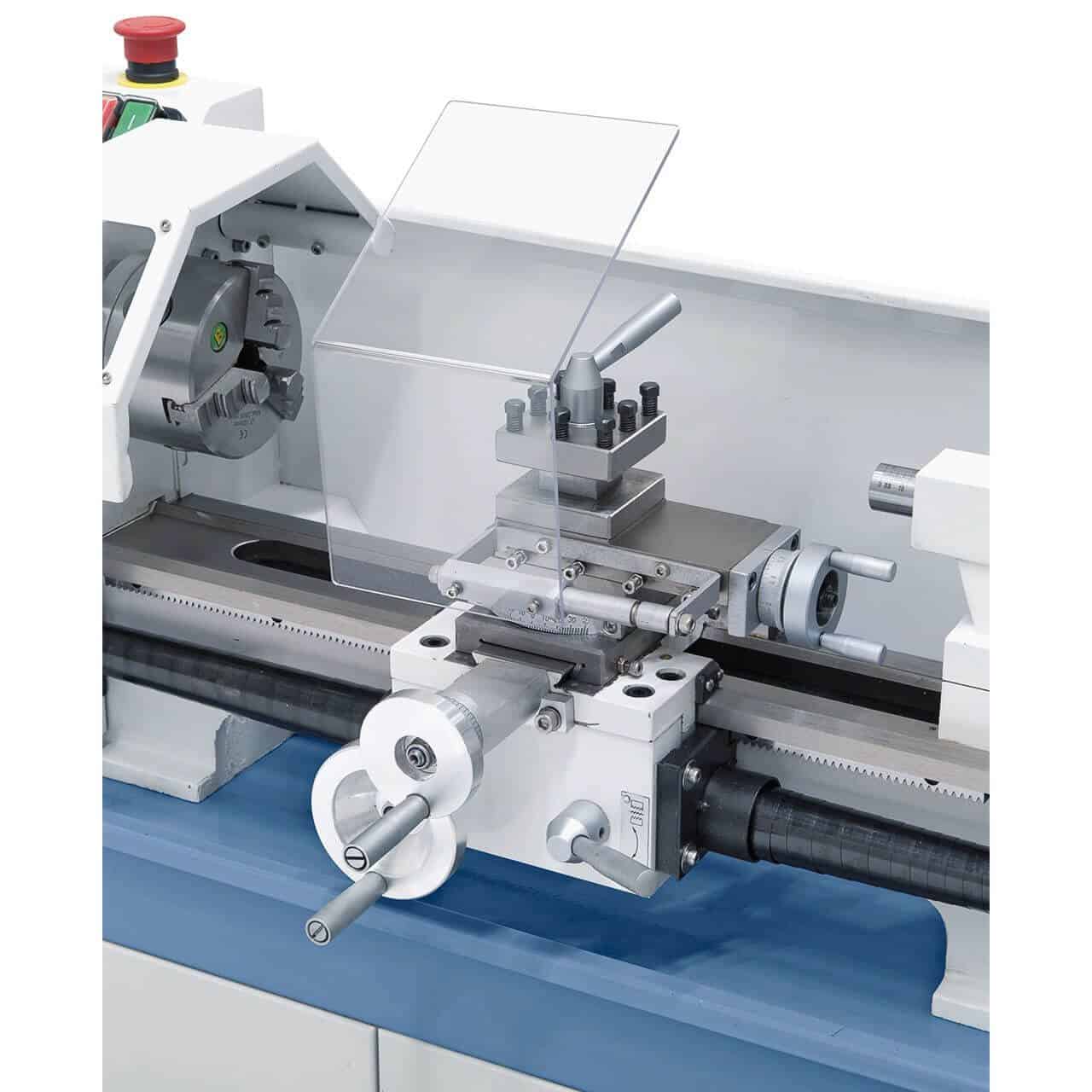

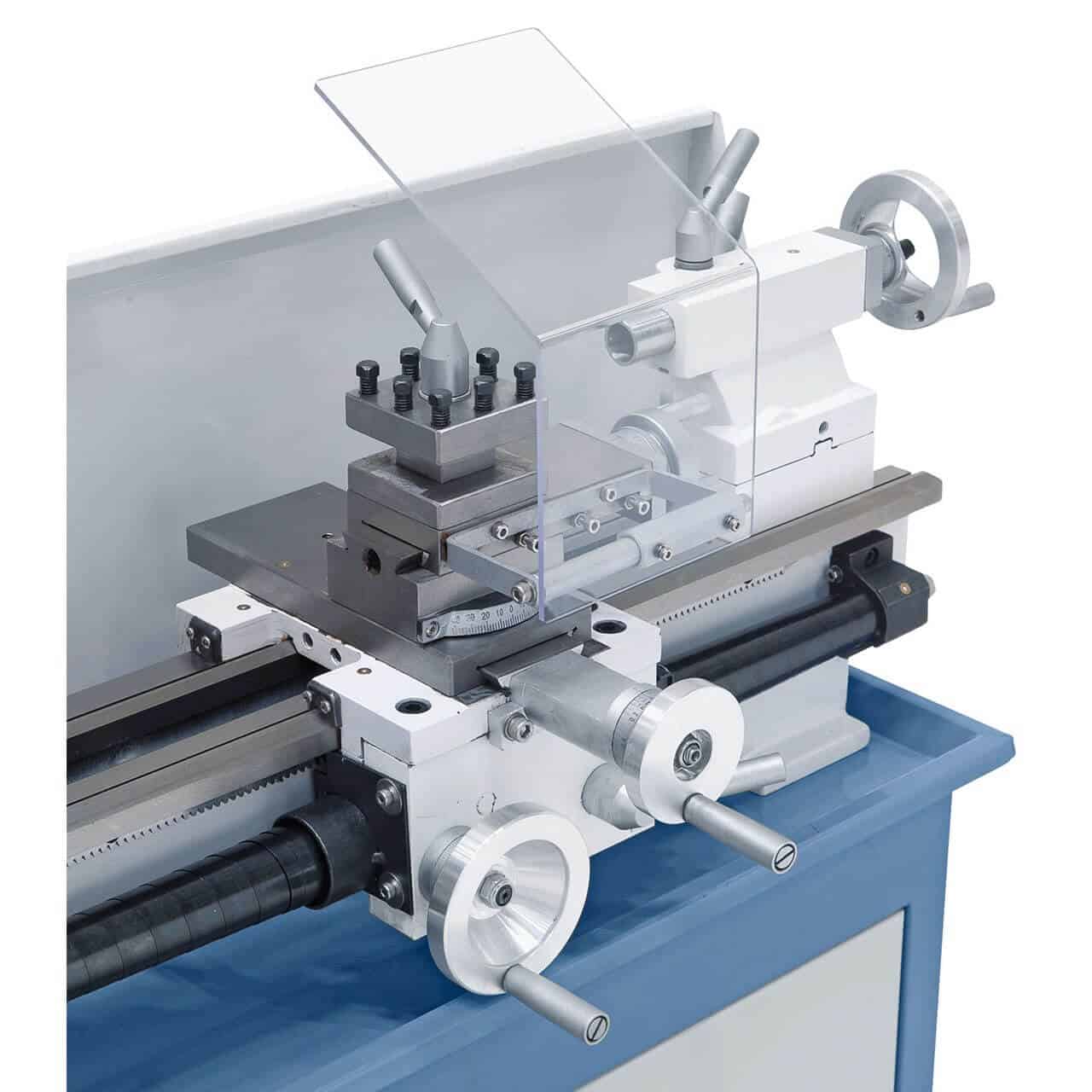

- Quadruple tool holder

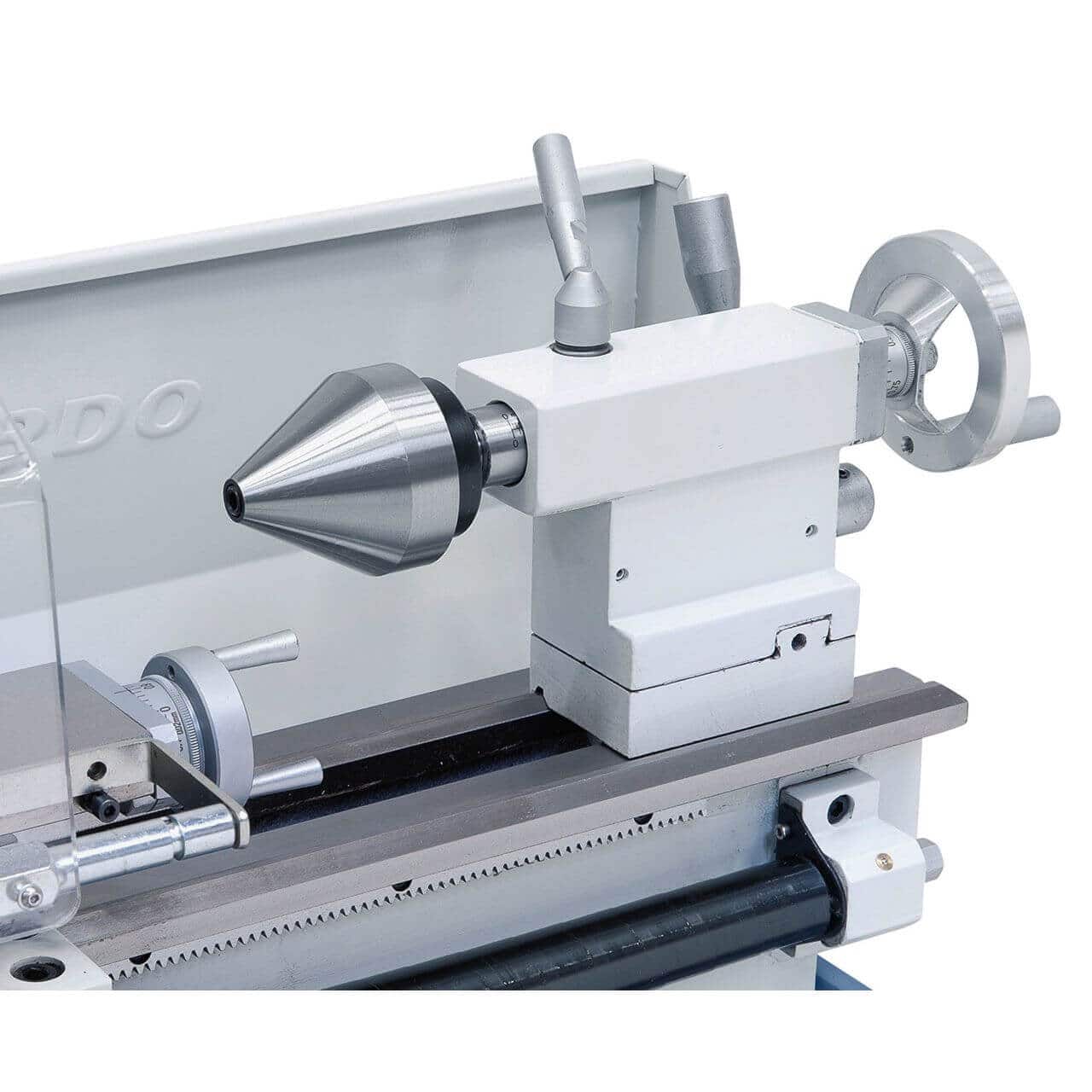

- Central points
- Spindle protection

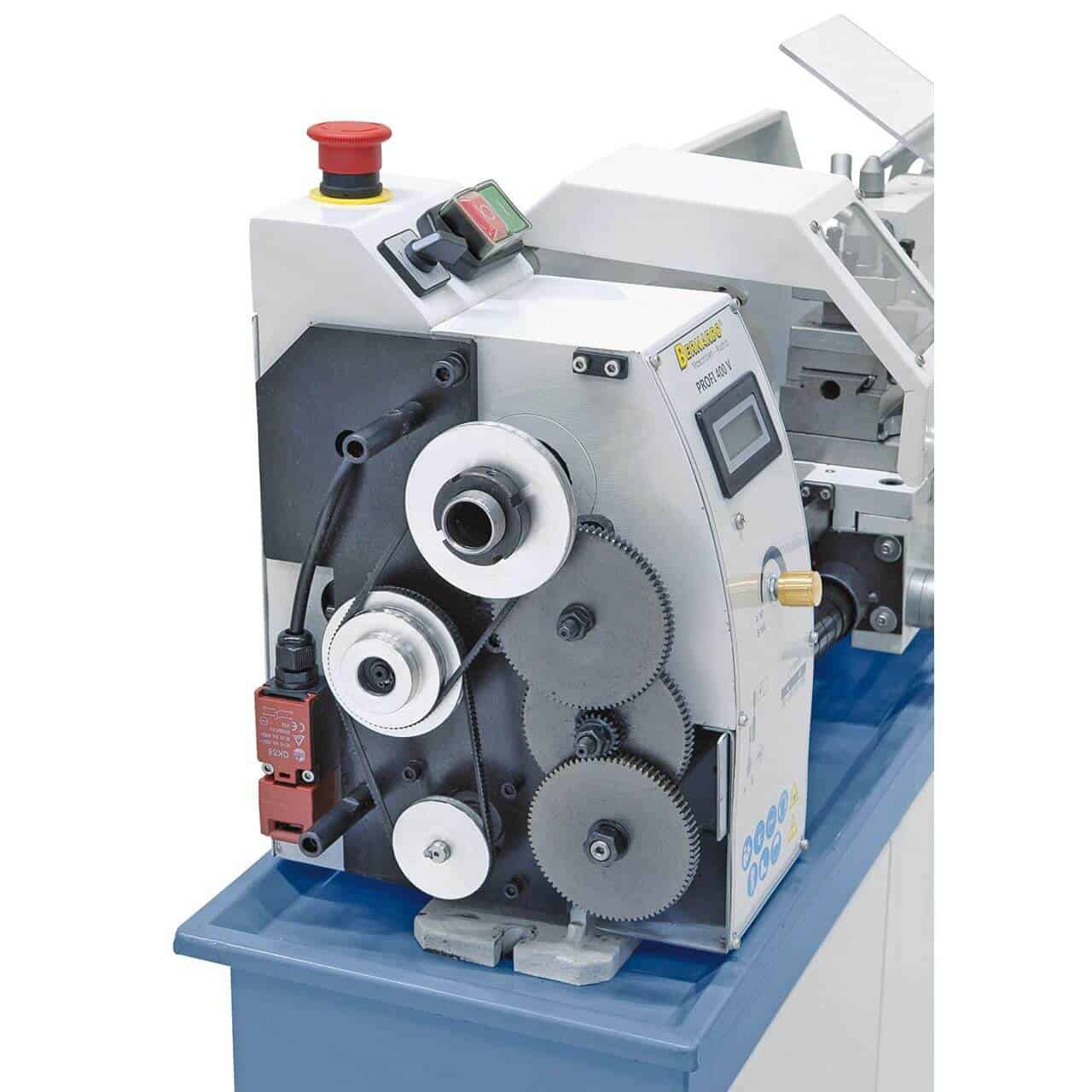

- Replacement wheels

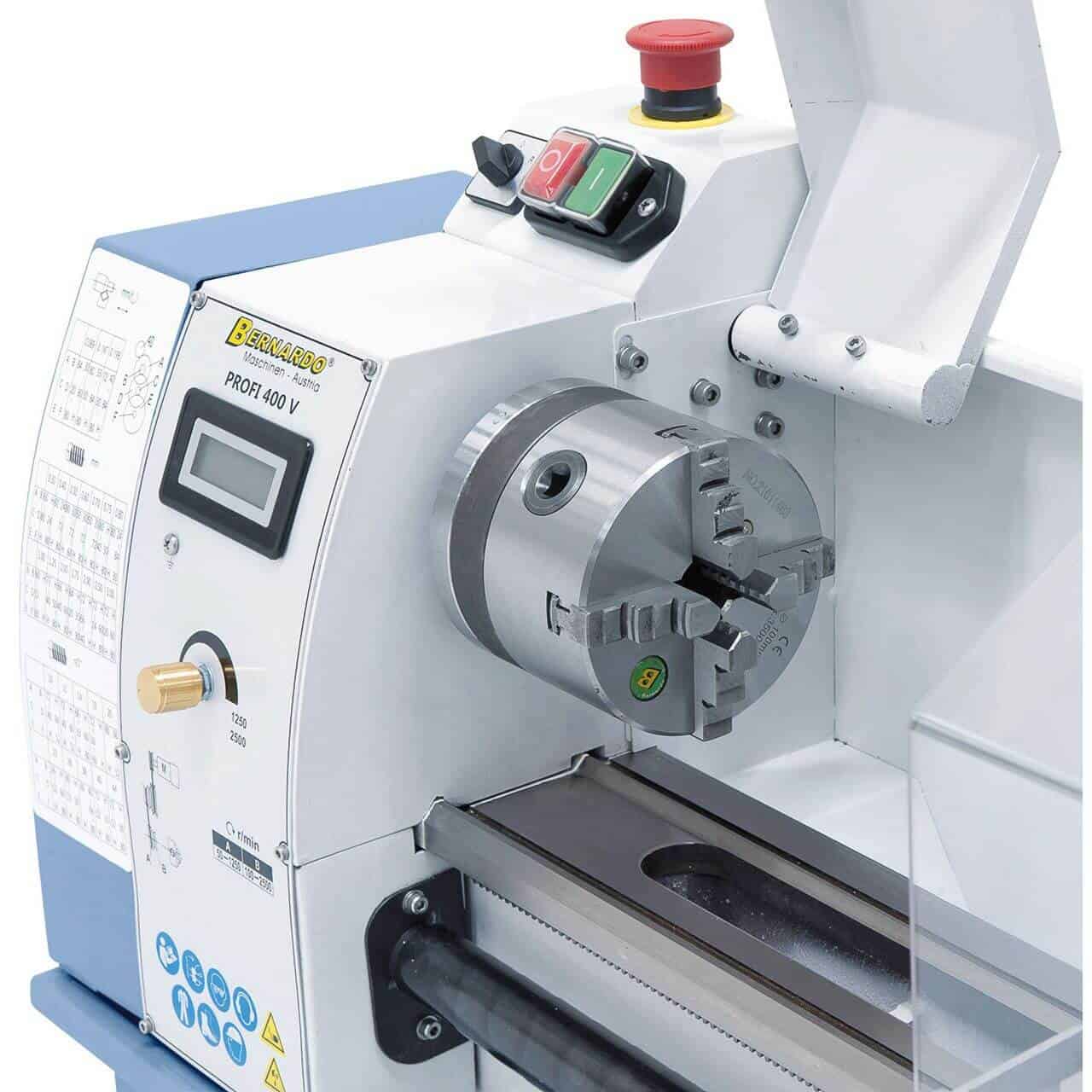

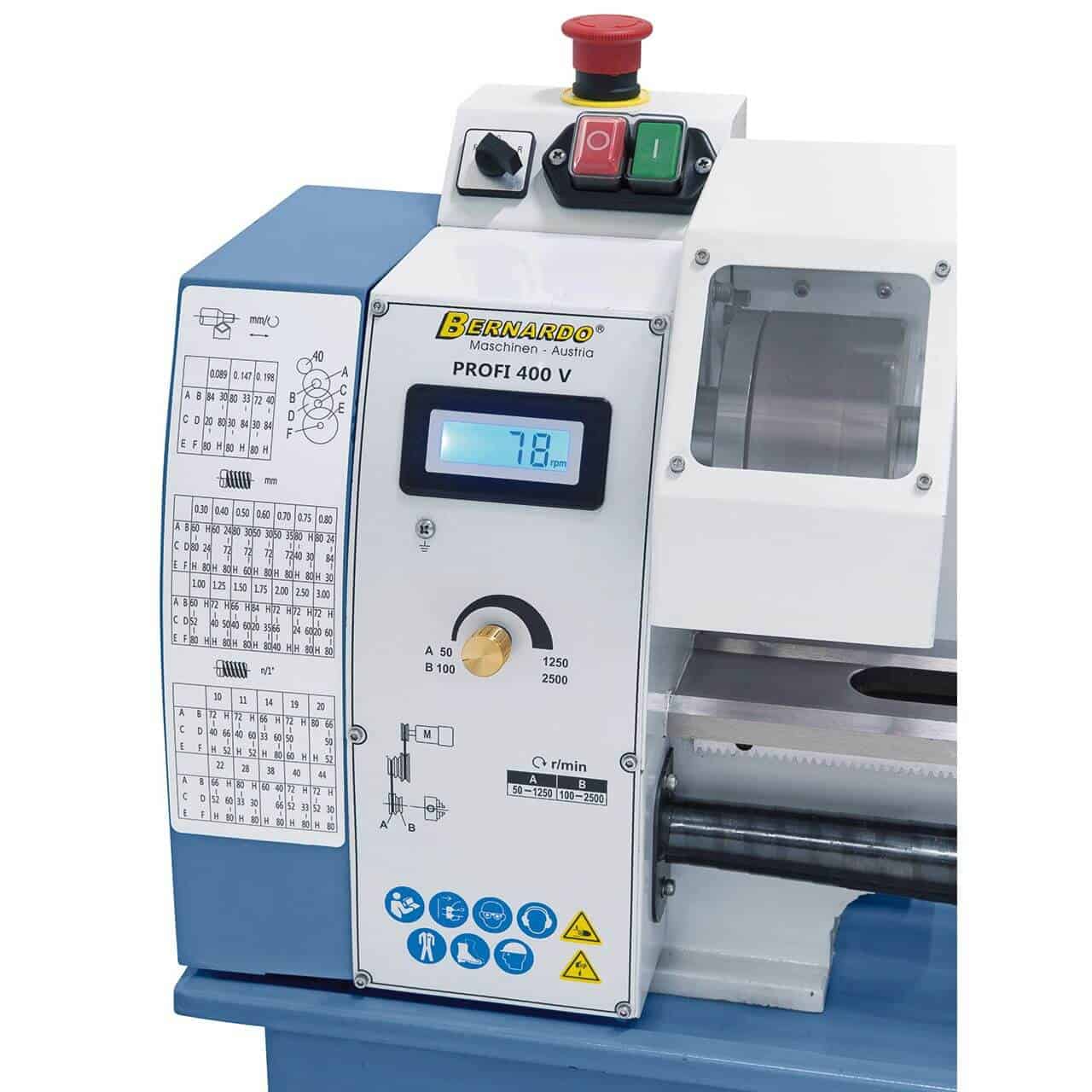

- Digital speedometer
- Chip back wall
- Chip collection tank
- Control device
technical specifications
Distance between tips |
400 mm |
Height of the tips |
100 mm |
Vaulting on the table |
200 mm |
Spindle hole |
20 mm |
Support in the spindle hole |
MK 3 |
Continuous speed range |
50 - 1250 / 100 - 2500 rpm |
Longitudinal advancement area |
(3) 0.089 - 0.198 mm/rev |
Metric threads |
(14) 0.3 - 3 mm |
Inch threads |
(10) 10 - 44 TPI |
Spindle stroke |
50 mm |
Spindle support |
MK 2 |
Motor input power S 1 100% |
0.60 kW / 230 V |
S 6 40% engine output power |
0.80 kW / 230 V |
Machine dimensions (L x W x H)* |
930 x 400 x 380 mm |
Weight approx. |
65 kg |

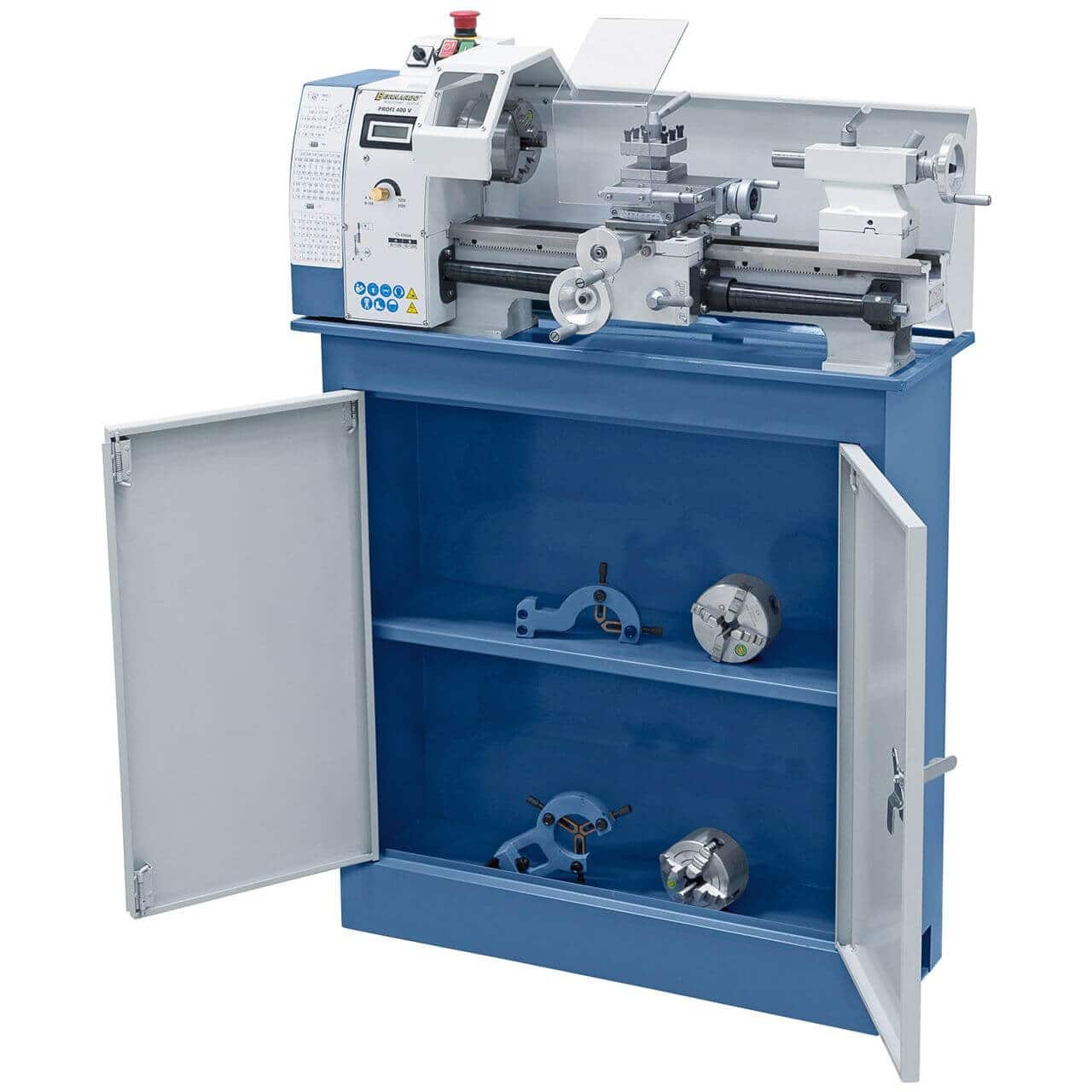

* without base
