Description

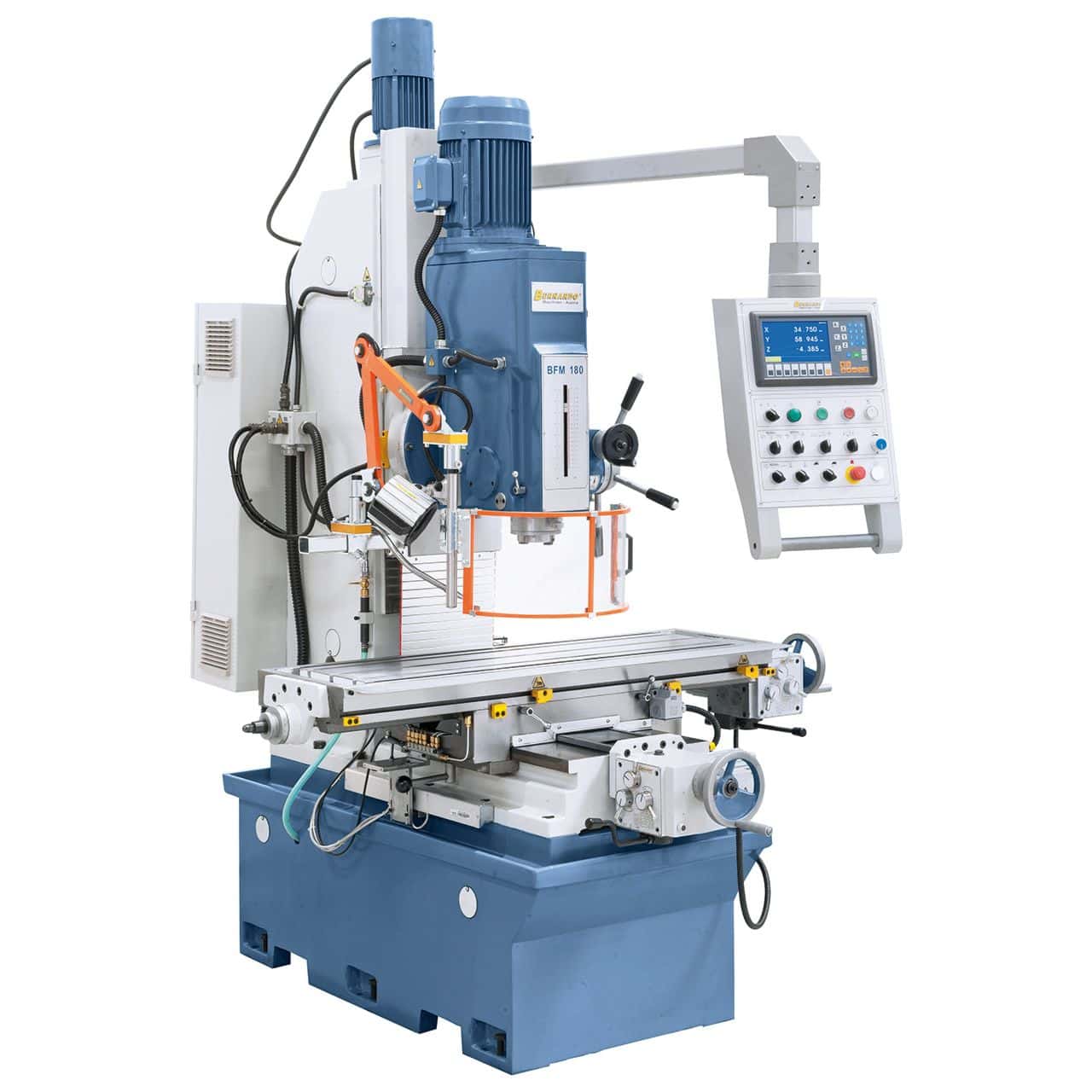

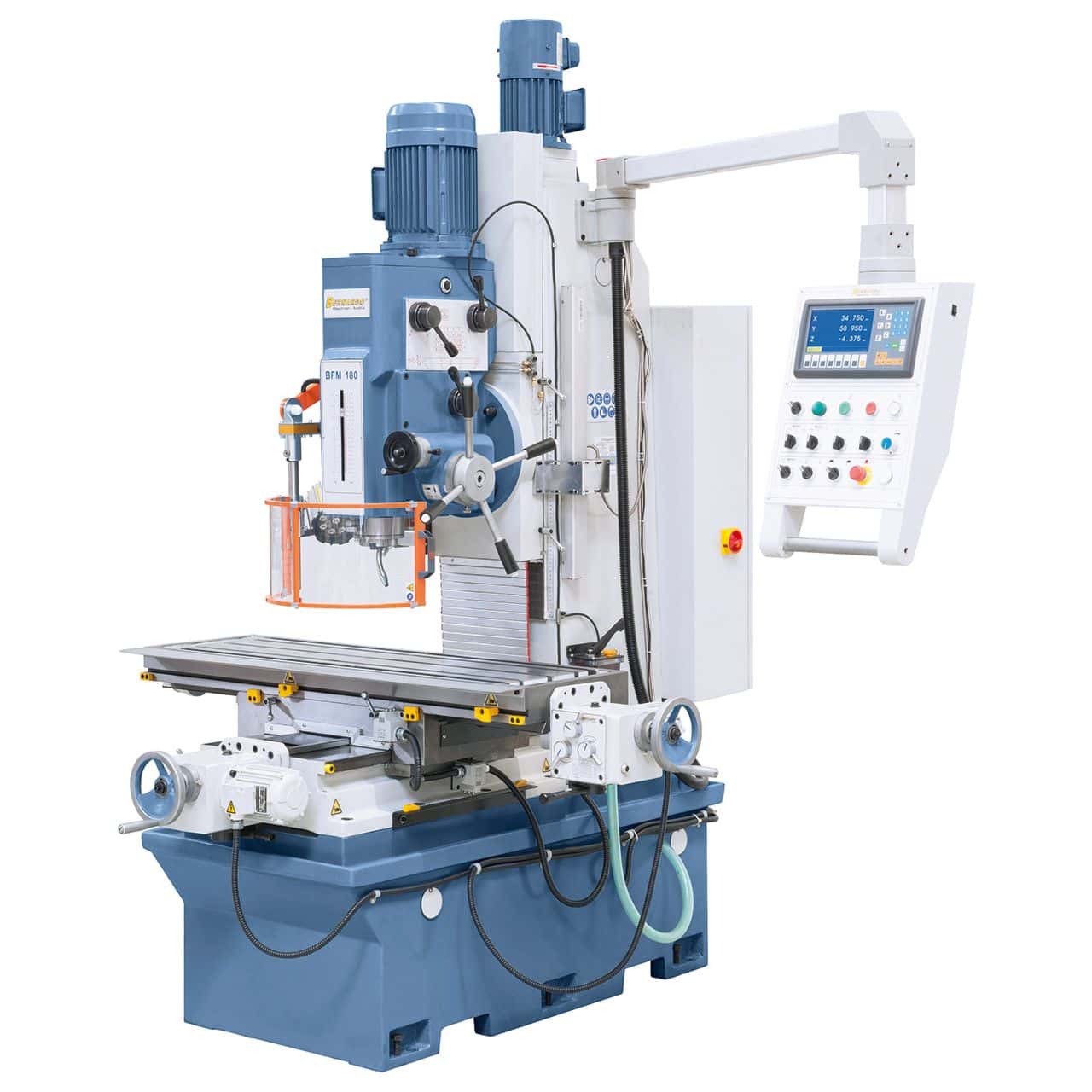

The massive BFM 180 planer-miller is particularly suitable for drilling, milling, and boring. Thanks to its versatile applications and extensive range of features, this machine is ideal for machine shops, repair shops, and machine shops.
Property
- Continuous height adjustment of the milling head via frequency converter
-

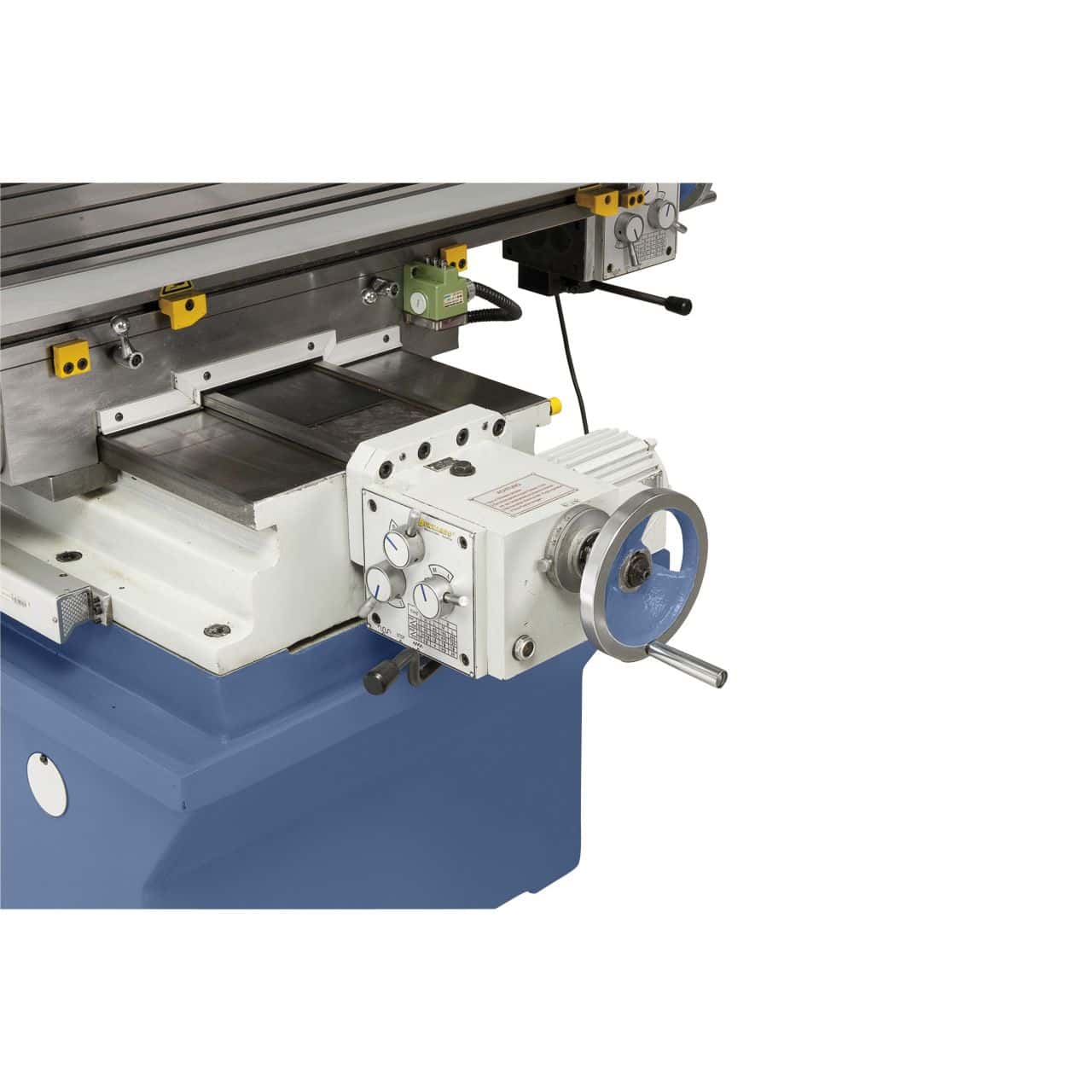

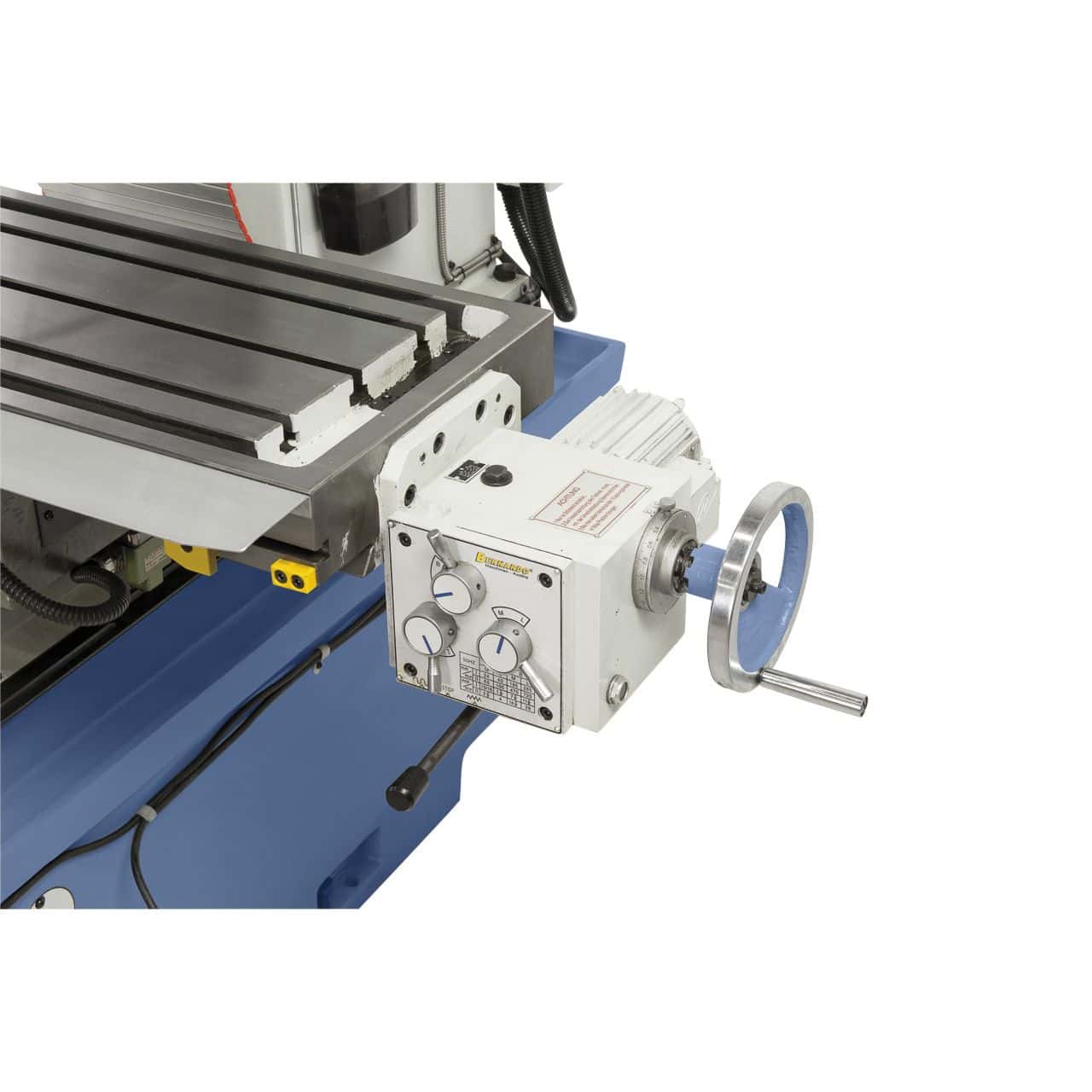

Rapid table adjustment in the x and y axes by automatic rapid table feed
- Increased productivity through position display in all 3 axes
- Equipped with automatic spindle feeding system of 0.1 / 0.15 / 0.3 mm/rev
- Coarse manual feed can be switched to fine manual feed by coupling
- Wide speed range of 94 - 2256 rpm
- Wide range of accessories included as standard
- Robust and heavy structure for precision work

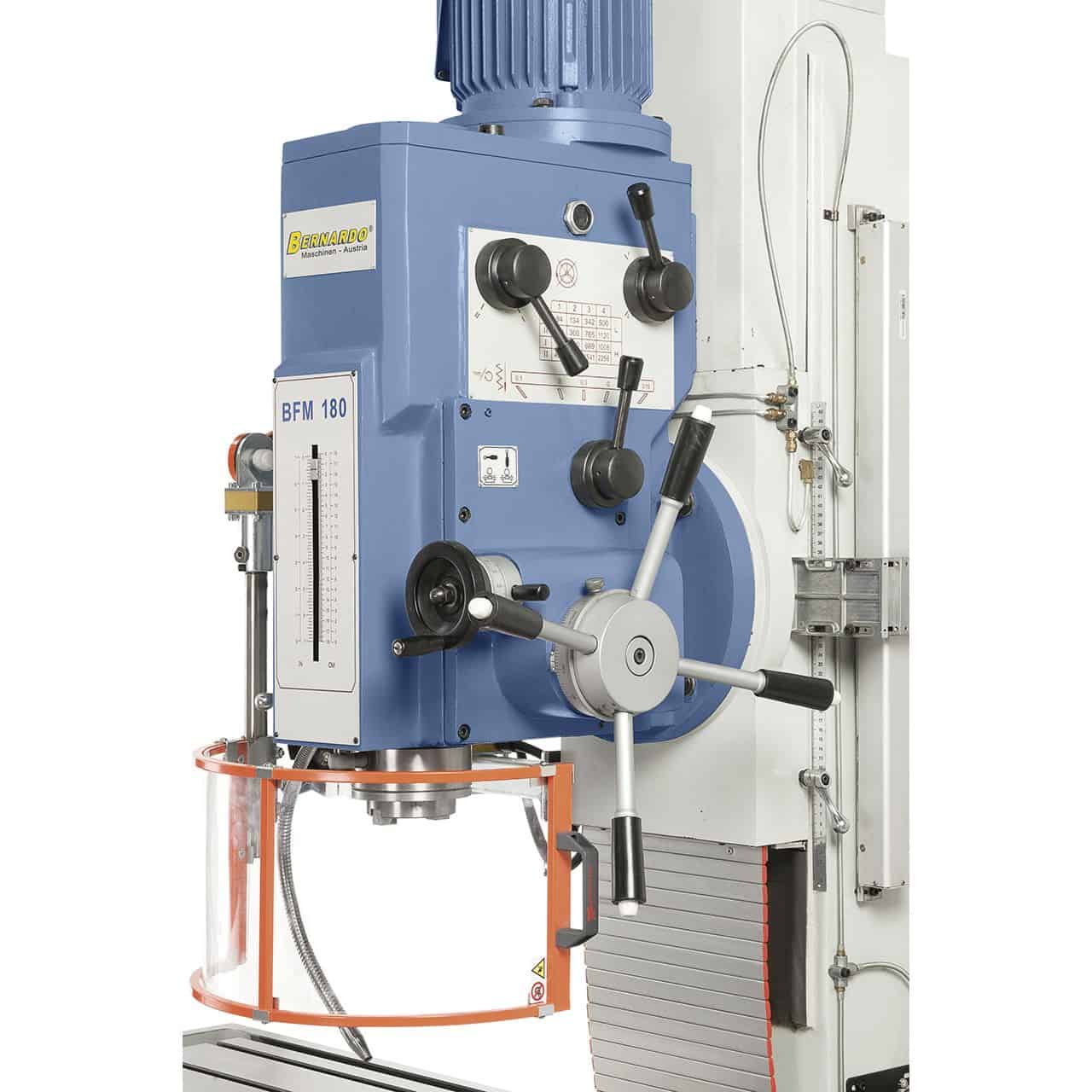

- Milling: spindle feed via handwheel
- Drilling: spindle advance via the star knob
Standard accessories

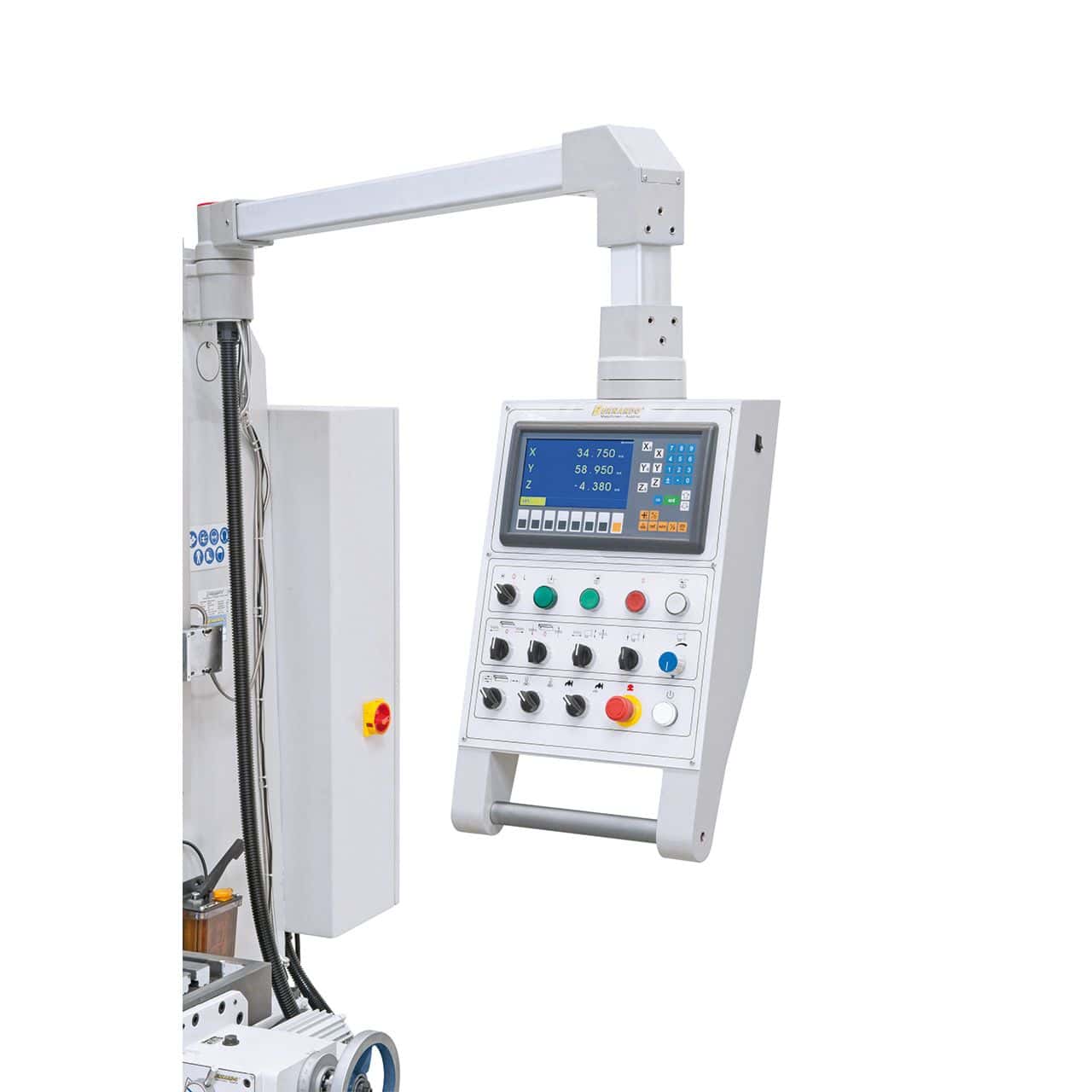

- ES-12 H 3-Axis Position Display with LCD Display
- Drill chuck with punch
- Adapter ISO 40/MK 4, ISO 40/MK 3, ISO 40/MK 2
- ISO 40/32 mm combination drill chuck
- Refrigeration system
- Central lubrication
- LED car light
- Adjustable protection device
- Lifting motor for milling head
technical specifications
Table dimensions |
1220 x 360 mm |
Spindle attachment |
ISO 40 |
Number of revolutions of the vertical spindle |
(16) 94 - 2256 rpm |
Hole stroke |
180 mm |
| Spindle power supply |
0.1 / 0.15 / 0.3 mm/rev |
Longitudinal travel (x) |
600 mm |
Transverse travel (y) |
360 mm |
Vertical travel (z) |
500 mm |
Length of the arms |
370 mm |

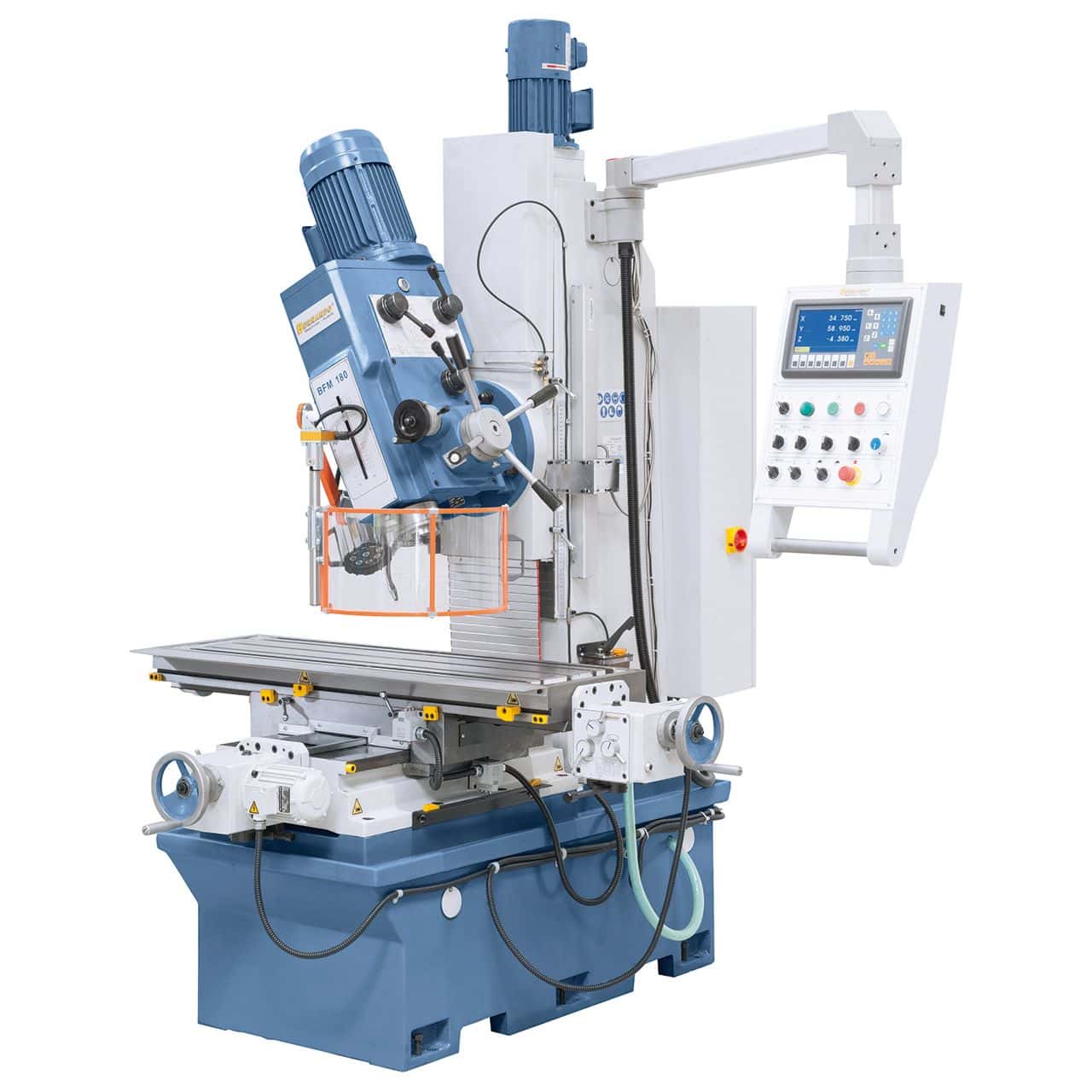

Spindle head tilt area |
from -45° to +45° |
Spindle/table distance |
110 - 610 mm |
Longitudinal / transverse advancement area |
(8) 24 - 720 mm/min |
T-slot size |
14 mm |
Engine power |
1.5 / 2.4 kW |
Machine dimensions (L x W x H) |
1770 x 1800 x 2320 mm |
Weight approx. |
1400 kg |
