Description

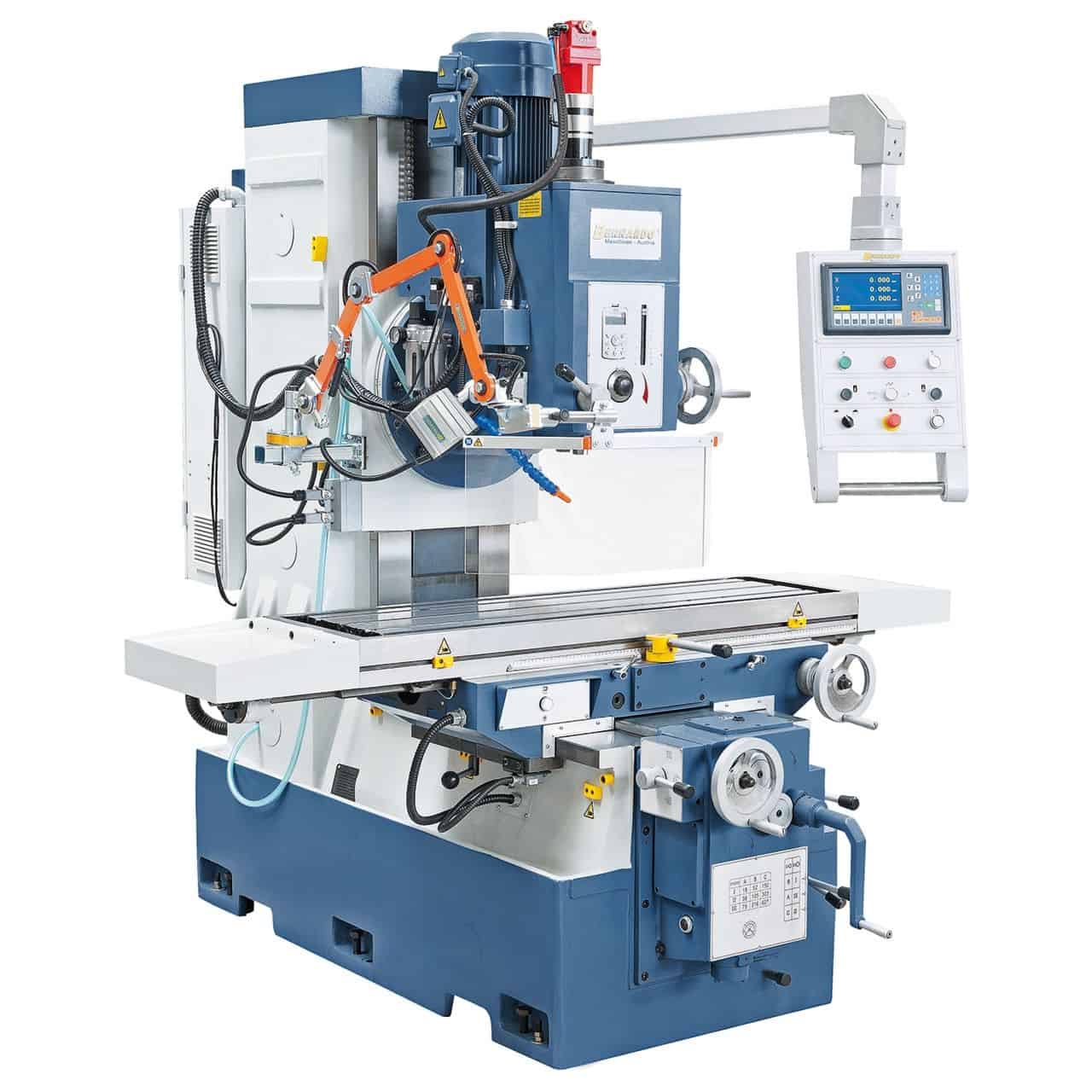

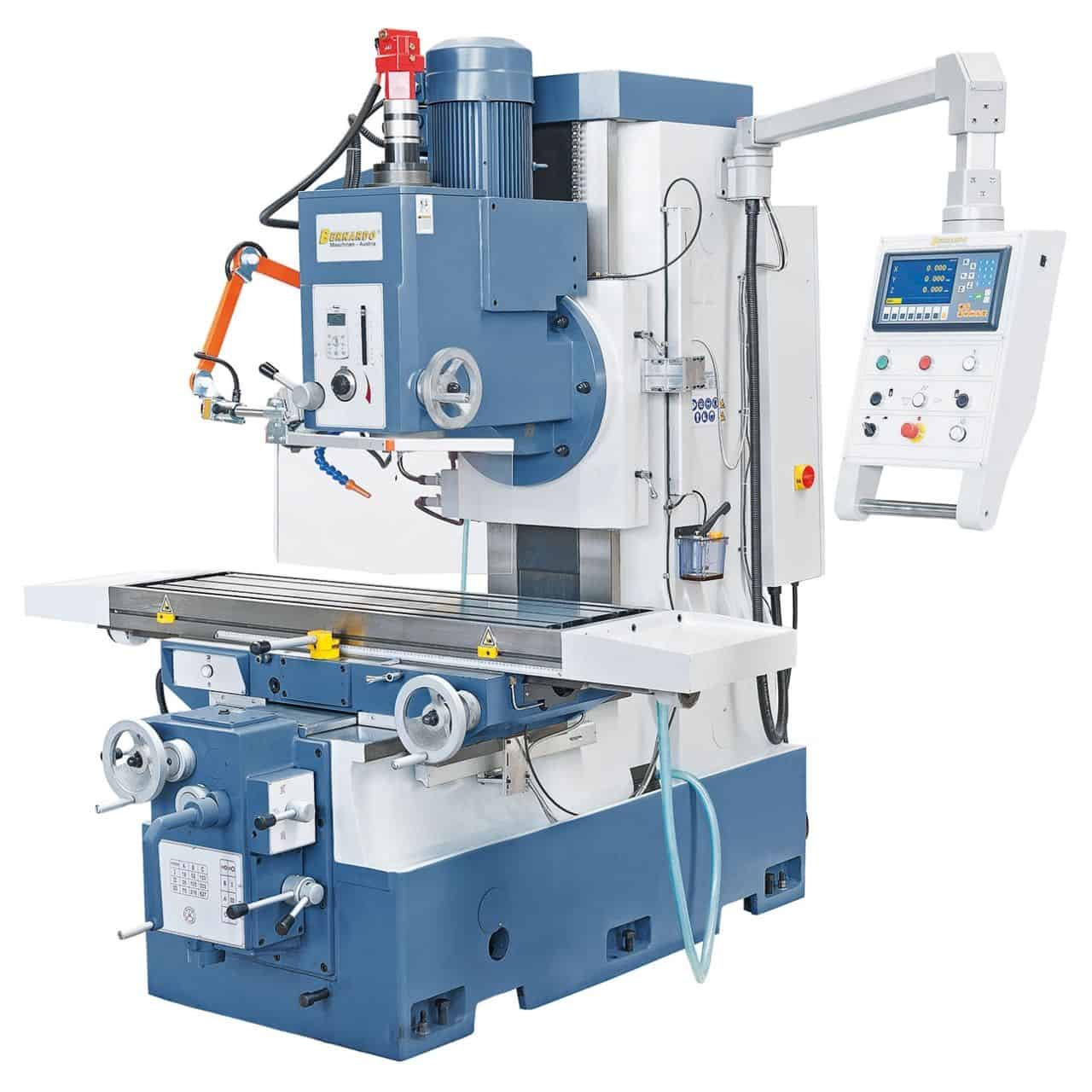

The traditional BFM 200 planer milling machine stands out with its solid, heavy cast iron construction, making it ideal for heavy-duty machining of large workpieces. Furthermore, this model features a standard pneumatic tool clamping system, ensuring convenient tool changes.
Property
- Very high table load thanks to the massive cast iron construction
- Large flat guides ensure stability for high milling loads

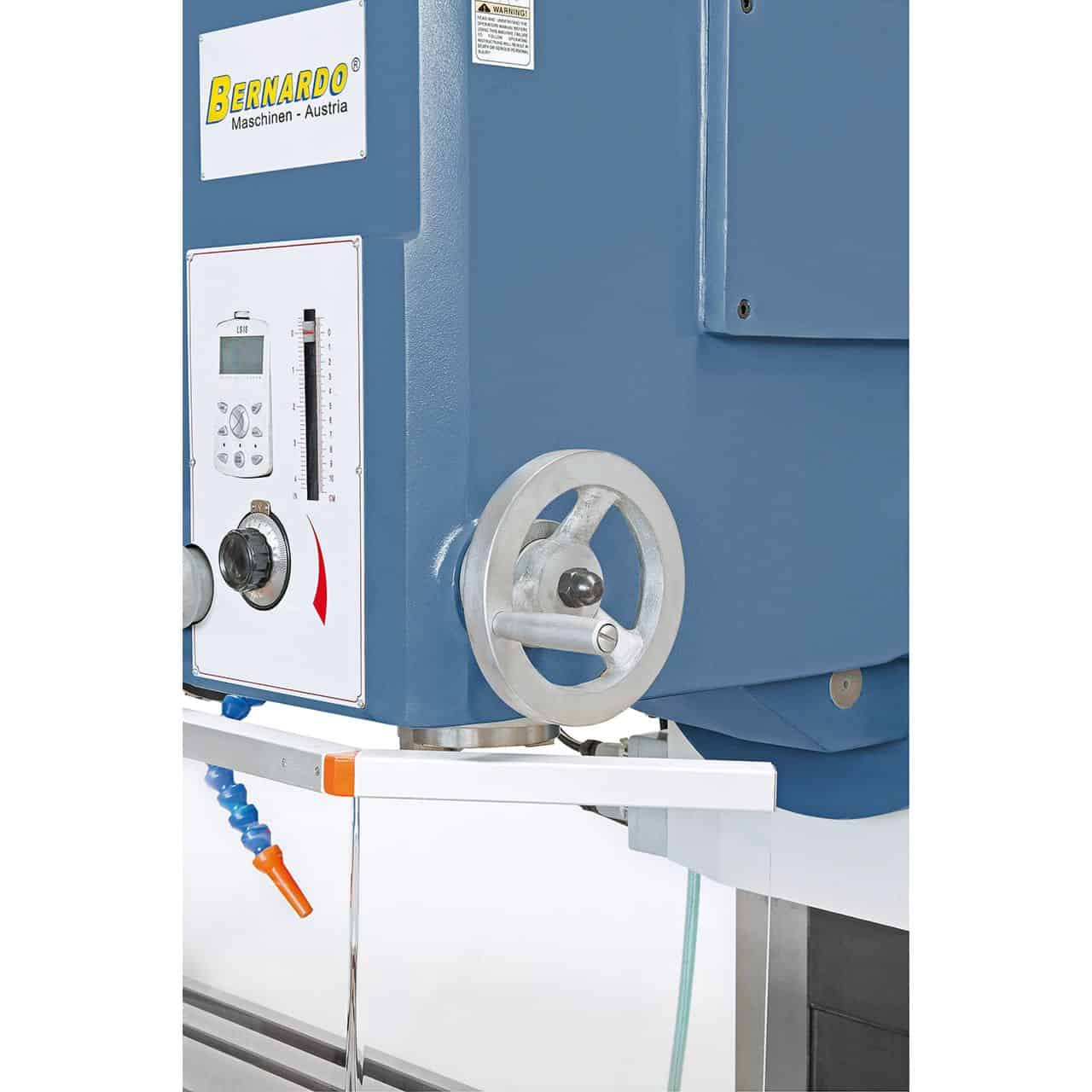

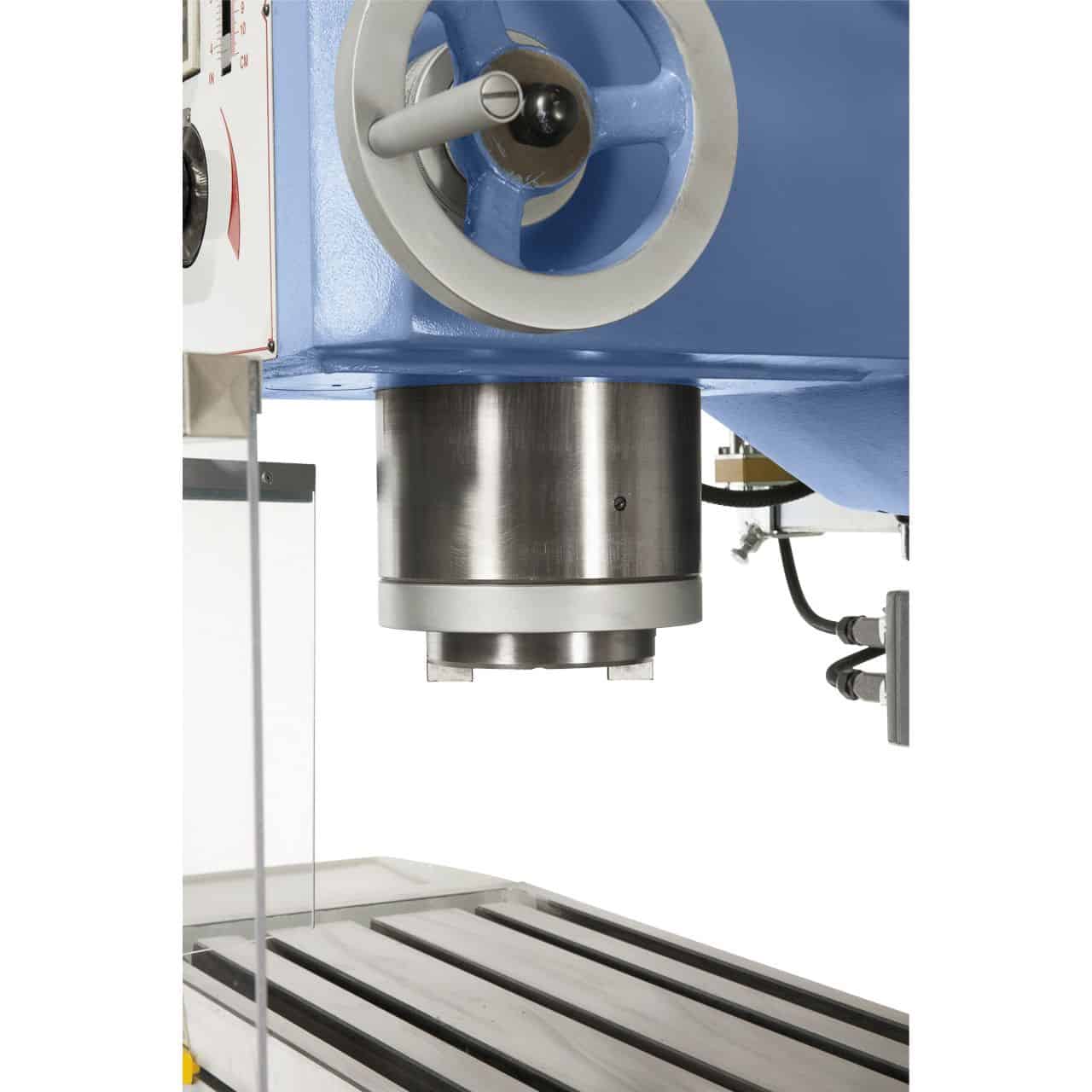

- Large spindle, approach (100 mm) takes place via a handwheel
- Finely polished work surface, with optimal execution on the wide saddle
- Wide spindle speed range (20-1800 rpm) with high torque and a spindle brake included

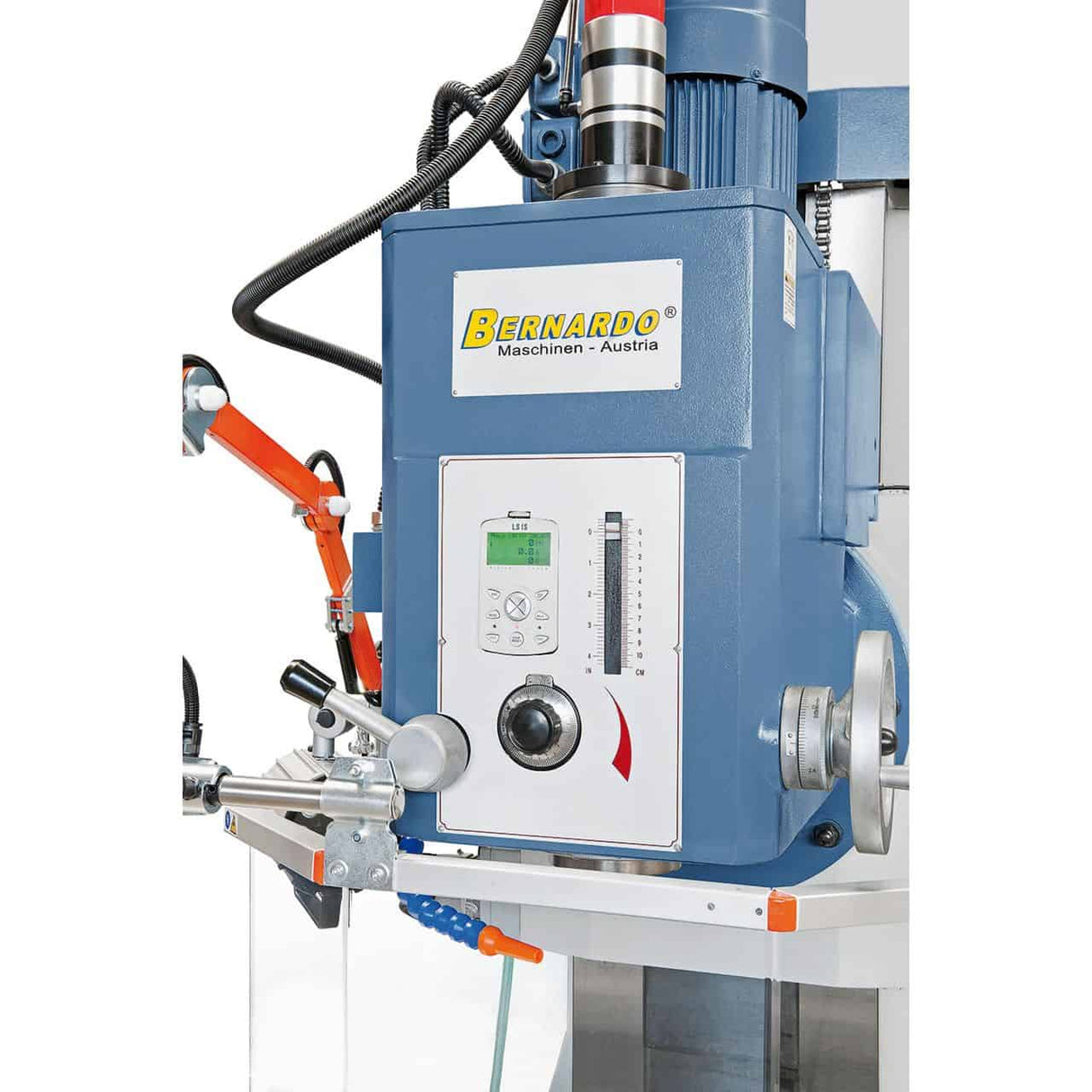

- Equipped with a continuous speed regulator
- Hardened and ground inductive guides

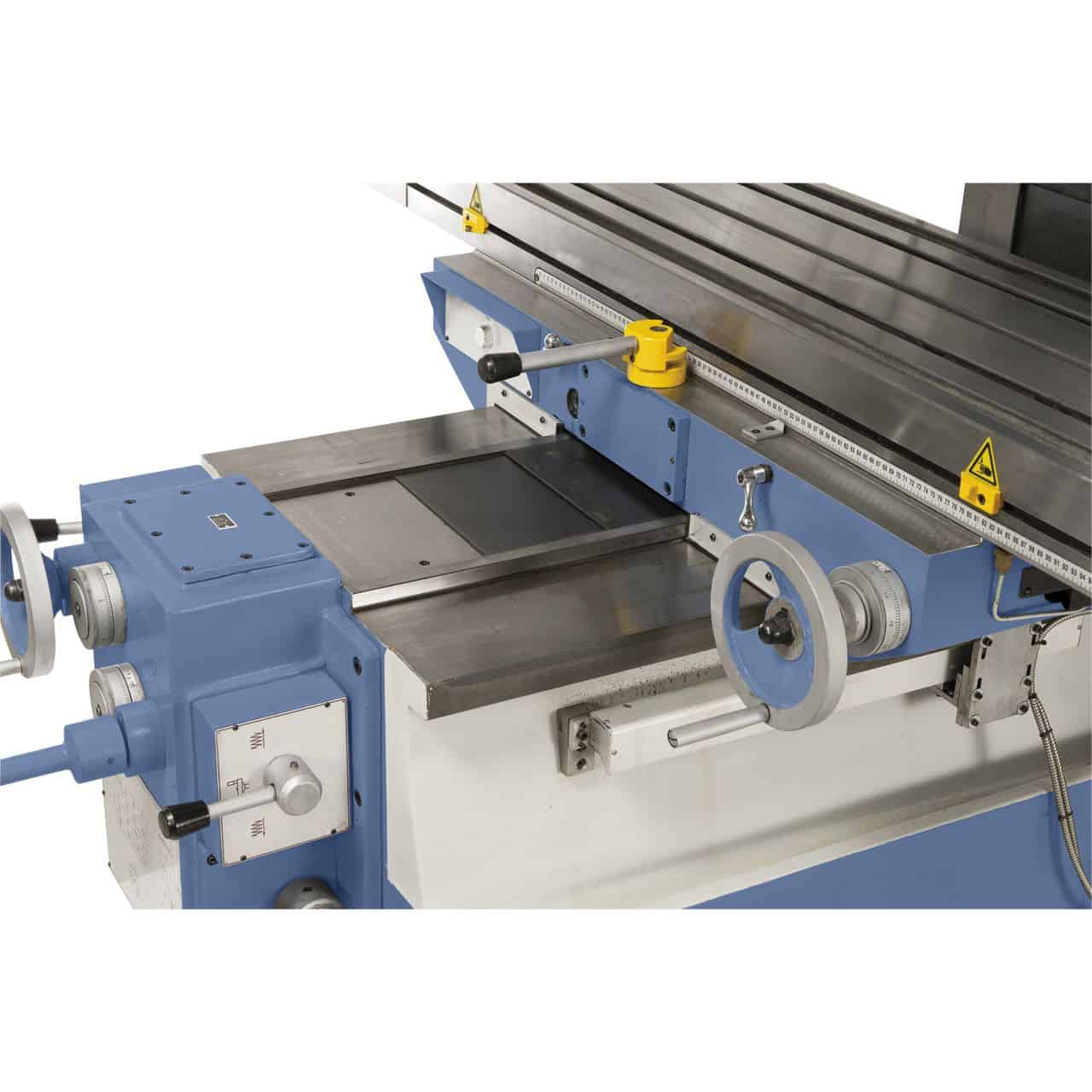

- Large surface grooved saddle in a sturdy box
- Column and stator in fixed column construction form
Standard accessories

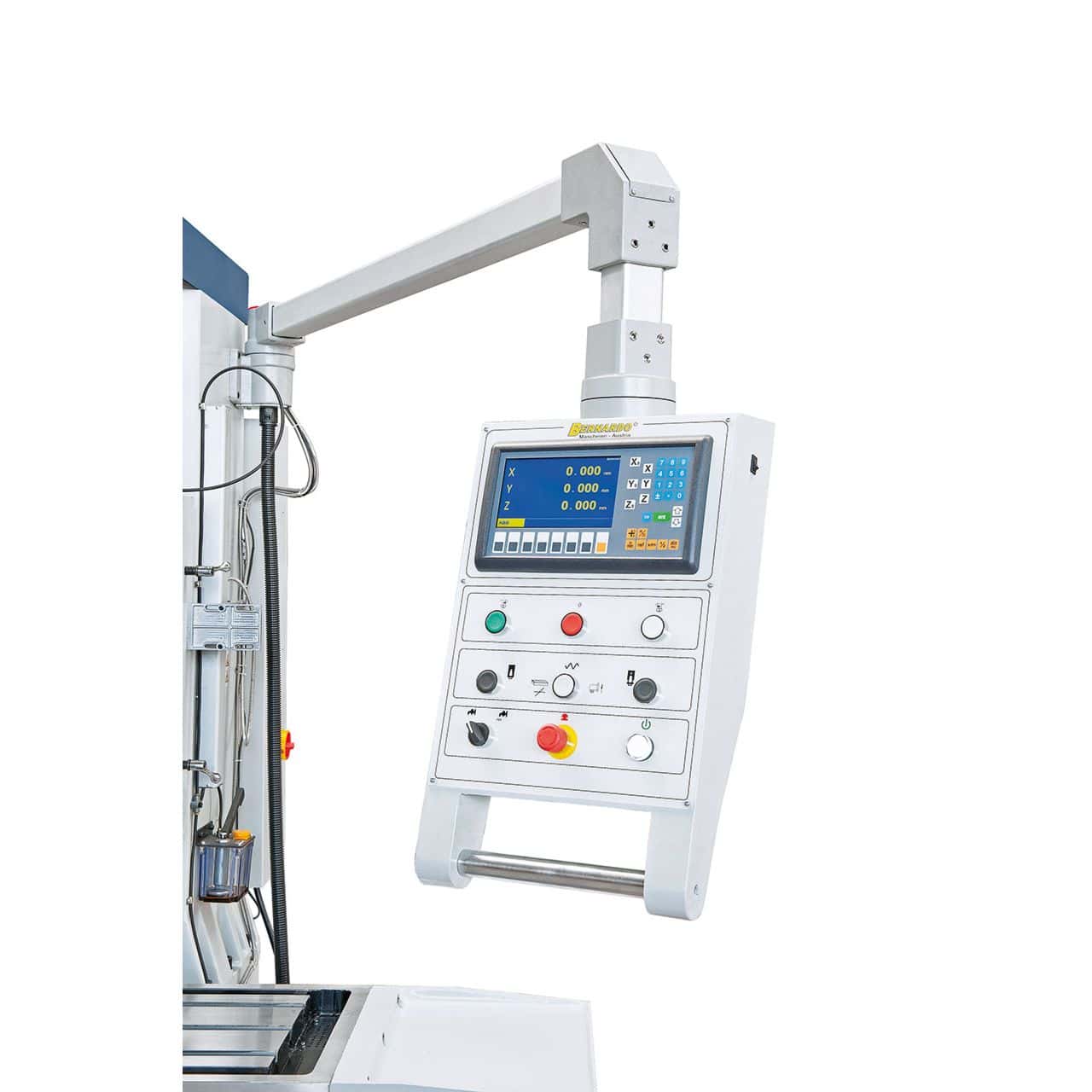

- ES-12 H 3-Axis Position Display with LCD Display
- Automatic workpiece clamping
- Chuck M 10 / M 12 / M 16 / M 24
- LED car light
- Refrigeration system
- ISO 50/40 mm combination drill chuck
- ISO 50 / MK 4 adapter
- Central lubrication
- Z-axis telescopic cover
- Continuous speed setting
- Anchor bolts
- Universal protection device
- Control device
technical specifications
Table dimensions |
1400 x 400 |
Spindle attachment |
ISO 50 |
Continuous spindle speed |
20 - 1800 rpm |
Longitudinal travel (x) |
950 mm |
Transverse travel (y) |
410 mm |
Vertical travel (z) |
520 mm |
Length of the arms |
520 mm |

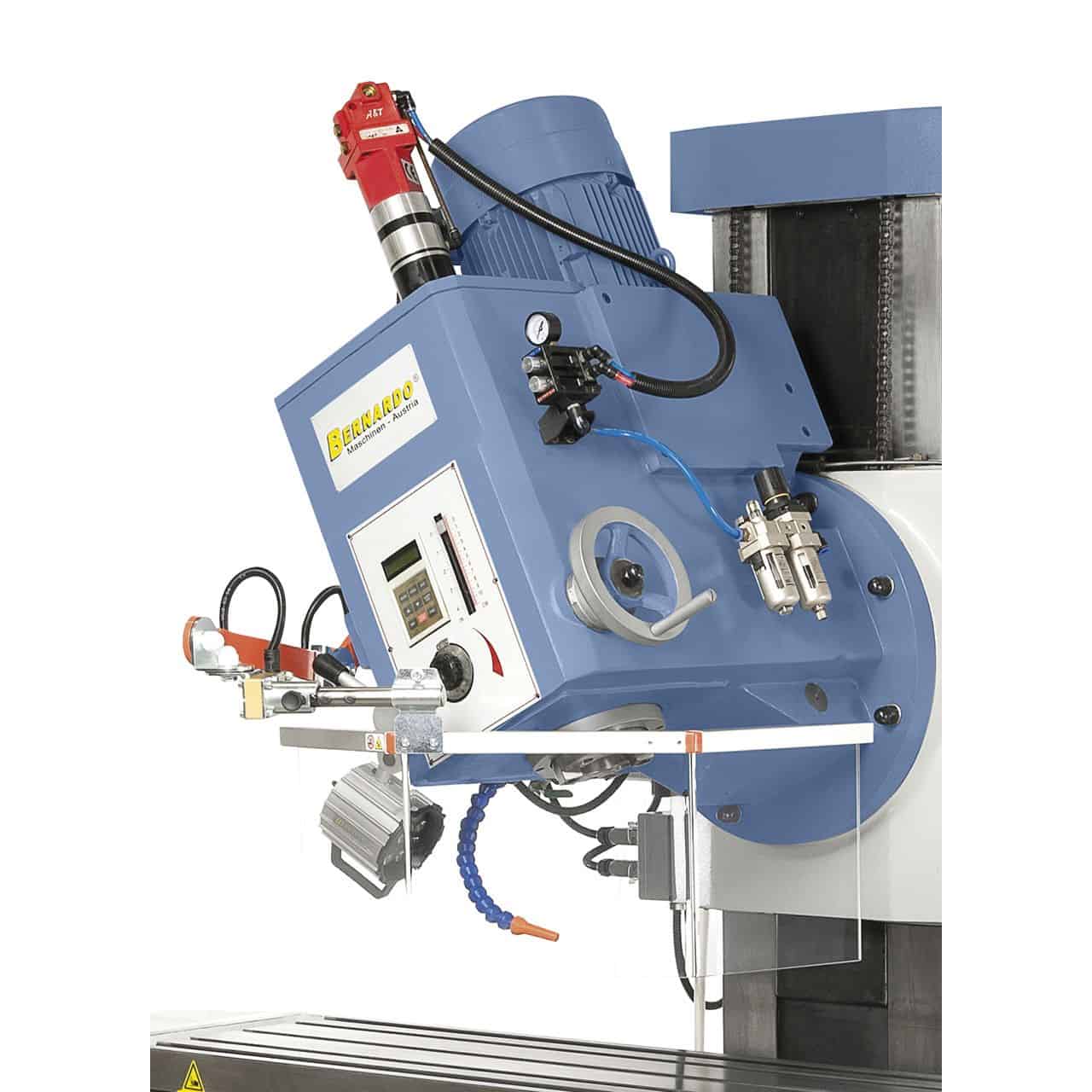

Spindle head tilt area |
from -30° to +30° |
Hole stroke |
100 mm |
Spindle diameter |
180 mm |
Spindle/table distance |
140 - 660 mm |
Feed rate |
|
x-axis |
(9) 18 - 627 mm/min |
y-axis |
(9) 18 - 627 mm/min |
Z-axis |
(9) 18 - 627 mm/min |
Fast run |
1670 mm/min |
T-slot dimensions / distance / number |
18 mm / 100 mm / 3 |
Feed motor for x and y axes |
0.75 kW |
Feed motor for the z-axis |
0.75 kW |
Coolant circulation pump |
0.04 kW |
Engine power |
7.5 kW |
| Machine dimensions (L x W x H) | 2160 x 2050 x 2500 mm |
Weight approx. |
3750 kg |
