Description

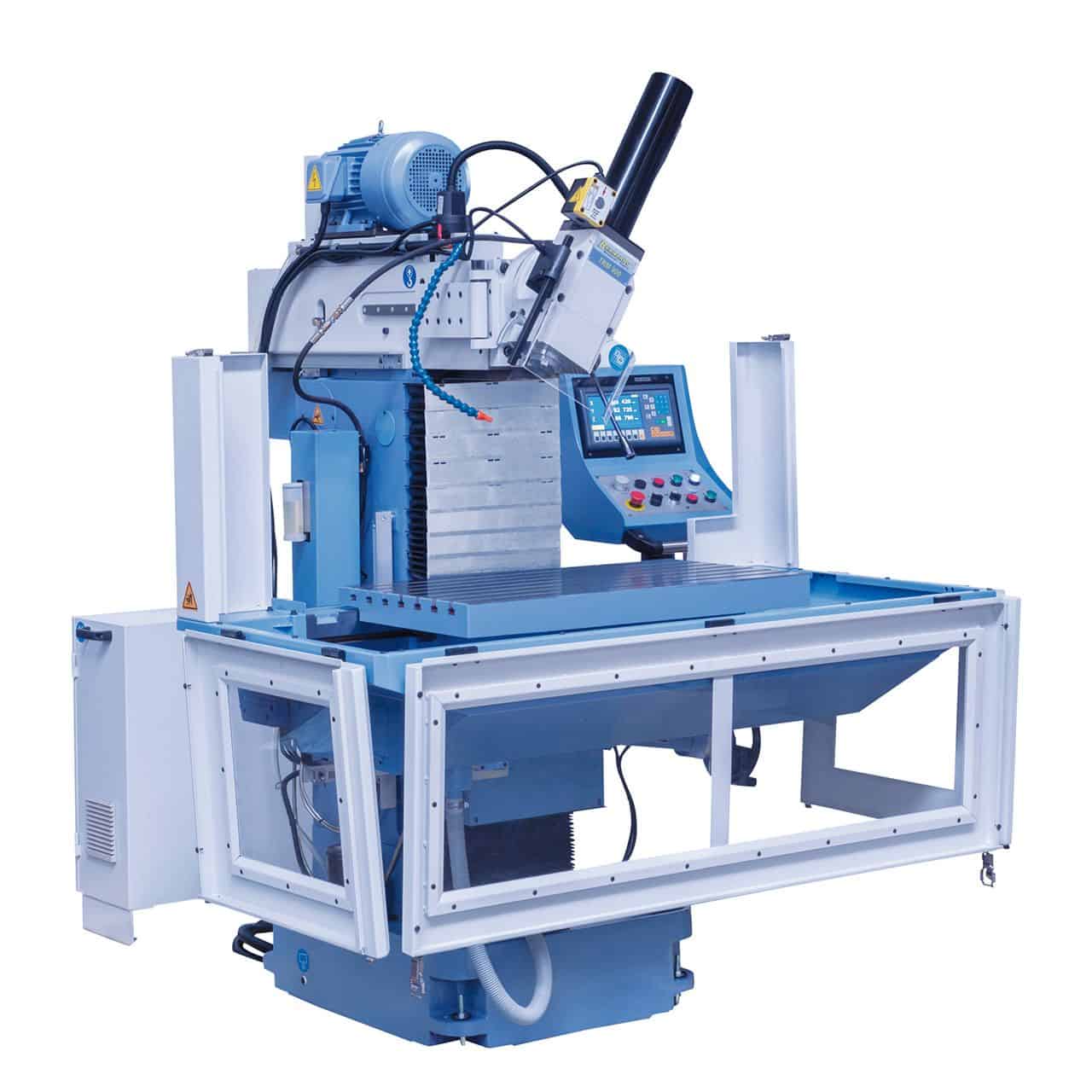

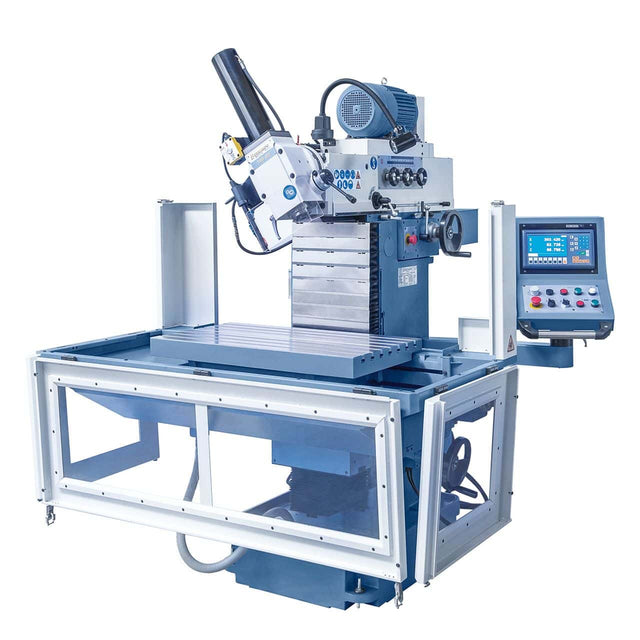

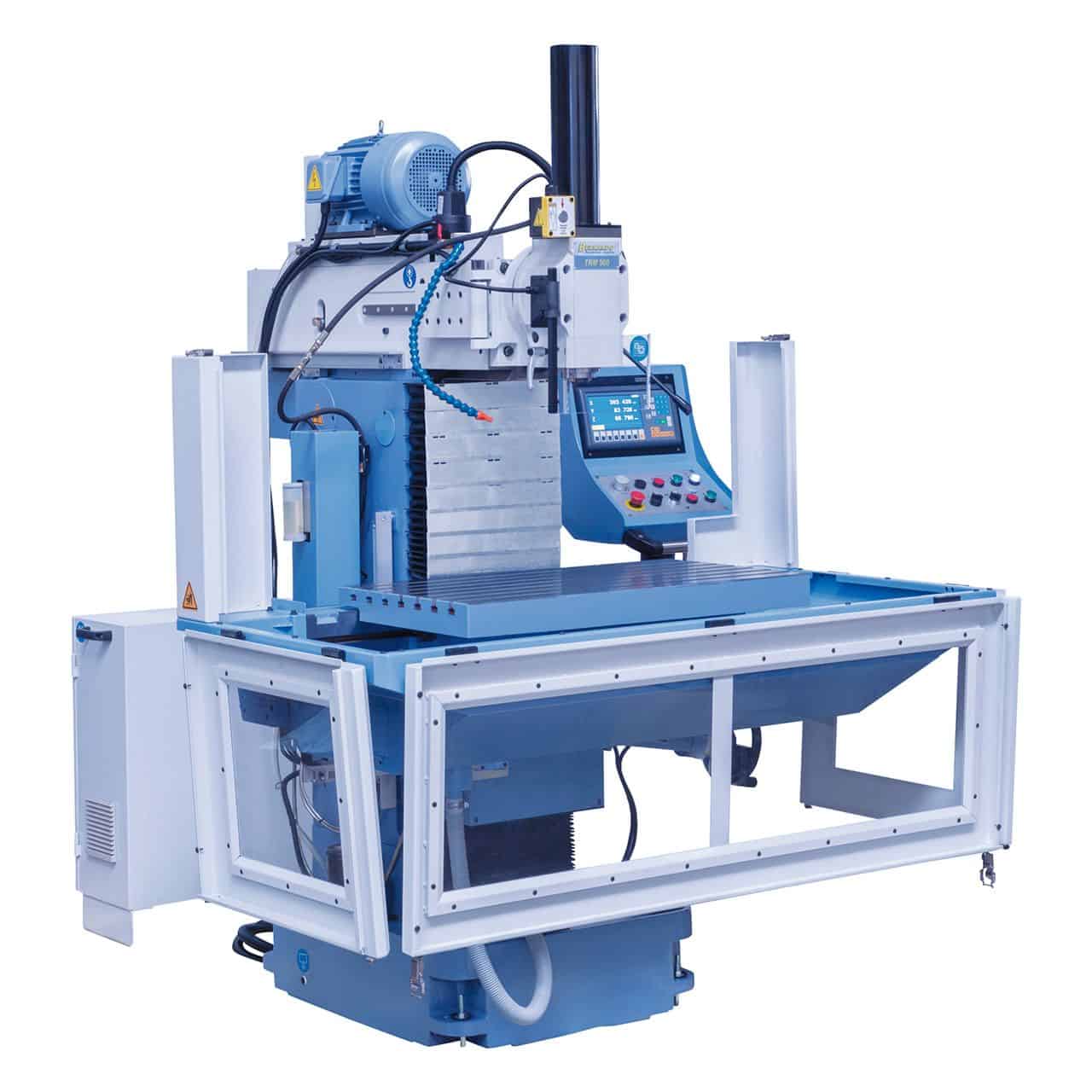

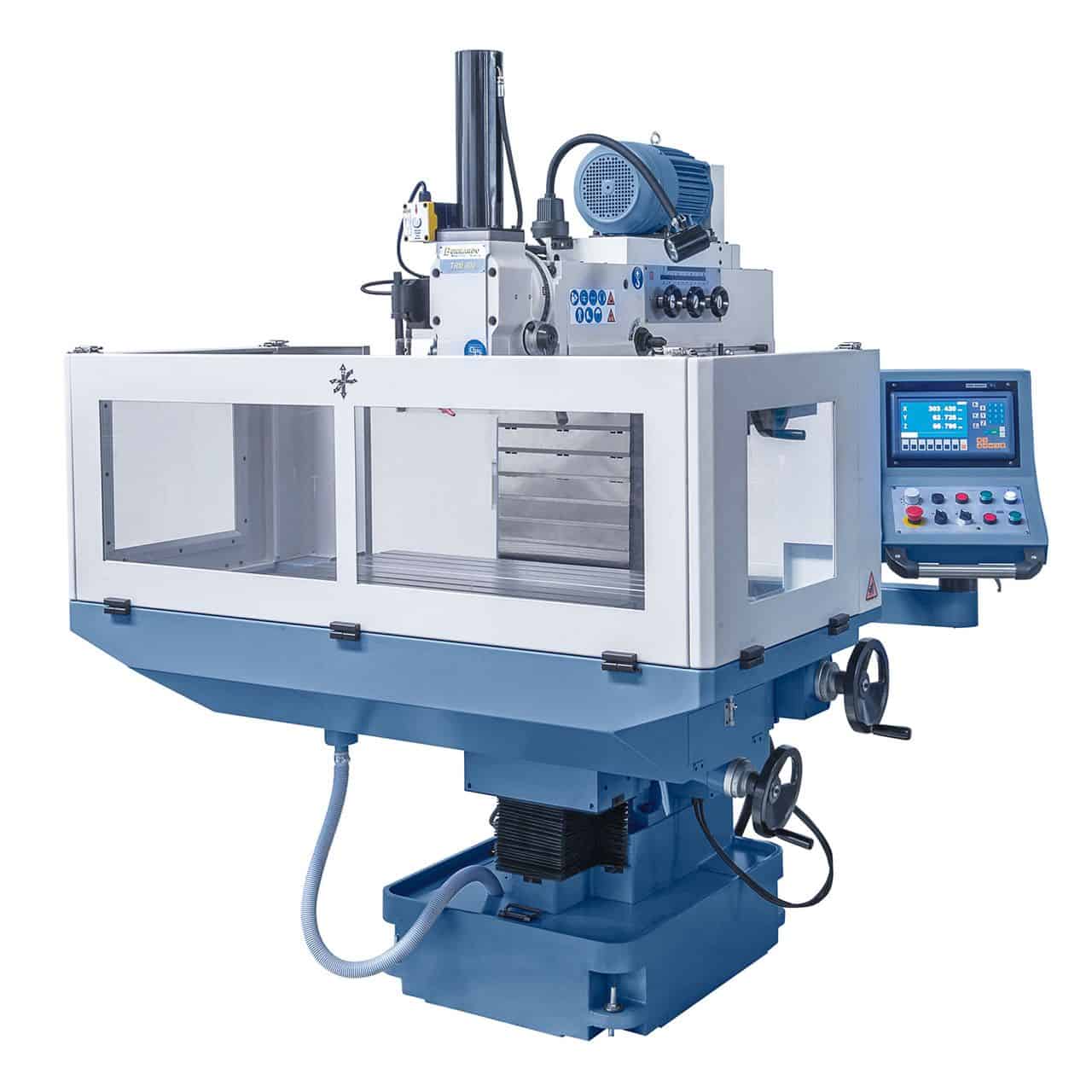

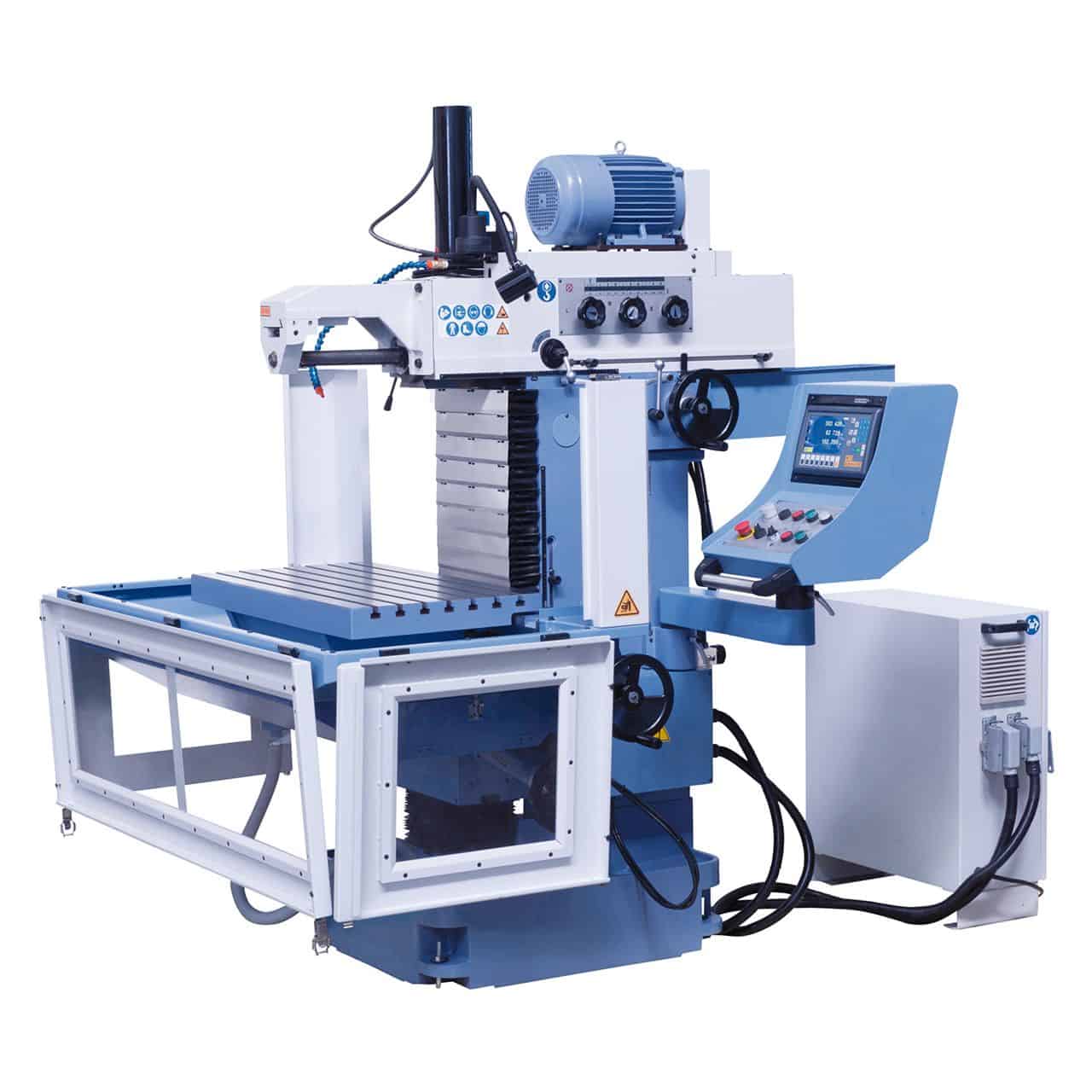

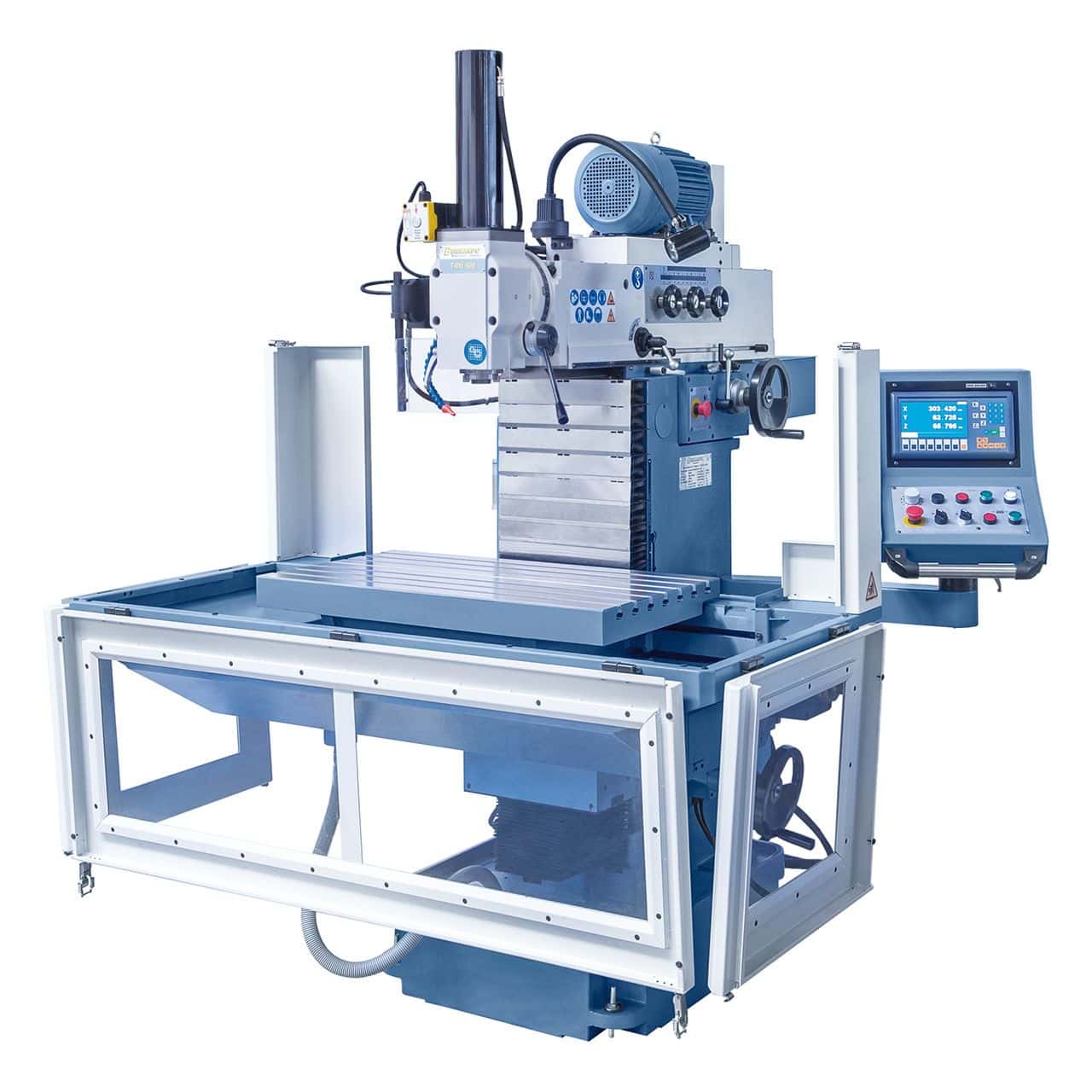

The TRM 900 universal milling machine is suitable for light to medium-duty milling. This model, even with its standard accessories, offers horizontal, vertical, and inclined milling capabilities. This model is primarily used in tool and mold making and model making, but is also frequently used in training centers.
Property
- Hydraulic tool clamping as standard for quick tool changes
- Backlash-free preloaded rotary ball spindles in all 3 axes

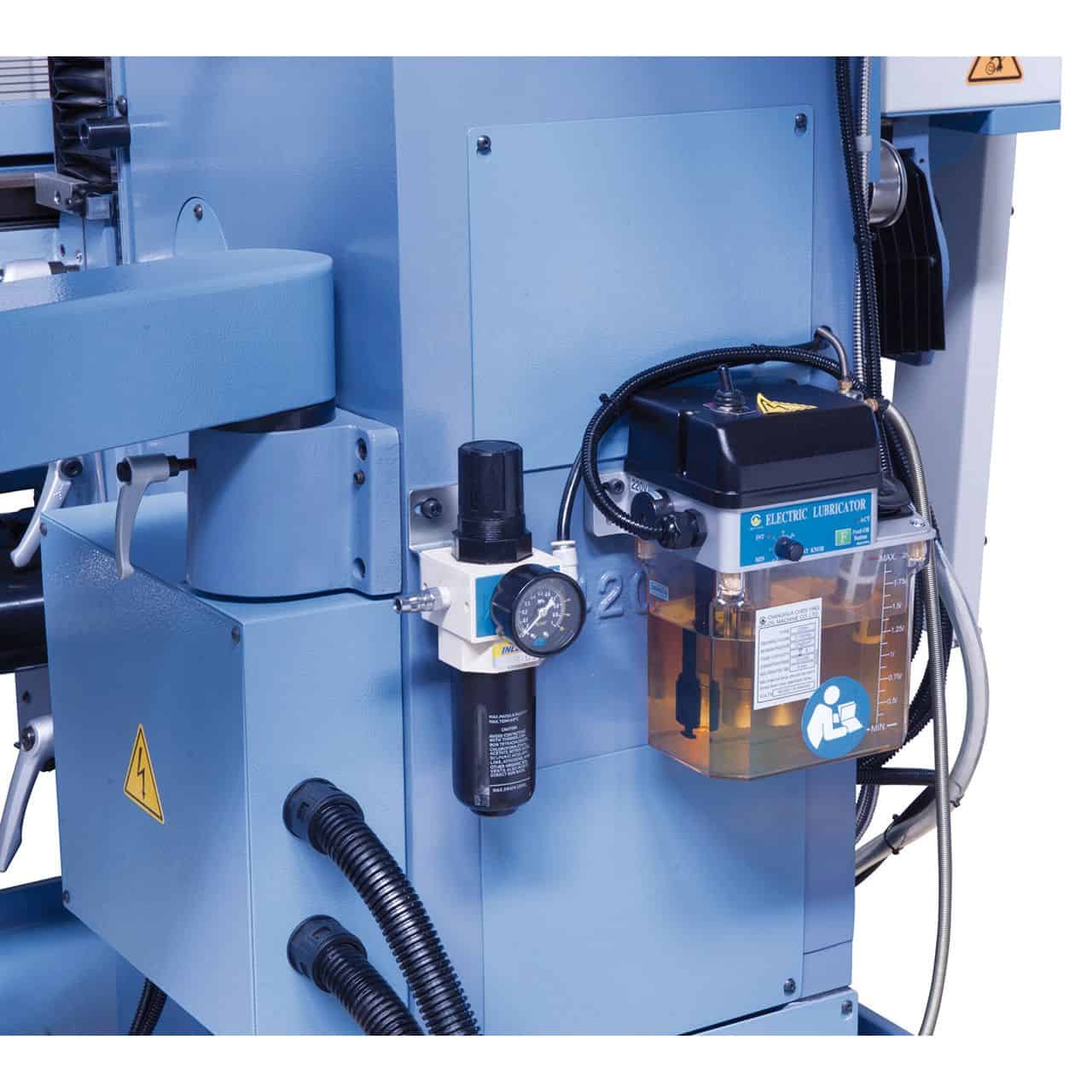

- Equipped with central lubrication for the guides

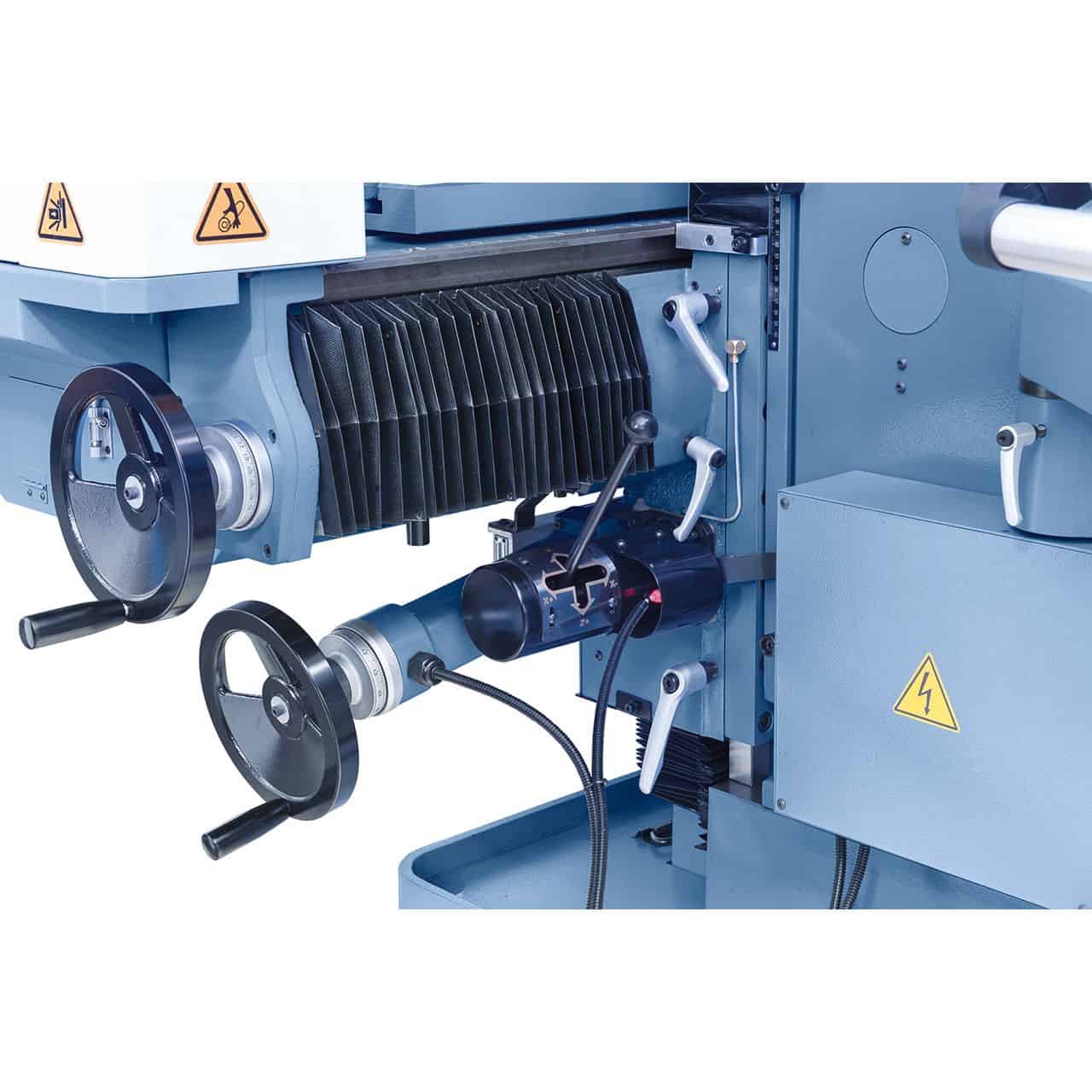

- Equipped with manual, automatic and rapid traverse feeds in all 3 axes

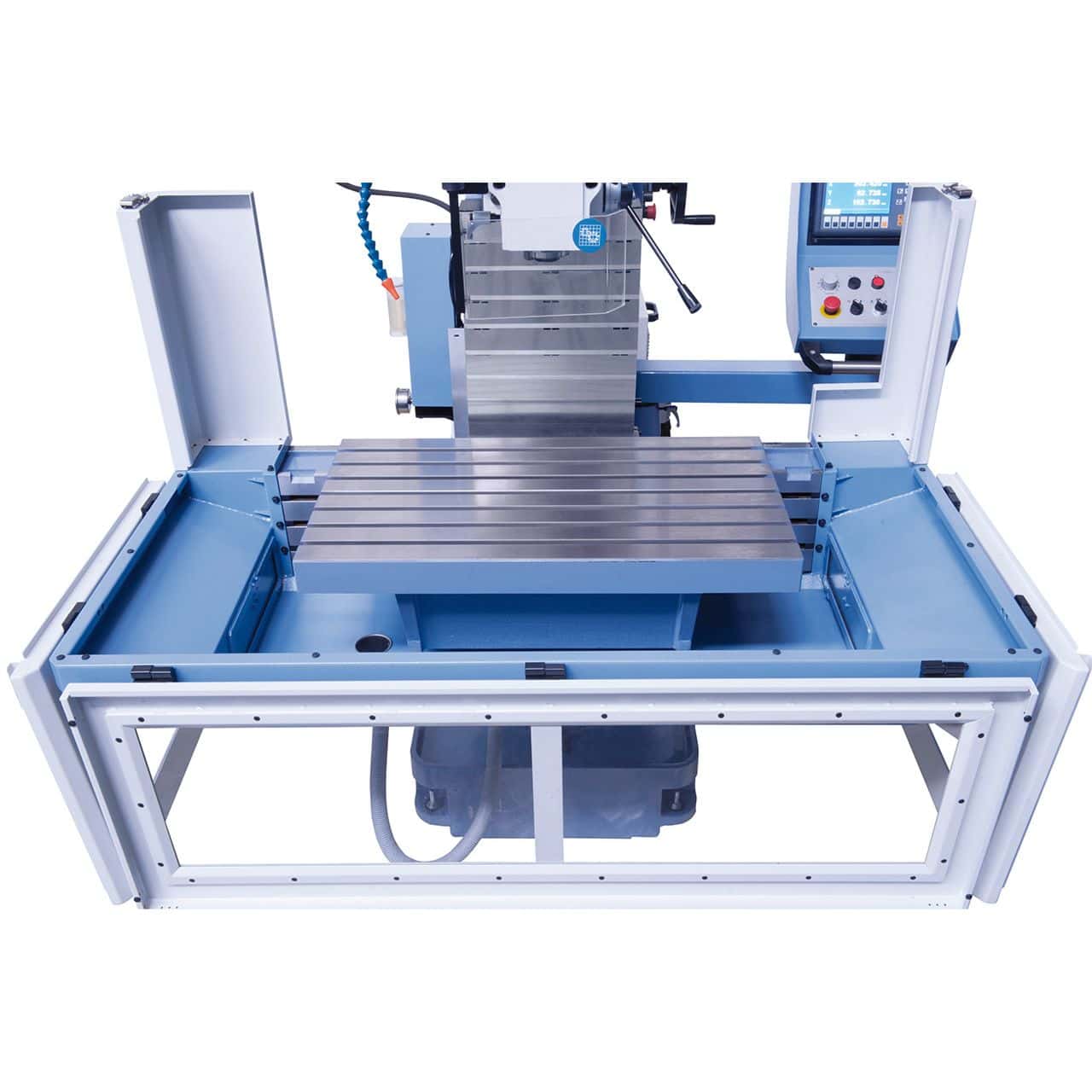

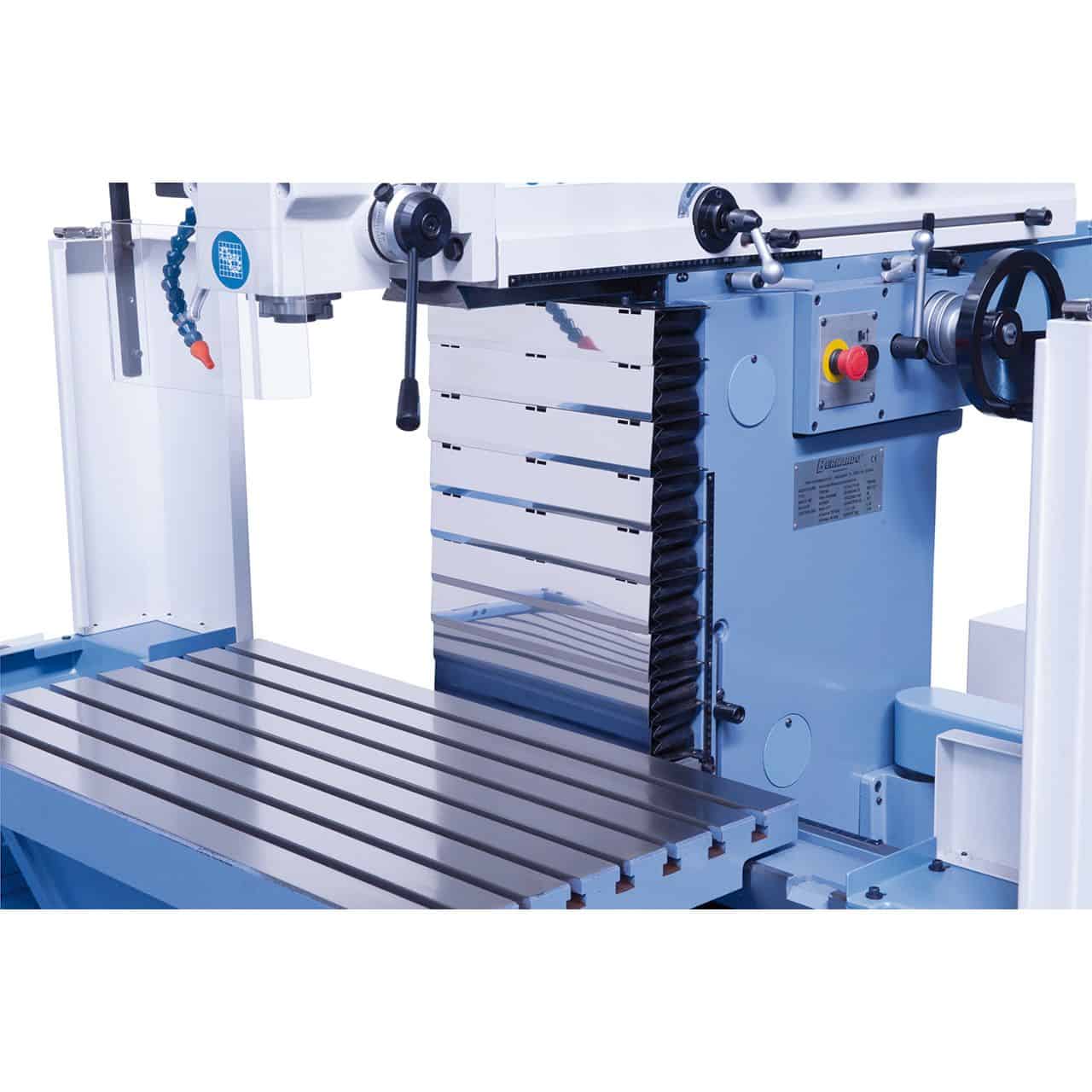

- Vertical clamping surface with 3 T-slots for clamping the work table, universal tilting table or large workpieces

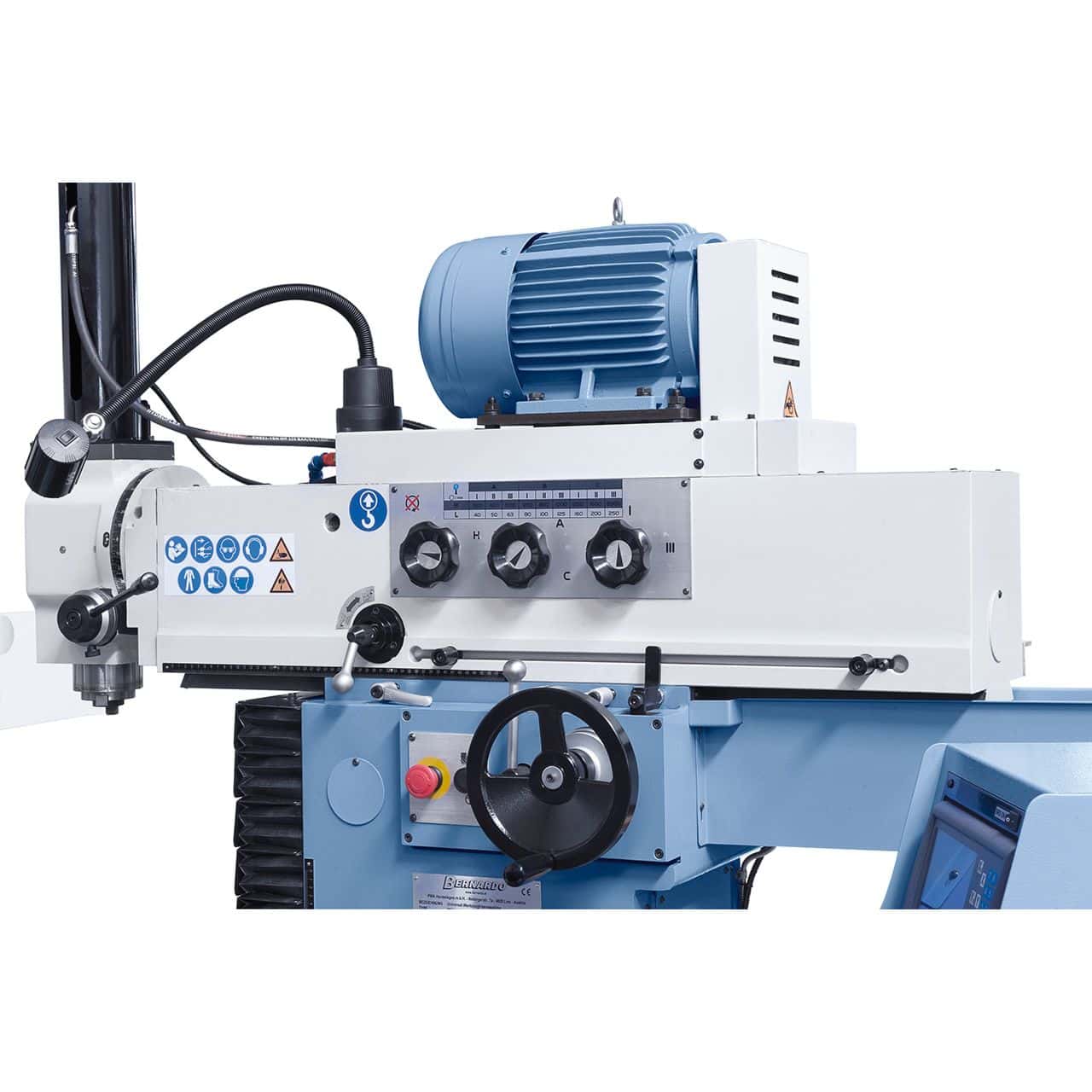

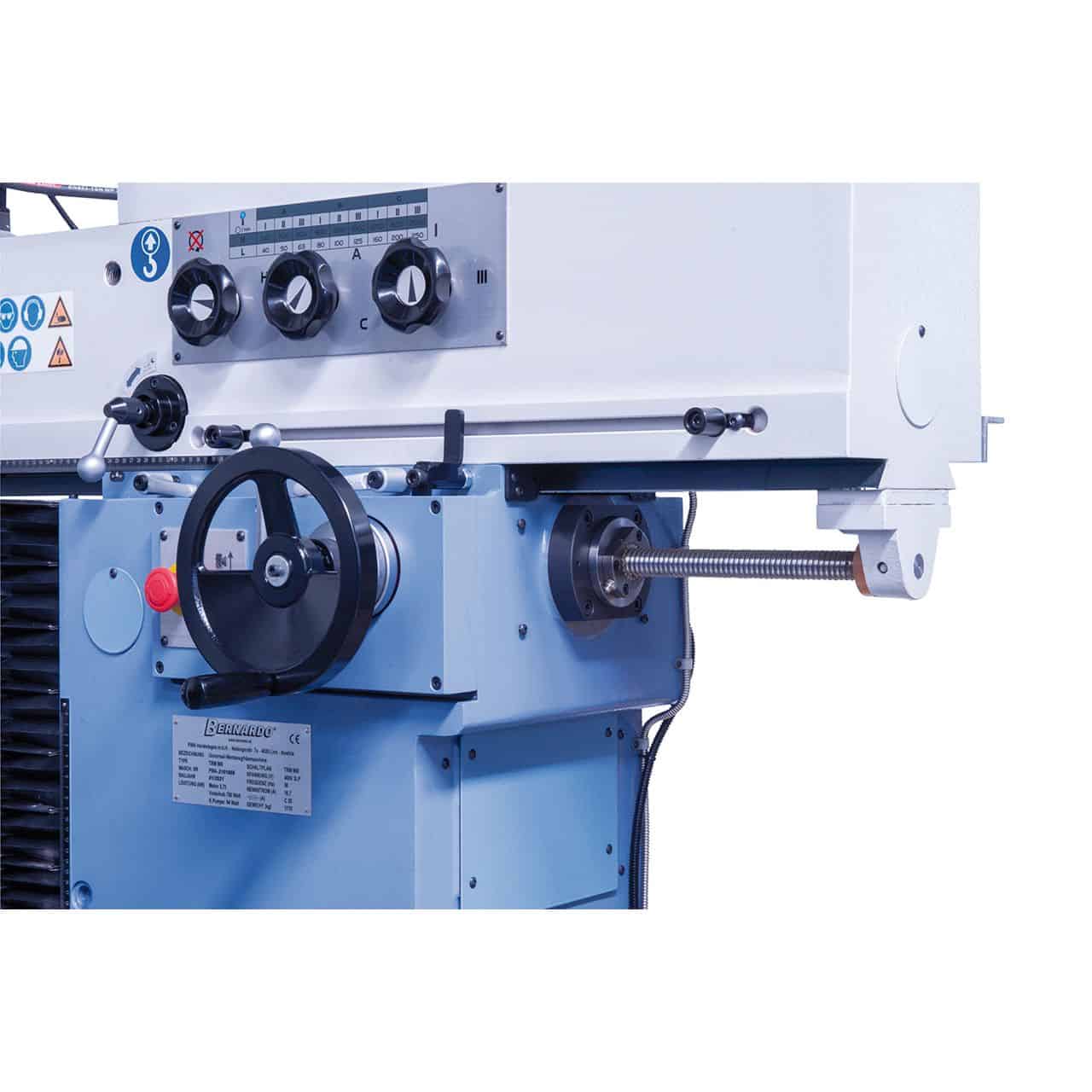

- Arm with intuitively mounted transmission circuit for spindle speed
- Large dovetail guide in the x-axis and y-axis and rectangular guide in the z-axis
- Continuously adjustable feed speed via frequency converter
- For horizontal milling the vertical milling head is moved away
- The machine base with heavy cast iron valve guides ensures vibration-free and high-precision work.
Standard accessories

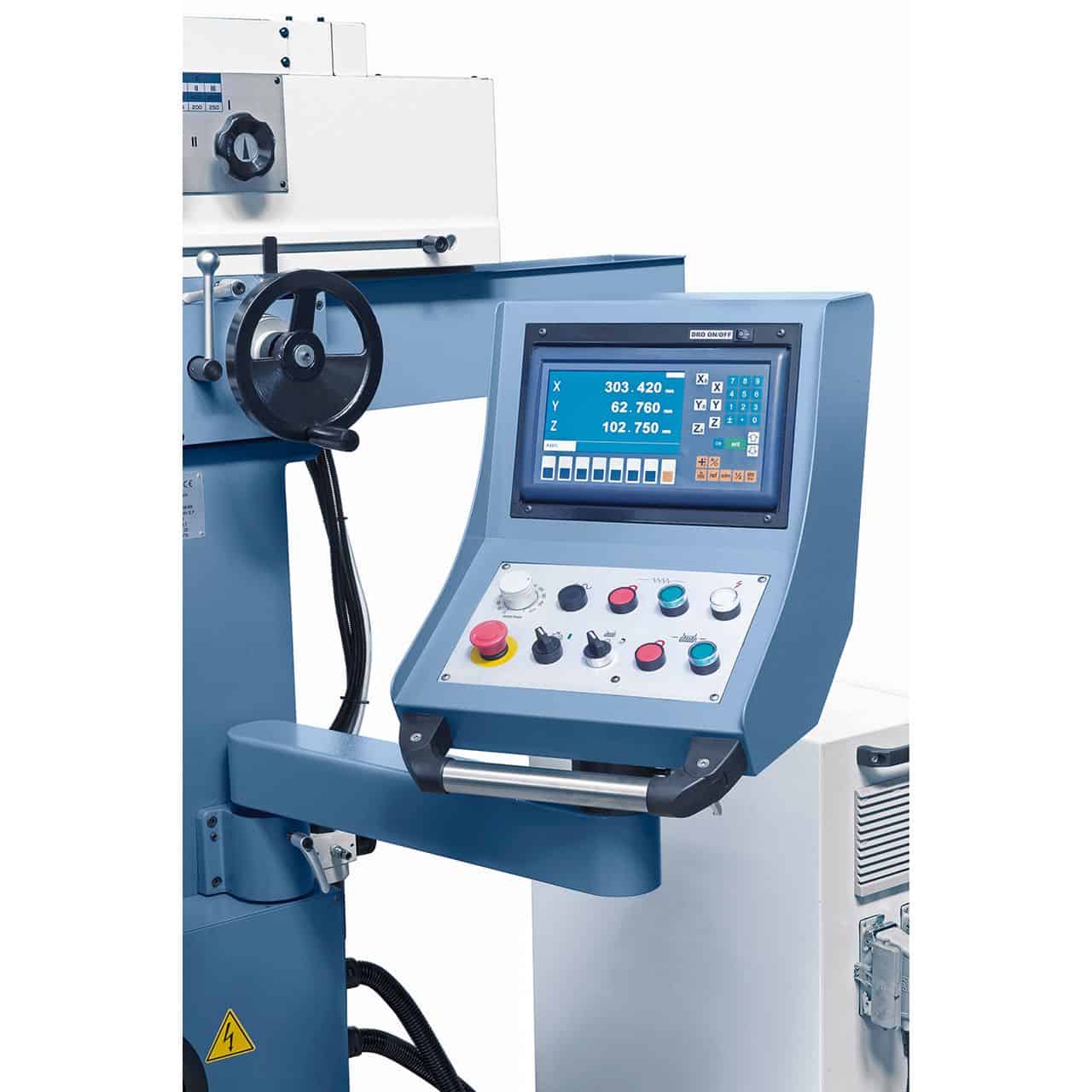

- ES-12 H 3-Axis Position Display with LCD Display
- LED car light
- Refrigeration system
- Feed for the x, y and z axes

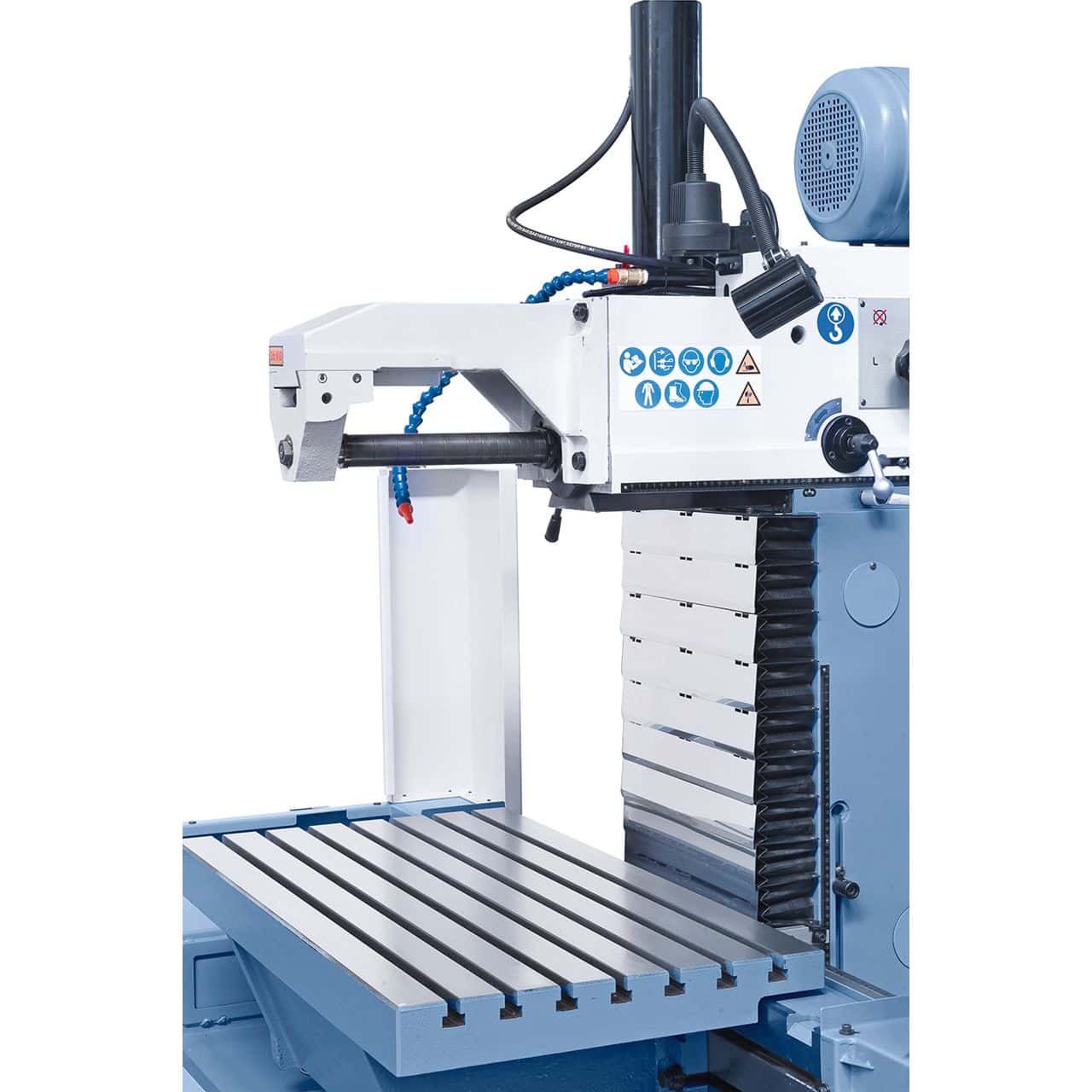

- Horizontal external support
- Table casing
- 3-axis ball screws
- Hydraulic tool clamping
- Power plant lubrication

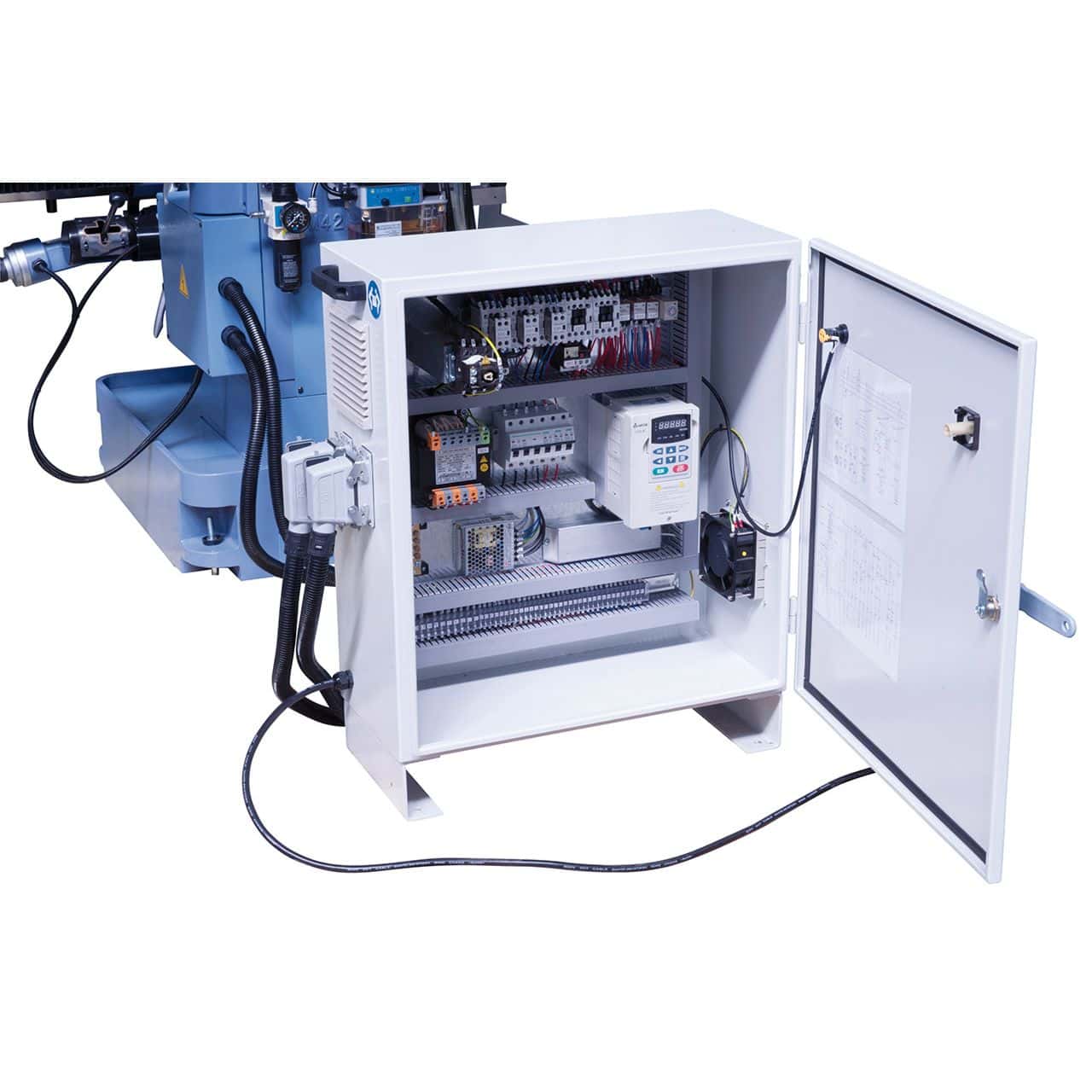

- Delta frequency inverter for power supply
- Slat protection cover
- Long drilling chuck ISO 40/27 mm
- SK 40 / MK 3 adapter
- Reduction socket MK 3 / 2
- Reduction socket MK 3 / 1
- Collet chuck SK 40 with collets 5 - 25 mm (7 pcs.)

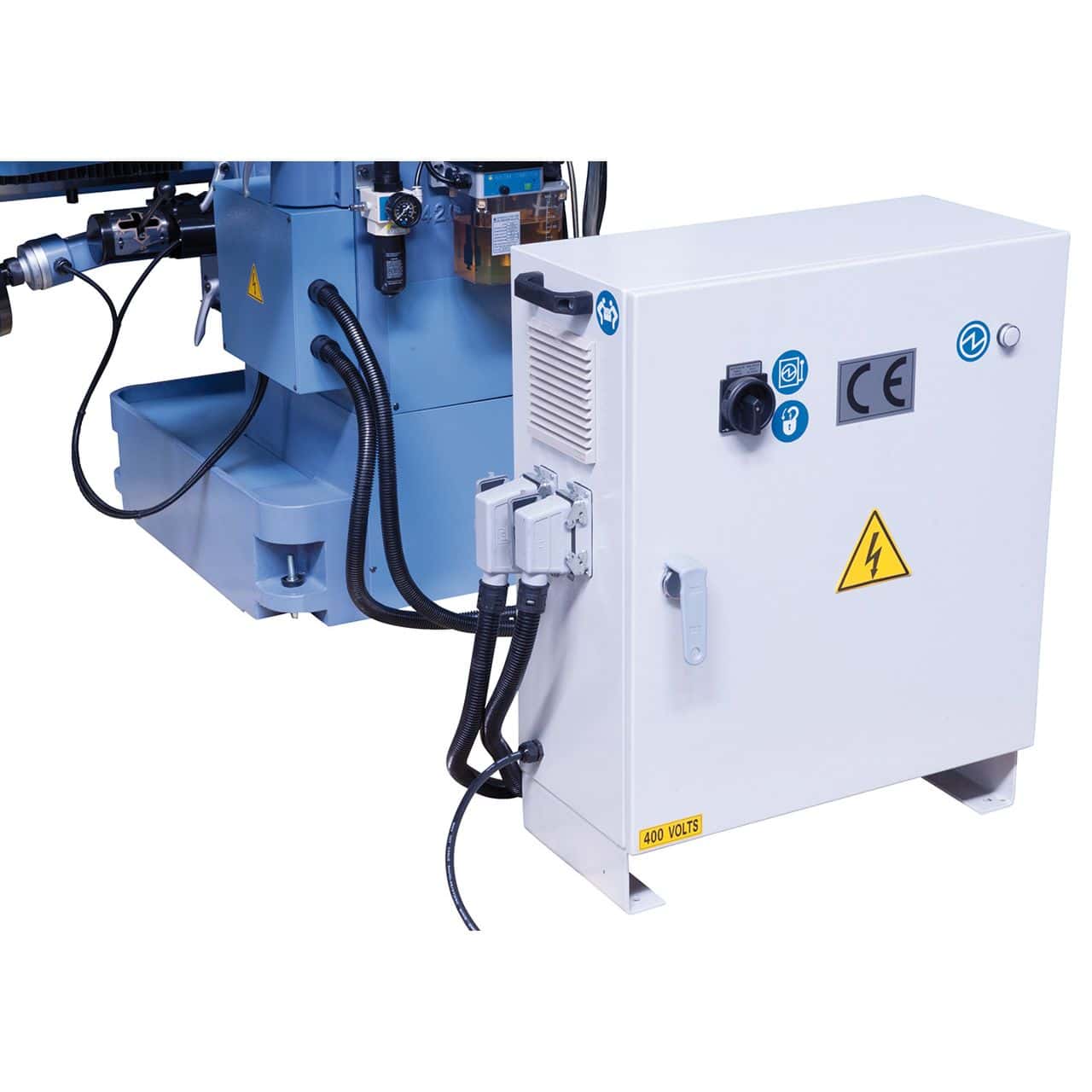

- Control device
technical specifications
Table dimensions |
900 x 500 mm |
Vertical clamping surface |
1200 x 250 mm |
Longitudinal travel (x) |
560 (600*) mm |
Transverse travel (y) |
440 (480*) mm |
Vertical travel (z) |
345 (385*) mm |
Table load |
360 kg |

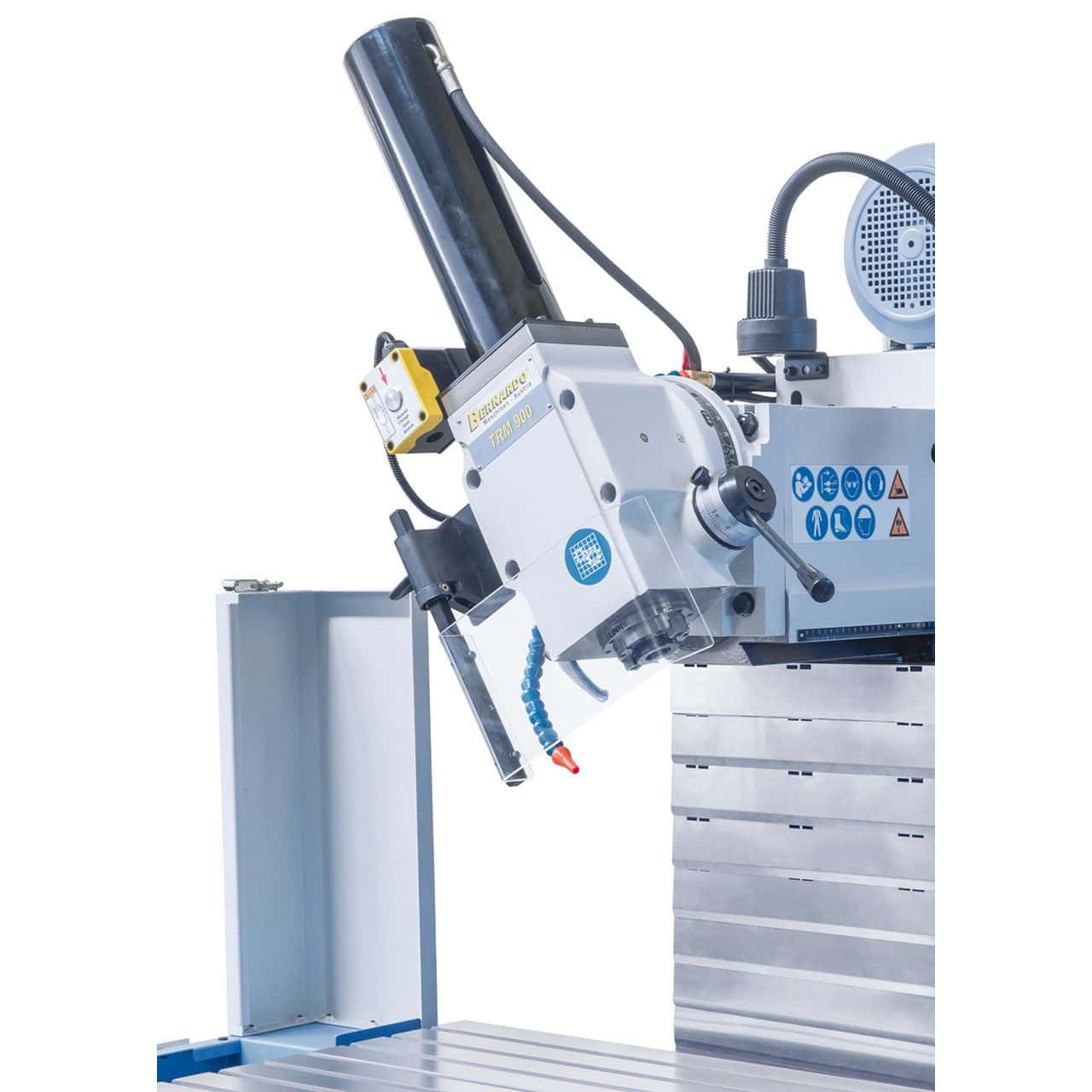

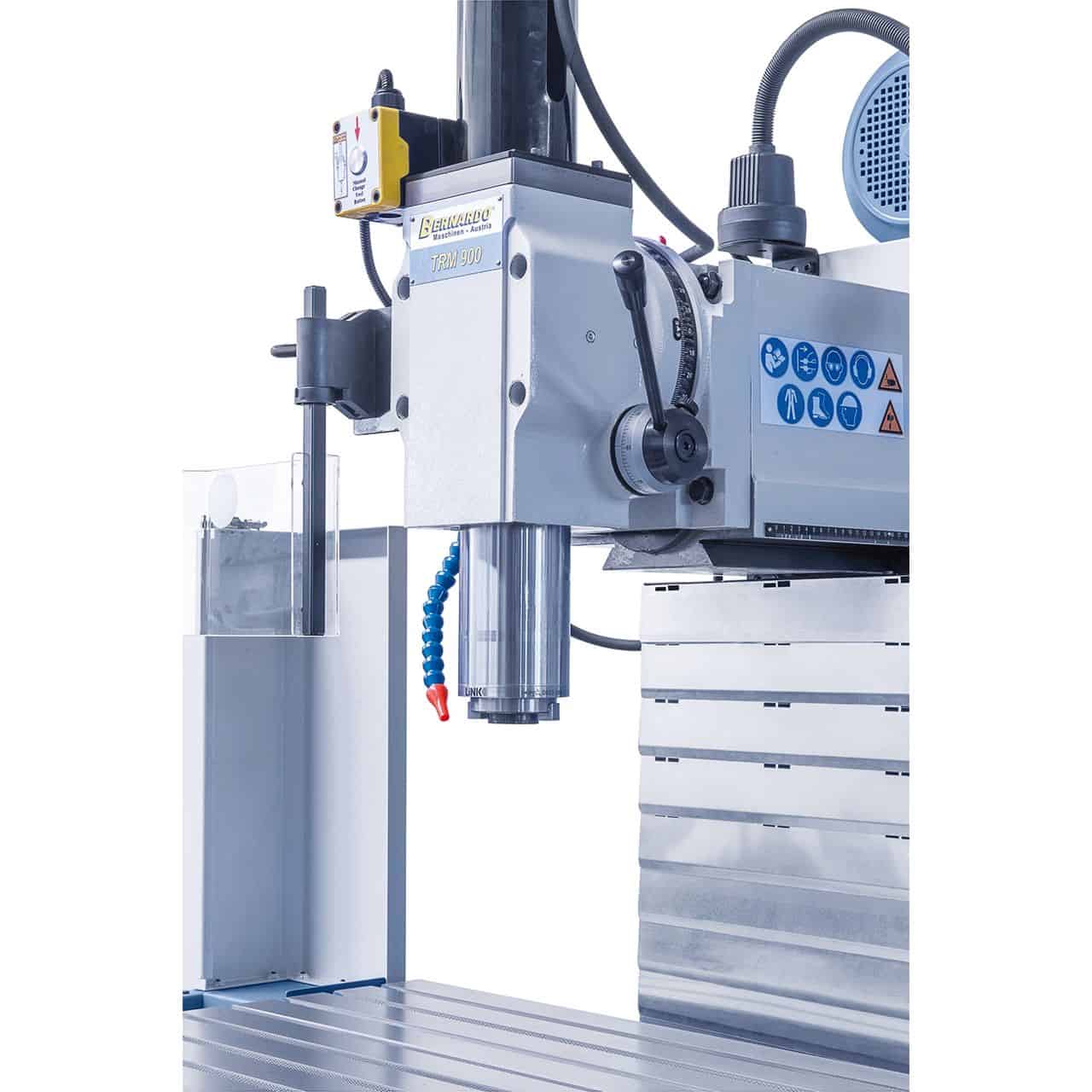

Vertical milling head |
|
Spindle speed |
(18) 40 - 2000 rpm |
Spindle attachment |
SK 40 / DIN 69871A |
Hole stroke |
120 mm |
Max. arm length |
550 mm |
Spindle/table distance |
40 - 440 mm |

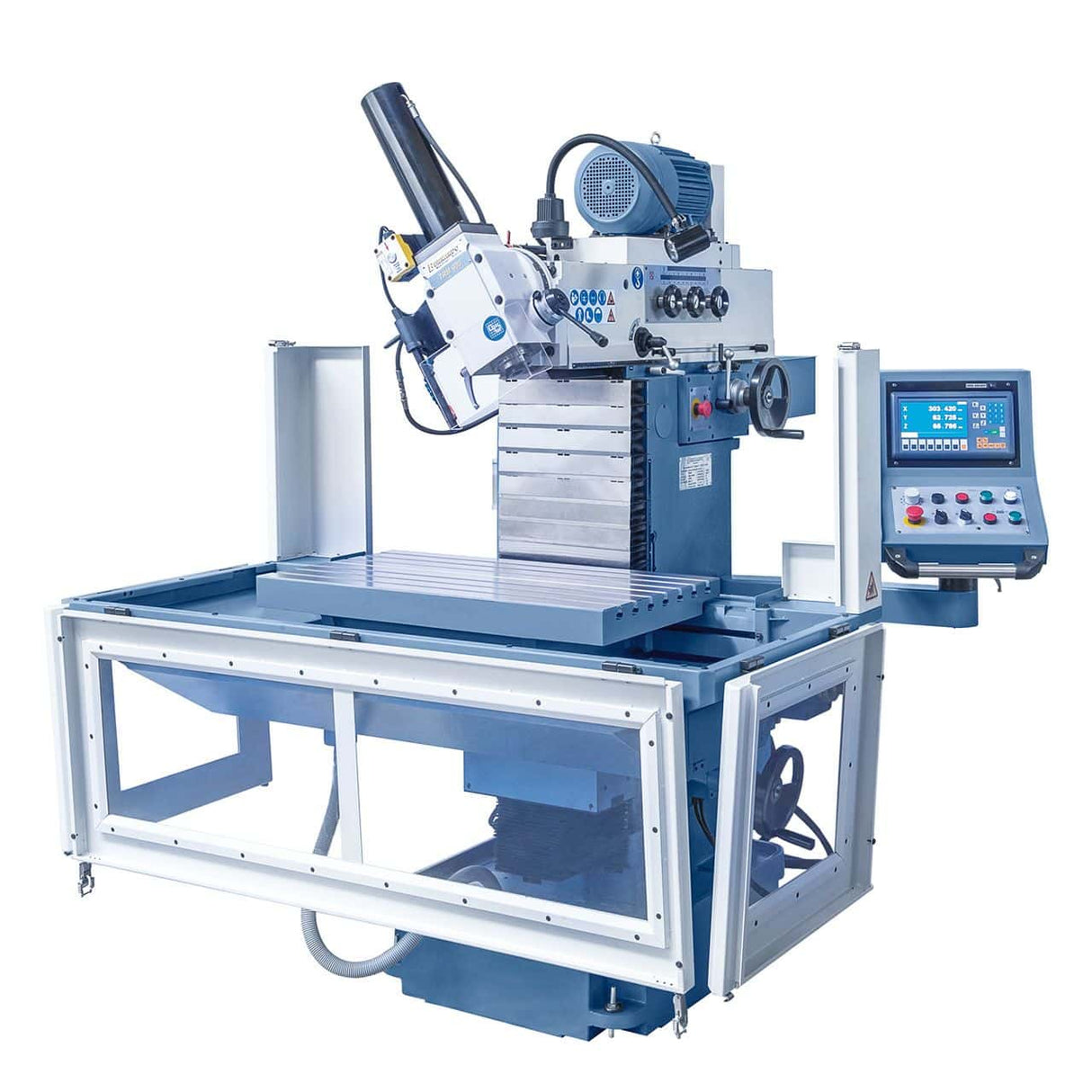

Spindle head tilt area |
from -90° to +90° |
Horizontal milling head |
|
| Spindle speed |
(18) 40 - 2000 rpm |
Spindle attachment |
ISO 40 |
Distance between horizontal spindle and table |
130 - 530 mm |
Feed rate |
|
x-axis |
10 - 450 mm/min |
y-axis |
10 - 450 mm/min |
Z-axis |
10 - 450 mm/min |
Rapid travel (x / y / z) |
680 mm/min |
T-slots (number, width, spacing) |
7 / 14 mm / 63 mm |
T-slots vertical table (num. / width / dist.) |
3 / 14 mm / 63 mm |
Advance motor |
0.75 kW |
Main engine |
3.75 kW |
Machine dimensions (L x W x H) |
1850 x 2135 x 2030 mm |
Weight approx. |
1700 kg |
* manual
