Bernardo | SKU:
04-1440XL

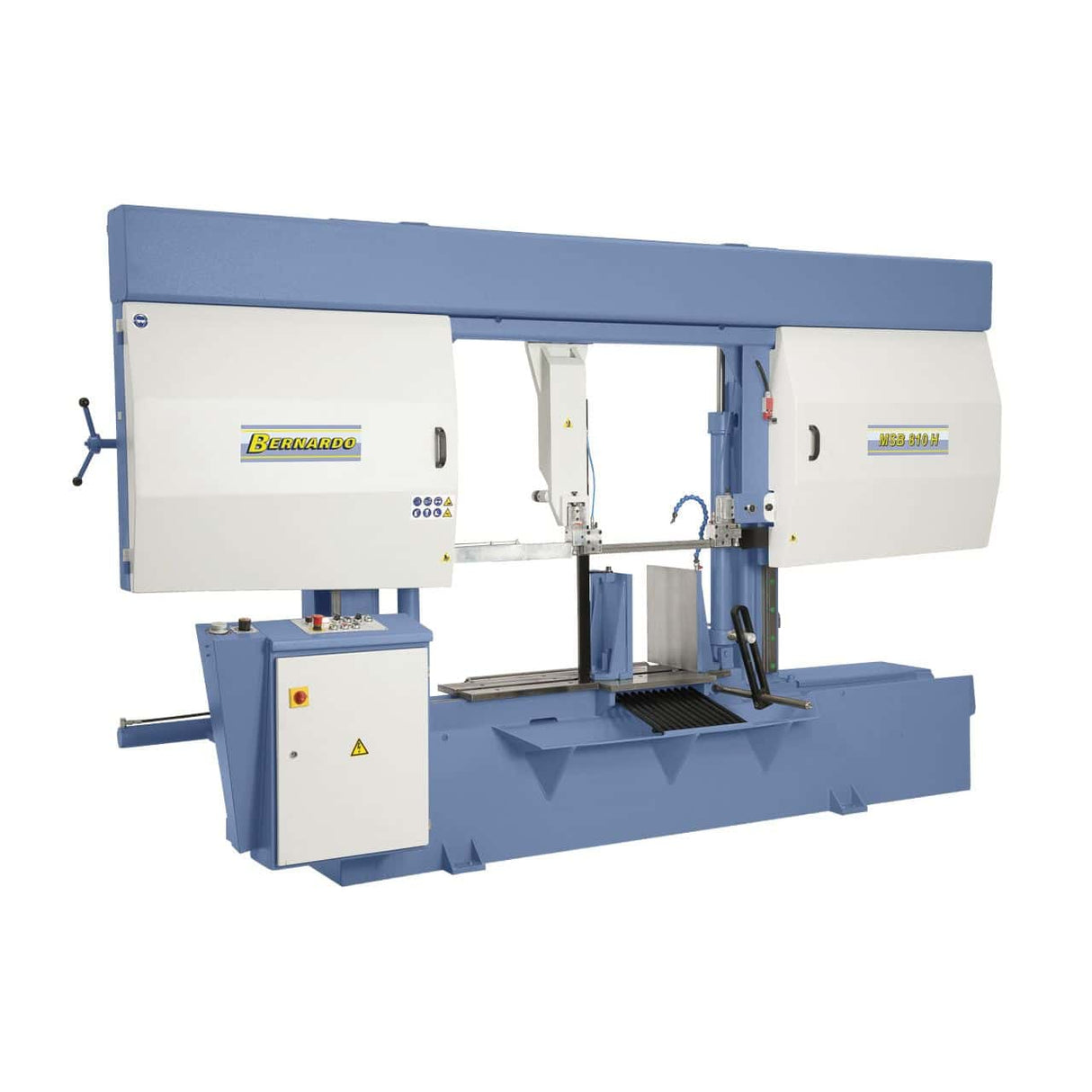

Semi-automatic metal band saw MSB 1110 H
Semi-automatic metal band saw MSB 1110 H is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Semi-automatic metal band saw MSB 1110 H
Unit price
/
Unavailable
-
Description
-
Technical Specifications
-
Product safety
-
Reviews
Description
The MSB 1110 H semi-automatic metal band saw offers a large cutting area, making it suitable for a variety of applications. Thanks to the semi-automatic feature, workpieces can be quickly and easily adjusted during the cutting process. This allows operators to easily adjust the saw's parameters to work with different materials, thicknesses, or workpiece geometries without interrupting the workflow.
Property
- Automatic saw frame lift after cutting with adjustable lift height : This feature allows the saw frame to automatically lift once cutting is complete, improving process efficiency and allowing easier access to the workpiece. The adjustable lift height allows the machine to be adapted to different work needs.
- Greater stability through the precision guide for parallel cuts : The presence of a precision guide ensures that the saw maintains optimal stability during parallel cuts, minimising deviations and ensuring accurate and uniform results.
- Automatic blade breakage control stops the machine in the event of a blade breakage : This important safety feature automatically stops the saw from operating if the blade breaks during cutting, protecting operators and reducing the risk of damage to the machine.
- Automatic limit switch according to material thickness : The automatic limit switch automatically adjusts the saw stroke according to the thickness of the material, ensuring precise cuts and reducing the risk of damage to the material or blade.
- Continuously adjustable speed for optimal material adjustment : The ability to continuously adjust the saw speed allows you to adapt the machine to different material characteristics, ensuring optimal cutting results in every situation.

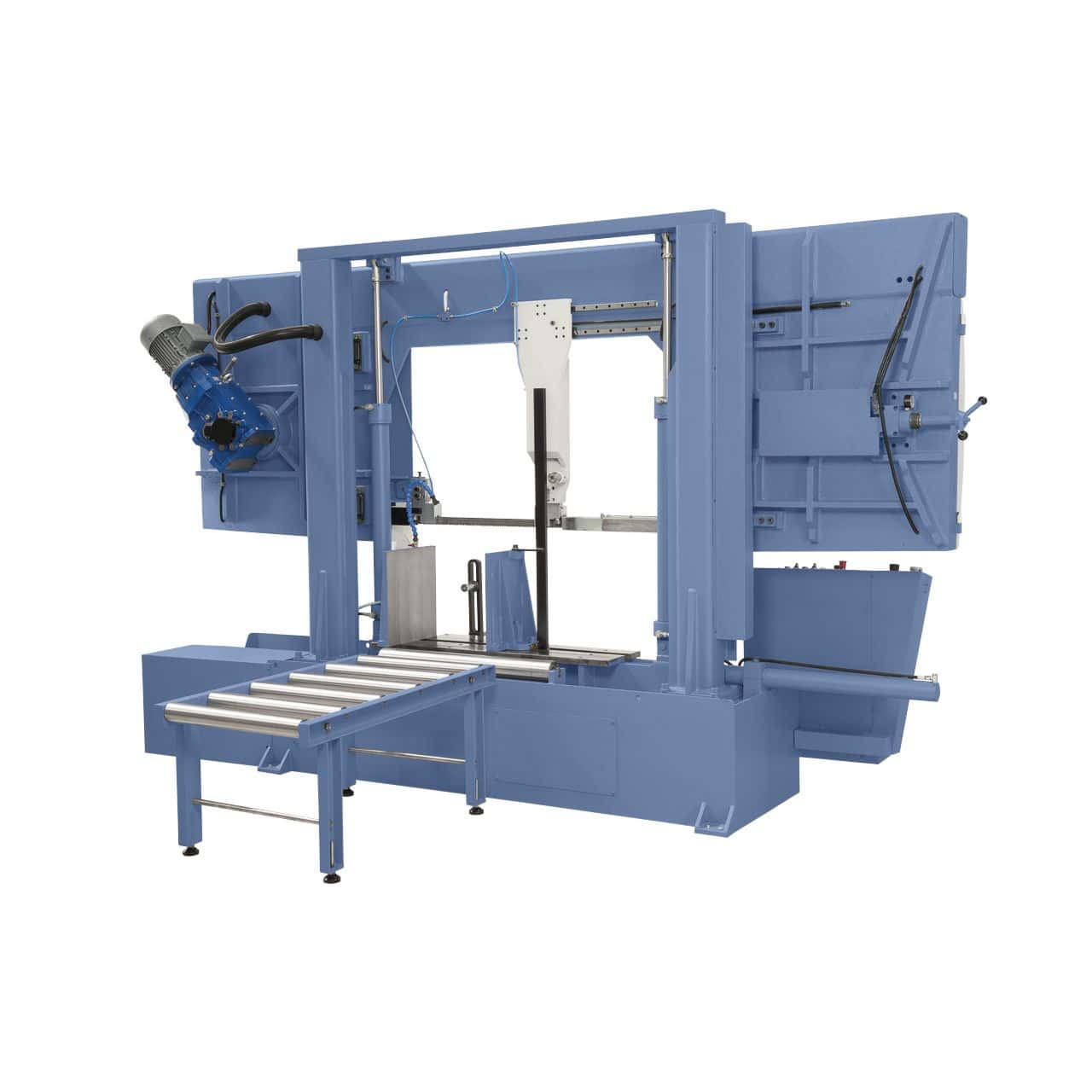

- Equipped with a roller conveyor for long pieces : The presence of a roller conveyor facilitates the support and movement of long pieces during the cutting process, ensuring safe and precise processing even on large materials.

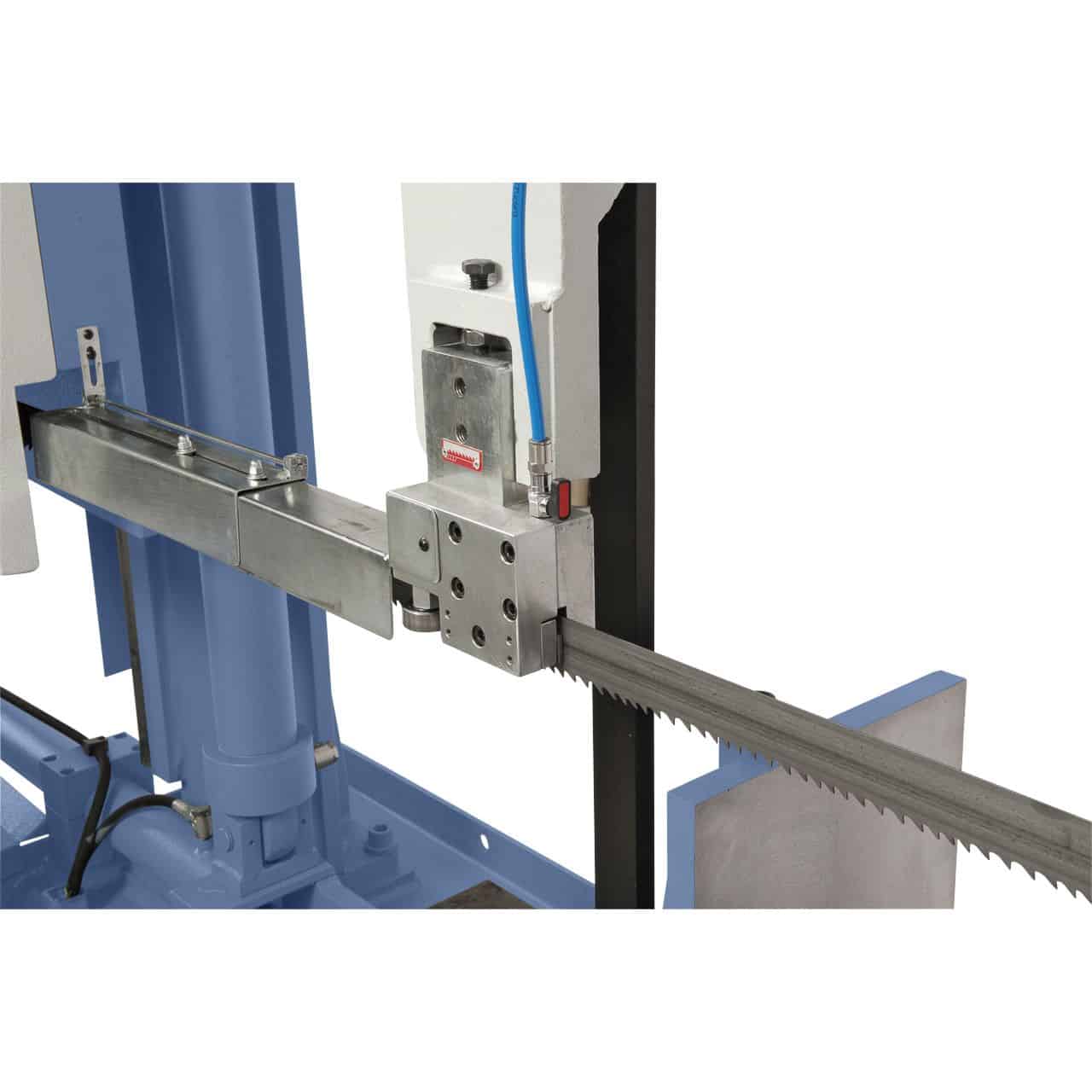

- Equipped with ball-bearing saw band guide and carbide tips : The band guide is equipped with ball bearings and carbide tips that ensure smooth and precise advancement of the band, improving the quality of cuts and extending the life of the blade.

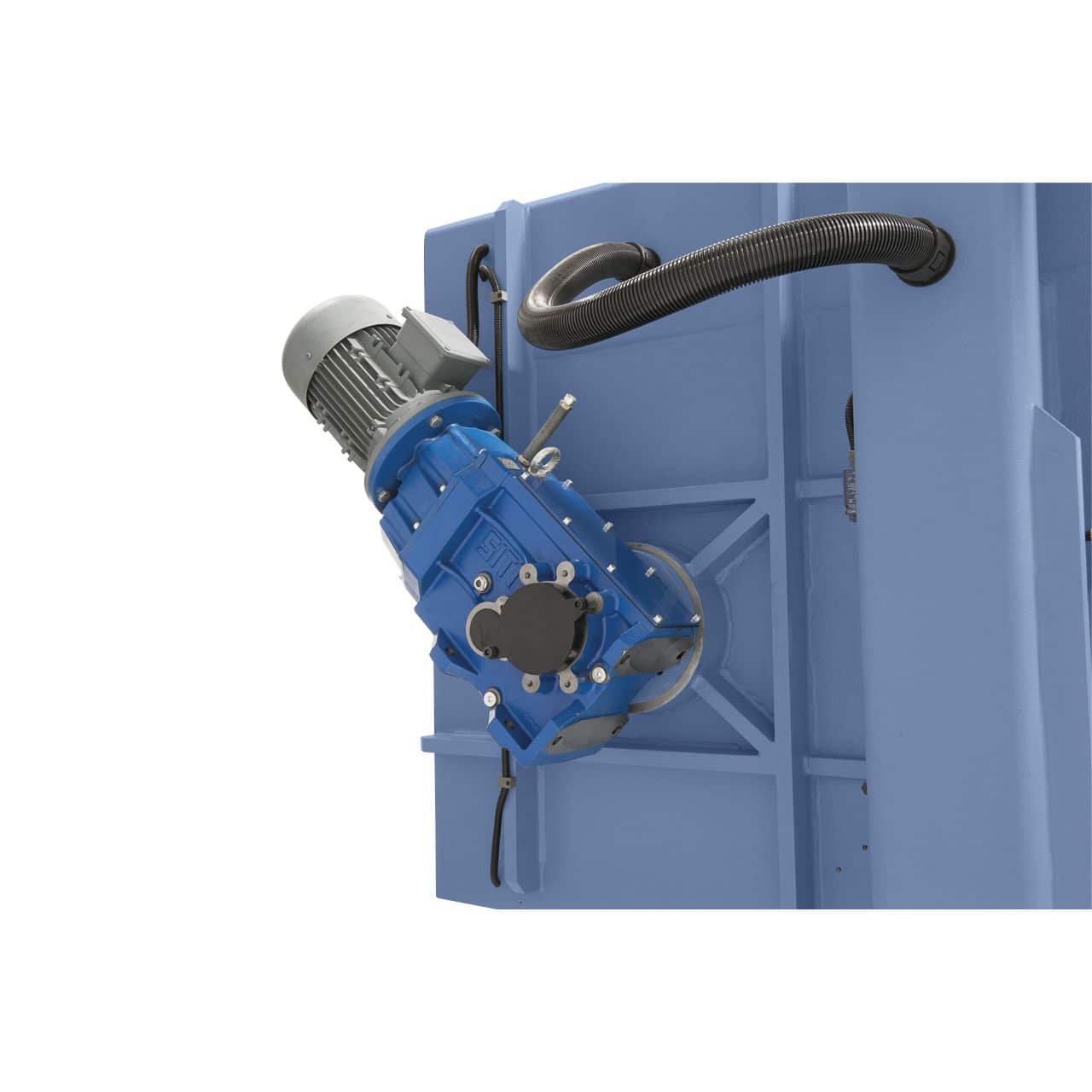

- Optimal power transmission to the wheel through the robust gear : Thanks to the optimal power transmission guaranteed by a robust gear, the saw is able to maintain constant performance even during intensive work, ensuring reliable and precise cutting results.
- Good-sized, torsion-proof saw arm for precise cutting results : The saw arm is designed to resist twisting and deformation during use, ensuring consistent precision in cuts and high-quality results.
Standard accessories
- Saw band

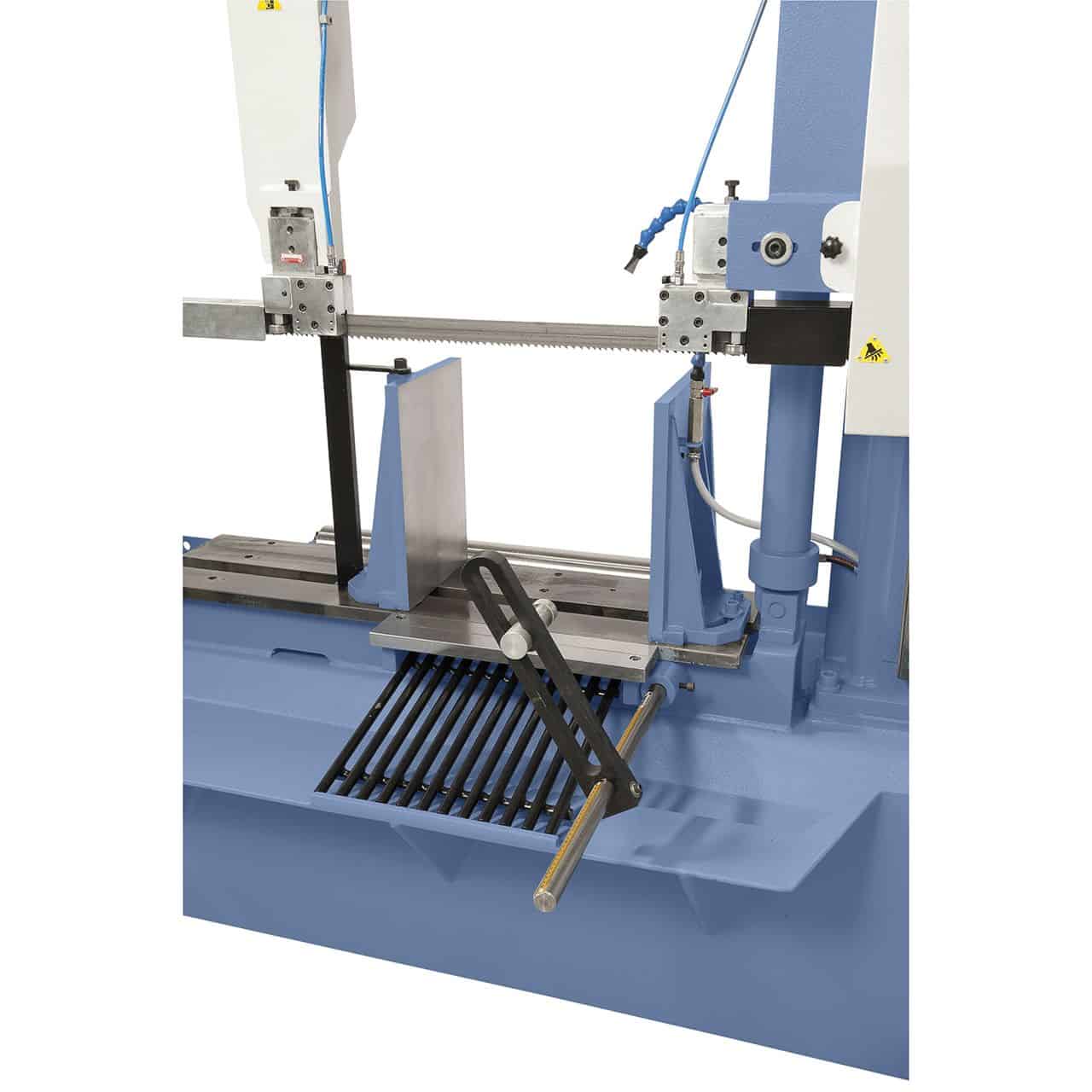

- Piece stop
- Hydraulic vice

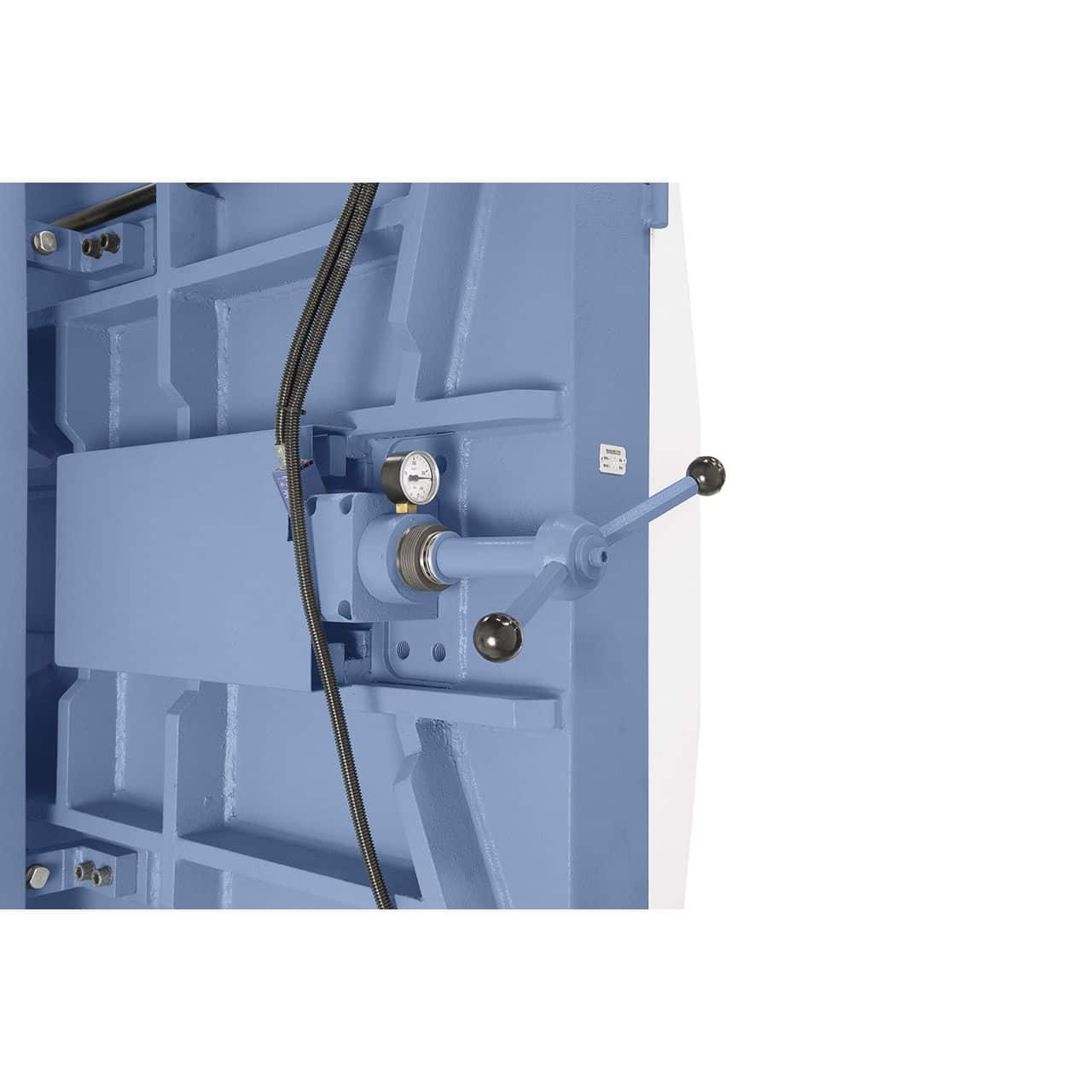

- Hydraulic saw band tension
- Automatic cutting pressure adjustment
- Chip conveyor
- Refrigeration system
- Hydraulic cylinder
- Engine saver
- Automatic blade breakage control
- Automatic limit switch
- Roller conveyor
technical specifications
| 90° round cutting area | 1110 mm |
| 90° square cutting area | 1110 x 1110 mm |
| 90° flat cutting area | 1110 x 1110 mm |
| Working height | 545 mm |
| Cutting speed, continuous | 20 - 100 m/min |
| Saw band dimensions | 10500 x 67 x 1.6 mm |
| Coolant circulation pump | 120 W |
| Engine power | 11.0 kW |
| Machine dimensions (L x W x H) | 1800 x 1500 x 2975 mm |
| Weight approx. | 8020 kg |
Technical Specifications
Può tagliare acciai pieni, inox, acciai da utensili, tubi e profili di dimensioni extra-large.
Offre capacità di taglio fino a 1310 mm, motore da 11 kW, tensionamento idraulico lama ed evacuazione automatica dei trucioli.
A 90°: 1110 mm tondo, 1110 x 1110 mm quadro, 1110 x 1310 mm piatto.
Sì, integra un refrigerante da 120 W che protegge la lama e migliora la qualità dei tagli più intensivi.
Controllo automatico della rottura lama, spegnimento automatico, protezioni integrate e pressione di taglio regolata automaticamente.
È consegnata in imballo protettivo, completa di lama, morsa idraulica, evacuazione trucioli, refrigerante e manuale d’uso.
