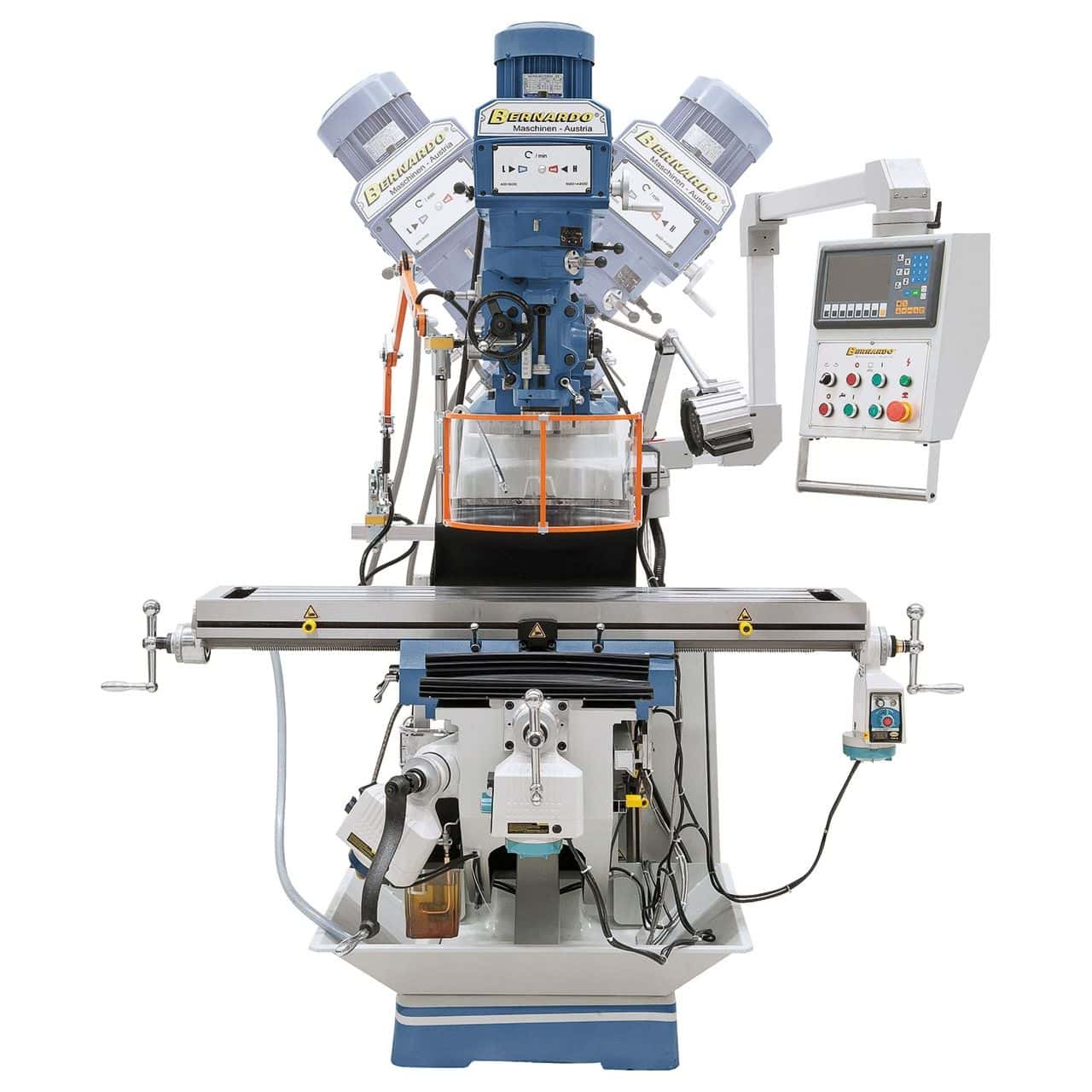

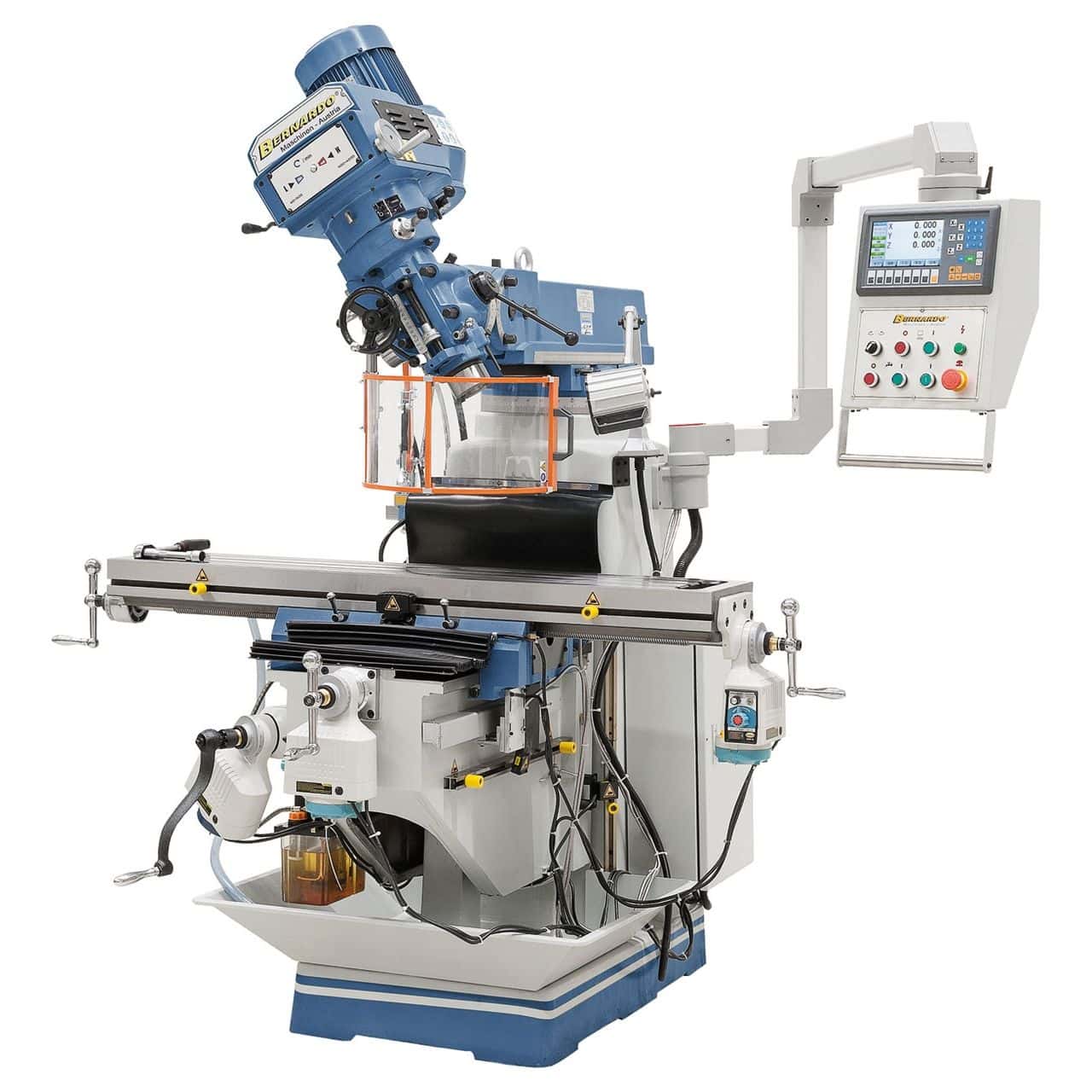

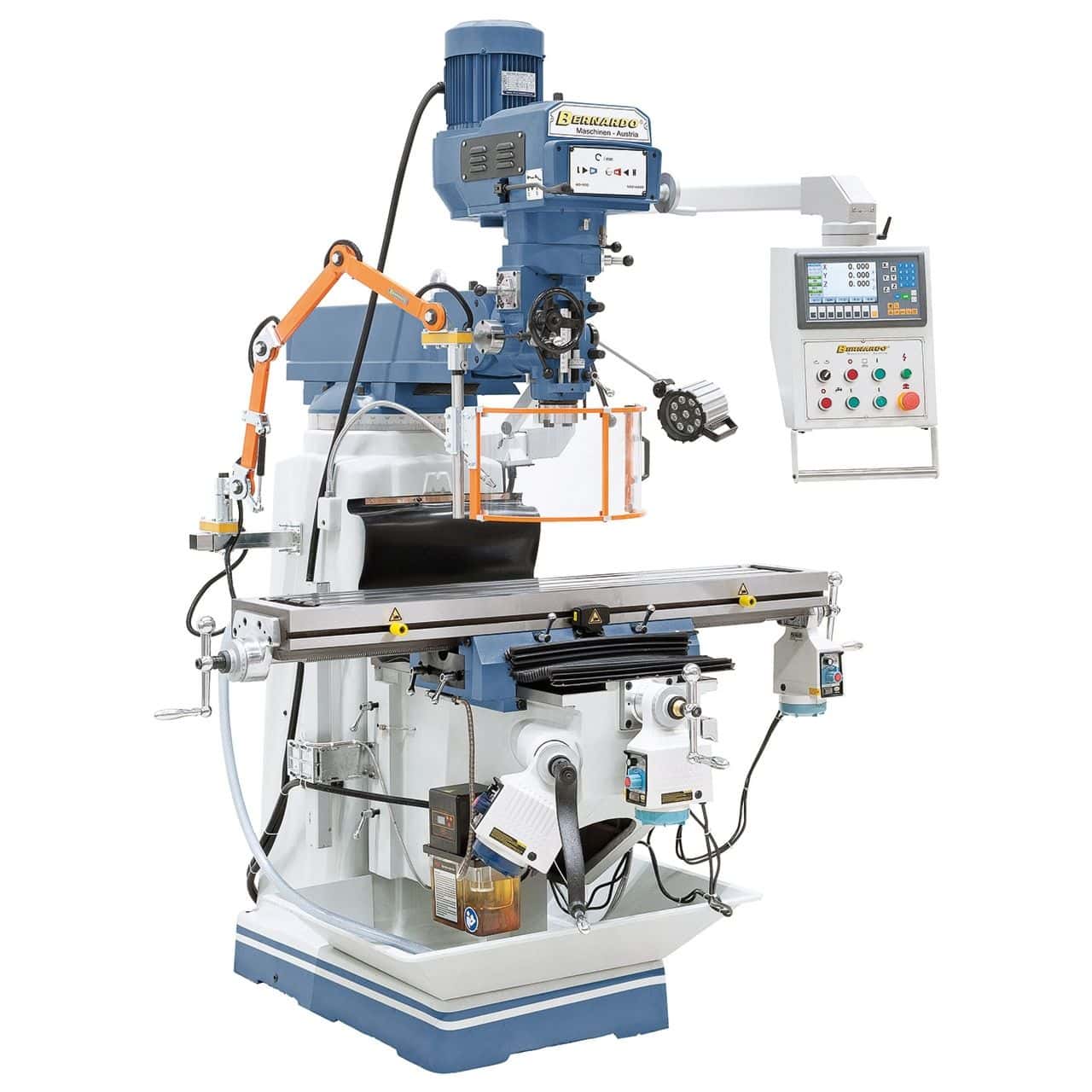

Multifunctional Milling Machine MFM 250 Super
The MFM 250 Super Multifunctional Milling Machine is a robust and versatile machine designed for a wide range of drilling and milling applications. Ideal for single-piece production, repairs, and training, it is perfect for working on light and medium-heavy workpieces. Thanks to its highly adjustable milling head, this milling machine offers great operational flexibility, with the ability to tilt, rotate, and swivel the head as needed. The hardened and ground guides on all axes ensure consistent precision, while the automatic feed system and spindle with micrometric depth stop allow for accurate and simplified machining control.
Main Features:

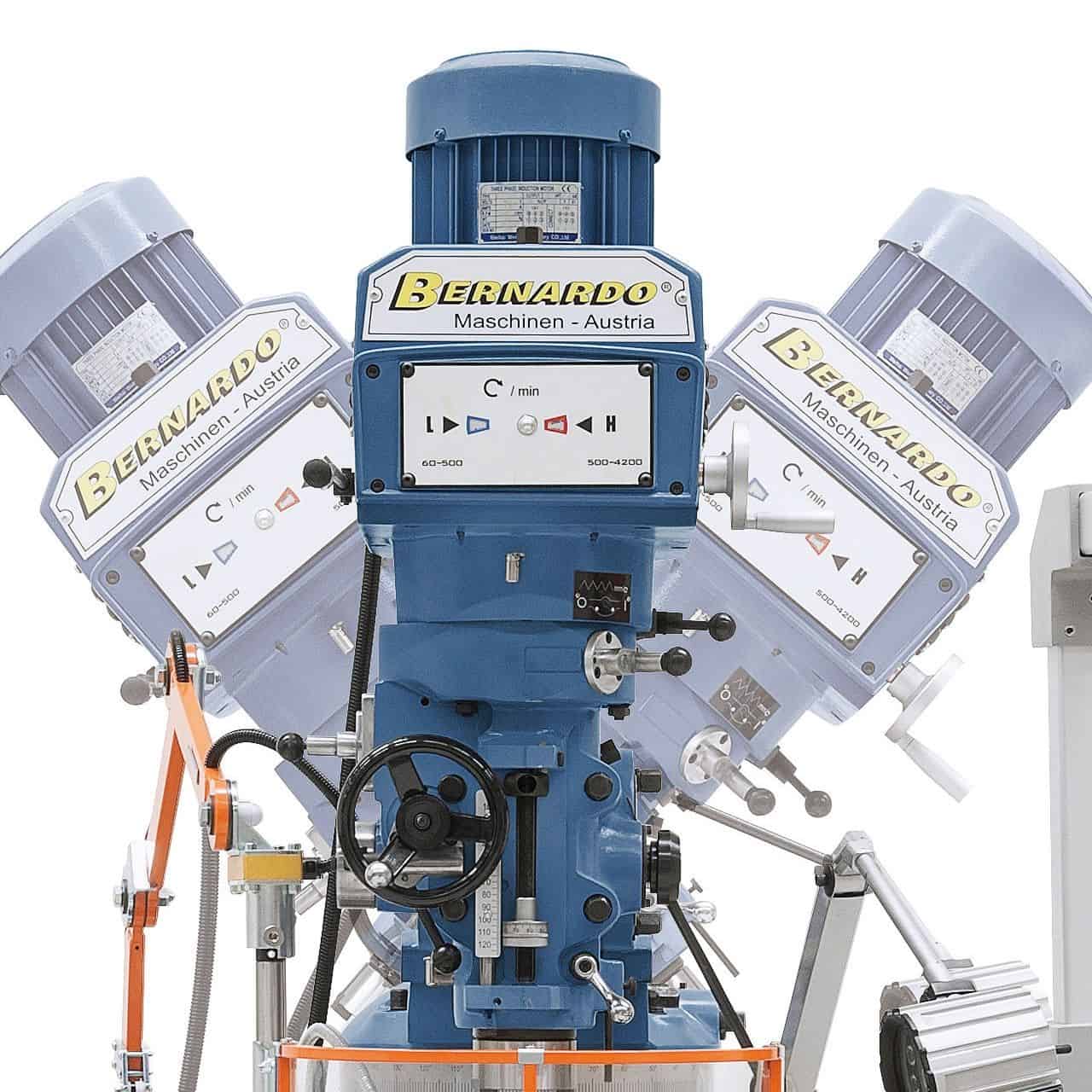

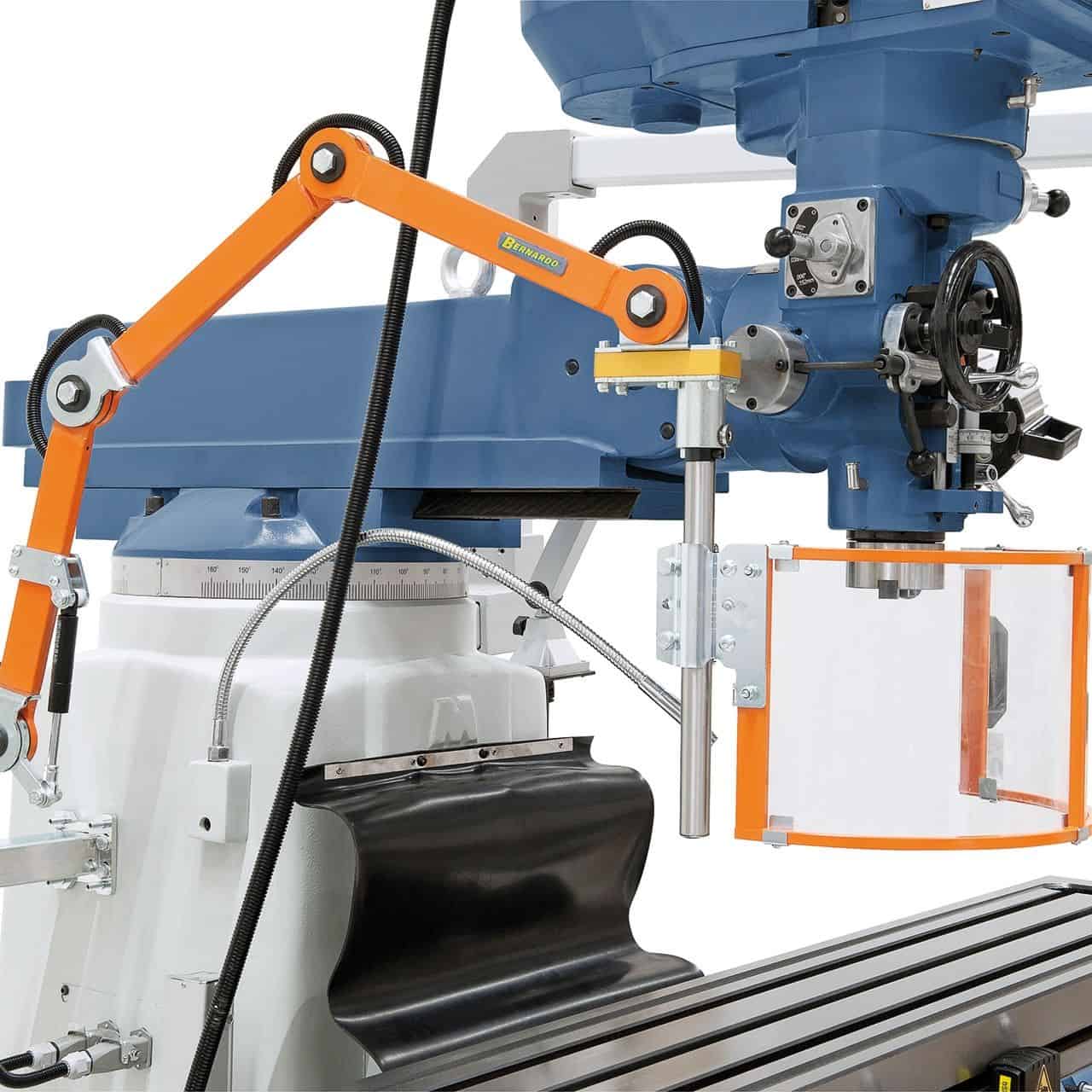

- Versatile Milling Head : The head is rotatable, tiltable and swivelable, offering maximum flexibility for complex machining.
- Adjustable Spindle Speed : The spindle speed is continuously adjustable, allowing for precise control of the machining process and greater versatility in applications.
- Chuck with Micrometer Depth Stop : The chrome-plated chuck features a micrometer depth stop, ensuring precise control during drilling and milling operations.

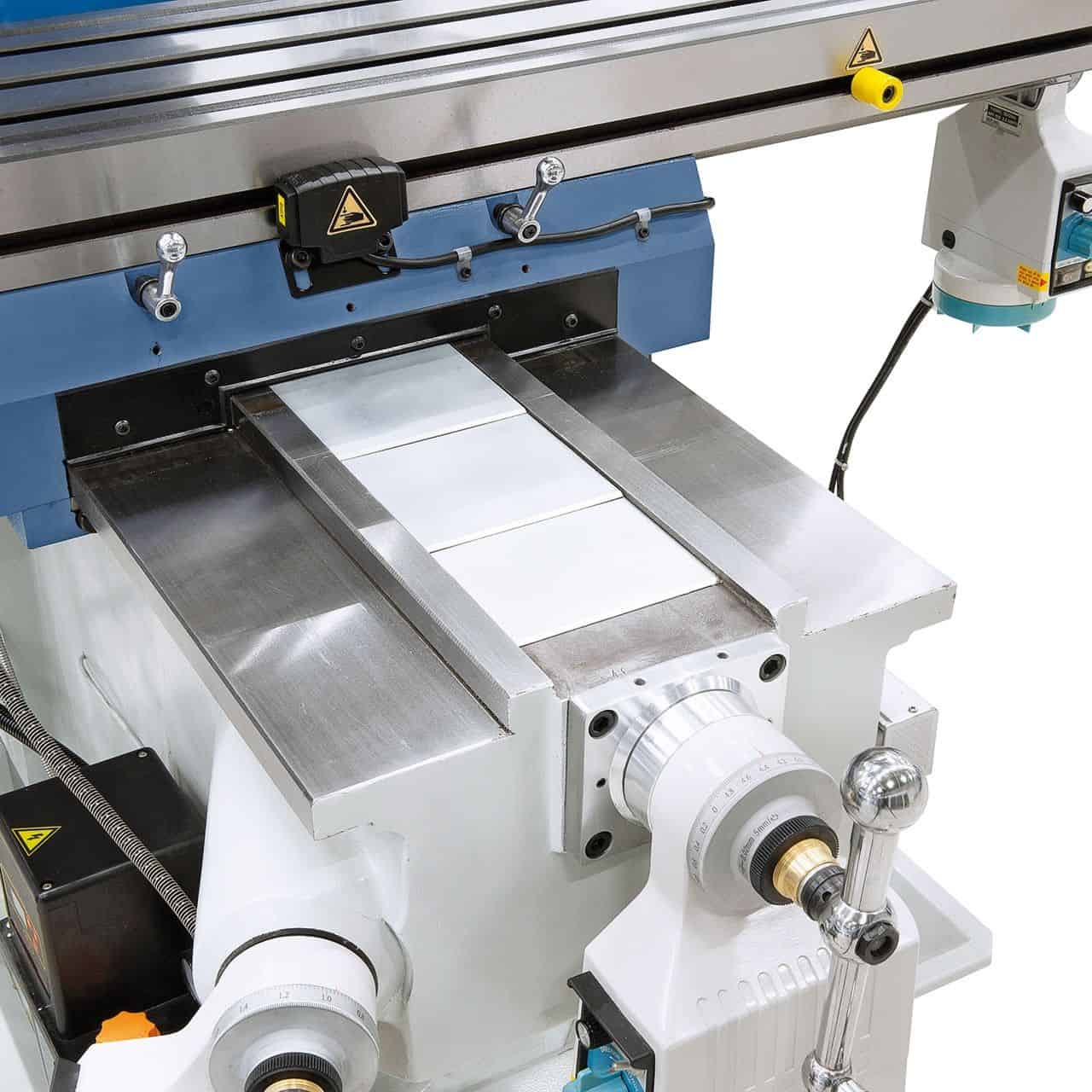

- Hardened and Ground Guides : The guides on all axes are hardened and ground, ensuring stability and precision even during the most demanding machining operations.
- Automatic Feeds : The milling machine is equipped with 3 automatic spindle feeds, which make work easier and improve productivity.
- Powerful Refrigeration System : Equipped with a powerful refrigeration system with integrated base, which ensures continuous and optimal cooling during processing.
Standard Accessories:

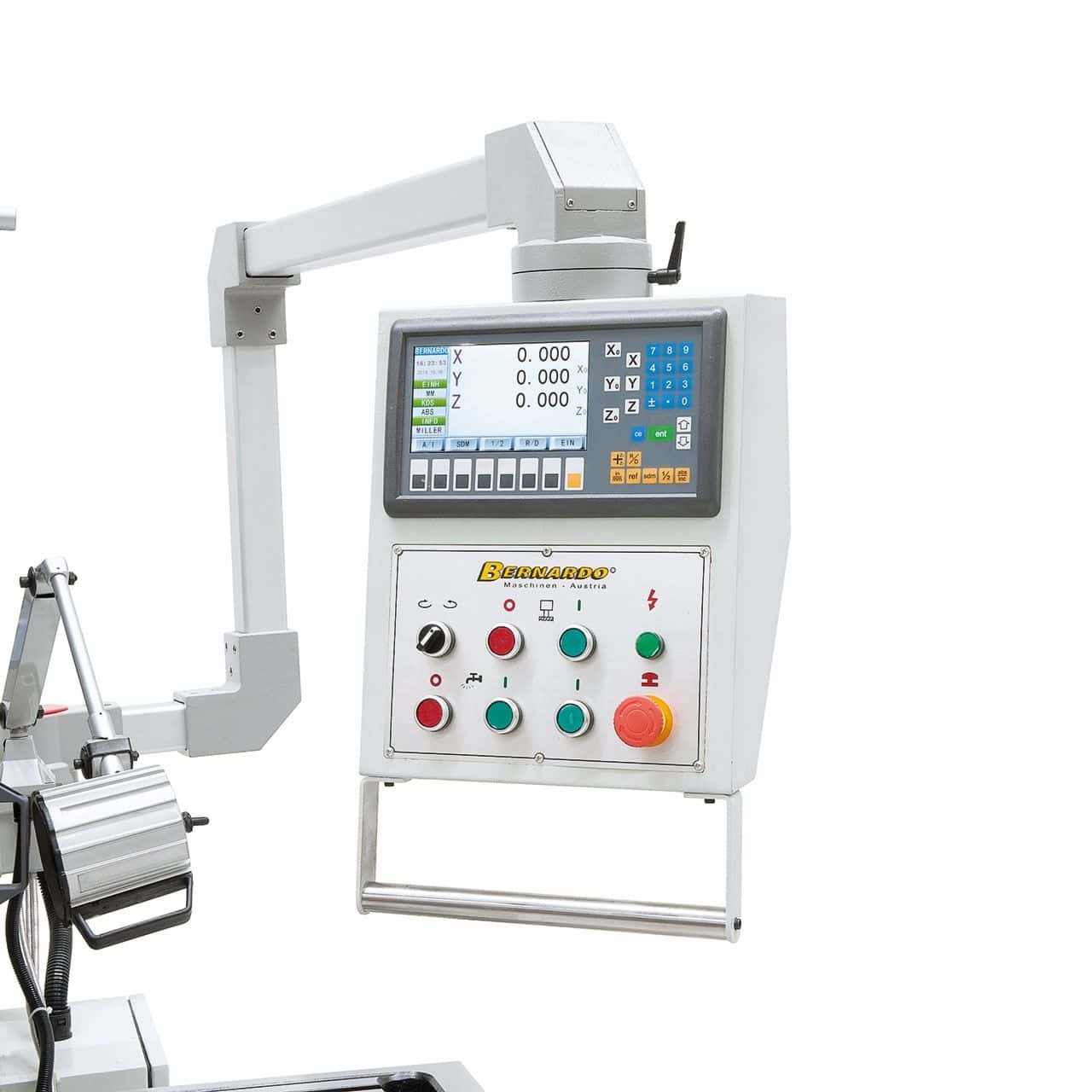

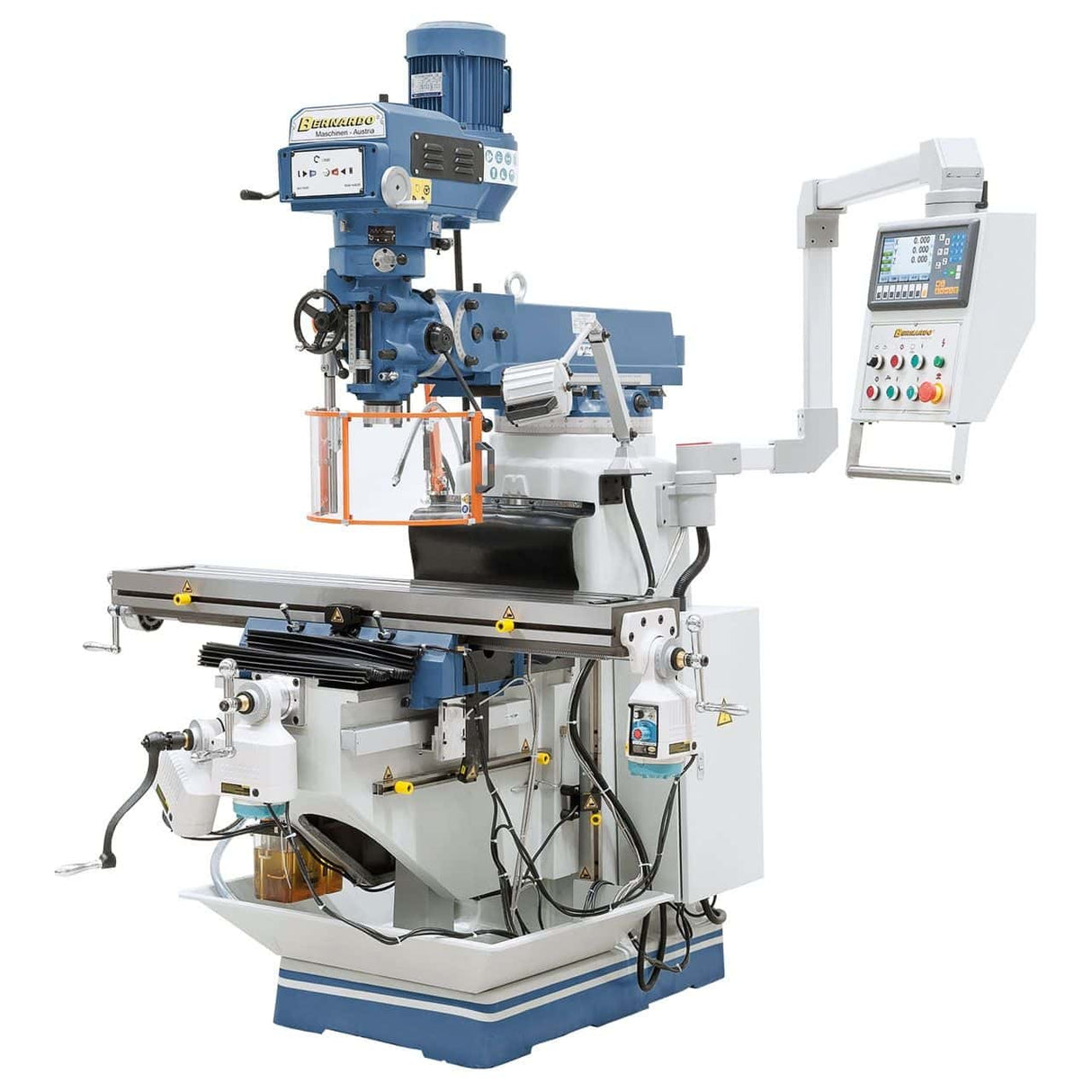

- ES-12 H 3-Axis Position Display with LCD Display
- M 16 clamping chuck
- Integrated refrigeration system
- LED machine light for optimal visibility

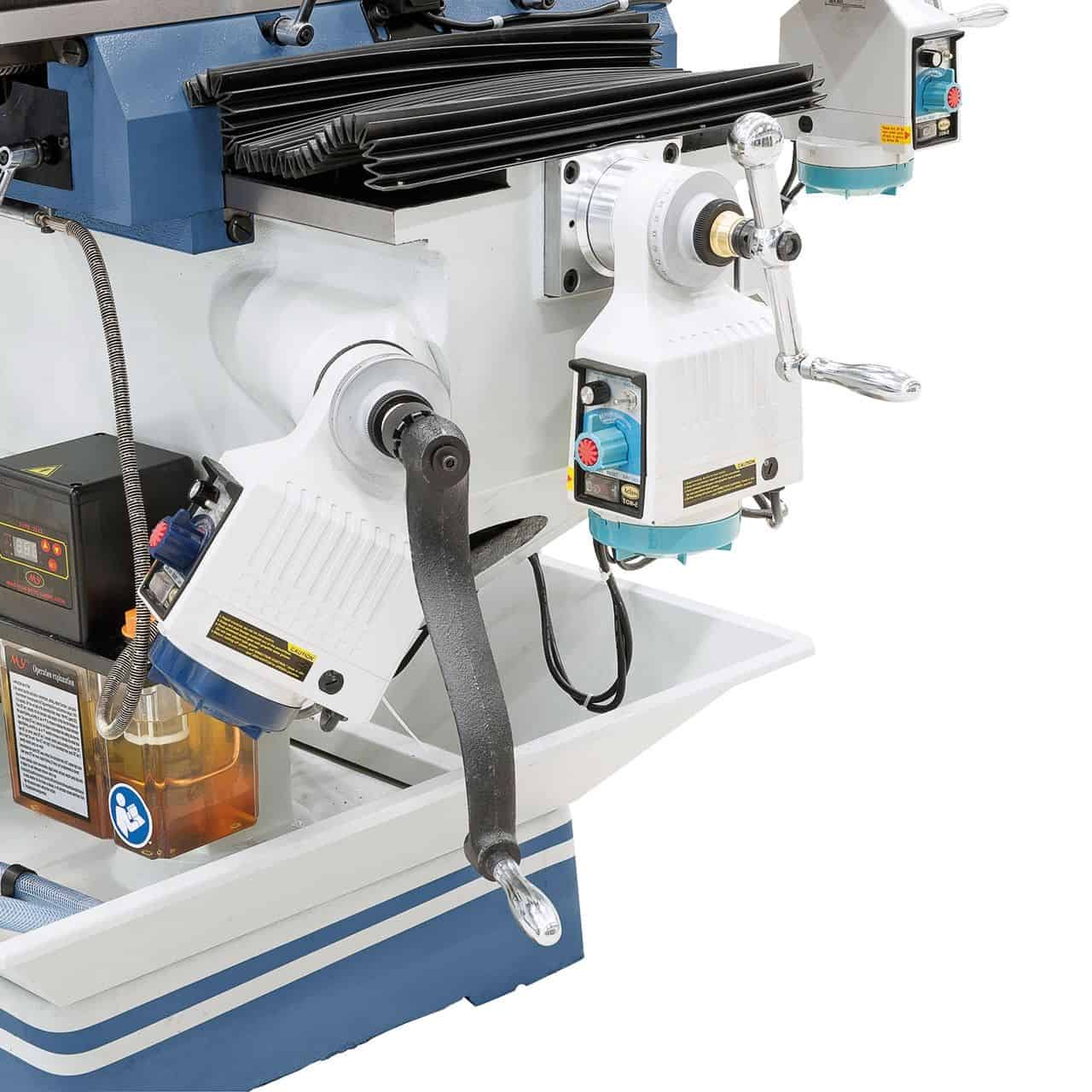

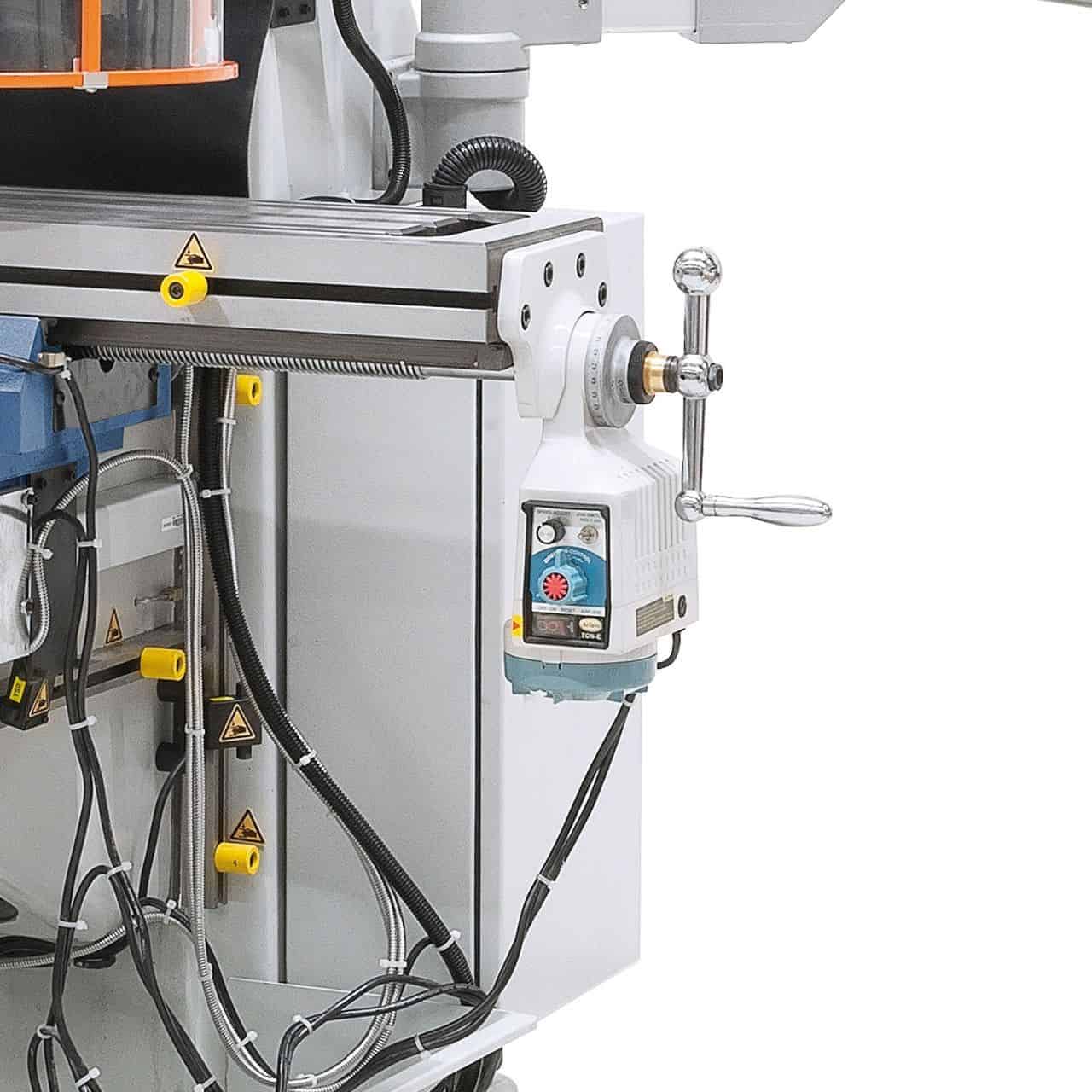

- Feed device on the X, Y and Z axes

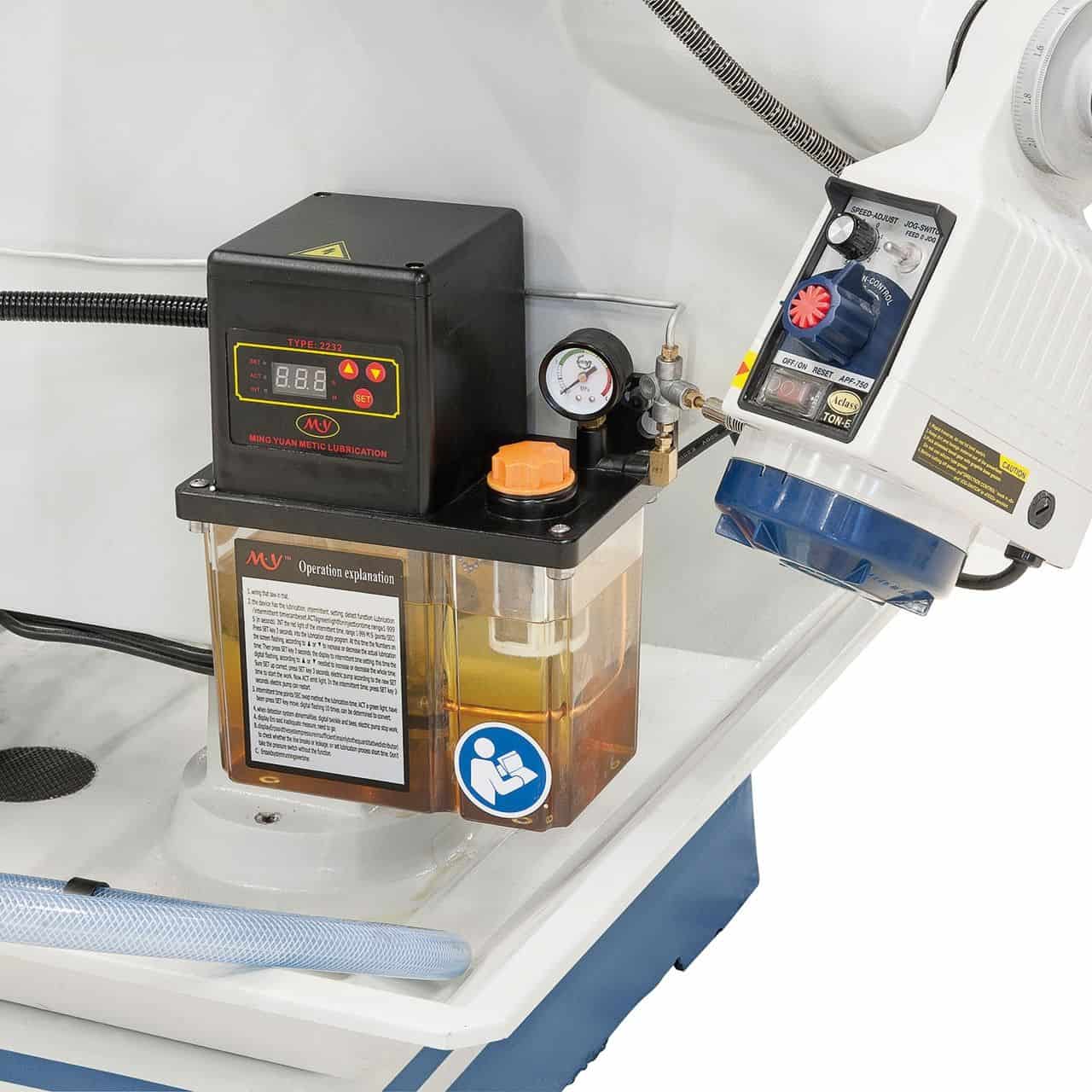

- Electric lubrication system
- Adjustable protection device
- Integrated cooling tank
Technical Specifications :
| Characteristic | Detail |
|---|---|
| Table dimensions | 1370 x 254 mm |
| Spindle attachment | ISO 40 |
| Continuous spindle speed | 60 – 4200 rpm |
| Spindle power supply | 0.038 / 0.076 / 0.152 mm/rev |
| Hole stroke | 125 mm |
| Longitudinal travel (X) | 800 mm |
| Transverse stroke (Y) | 410 mm |
| Vertical stroke (Z) | 330 mm |
| Length of the arms | 70 – 540 mm |
| Spindle head tilt area | from -90° to +90° |
| Spindle head - tilt area | from -45° to +45° |
| Spindle/table distance | 80 – 360 mm |
| T-slot size | 16 mm |
| Engine power | 2.2 kW |
| Machine dimensions (L x W x H) | 1800 x 2000 x 2240 mm |
| Weight | 1255 kg |
The MFM 250 Super Multifunctional Milling Machine is an ideal solution for those seeking a powerful and versatile machine for precise, high-quality machining. Its robustness, combined with a wide range of milling head settings and a powerful coolant system, makes it perfect for machine shops and training schools. Thanks to its standard accessories and advanced features, such as the 3-axis position display and automatic feeds on the X, Y, and Z axes, the MFM 250 Super is an excellent choice for milling single parts and small batches, always ensuring maximum precision and reliability.
