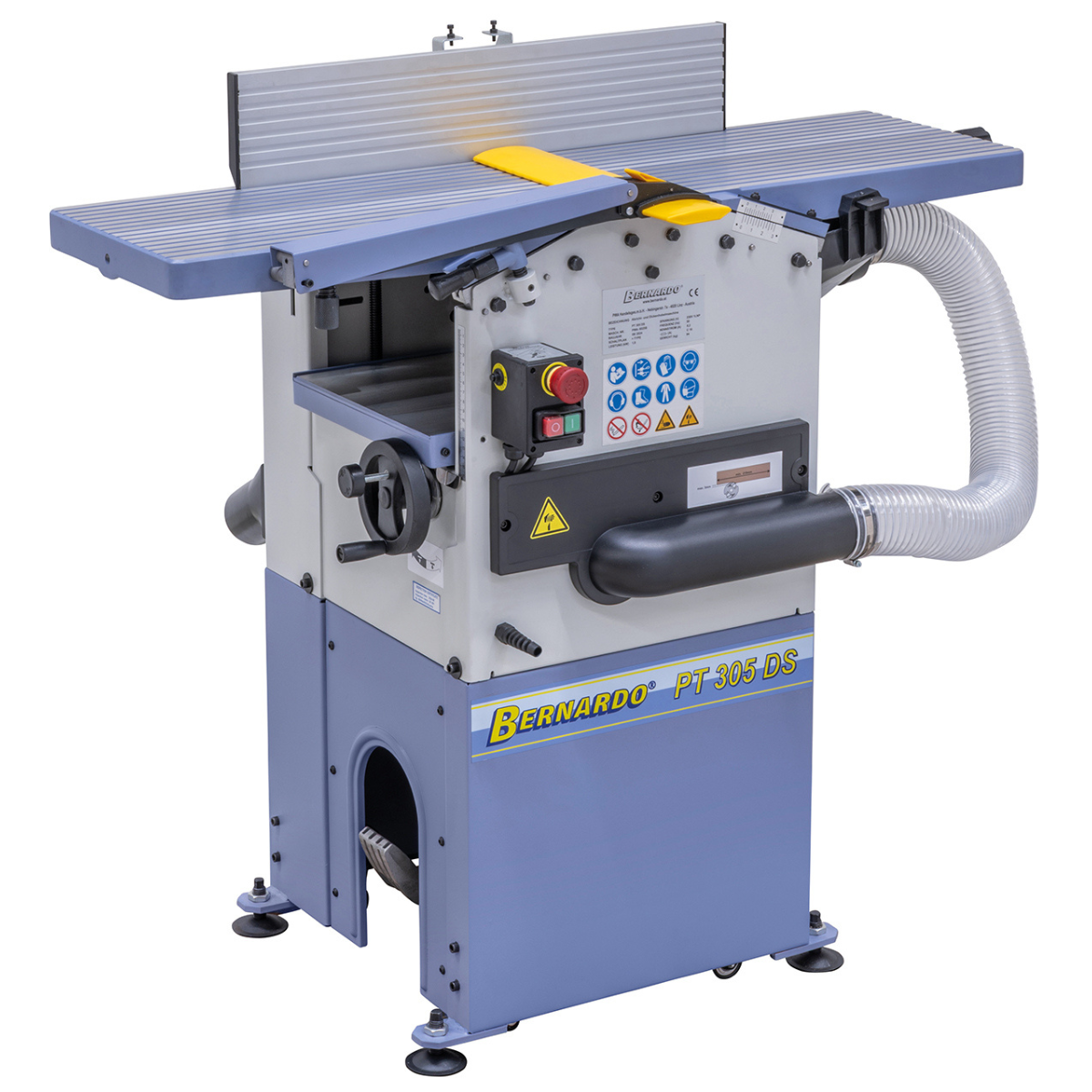

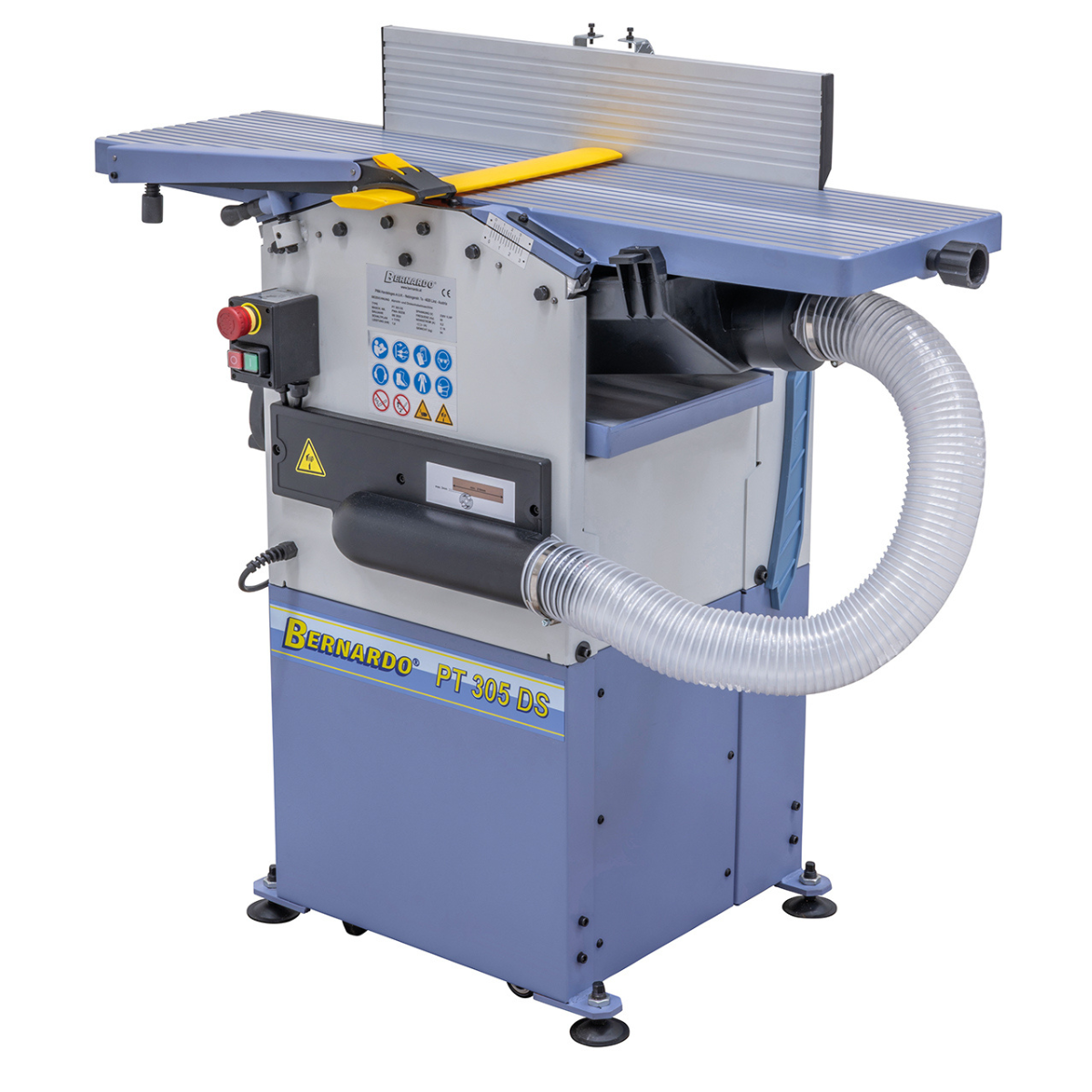

PT 305 DS planer and thicknesser with extraction / 230 V – 400 V
The PT 305 DS is a high-performance combination planer, designed to deliver precise and quiet planing results thanks to its spiral shaft with TCT inserts. Equipped with a built-in vacuum cleaner, dust bag, and transport trolley, it represents a complete solution with an unbeatable quality-price ratio, perfect for professionals and demanding users.
Main features

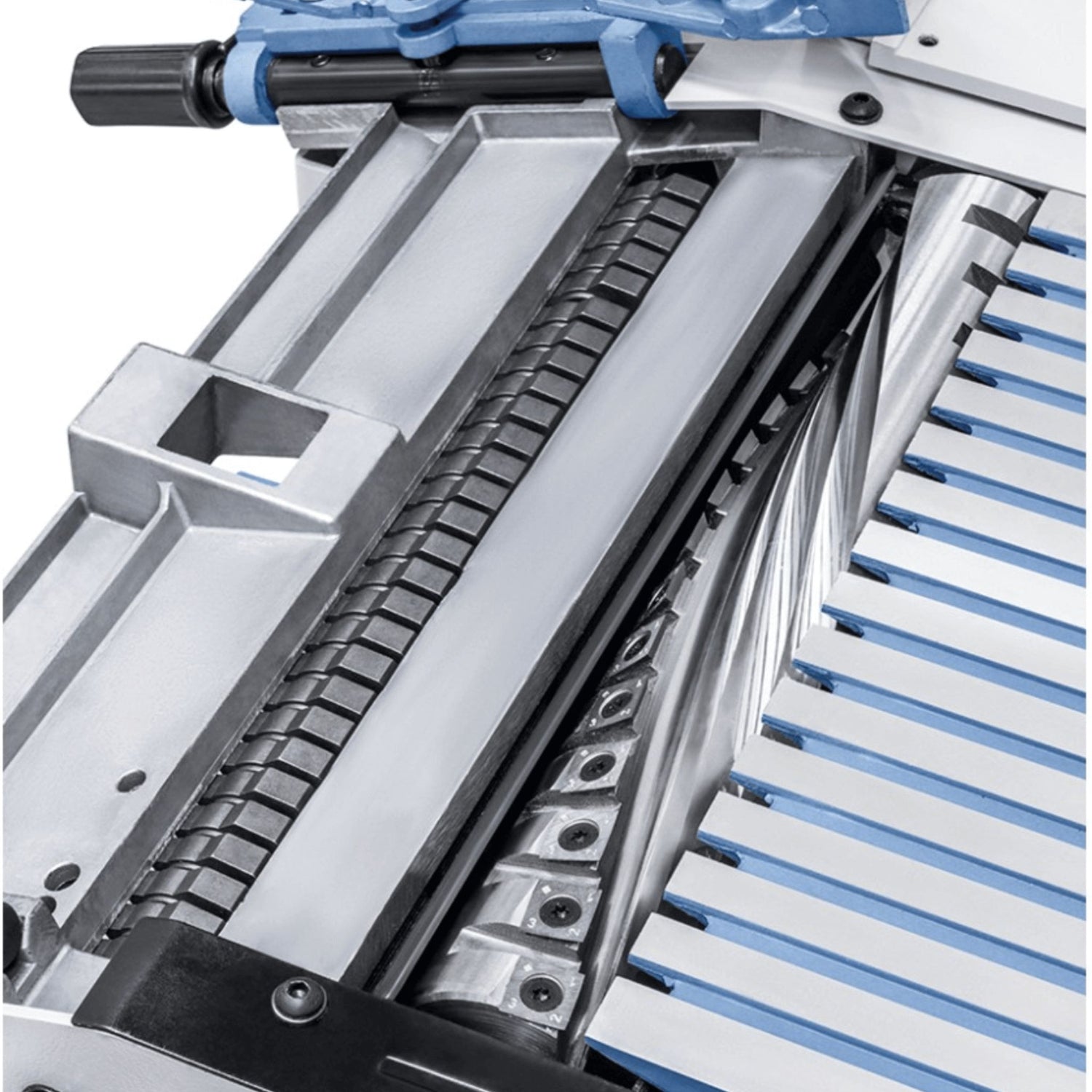

• Spiral shaft with 28 carbide inserts (TCT)
• Up to 50% less noise than traditional HSS blades
• Reversible and individually replaceable inserts in case of damage

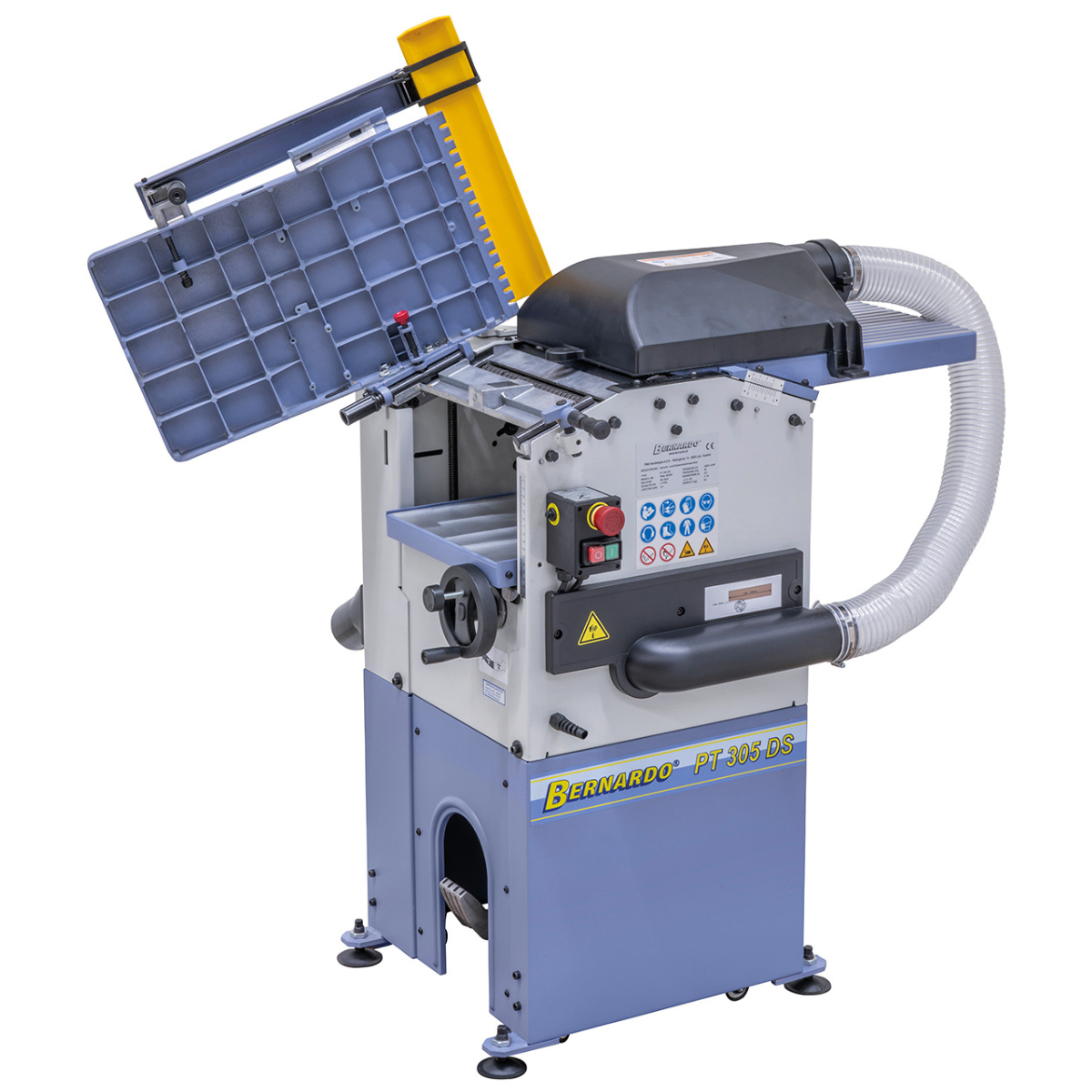

• Aluminum planing tables with fine adjustment and slots to reduce noise
• Thickness table guided on 4 columns for maximum precision

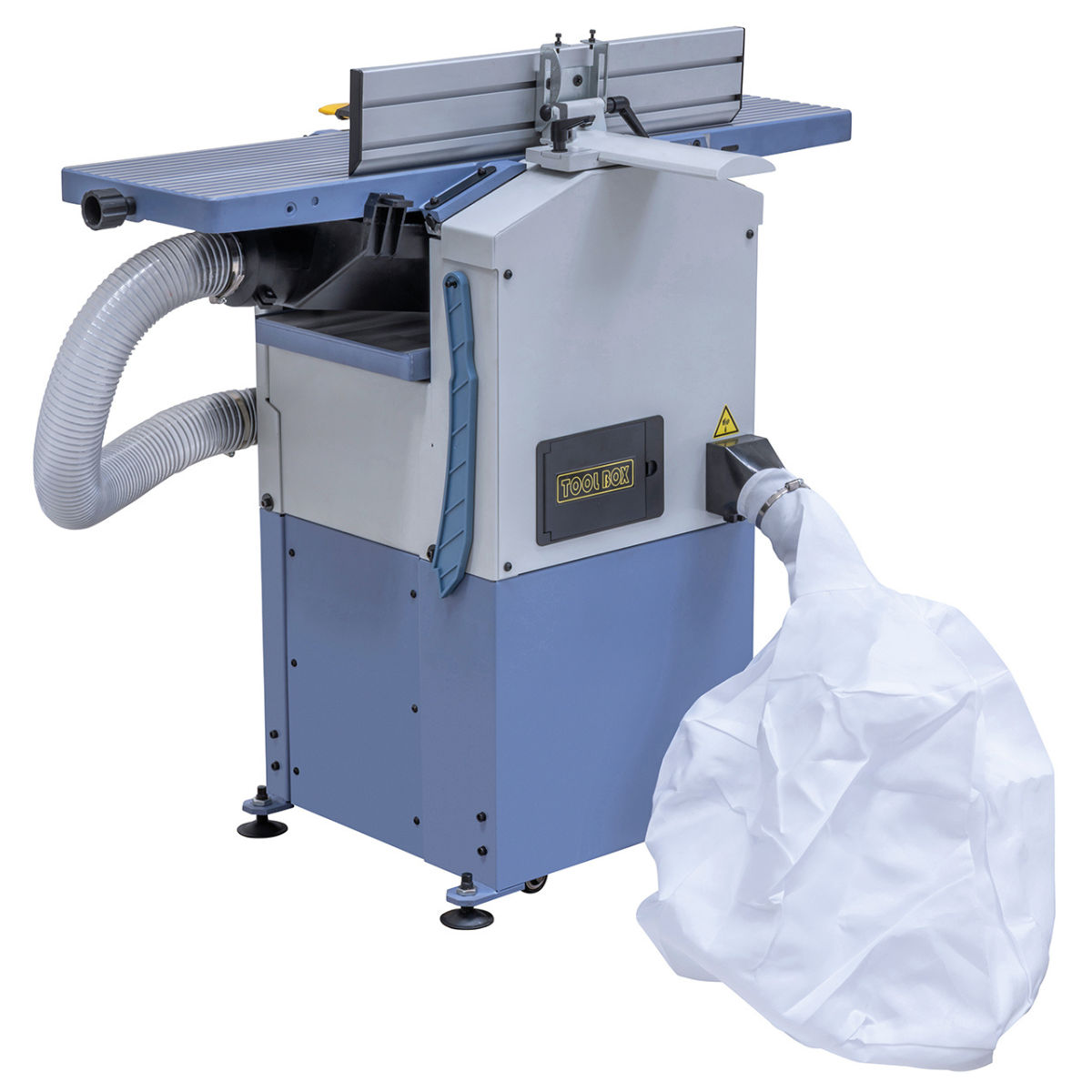

• Integrated vacuum cleaner with bag included for effective suction
• Quick and easy adjustment of the chipping depth
• Toothed feed roller for safe advancement of the workpieces
• Aluminum guide with prismatic guide, tiltable from 90° to 45°
• Transport trolley and essential accessories included
Technical data
| Surface planer | |
|---|---|
| Planing width | 305 mm |
| Table length | 1080 mm |
| Table height | 920 mm |
| Tree turns | 6700 rpm |
| TCT inserts | 28 pcs. |
| Shaft diameter | 62 mm |
| Planer guide | 640 x 125 mm |
| Guide inclination | 90° – 45° |
| Max. pass depth | 3 mm |
| Thickness planer | |
|---|---|
| Table length | 500 mm |
| Usable width | 305 mm |
| Min./max. working height | 5 – 160 mm |
| Max. pass depth | 2 mm |
| Progress | 6 m/min |
| Engine and power supply | |
|---|---|
| Suction nozzle | Ø 100 mm / 75 mm |
| S1 engine power 100% | 1.8 kW (2.4 HP) |
| Power consumption S6 40% | 2.5 kW (3.4 HP) |
| Available voltage | 230 V / 400 V |
| Dimensions and weight | |
|---|---|
| Machine dimensions (L x W x H) | 1140 x 820 x 1100 mm |
| Weight | approx. 98 kg |
Package Contents
• Spiral shaft with 28 TCT inserts
• 5 replacement TCT inserts
• Integrated vacuum cleaner
• Dust bag
• Push handle
• Transport trolley
Technical Specifications
• Pialla a spessore: larghezza 305 mm, altezza passante 5–160 mm, passata max 2 mm, avanzamento 6 m/min.
