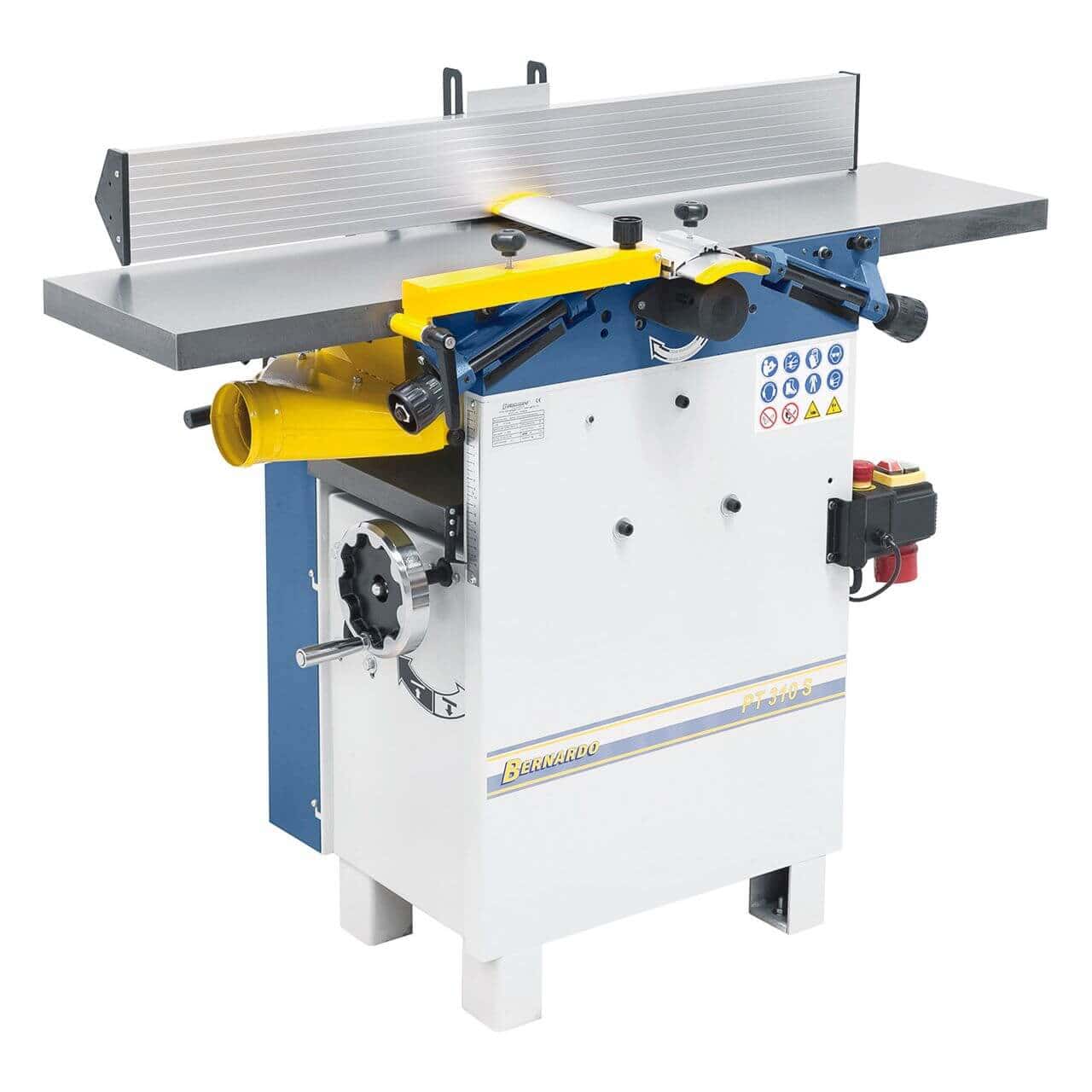

PT 410 S / 400 V planer and thicknesser
The PT 410 S combination machine is designed for precision and versatility when working with boards, beams, and panels. Thanks to its spiral cutterhead with 72 TCT inserts, it delivers high-quality finishes and significantly reduces noise. The gray cast iron worktables and sturdy construction ensure perfect flatness, while the optional mortising unit further expands its application possibilities.
Main features
• Spiral shaft with 72 4-edge TCT inserts
• Up to 50% less noise than traditional blades
• Reversible and individually replaceable inserts
• Planer guide with prismatic guide tiltable from 90° to 45°
• Tilting planer tables for quick change to thicknessing mode
• Fine adjustment of the planes and grooves for noise reduction
• Centrally supported thickness board for maximum stability
• CE compliant protective casing
• Integrated tiltable suction nozzle Ø 100 mm
• Non-deformable grey cast iron planer tables
Technical data
| Surface planer | |
|---|---|
| Planing width | 410 mm |
| Table length | 1600 mm |
| Table height | 920 mm |
| Tree turns | 4000 rpm |
| TCT inserts | 72 pcs. |
| Shaft diameter | 95 mm |
| Planer guide | 1120 x 130 mm |
| Guide inclination | 90° – 45° |
| Max. pass depth | 5 mm |
| Thickness planer | |
|---|---|
| Table length | 750 mm |
| Usable width | 410 mm |
| Min./max. working height | 4 – 220 mm |
| Max. pass depth | 2.5 mm |
| Progress | 8 m/min |
| Engine and power supply | |
|---|---|
| Suction nozzle | Ø 100 mm |
| S1 engine power 100% | 3.0 kW (4.0 HP) |
| Power consumption S6 40% | 4.2 kW (5.7 HP) |
| Voltage | 400 V |
| Dimensions and weight | |
|---|---|
| Machine dimensions (L x W x H) | 1610 x 1050 x 1100 mm |
| Weight | approx. 340 kg |
Package Contents
• Spiral shaft with 72 TCT inserts
• 5 replacement TCT inserts
• Switch/plug combination
• Push handle
