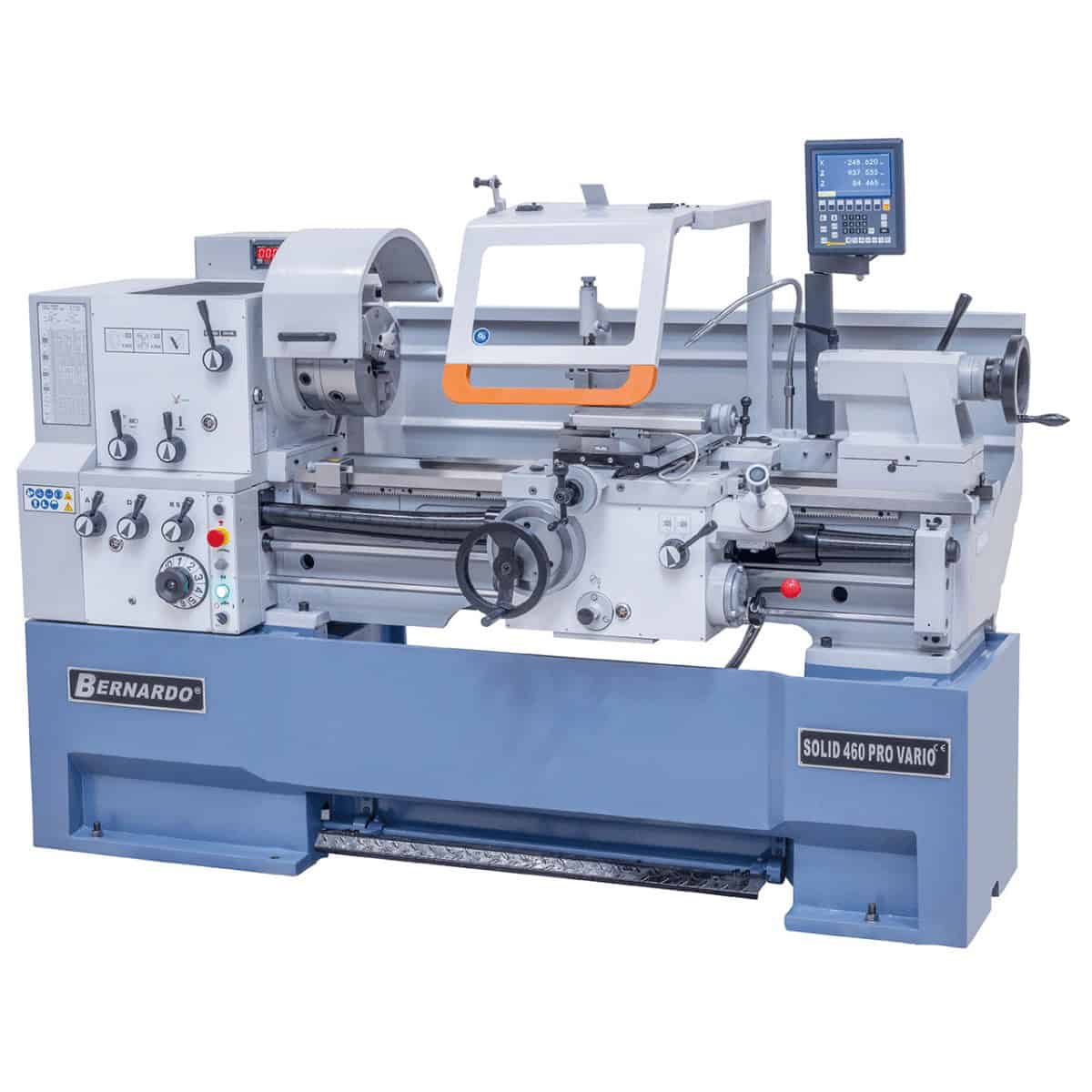

Solid 460 x 1000 Pro Vario Universal Parallel Lathe
The Solid 460 x 1000 Pro Vario universal lathe is designed for the economical and precise production of single parts and small series. Thanks to its robust design and ease of use, it is ideal for machine shops, plant construction, production, and custom manufacturing.
Main features
• Rigid one-piece cast iron structure for high stability and low vibrations
• Delta frequency converter as standard for high torque even at low speeds
• Continuous speed regulation with digital display
• Hardened and ground gears also in the advancement box
• Rapid longitudinal and transverse advance to reduce downtime
• Centralized control for threading and feed with lead screw and tow bar
• Large, hardened and high-precision ground gears
• Rigid and prismatic bed, ideal for precise turning
• High precision guaranteed in the rotation of the spindle
Technical table
| Characteristic | Value |
|---|---|
| Distance between tips | 1000 mm |
| Tip height | 230 mm |
| Maximum turning diameter on bed | 460 mm |
| Max. turning diameter on recess | 690 mm |
| Max. turning diameter on slide | 270 mm |
| Pallet width | 300 mm |
| Spindle hole | 80 mm |
| Spindle attachment | DIN 55029, D1-8 |
| Speed range | 25–250 / 250–1700 rpm |
| Longitudinal advances | (42) 0.055 – 3.065 mm/rev |
| Transversal advances | (42) 0.025 – 1.386 mm/rev |
| Metric threads | (41) 0.1 – 14 mm |
| Inch threads | (60) 2 – 112 Days/1" |
| Tailstock quill diameter | 60 mm |
| Tailstock quill stroke | 130 mm |
| Tailstock quill attachment | MK 4 |
| Engine power | 5.5 kW (7.5 HP) |
| Machine dimensions (L x W x H) | 2300 x 1080 x 1600 mm |
| Weight | approx. 1730 kg |
Package Contents
• ES-12 V 3-axis digital display with LCD display
• 3-jaw self-centering chuck PS3-250 mm / D8
• Fixed bezel with max passage Ø 150 mm
• Movable bezel with max passage Ø 110 mm
• Initial fill with Shell Tellus 46
• Self-centering plate Ø 450 mm
• Quick change tool holder with 4 inserts
• Quick change tool holder protection
• Pedal with CE compliant braking function
• Lubrication and cooling system
• Frequency inverter
• Safety clutch
• Rapid longitudinal and transverse advance
• Replacement gears
• Reduction compass
• 2 counterpoints
• Thread clock
• Integrated LED lamp
• Rear chip collection bulkhead
• Tool set for use and maintenance
