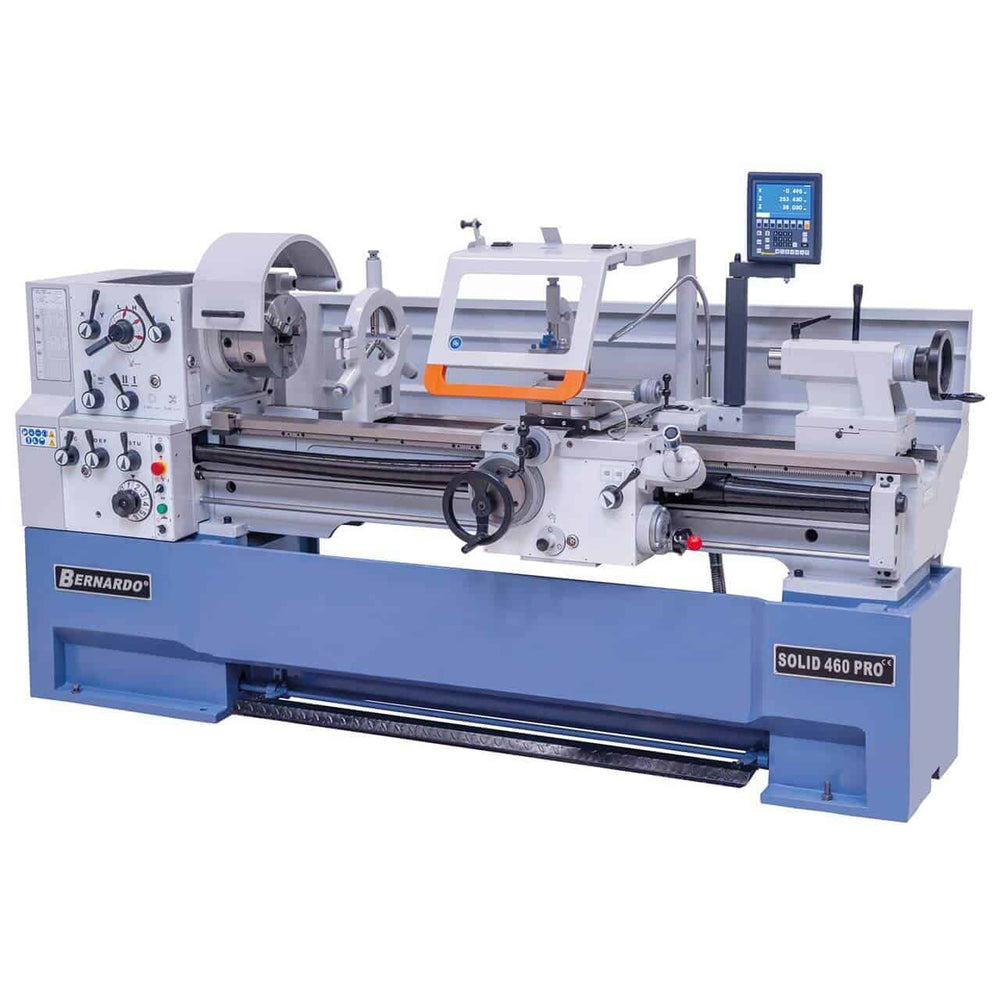

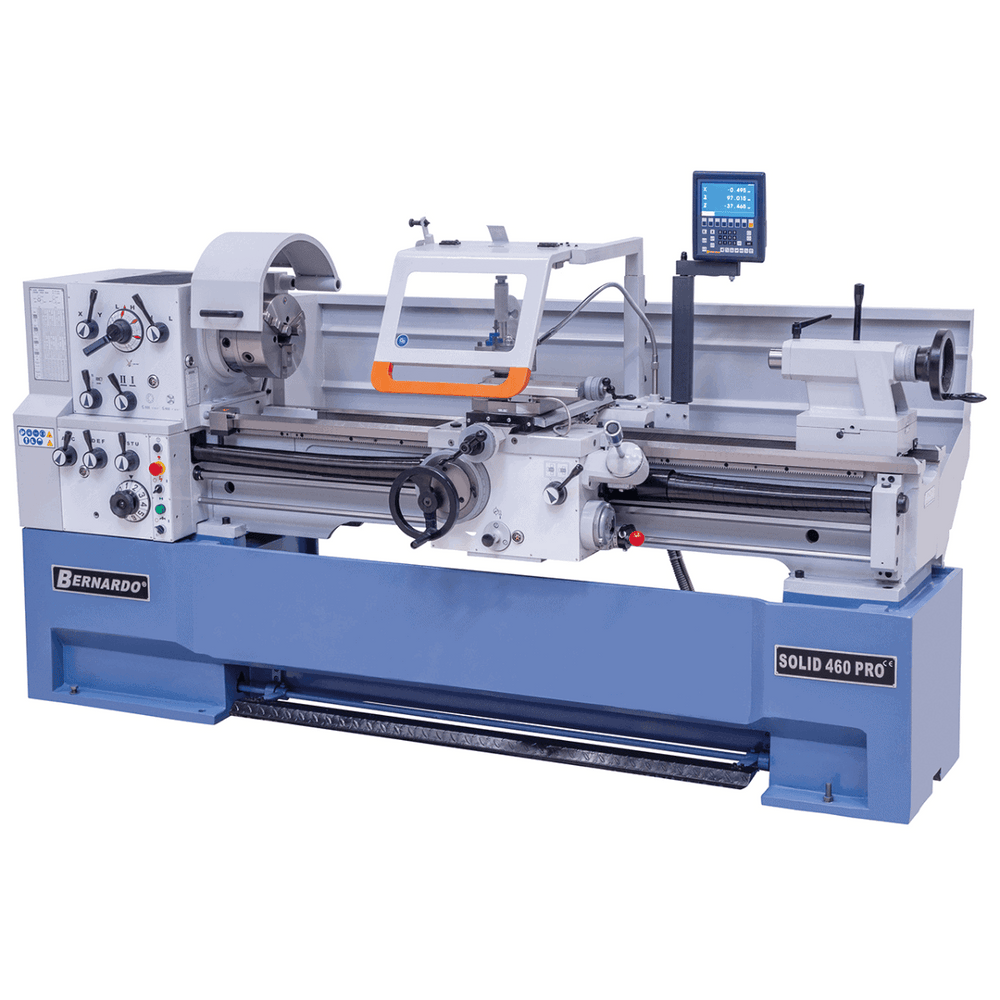

Solid 460 x 2000 Pro Lathe

The Solid 460 x 2000 Pro lathe is a machine tool designed for precision turning of metal parts and other materials. It works by rotating the workpiece while a cutting tool is used to remove excess material, thus forming the part to the desired shape and size. Here's a detailed explanation of how the Solid 460 x 2000 Pro lathe works:

1. Assembly of the Piece

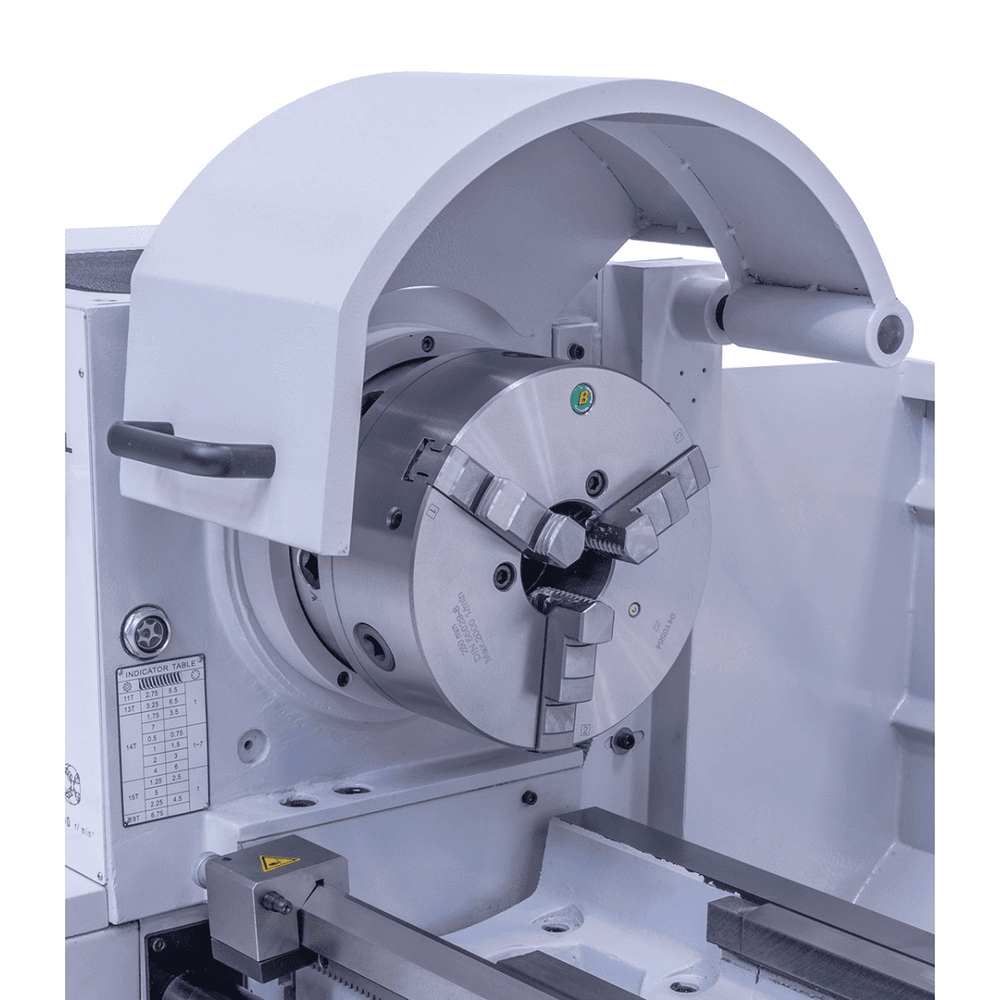

• The workpiece is clamped to the chuck, a rotating device located on the lathe headstock. The Solid 460 x 2000 Pro includes a PS3-250 mm 3-jaw chuck, which allows the workpiece to be held securely and centered.

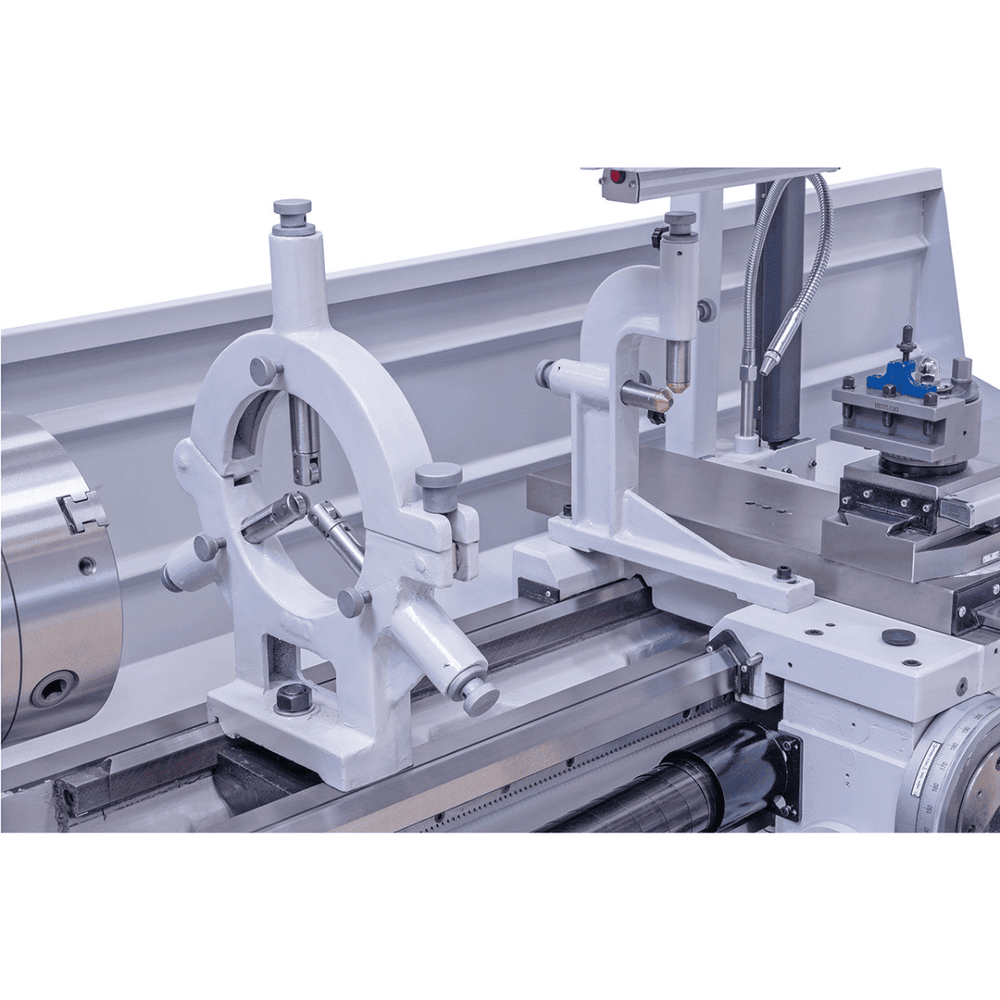

• If necessary, steady rests (fixed or movable) are used to support the workpiece during machining, reducing deflection or vibration.

2. Spindle Rotation

• Once secured, the spindle rotates at the desired speed. The lathe offers an adjustable speed range between 25 and 1700 rpm, allowing you to adapt the speed based on the workpiece material and the type of machining (roughing or finishing).

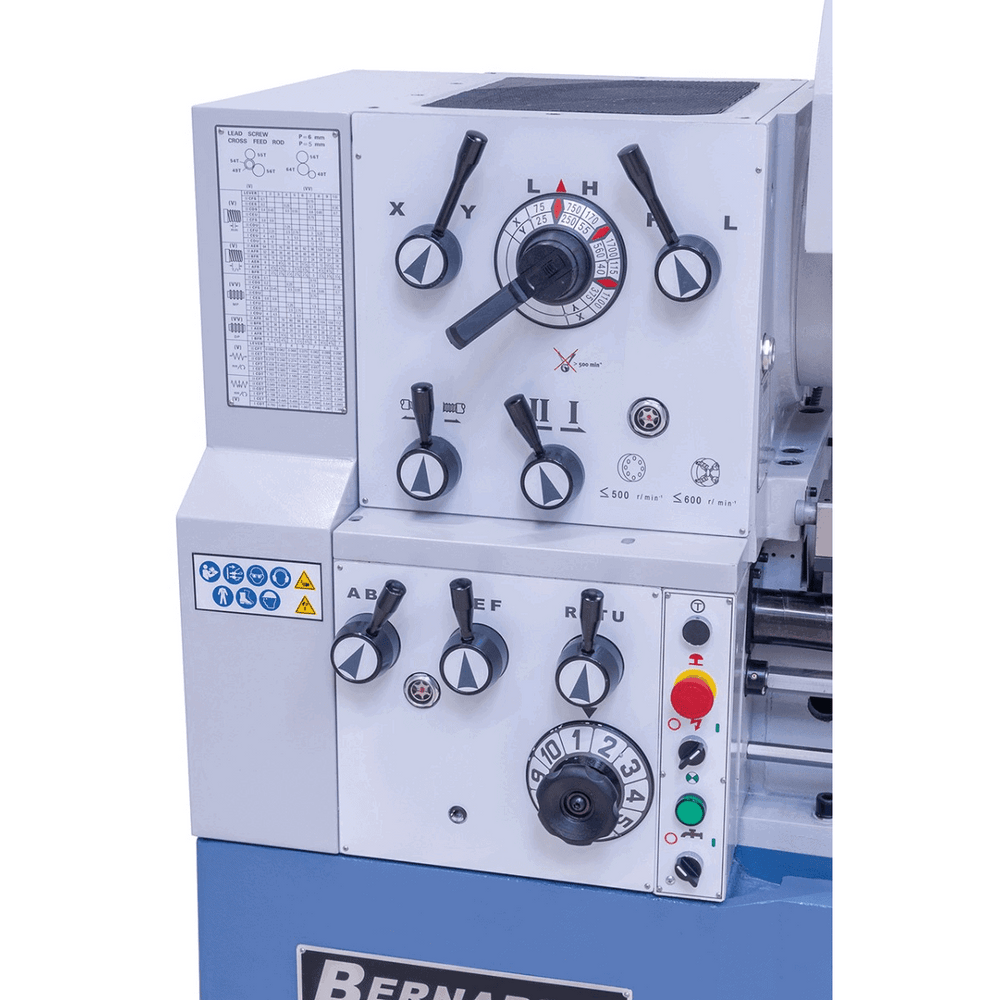

• Speed regulation is done via a central control, which allows for precise and easy control.

3. Tool Movement

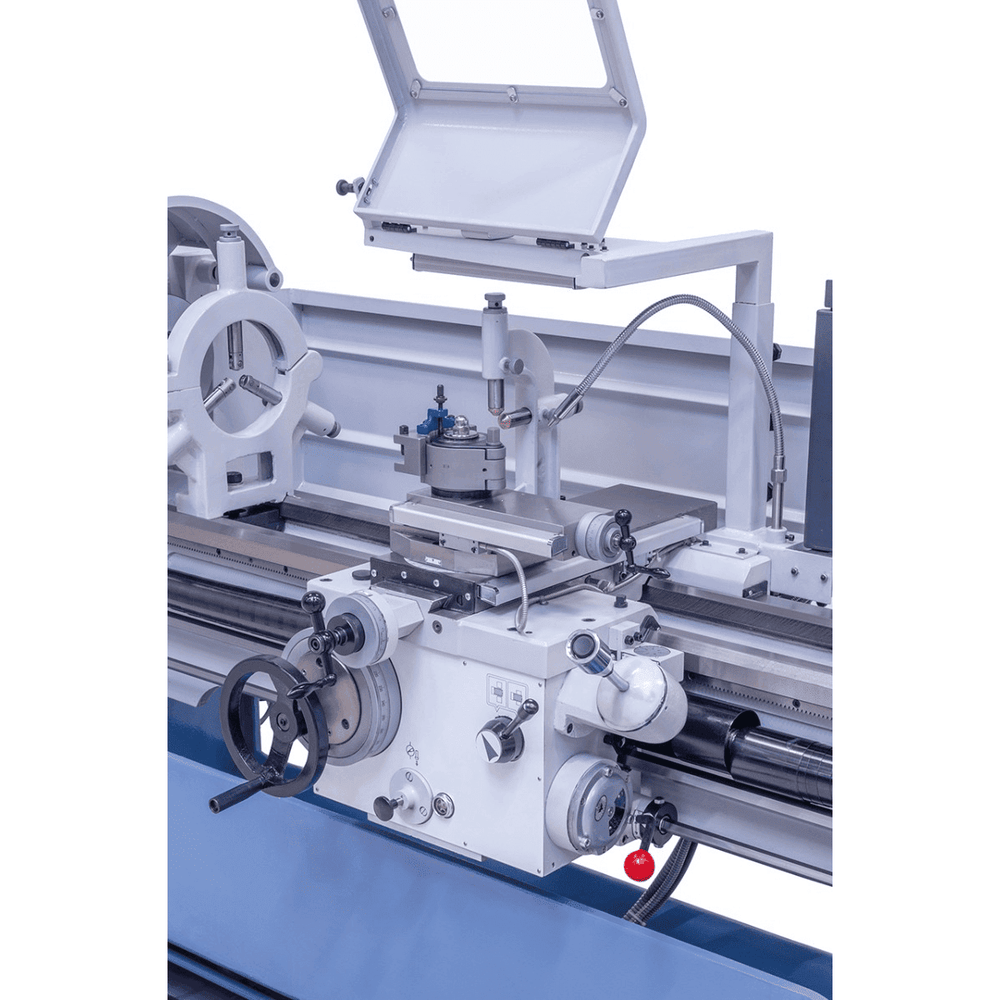

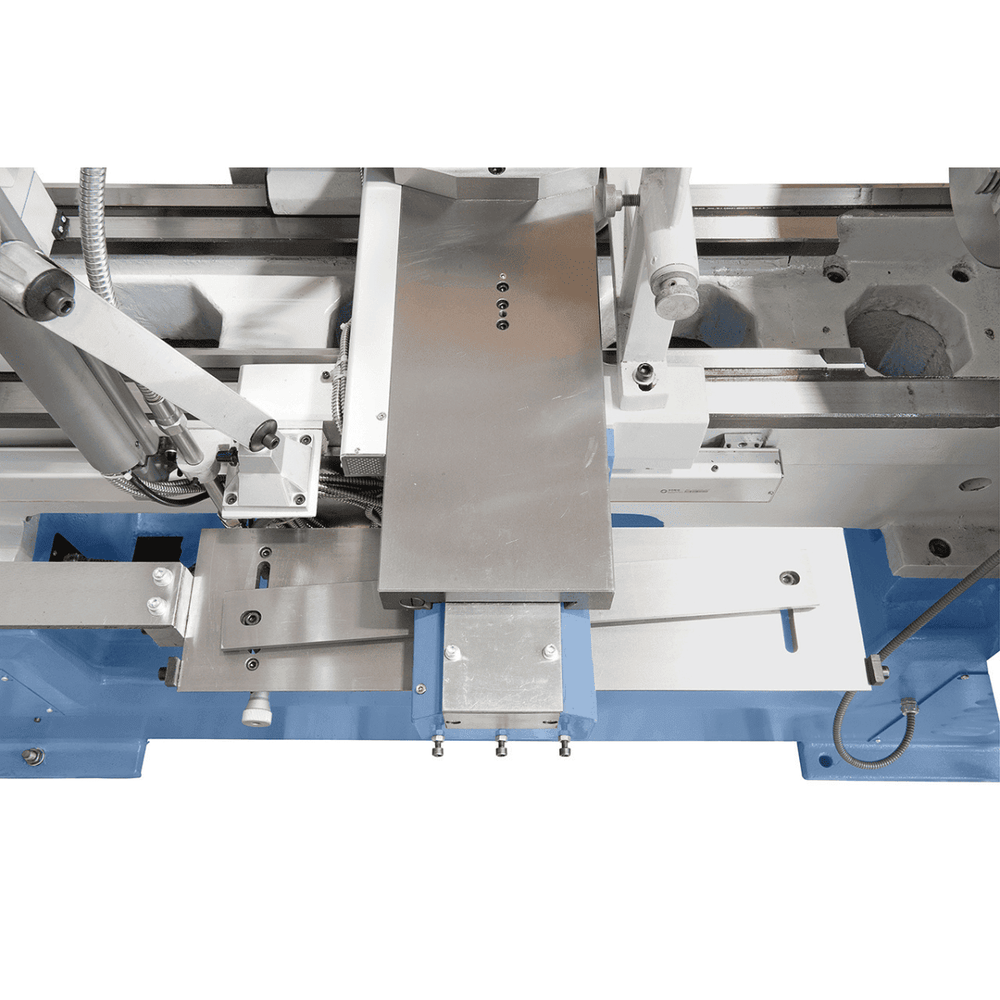

• The cutting tool is mounted on a movable carriage that can move longitudinally (along the axis of the workpiece) and transversely (perpendicular to the axis of the workpiece).
• The Solid 460 x 2000 Pro lathe features rapid longitudinal and transverse feed, which reduces setup times and speeds up operations.

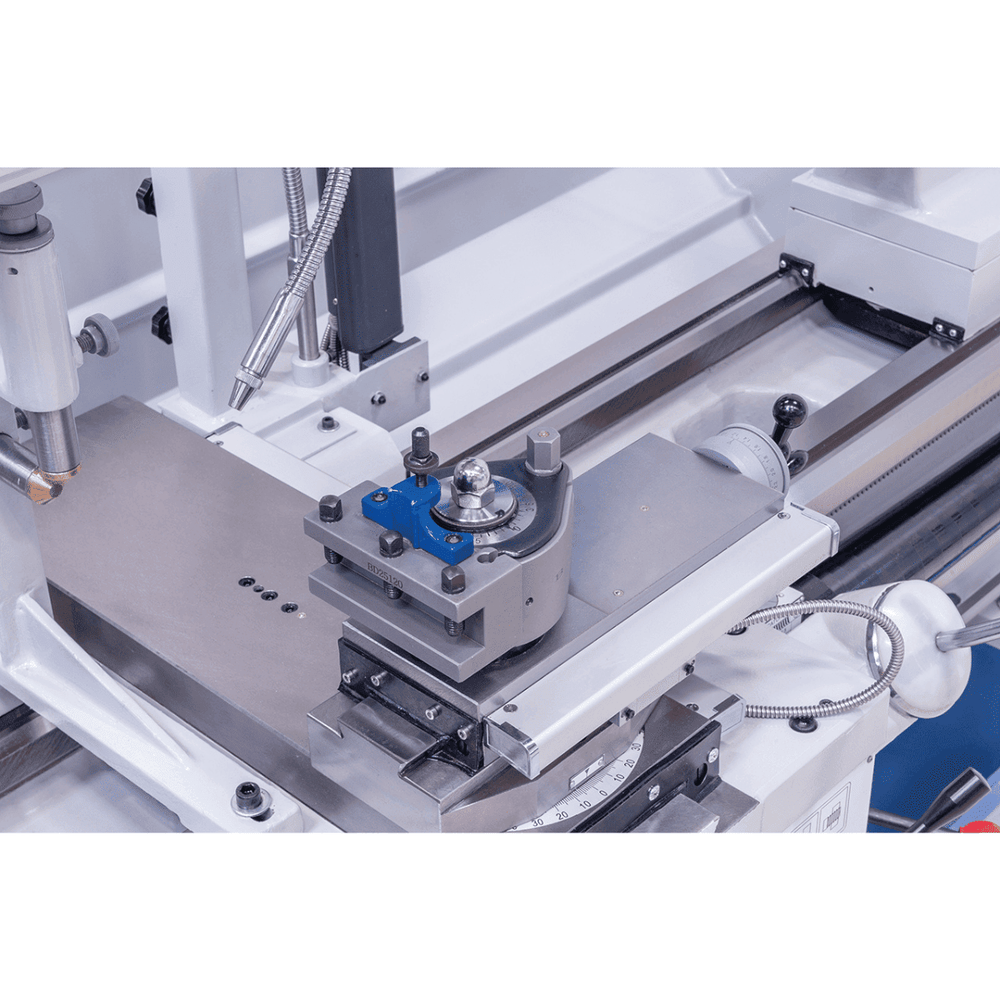

• The tool can be easily changed thanks to the quick-change tool holder, which allows you to install up to four different inserts.

4. Turning

• During turning, the workpiece rotates while the tool slowly advances to remove excess material, shaping the workpiece. The feed rate can be adjusted precisely: the lathe supports longitudinal feed rates from 0.055 to 3.065 mm/rev and transverse feed rates from 0.025 to 1.386 mm/rev.
• The machine is capable of performing various types of machining operations, such as rolling, facing, threading, parting and drilling.

5. Threading

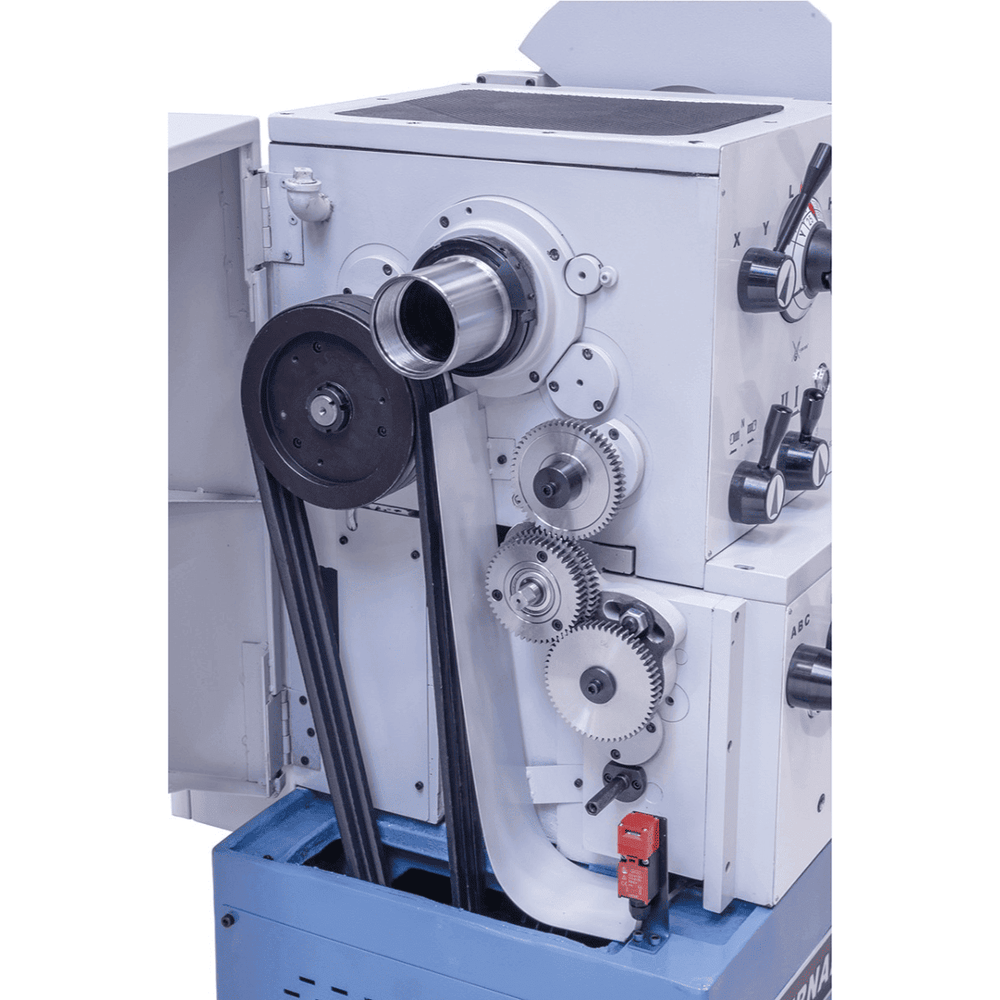

• The lathe can produce metric and inch threads thanks to the lead screw and drag bar. The range supports metric threads from 0.1 to 14 mm and inch threads from 2 to 112 threads per inch.

6. Cooling System

• To prevent overheating during prolonged machining, the lathe is equipped with a cooling system that keeps the temperature of the workpiece and the tool under control, improving the quality of the finish and extending the life of the tools.

7. Operational Security

• The Solid 460 x 2000 Pro lathe is equipped with a motor with magnetic brake and a brake pedal compliant with CE standards, which allows for quick and safe stopping of the spindle rotation.

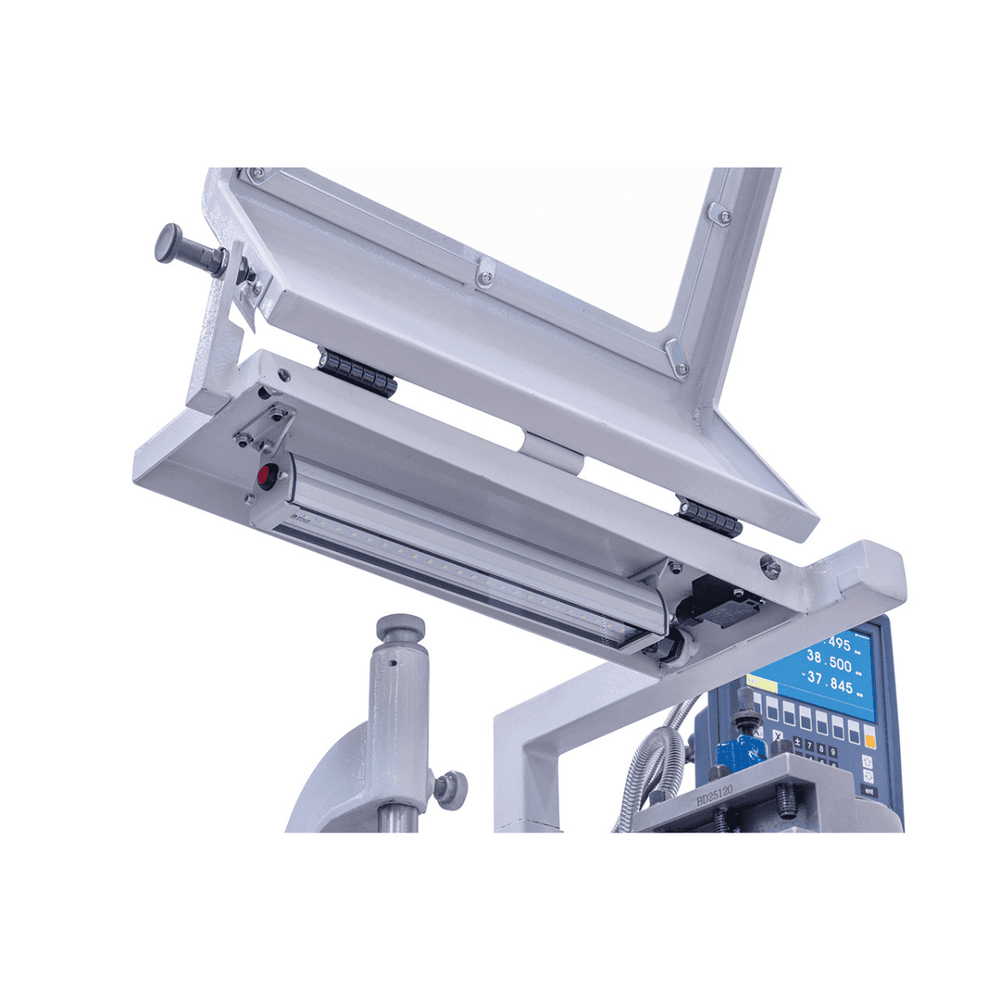

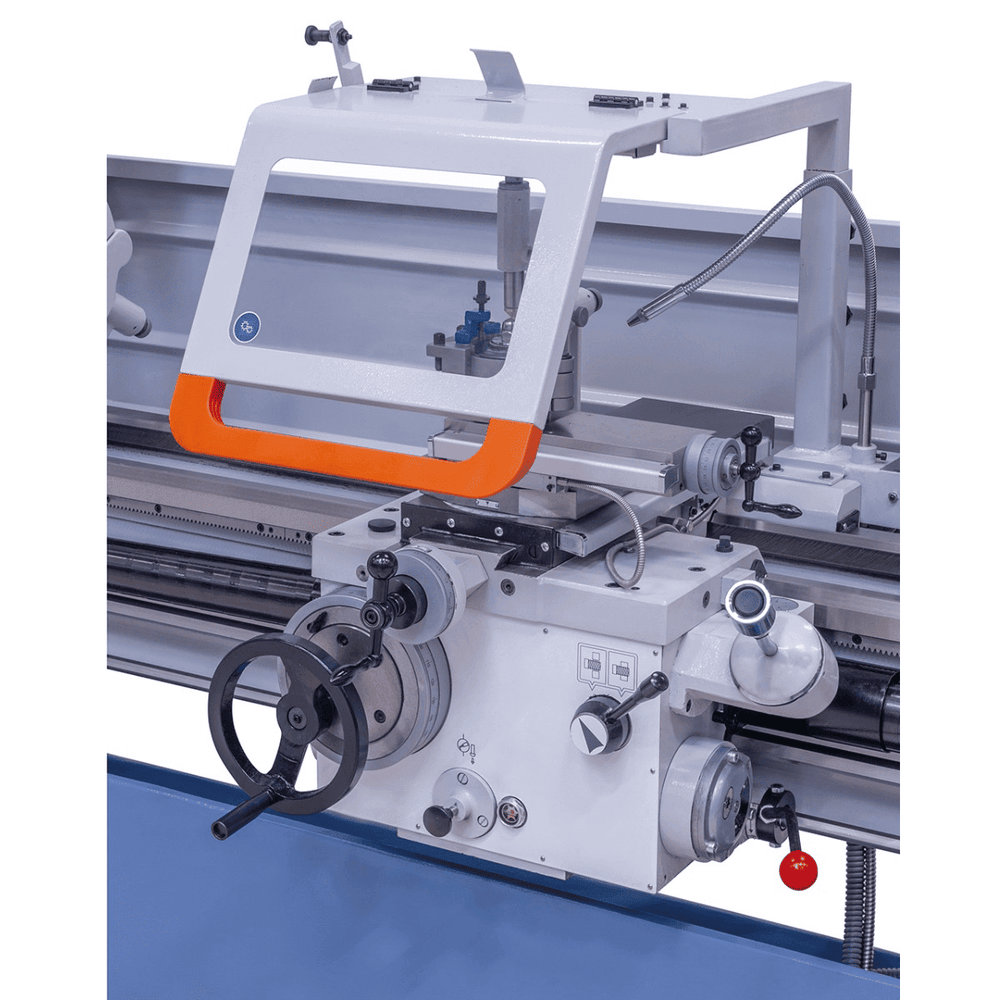

• Various protective devices, such as the tool holder guard and the rear wall for chip collection, ensure a safer working environment.

8. Accuracy Control

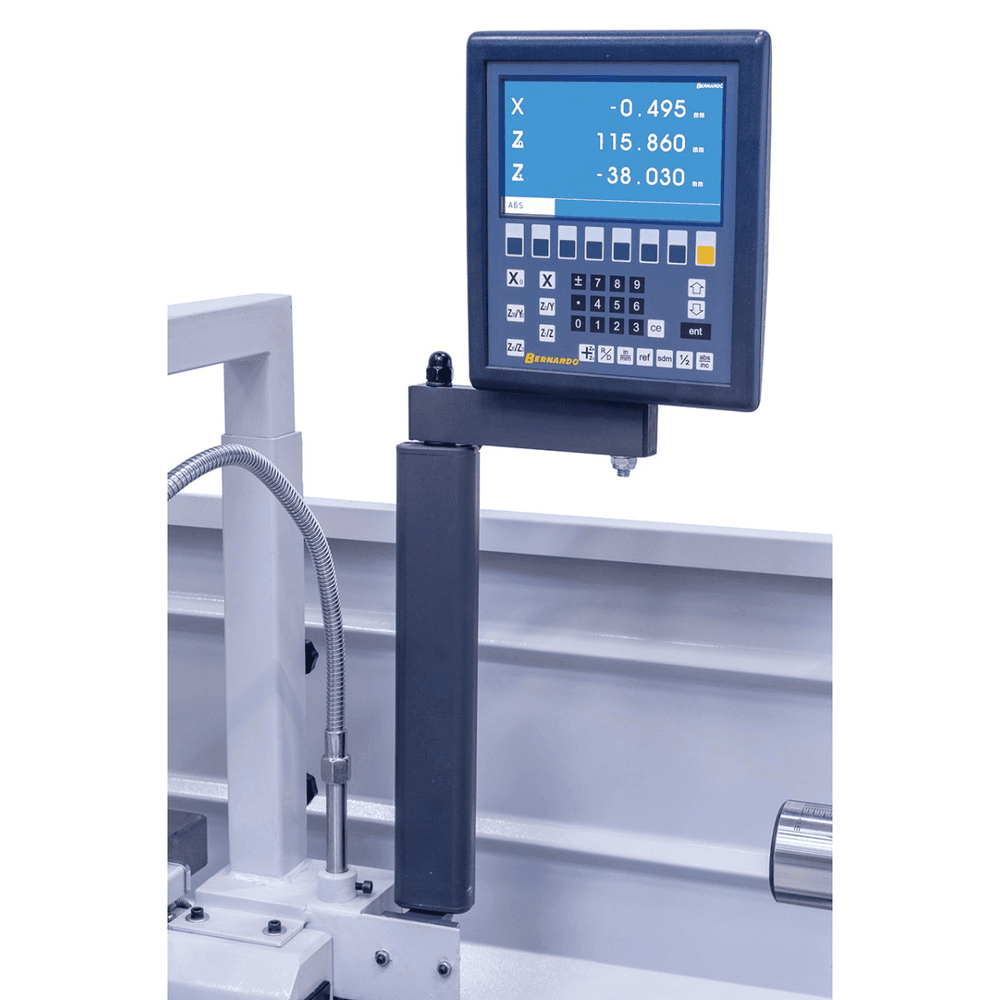

• The ES-12 V 3-axis digital readout allows real-time monitoring of tool position, improving machining accuracy. This tool is essential for machining operations requiring very tight tolerances.

In short, the Solid 460 x 2000 Pro lathe combines workpiece rotation, controlled tool movement, and automatic feed to achieve precise, high-quality machining. The machine is versatile, suitable for a variety of machining operations, and offers advanced solutions for turning single parts and small batches.
