Description

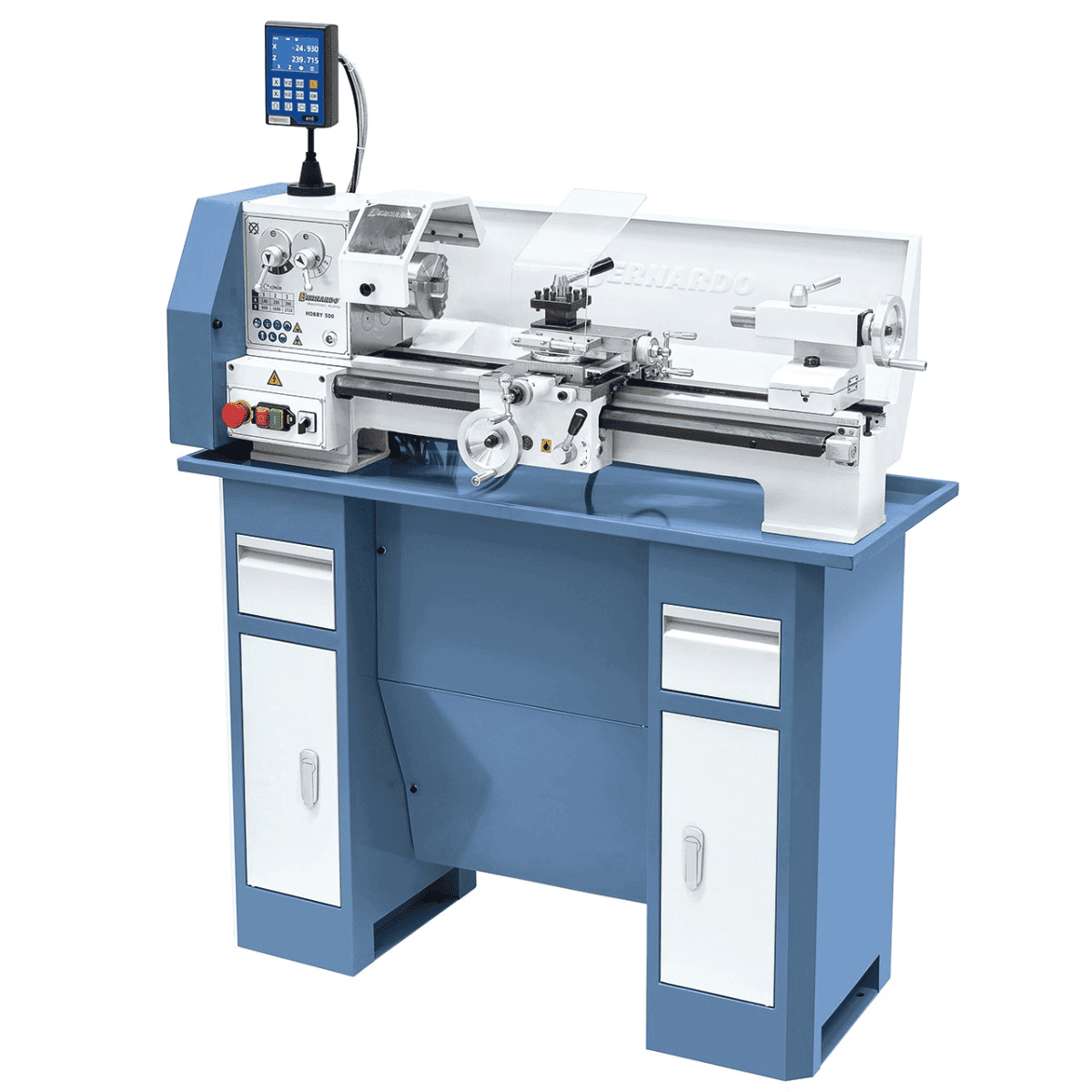

The Hobby 500/400 V benchtop lathe is the ideal choice for advanced hobbyists and small workshops seeking precision, compactness, and ease of use. Equipped with a DT 40 2-axis digital display and a 6-speed mechanical gearbox , it allows for smooth and accurate machining of metals and plastics. The hardened and ground prismatic bed ensures stability, while the compact design fits perfectly even in small spaces.
Main features
• 6-speed manual transmission for quick adjustment
• Induction hardened and ground prismatic bed
• Adjustable guides without play via wedge bars
• Excellent value for money for hobbyists and education
• Lead screw for threading and longitudinal feed
• Adjustable precision double bearing spindle
• Adjustable tailstock for conical turning operations
• Safety switch with low voltage release
• Compact design, ideal for small spaces and worktops
Technical table
| Function | Value |
|---|---|
| Distance between tips | 500 mm |
| Height of the tips | 110 mm |
| Turning diameter on the bed | 220 mm |
| Spindle hole | 20 mm |
| Spindle hole attachment | MK 3 |
| Speed range | 140–1710 rpm (6 levels) |
| Longitudinal advances | (4) 0.05–0.2 mm/rev |
| Metric threads | (11) 0.4–3 mm |
| Inch threads | (11) 8–28 TPI |
| Tailstock quill stroke | 45 mm |
| Steerer tube attachment | MK 2 |
| Engine power S1 100% | 0.55 kW / 400 V |
| Power consumption S6 40% | 0.80 kW / 400 V |
| Machine dimensions (L x W x H)* | 1150 x 480 x 420 mm |
| Weight | approx. 130 kg |
* Without base frame
Package Contents
• DT 40 2-axis digital display
• 3-jaw self-centering chuck Ø 100 mm
• Set of gears for thread change
• Fixed tips in hardened steel
• 4-position tool holder
• Cross slide with upper support
• Power supply protection
