Description

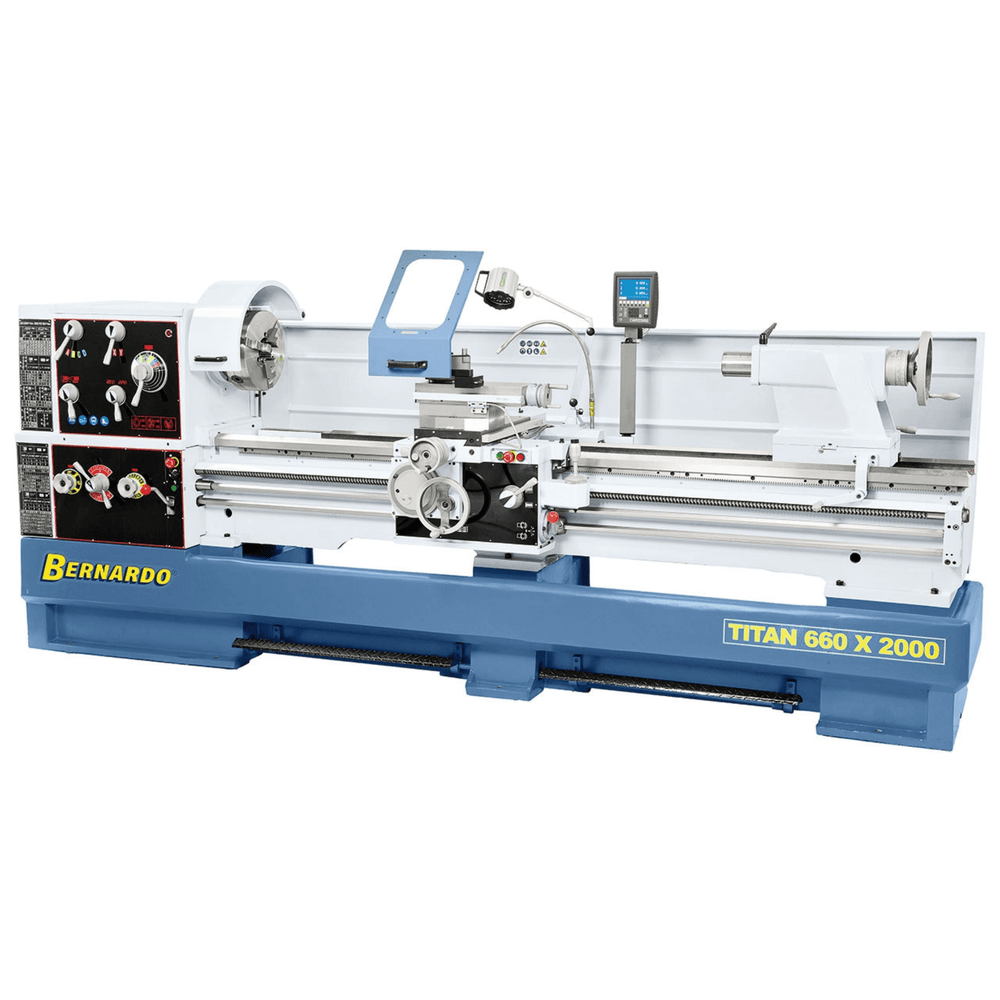

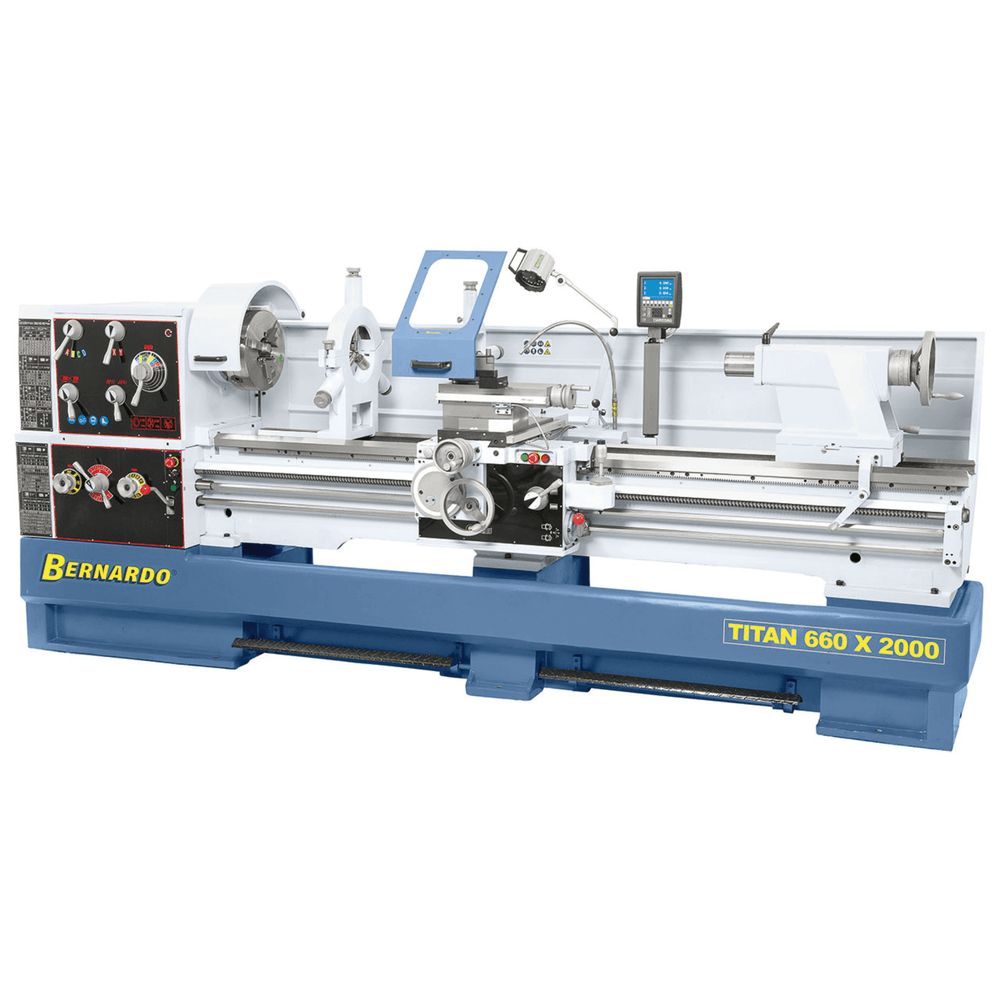

The Titan 660 x 2000 is a production parallel lathe designed for professional machining, featuring a large turning capacity, a multi-disc mechanical clutch, and a 3-axis digital readout. Its robust construction, ground gears, and ease of use make it ideal for single and series machining in the mechanical engineering, plant engineering, and custom manufacturing industries.
Main features
• Bed with reinforcing ribs to absorb vibrations and ensure stability
• Prismatic base in grey cast iron, induction hardened and ground
• Spindle on precision angular roller bearings
• ES-12 V 3-axis digital display with LCD display included
• Rapid longitudinal and transverse advance for increased productivity
• Multi-disc mechanical clutch for smooth starts and engine protection
• Centralized control for feeds and threads via lead screw and feed screw
• Hardened and ground gears and shafts also in the feed gear
• 105mm spindle bore for machining large workpieces
• CE compliant electromechanical foot brake for safety and quick stopping
• Excellent performance also in frontal turning
Technical table
| Function | Value |
|---|---|
| Distance between tips | 2000 mm |
| Height of the tips | 330 mm |
| Turning diameter on the bed | 660 mm |
| Turning diameter on removed bridge | 900 mm |
| Turning diameter on the slide | 460 mm |
| Pallet width | 400 mm |
| Spindle hole | 105 mm |
| Spindle attachment | DIN 55029, D1-8 |
| Speed range | (16) 25–1600 rpm |
| Longitudinal advances | (25) 0.044–1.48 mm/rev |
| Transversal advances | (25) 0.022–0.74 mm/rev |
| Metric threads | (54) 0.45–120 mm |
| Inch threads | (54) 7/16–80 TPI |

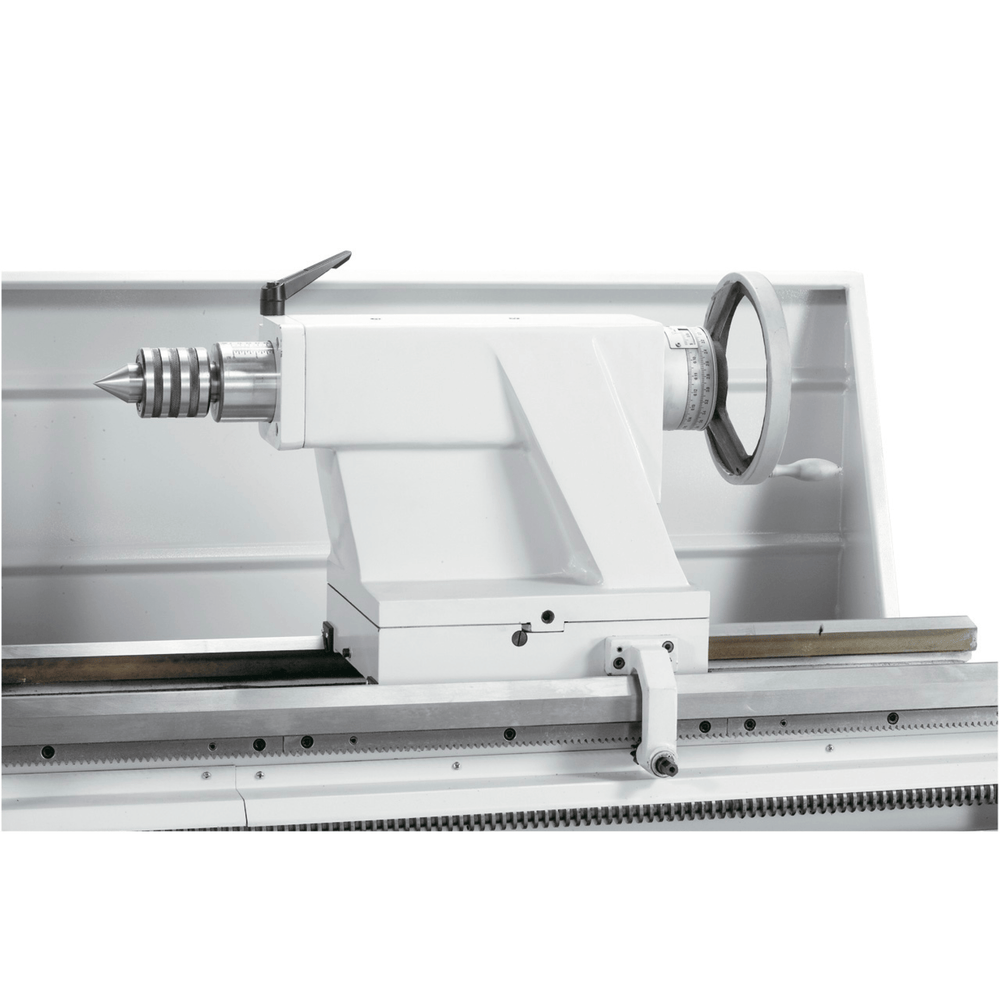

| Tailstock quill diameter | 90 mm |
| Steerer tube race | 235 mm |
| Steerer tube attachment | MK 5 |
| Engine power | 7.5 kW (10 hp) |
| Machine dimensions (L x W x H) | 3630 x 1200 x 1520 mm |
| Weight | approx. 2900 kg |
Package Contents

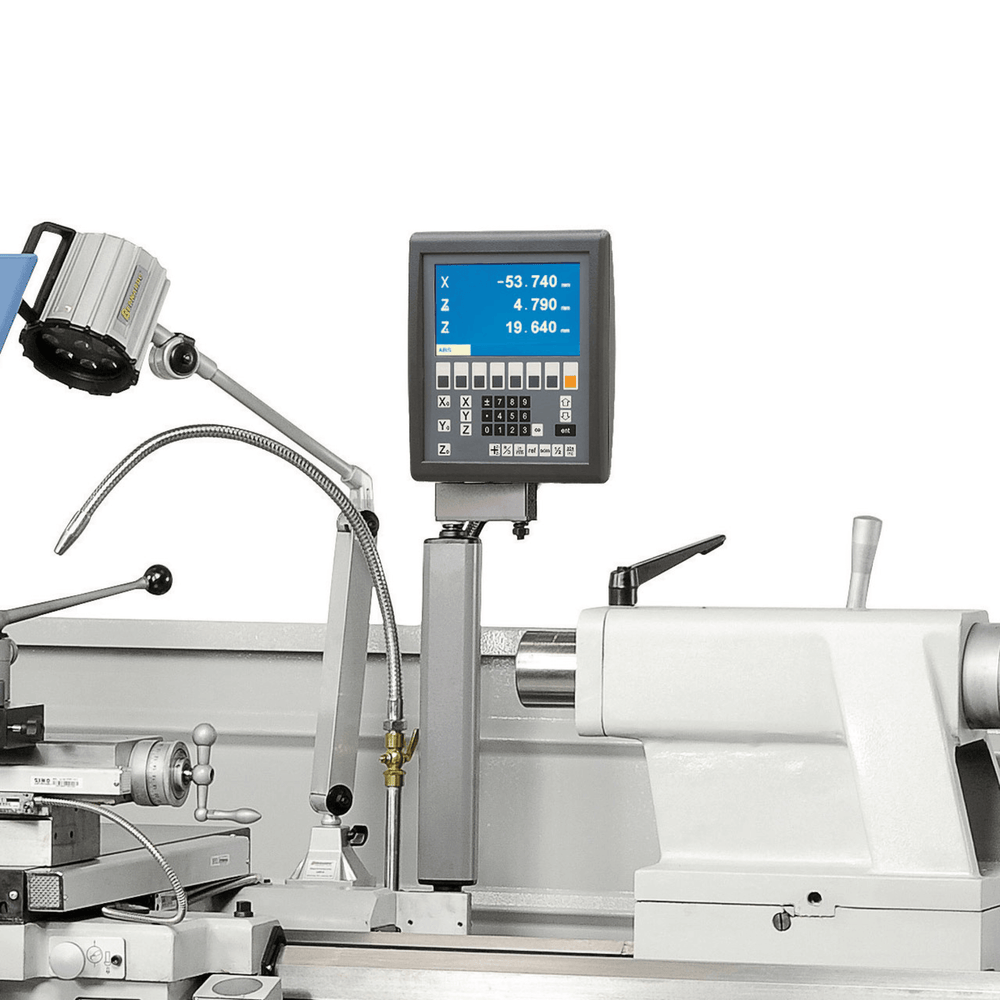

• ES-12V 3-axis digital display with LCD
• Slip clutch
• Rapid longitudinal and transverse advance
• LED light for work area
• 3-jaw chuck PS3-315 mm / D8 connection
• Clamping disc Ø 450 mm

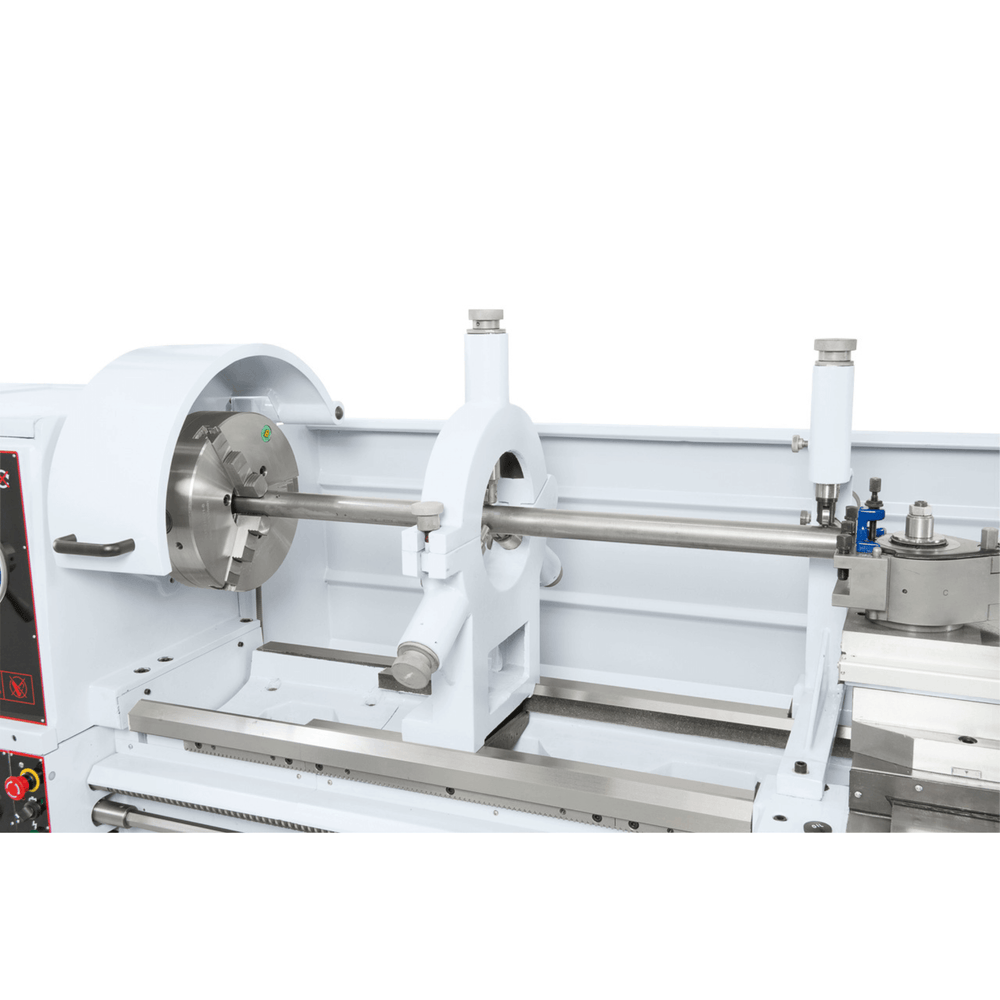

• Fixed bezel – max passage Ø 180 mm
• Movable bezel – max passage Ø 120 mm
• 2 centering tips
• Motor with CE compliant magnetic brake
• Brake pedal compliant with CE regulations
• First fill with Shell Tellus 46 oil
• Cooling system
• Quick change tool holder with 4 inserts
• Quick change tool holder protection
• Gear set for gear changes
• Reduction sleeve
• Rear bulkhead for chips

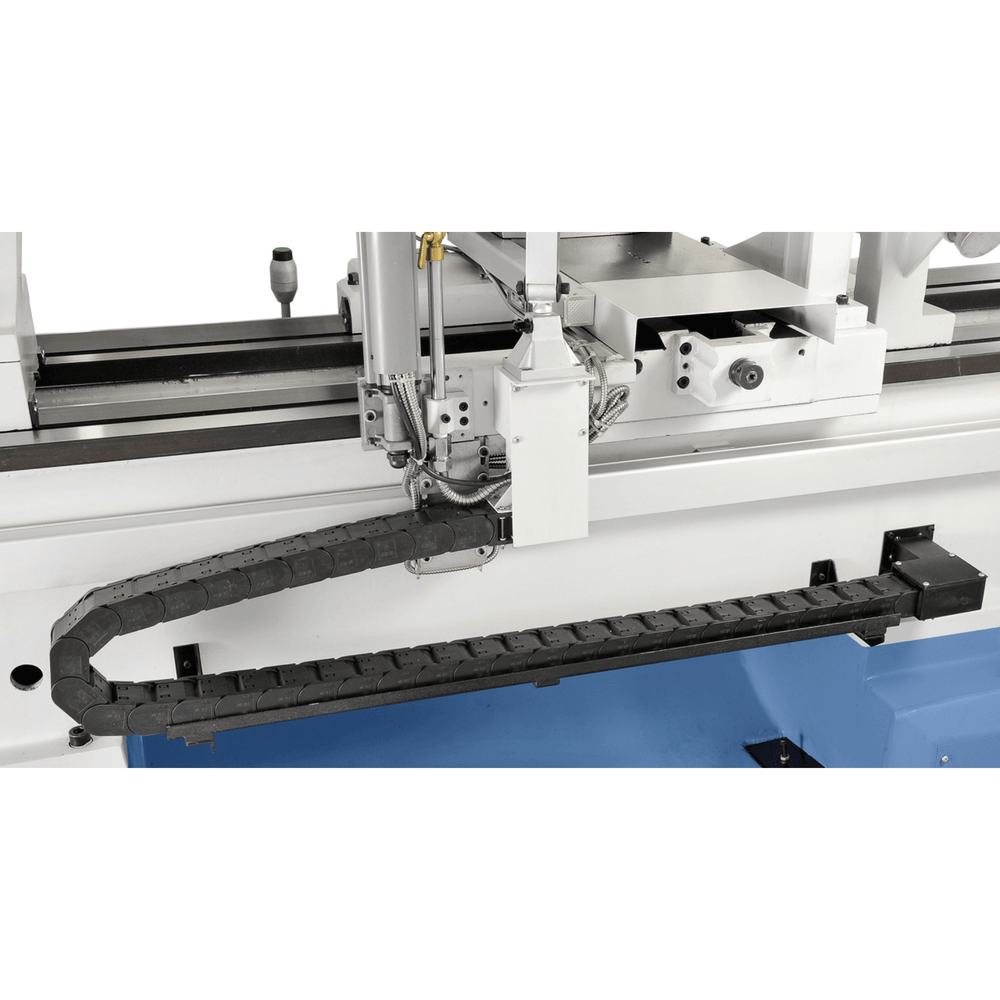

• Cable passage via cable carrier
• Commissioning tool kit
