Description
The Titan 660 x 3000 is an advanced production parallel lathe, designed for maximum efficiency when machining single or batch parts. Its robust design, 105 mm spindle bore, multi-disc mechanical clutch, and 3-axis digital display make it perfect for medium to large-scale applications in mechanical engineering, plant engineering, and custom industrial manufacturing.
Main features
• Prismatic base in grey cast iron, induction hardened and precision ground
• Main spindle with high precision angular roller bearings

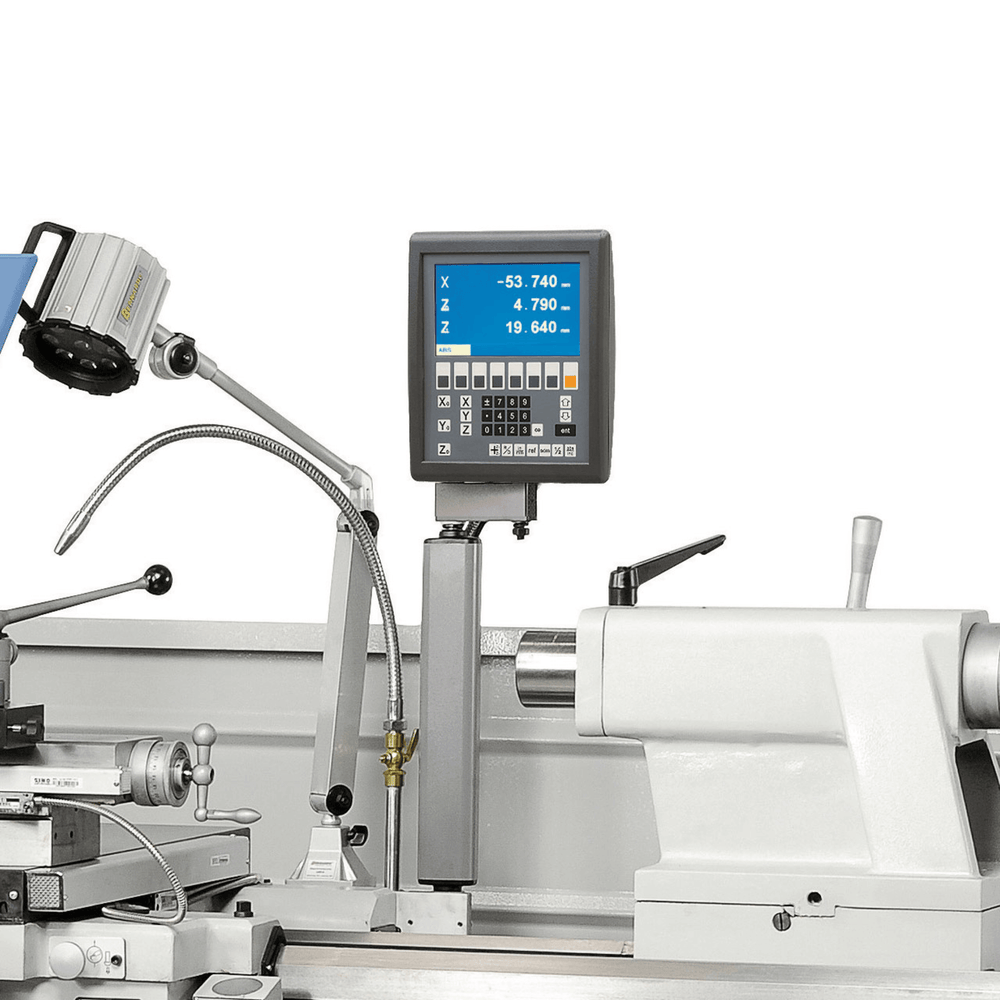

• ES-12V 3-axis digital display with LCD screen included
• Rapid longitudinal and transverse feed for faster machining
• Multi-disc mechanical clutch for smooth starts and greater mechanical protection
• Centralized control of feeds and threads with lead screw and feed screw
• Hardened and ground gears and shafts also in the power unit
• Spindle hole Ø 105 mm for working on large diameter pieces
• CE compliant electromechanical foot brake for immediate safe stops
• Machine bed stiffened with ribs to absorb vibrations
• Excellent performance even in frontal machining
Technical table
| Function | Value |
|---|---|
| Distance between tips | 3000 mm |
| Height of the tips | 330 mm |
| Turning diameter on the bed | 660 mm |
| Turning diameter with bridge removed | 900 mm |
| Turning diameter on the slide | 460 mm |
| Pallet width | 400 mm |
| Spindle hole | 105 mm |
| Spindle attachment | DIN 55029, D1-8 |
| Speed range | (16) 25–1600 rpm |
| Longitudinal advances | (25) 0.044–1.48 mm/rev |
| Transversal advances | (25) 0.022–0.74 mm/rev |
| Metric threads | (54) 0.45–120 mm |
| Inch threads | (54) 7/16–80 TPI |

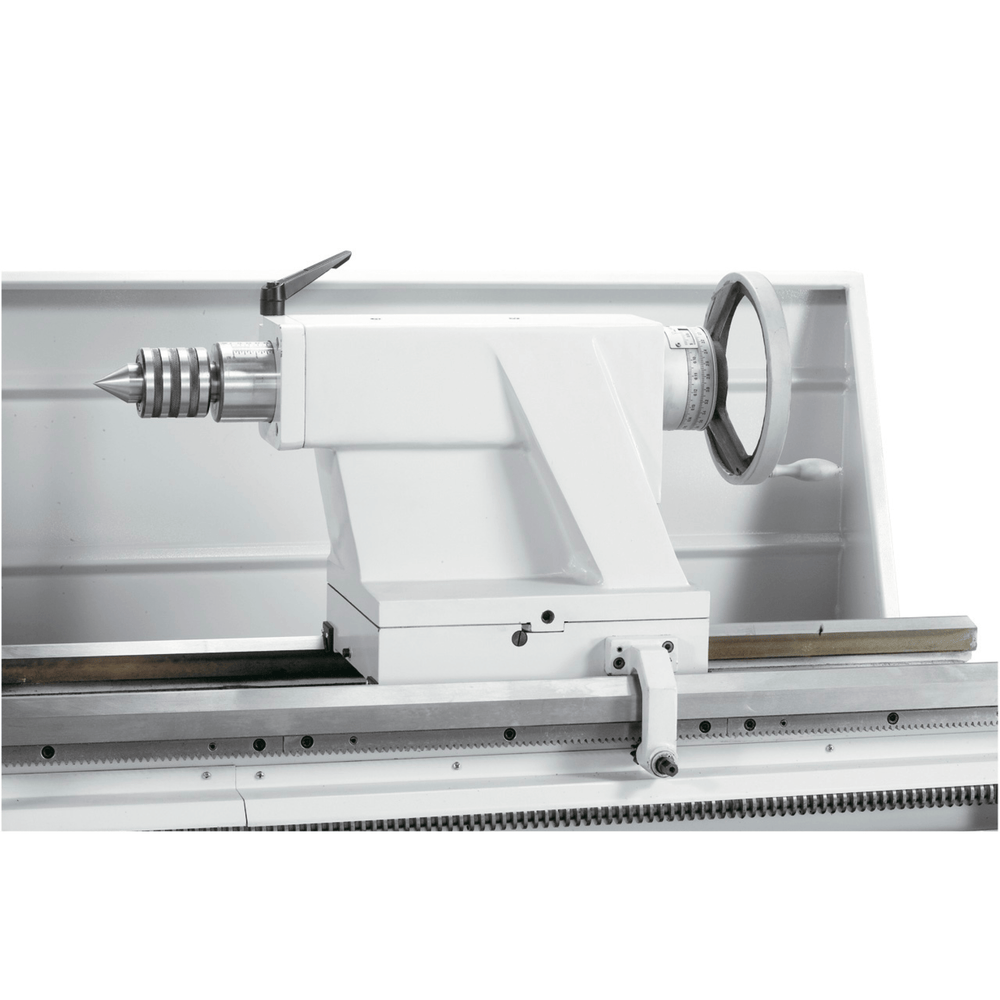

| Tailstock quill diameter | 90 mm |
| Steerer tube race | 235 mm |
| Steerer tube attachment | MK 5 |
| Engine power | 7.5 kW (10 hp) |
| Machine dimensions (L x W x H) | 4630 x 1200 x 1520 mm |
| Weight | approx. 3300 kg |
Package Contents
• ES-12V 3-axis digital display with LCD
• Slip clutch
• Rapid longitudinal and transverse advance
• LED light for work area
• 3-jaw chuck PS3-315 mm / D8 connection
• Clamping disc Ø 450 mm

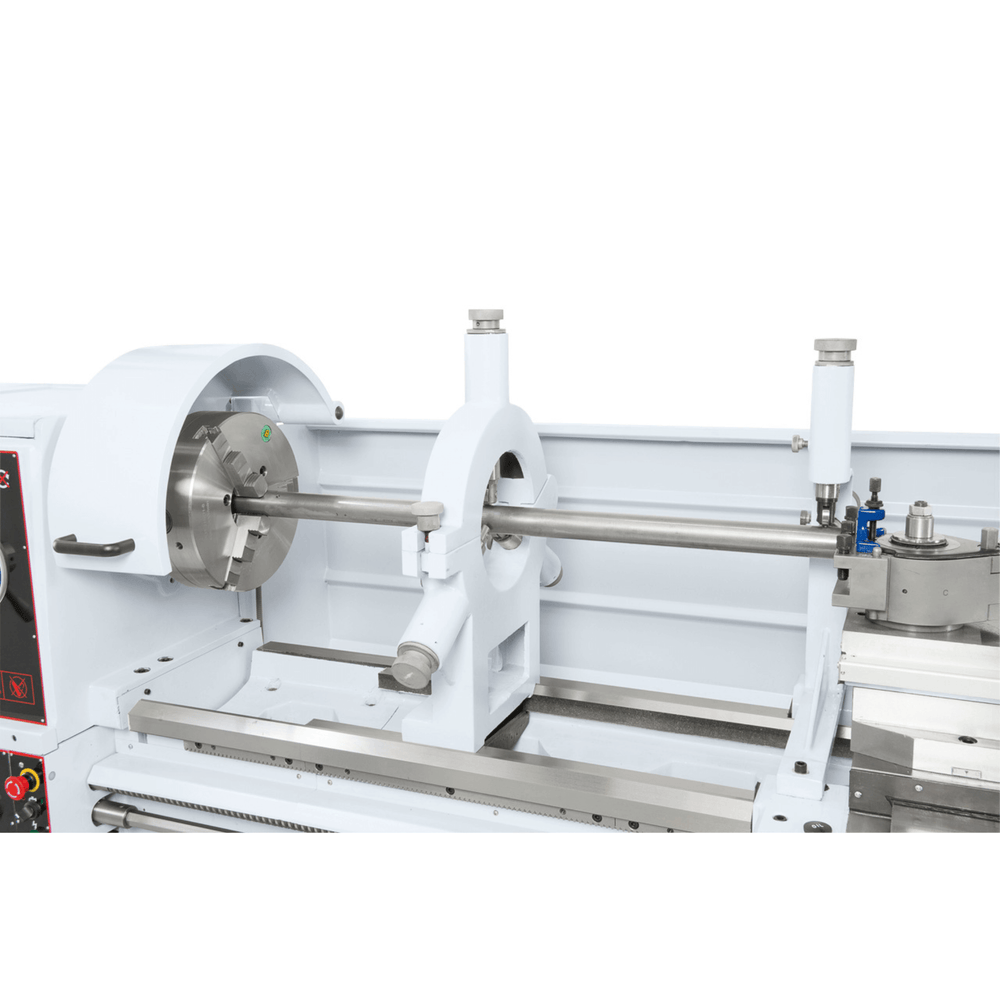

• Fixed bezel – max passage Ø 180 mm
• Movable bezel – max passage Ø 120 mm
• 2 centering tips
• Motor with CE compliant magnetic brake
• Brake pedal compliant with CE standards
• First fill with Shell Tellus 46
• Cooling system
• Quick change tool holder with 4 inserts
• Quick change tool holder protection
• Gear set for gear changes
• Reduction sleeve
• Rear bulkhead for chips

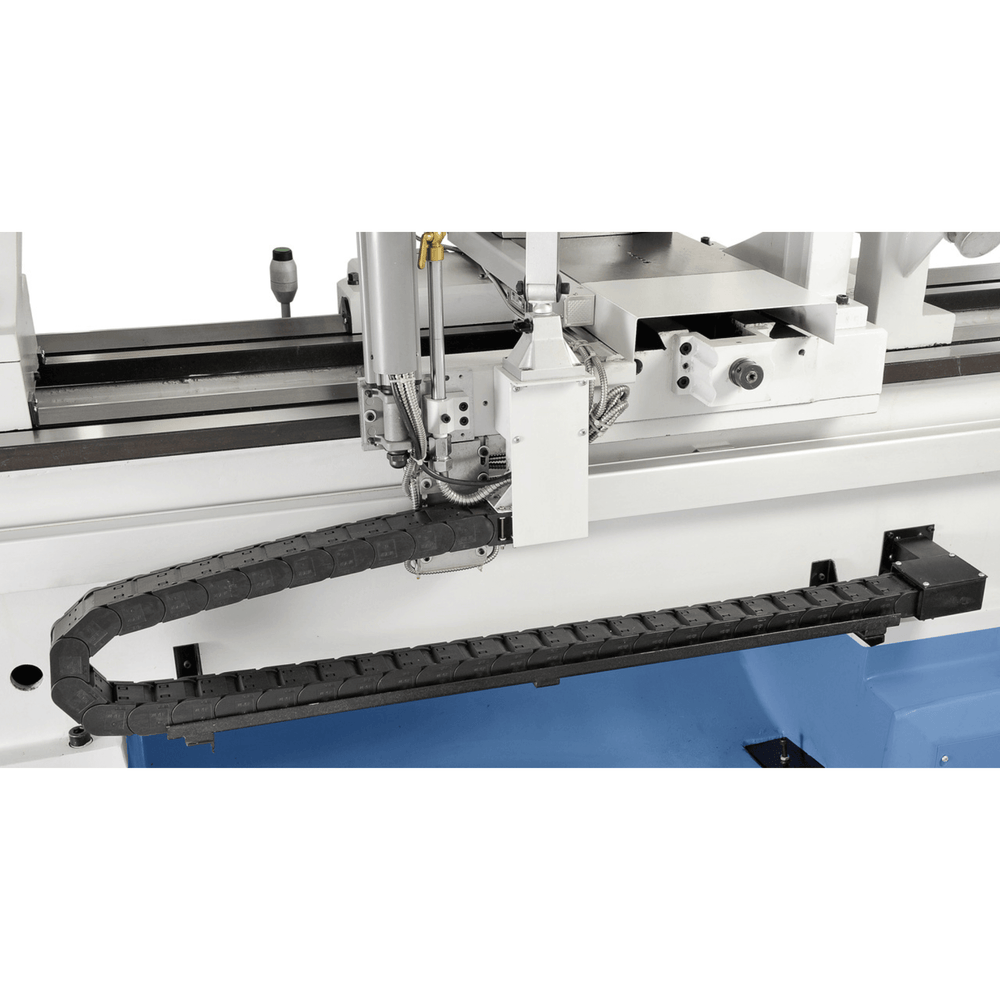

• Cable passage via cable carrier
• Commissioning tool kit
