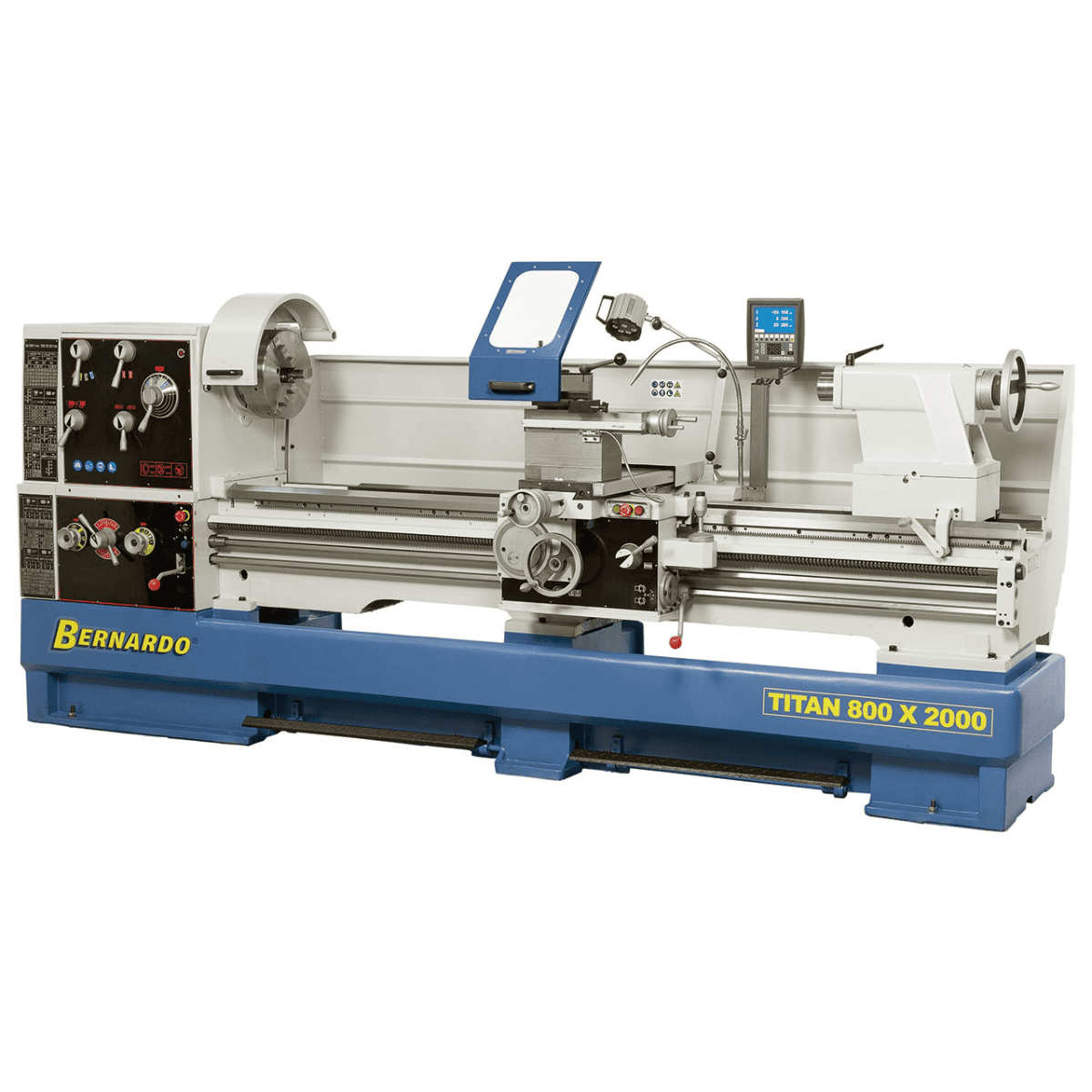

Titan 800 x 2000 Universal Lathe with Digital Displays
Titan 800 x 2000 Universal Lathe with Digital Displays is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Titan 800 x 2000 Universal Lathe with Digital Displays
-
Description
-
Technical Specifications
-
Product safety
-
Reviews
Description
The Titan 800 x 2000 production lathe combines a robust design, high turning capacity, and high performance, making it ideal for medium to large-scale series or single-piece production. With a turning diameter of 800 mm, a 105 mm spindle bore, and a removable bridge for machining diameters up to 1000 mm, this model is perfect for machine shops, industrial manufacturing, and plant construction.
Main features
• Reinforced bed with sturdy ribs to eliminate vibrations and increase stability
• Prismatic base made of induction-hardened and precision-ground grey cast iron
• Main spindle with precision angular roller bearings
• ES-12 V 3-axis digital display included, with integrated cable gland
• Rapid longitudinal and transverse translation as standard to reduce downtime
• Removable bridge for turning pieces up to Ø 1000 mm
• CE compliant electromechanical foot brake for quick and safe stops
• Hardened and ground gears and shafts, including the feed gear
• Multi-disc mechanical clutch for smooth starting and system protection
• Centralized control for threads and feeds via lead screw and feed screw
• Excellent performance even in frontal machining
• Spindle hole Ø 105 mm for large workpieces
Technical table
| Function | Value |
|---|---|
| Distance between tips | 2000 mm |
| Height of the tips | 400 mm |
| Turning diameter on the bed | 800 mm |
| Turning diameter on removed bridge | 1000 mm |
| Turning diameter on the slide | 540 mm |
| Pallet width | 400 mm |
| Spindle hole | 105 mm |
| Spindle attachment | DIN 55029, D1-8 |
| Speed range | (16) 25–1600 rpm |
| Longitudinal advances | (25) 0.044–1.48 mm/rev |
| Transversal advances | (25) 0.022–0.74 mm/rev |
| Metric threads | (54) 0.45–120 mm |
| Inch threads | (54) 7/16–80 TPI |
| Tailstock quill diameter | 90 mm |
| Steerer tube race | 235 mm |
| Steerer tube attachment | MK 5 |
| Engine power | 7.5 kW (10 hp) |
| Machine dimensions (L x W x H) | 3800 x 1320 x 1580 mm |
| Weight | approx. 3455 kg |
Package Contents
• ES-12 V 3-axis digital display with LCD display
• Cable passage via cable carrier
• 3-jaw chuck PS3-315 mm / D8 connection
• Clamping disc Ø 500 mm
• Fixed bezel – max passage Ø 180 mm
• Movable bezel – max passage Ø 100 mm
• 2 centering tips
• Motor with CE compliant magnetic brake
• Pedal with brake in accordance with CE regulations
• First fill with Shell Tellus 46 oil
• Rapid longitudinal and transverse advance
• Slip clutch
• Cooling system
• Quick change tool holder with 4 inserts
• Quick change tool holder protection
• LED work light
• Gear change
• Reduction sleeve
• Rear bulkhead to collect chips
• Operating tool set
