Description

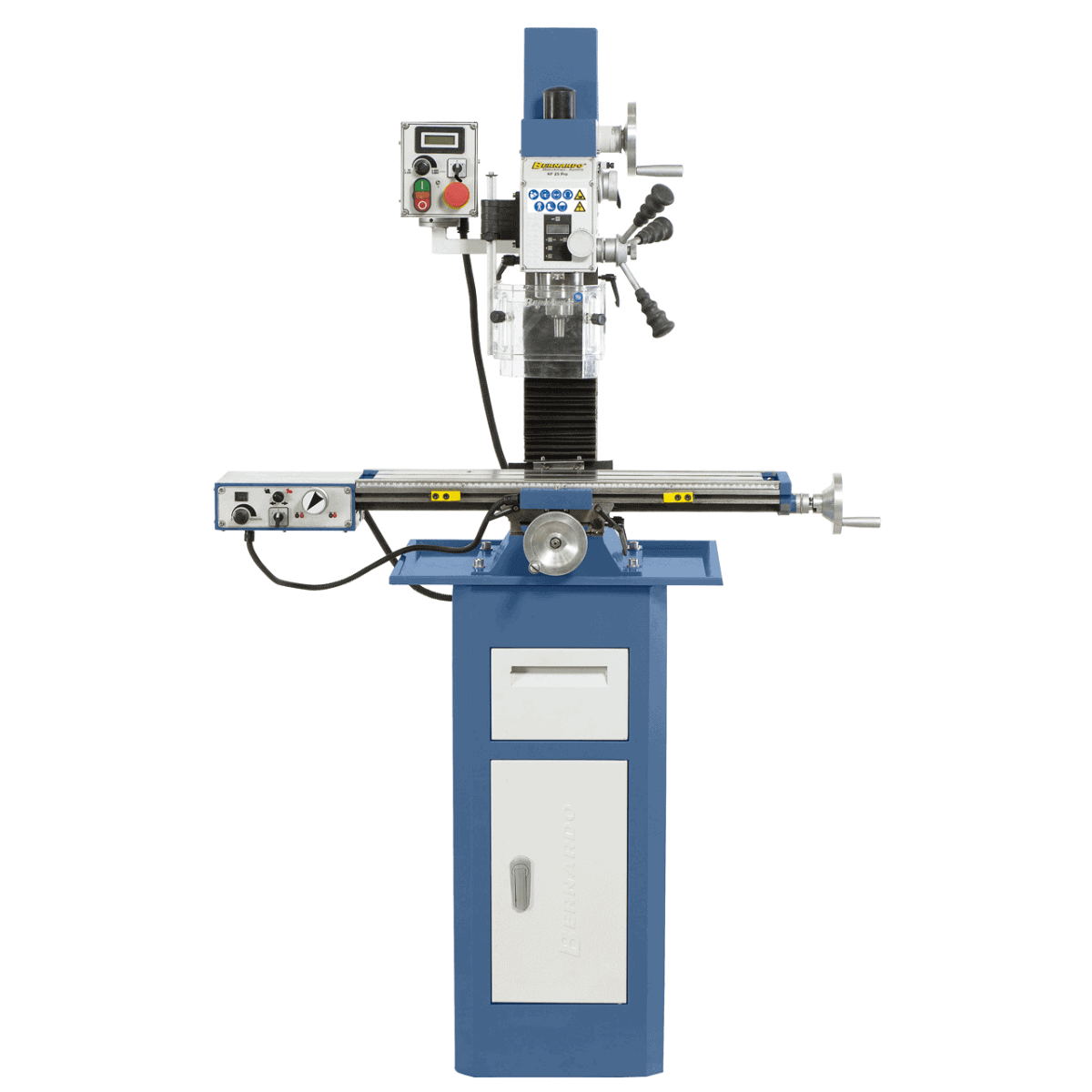

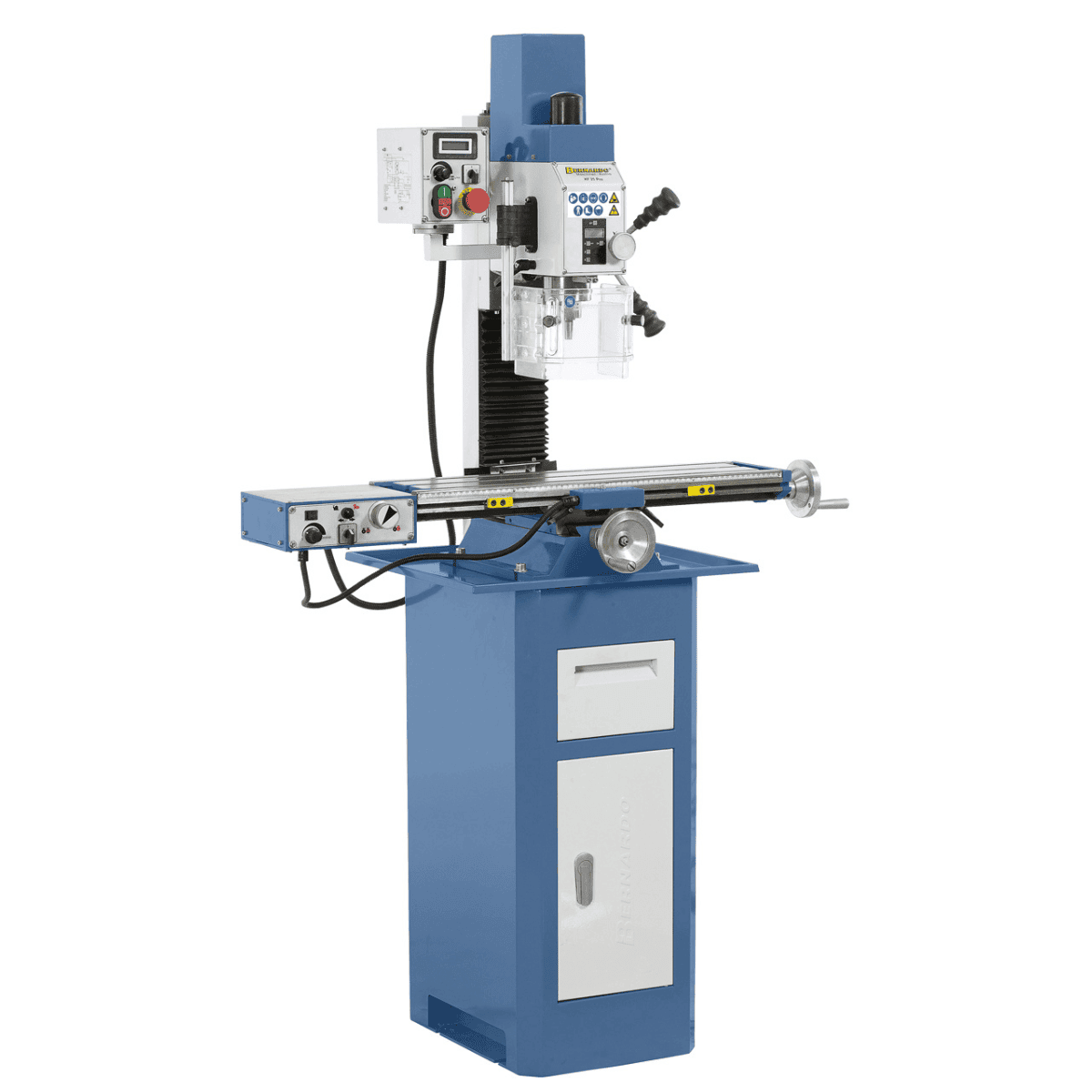

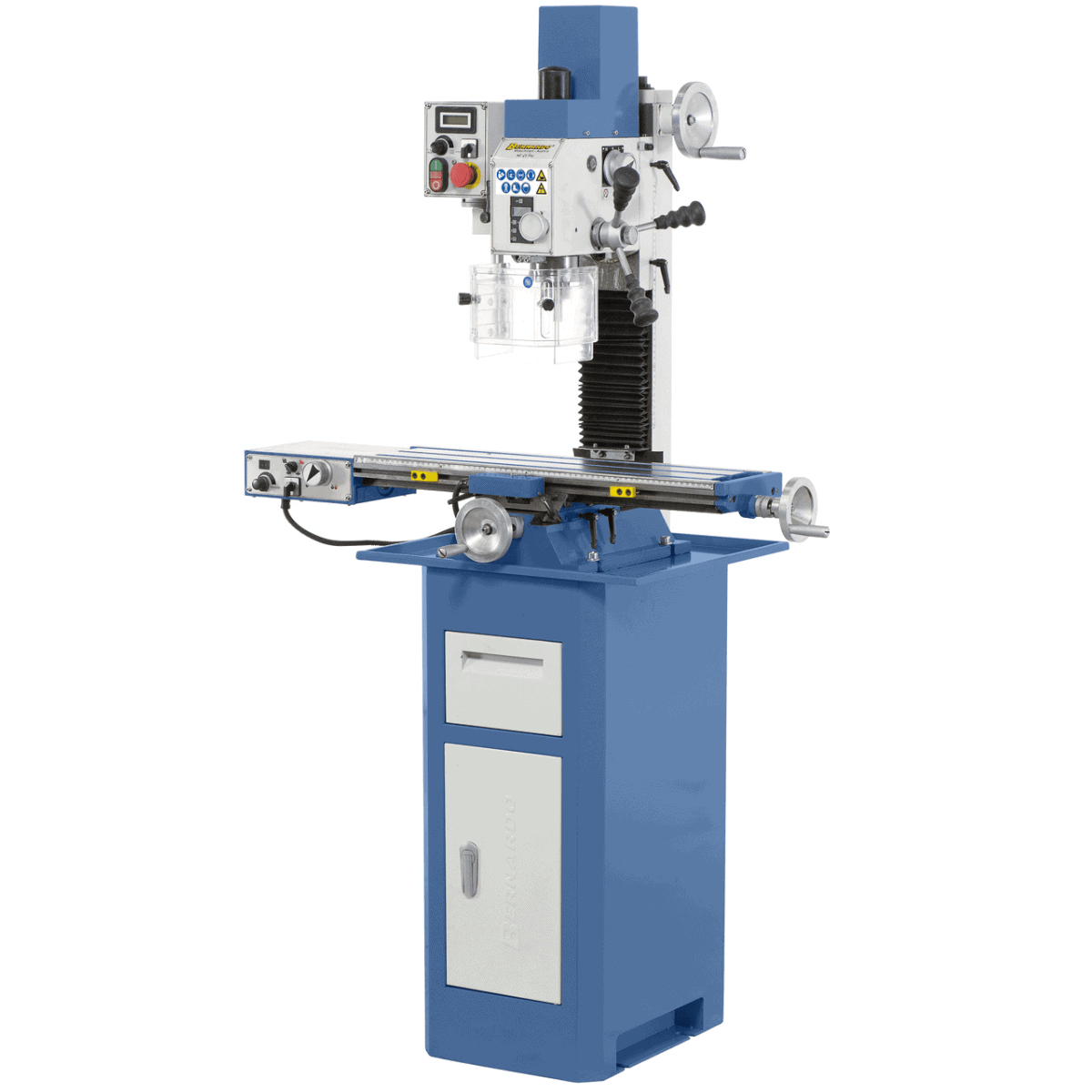

Product Description: KF 25 Pro Drill and Milling Machine
The KF 25 Pro drill and milling machine is the ideal solution for demanding users who require precision and power in milling and drilling operations. With a maximum speed of 3000 rpm and a powerful 900 W motor, this model stands out for its ability to handle a wide range of operations, from grooving to facing and boring.
Main Features
- High Speed Range: The KF 25 Pro offers variable speed control with a range from 50 to 3000 rpm, thanks to the 2-stage gearbox which ensures optimal power transfer.
- Motor Adaptability: Equipped with a DC motor, this model ensures optimal torque, especially at low speeds, maintaining constant performance even under load.
- Versatility of Use: Ideal for operations such as grooving, facing, boring and threading, thanks to the milling head that can be tilted from -90° to +90°, which allows for angular machining and chamfer milling.

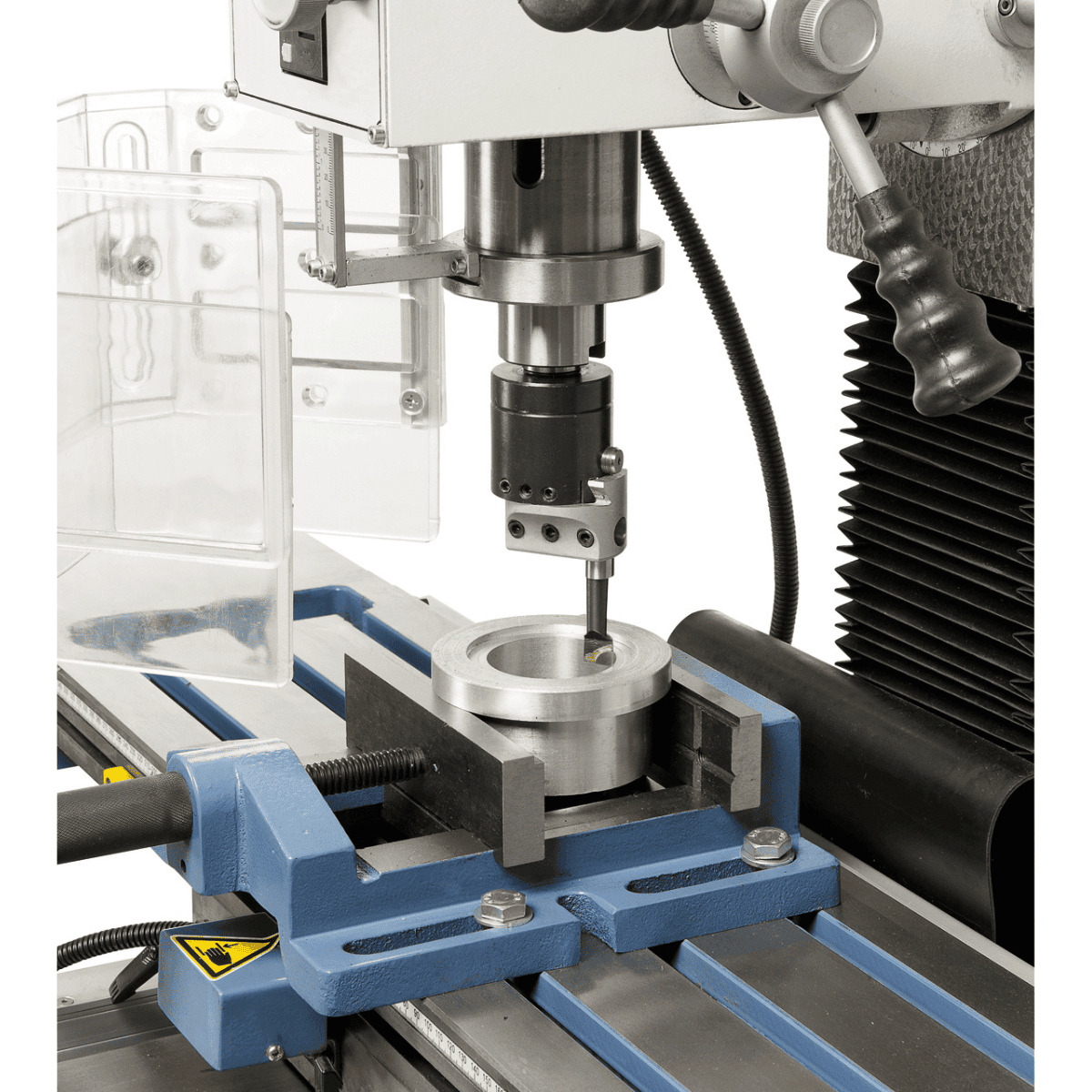

- Precision Assured: The high concentricity of the spindle, guaranteed by the tapered roller bearings (≤ 0.015 mm), and the adjustment of the spindles via handle and handwheel, ensure precision in the most delicate operations.

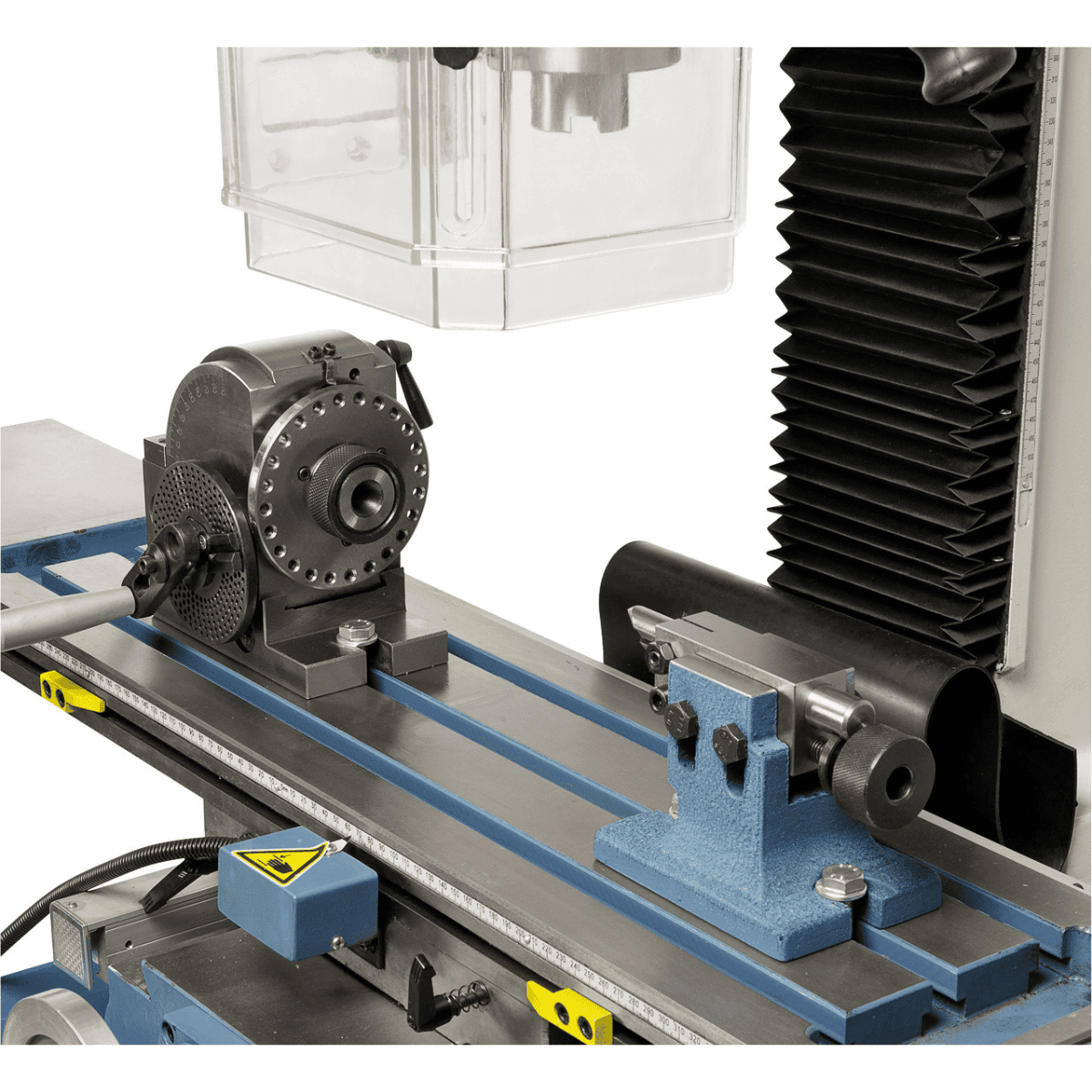

- Large Worktable: The composite table, featuring T-slots and a finely machined surface, provides ample space for machining workpieces of various sizes.

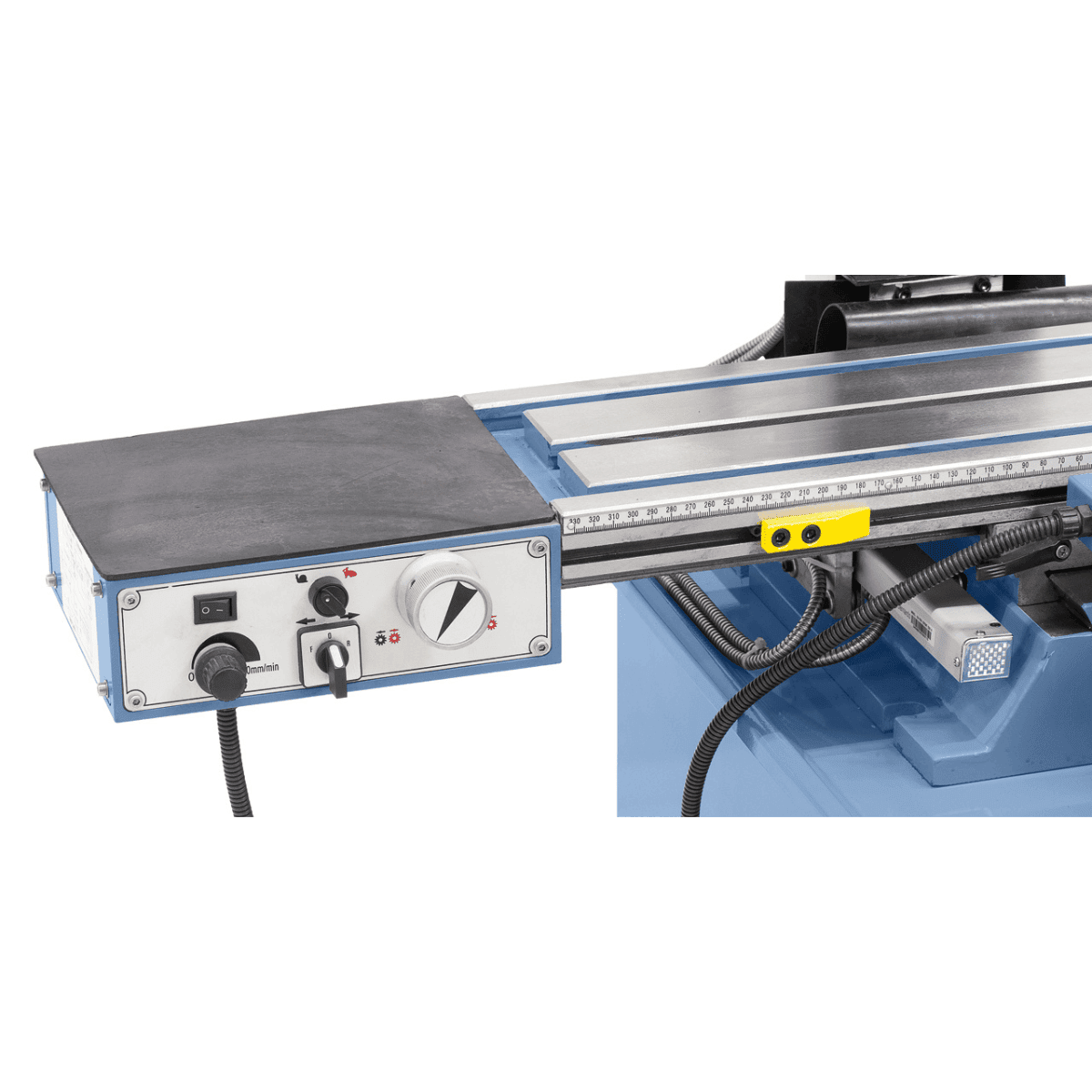

- Advanced Accessory Compatibility: This model is compatible with the continuous feed of the milling table and the 3-axis position display, thus reducing production time and increasing efficiency.
Standard Accessories
- Arbor spindle MK 3 / B 16
- Clamping chuck
- FTV 6 x-axis advance

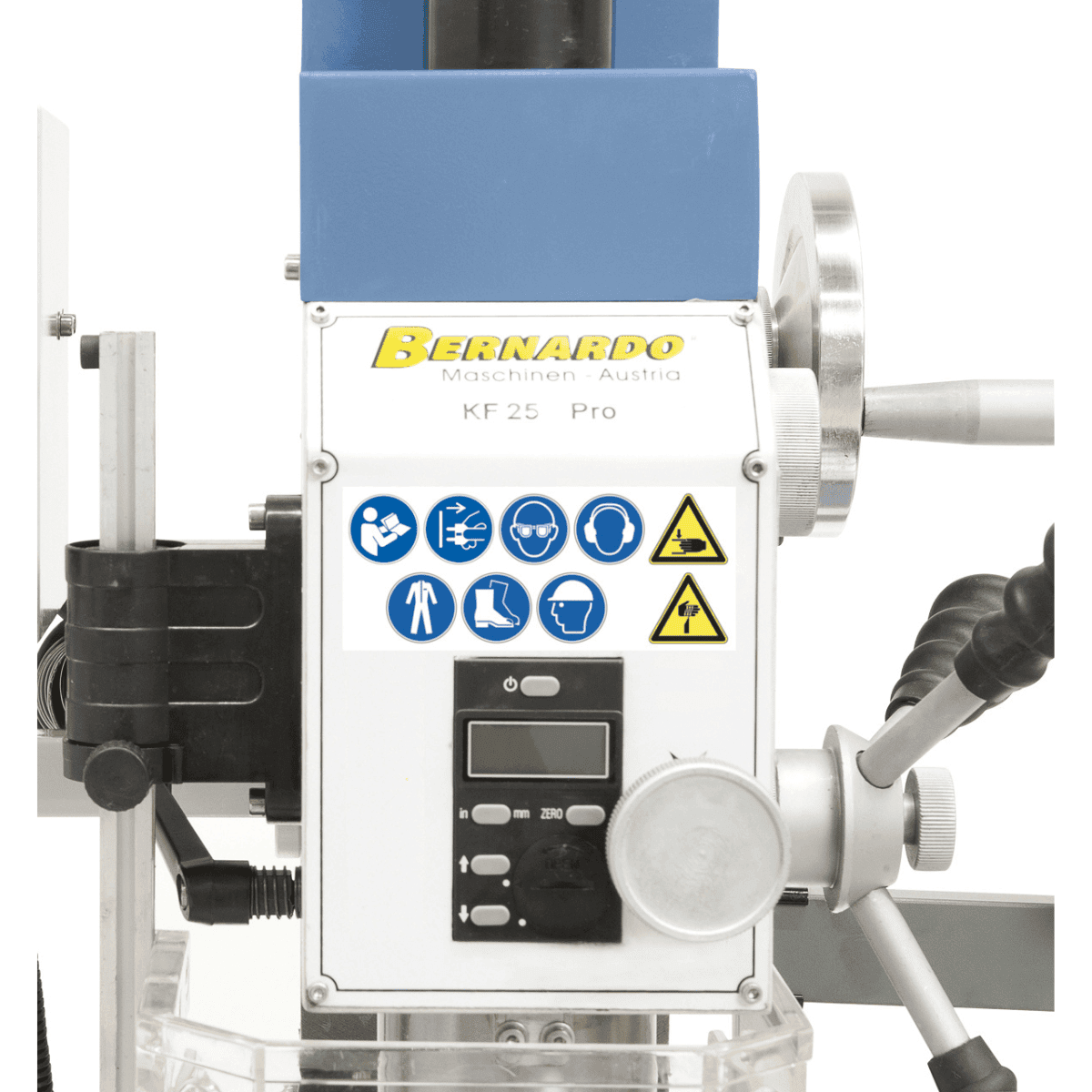

- Digital spindle display
- Digital speedometer
- EMC filter according to CE standard
- Height-adjustable protective cover

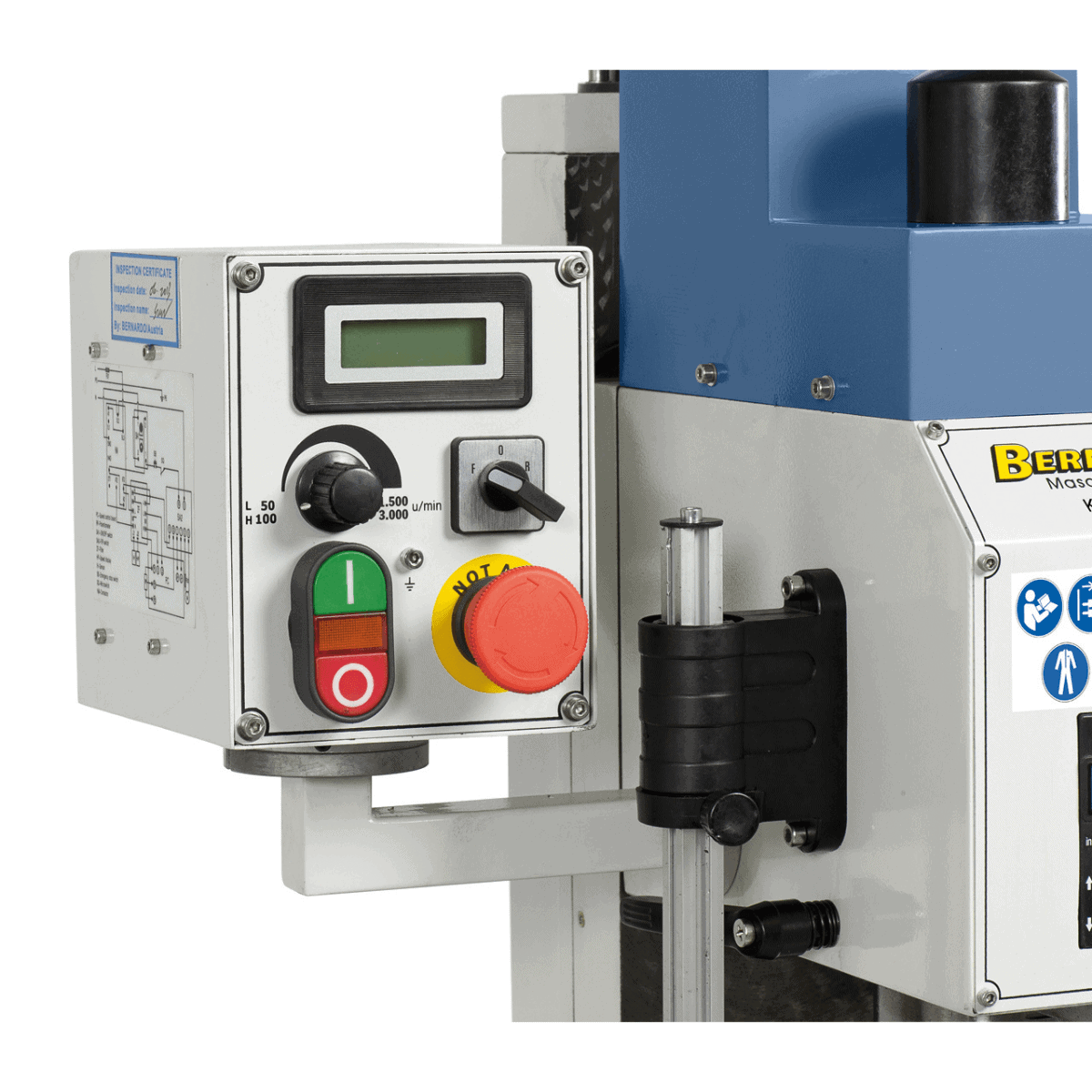

- Control device
Technical Specifications
| Characteristic | Specifications |
|---|---|
| Steel drilling power | 20 mm |
| Max. face milling cutter. | 63 mm |
| Milling cutter with max. shank. | 20 mm |
| Length of the arms | 170 mm |
| Distance spindle / table min./max. | 45 / 325 mm |
| Hole stroke | 52 mm |
| Continuous spindle speed | 50 – 1500 / 100 – 3000 rpm |
| Spindle attachment | MK 3 |
| Table dimensions | 700 x 180 mm |
| Run (x / y) | 470 / 150 mm |
| Rotating milling head | from -90° to +90° |
| Milling head height setting | 275 mm |
| T-slot size | 12 mm |
| S1 motor input power 100% | 0.90 kW / 230 V |
| S6 Motor Output Power 40% | 1.35 kW / 230 V |
| Machine dimensions (L x W x H) | 950 x 560 x 930 mm |
| Approximate weight | 135 kg |
| (Without base) |
The KF 25 Pro is a robust and versatile machine, designed to meet the needs of professionals and model makers. With its adjustable speed range, high precision, and ability to work with various materials and angles, this model is an excellent investment for those seeking reliability and superior performance in a router and drill.
