Bernardo  |  SKU: 03-1071

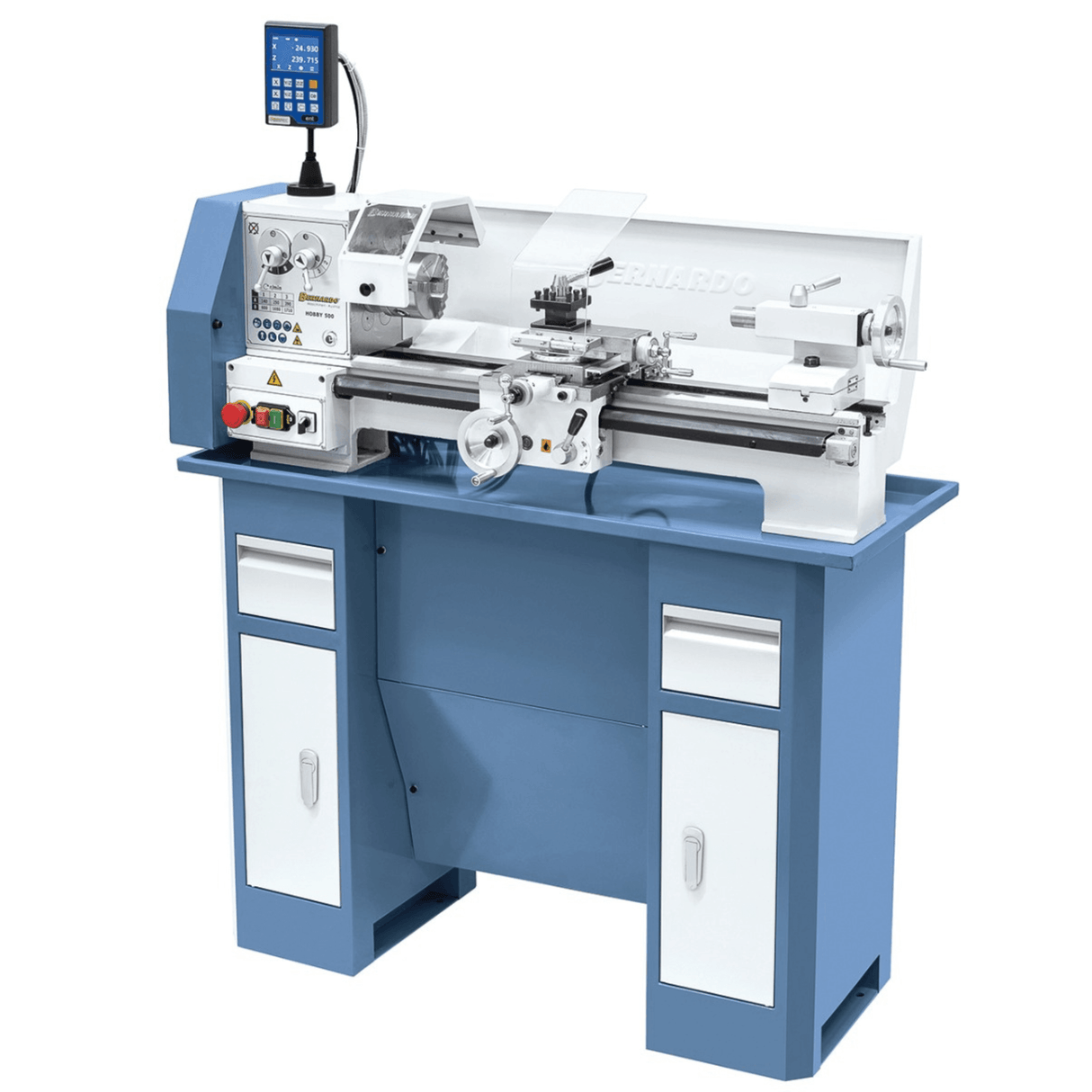

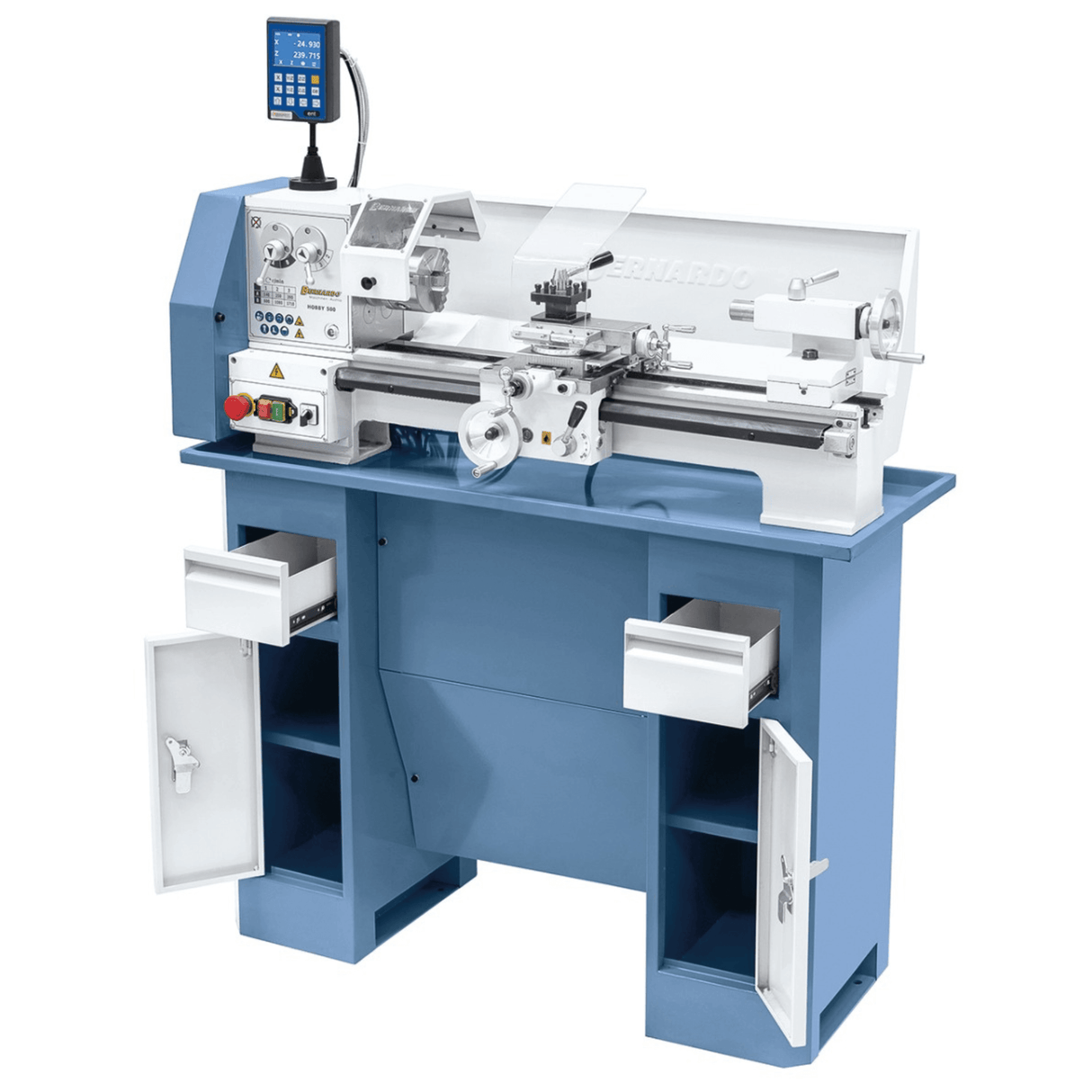

Hobby lathe 500 / 230 V incl. 3-axis position display DT 40

€2.318,00
pay up to 30 installments,

Delivery and Shipping

At Krolit, we are committed to providing a seamless and reliable shipping experience for our customers. Once you place your order, it is generally processed within 1-3 business days, excluding weekends and holidays. As soon as your order ships, you will receive a confirmation email with your tracking number and shipment details, so you can easily track your delivery.

We offer several shipping options, including standard, express, and overnight shipping, to meet your needs. Shipping costs and estimated delivery times are clearly displayed at checkout and vary based on your location and the shipping method selected. Please note that all delivery times are approximate and may be subject to delays due to factors such as weather conditions, high order volume, or courier issues.

Currently, Krolit [offers/does not offer] international shipping. If international shipping is available, please be aware that customs duties, taxes, or other additional fees may apply, which are the responsibility of the recipient. We recommend checking with your local customs office before placing an order.

To ensure timely delivery, please ensure the shipping address provided at checkout is correct and complete. Krolit is not responsible for delays or lost packages due to incorrect or incomplete address information. If your package appears to have been delivered but you haven't received it, we recommend contacting the courier first. If the problem persists, our customer support team is available to assist you.

If you have any questions or concerns regarding shipping or delivery, please do not hesitate to contact us at [your email address] or by phone at [your phone number].

At Krolit, we value your satisfaction and are committed to ensuring your order arrives safely and on time.

Secure payment guaranteed

Description

The Hobby 500 precision lathe features a 6-stage gear system for quick speed changes. Thanks to its compact design, this machine offers very quiet operation and ensures precision work.

Property

  • Quick and easy speed variation via the transmission circuit.
  • Inductively hardened and ground prism base for increased accuracy.
  • Safety switch with minimum voltage release.
  • Spindle mounted with 2 adjustable precision bearings for optimal stability.

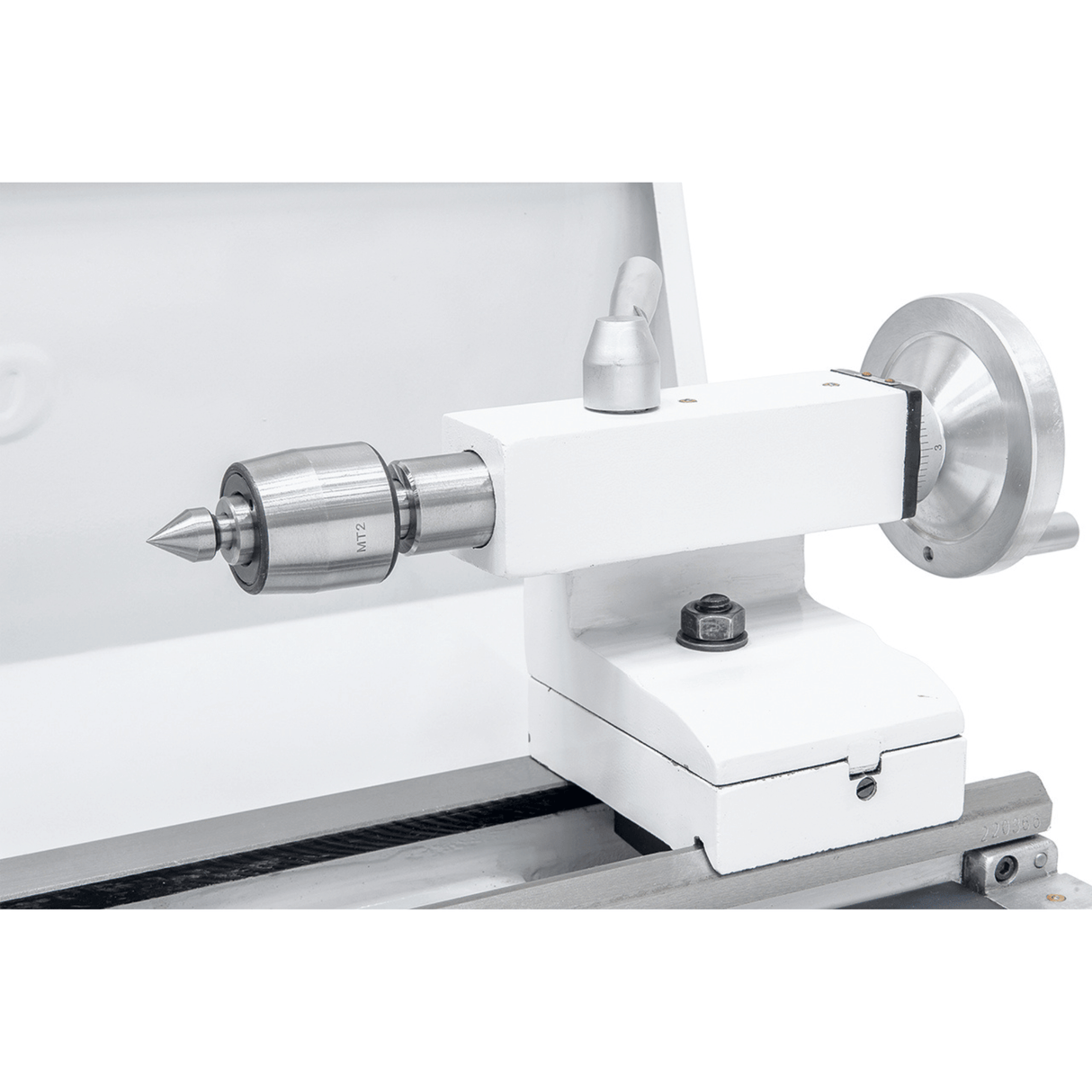

  • Adjustable tailstock for conical turning.
  • Machine equipped with threading master .
  • Backlash-free adjustable guides using gibs to ensure precision in movement.
  • Excellent value for money and compact structure .

Standard accessories

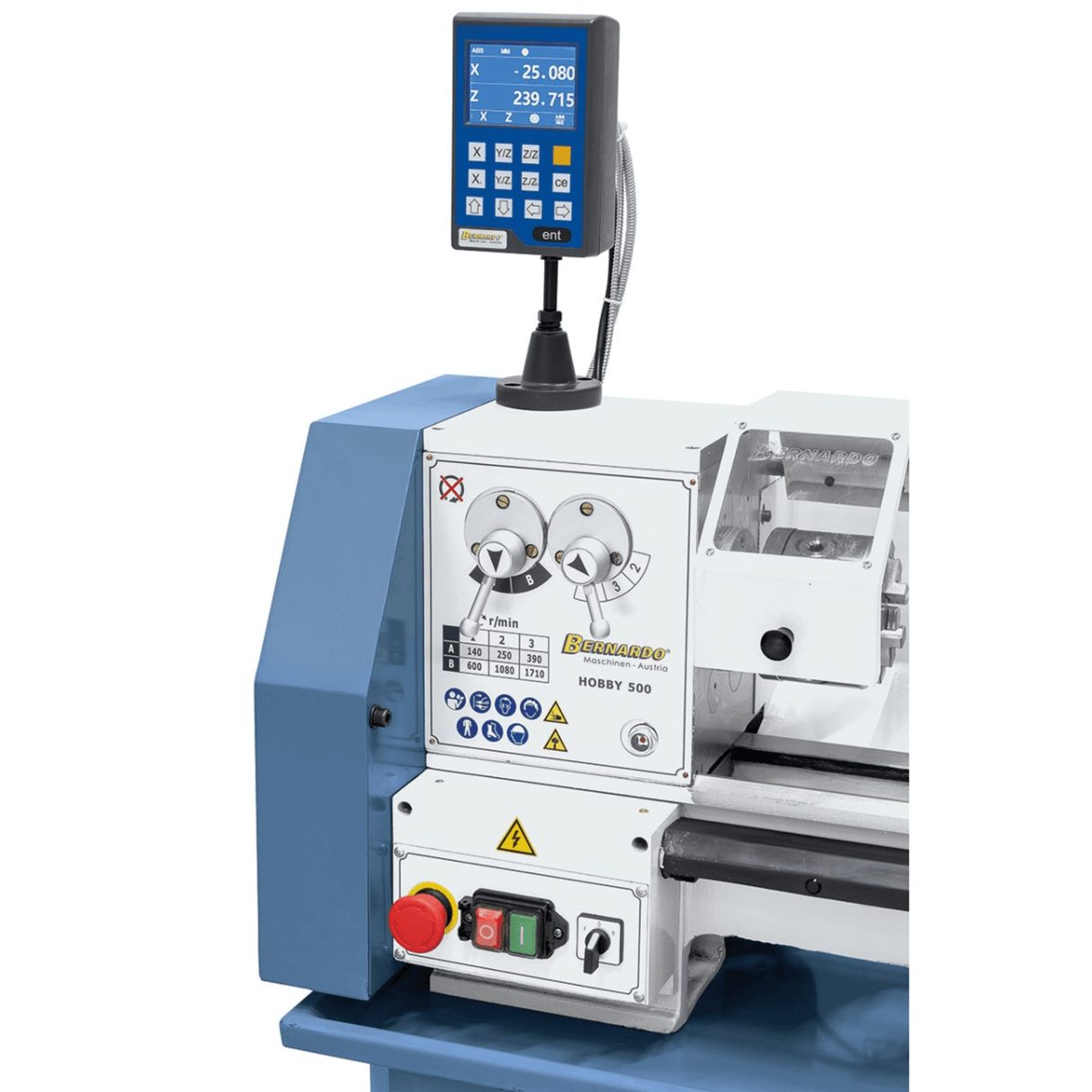

  • DT 40 2-axis digital display

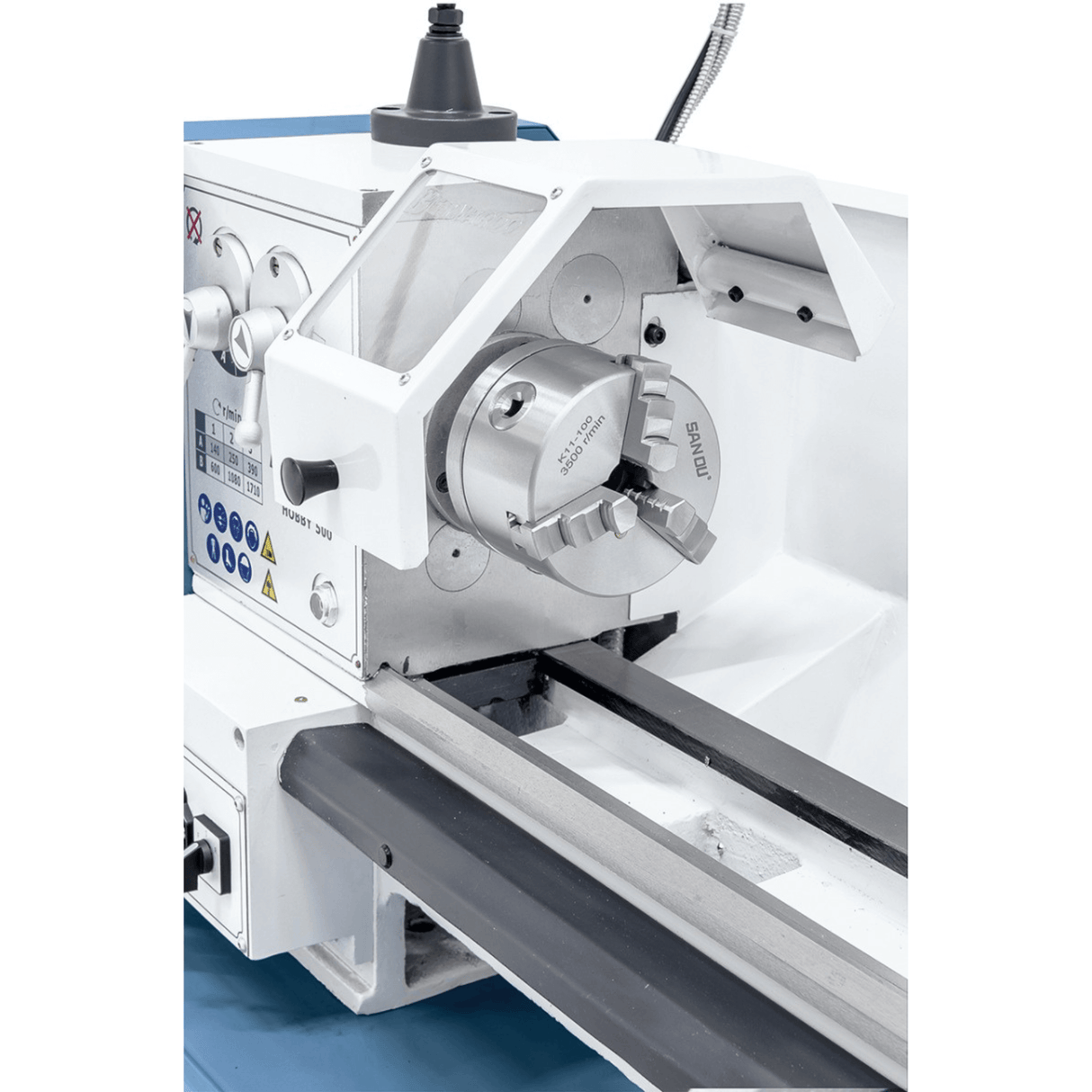

  • 3-jaw chuck 100 mm

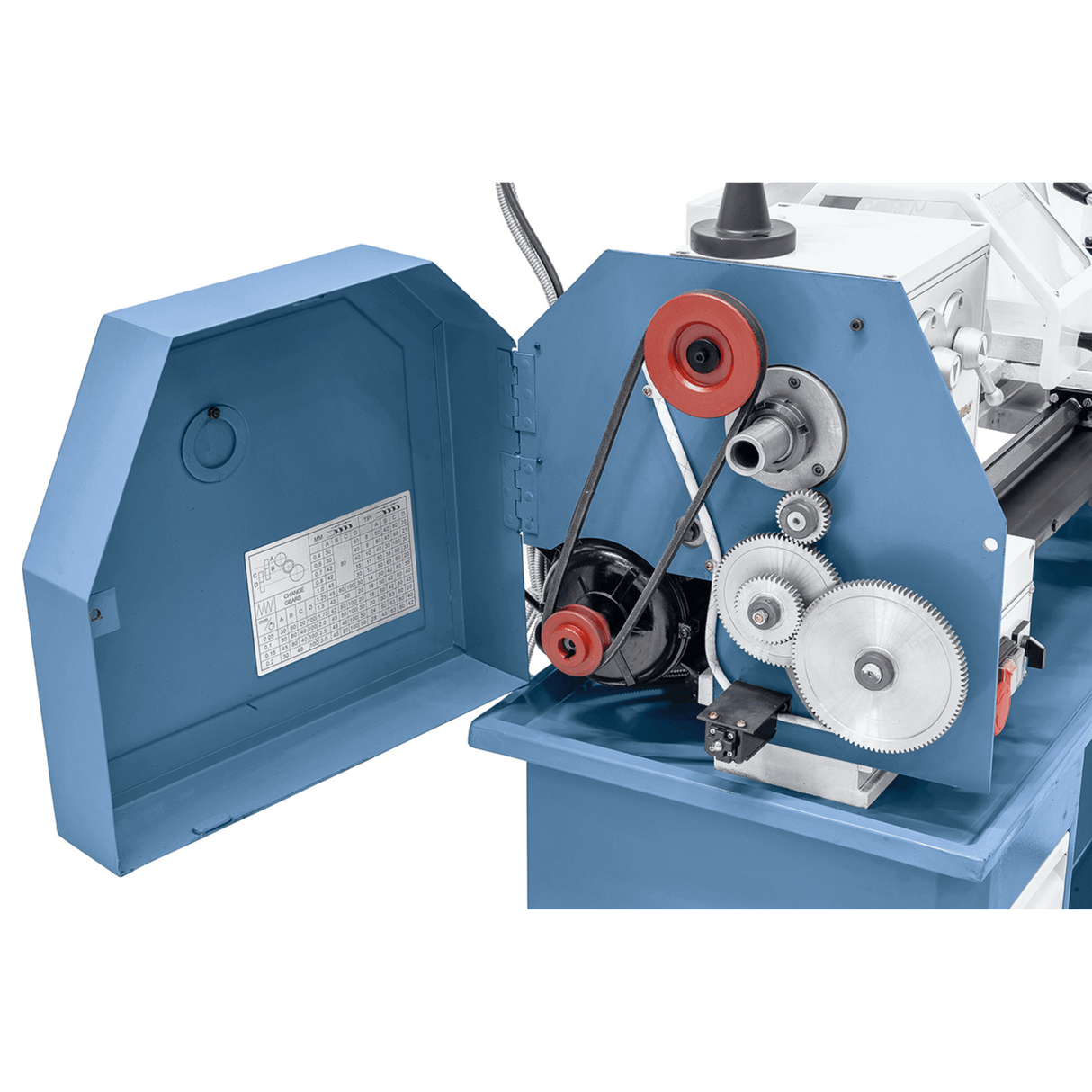

  • Replacement wheels
  • Fixed centering tips

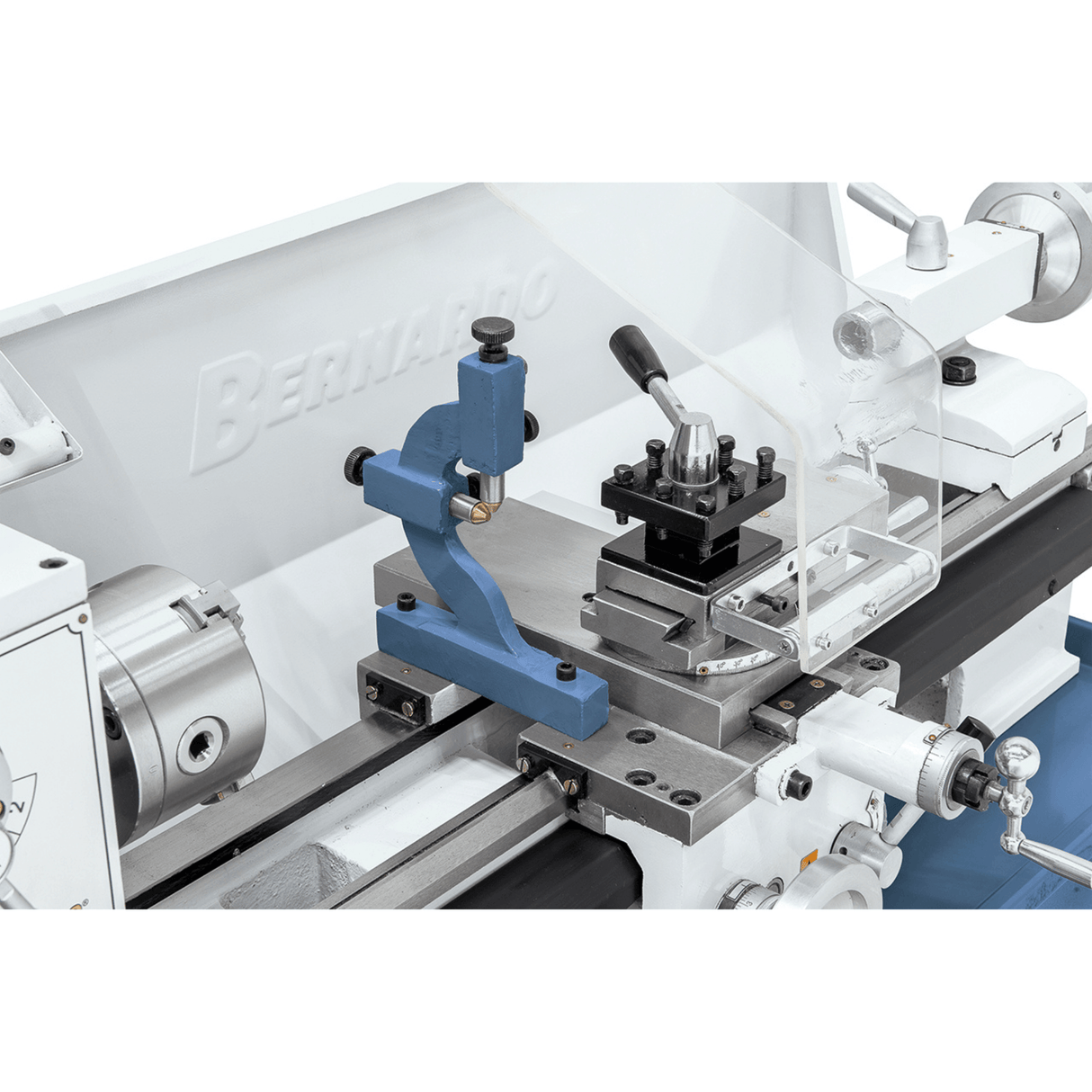

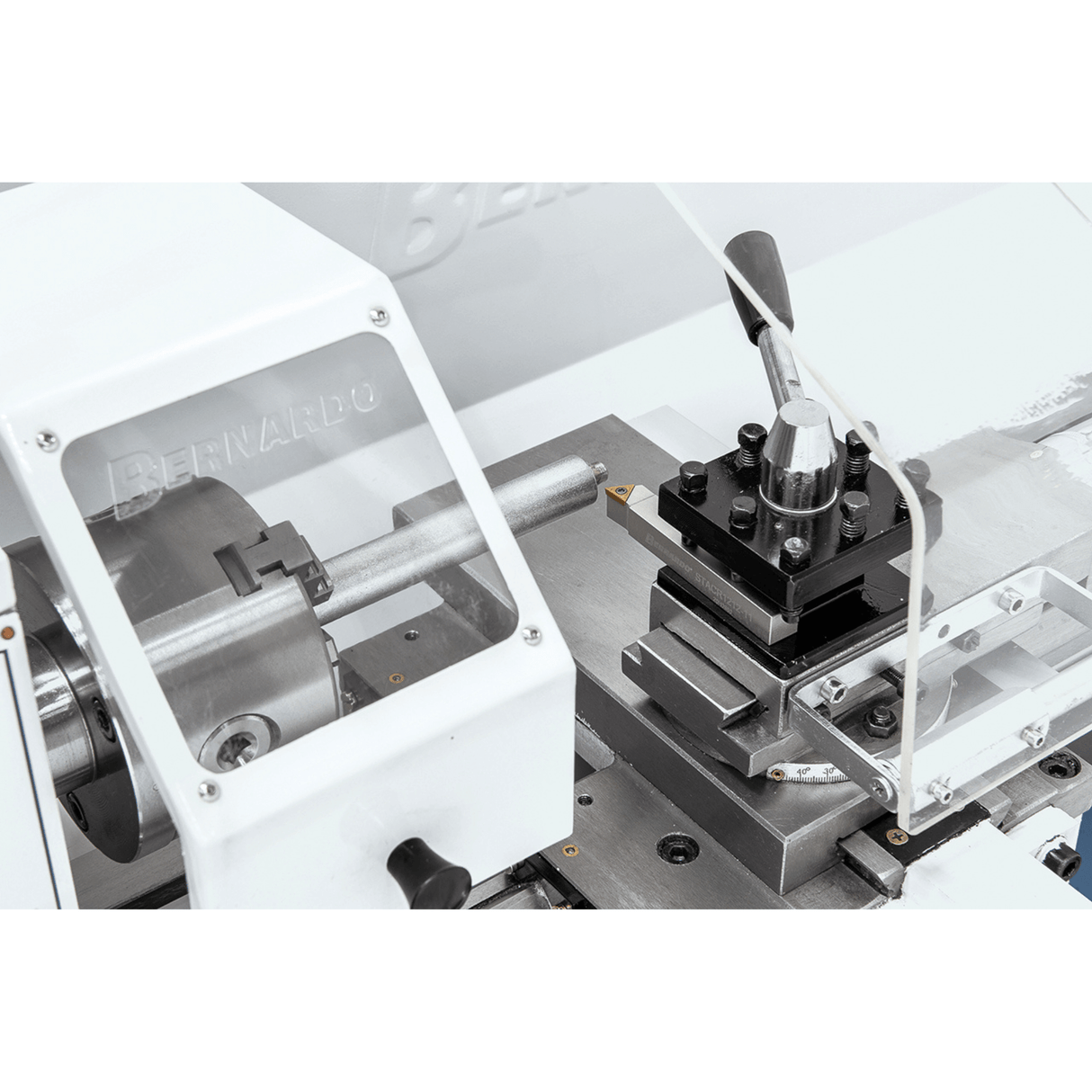

  • Quadruple tool holder

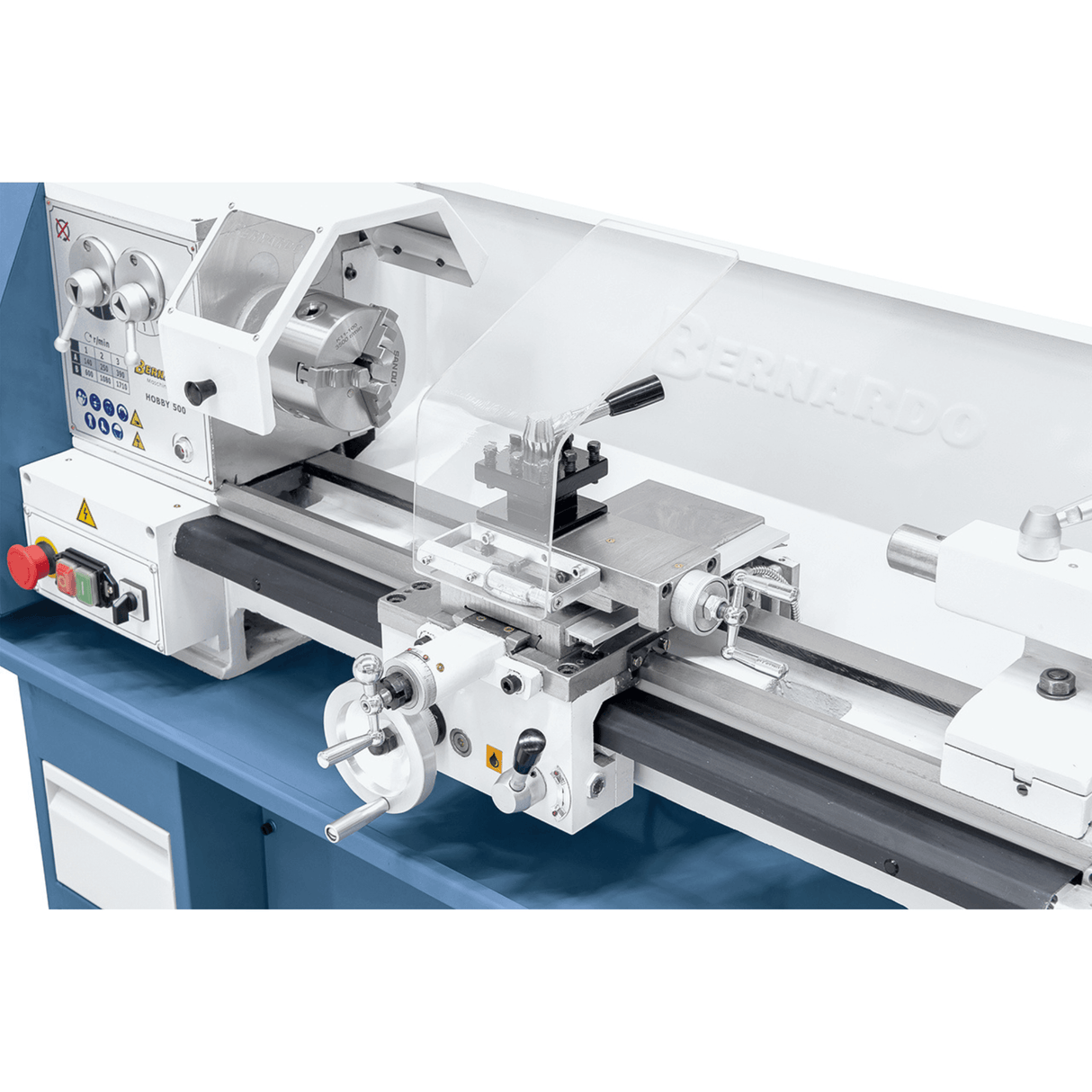

  • Flat slides with upper support
  • Spindle protection

Technical specifications

Characteristic Specification
Distance between tips 500 mm
Height of the tips 110 mm
Vaulting on the table 220 mm
Spindle hole 20 mm
Support in the spindle hole MK 3

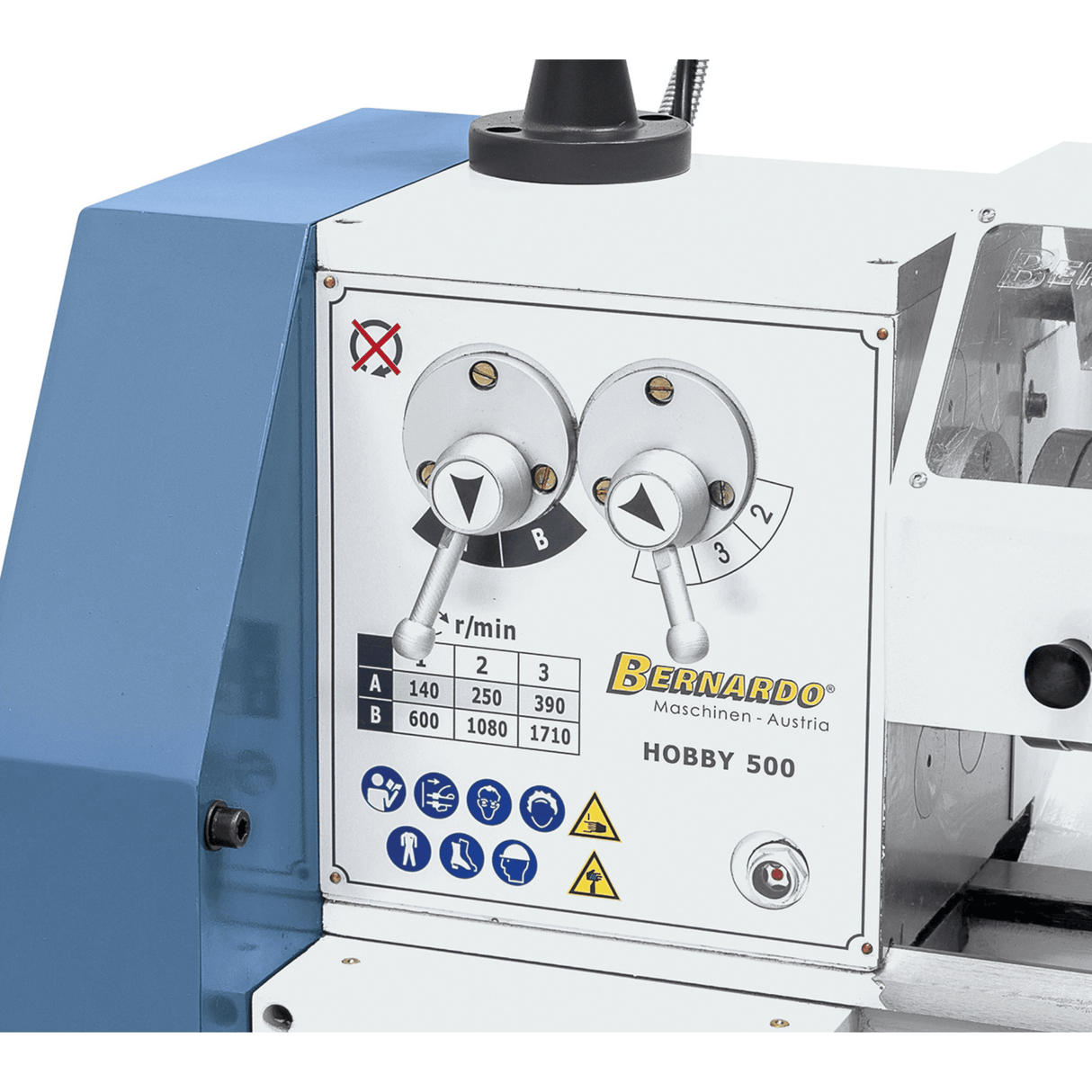

Speed range 140 – 1710 rpm, 6 stages
Longitudinal advancement area (4) 0.05 – 0.2 mm/rev
Metric threads (11) 0.4 – 3 mm
Inch threads (11) 8 – 28 TPI
Spindle stroke 45 mm
Spindle support MK 2
S1 motor input power 100% 0.55 kW / 230 V
S6 Motor Output Power 40% 0.80 kW / 230 V
Machine dimensions (L x W x H)* 1150 x 480 x 420 mm
Weight approx. 130 kg
* without base

The Hobby 500 lathe is perfect for those seeking precision and reliability in a compact, quiet machine. Ideal for model makers and beginners, it offers advanced features for high-precision turning and threading operations.

Frequently Asked Questions

Il tornio Hobby 500 è pensato per hobbisti, principianti e piccoli laboratori che desiderano una macchina compatta ma precisa, adatta a lavorazioni su metalli e materiali plastici.

  • Distanza tra le punte: 500 mm
  • Altezza punte: 110 mm
  • Diametro tornibile sul banco: 220 mm
  • Foro mandrino: 20 mm
  • Gamma velocità: 140 – 1710 giri/min (6 posizioni)

Il visualizzatore digitale DT 40 consente un controllo preciso dei movimenti su due assi, riduce gli errori di lavorazione e rende l’utilizzo più semplice anche per chi è alle prime esperienze.

Sì. Il tornio è dotato di vite madre per filettature e permette di realizzare 11 tipi di filettature metriche (0,4 – 3 mm) e 11 in pollici (8 – 28 TPI).

Il mandrino è supportato da due cuscinetti a sfere di precisione regolabili che garantiscono un’elevata concentricità e stabilità durante la lavorazione.

  • Visualizzatore digitale a 2 assi DT 40
  • Mandrino autocentrante a 3 griffe da 100 mm
  • Serie di ingranaggi di ricambio
  • Contropunta fissa
  • Portautensili quadruplo
  • Carro trasversale con slitta superiore
  • Protezione mandrino con schermo
  • Pulizia quotidiana del bancale e delle guide
  • Lubrificazione regolare dei punti indicati nel manuale
  • Verifica dei giochi e regolazione tramite lardoni
  • Controllo periodico del serraggio del mandrino e della contropunta
