Bernardo  |  SKU: 02-1211BXL

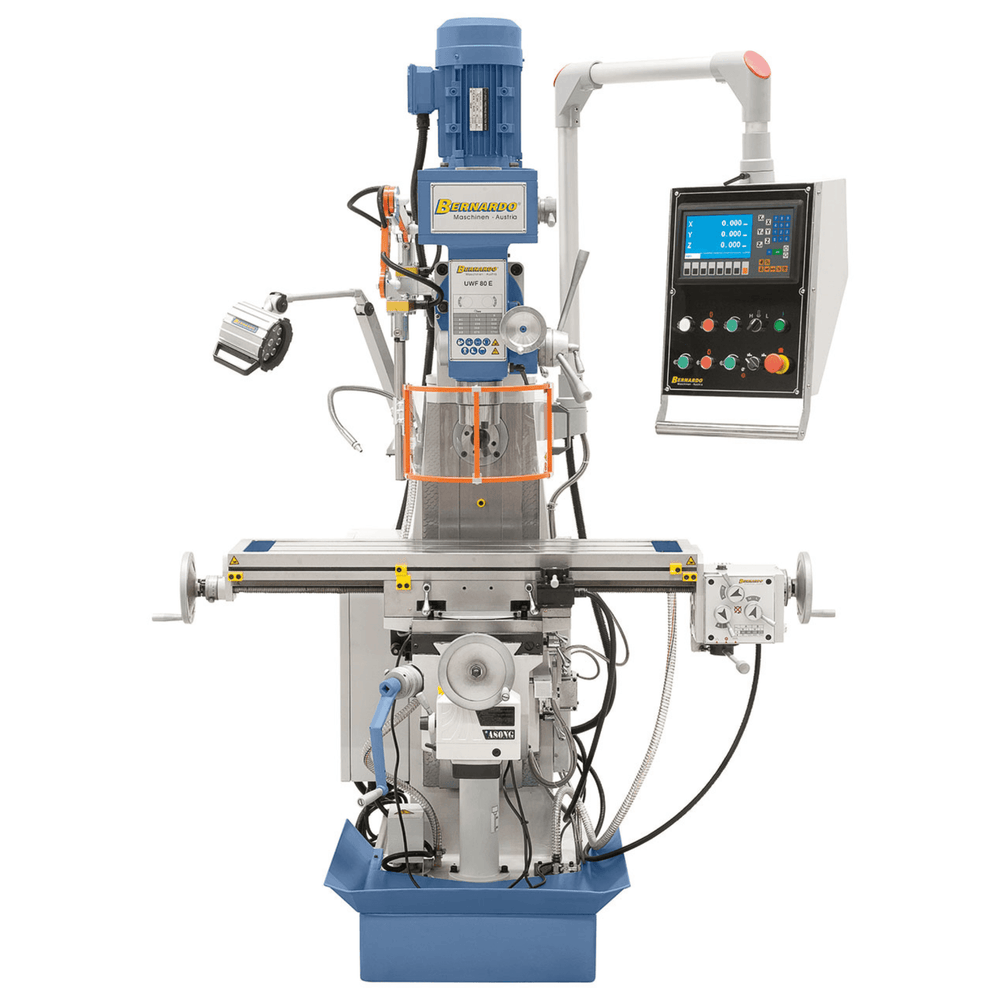

Universal milling machine UWF 80 E incl. 3-axis digital display and Y-axis feed

€12.078,00
pay up to 30 installments,

Delivery and Shipping

At Krolit, we are committed to providing a seamless and reliable shipping experience for our customers. Once you place your order, it is generally processed within 1-3 business days, excluding weekends and holidays. As soon as your order ships, you will receive a confirmation email with your tracking number and shipment details, so you can easily track your delivery.

We offer several shipping options, including standard, express, and overnight shipping, to meet your needs. Shipping costs and estimated delivery times are clearly displayed at checkout and vary based on your location and the shipping method selected. Please note that all delivery times are approximate and may be subject to delays due to factors such as weather conditions, high order volume, or courier issues.

Currently, Krolit [offers/does not offer] international shipping. If international shipping is available, please be aware that customs duties, taxes, or other additional fees may apply, which are the responsibility of the recipient. We recommend checking with your local customs office before placing an order.

To ensure timely delivery, please ensure the shipping address provided at checkout is correct and complete. Krolit is not responsible for delays or lost packages due to incorrect or incomplete address information. If your package appears to have been delivered but you haven't received it, we recommend contacting the courier first. If the problem persists, our customer support team is available to assist you.

If you have any questions or concerns regarding shipping or delivery, please do not hesitate to contact us at [your email address] or by phone at [your phone number].

At Krolit, we value your satisfaction and are committed to ensuring your order arrives safely and on time.

Secure payment guaranteed

Description

Universal Milling Machine UWF 80

The UWF 80 Universal Milling Machine is a robust and versatile machine, ideal for producing single pieces and small batches. Thanks to the combination of horizontal and vertical spindles, this milling machine offers great machining flexibility, allowing for milling and drilling operations on a wide range of materials. The generous table clamping surface of 1000 x 240 mm allows for the machining of even large workpieces with ease. The UWF 80 is equipped with automatic feeds on the X and Y axes, in addition to rapid traverse, which increase productivity and reduce machining times.

Main Features:

  • Double Spindle : Vertical spindle and horizontal spindle for greater versatility in milling and drilling operations.
  • Tiltable Table : The table can be tilted 45° clockwise or counterclockwise, expanding the application range of the milling machine.
  • High Concentricity : Thanks to the tapered roller bearings, the concentricity of the spindle is extremely precise (≤ 0.015 mm), ensuring high quality machining.
  • Tiltable Milling Head : The head can be tilted from -90° to +90°, allowing for complex operations such as chamfer milling and angle drilling.
  • Automatic Feed : Automatic table feeds on the X and Y axes, together with rapid traverse, increase machining efficiency.
  • Precise Milling and Drilling : The machine has manual fine or coarse feed of the spindle via handwheel for milling and star knob for drilling.
  • Threading Rotation : The clockwise and counterclockwise rotation device is perfect for threading operations.

Standard Accessories:

  • ES-12 H 3-Axis Position Display with LCD Display
  • M 16 clamping chuck
  • LED light for better visibility of the work area
  • Coolant system for longer tool life
  • Automatic feeds on the X and Y axes
  • Adapters ISO 40 / MK 3, ISO 40 / MK 2, ISO 40 / B 18
  • Long drilling chuck ISO 40 / 27 mm
  • Adjustable protection device
  • Protective cover for horizontal milling
  • Horizontal external support

Technical Specifications :

Characteristic Detail
Table dimensions 1000 x 240 mm
Spindle attachment ISO 40
Number of revolutions of the vertical spindle (8) 115 – 1750 rpm
Horizontal spindle speed (9) 60 – 1350 rpm
Hole stroke 125 mm
Longitudinal travel (X) 590 mm
Transverse stroke (Y) 180 mm
Vertical stroke (Z) 320 mm
Spindle/table distance 0 – 375 mm
Length of the arms 230 – 685 mm
Tilting table from -45° to +45°
Spindle head tilt area from -90° to +90°
Longitudinal advancement area (8) 32 – 700 mm/min
T-slot size 16 mm
Vertical motor power 0.85 / 1.5 kW
Horizontal engine power 1.5 kW
Machine dimensions (L x W x H) 1500 x 1430 x 2100 mm
Weight 980 kg

Product Description:

The UWF 80 Universal Milling Machine is a versatile and robust machine, ideal for those requiring a flexible solution for milling and drilling operations. Thanks to the combination of horizontal and vertical spindles, automatic X- and Y-axis feeds, and a tilting table, this milling machine offers high performance for the production of single parts or small batches. The UWF 80 stands out for its high precision and ease of use, making it an excellent choice for mechanical and repair shops seeking quality and reliability in their work.
