Description

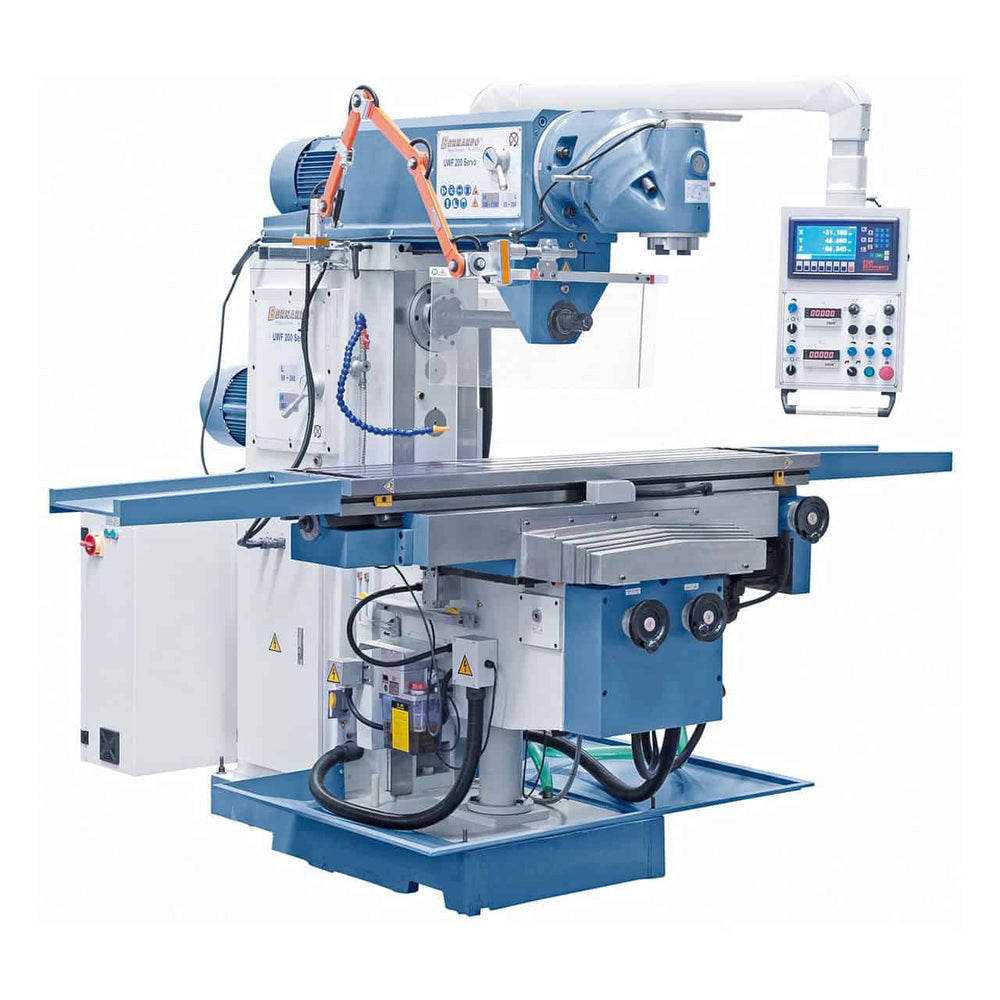

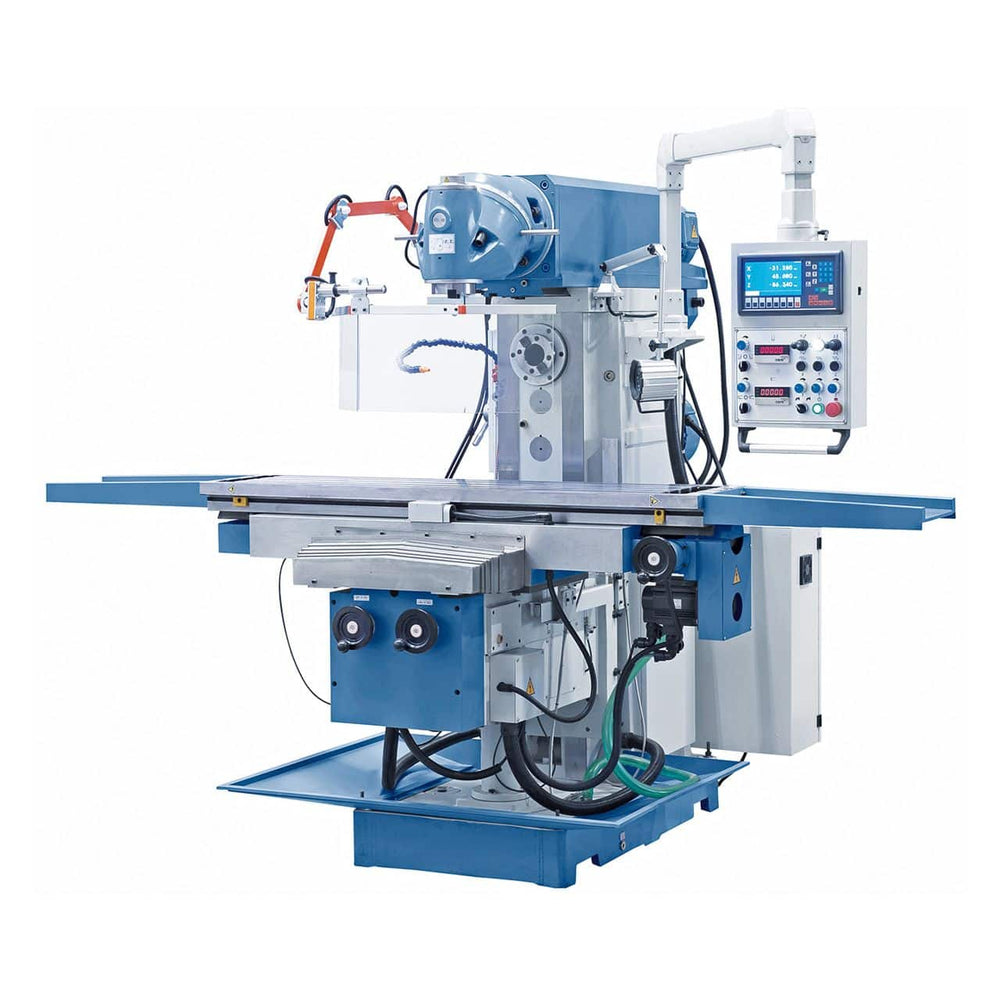

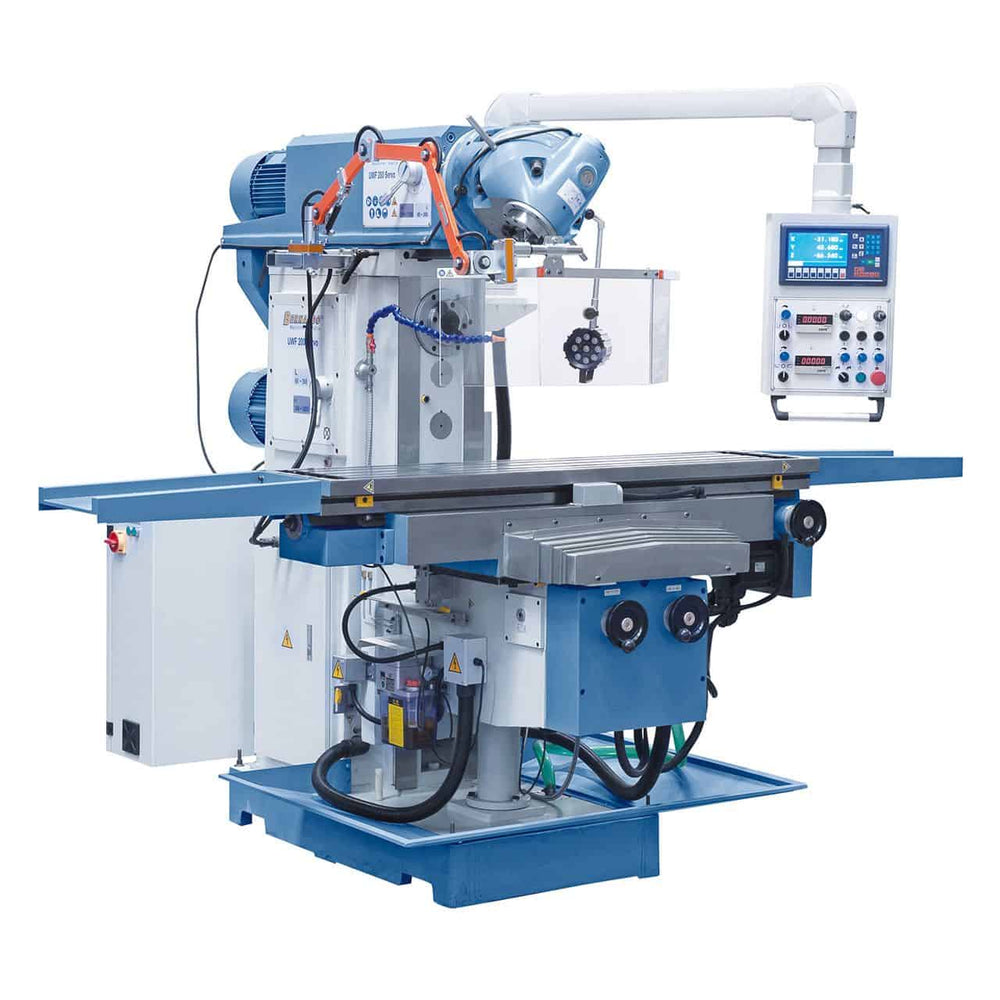

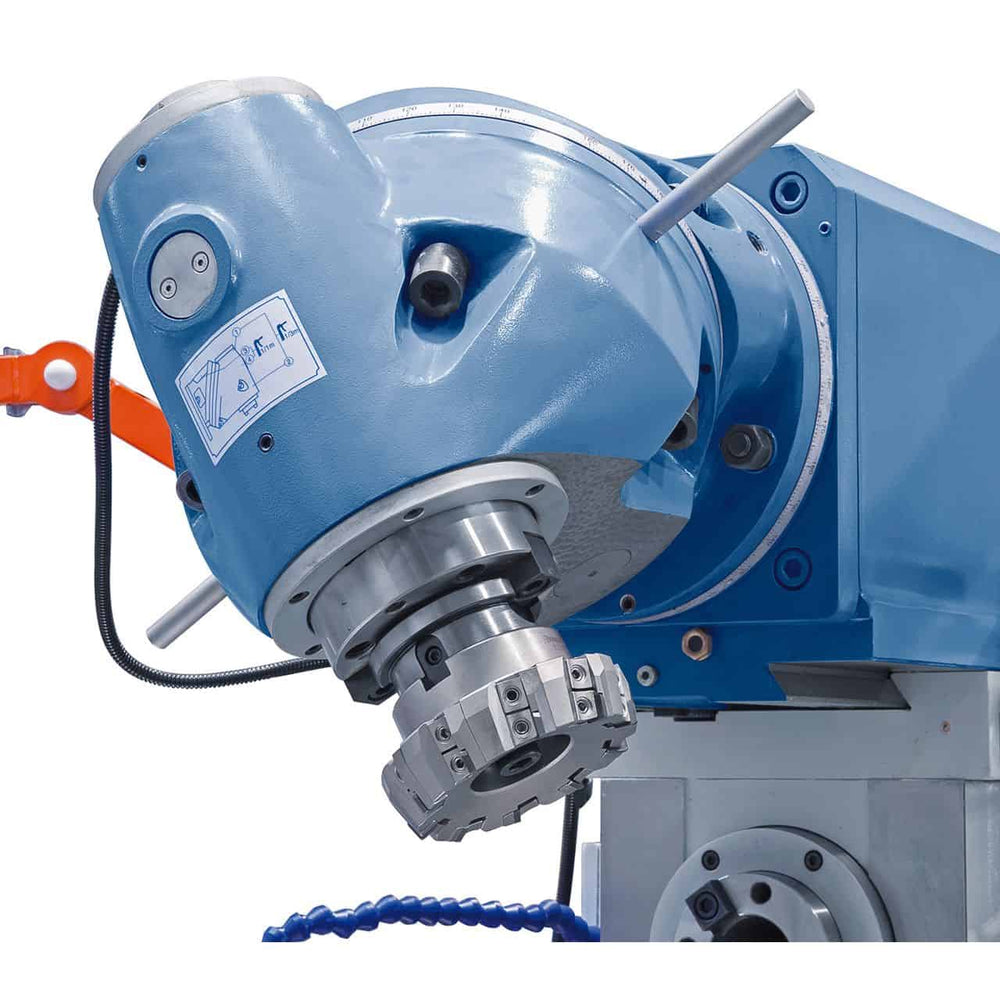

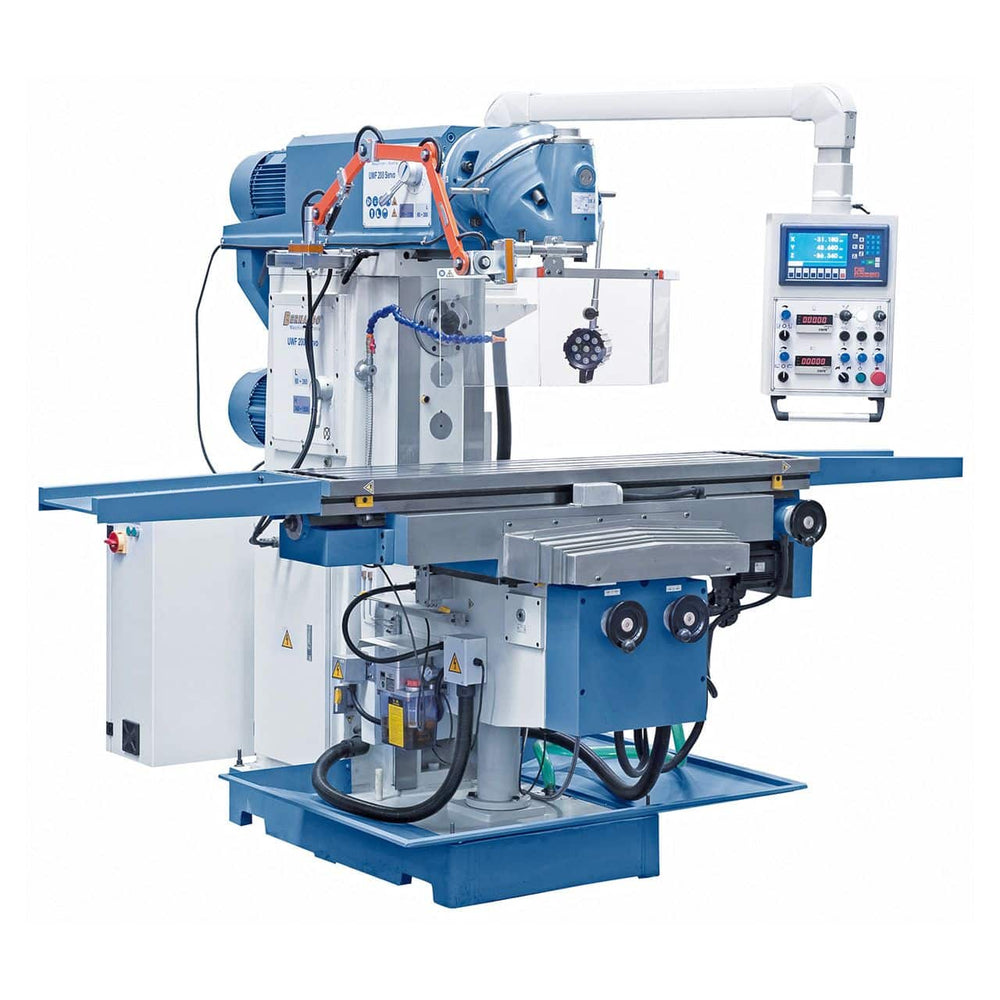

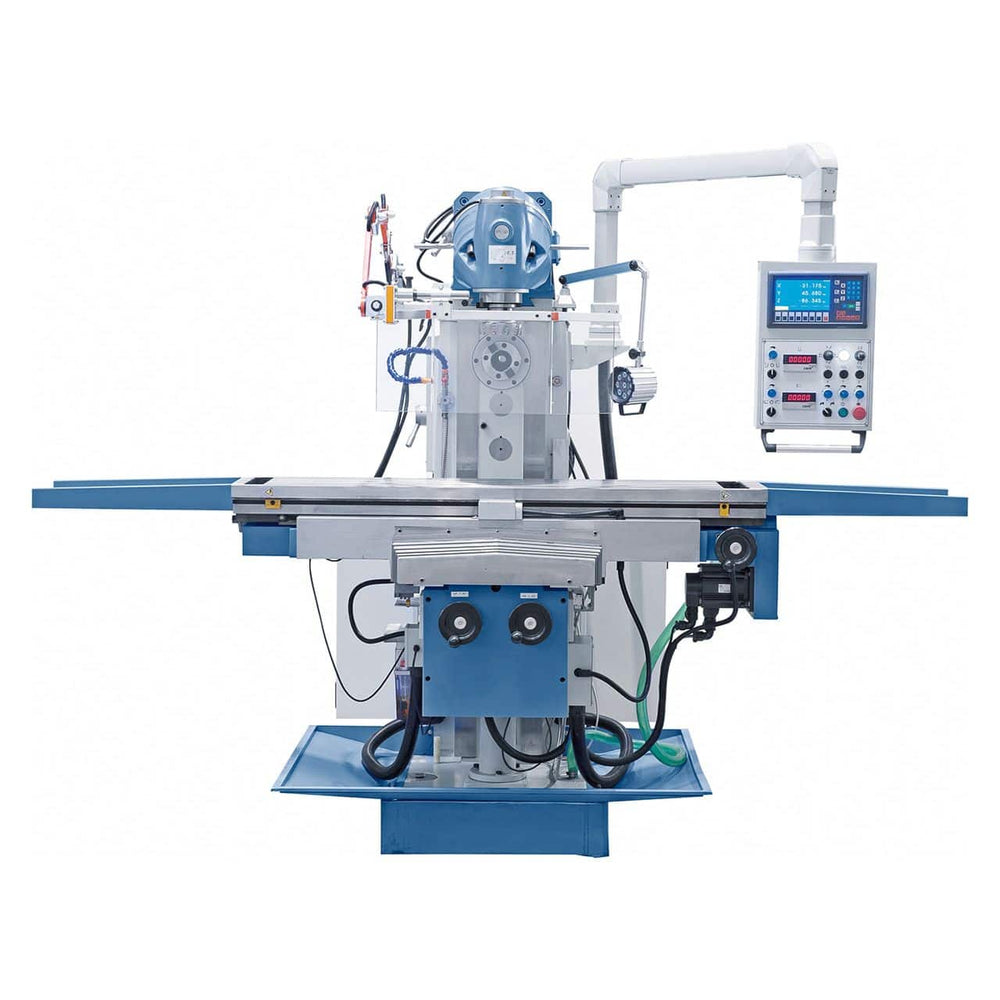

The UWF 200 Servo universal milling machine is designed for machining workpieces weighing up to 300 kg. Thanks to its stable and robust cast iron construction and the high rigidity of its machine components, this model offers the best conditions for precise machining. The main feature of this machine is the servo-assisted turret with electronic handwheels on all axes, as well as continuously variable speed control.
Property

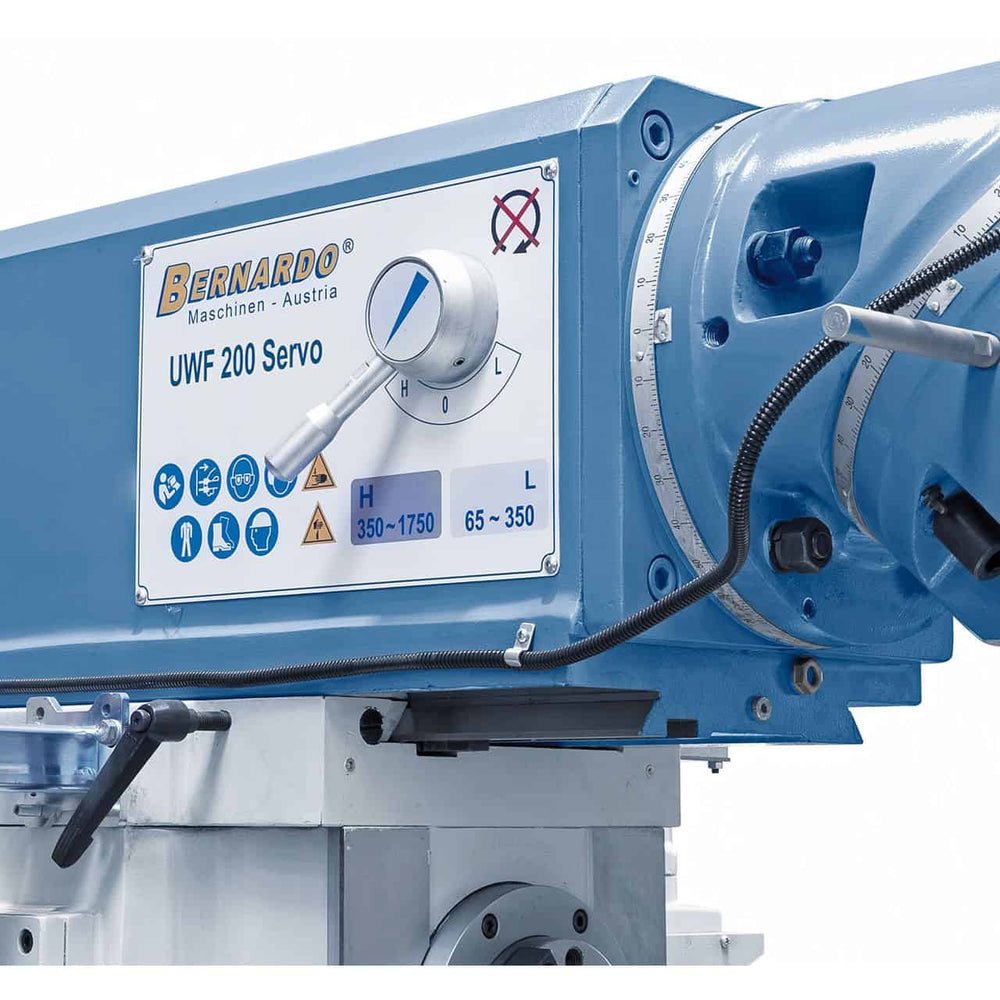

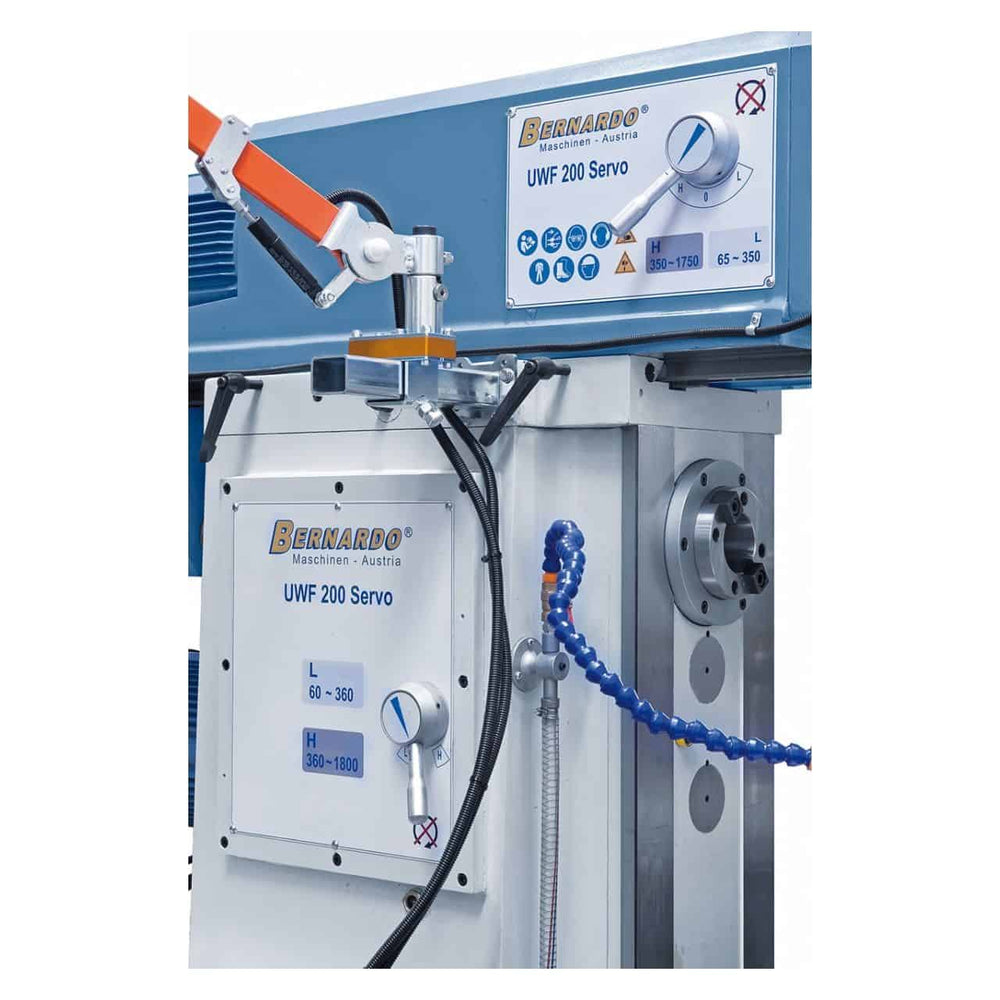

- Variable speed control of the horizontal spindle and vertical spindle with optimal torque curve

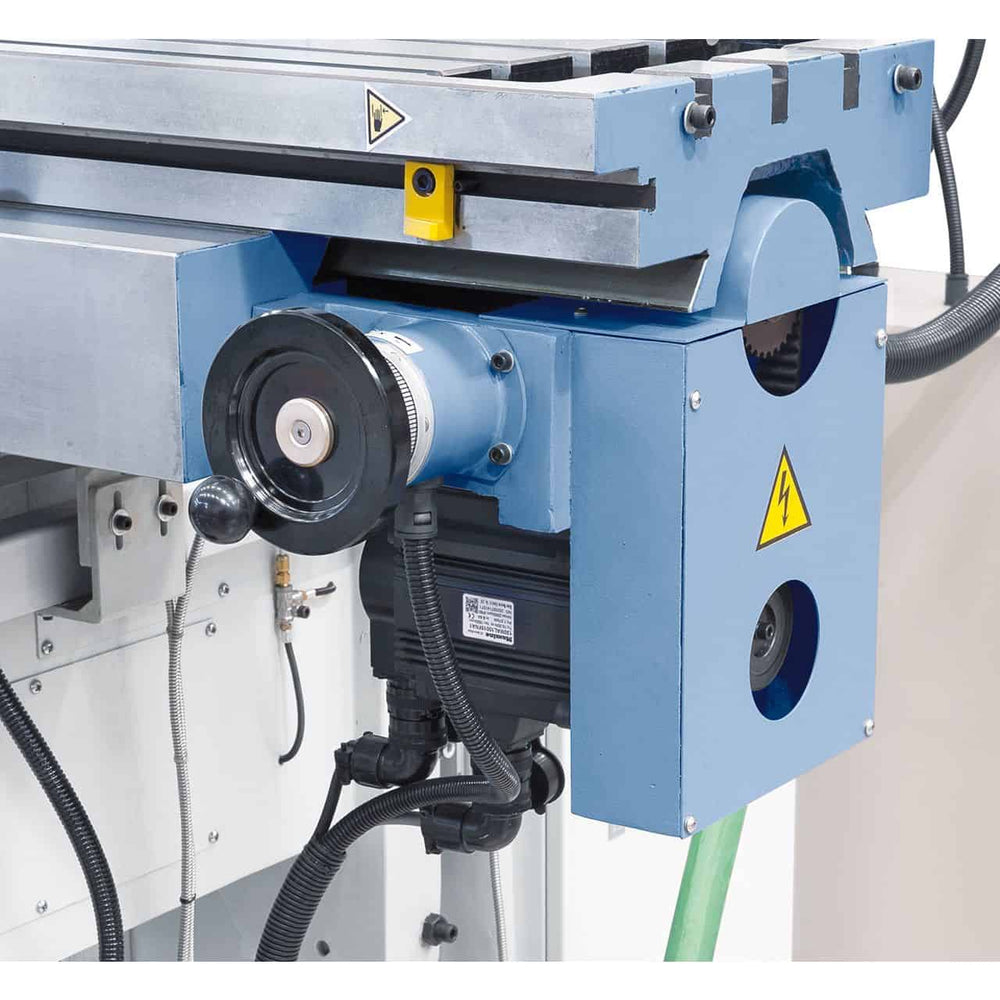

- Continuous automatic feed and rapid travel in all axes, driven by the servo motor
- Backlash-free preloaded rotary ball spindles in all 3 axes
- Hardened and ground precision guides ensure high working precision

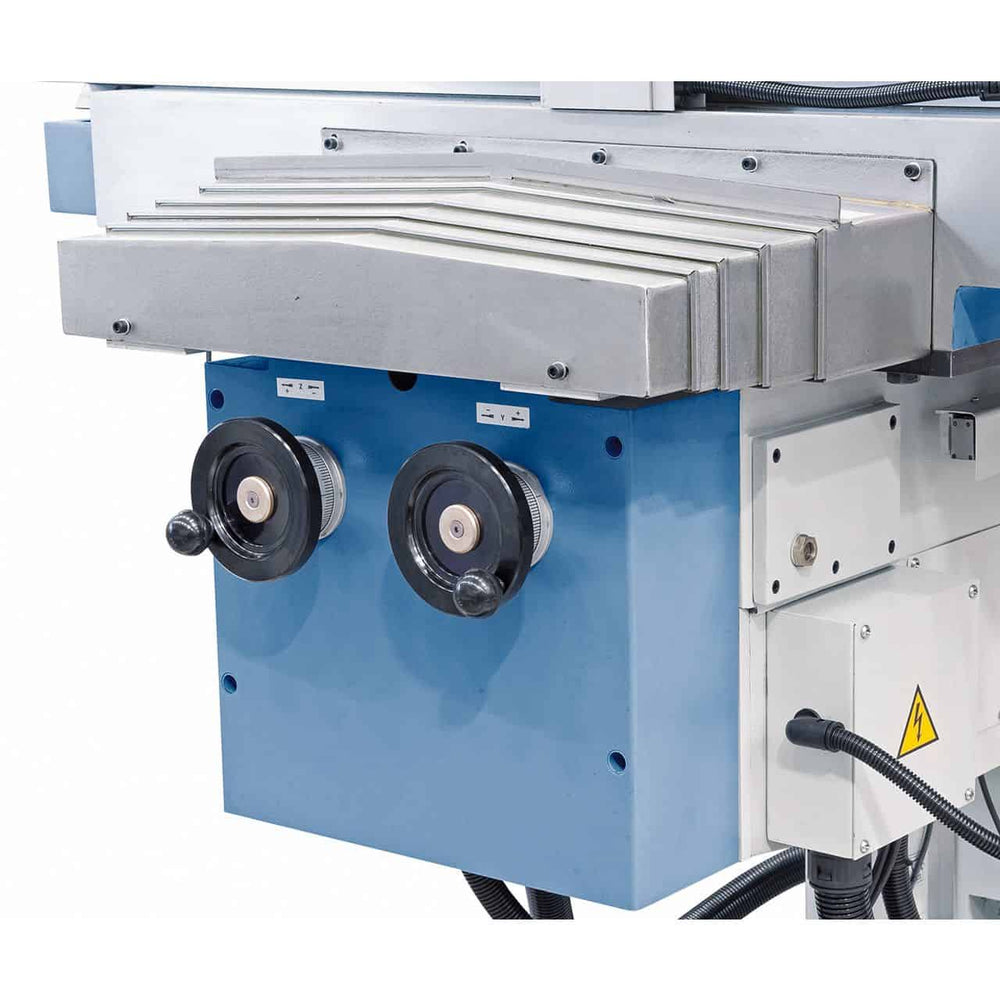

- Equipped as standard with 3 electronic handwheels for manual movement in all axes

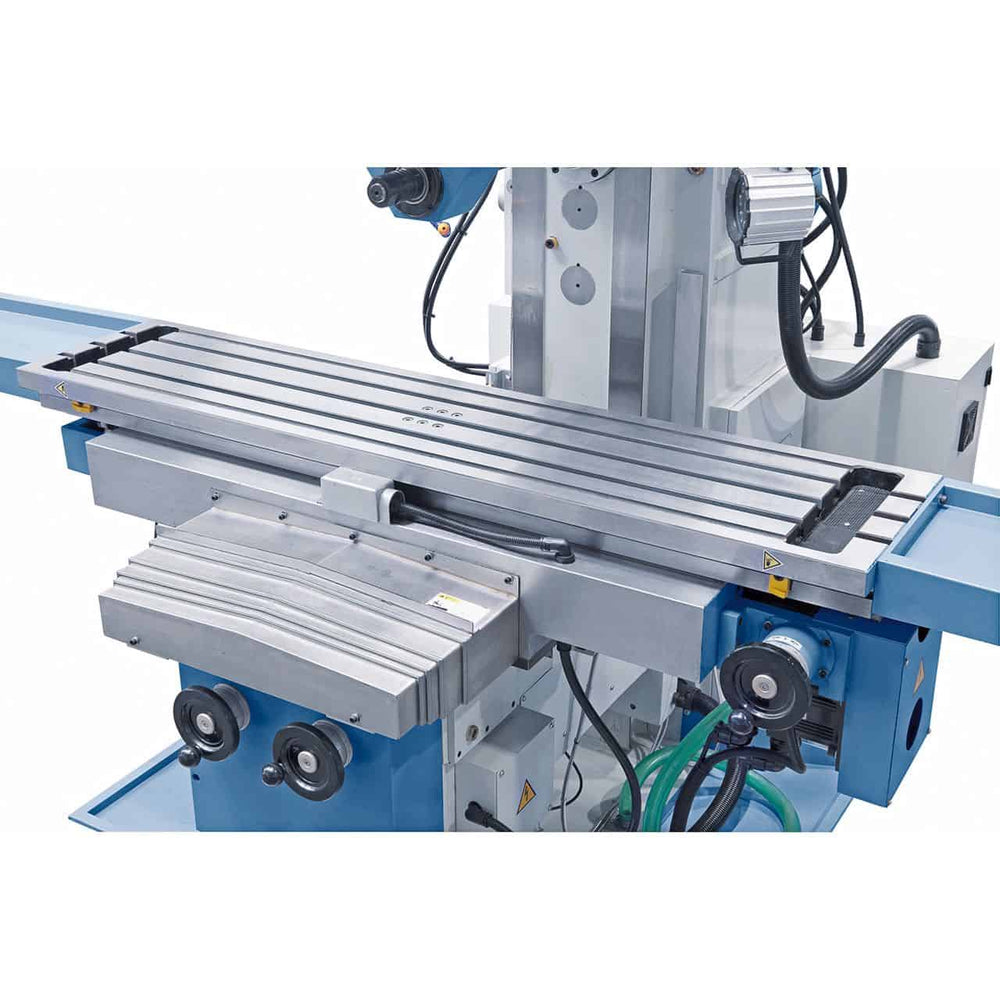

- Large composite board with T-slots, with a finely machined surface
- Central lubrication for the supplied guides
- Adjustment of the desired feed speed using the potentiometer located on the control panel
- Equipped with rapid travel in the x, y and z axes to reduce downtime
- The large rectangular guide in the y-axis and the dovetail guide in the y- and z-axis ensure greater stability.
Standard accessories

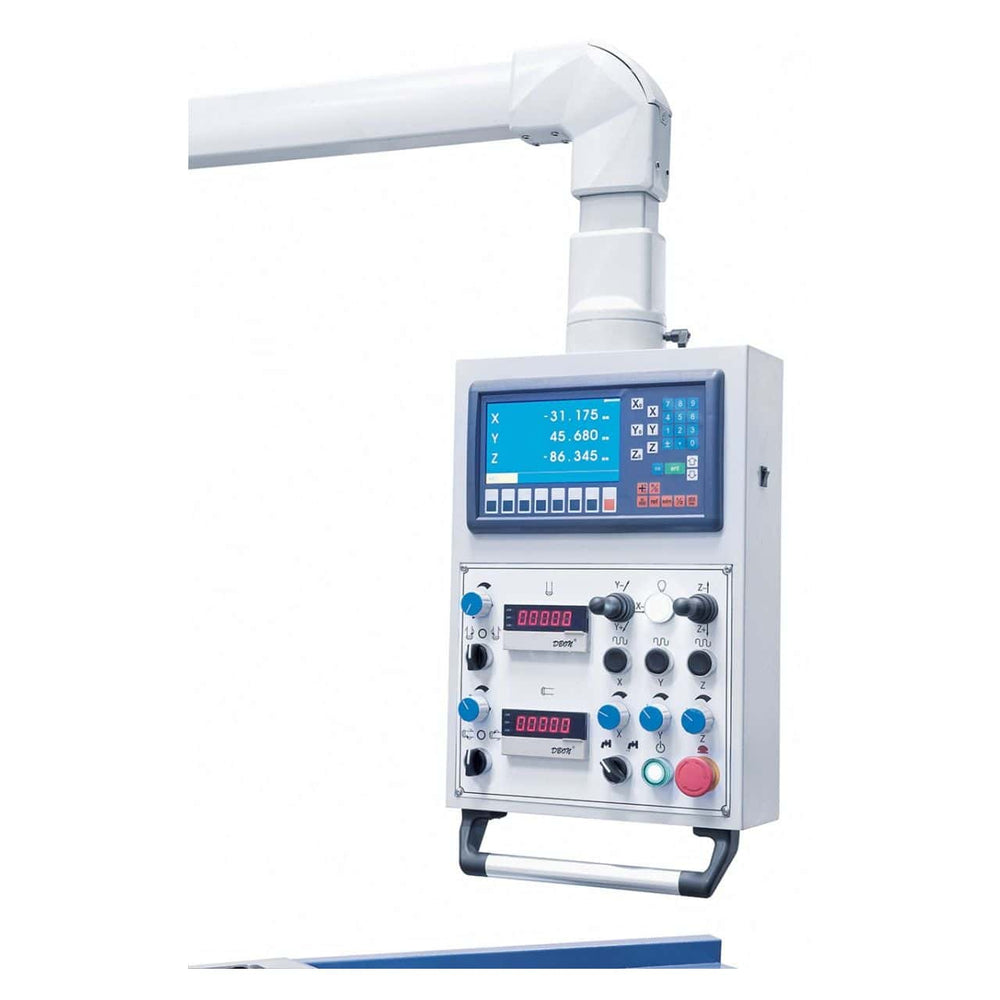

- ES-12 H 3-Axis Position Display with LCD Display
- Electronic flyers
- Continuous feed in all axes
- M 24 clamping chuck

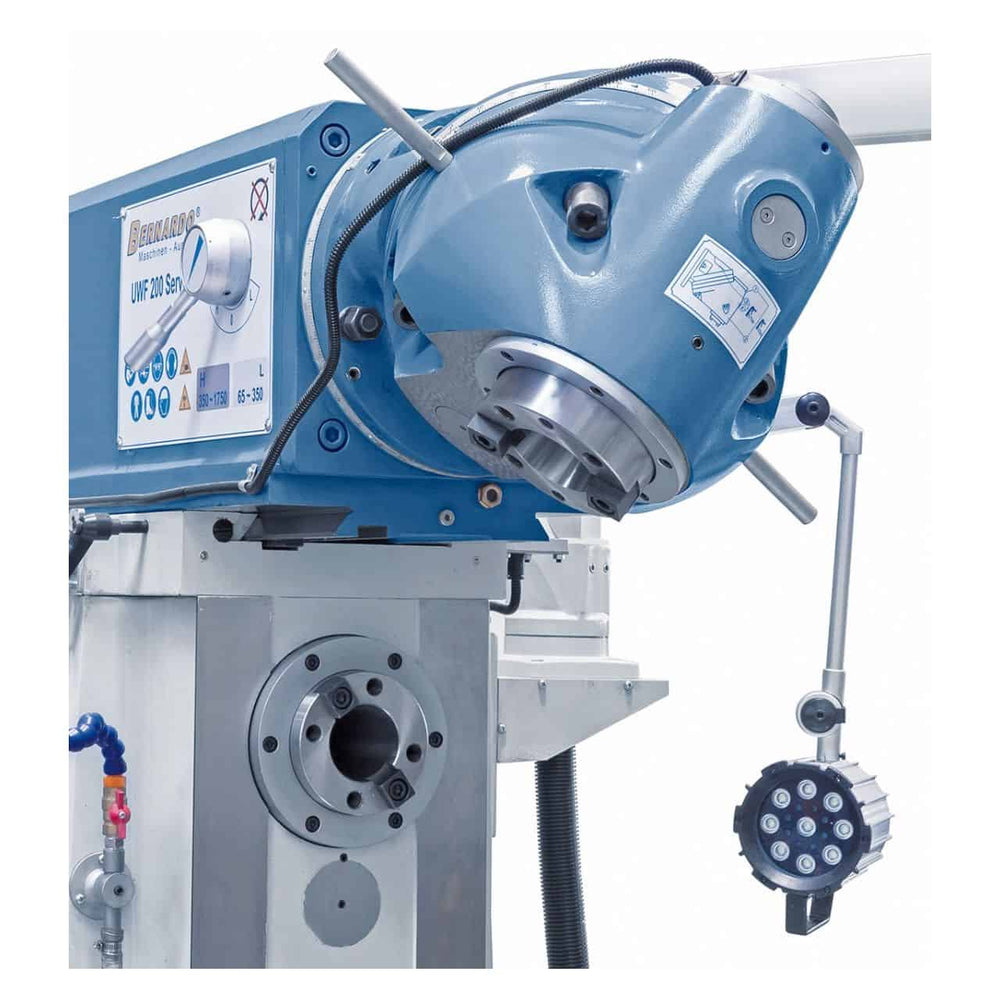

- LED car light
- Refrigeration system

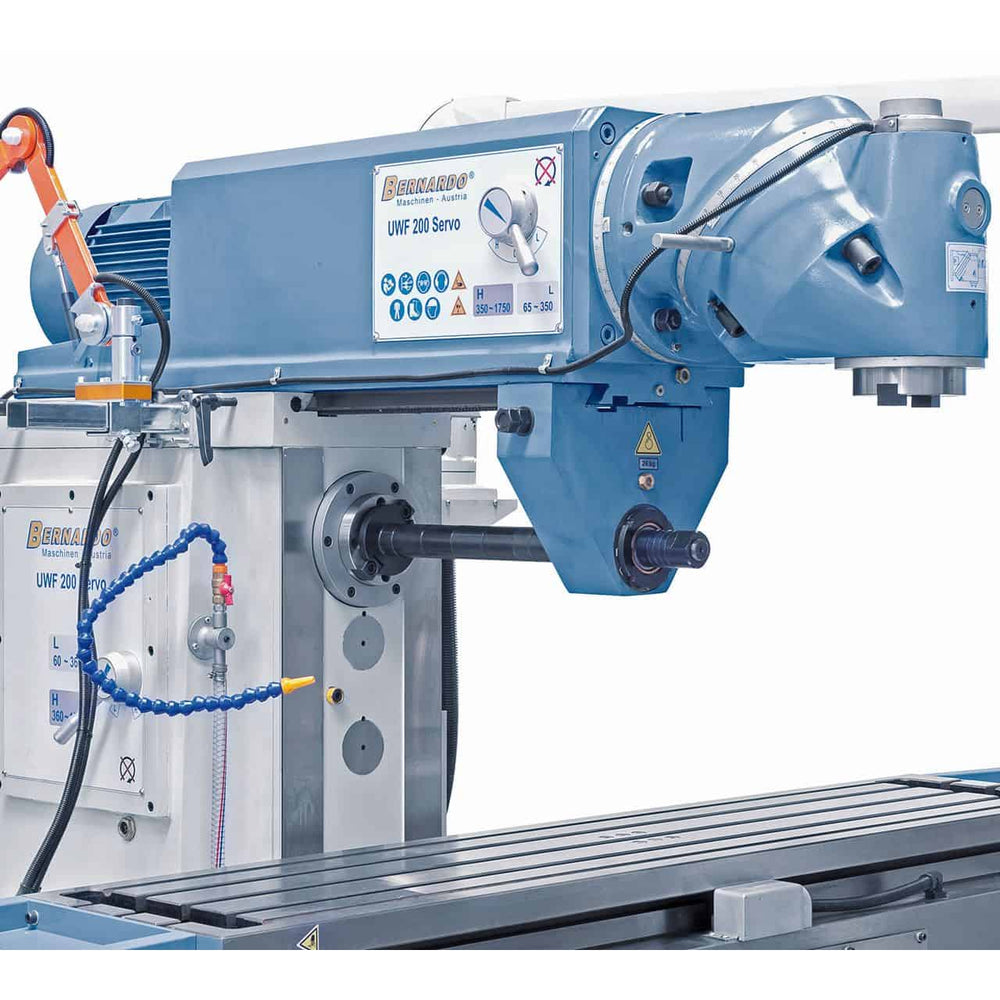

- Horizontal external support
- Cooling tank
- Universal protection device
- Long drill chuck ISO 50/27 mm, ISO 50/32 mm
- ISO 50/32 mm combined drill chuck
- ISO 50 / MK 4 Reduction Socket

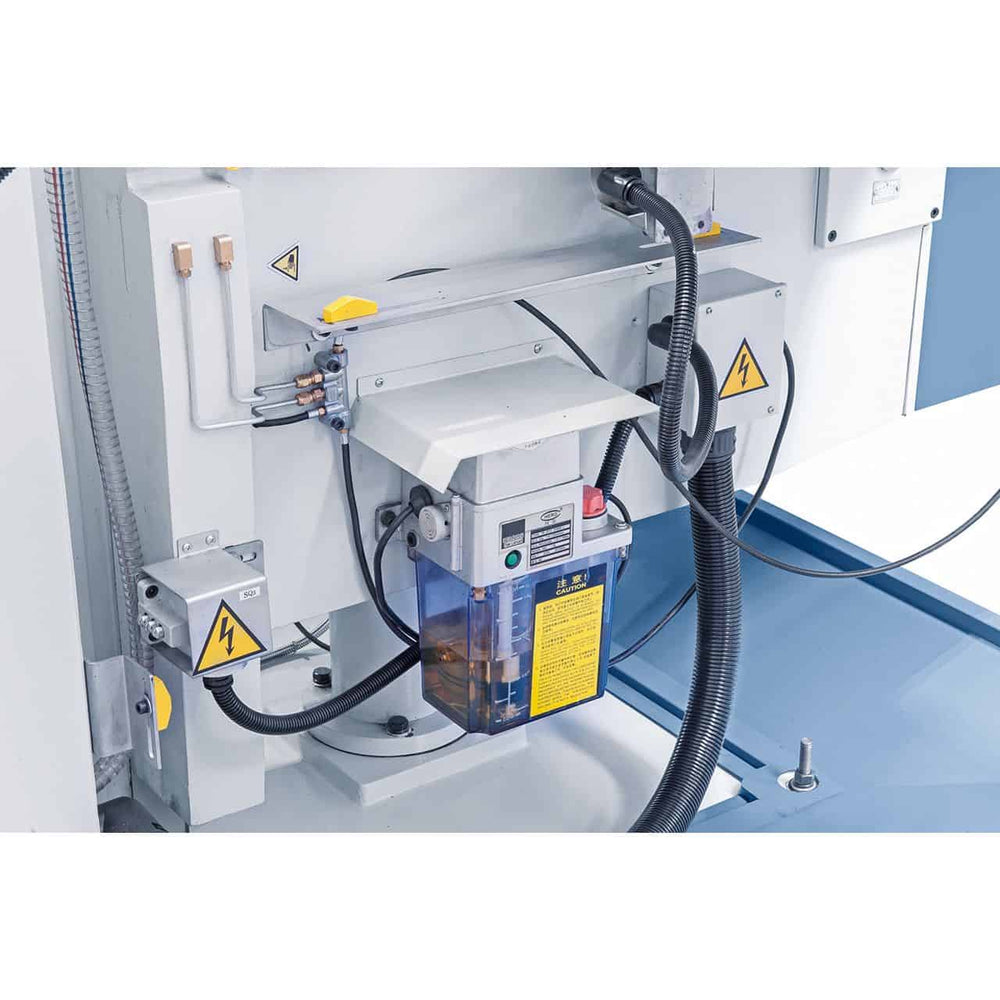

- Automatic central lubrication

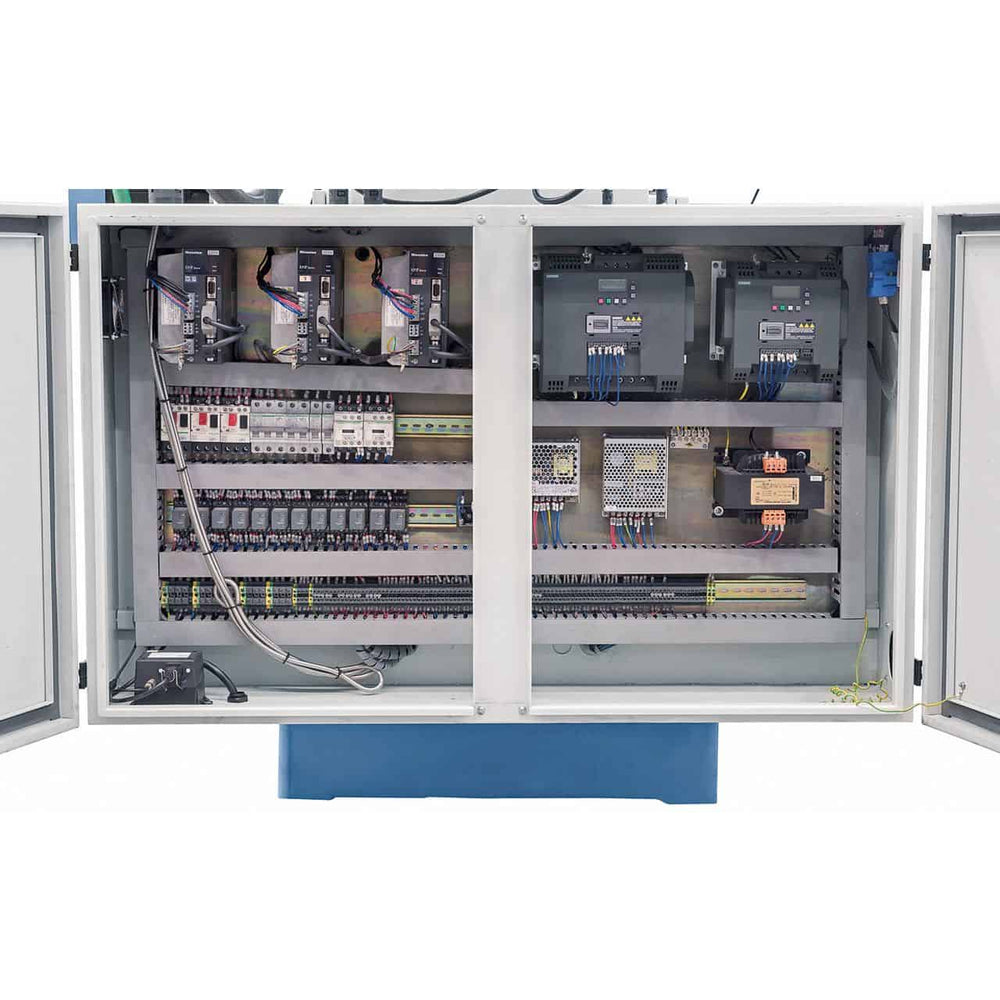

- Control device
technical specifications
| Table dimensions |
1600 x 360 mm |
Horizontal spindle attachment |
ISO 50 |
Vertical spindle attachment |
ISO 50 |
Horizontal spindle speed |
(2) 60 - 360 / 360 - 1800 rpm |
Number of revolutions of the vertical spindle |
(2) 65 - 350 / 350 - 1750 rpm |
Longitudinal travel (x) |
1300 mm |
Transverse travel (y) |
300 mm |
Vertical travel (z) |
400 mm |
Distance between spindle and horizontal table |
15 - 350 mm |
Distance between spindle and vertical table |
180 - 610 mm |
Length of the arms |
250 - 980 mm |
| Max. piece weight |
300 kg |
T-slots (number, width, spacing) |
3 / 18 / 80 mm |
Longitudinal advancement area |
10 - 1000 mm/min |
Transverse advancement area |
10 - 1000 mm/min |
Vertical advancement area |
10 - 500 mm/min |
Rapid travel on the x and y axes |
10 - 3000 mm/min |
Rapid travel z-axis |
10 - 750 mm/min |

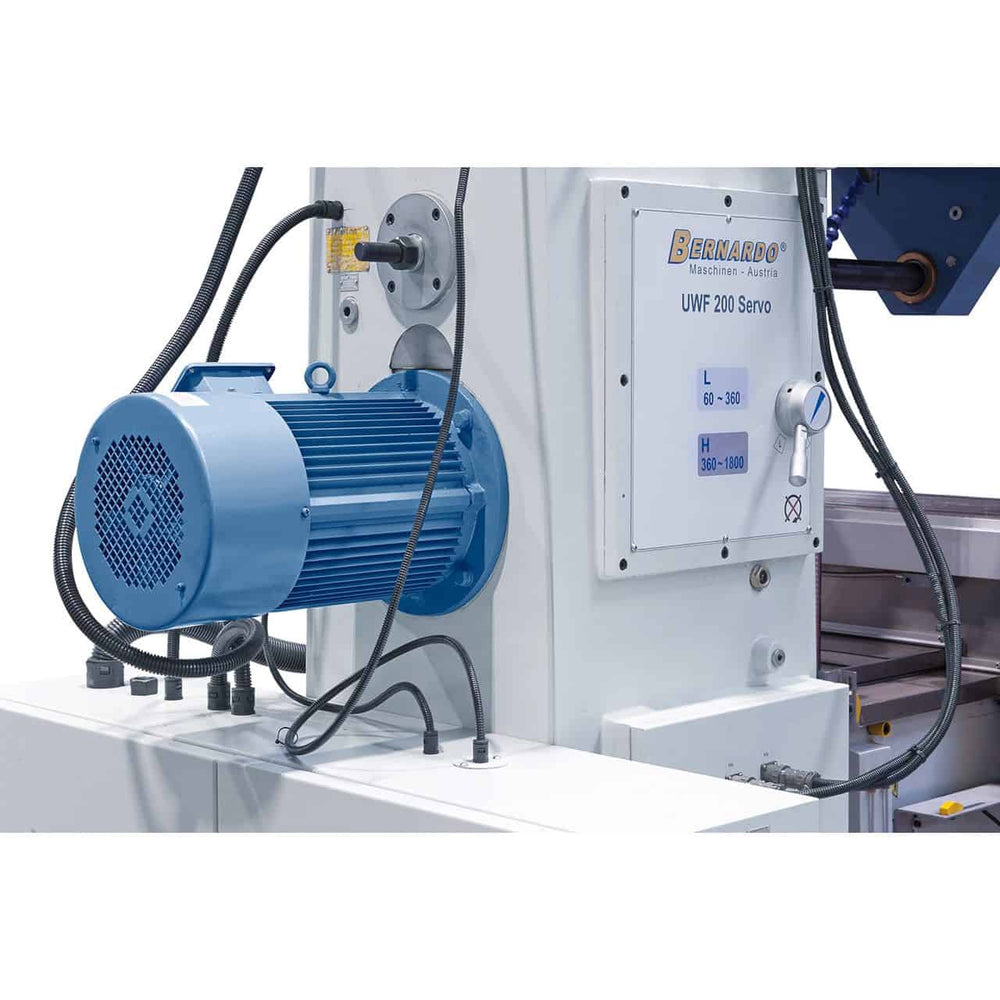

Horizontal engine power |
7.5 kW |
Vertical motor power |
5.5 kW |
Servo motor (torque / power) |
10 Nm / 1.5 kW |
Pump power for refrigerant circulation |
90 W |
| Coolant circulation pump flow rate |
25 l / min |
Machine dimensions (L x W x H) |
2790 x 2200 x 2200 mm |
Approximate weight |
2850 kg |
