Description

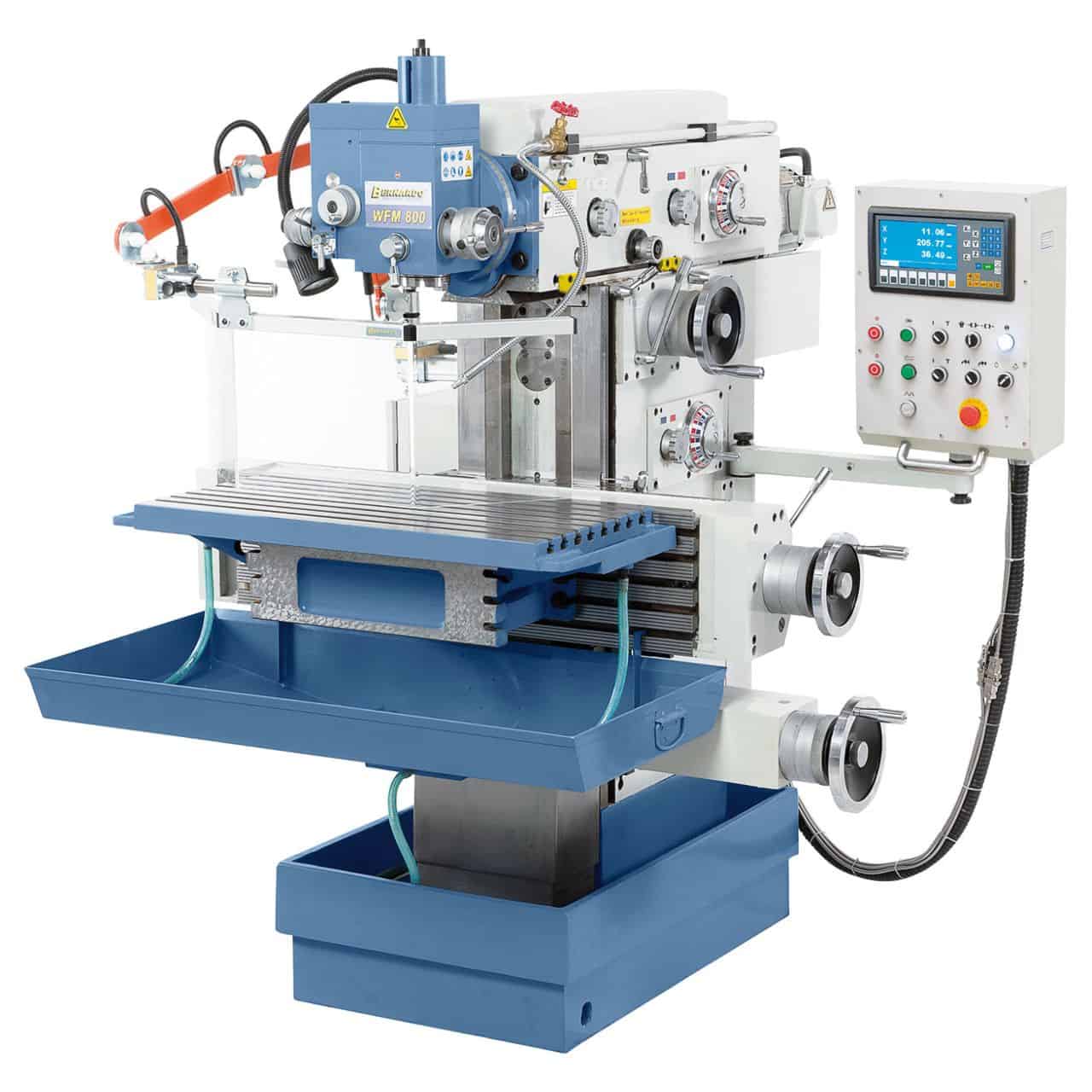

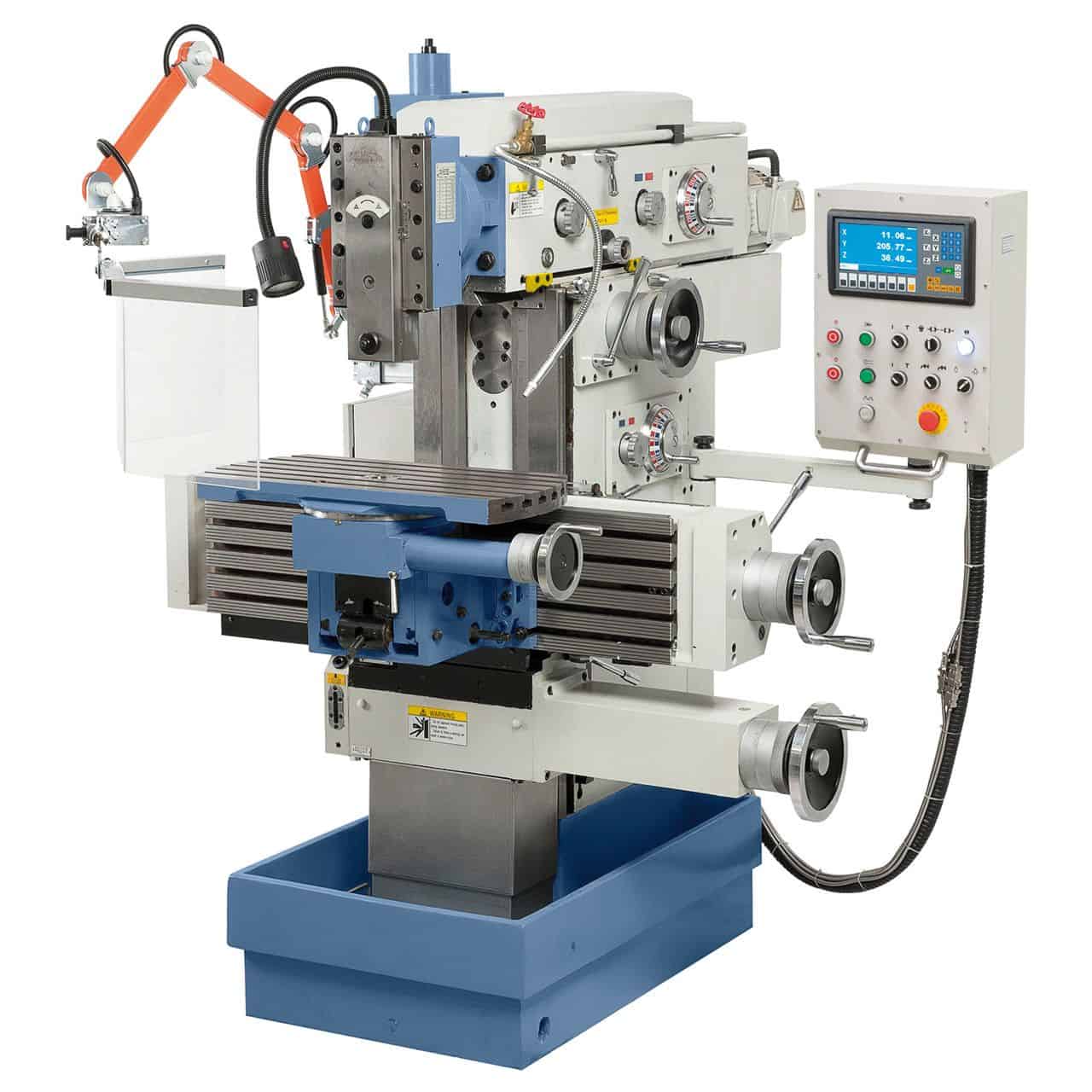

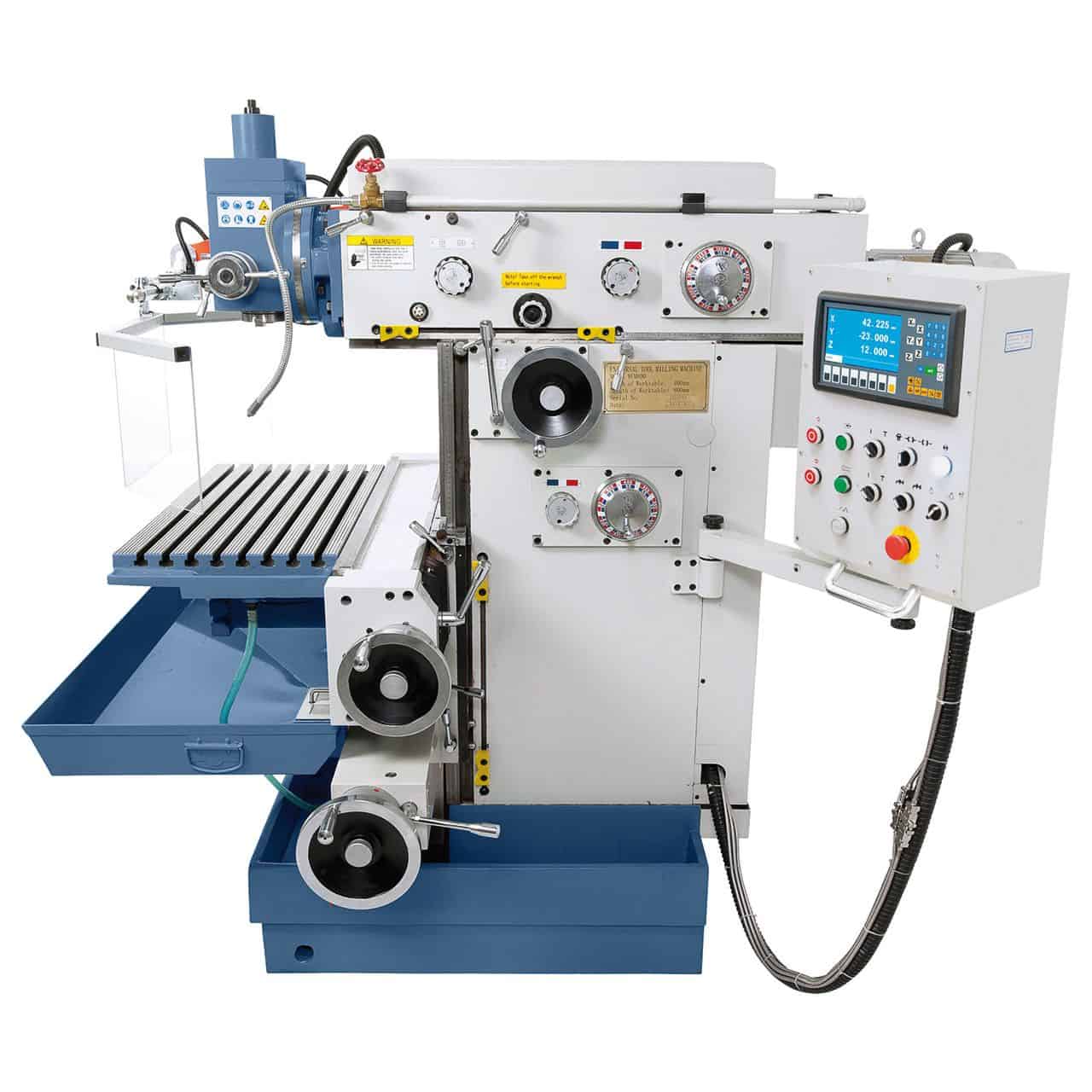

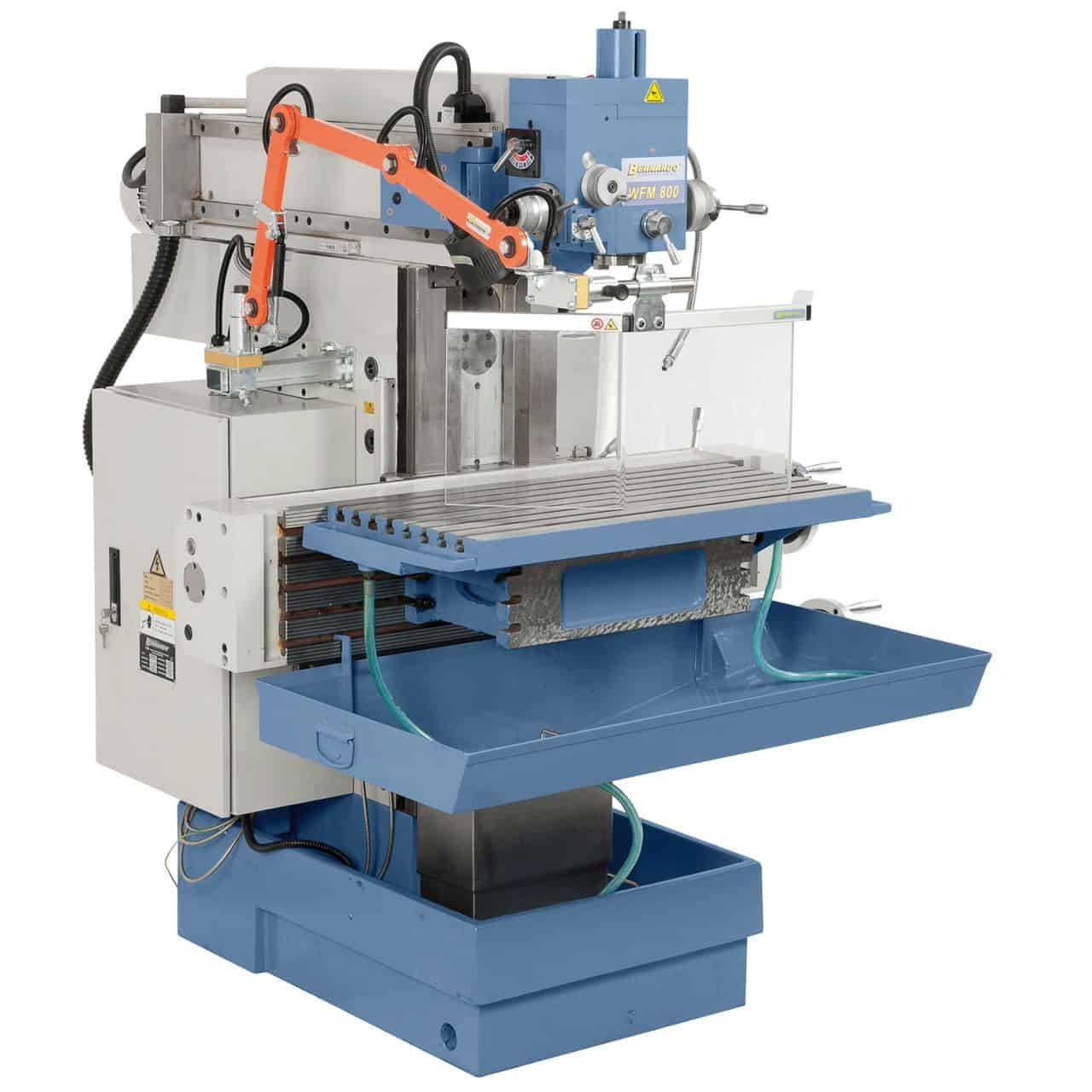

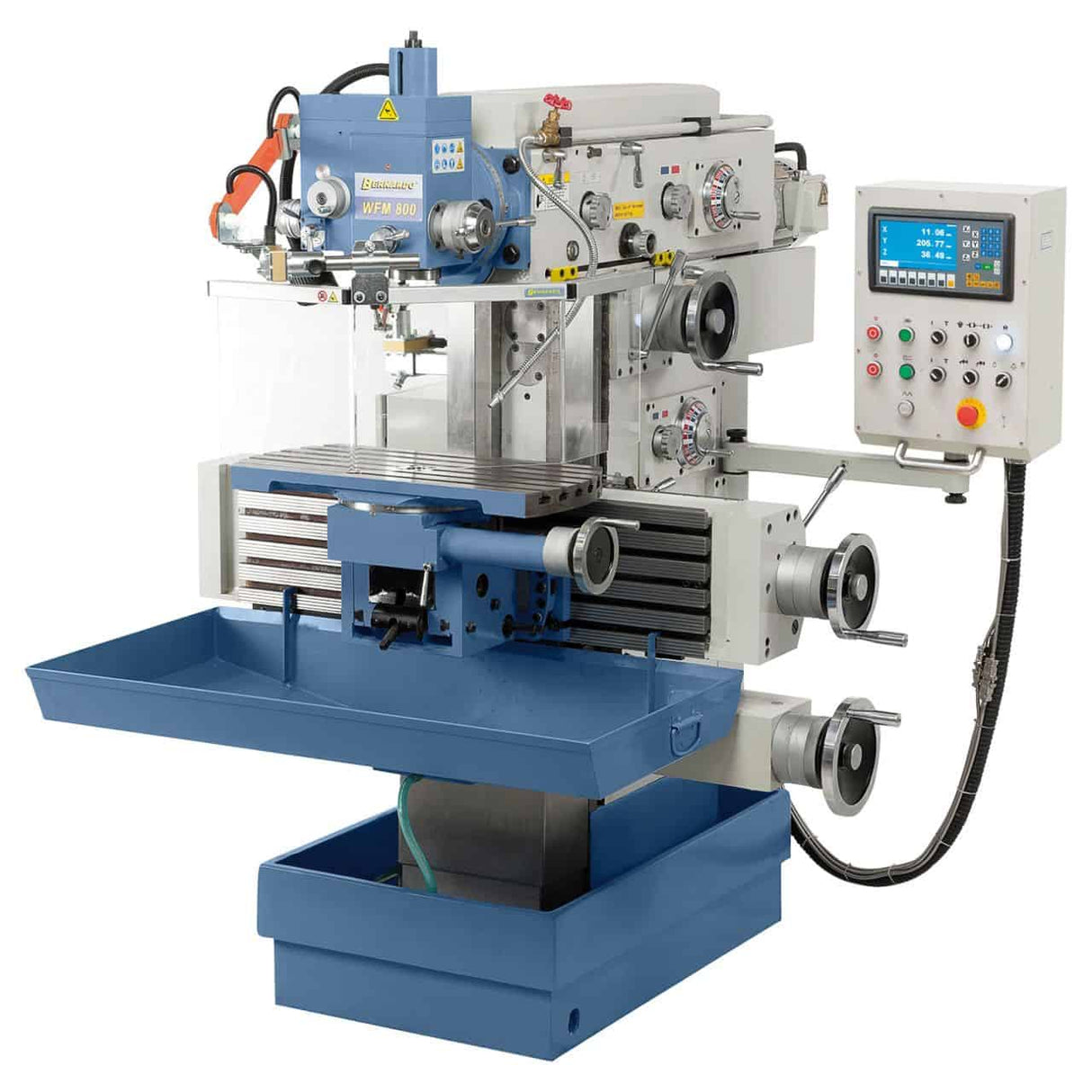

The WFM 800 conventional universal milling machine is designed to machine workpieces weighing up to 300 kg. Thanks to its stable and robust cast iron construction and the high rigidity of its machine components, this model offers the best conditions for precise machining. This machine's main applications are tool and mold making, model making, and prototyping.
Property
- Simple and precise feed speed adjustment using the handwheel
- Equipped with manual, automatic and rapid traverse feeds in all 3 axes
- Central lubrication for the supplied guides

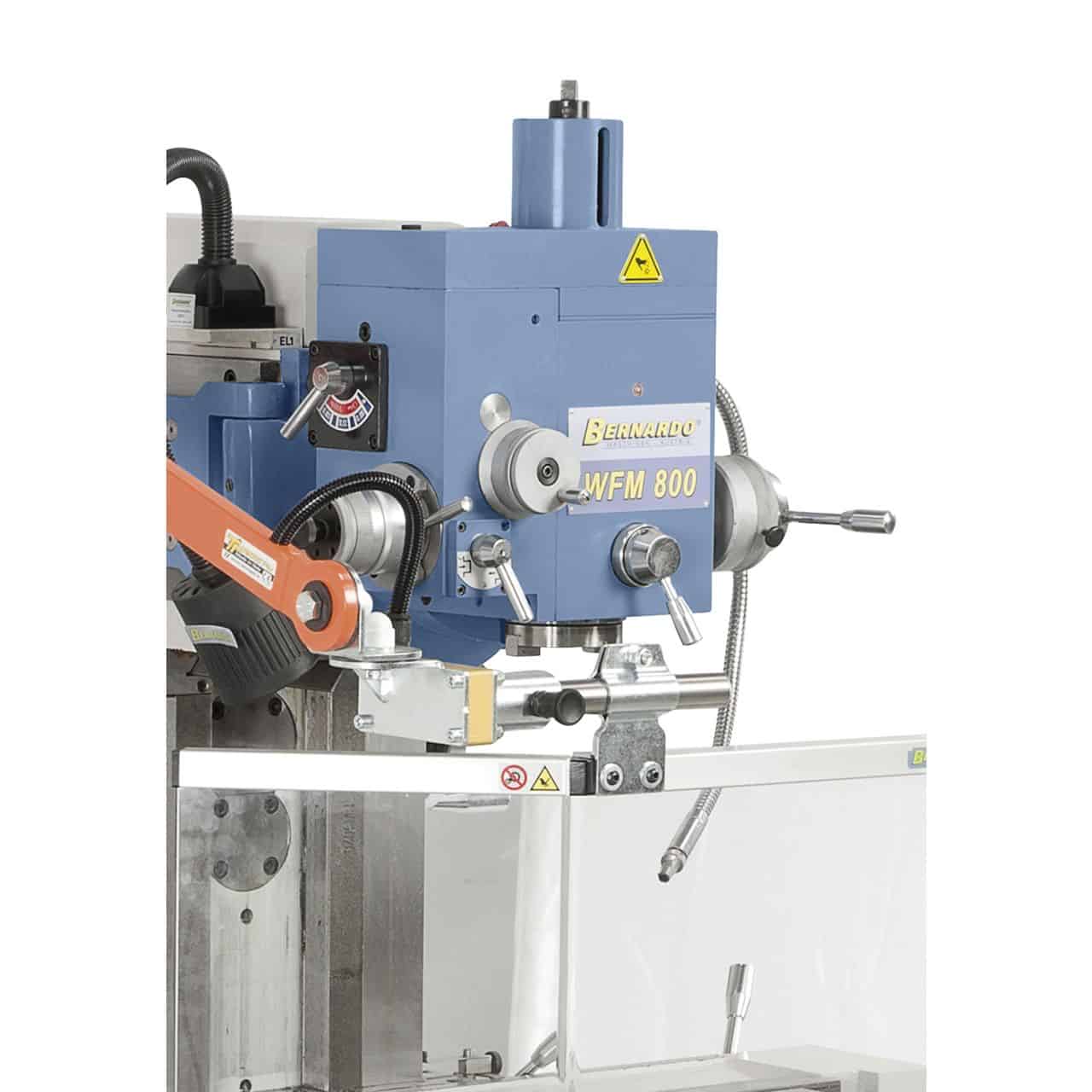

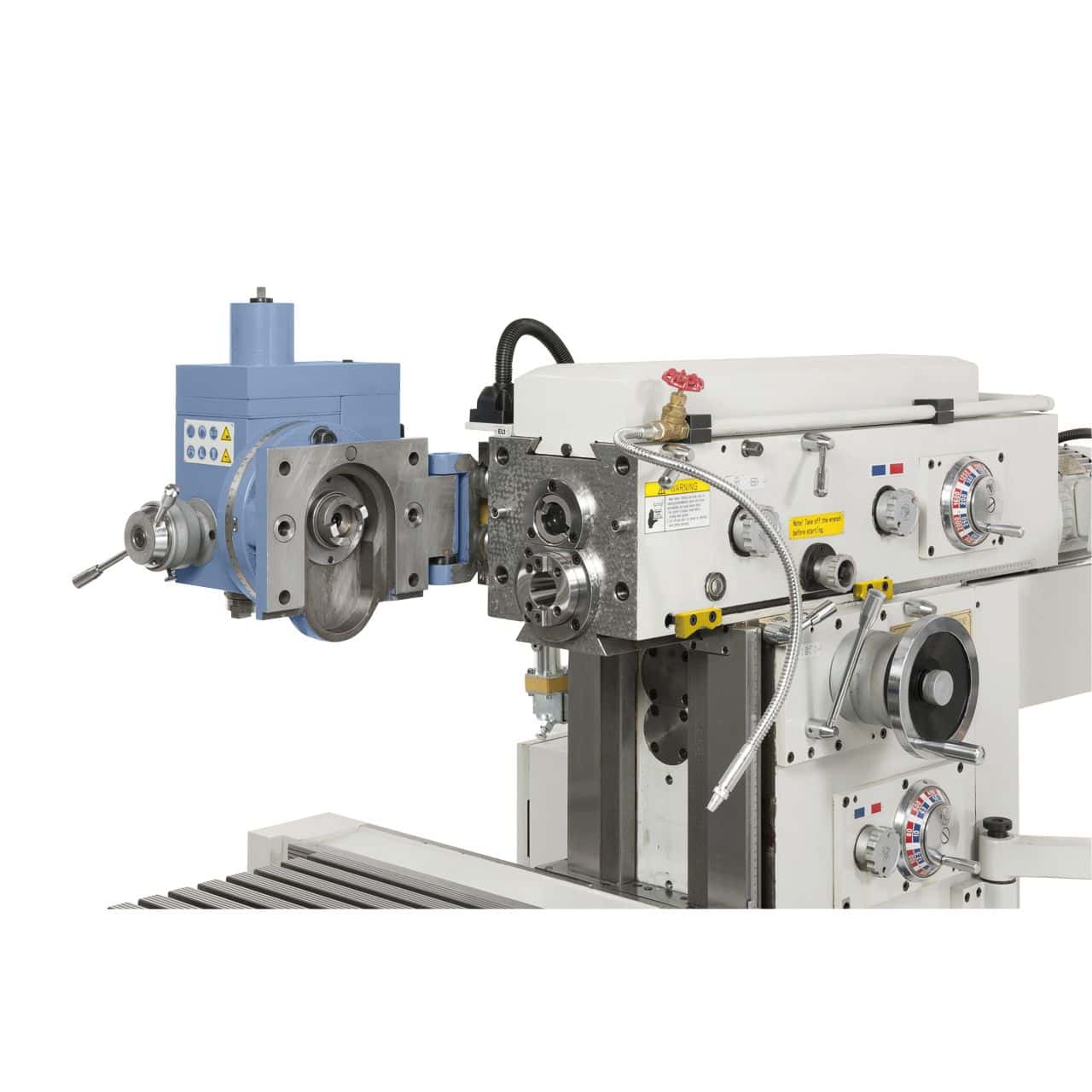

- Tilting milling head with spindle adjustment and three automatic drill feed systems.
- The machine base with heavy cast iron valve guides ensures vibration-free and high-precision work.

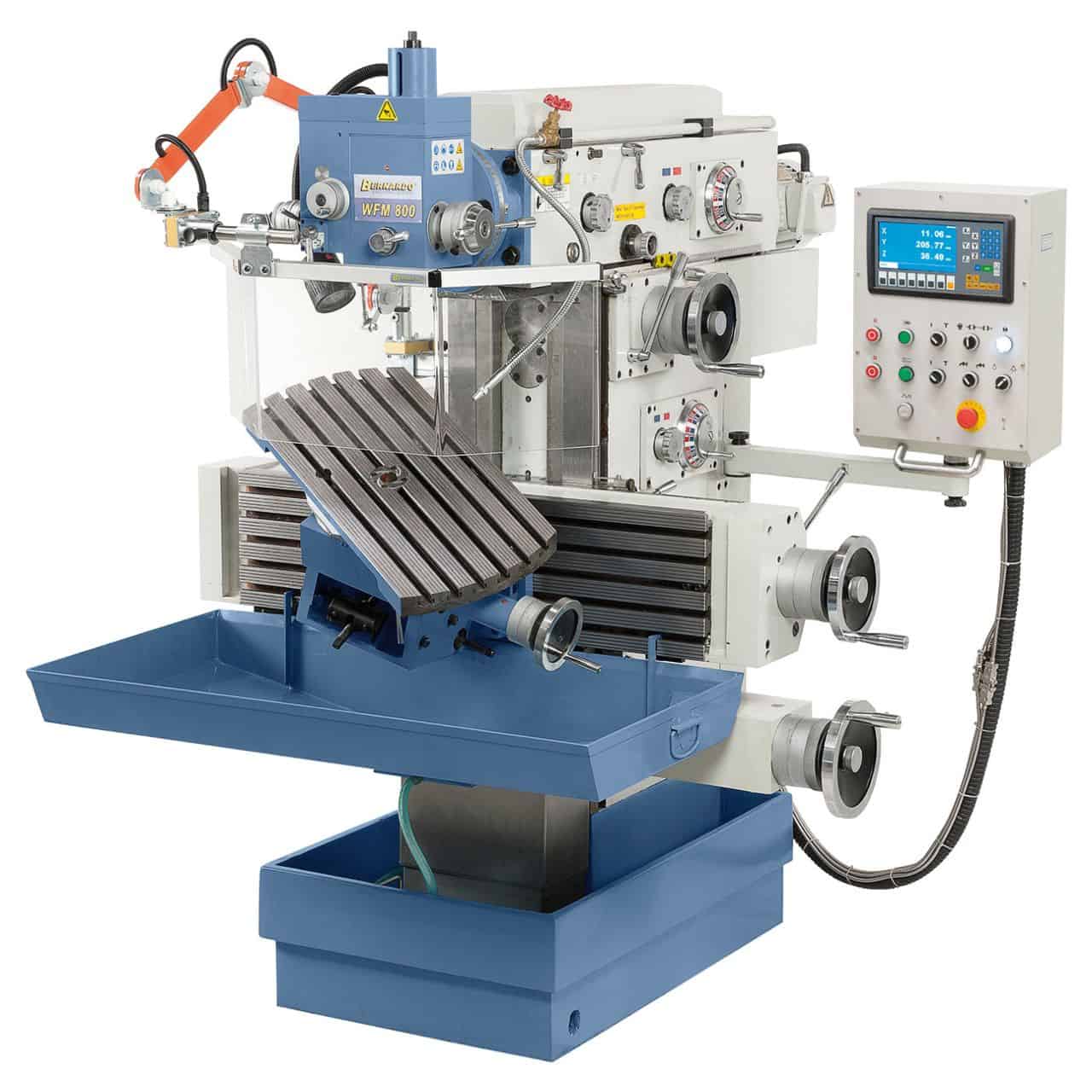

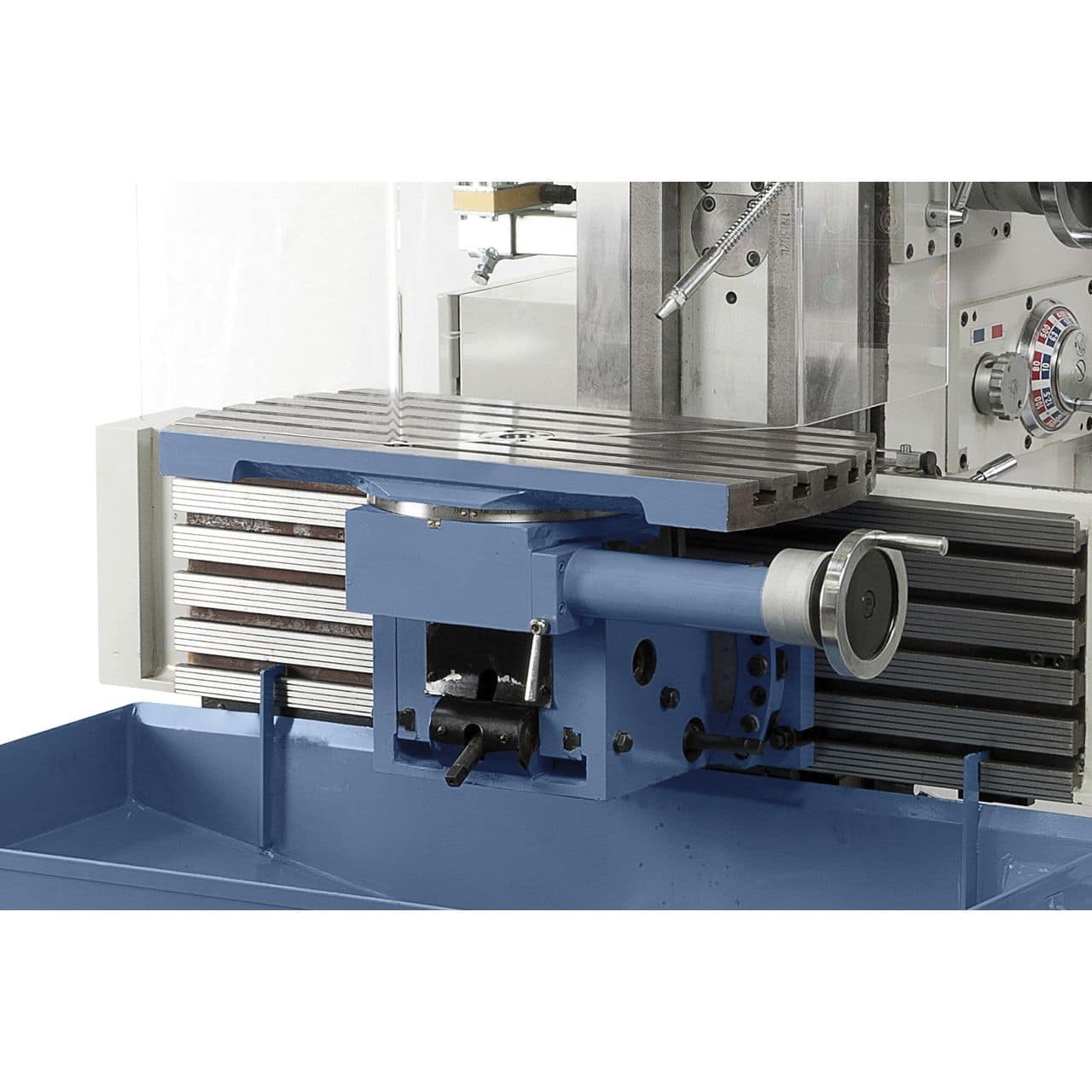

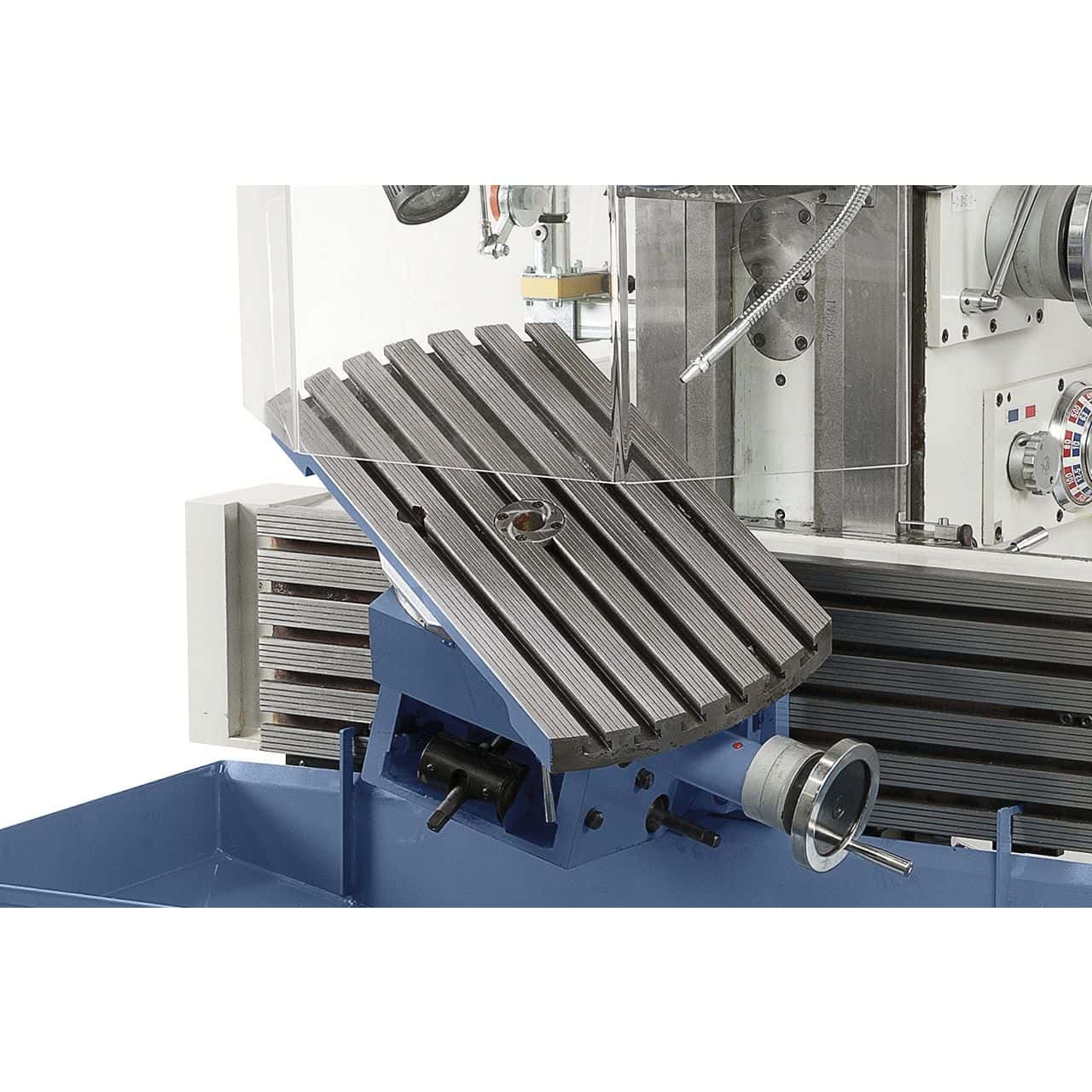

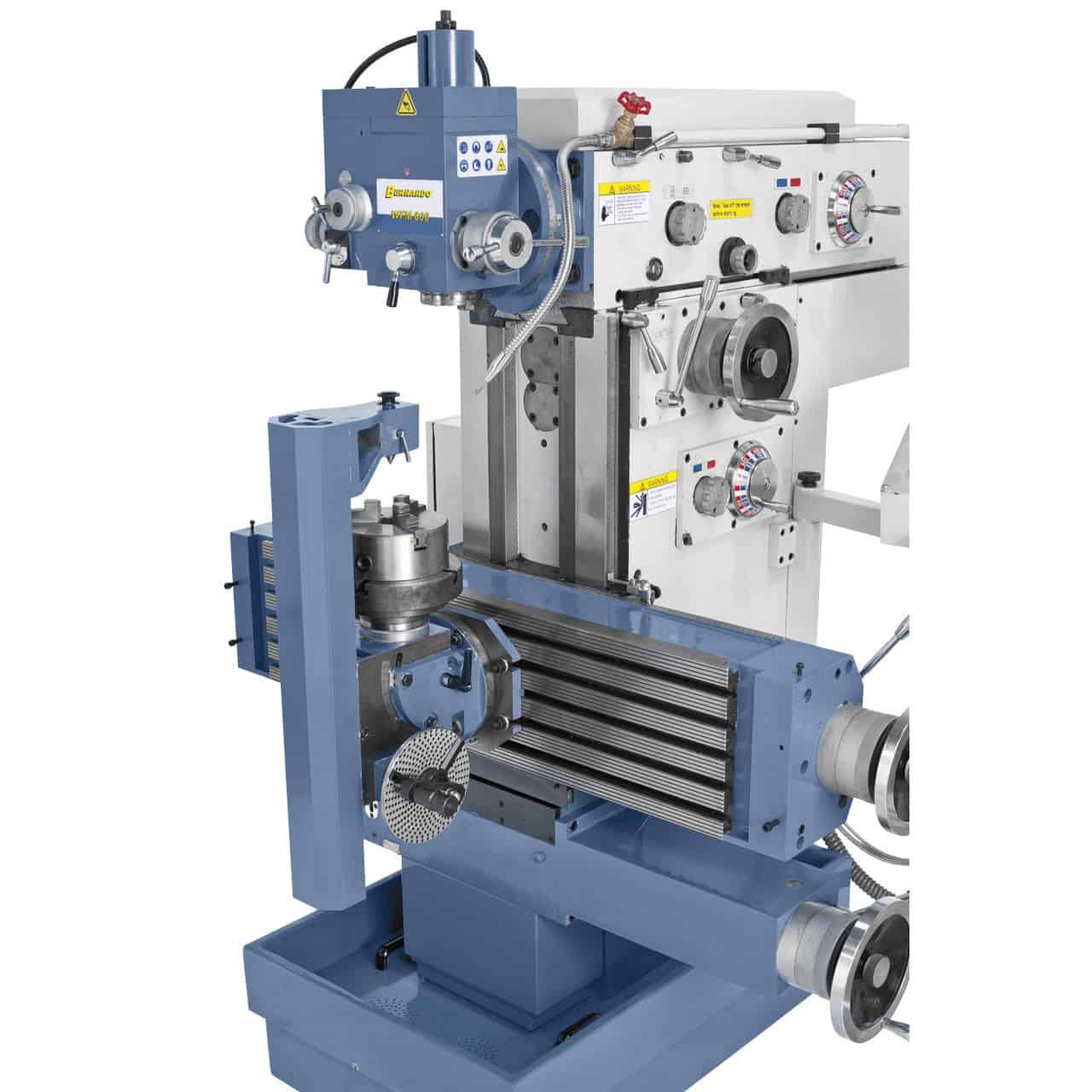

- Vertical clamping surface with 5 T-slots for clamping the work table, universal tilting table or large workpieces
- Hardened and ground precision guides ensure high working precision
- Economical processing of various materials through optimal adjustment of the freely selectable spindle speed and feed rates
- Intuitively arranged switching elements for adjusting speed and feed
- Essential machines for toolmaking, moldmaking, educational institutions, industry, model making, model making, etc.
Standard accessories

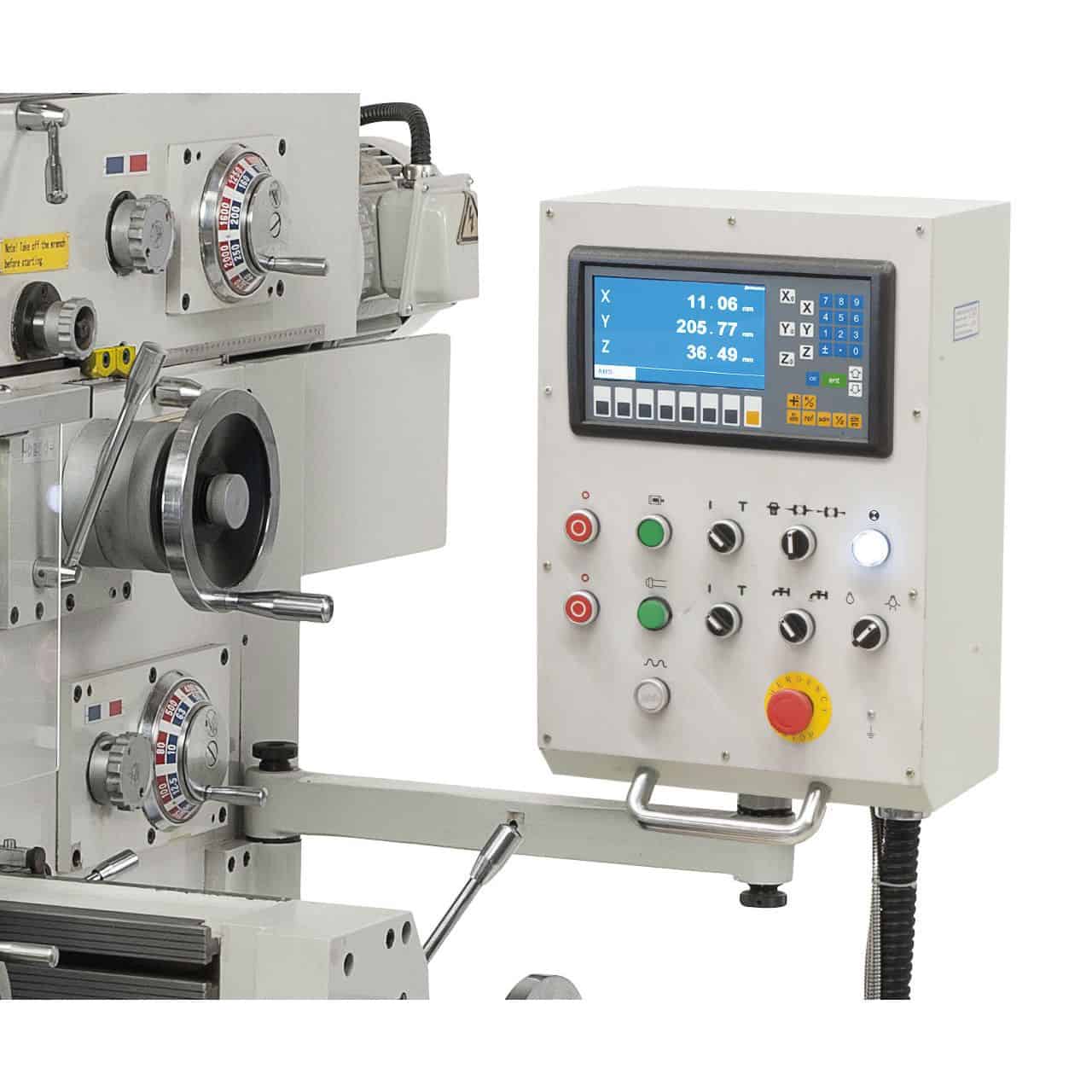

- ES-12 H 3-Axis Position Display with LCD Display
- M 16 clamping chuck
- LED car light
- Refrigeration system
- Feed for the x, y and z axes

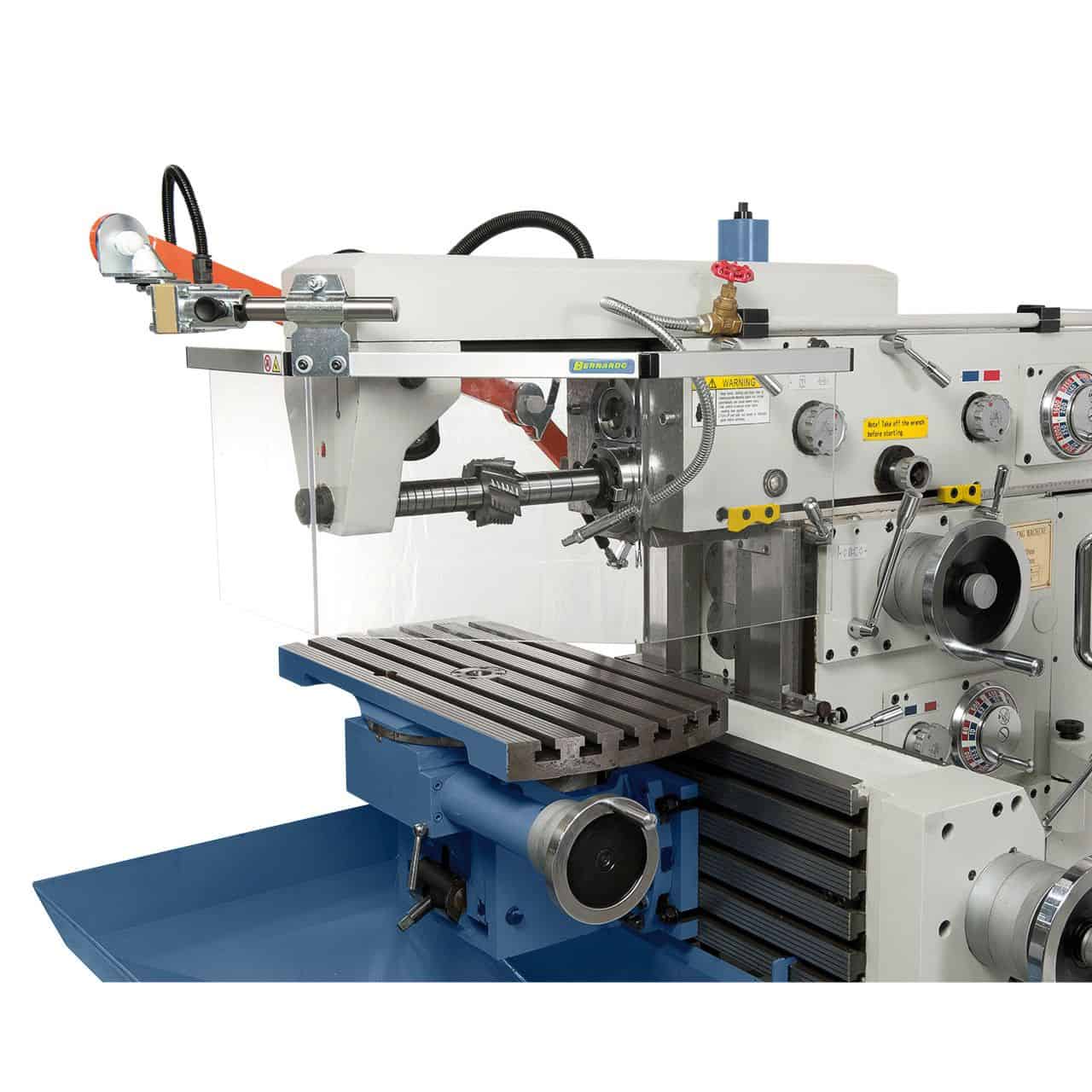

- Horizontal external support
- Long drilling chuck ISO 40/22 mm
- Long drilling chuck ISO 40/27 mm
- Combination drill chuck ISO 40 / 22 mm, ISO 40 / 27 mm
- Adapter ISO 40/MK 1, ISO 40/MK 2, ISO 40/MK 3
- Collet chuck with collets 4 - 16 mm
- Universal protection device
- Chip collection plate
- Control device
technical specifications
Table dimensions |
800 x 400 mm |
Vertical clamping surface |
950 x 250 mm |
Longitudinal travel (x) |
500 mm |
Transverse travel (y) |
350 mm |
Vertical travel (z) |
400 mm |
Table load |
300 kg |
Vertical milling head |
|
Spindle speed |
(18) 40 - 2000 rpm |
Spindle attachment |
ISO 40 |
Hole stroke |
60 mm |
Spindle power supply |
0.03 / 0.06 / 0.12 mm/rev |
Max. arm length |
520 mm |
Spindle/table distance |
5 - 405 mm |
| Spindle head tilt area |
from -90° to +90° |

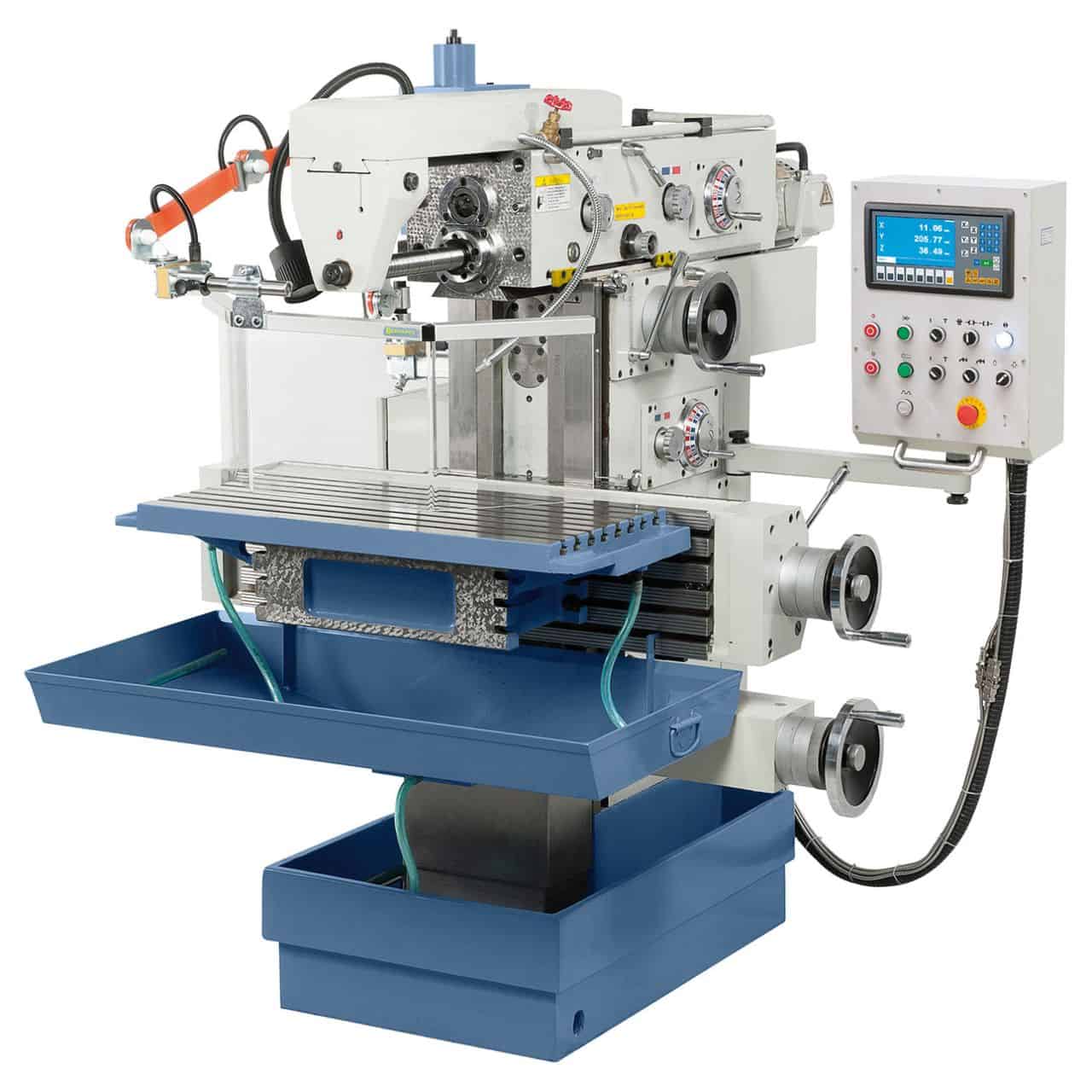

Horizontal milling head |
|
Spindle speed |
(18) 40 - 2000 rpm |
Spindle attachment |
ISO 40 |
Distance between horizontal spindle and table |
35 - 435 mm |
Feed rate |
|
x-axis |
(18) 10 - 500 mm/min |
y-axis |
(18) 10 - 500 mm/min |
Z-axis |
(18) 10 - 500 mm/min |
Rapid travel (x / y / z) |
1200 mm/min |
T-slots (number, width, spacing) |
8 / 14 mm / 45 mm |
Vertical table T-slots (number / width / distance) |
5 / 14 mm / 45 mm |
Advance motor |
1.5 kW |
Main engine |
3.0 kW |
Machine dimensions (L x W x H) |
1460 x 2080 x 1720 mm |
Weight approx. |
2200kg |
