CNC vertical machining center VMC 1050 with Siemens Sinumerik 808D Advanced 16
CNC vertical machining center VMC 1050 with Siemens Sinumerik 808D Advanced 16 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
CNC vertical machining center VMC 1050 with Siemens Sinumerik 808D ...
-
Description
-
Technical Specifications
-
Product safety
-
Reviews
Description

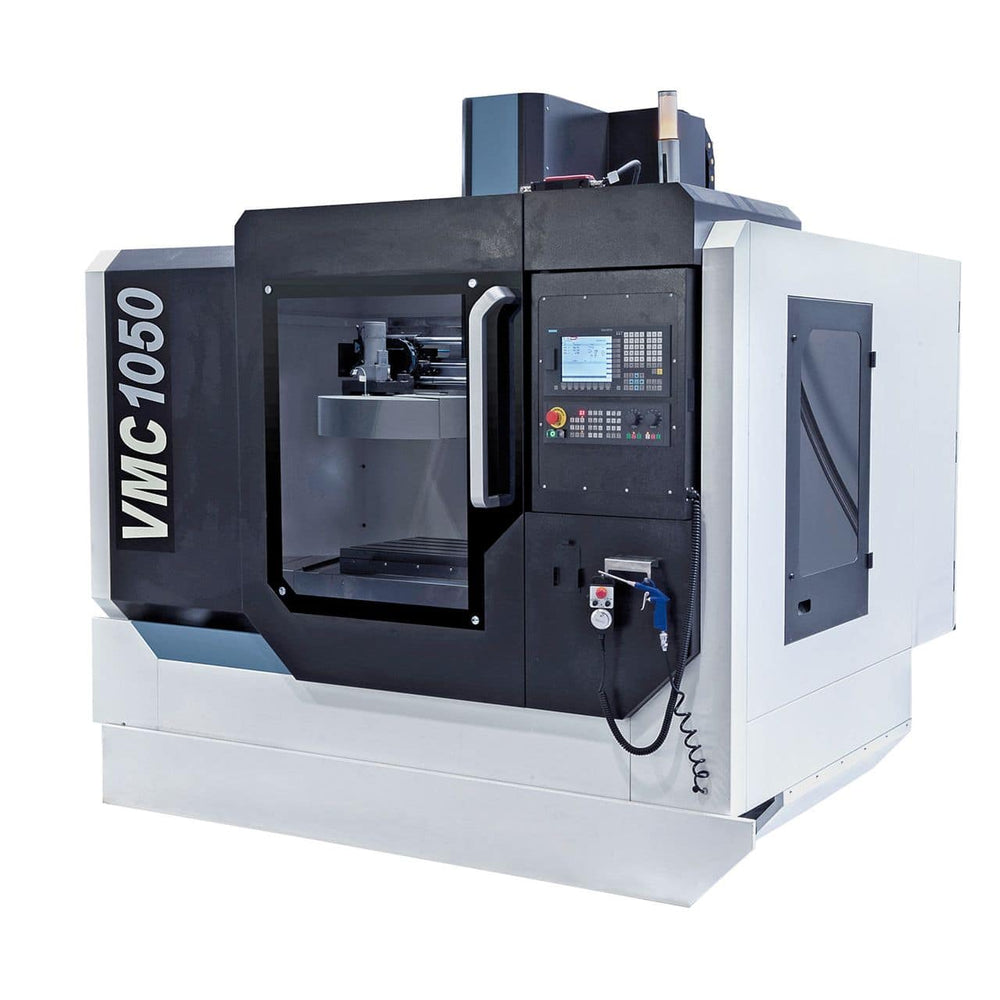

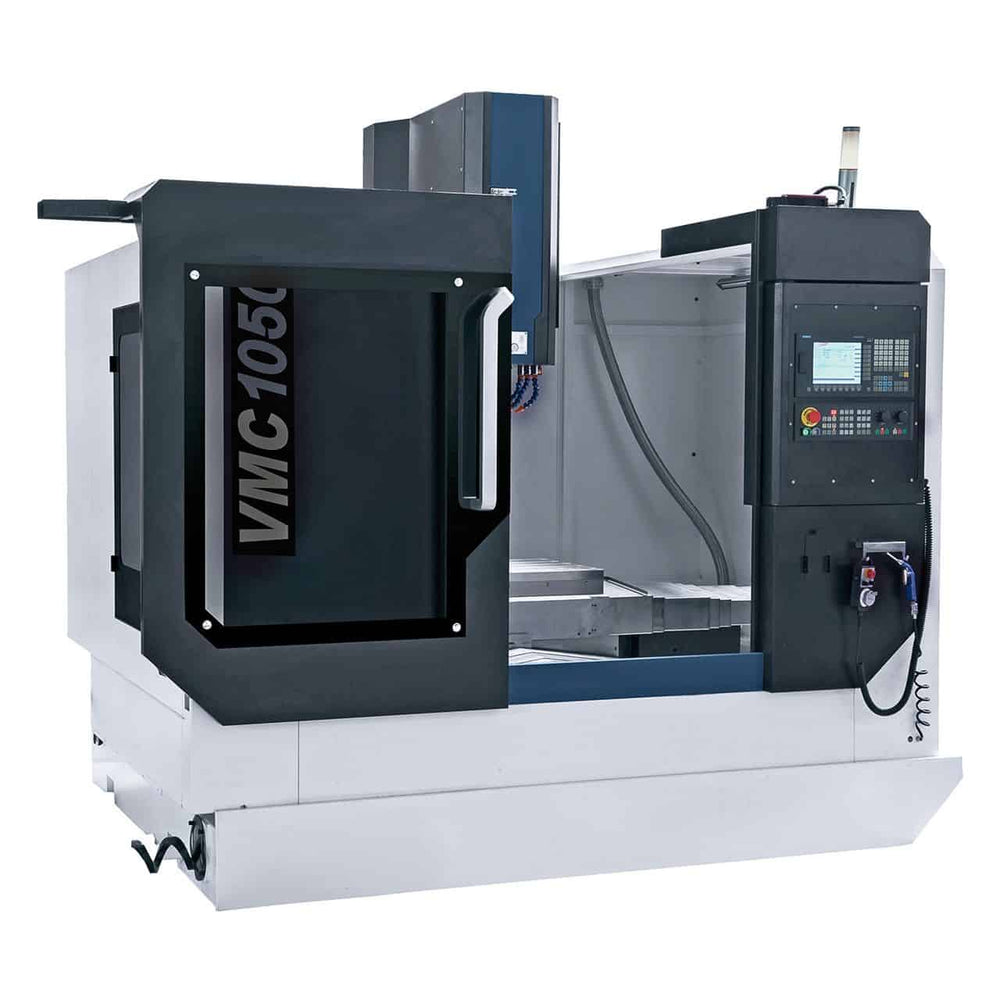

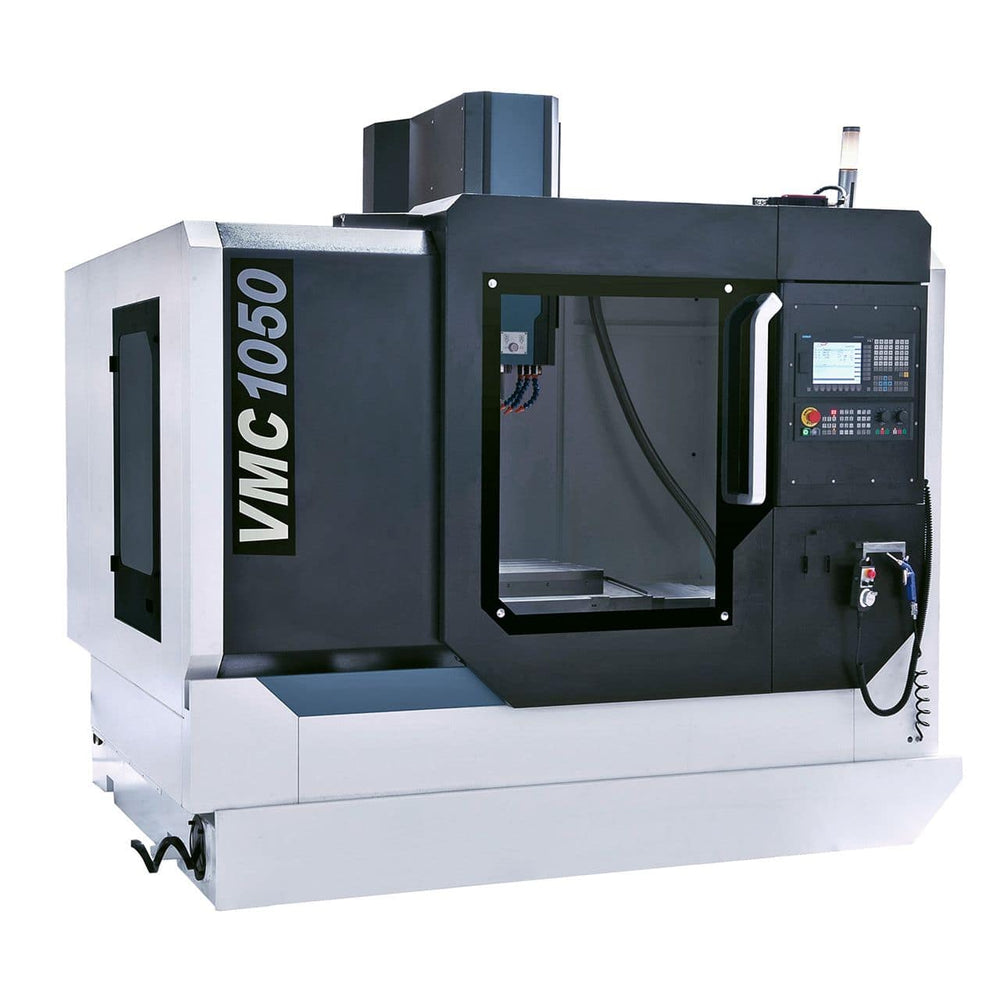

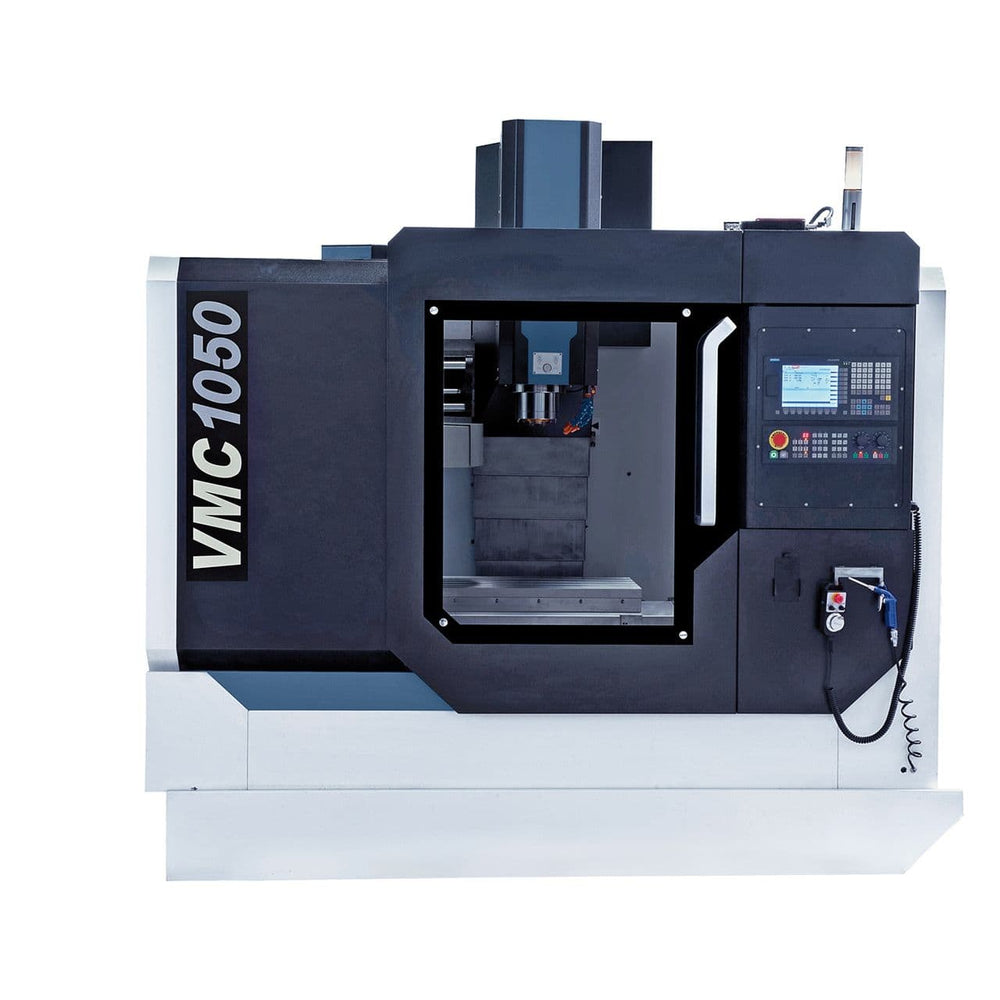

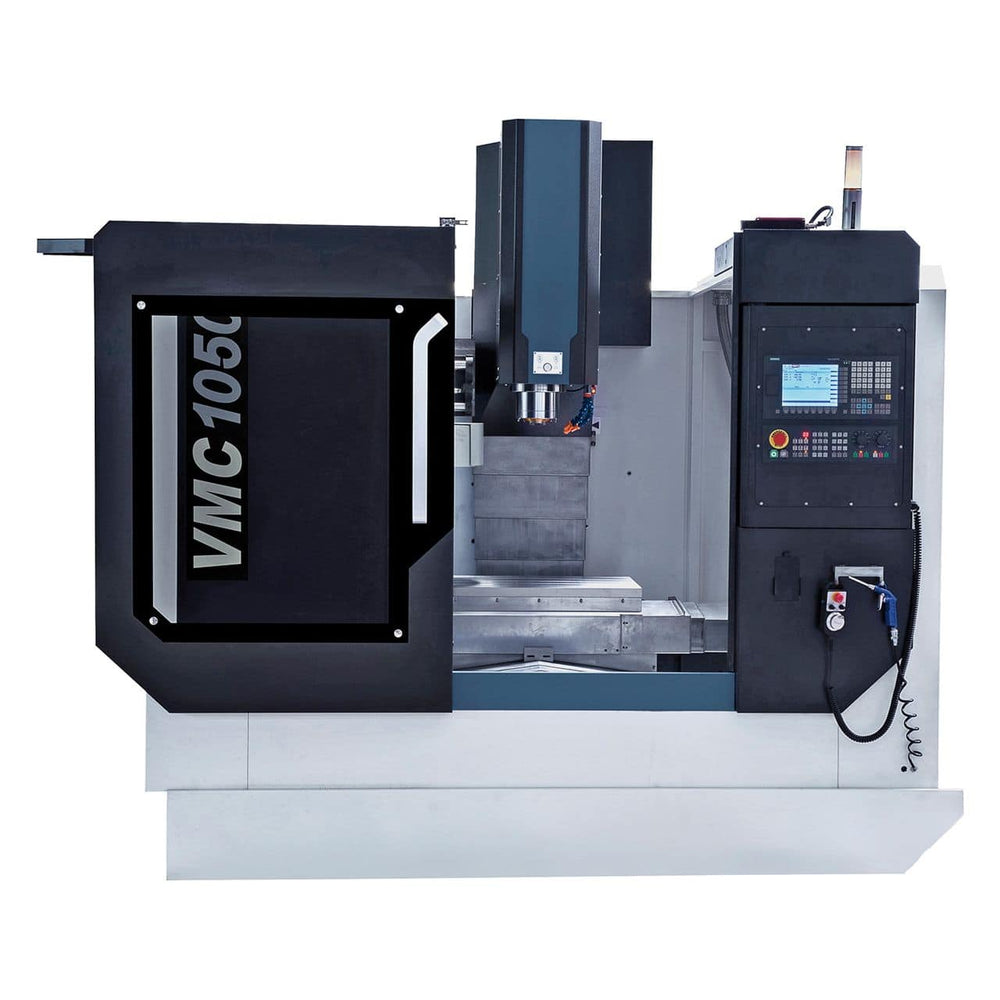

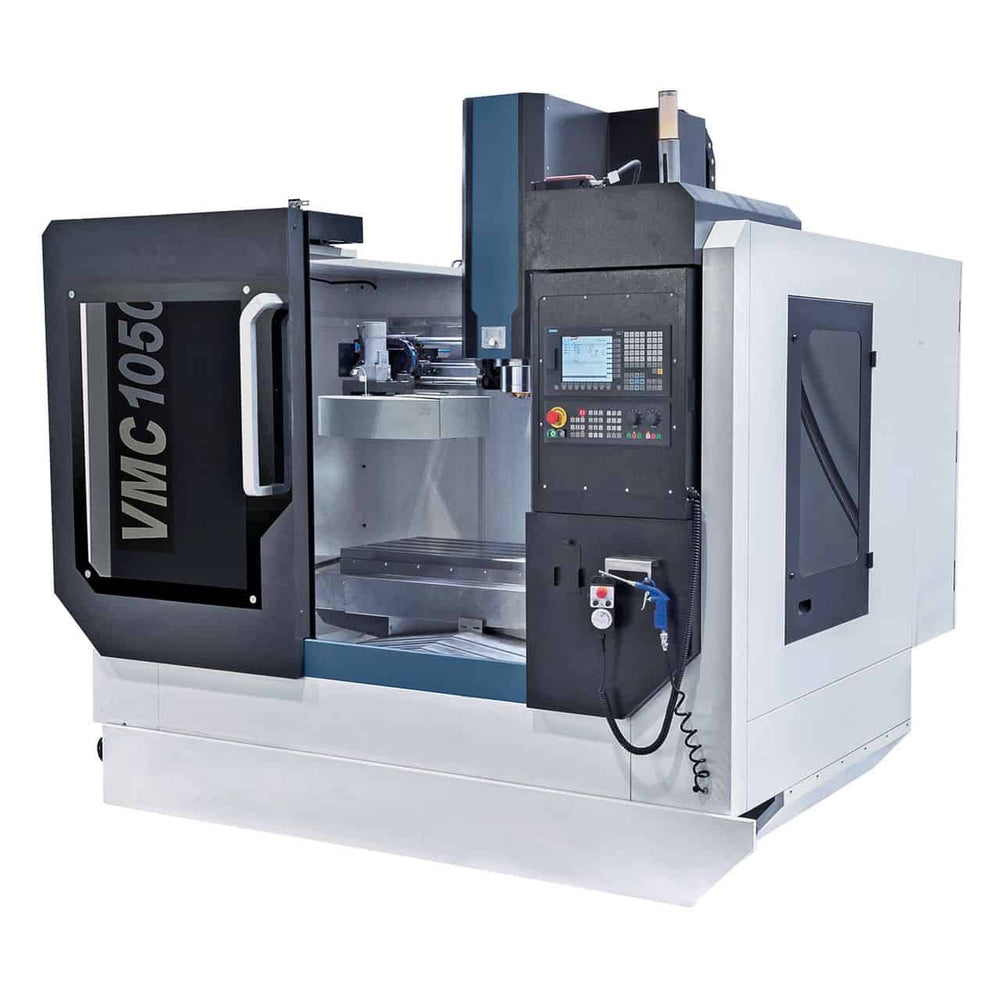

The VMC 1050 CNC vertical machining center is equipped with a Siemens Sinumerik 808D Advanced 16 or 828D control system and a 16-station tool changer. Thanks to its compact design, a table size of 1000 x 500 mm, and a large travel range, this model is ideal for small and medium-sized production runs, as well as for the manufacture of individual parts in mold and machine construction. This model is also used successfully in training.
Property
- Precision linear guides and powerful servo drives for high rapid travel speeds in all axes and high workpiece loads
- High profitability thanks to extensive standard equipment and a variety of optional accessories
- Stable cast iron frame with rigid bed construction for high operating smoothness and improved milling performance

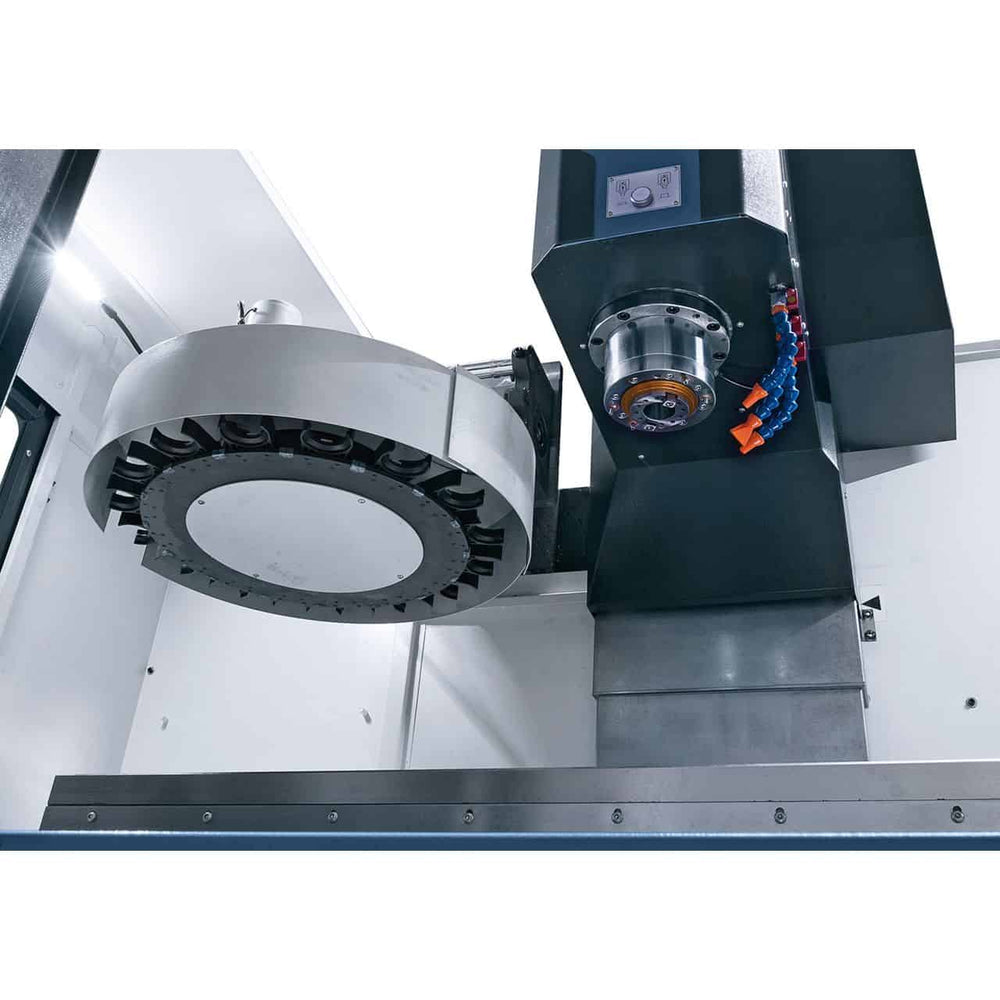

- 16-station automatic part changer with carousel construction
- Precision ball screw spindle with preloaded nuts in all 3 axes
- Full machine coverage with a sliding door on the front and 2 side doors for easy access
- Central lubrication for ball screw guides and spindles

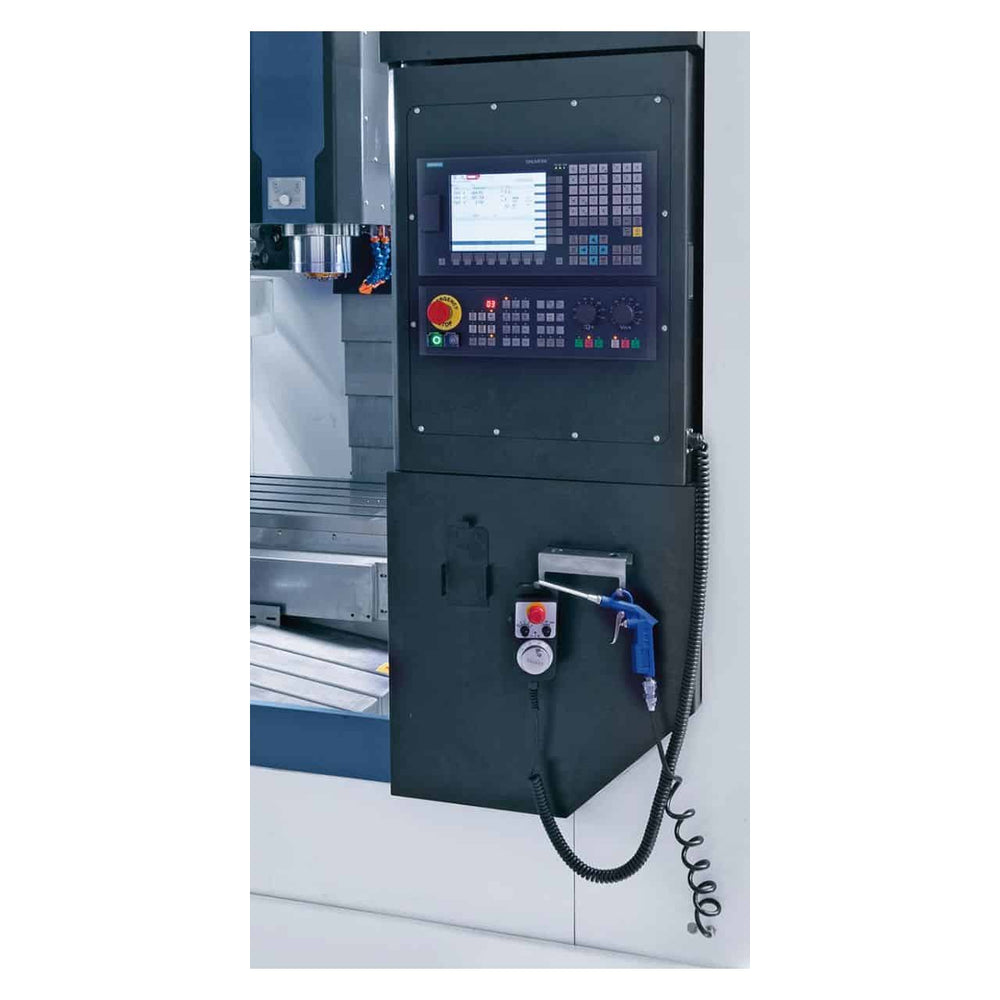

- Functional elements ergonomically positioned on the control panel
- Large and massive composite board, with a finely worked surface
Standard accessories
- Siemens Sinumerik control unit
- Prepared for mounting on a 4th axis
- Electronic handwheel with emergency stop button

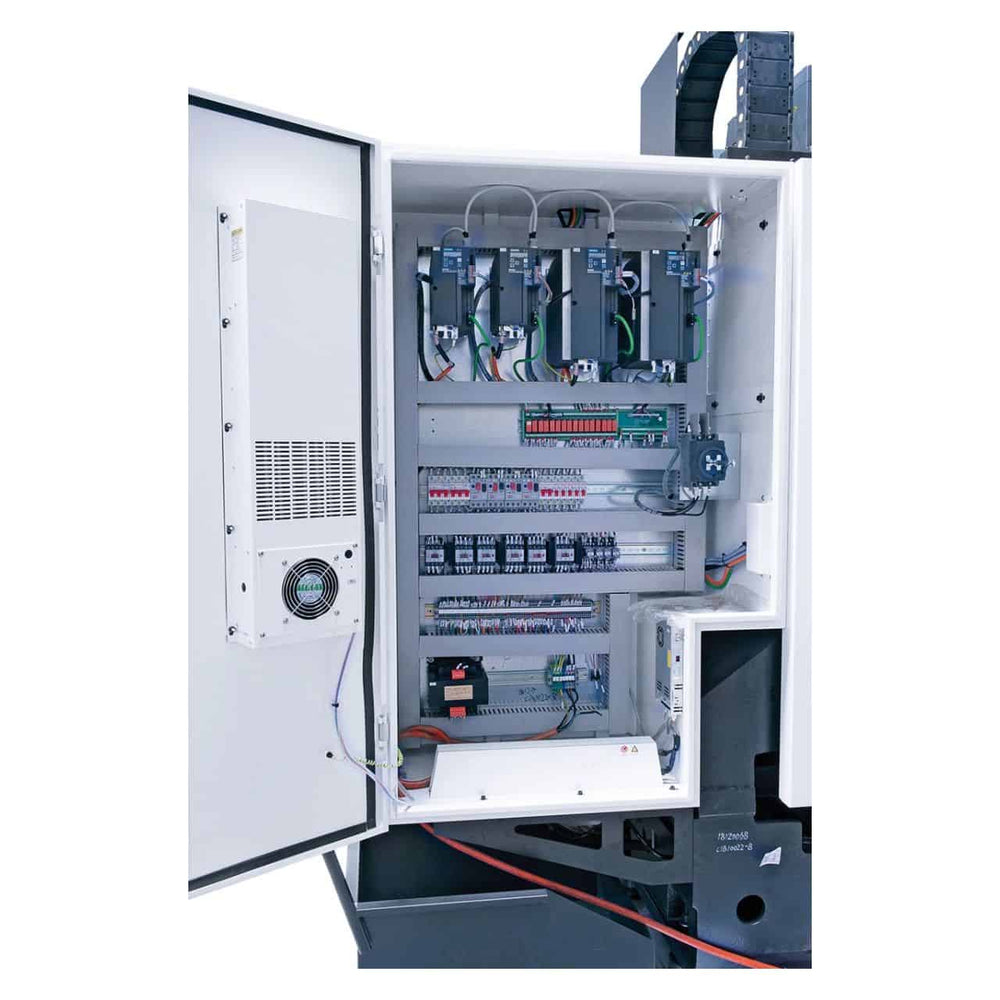

- Siemens servo drives for all 3 axes
- 16-Position Part Changer
- Spiral chip conveyor
- Precision linear guide in all axes
- Automatic spindle blowing function
- Automatic spindle orientation
- Full machine coverage with 1 sliding door
- CE safety glass
- Safety lock
- LED car light

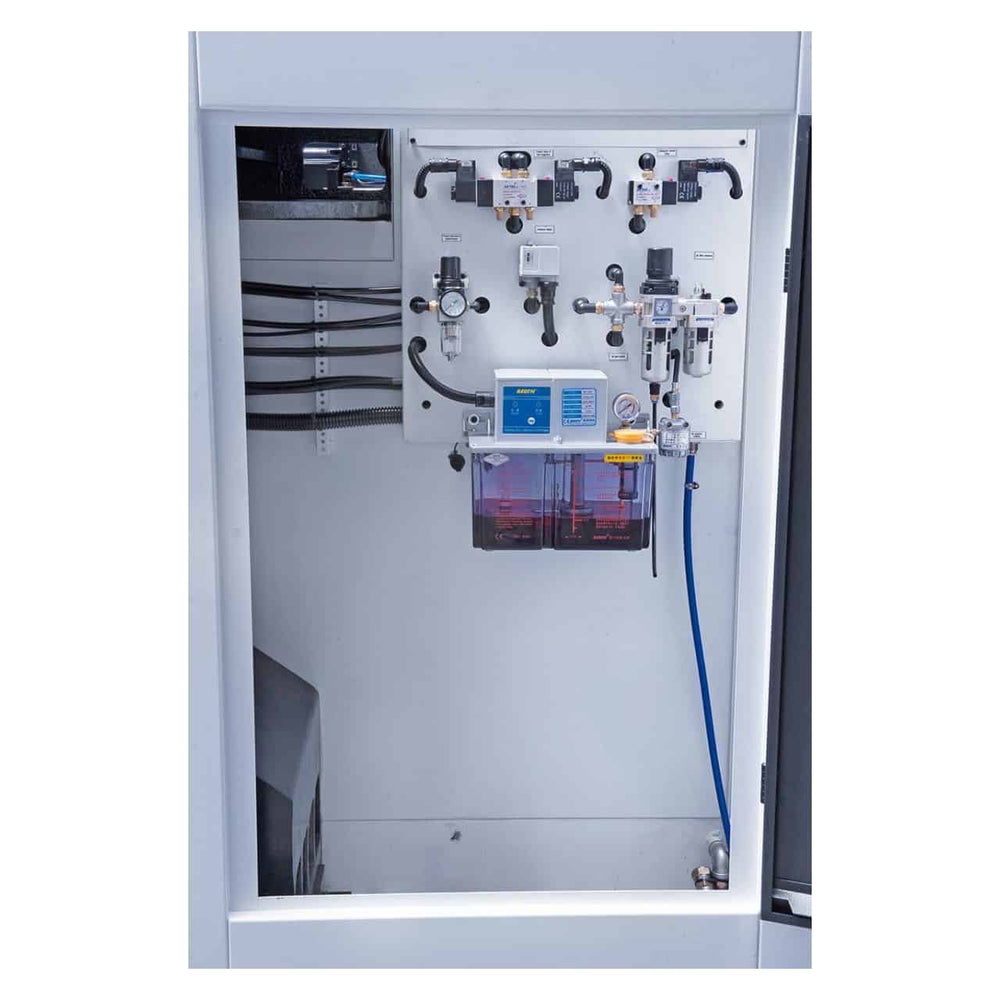

- Automatic central lubrication
- Manual compressed air gun

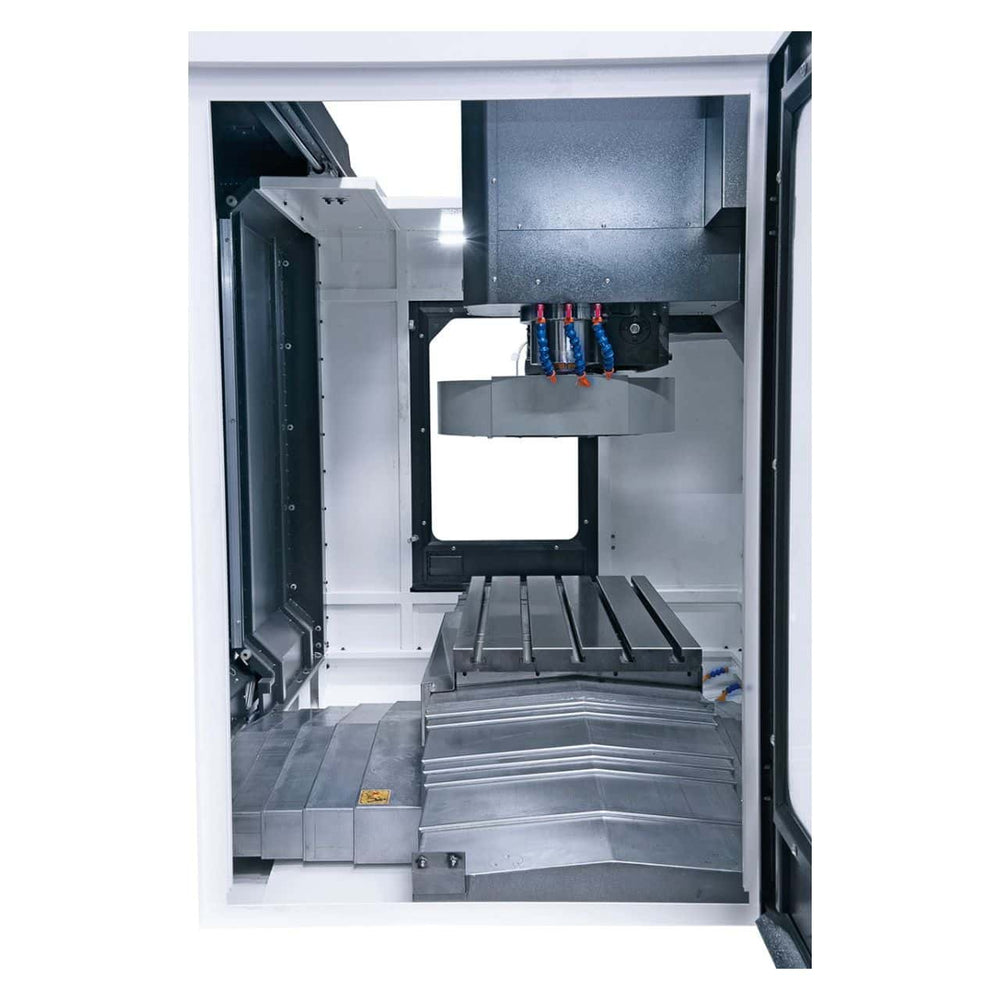

- Telescopic cover in x, y and z axis
- Refrigeration system
technical specifications
Work area |
|

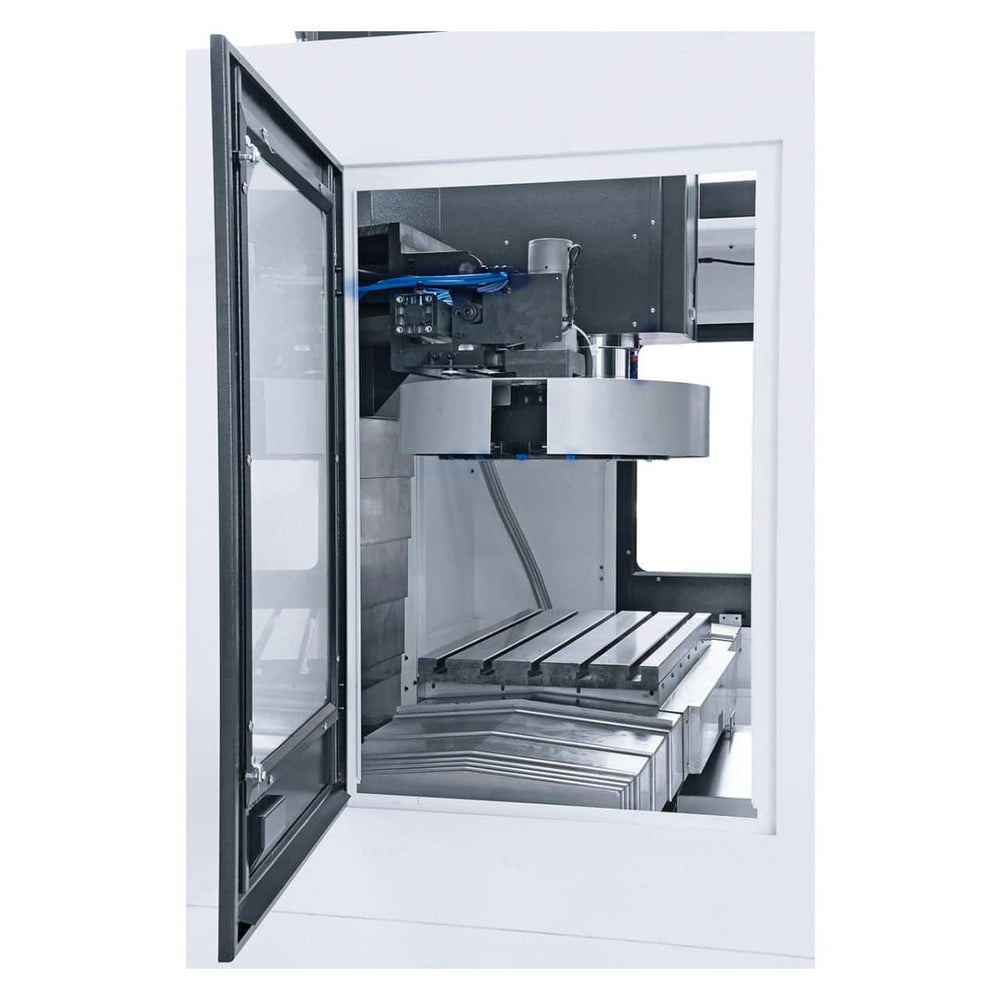

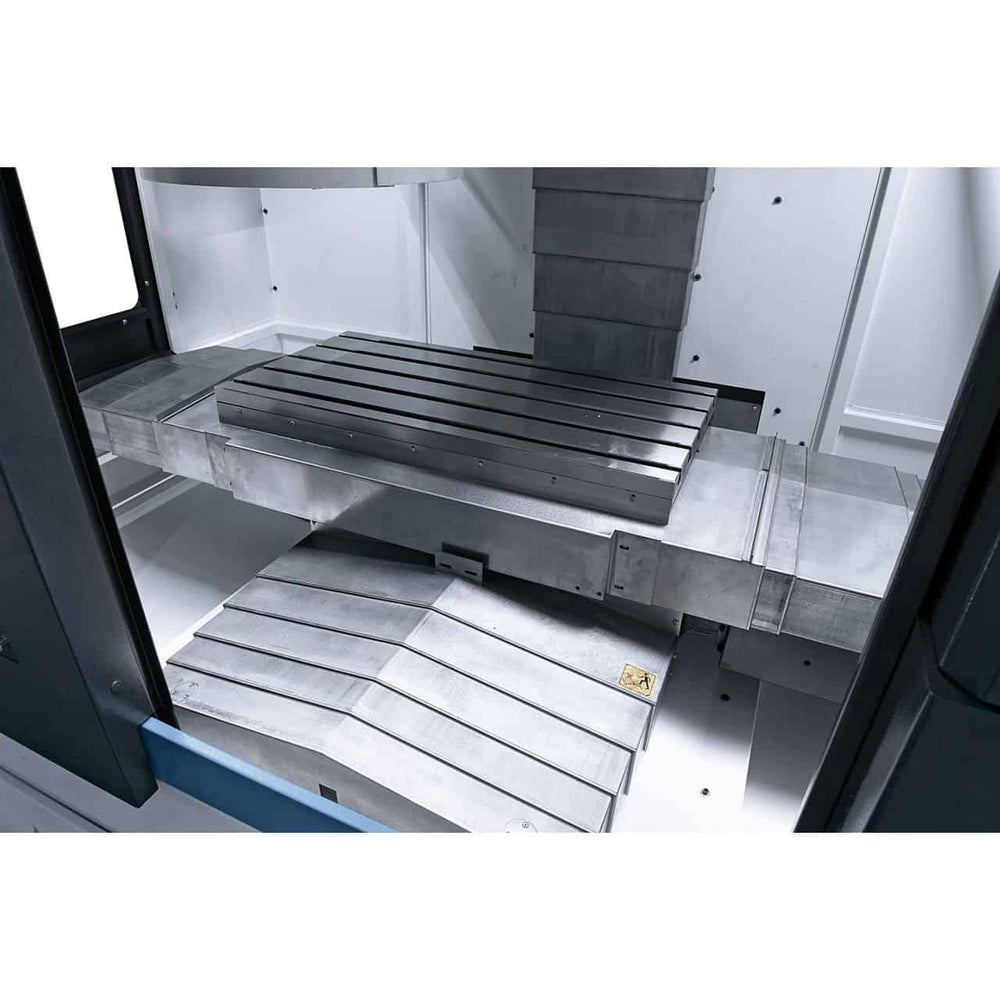

Table measurements |
1000 x 500 mm |
| Spindle attachment |
BT 40 |
Continuous spindle speed |
40 - 8000 rpm |
X-axis travel |
850 mm |
Y-axis travel |
500 mm |
Z-axis travel |
500 mm |
Distance between spindle nose and table surface |
110 - 610 mm |
Length of the arms |
560 mm |
Table loadability |
500 kg |
T-slots (number, width, spacing) |
5 / 18 / 100 mm |
Progress |
|
Work progress x, y and z axes |
10 - 10,000 mm/min |
Rapid travel on the x and y axes |
30,000 mm/min |
Z-axis rapid traverse |
24,000 mm/min |
| Accuracies |
|
Positioning accuracies |
± 0.005 mm |
Repeatability accuracies |
± 0.003 mm |
Tool holder |
|
Number of tool stations |
16 pcs. |
Tool dimensions Ø x L max. |
130 x 300 mm |
Max. tool weight |
8 kg |
Tool changeover time, tool/tool |
7 sec. |
Spindle motor power |
11.0 kW |
Machine dimensions (L x W x H) |
2500 x 2200 x 2400 mm |
Weight approx. |
5500 kg |
